ariro Jungle Gym User manual
We suggest 2 people take charge for the assembly.
Assembly takes 30-45 minutes. Involve your child in the assembly; this will give a sense of belonging and will warm the
child towards the gym.

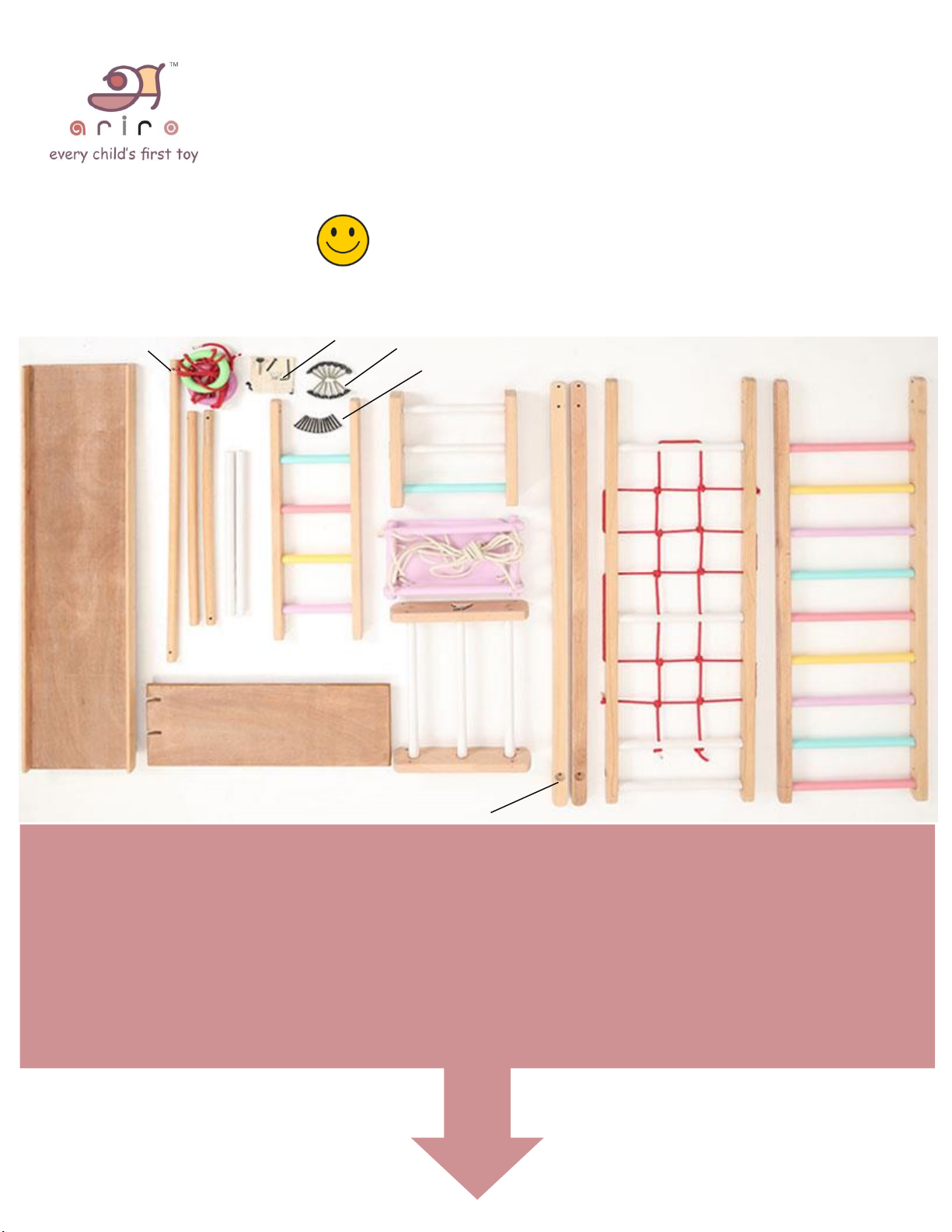

Unwrap the gym parts and place it as shown in the image for convenient assembly.
Secure all screws and knobs mildly during assembly. Tighten after you complete the assembly. DO NOT OVER TIGHTEN
Let us begin here
BABY LADDER
STEP LADDER
ROPE LADDER
WOODEN SWING
TOP SUPPORTER-1
WOODEN PLANK
WOODEN
SLIDER
TOP SUPPORTER-2
ALLEN KEY
KNOB SCREWS-13
GYMNASTIC RINGS
LONG SUPPORT ROD-1
SHORT SUPPORT RODS-2
WHITE SUPPORT RODS-2
ALLEN SCREWS-13
LEGS
JUNGLE GYM
INSTRUCTION MANUAL
Hi,
Thank you for getting me home
Hold the top supporter 1 (with the logo
facing towards you), as shown in the
picture.
Place the rope ladder on the left and the
step ladder on the right, of the top
supporter 1.
STEP 1
Always use knobs on one side of the gym
and screws on the other. Since knobs
enable you to fold the gym it is better to
keep them all on one side (either left or
right).
After screwing the knobs and screws the
ladders will form a V, this assembly can
stand by itself.
STEP 2
Take the top supporter –2 and place it as
shown in the image. The logo side of the
Top supporter 2 should face outwards.
STEP 3
Non-threaded side of
the ladders
Should be placed on
the logo side of the top
supporter 1
Threaded
2
Position the legs of the gym against the
Top-Supporter 2 as shown in the picture.
Ensure the groves in both the legs are
facing inwards. Secure the legs.
STEP 4
Place one short support rod against the
middle of the legs, as shown in the
image and secure it.
STEP 5
Place one long support rod at the
bottom of the legs, as shown in the
image and secure it.
STEP 6
3
Place one white support rod, between the
legs at the bottom, in the groves provide
as shown in the image.
Similarly, place the other white support
rod on the opposite side and secure it.
STEP 7
Now move to the ladder side of the gym.
Place the other short support rod in the
middle.
Secure only one end.
Now slide the baby ladder into the rod
as shown in the picture and secure the
other end of the rod.
STEP 8
Place the slider as shown in the image
STEP 9
4
Position the swing at the desired height
and secure the knots on all four points as
shown in the image.
STEP 10
Tie the gymnastic rings as shown.
STEP 11
Place the wooden plank as shown in the
image.
STEP 12
5

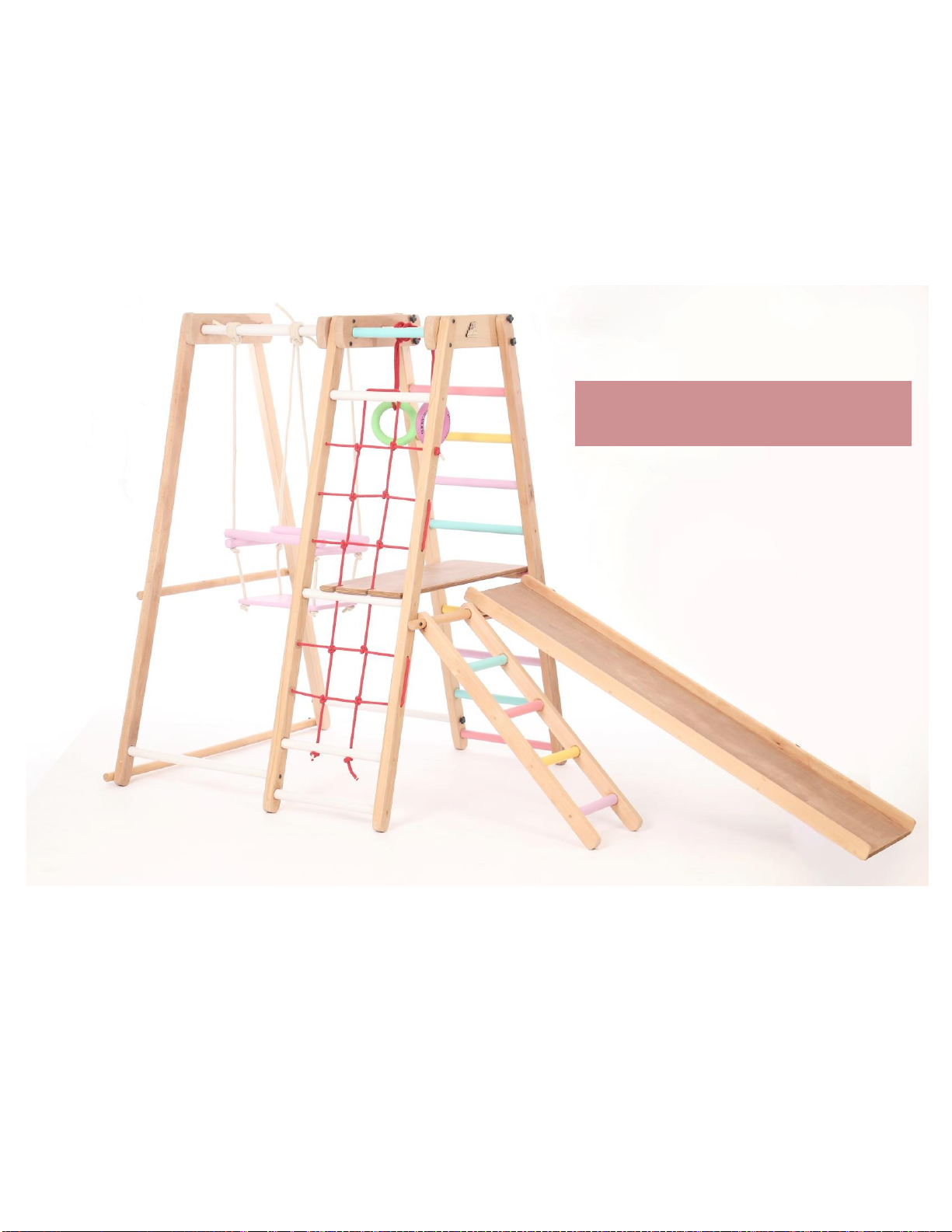

Happy Playing
Now gently tighten all the screws.
Don’t over tight the screws
WE CAN ASSIST YOU THROUGH
VIDEO CALL FOR ANY DOUBTS
