Ariston 80 L User manual

Technical Manual
H eat P ump W ater H eater - S plit
01/09/2011 Ver.1.2
80 l 100 l 110 l
Because of continuing product improvements, We reserve the right to change specifications without prior notice.
All maintenance operations and interventions should be performed by qualified personnel (i.e. with the necessary requirements
as outlined in the applicable norms in force).

2
TABLE OF CONTENTS
ONSTRU TION FEATURES
TE HNI AL LABELS
ELE TRI AL ONNE TIONS
TE HNI AL DATA TABLE
OPERATIONAL URVES
EXTERNAL UNIT OMPONENTS
• Sensors test table
INTERNAL UNIT OMPONENTS
HEAT PUMP START UP PRO EDURE
FUN TIONING MODES
OPTIONAL FUN TIONS
TROUBLESHOOTING
• Displayed faults
• Low gas checking
• Malfunctioning
APPENDIX A: INSTALLATION SITE INSPE TION
• Available installation accessories
APPENDIX B: ROUTINE MAINTENAN E

3
CONSTRUCTION FEATURES
The product is designed to ensure maximum energy saving without compromising final user comfort: the promise is to deliver
domestic hot water regardless the external conditions. Therefore the heat pump group preferably works without the electric
group aid; the heating resistance is switched on only when strictly necessary in order to reach the desired set point temperature
in time; the main board controls the heat pump and resistance state and determines when they shall be
switched on or off. The split configuration ensures space saving and noise isolation; moreover its layout avoids cooling
effect, ventilation constraints and permeability problems.
Internal unit c nstructi n features
MODEL 80 L MODEL 100 L MODEL 110 L
A 860 1002 1085
B Outlet hot water 1/2” pipe
Inlet hot water 1/2” pipe
D Inlet gas pipe 3/8 “
E Outlet gas pipe 1/4 “
F Gas connections housing cover
G Electrical connections, electronic boards and heating element housing
H Serial port housing
I ondenser
J Interface board
K Wall bracket

External unit c nstructi n features
The following accessories are included: Shielded
water of the external unit, d
rainage pipe for condensation water
documents, two 1/2” dielectric coupling, s
afety valve (8 bar)
Internal unit technical label
External unit technical label
A Fan
B Electrical connections housing
Gas connections
D Gas connections housing cover
E Hole for condensation drain
4
The following accessories are included: Shielded
sensor connection cable between units, c
onnection pipe for condensation
rainage pipe for condensation water
, wall hole protection,
Instruction manual and warranty
afety valve (8 bar)
, s
crews and rawlplugs for wall bracket
TECHNICAL LABELS
Descripti n
A model
B tank capacity
C serial no.
D
power supply voltage. frequency. maximum absorbed power
E
max./min. pressure of the refrigeration circuit
F tank protection
G absorbed power – heating element mode
H marks and symbols
I thermal power yielded in heat pump mode
L max./min. power in heat pump mode
M
type of refrigerant and charge
N maximum tank pressure
Descripti n
model
-
-
-
-
-
-
-
Level of protection
-
Type/quantity of refrigerant
-
Design pressure of the circuit
Serial number
onnection pipe for condensation
Instruction manual and warranty
crews and rawlplugs for wall bracket
.
power supply voltage. frequency. maximum absorbed power
max./min. pressure of the refrigeration circuit

5
ELECTRICAL CONNECTIONS
General electrical diagram
External unit (Heat Pump) electrical connections
SYMBOL DESCRIPTION
A Power supply
B Electronic filter
Interface board
D Heating element
E NT sensor for
heating element
zone
F Impressed current
anode
Ground connection
H Serial connection
board
I Mainboard
L Operation
condenser
M ompressor
N Fan
O Defrost four ways
valve
P Safety pressure
switch
Q hot water NT
sensor
R evaporator and inlet
air NT sensor
S Sensor connection
cable, supplied with
the product

6
TECHNICAL DATA TABLE
Description Unit of
measurement 80 L 100 L 110 L
INTERNAL UNIT
Rated tank capacity l 80 103 110
Insulation thickness mm ≈ 41 ≈ 41 ≈ 41
Type of internal tank protection enamelling
Type of corrosion protection titanium impressed current anode + disposable magnesium anode
Maximum operating pressure MPa 0,8
Diameter of hydraulic connections 1/2 M
Diameter of gas connections 1/4” & 3/8” flare type
Minimum water hardness °F 12 (with water softener, min 15°F)
Weight when empty kg 32 35 38
Heating element power W 1200 1200 1200
Protection rating IP24 IP24 IP24
Min. temperature of room of installation ° 1 1 1
EXTERNAL UNIT
Heat rating (*) W 1500
Average electrical power consumption (*) W 510
Max. electrical power consumption (*) W 750
Refrigerant connection diameter 1/4 & 3/8 flare type
Weight when empty kg 27
Standard air flow rate m3/h 1100
Sound power dB(A) 55
Level of sound pressure at 5 m dB(A) 39
Max. pressure of refrigerating circuit (low-
pressure side) MPa 1.2
Max. pressure of refrigerating circuit (high-
pressure side) MPa 2.7
Protection rating IP24
Minimum air temperature (***) ° -5
Maximum air temperature (***) ° 42
Gas connection maximum length m 6
Gas connection maximum drop m 3
Quantity of R134a refrigerant fluid g 700
PERFORMANCES Unit f
measurement 80 L 100 L 110 L
OP (*) 2,9 2,9 2,9
Heating time with heat pump (*) h:min 2:45 3:26 3:42
Heating energy consumption (*) kWh 1,20 1,53 1,64
Max. amount of hot water
in a single intake V40 (**)
Delivered at 55° l 95 130 144
Delivered at 62° l 113 152 169
Max. water temperature with heat pump ° 62 (55 factory default) 62 (55 factory default) 62 (55 factory default)
Max. water temperature with heating
element ° 75 (65 factory default) 75 (65 factory default) 75 (65 factory default)
QPr (over 24h) kWh 0,46 0,50 0,50
POWER SOURCE
Voltage / max. power consumption (*) V / W 220-240 single-phase / 1950
Frequency Hz 50
Max. current consumption A 8,5
(*) values obtained with air temperature of 7° , 87% relative humidity; input water temperature 15° , setting temperature 55 ° , in
compliance with EN255-3 norm.
(**) Performance measured for input water temperature 15° .
(***) outside of the heat pump’s interval of operation, heating of the water is ensured by the heating element..
Average value obtained on a significant number of products.

7
OPERATIONAL CURVES
onditions: inlet water temperature 15° , set water temperature 55° , air medium humidity 87% - Heating up Energy based on
air temperature (EN 255-3).
80 LITRES Mode: GREEN
Tair [°C] tH-Heating-up time [h:mm:ss] EH-Heating-up energy [kWh] COPt Qpr
-5 4.40.50 1,83 1,9 0,456
2 3.46.17 1,54 2,3 0,456
7 2.44.26 1,19 2,9 0,456
20 2.02.54 0,96 3,5 0,456
30 1.37.35 0,82 4,1 0,456
42 1.36.00 0,80 4,1 0,456
Max. am unt f h t water in a single intake
V40 with water at 55° 95 l (ratio 1,2)
V40 with water at 62° 113 l (ratio 1,41)

8
100 LITRES Mode: GREEN
Tair [°C] tH-Heating-up time [h:mm:ss] EH-Heating-up energy [kWh] COPt Qpr
-5 6.10.22 2,34 1,8 0,504
1 4.45.40 1,90 2,2 0,504
7 3.26.52 1,53 2,9 0,504
20 2.48.52 1,33 3,6 0,504
30 2.07.37 1,09 4,1 0,504
42 1.55.49 1,03 4,1 0,504
Max. am unt f h t water in a single intake
V40 with water at 55° 130 l (ratio 1,3)
V40 with water at 62° 152 l (ratio 1,52)

9
110 LITRES Mode: GREEN
Tair [°C] tH-Heating-up time [h:mm:ss] EH-Heating-up energy [kWh] COPt Qpr
-5 6.48.38 2,62 1,9 0,504
1 4.54.47 2,01 2,2 0,504
7 3.41.30 1,64 2,9 0,504
20 2.57.38 1,43 3,6 0,504
30 2.17.03 1,20 4,2 0,504
42 2.10.23 1,16 4,2 0,504
Max. am unt f h t water in a single intake
V40 with water at 55° 144lt (ratio 1,31)
V40 with water at 62° 169lt ( ratio 1,54 )

10
THERMODYNAMIC CYCLE
The heat pump water heater does not
directly heat water using electrical energy,
but makes a more rational use of the latter
to obtain the same result in a more efficient
manner, namely by consuming approx. 2/3
less water.
The efficiency of a heat pump cycle is
measured by the oefficient of Performance
( OP), i.e. the ratio between the energy
supplied to the appliance (in this case, the
heat transferred to the water to be heated)
and the electrical energy used (by the
compressor and the appliance's auxiliary
devices). The OP varies according to the
type of heat pump and to its relative
conditions of operation.
For example, a OP value equal to 3
indicates that for every 1 kWh of electrical
energy used, the heat pump supplies 3 kWh
of heat to the medium to be heated, of
which 2 kWh are extracted from the free
source.

11
EXTERNAL UNIT COMPONENTS
1 Air and Evaporator sensors
2 35 µF ompressor electrolytic capacitor
3 2,5 µF Fan apacitor
4 5 poles terminal block
5 4 way valve electromagnetic coil
6 evaporator
7 4 way valve
8 thermostatic valve
9 safety pressure switch
10 Gas pipe connection 1/4 “
11 Gas pipe connection 3/8 “ (includes a “service” connector for vacuum, charge, and pressure check)
12 hermetic rotary compressor
13 Fan support
14 fan motor
15 fan blades

12
C mpress r (*)
Inhales the gas from the evaporator and compresses it in the
condenser. Because of the job of compression, the vapor goes out of
the compressor with more pressure and strongly overheated.
Maintain the conditions of operation of the compressor within the
parameters brought in chart, if not respected, not only the
performances won't be optimal, but it could present malfunctions and
shortening of the life of the compressor.
Characteristic Unit Value
ompressor type - Rotary piston
N° motor poles Nr 2
displacement cm³ 12,2
Start condenser µF/V 15/400
Motor resistance Ω Main 5,84/Aux 7,62
Max quantity of refrigerant R-134a ( H2F F3) kg 0,9
Oil NE032/L22E or equivalents ml 270 ±20
Mass (oil included) kg 9,2
Power supply 1ph. 220-240V 50Hz
Power consumption W 475/490
urrent consumption A 2,3
Heating capacity W 1965/1980
Temperature conditions
Evaporation
°
10
ondensation 55
Inlet gas 20
Ambient 35,0
Liquid 46,7
The followings conditions are considered possible cause of risks:
• In the case of high or low tension with high ambient temperature (ex. 43° )
• Return of fluid in liquid phase in the compressor.
• Filling of the filter dehydrator.
Pipe stress: the copper pipeline in outlet of the compressor is subject to vibrations. To avoid breakups, the
constructor applies an insulating material that limits the oscillations (damper), make sure it is entire and is
not altered during maintenance/operations.
C mpress r start-up capacit r
The march capacitor has the purpose to start the compressor.
apacity (μF) Tension (V) Freq (Hz) Terminals
15 ± 5% 450 50/60 Faston 6.3mm
Dehydrat r filter (*)
The filter has two functions:
1 - absorbs the contaminants of the circuit as water and acid,
2 - makes a physical filtering.
The ability to remove the water from the circuit is the principal function of the filter.

13
Therm static valve (*)
Mainly constituted by a body valve, a capillary pipe and a bulb. The body valve is
installed on the pipeline of the gas before the evaporator, and the bulb is
positioned on the outlet pipe of the evaporator. the valve of lamination has the
assignment to reduce the pressure of the R134a. It causes sudden expansion with
change of state: the liquid begins to evaporate. The complete evaporation
happens in the evaporator and so the cycle is closed.
Evap rat r (*)
Inside the evaporator the fluid completes the passage of is from liquid to
vapor.
Evaporating absorbs heat from the air. The air "warm" taken by the
environment is carried on the evaporator through a fan. The air crossing
the evaporator heats the fluid. This air "cold" is expelled through the exit
of the air.
It is mandat ry t clean the evap rat r n an annual basis in rder t
rem ve any dust r bstructi ns.
Sens rs NTC (with tuning)
In case of errors of the sensors, excluding other possible causes, verify the correct tuning of the sensors measuring the value of
resistance at the terminals, with different values of temperature, and compare, it with the value brought in the chart below.
The hot water sensor measures the real temperature of the water available for picking from the reservoir.
SENSOR TEST TABLE - Values f resistance in relati nship t the temperature
Temperature (°C)
Resistance (kΩ)
Internal unit External unit
Heating element sens rs H t water sens r Air sens r evap rat r sens r
-20 67,77 67,77 67,77 36,69
-15 53,41 53,41 53,41 28,55
-10 42,47 42,47 42,47 22,40
-5 33,90 33,90 33,90 17,72
0 27,28 27,28 27,28 14,11
5 22,02 22,02 22,02 11,31
10 17,93 17,93 17,93 9,12
15 14,67 14,67 14,67 7,54
20 12,08 12,08 12,08 6,11
25 10,00 10,00 10,00 5,00
30 8,31 8,31 8,31 4,12
35 6,95 6,95 6,95 3,42
40 5,83 5,83 5,83 2,86
45 4,92 4,92 4,92 2,40
50 4,16 4,16 4,16 2,03
55 3,54 3,54 3,54 1,73
60 3,01 3,01 3,01 1,47
65 2,59 2,59 2,59 1,26
70 2,23 2,23 2,23 1,08
75 1,92 1,92 1,92 0,94
80 1,67 1,67 1,67 0,81
85 1,45 1,45 1,45 0,70
90 1,27 1,27 1,27 0,61
95 1,11 1,11 1,11 0,53
100 0,97 0,97 0,97 0,47
105 0,86 0,86 0,86 0,41
110 0,76 0,76 0,76 0,36

14
Sens rs p siti ning
External unit
Evaporator sensor Air sensor
Internal unit
Hot water sensor Heating element zone sensors
Fan
- 220-240 V
- 50 Hz
- 10 W
- 500 rpm
- B lass
- IP44
- 3 blades
- A
The centrifugal fan is on/off type, 1100 m³/h.
Fan start-up capacit r
The march capacitor has the purpose to start the fan.
apacity (μF) Tension (V) Freq (Hz) Terminals
1,0 ± 5% 450 50/60 Faston 6.3mm

15
F ur ways valve (*)
It is the valve that actives the DEFROST process, it canalizes the fluid overheated
coming from the compressor in the evaporator through a capillary, in order to heat
the evaporator and melt the ice that clogged it.
The valve, is magnetically opened by the spool that receives the electric signal from
the electronic card "mainboard."
During the normal heating cycle, the valve is OFF, the alimentation occurs only in
Defrost cycle.
Refrigerant fluid R-134 a
The heat transfer is materially effectuated by refrigerant fluid that circulates within the circuit, called circuit refrigerator.
A refrigerant fluid has therefore the characteristic to absorb heat, evaporating on reduced temperatures and, subsequently,
gives this heat condensing to a temperature and a more elevated pressure.
The refrigerant fluid circulates inside the circuit by the action of the compressor.
The fluid HF R-134 is less toxic in comparison to other F s and H F s, is not harmful for the ozone and not polluting, it owns
however an energetic efficiency and an equivalent refrigerant ability.
According to the standard 34 ASHRAEs this fluid reenters in the category A1 and therefore it is not inflammable in
environmental conditions of 1 atm and 18 ° , but, it is very dangerous to operate welds, braising or to expose to flames, the
product containing R-134.
Is f rbidden to change the gas quantity inside the unit; in case of leakage suspicion, it’s mandatory to empty the circuit, make
the vacuum and a new charge in accordance with the quantity indicated on the external unit technical label.
(*) The substitution of these components involves the emptying and the recharge of the circuit refrigerator.
These operations must be effected exclusively by experienced personnel.
USE ONLY ORIGINAL SPARE PARTS.

16
INTERNAL UNIT COMPONENTS
80-100-110 litres
1 External metal sheet
2 Top plastic cover
3 Water tank
4 Wall bracket
5 ondenser
6 Water pipes (IN-OUT)
7 Gas connections (IN-
OUT)
8 Safety valve 8 bar
9
Flange with gasket
and Pro-tech
titanium anode
10 Magnesium anode
(start up anode)
11
Heating element
(electrical resistance
1200 W)
12 Wall installation
spacer
13 Gas connection
plastic cover
14 Hot water sensor
15 Heating element
zone sensors
16 Serial comm. Board
17 Mainboard
18 Serial comm. Board
plastic cover
19 Power cable with
plug
20 Anti noise filter
21 Brand label
22 Interface plastic
support
23 Interface cover
24 knob
25 Display board
26 Bottom plastic cover

17
Anti-n ise filter
It filters possible electric disturbs coming from the mains.
Box Plastics, component sealed with resin auto extinguisher
Terminals 5 Faston 6,3x0,8mm
Tension 125/250Vac
urrent 16A (40° )
temperatures interval of operation -25° /+100°
Dispersion current 2.3mA
C ndenser (C mp nent n t supplied as spare part)
The condenser is wrapped around the tank
It receives high pressure and temperature vapor from the compressor.
Inside it the refrigerant liquid changes its physical state. It passes from vapor to liquid losing heat (given to
the water) during the state passage, the quantity of heat it is equal to the sum of the absorbed heat in the
evaporator and of the heat energy of the compression.

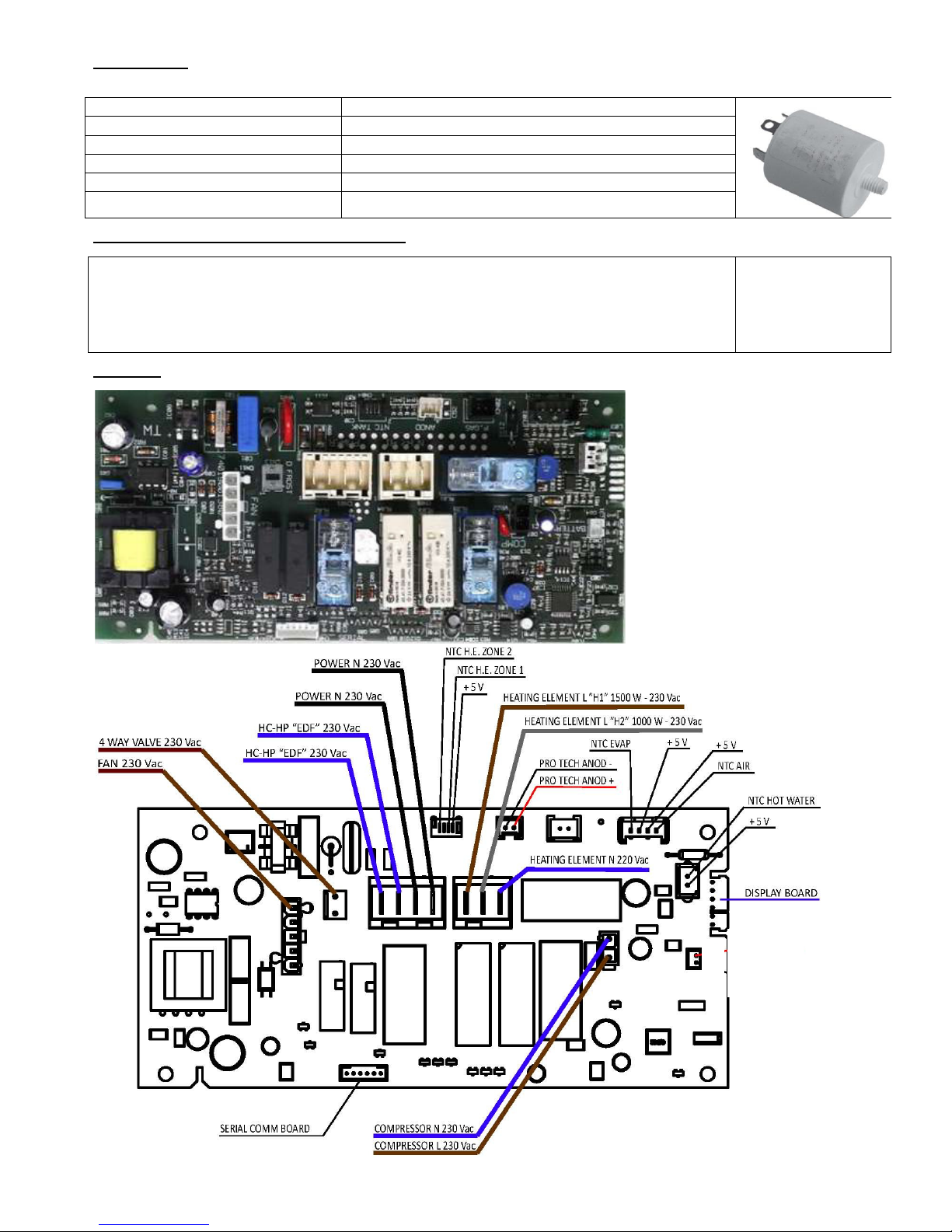

Mainb ard

18
PRO-TECH An de + Magnesium an de
The exclusive PROfessional TE h system solution is an anodic anti-corrosion electronic protection system with a modulated
current (24 V).
It ensures maximum durability in terms of the boiler used in the water heater. The electronic circuit creates a difference in
potential between the boiler and the titanium electrode, so that optimal boiler protection is guaranteed, thereby preventing its
corrosion.
The magnesium anode is intended as a “start up” protection and is not necessary to replace it, in fact the permanent protection
is ensured by electrically connected PRO-TE H anode.
BEWARE! when the product is not supplied via power line, the product is not protected by the Pro-tech anode.
USE ONLY ORIGINAL SPARE PARTS.

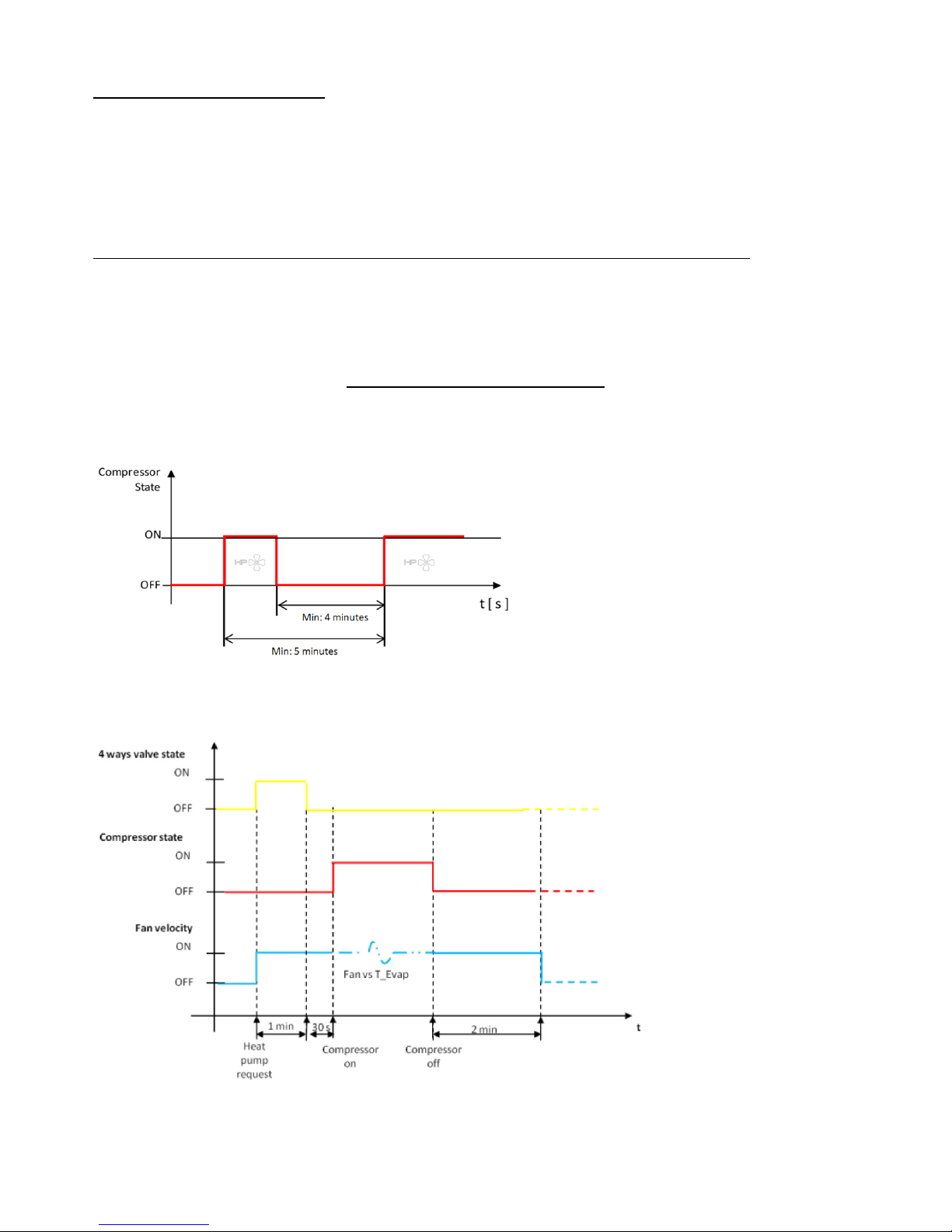

HEAT PUMP START-UP PROCEDURE
ompressor safety times: the minimum time between an heat pump start up and the other is 5 minutes; the minimum “rest”
time (OFF time) is 4 minutes.
Heat pump start up procedure: how to check the correct components sound timings.

19
FUNCTIONING MODES
H w t ch se the m de
Pressing the MODE button is possible to switch between functioning modes in this sequence:
H w t navigate menu Inf and Installer menu
The menu “info” (L) regards the information about device status, in the menu “Installer” (P/ ) is possible to change time and
temperature settings, functioning mode activation. The parameters “ ” is intended for the maintenance of the product.

20
AUTO m de
This mode is available by default and is the starting working mode set by factory.
Recommended for winter to ensure the better comfort.
AUTO mode heats the water with a rational use of the heat pump and, only if necessary, of the
electrical resistance, according to these two parameters: T
set-point
and Time_W.
In the case of the available power supply time is less than Time_W, the time employed to reach
the T
set
-
point
will be automatically
adapted to the effective alimentation period.
Useful parameters:
Parameter Descripti n/Functi ning Range Default
value
T
set-p int
The desired temperature for the hot water can be set by turning the knob clockwise or anti-
clockwise. T
min
÷ T
max
55 °
T
max
Installer menu parameter P1 - Adjustment of the maximum obtainable temperature. 65 ° ÷ 75 ° 65 °
T
min
Installer menu parameter P2 - Adjustment of the minimum obtainable temperature. 40 ° ÷ 50 ° 50 °
T
HP
Installer menu parameter P3 - Adjustment of the maximum temperature obtainable with the
heat pump unit. 50 ° ÷ 62 ° 55 °
T
water
The temperature of the water in the tank, to visualize press and release the knob; the
relative value will appear for 8 seconds then the set temperature will reappear. - -
Time_W Installer menu parameter P9 - Maximum number of hours of daily heating. 5 h ÷ 24 h 8 h
Legend:
HP: Heat pump
HE: Electrical resistance (1200 W)
