Ariston NEXT OUTDOOR EVO User manual

NEXT 。UTD。。REV。
H。TER I HEATING I RENEWABLE I AIR CONDITI。NING
’

 

User’s manual
General warnings ........................................................3
Safety regulations........................................................4
Remote Control ...........................................................5
Display.........................................................................5
Ignition procedure........................................................6
Water temperature adjustment ....................................6
Bath Function .............................................................6
Switching off procedure ............................................... 7
Appliance shut-off conditions.......................................7
Anti-freeze protection ..................................................7

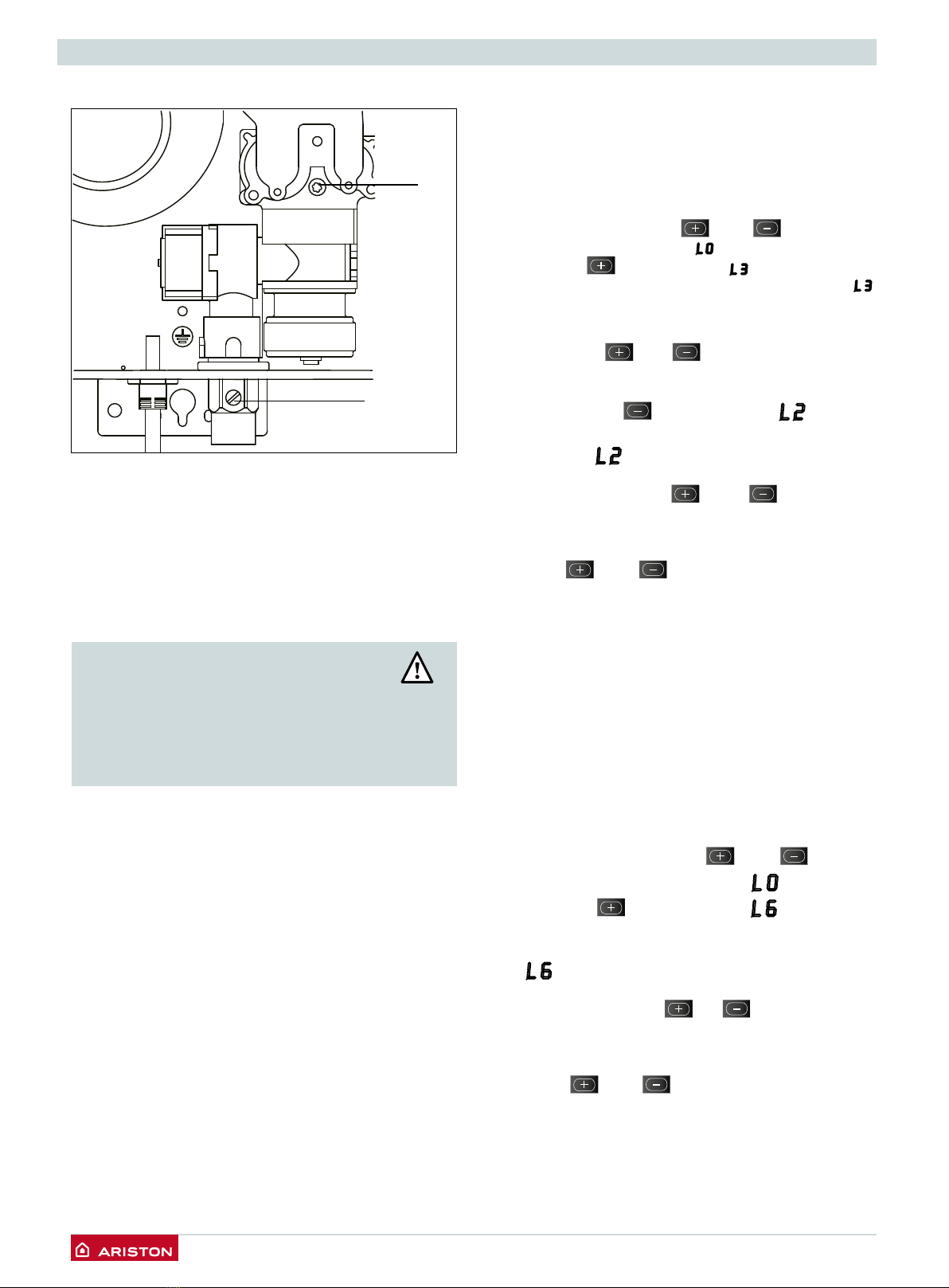

Change gas type .........................................................7
Maintenance................................................................ 7
Installation and servicing instructions
........................ 8
Dear Customer,
Thank you for choosing an
heate
e guarantee that your instantaneous water heater
is a reliable and technically sound product.
This manual provides detailed instructions and
recommendations for proper installation, use and
maintenance.
Remember to keep this manual in a safe place for
future reference i.e. by the gas mete
Your local ARISTON Servicing Centre is at your
complete disposal for all requirements.
ARISTON gas water
W
r.
.r

/ 3
USER’S MANUAL
Per informazioni
199 111 222
This book (user’s and installation manual) is
an integral and essential component of the
product.
Must be kept carefully by you and will always
accompany the appliance in the event of
its sale to another owner or user and / or
transfer to another installation.
Carefully read the instructions and warnings
contained in this manual as it contain
important information about safe installation,
operation and maintenance
This appliance is designed to produce hot water for
domestic use.
It should be connected to a distribution network for
domestic hot water that must be compatible with its
performance and power levels.
The use of the appliance for purposes other than those
be held responsible for any damage caused by improper,
incorrect and unreasonable use of the appliance or by the
failure to comply with the instructions given in this manual.
Installation, maintenance and all other interventions
must be carried out in full conformity with the governing
legal regulations and the instructions provided by the
manufacturer.
Incorrect installation can harm persons, animals and
possessions; the manufacturing company shall not be
held responsible for any damage caused as a result.
In the event of a fault and/or malfunction, turn the
appliance off, turn off the gas cock and do not attempt to
Before any maintenance or repair work is performed on
the appliance, make sure you have disconnected it from
the electricity supply by switching the external bipolar
switch to the “OFF” position and removing the fuse.
All repairs, which should only be performed using
professional.
Failure to comply with the above instructions could
compromise the safety of the appliance and invalidate all
liability on the part of the manufacturer
In the event of any maintenance or other structural work
devices and their accessories, switch the appliance off by
switching the external bipolar switch to the “OFF” position
and shutting off the gas control valve.
devices.
If the appliance should be out of use for a prolonged
period, it is recommended that the electrical power supply
be disconnected and that the external gas cock be closed.
If low temperatures are expected, the appliance and
system pipe work should be drained in order to prevent
frost damage.
When permanently deactivating the appliance, make sure
professional.
Turn the appliace off and turn the external switch “OFF” to
clean the exterior parts of the appliance.
oh the appliance.
Do not allow children or inexperienced persons to use
the appliance without supervision.
The appliance is not to be used by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction
children being supervised not to play with the appliance.
Disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
WARNING!!
Water with a temperature higher than 50°
cause serious burns.
Always verify water temperature before
use..
WARNING!!
The device must be activated only in
presence of water in the exchanger.
IMPORTANT!!
If the appliance is installed in a hard water area
(> 200 mg/l), a softener should be installed to
limit the amount of limescale building up in the
heat exchanger.
The guarantee does not cover damage
caused by limescale.

4/
USER’S MANUAL
This appliance can be used by children aged
from 8 years and above and person with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Safety regulations
Key to symbols:
Failure to comply with this warning
implies the risk of personal injury, in some
circumstances even fatal
Failure to comply with this warning
implies the risk of damage, in some
circumstances even serious, to property,
plants or animals.
Do not perform operations which involve
opening the appliance.
Electrocution from live components.
Personal injury caused by burns due to
overheated components, or wounds caused by
sharp edges or protrusions.
Do not perform operations which involve
removing the appliance from its installation
space .
Electrocution from live components.
Explosions, res or intoxication caused by
gas leaking from disconnected piping.
Flooding caused by water leaking from
disconnected piping.
Do not damage the power supply cable.
Electrocution from live uninsulated wires.
Do not leave anything on top of the
appliance.
Personal injury caused by an object falling
off the appliance as a result of vibrations.
Damage to the appliance or items
underneath it caused by the object falling
off as a result of vibrations.
Do not climb onto the appliance.
Personal injury caused by the appliance
falling.
Damage to the appliance or any objects
underneath it caused by the appliance
falling away from its installation space.
Do not climb onto chairs, stools, ladders or
unstable supports to clean the appliance.
Personal injury caused by falling from
a height or cuts (stepladders shutting
accidentally).
Do not attempt to clean the appliance without
rst switching it off and turning the external
switch to the OFF position.
Electrocution from live components.
Do not use insecticides, solvents or
aggressive detergents to clean the
appliance.
Damage to plastic and painted parts.
Do not use the appliance for any use
other than normal domestic use.
Damage to the appliance caused by
operation overload.
Damage caused to objects treated
inappropriately.
Do not allow children or inexperienced
individuals to operate the appliance.
Damage to the appliance caused by
improper use.
If you detect a smell of burning or smoke
coming from the appliance, disconnect it
from the electricity supply, turn off the main
gas valve, open all windows and call for
assistance.
Personal injury caused by burns, smoke
inhalation, intoxication.
If there is a strong smell of gas, turn off the
main gas valve, open all windows and call
for assistance.
Explosions, res or intoxication.
Do not damage or remove seals on
components. Only a qualied technician
is authorized to make modications to the
sealed components.
If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the
manufacturer or its service agent.

/ 5
USER’S MANUAL
Display
WARNING
INSTALLATION, FIRST IGNITION AND
MAINTENANCE WORK MUST BE
PERFORMED BY QUALIFIED PERSONNEL
ONLY, IN ACCORDANCE WITH THE
INSTRUCTIONS PROVIDED.
INCORRECT INSTALLATION MAY HARM
INDIVIDUALS, ANIMALS OR PROPERTY;
THE MANUFACTURER WILL NOT BE HELD
RESPONSIBLE FOR ANY DAMAGE CAUSED
AS A RESULT.
THE APPLIANCE MUST BE INSTALLED
OUTDOORS, IN THE OPEN AIR, WITH
NATURAL VENTILATION. COMBUSTION
PRODUCTS MUST BE DISPERSED BY
MEANS OF NATURAL CONVECTION OR BY
THE WIND.
- Water temperature indication (°C)
- Water amount indication
(Bath function)
- Signal error codes
Withdrawal in progress
Flame presence signal
Fun active
The display shows the set
temperature
Reset procedure in progress
Fume discharge fault
Remote Control
WARNING!!
THE APPLIANCE EXHAUST END PIECE
MUST BE FREE FROM OBSTRUCTIONS
IN ORDER TO GUARANTEE CORRECT
EXPULSION OF FLUE GASES.
3
4
2
1
5
Legend:
1. Bath button
2. ON/OFF button
3. Temperature Buttons +
4. Temperature Buttons -
5. Display

6/
USER’S MANUAL

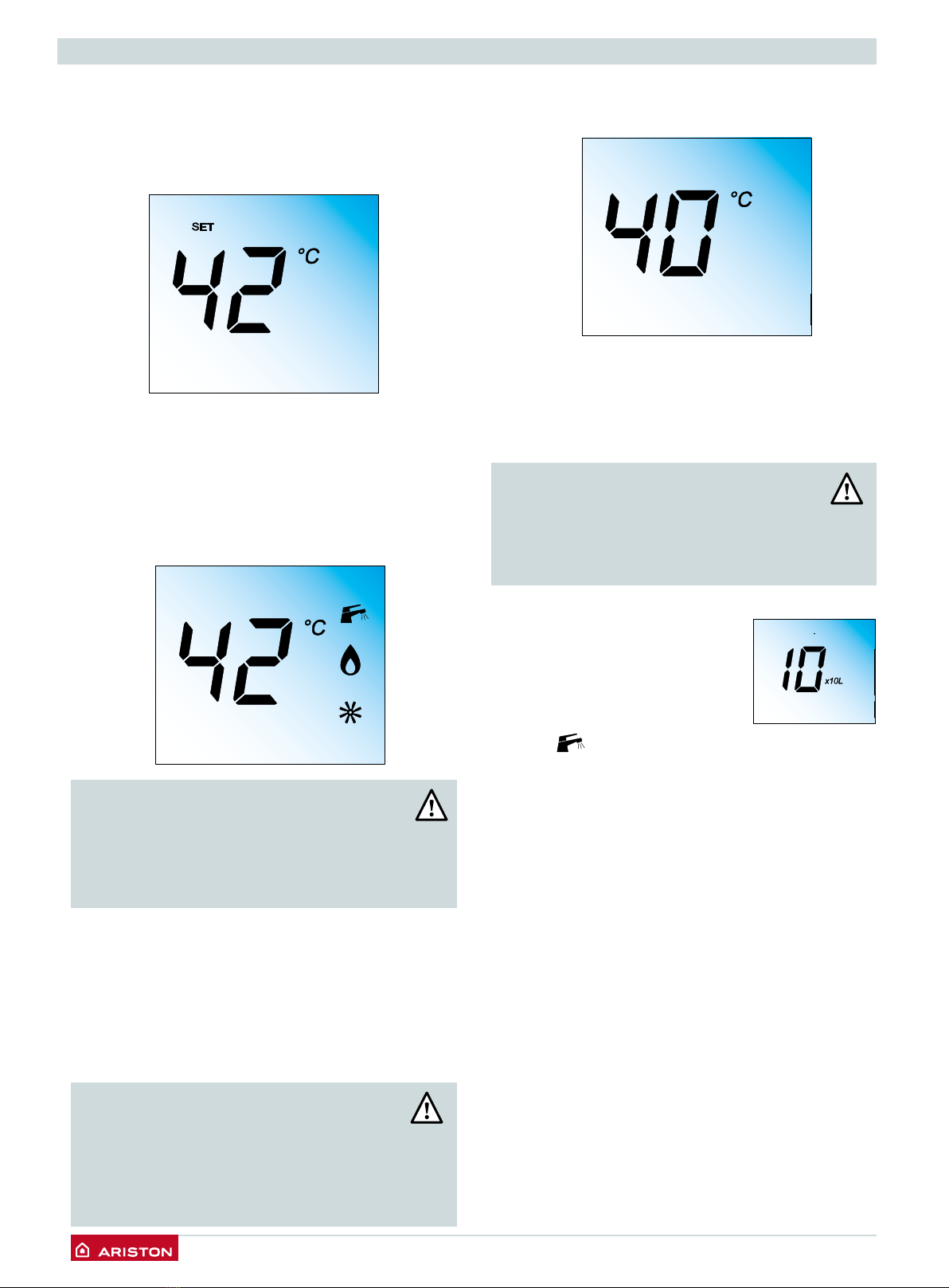

Ignition procedure
- ensure that the inlet cold water valve is open
- ensure that the gas valve is open
- ensure that the device is powered by electric current.
When pressing ON/OFF key “2”, the display lights.
The device is ready to operate
The set temperature is indicated on the display.
By opening a hot water tap, the device automatically
starts operating.
The display shows the set temperature and the ame
indicates the burner ignition.
Note: If the device does not operate, ensure that the gas
and/or cold water valves are open.
Ensure that the device is electrically powered.
When closing the tap, the device automatically switches
off and the ame symbol disappears from the display.
Water temperature adjustment
Press keys 3and 4to set the hot water temperature.
The new value will be indicated on the display.
It’s possible to increase the temperature until 50 °C.
To select temperatures higher than 50°C push simultaneously
the buttons 4 and ON/OFF for few seconds.
The display shows 51 °C and pressing the button 4again the
temperature is increased (in steps of 1°C) up to a maximum
of 55 °C.
Bath Function
The Bath function can be used to
specify an amount of hot water to be
dispensed at a selected temperature.
While the appliance is in standby,
press the Bath button; 10x10L (100LT)
and the symbol appear on the
display.
Use buttons 3 and 4 to set the amount, from 1 (10 litres)
to a 99 (990 litres).
Press the Bath button to save.
The selected temperature appears on the display and can
be adjusted, if necessary, using buttons 3 and 4.
Press the Bath button to save the selected temperature.
On the display ash the the water amount and the selected
temperature.
Open an hot water tap, the Bath function starts the
metering, shown on the display.
During the tapping is possible to adjust the temperature.
The appliance will beep to indicate that the setted litres
has almost been reached:
- 5 litres from the set amount: one beep
- 1 litre from the set amount: intermittent beep.
When the set amount has been reached, the beep stops.
The appliance reset the hot water temperature to the
value setted before the Bath function.
The function can be disabled:
- by pressing the Bath button twice within 3 seconds.
- if the DHW request stops before the set amount is
reached.
- if there aren’t DHW request within 3 minutes from the
Bath Function setting.
WARNING!!
Water with a temperature higher than 50°
cause serious burns.
Always verify water temperature before
use.
WARNING!!
The factory set temperature is 55°C.
TO SET THE WATER TEMPERATURE AT
42°C press the button 3.
WARNING!!
TO USE WATER TEMPERATURE >55°C IS
NECESSARY TO CONTACT A QUALIFIED
TECHNICIAN.

/ 7
USER’S MANUAL
Switching off
procedure
Press the ON/OFF
button, to switch off the
appliance.
The display indicates only
two hyphens.
ATTENTION!!
Switch off the appliance
completely by switching
the external electrical
switch to the OFF
position. Shut off the gas
valve.
Appliance shut-off conditions
The appliance is protected from malfunctions by means
of internal checks performed by
the electronic P.C.B., which stops
the appliance from operating if
necessary.
In case of shut-off, the ame symbol
disappears from the display, which
indicates an error code – see table
below.
To reset the system, switch ON/OFF the device.
If the appliance still indicates the error code, switch it
off. Make sure that the external electric switch is in the
OFF position, close the gas valve and contact a qualied
technician.
Anti-freeze protection
Should the appliance be installed where pipes are
subjected to freezing, it is recommended to empty it.
Proceed as indicated below:
- Turn the external electric switch to the OFF position
- Close the gas valve.
- Close the cold water inlet valve
- Open the DHW valves until both the device and pipes
are completely emptied.
To ll the device again, open the cold water inlet valve
together with DHW valves until the water exits.
Error table
Error
code Description
After pressing the ON/
OFF key, the control board
switches off
-Ensure that the device
is electrically powered.
A 1 No ame detected
- Ensure that the gas
valve is open
- Hold down the ON /
OFF. The appliance
starts the RESET
procedure. Release
the button as soon
as RESET message
appears.
IF THE ERROR CODE IS NOT INDICATED
IN THE TABLE, CLOSE THE GAS VALVE,
TURN THE EXTERNAL ELECTRIC SWITCH
IN THE OFF POSITION AND CONTACT A
QUALIFIED TECHNICIAN.
IF THE ERROR IS NOT ELIMINATED, DO
NOT ACTIVATE THE APPLIANCE.
Changing the gas supply
These appliances are designed to operate
with different types of gas. The gas must be
changed by a qualied professional.
Maintenance
Schedule an annual maintenance check-up for
the appliance with a competent person.
Correct maintenance always results in savings
in the cost of running the system.
Failure to arrange an annual service for the
appliance will invalidate the second year of the
manufacturers guarantee.

Installation and servicing instructions
overview ..........................................................................9
Advice for the installer ......................................................9
Safety regulations...........................................................10
product descrption.......................................................12
Overall view....................................................................12

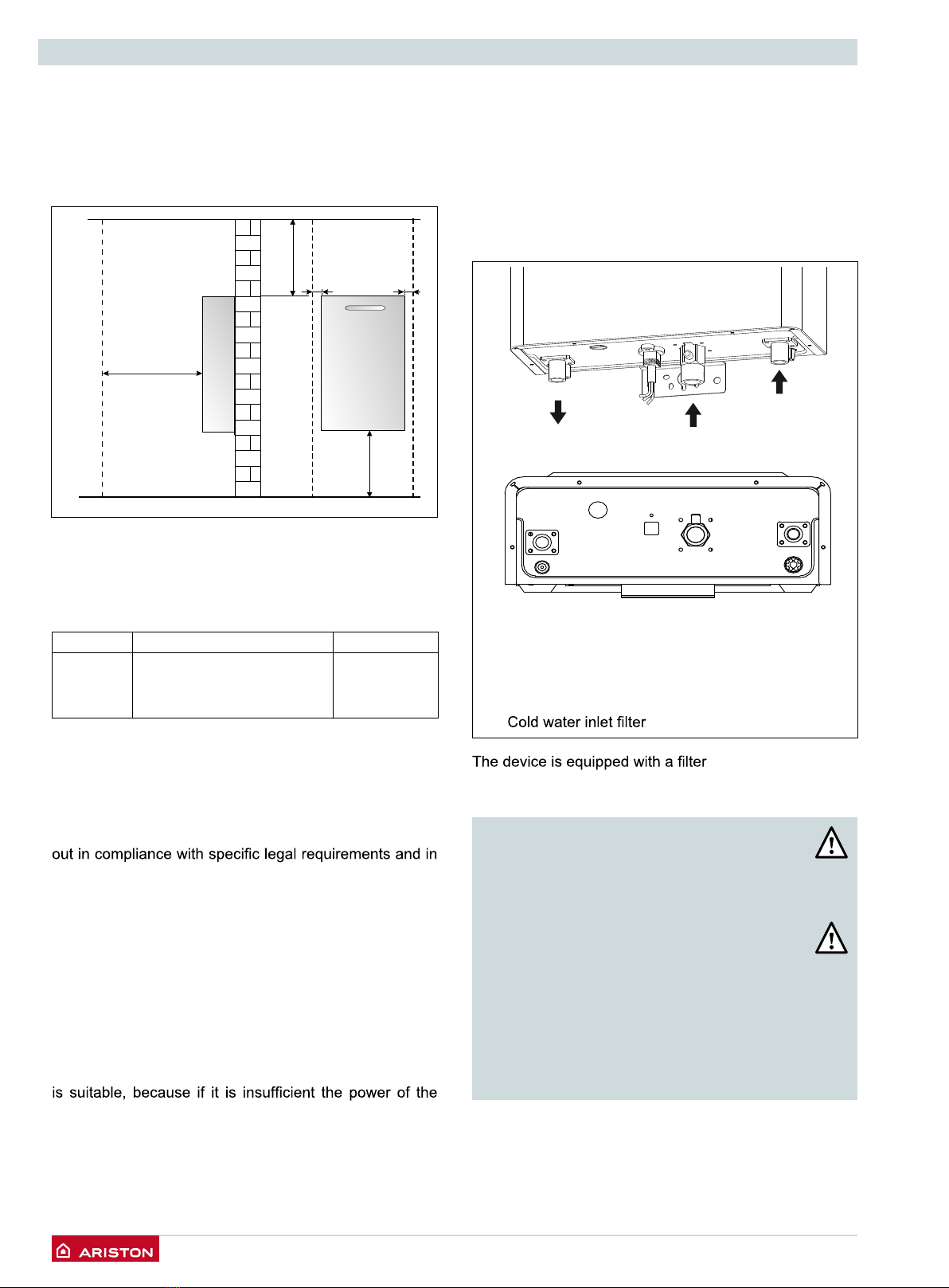

Dimensions.....................................................................12
Installation.....................................................................13
Before installing the appliance........................................13
Installation site................................................................13
Minimum clearences.......................................................14
Gas connection...............................................................14
Water connection............................................................14
View of hydraulic connections ........................................14
Excessive pressure device.............................................14
Water circuit diagram......................................................15
Electrical connections.....................................................16
Remote Control ..............................................................16

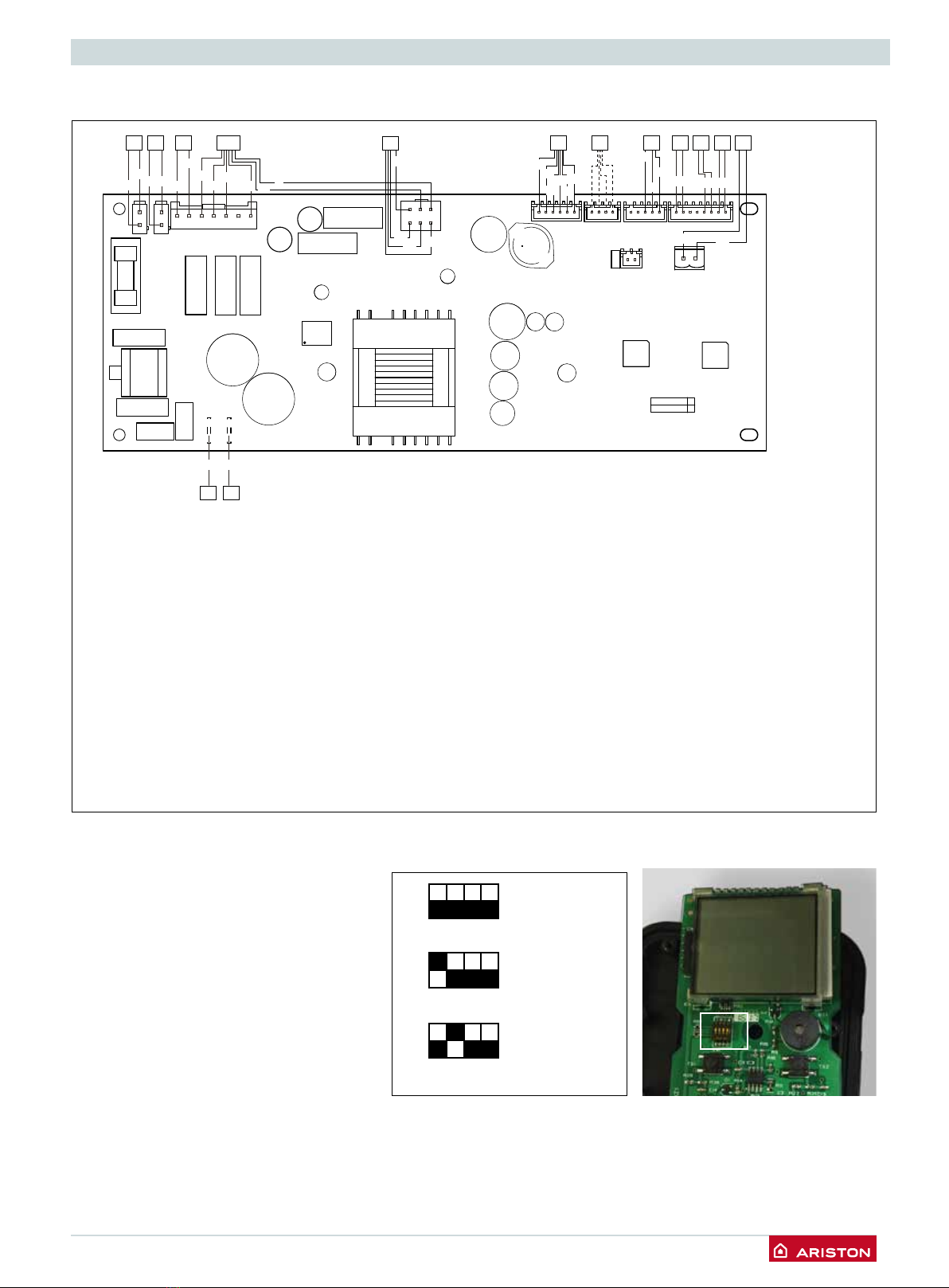

Electrical diagram...........................................................17
Microswitches to set maximum water temperature ........17
commissioning .............................................................18
Ignition procedure...........................................................18
Electricity supply.............................................................18
Filling the hydraulic circuit ..............................................18
Gas supply......................................................................18
First Ignition....................................................................18
Checking the gas settings ..............................................19
Supply presure check.....................................................19
Checking the maximum/minimum burner pressure........20
Checking soft ignition power...........................................20
Gas settings table...........................................................21
Gas changeover .............................................................21
appliance protection devices ......................................22
Table summarising error codes ......................................22
maintenance..................................................................23
Instruction for opening the casing and performing
an internal inspection...................................................23
General comments .........................................................23
Operational test ..............................................................23
Draining procedures .......................................................24
Disposal and recycling the appliance .............................24
.........25
technical data................................................................26

/ 9
OVERVIEW
Advice for the installer
This appliance is designed to produce hot water for
domestic use.
It should be connected to a distribution network for
domestic hot water that must be compatible with its
performance and power levels.
The use of the appliance for purposes other than those
be held responsible for any damage caused by improper,
incorrect and unreasonable use of the appliance or by the
failure to comply with the instructions given in this manual.
Installation, maintenance and all other interventions
must be carried out in full conformity with the governing
legal regulations and the instructions provided by the
manufacturer.
Incorrect installation can harm persons, animals and
possessions; the manufacturing company shall not be
held responsible for any damage caused as a result.
The applaince is delivered in a carton. Once you have
removed all the packaging, make sure the appliance is
intact and that no parts are missing. If this is not the case,
please contact your supplier.
Keep all packaging material (clips, plastic bags,
polystyrene foam, etc.) out of reach of children as it may
present a potential hazard.
In the event of a fault and/or malfunction, turn the
appliance off, turn off the gas cock and do not attempt to
Before any maintenance or repair work is performed on
the appliance, make sure you have disconnected it from
the electricity supply by switching the external bipolar
switch to the “OFF” position and removing the fuse.
All repairs, which should only be performed using
professional. Failure to comply with the above instructions
could compromise the safety of the appliance and
invalidate all liability on the part of the manufacturer.
In the event of any maintenance or other structural work
devices and their accessories, switch the appliance off by
switching the external bipolar switch to the “OFF” position
and shutting off the gas control valve.
WARNING!!
Water with a temperature higher than 50°
cause serious burns.
Always verify water temperature before
use.
WARNING!!
The device must be activated only in
presence of water in the exchanger.
IMPORTANT!!
If the appliance is installed in a hard water area
(> 200 mg/l), a softener should be installed to
limit the amount of limescale building up in the
heat exchanger.
The guarantee does not cover damage
caused by limescale.
devices.
Turn the appliance off and turn the external switch “OFF”
to clean the exterior parts of the appliance.
Clean using a cloth dampened with soapy water. Do not
use aggressive detergents, insecticides or toxic products.
If the appliance is used in full compliance with current
legislation, it will operate in a safe, environmentally-
If using kits or optional extras, make sure they are
authentic.
ATTENTION!!
THE INSTALLATION AND FIRST
IGNITION OF THE BOILER MUST BE
PERFORMED BY QUALIFIED PERSONNEL
IN COMPLIANCE WITH CURRENT
NATIONAL REGULATIONS REGARDING
INSTALLATION, AND IN CONFORMITY
WITH ANY REQUIREMENTS ESTABLISHED
BY LOCAL AUTHORITIES AND PUBLIC
HEALTH ORGANISATIONS.

10 /
OVERVIEW
Safety regulations
Key to symbols:
Failure to comply with this warning
implies the risk of personal injury, in
some circumstances even fatal
Failure to comply with this warning
implies the risk of damage, in some
circumstances even serious, to property,
plants or animals.
Install the appliance on a solid wall which is
not subject to vibration.
Noisiness during operation.
When drilling holes in the wall for installation
purposes, take care not to damage any
electrical wiring or existing piping.
Electrocution caused by contact with live
wires. Explosions, res or asphyxiation
caused by gas leaking from damaged piping.
Damage to existing installations.
Flooding caused by water leaking from
damaged piping.
Perform all electrical connections using
wires which have a suitable section.
Fire caused by overheating due to electrical
current passing through undersized cables.
Protect all connection pipes and wires
in order to prevent them from being
damaged.
Electrocution caused by contact with live wires.
Explosions, res or asphyxiation caused by gas
leaking from damaged piping.
Flooding caused by water leaking from
damaged piping.
Make sure the installation site and any
systems to which the appliance must be
connected comply with the applicable
norms in force.
Electrocution caused by contact with live
wires which have been installed incorrectly.
Damage to the appliance caused by improper
operating conditions.
Use suitable manual tools and equipment
(make sure in particular that the tool is
not worn out and that its handle is xed
properly); use them correctly and make sure
they do not fall from a height. Replace them
once you have nished using them.
Personal injury from the falling splinters or
fragments, inhalation of dust, shocks, cuts,
pricks and abrasions.
Damage to the appliance or surrounding
objects caused by falling splinters, knocks
and incisions.
Use electrical equipment suitable for its
intended use (in particular, make sure
that the power supply cable and plug are
intact and that the parts featuring rotary
or reciprocating motions are fastened
correctly); use this equipment correctly; do
not obstruct passageways with the power
supply cable, make sure no equipment could
fall from a height. Disconnect it and replace
it safely after use.
Personal injury caused by falling splinters
or fragments, inhalation of dust, knocks,
cuts, puncture wounds, abrasions, noise
and vibration.
Damage to the appliance or surrounding
objects caused by falling splinters, knocks
and incisions.
Make sure any portable ladders are
positioned securely, that they are suitably
strong and that the steps are intact and not
slippery and do not wobble when someone
climbs them. Ensure someone provides
supervision at all times.
Personal injury caused by falling from
a height or cuts (stepladders shutting
accidentally).
Make sure any rolling ladders are positioned
securely, that they are suitably strong, that
the steps are intact and not slippery and
that the ladders are tted with handrails on
either side of the ladder and parapets on the
landing.
Personal injury caused by falling from a
height.
During all work carried out at a certain height
(generally with a difference in height of more
than two metres), make sure that parapets
are used to surround the work area or that
individual harnesses are used to prevent
falls. The space where any accidental fall
may occur should be free from dangerous
obstacles, and any impact upon falling
should be cushioned by semi-rigid or
deformable surfaces.
Personal injury caused by falling from a
height.

/ 11
OVERVIEW
Make sure the workplace has suitable
hygiene and sanitary conditions in terms
of lighting, ventilation and solidity of the
structures.
Personal injury caused by knocks, stumbling
etc.
Protect the appliance and all areas in the
vicinity of the work place using suitable
material.
Damage to the appliance or surrounding
objects caused by falling splinters, knocks
and incisions.
Handle the appliance with suitable protection
and with care.
Damage to the appliance or surrounding
objects from shocks, knocks, incisions and
squashing.
During all work procedures, wear individual
protective clothing and equipment.
Personal injury caused by electrocution,
falling splinters or fragments, inhalation
of dust, shocks, cuts, puncture wounds,
abrasions, noise and vibration.
Place all debris and equipment in such a
way as to make movement easy and safe,
avoiding the formation of any piles which
could yield or collapse.
Damage to the appliance or surrounding
objects from shocks, knocks, incisions and
squashing.
All operations inside the appliance must
be performed with the necessary caution
in order to avoid abrupt contact with sharp
parts.
Personal injury caused by cuts, puncture
wounds and abrasions.
Reset all the safety and control functions
affected by any work performed on the
appliance and make sure they operate
correctly before restarting the appliance.
Damage or shutdown of the appliance
caused by out-of-control operation.
Before handling, empty all components that
may contain hot water, carrying out any
bleeding if necessary.
Personal injury caused by burns.
Descale the components, in accordance with
the instructions provided on the safety data
sheet of the product used, airing the room,
wearing protective clothing, avoid mixing
different products, and protect the appliance
and surrounding objects.
Personal injury caused by acidic substances
coming into contact with skin or eyes;
inhaling or swallowing harmful chemical
agents.
Damage to the appliance or surrounding
objects due to corrosion caused by acidic
substances.
If you detect a smell of burning or smoke,
keep clear of the appliance, disconnect it
from the electricity supply, open all windows
and contact the technician.
Personal injury caused by burns, smoke
inhalation, asphyxiation.
This appliance can be used by children aged
from 8 years and above and person with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.

12 /
PRODUCT DESCRIPTION
146
130
76
66
599
613
22
38
350
105
165
40
91
110
81
563
80
175
160
617
631
22
38
375
105
165
40
582
80
BCD
BCD
B
FG
CDB
FG
CD
Overall view
Overall dimensions
NEXT OUTDOOR
EVO 11/16
NEXT OUTDOOR
EVO 20/24
B. Hot water outlet 1/2”
C. Gas inlet 3/4”
D. Cold water inlet 1/2”
F. Safety Valve Discharge
G. Drain valve
Cold water inlet lter
Legend
1. Flue cover
2. Flame sensor
3. P.C.B.
4. Fan
5. Hot water temperature sensor
6. Overheat thermostat
7. Flow limiter (water proportional valve)
8. Cold water temperature sensor
9. Gas proportional valve
10. Water ow switch
11. Gas collector
12. Igniter
13. Combustion chamber
14. Sparking electrode
15. Anti-frost kit
16. Heat exchanger
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15
16

/ 13
INSTALLATION
Installation site
THE APPLIANCE MAY ONLY BE INSTALLED
OUTDOORS. OBSERVE ALL CURRENT REGULATIONS
WHEN CHOOSING THE APPLIANCE INSTALLATION
SITE.
Before installing the appliance
The appliance heats water to a temperature below boiling.
It should be connected to a a domestic water mains
supply, that must correspond in size to the performance
and its power of the appliance.
Before connecting the appliance, it is rst necessary to
perform the following operations:
- Carefully wash the system piping in order to remove
any screw thread or welding residues, or any dirt which
might prevent the appliances from operating correctly.
- Make sure that the appliance is set up for operation with
the type of gas available (read the information on the
packaging label and on the boiler data plate).
- In areas with particularly hard water, limescale may build
up on the components inside the appliance and reduce
its overall efciency.
A-TYPE APPLIANCES NOT INTENDED FOR
CONNECTION TO A FLUE GAS EXHAUST OR
ADEVICE FOR CHANNELLING COMBUSTION
PRODUCTS OUTSIDE THE PREMISES IN
WHICH IT IS INSTALLED.
THE APPLIANCE CAN ONLY BE INSTALLED
OUTDOORSORINAPARTIALLY-SHELTERED
AREA, AND THE SPACE IN WHICH IT IS
INSTALLED MUST NOT BE ENCLOSED.
Flue gases are discharged through a forced draught
system.
The appliance must be installed on a solid, non-
combustible, permanent wall to prevent access from the
rear.
When creating a space for the boiler, the minimum
distances (which ensure that various parts of the appliance
may be accessed after it has been installed) should be
respected.
WARNING!!
NO INFLAMMABLE ITEMS SHOULD BE
LEFT IN THE VICINITY OF THE APPLIANCE.
MAKE SURE THE INSTALLATION SITE
AND ANY SYSTEMS TO WHICH THE
APPLIANCE MUST BE CONNECTED ARE
FULLY COMPLIANT WITH THE CURRENT
APPLICABLE LEGISLATION.
IF DUST AND/OR AGGRESSIVE VAPOURS
ARE PRESENT IN THE ROOM IN WHICH
IT IS TO BE INSTALLED, THE APPLIANCE
MUST OPERATE INDEPENDENTLY OF THE
AIR INSIDE THE ROOM.
WARNING!!
THE INSTALLATION AND FIRST
IGNITION OF THE APPLIANCE MUST BE
PERFORMED BY QUALIFIED PERSONNEL
IN COMPLIANCE WITH CURRENT
NATIONAL REGULATIONS REGARDING
INSTALLATION, AND IN CONFORMITY
WITH ANY REQUIREMENTS ESTABLISHED
BY LOCAL AUTHORITIES AND PUBLIC
HEALTH ORGANISATIONS.

14 /
INSTALLATION
Minimum clearances
In order to allow easy access to the appliance for
maintenance operations.
The appliance must be installed in accordance with the
clearances stated below.
450
053
300
50 50
Gas connection
The appliance was designed to use gases belonging to
the categories as shown in the following table.
COUNTRY MODEL CATEGORIES
LPG
Make sure, using the labels on the packaging and the
data plate on the appliance itself, that the appliance is in
the correct country and that the gas category for which
the appliance was designed corresponds to one of the
categories available in the country where it will be used.
The gas supply piping must be created and measured
accordance with the maximum power of the appliance;
you should also make sure that the shut-off valve is the
right size and that it is connected correctly.
Before carrying out the installation, it is recommended
that the fuel pipes are cleaned thoroughly in order to
remove any residues which could prevent the appliance
from operating correctly.
Check that the supplied gas corresponds to the type of
gas for which the appliance was designed (see the data
plate located on the appliance itself).
It is also important to check that the pressure of the gas
(methane or LPG) you will be using to feed the appliance
generator may be reduced, causing inconvenience for the
user.
Water connection
The illustration shows the connections for the water and
gas attachments of the appliance.
Check that the maximum water mains pressure does not
exceed 8,5 bar (see technical data page 27); if it does, a
pressure reducing valve must be installed.
Ensure that the minimum pressure is not lower than
0,1 mbar.
View of the hydraulic Connections
B. Hot water outlet 1/2”
C. Gas inlet 3/4”
D. Cold water inlet 1/2”
F. Safety Valve Discharge
G. Drain valve
“G”, located on the
cold water entrance. Periodically clean the hydraulic
system, if dirt is present.
Excessive pressure device
The excessive pressure device outlet (F) must be
connected to a drainage siphon which can be checked
visually in order to prevent maintenance procedures
causing harm to people, animals or property (the
manufacturer will not be held liable for any such damage).
BCD
FG
BC
D
IMPORTANT!!
DO NOT ACTIVATE THE DEVICE WITHOUT
THE FILTER.
IMPORTANT!!
If the appliance is installed in a hard water
area (> 200 mg/l), a softener should be
installed to limit the amount of limescale
building up in the heat exchanger.
The guarantee does not cover damage
caused by limescale.
South Africa
NEXT OUTDOOR 11 LPG ZA EVO
NEXT OUTDOOR 16 LPG ZA EVO
NEXT OUTDOOR 20 LPG ZA EVO
NEXT OUTDOOR 24 LPG ZA EVO

/ 15
INSTALLATION
Water circuit diagram
Legend:
1. Cold water inlet
2. Cold water inlet lter
3. Water ow limiter
4. Cold water temperature sensor
5. Water ow switch
6. Heat exchanger
7. Hot water temperature sensor
8. Hot water outlet
9. Safety valve
BCD
8
9
7
1
5
6
3
4
2

16 /
INSTALLATION
Electrical connections
a thorough check of the electrical system.
The manufacturer is not responsible for any damage
caused by the lack of a suitable earthing system or by the
malfunctioning of the electricity mains supply.
Make sure that the system is able to withstand the
maximum power absorbed by the appliance (this is
indicated on the appliance data plate).
Check that the section of the wires is suitable and is not
less 0,75 mm2
system if it is to operate correctly.
The power supply cable must be connected to a
230V-50Hz network, where the L-N poles and the earth
connection are all respected.
If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the manufacturer
or its service agent.
The use of multiplugs, extension leads or adaptors is
strictly prohibited.
It is strictly forbidden to use the piping from the hydraulic,
heating and gas systems for the appliance earthing
connection.
The appliance is not protected against the effects caused
by lightning. If the mains fuses need to be replaced, use
2A rapid fuses.
H05VV-F
80
400
Important!
Connection to the electricity mains supply must
a mobile plug) and a bipolar switch that provide
full disconnection under overvoltage category III
conditions.
Remote control
The appliance is supplied with a Remote Control and the
corresponding connection cable (30 m).
Positioning the Remote Control
Make sure that:
- the remote control cannot be accessed by children
- it is NOT installed near sources of heat
- it is NOT installed in areas which could become wet
(spraying).
Separate
the wall in the chosen area, using the screws supplied
with the appliance.
If necessary, cut the cable supplied to the desired length
and apply the connectors supplied in the package to
ensure power is supplied properly and safely.
Remote Control connection
Proceed as follows:
- disconnect the appliance from the electricity supply by
switching the external bipolar switch to OFF.
- remove the casing as indicated in par. “Instructions for
opening the casing and performing internal inspection”.
- insert the cable into the appliance, via cable gland L.
- connect the cable to the P.C.B. – see electrical diagram
on following page.
BCD
F
L
G
WARNING
BEFORE PERFORMING ANY WORK ON
THE APPLIANCE, FIRST DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY
USING THE EXTERNAL BIPOLAR SWITCH.
L

/ 17
INSTALLATION
Electrical diagram
Legend
1. Main supply
2. Anti-frost Kit
3 Spark generator
4. Gas valve
5. Fan
6. Servo-motor
7. Integrated display (spare)
8. Water ow switch
9. Overheat thermostat
10. D.H.W.water temperature probe
11. Inlet water temperature probe
12. Remote Control
13. Earth connection
14. Detection Electrode
Microswitches to set maximum water
temperature
The microswitches are positioned on the Remote
Control - Display P.C.B.
Proceed as follows:
1. Remove the front casing of the Remote Control
2. Unscrew all the screws and open the Remote
Control.
IMPORTANT!!
BE CAREFUL TO THE CONNECTION CABLE
AT THE MAIN P.C.B.
3. Unscrew the screw to remove the P.C.B.
from the Remote Control.
4. Access to the front of the P
.C.B. and
change the microswitches setting.
18
CN2
11 1
CN10
CN13
CN12
CN11
CN9
CN7
CN8 CN3
CN5
CN4 CN1
1
1
1 1
10 11986
5742 31 12
13 14
Bl
Bl
Or
Or
Bk
Y/G Rd
Rd
Gr
Gr
Rd
Br Br Bl Bl
Bl
Br
Br
Br
Yl
Yl Yl Yl
Wh
Wh
Rd
Bk
Bk Bl
Rd
Rd
ON
OFF
12 34
ON
OFF
12 34
ON
OFF
12 34
55 °C
(Factory setting)
60 °C
65 °C

18 /
COMMISSIONING
Ignition procedure
Press the ON/OFF key placed
on the control panel, to display
the set temperature.
For temperature adjustments
see the User Manual paragraph.
Initial procedures
To guarantee safety and the correct operation of the
appliance, it must be prepared for operation by a qualied
technician who possesses the skills which are required
by law.
Electricity supply
- Check that the voltage and frequency of the electricity
supply correspond to the data shown on the appliance
data plate;
- Make sure that the earthing connection is efcient.
Filling the hydraulic circuit
Proceed in the following manner:
-Gradually open the valve located on the cold inlet;
-open a D.H.W. tap.
WARNING!!
DO NOT USE THE APPLIANCE WITHOUT
WATER.
Gas supply
Proceed in the following manner:
- Make sure that the main gas supply uses the same
type of gas as indicated on the appliance data plate;
- Open all doors and windows;
- Make sure there are no sparks or naked ames in the
room;
- Make sure that the system does not leak fuel using
a cut-off valve inside the applianceitself which should
be closed and then opened while the gas valve is
disabled. The meter must not show any signs of gas
being used for 10 minutes.
First ignition
The rst start-up must be carried out by a
qualied technician.
1. Make sure that:
- The gas valve is closed;
- The electrical connection has been properly carried
out. Make sure that, in any case, the green/yellow
earthing wire is connected to an efcient earthing
system;
- The exhaust duct for combustion products should
be suitable and free from any obstructions;
2. Switch on the appliance (by pressing the ON/OFF
button)
3. Open a D.H.W. tap.
4. The appliance indicates the ignition lock failure
5. Close the D.H.W. tap.
6. Hold down the ON / OFF button. The appiance starts
the RESET procedure. Release the button as soon
as RESET message appears on the display.
7. Open the gas valve and check the connection seals,
including the appliance connection seals, making sure
that the meter does not detect any passage of gas.
Eliminate any leaks.
8. Start the appliance by opening a D.H.W. tap.
WARNING!!
Water with a temperature higher than 50°
cause serious burns.
Always verify water temperature before
use.

/ 19
COMMISSIONING
Accessing the settings - adjustment parameters
RESERVED FOR TECHNICAL ASSISTANCE
To access the Parameters proceed as follow:
- switch Off the appliance
- switch On the appliance and within 1 minute simultaneously
press the 3 and 4buttons for 3 seconds
- the display showsLO.
To select the others parameters press 4 button.
To access to the parameters press the ON/OFF button, the
display shows the value of the parameter.
To modify the value press the 3 and 4buttons.
To save the new value press ON/OFF.
Lo
Model and type of gas selection
RESERVED FOR TECHNICAL ASSISTANCE Only if
the gas or PCB is changed see “gas setting” table
L1 Post-ventilation time
setting.
0 = 90 sec.
(if set temperature ≥ 50°C)
0 = 30 sec.
(if set temperature < 50°C)
FACTORY SETTIG
0
1 = 30 sec.
L2
Adjust the Gas
burner pressure MIN from -9 to 9
Read the pressure on the manometer and verify
on
“gas setting” table
L3
Adjust the Gas
burner pressure MAX from -9 to 9
Read the pressure on the manometer and verify
on
“gas setting” table
L4 NOT ACTIVE
L5 NOT ACTIVE
L6
Soft ignition
Read the pressure on the manometer and verify
on
“gas setting” table
L7 NOT ACTIVE
L8 DHW Start delay time from 0 to 50
10 = 1 sec. 5
L9 Main P.C.B. software version
LA HMI software version (Remote Control)
Lb
Fan speed
automatic adjustment
0= default
1 = re-adapt 0
This parameter must be used if the following
components are replaced / reassembled: PCB, fan,
combustion chamber, heat exchanger, exhaust cover.
LC Stepper motor reset 0= Auto 00
LdMaximum limited pressure
LE Minimum limited pressure
parameter
description value
factory
setting
notes

20 /
COMMISSIONING
Checking the gas settings
Supply pressure check
1. Close the manual gas valve
2. Loosen screw “b” and insert the pressure gauge
connection pipe into the pipe tap.
3. Open the manual gas valve.
4. Switch the appliance ON by opening a DHW tap.
The supply pressure must correspond to the value
established in relation to the type of gas for which the
appliance is designed.
5. Switch the appliance OFF by closing the DHW tap.
6. Close the manual gas valve.
7. When the check is over, tighten screw “b” and make
sure it is securely in place
8. Open the manual gas valve and check the tightness of
the screw.
Checking the maximum and minimum burner
pressure
(see the Gas setting table)
1. Unplug the appliance and close the manual gas valve.
2. Loosen screw “a” and insert the manometer connection
pipe into the pipe tap.
3. Plug the appliance and open the manual gas valve.
4. Press the On/Off button the display will illuminate
5. Simultaneously press the 3and 4 buttons for 3
seconds. The display showsLo.
6. Press the 3 button to select L3.
7. Press the On/Off button to access to the parameter L3,
appliance forced to maximum power.
Open an hot water tap.
8. On the manometer verify the pressure and if necessary
press the the 3and 4 buttons to adjust maximum
burner pressure as indicated on the gas settings table.
9. Press the ON/FF button to save the setting.
10. Press the the 4button to select L2.
11. Press the On/Off button to access to the
parameterL2, appliance forced to minimum power.
12. On the manometer verify the pressure and if
necessary press the 3and 4 buttons to
adjust maximum burner pressure as indicated on the
gas settings table.
13. Press the ON/FF button to save the change.
14. Press 3and 4 buttons at the same time to
quit from setting menu.
15. Close Hot water tap.
Switch off the appliance through ON/OFF button.
16. When the check is over, tighten screw “a” and make
sure it is securely in place
17. Open the gas valve and check the tightness of the
screw.
WARNING!!
IThe supply pressure must correspond to
the value indicated on the Gas Summary
Table, OTHERWISE DO NOT ACTIVATE
THE DEVICE.
21
a
b
Checking soft ignition power
(see the Gas setting table)
1. Close the gas valve.
2. Loosen screw “a” and insert the manometer
connection pipe into the pipe tap.
3. Open the gas valve.
4. Press the On/Off button the display will illuminate
5. Simultaneously press the 3and 4 buttons
for 3 seconds. The display showsLo.
6. Press the 3button to select L6.Open one hot
water tap.
7. Press the On/Off button to access to the parameter
L6, appliance forced to ignition power.
8. On the manometer verify the pressure and if
necessary press the 3or 4 buttons to adjust
the slow ignition pressure as indicated on the gas
settings table.
9. Press the ON/FF button to save the change.
10. Press 3and 4 buttons at the same time to
quit from setting menu.
11. Close Hot water tap. Switch off the appliance through
ON/OFF button.
12. When the check is over, tighten screw “a” and make
sure it is securely in place
13. Open the gas valve and check the tightness of the
screw.
