ARJO HUNTLEIGH CALYPSO User manual

CALYPSO
Instructions for Use
04.CD.03/7GB
September 2009
0086

© ArjoHuntleigh Hospital Equipment AB 2009
ArjoHuntleigh products are patented or patent pending. Patent information is available by
contacting ArjoHuntleigh Hospital Equipment AB.
Our policy is one of continuous development, and we therefore reserve the right to make
technical alterations without notice. The content of this publication may not be copied
either whole or in part without the consent of ArjoHuntleigh Hospital Equipment AB

3
Contents
Foreword .............................................................................................4
Safety Instructions ..............................................................................5
Warnings ............................................................................................6
Preparations.........................................................................................7
Part designations ................................................................................9
Product description/function ............................................................10
Preparations before use ..............................................................10
Manual raising and lowering ......................................................10
Electric raising and lowering ......................................................10
Back rest .....................................................................................12
Seat .............................................................................................12
Castor brakes ..............................................................................12
Emergency Stop .........................................................................14
Emergency High/Low ................................................................14
Accessory description ......................................................................16
Battery charger ...........................................................................16
Scale (optional) ...........................................................................16
Bedpan and bedpan holder (optional) ........................................16
Leg straps ...................................................................................16
Transferring the resident ..................................................................18
From bed .....................................................................................18
To bed .........................................................................................18
From a wheelchair ......................................................................20
To a wheelchair ..........................................................................20
To the toilet ................................................................................20
Bathing the resident ......................................................................... 22
Showering the resident ......................................................................24
Battery and Battery charger .............................................................26
Disinfection/Cleaning instructions ...................................................28
Trouble shooting ..............................................................................30
Care and Preventive Maintenance ....................................................31
Technical specifications ....................................................................34
Overall dimensions ..................................................................... 36-37
Labels on the lift ..............................................................................38
Labels on battery and battery charger ..............................................40
Accessories .......................................................................................42

4
Foreword
Thank you for purchasing ArjoHuntleigh
equipment.
Your Calypso lift and hygiene chair is part of a series
of quality products designed especially for hospitals,
nursing homes and other health care use.
We are dedicated to serving your needs and providing
the best products available along with training that
will bring your staff maximum benefit from every
ArjoHuntleigh product.
Please contact us if you have any questions about the
operation or maintenance of your ArjoHuntleigh
equipment.
Please read this manual thoroughly!
Please read this manual in its entirety before using
your Calypso lift and hygiene chair. Information in
the manual is crucial to the proper operation and
maintenance of the equipment, and will help protect
your product and ensure that equipment performs to
your satisfaction. Some of the information in this
manual is important for your safety and must be read
and understood to help prevent possible injury. Arjo-
Huntleigh strongly advise and warn that only Arjo-
Huntleigh designed parts, which are designed for the
purpose, should be used on equipment and other
appliances supplied by ArjoHuntleigh, to avoid inju-
ries attributable to the use of inadequate parts.
Unauthorized modifications on any ArjoHuntleigh
equipment may affect its safety. ArjoHuntleigh will
not be held responsible for any accidents, incidents
or lack of performance that occur as a result of any
unauthorized modification to its products.
Service and Support
A service routine must be performed on your
Calypso every year by ArjoHuntleigh authorized
service personnel to ensure the safety and daily oper-
ation of your product.
See chapter Care and Maintenance.
If you require further information, please contact
your local ArjoHuntleigh representative who can
offer comprehensive support and service programs to
maximize the long-term safety, reliability and value
of the product. Contact your local ArjoHuntleigh rep-
resentative for replacement parts.
Your service representative stocks the parts you will
need.
The telephone number appears on the last page of
this manual.
Definitions in this manual:
Means:
Safety warning. Failure to understand and obey this
warning may result in injury to you or to others.
Means:
Failure to follow these instructions may cause dam-
age to all or parts of the system.
Means:
This is important information for the correct use of
this system or equipment.
Means:
The name and address of the manufacturer
WARNING
CAUTION
NOTE
The directions right or left in this manual are
given as below
right
left
Driving direction
8418751A

5
Safety Instructions
The equipment must be used in accordance
with these safety instructions. Anyone using
the equipment must also have read and
understood the instructions in this manual.
If there is anything you are not sure about,
contact your ArjoHuntleigh representative.
Intended use
This equipment is intended for lifting and transport-
ing residents to and from a bathroom in a care facility
and to assist with the bathing process. Calypso must
be used by appropriately trained caregivers with ade-
quate knowledge of the care environment, its com-
mon practices and procedures, and in accordance
with the guidelines in the Instructions for Use .
Resident assessment
We recommend that facilities establish regular
assessment routines. Caregivers should assess each
resident according to the following criteria prior to
use:
• The resident’s weight should not exceed 136kg /
300 lbs.
• The resident should be active or semi-active
(i.e. able to sit upright self supported on the side
of a bed or toilet).
• The resident should understand and respond to
instructions to stay seated in an upright position.
If a resident does not meet these criteria an alterna-
tive lift must be used.
The expected life time of this equipment, unless oth-
erwise stated, is ten (10) years, subject to preventa-
tive maintenance being carried out in accordance
with the instructions for care and maintenance found
in this manual.
NOTE
Modifications made to the equipment with-
out expressed written consent of Arjo-
Huntleigh will invalidate the supplier's prod-
uct liability.
WARNING
Never leave the resident unattended
at any time. Ensure that the resident
does not pull or hold on to stable
objects such as grab rails, sinks and
other equipment at any time.
WARNING
Make sure Calypso is completely
clear of all other surrounding
devices, baths and furniture when
the resident and/or the lift are being
raised or lowered. Make sure
Calypso is at least 30 cm (1 foot)
away from the bath tub.
WARNING
The safety belt must be used at all
times to make sure the resident
remains in an upright position in the
middle of the seat. The safety belt
must be attached to the seat of
Calypso on the same side as the
back rest and securely buckled.
WARNING
Before lifting Calypso out of the
water after a bath, re-position the
resident if needed to ensure that the
resident is sitting upright in the cen-
tre of the chair!
NOTE
All materials used in Calypso lift and
hygiene chair complies with established
biocompability standards and have been
tested accordingly (ISO 10993-5).
The body supported material in the seat
and back rest is PUR (polyurethane)

6
Warnings
To avoid the possibility of injury
always ensure that:
• the equipment is used by appropriate trained
staff.
• Calypso is moved with care, especially in narrow
passages, over bumps etc. and that the resident
safety straps are secured.
• the chair is kept at a low level during transporta-
tion to achieve better stability.
• Calypso is lowered to the lowest possible height
immediately after removing the resident.
• the castors and brakes work freely.
• the castors are locked on Calypso during resident
transfer from/to bed etc. and when Calypso is sta-
tionary.
• bed castors are locked during resident transfer
from/to bed.
• the safety straps are in good condition and
properly fastened.
• all screws are tightened.
• the hydraulic system is working smoothly (rais-
ing and lowering).
• there are no sharp edges or parts coming in con-
tact with residents.
• drain covered areas need to be smooth and lev-
elled with the floor in order to move the lift safely.
• the slope of the floor does not exceed the ratio
1:50.

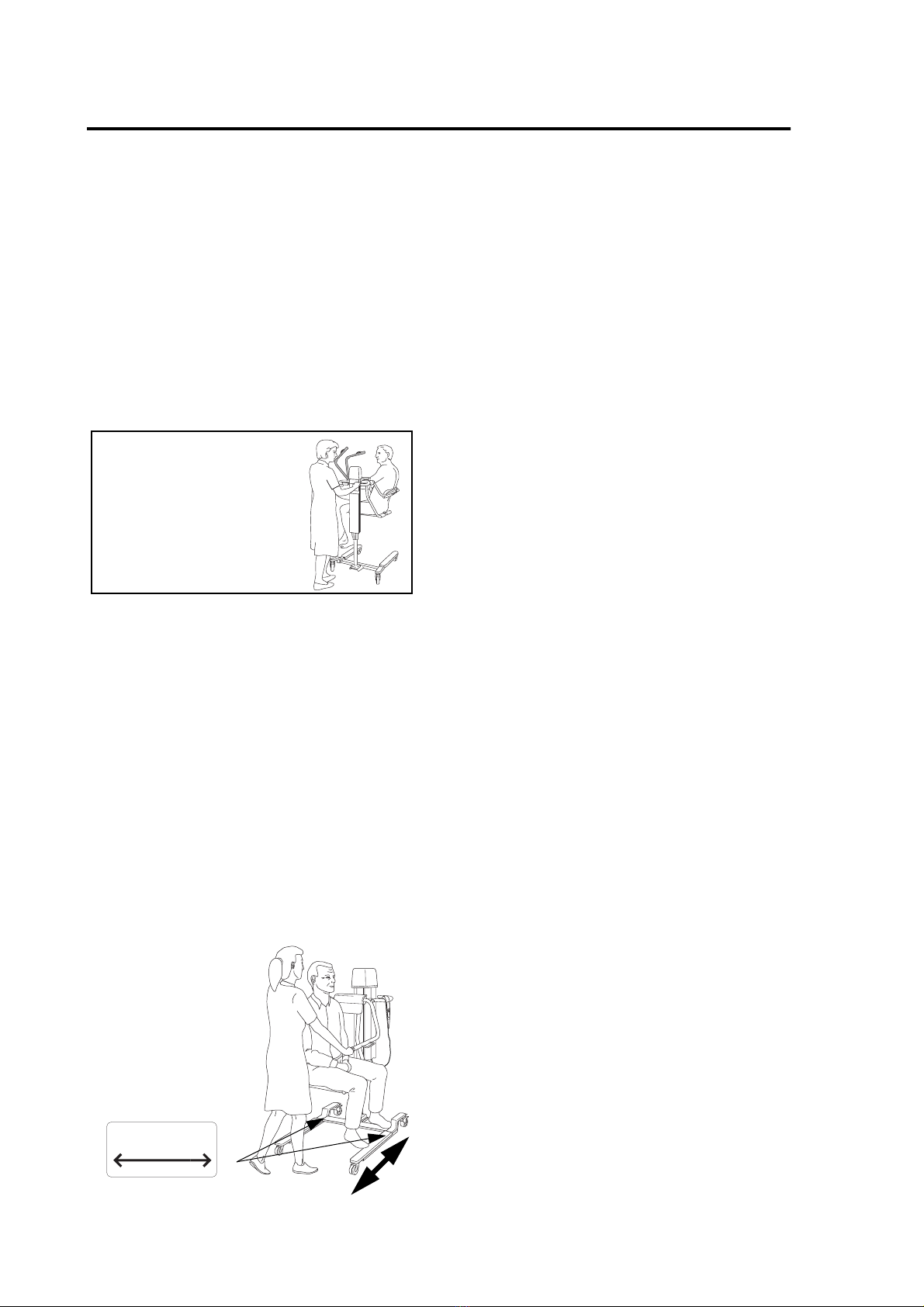

When positioning Calypso, do
not stand in the direction of the
movement of the hand rest. An
unexpected movement of the
arms upwards by the resident
can injure the caregiver.
Calypso should be moved
in the correct direction:
Driving direction
8418751A
• the Calypso is always moved in the right direc-
tion.The lift has a lower stability and can tilt when
moved in the wrong driving direction. Always
move the lift in the right direction.
When the scale (accessory) is
mounted on Calypso:
• there could be a risk of getting jammed between
the scale base and the swivelling castors. Keep
this area free.
Battery charger safety practices:
• The charger is designed for dry areas only and for
normal air humidity conditions.
• Don’t expose the charger to water or dust.
• Do not cover the charger.
Battery safety practices:
• Use only the charger supplied with the equip-
ment.
• Do not charge batteries in a sealed container.
• Be careful not to drop the battery.
• Do not place batteries near a heat source or fire.
• Do not short-circuit the battery.
• Do not store batteries at a temperature higher
than 50 °C (122 °F).
• Do not crush, puncture, open, dismantle or other-
wise mechanically interfere with the batteries.
• Should the battery casing crack and inside con-
tent come in contact with skin or clothing, rinse
immediately with water.
If content comes in contact with the eyes,
rinse immediately with plenty of water and
seek medical attention.
• Inhalation of the content can cause respiratory
irritation. Sensitivity of nickel can cause allergic
asthma. Provide fresh air and medical attention.
• Contact the appropriate local authority for advice
when disposing of batteries.
• Check labels on the battery.Don’t expose the bat-
teries or chargers to flames.
• Don’t expose the battery connector to water
• Don’t use the charger in the presence of inflam-
mable anaesthetic gases.

7
Preparations
Actions before the first use
1 Visually check the package for damage.
If the product is suspected to be damaged make a
complaint to the delivery agency and contact the
Calypso product sales office.
2 The packaging should be recycled according to
local regulations.
3 Check that all parts of the product are supplied.
Compare with the product description in this
manual. If any part is missing or damaged - do
not use the product!
4 Mounting of the enclosed spacer:
The spacer that is mounted on Calypso when
delivered, is adapted to the depth of Arjo-
Huntleigh Bath Systems.
For deeper baths only: To get a deeper immer-
sion, remove one of the two mounted spacers on
Calypso
Be careful not to damage the surface of the tub.
5 Unpack the battery charger. See “installation and
charging batteries”.
6 Charge each battery for 24 hrs.
7 Clean the product according to ”cleaning instruc-
tions”.
8 Find a dry area, dry with good ventilation for
storing the lift.
9 Choose a designated area, where the operating
manual should be kept, accessible at all times for
the user.s
10 If you have any questions, please contact your
local ArjoHuntleigh representative for support
and service. The contact numbers appear on the
last page of this manual.
Actions before every use
1 Check that all parts of the lift are in place.
Compare to “ Part Designations” in this
manual.

8

9
Part designations
1 Two-part hygiene seat
2 Seat insert
3 Transport handles
4 Footrest
5 Back rest
6 Knob for attachment of safety strap
7 Manoeuvring handle
8 Hand control (Electrical)
9 Battery (Electrical)
10 Hand rest
11 Pillar
12 Castor brake
13 Lowering button (Hydraulic)
14 Hand pump for raising (Hydraulic)
15 Back rest/Hand rest left
16 Back rest/Hand rest right
17 Safety straps
10
11
12
4
13
14
9
8
CDB 60XX CDB 70XX
3
56
2
3
1
715
16
17

10
Product description/function
Manual raising and lowering (1)
• Calypso is raised by using the hand pump. Pump evenly,
using the full range of movement.
• Calypso is lowered by pressing the lowering button.
Electric raising and lowering (2)
Unhook the hand control from its holder.
• To raise Calypso, press the “up” arrow button on the
hand control.
• To lower Calypso press the “down” arrow button.
Safety belt (3)
The safety belt should be used all the time when the resident is
being moved.
a Attach the belt to the transport handle.
b Place it in front of the resident and fasten it to the knob.
WARNING
There is a risk of getting
squeezed when raising/lower-
ing the handle bars. Keep this
area free during adjustments.
