ARJO HUNTLEIGH AUTO LOGIC User manual

Auto Logic
...with people in mind
630933EN_04 • 06/2016
Instructions for Use

Design Policy and Copyright
® and ™ are trademarks belonging to the ArjoHuntleigh group of companies.
© ArjoHuntleigh AB 2015.
As our policy is one of continuous improvement, we reserve the right to modify designs
without prior notice.The content of this publication may not be copied either whole or in
part without the consent of ArjoHuntleigh AB.
WARNING
To avoid injury, always read this Instructions for Use and accompanied documents
before using the product.
Mandatory to read the Instructions for Use

(i)
Contents
General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About Auto Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Clinical Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Contraindications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Care of the Patient When Sitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Preparing the Systems for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Mattress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
To Complete the Mattress Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

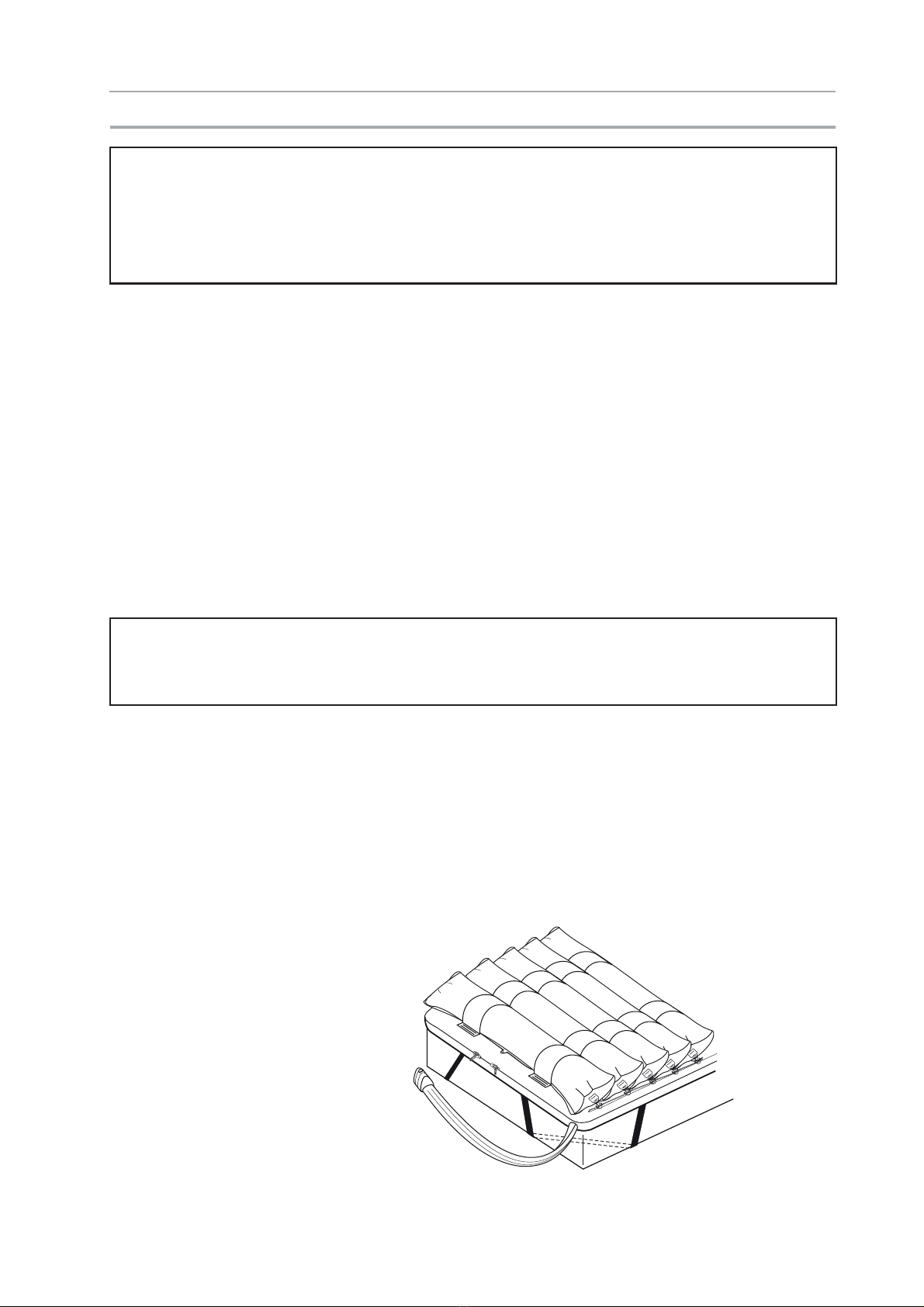

Installing the Aura Logic Seat Cushion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controls, Alarms and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Alarms and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Quick Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Comfort Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Autofirm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Fail Condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To Disconnect the Tubeset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Transport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
To Deflate and Store the Auto Logic Mattress. . . . . . . . . . . . . . . . . . . . . . . . . 18
To Deflate the Aura Logic Seat Cushion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CPR Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Installing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Checking the Status of the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Charging the Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Battery Storage and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Decontamination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Auto Logic and Aura Logic Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Auto Logic and Aura Logic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

(ii)
Auto Logic 110, 175 & 200 Mattresses and Aura Logic Seat Cushion . . . . . . 25
Serial Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Technical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

(iii)
General Safety
Before you connect the system pump to a mains socket, read carefully all the installation
instructions contained within this manual.
The system has been designed to comply with regulatory safety standards including:
• EN60601-1:1990/A13:1996 and IEC 60601-1:1988/A2:1995.
• UL60601-1, UL2601-1 and CAN/CSA C22.2 No. 601.1-M90.
• EN60601-1:2006, EN60601-1-11:2010 and IEC 60601-1:2005.
• AAMI/ANSI ES60601-1:2006 and CAN/CSA C22.2 No.60601.1(2008).
Safety Warnings
• It is the responsibility of the care giver to ensure that the user can use this product
safely.
• Whilst the patient is unattended, the decision to use safety sides should be based
on clinical assessment and in line with local policy.
• Alignment of the bed frame, safety sides and the mattress should leave no gap
wide enough to entrap a patient's head or body, or to allow egress to occur in a
hazardous manner where entanglement with the mains power cable and tubeset or
air hoses may result. Care should be exercised to prevent occurrence of gaps by
compression or movement of the mattress. Death or serious injury may occur.
• Make sure that the mains power cable and tubeset or air hoses are positioned to
avoid causing a trip or other hazard, and are clear of moving bed mechanisms or
other possible entrapment areas. The mains power cable of this pump is designed
to allow movement of the bed, and should be fitted into the cable management
flaps along the sides of the mattress, as described in this manual.
• When using a seat cushion, the tubeset may be a trip hazard; position the tubeset
so that it does not create a trip hazard, and always supervise babies and small
children when the product is in use.
• Electrical equipment may be hazardous if misused. There are no user-serviceable
parts inside the pump. The pump's case must only be removed by authorised
technical personnel. No modification of this equipment is allowed.
• The mains power socket/plug must be accessible at all times. To disconnect the
pump completely from the electricity supply, remove the plug from the mains
power socket.
• The CPR control and/or the CPR indicator tag must be visible and accessible at all
times.
• Disconnect the pump from the mains power socket before cleaning and inspecting.
• Keep the pump away from sources of liquids and do not immerse in water.
• Do not use the pump in the presence of uncontained flammable liquids or gasses.
• The cover of this product is vapour permeable but not air permeable and may
present a suffocation risk.
• Do not use the mattress without a cover, it provides a protective barrier.
• Bags supplied with this equipment may present a suffocation risk; to avoid the risk
of suffocation keep the bags away from babies and small children.
• There is no Transport facility on the seat cushion.
• Only the pump and mattress combination as indicated by ArjoHuntleigh should be
used. The correct function of the product cannot be guaranteed if incorrect pump
and mattress combinations are used.

(iv)
• The battery socket cover on the bottom of the pump must be retained in position at
all times. If there is a need to remove it, then it should be stored in a safe place
away from babies and small children for subsequent reinstalling.
• Due to the inherently lower flame retardancy of the high performance Ventilate IS2
fabric, it is NOT suitable for use in the homecare environment.
Safety Warnings - Battery Pack (Optional)
THE BATTERY PACK IS NOT SUITABLE FOR USE IN THE HOMECARE ENVIRONMENT.
The following instructions are important for the safe use of the battery pack and to
keep the user (resident/care giver) from harm:
• The battery pack BBP600 for the Auto Logic®pump is rechargeable. For maximum
battery life, charge the battery at least once every five months when the product is
not in use.
• Only use the battery pack designed for use with the pump. If unsure, do not use the
battery pack. Make sure the battery pack belongs to the pump by comparing the
battery pack label with the“Technical Description” on page 27. If the battery pack
type cannot be confirmed, contact your local ArjoHuntleigh office.
• Do not expose the battery pack or charger to open flames.
• Do not expose the battery pack connector to water.
• To avoid bodily injury, do not crush, puncture, open, dismantle or otherwise
mechanically interfere with the battery pack.
• Should the battery pack casing crack and cause contents to come in contact with
skin or clothing, rinse immediately with plenty of water.
• If contents come in contact with the eyes, rinse immediately with plenty of water
and seek medical attention.
• Inhalation of the contents can cause respiratory irritation. Provide fresh air and
medical attention.
• Stop using the battery pack if any damage or deformation is noted. Contact your
local ArjoHuntleigh office before further use.
• Refer to the “Battery Storage and Disposal” on page 23 for the correct disposal and
recycling of the battery pack.
Precautions
For your own safety and the safety of the equipment, always take the following
precautions:
• Placing extra layers between the patient and the mattress potentially reduces the benefits
provided by the mattress and should be avoided or kept to a minimum. As part of sensible
pressure area care, it is advisable to avoid wearing clothing which may cause areas of
localised high pressure due to creases, seams, etc. Placing objects in pockets should be
avoided for the same reason.
• Do not expose the system, especially the mattress, to naked flames, such as cigarettes,
etc.
• In the event of a fire, a leak in the seat or mattress could propagate the fire.
• Do not store the system in direct sunlight.
• Do not use phenol-based solutions to clean the system.
• Make sure the system is clean and dry prior to use or storage.
• Never use sharp objects or electrically heated under blankets on or under the system.
• Store the pump and mattress in the protective bags supplied.
• Pets and children must be supervised in the vicinity of the system.

(v)
Electromagnetic Compatibility (EMC)
This product complies with the requirements of applicable EMC Standards. Medical electrical
equipment needs special precautions regarding EMC and needs to be installed in accordance
with the following instructions:
• The use of accessories not specified by the manufacturer may result in increased
emissions by, or decreased immunity of, the equipment, affecting its performance.
• Portable and mobile radio frequency (RF) communications equipment (e.g. mobile/cell
phones) can affect medical electrical equipment.
• If this equipment needs to be used adjacent to other electrical equipment, normal
operation must be checked before use.
• For detailed EMC information contact ArjoHuntleigh service personnel.
Environmental Protection
Incorrect disposal of this equipment and its component parts, particularly batteries or other
electrical components, may produce substances that are hazardous to the environment. To
minimise these hazards, contact ArjoHuntleigh for information on correct disposal.
Expected Service Life
The Auto Logicpump has an expected service life of seven years. To maintain the condition
of the pump, have the pump serviced regularly according to the schedule recommended by
ArjoHuntleigh.
Do NOT use unapproved accessories or attempt to modify, disassemble or otherwise misuse
the Auto Logic system. Failure to observe this caution could result in injury, or in extreme
cases, death.

(vi)
Intentionally left blank

1
1. Introduction
About this Manual This manual is your introduction to the Auto Logic Dual
Mode support systems and the Aura Logic®seat
cushion. You must read and fully understand this
manual before using the system.
Use this manual to initially set up the mattress or seat
cushion, keep it as a reference for day-to-day routines
and as a guide to maintenance.
If you have any difficulties in setting-up or using the
Auto Logic and Aura Logic systems, contact your
ArjoHuntleigh sales office, listed at the end of this
manual.
Intended Use The intended use of this product is to prevent and/or
manage pressure ulcers for patients up to 200 kg
(440 lb).
The Auto Logic system should be used as part of a
prescribed plan of care (refer to “Indications” on
page 6).

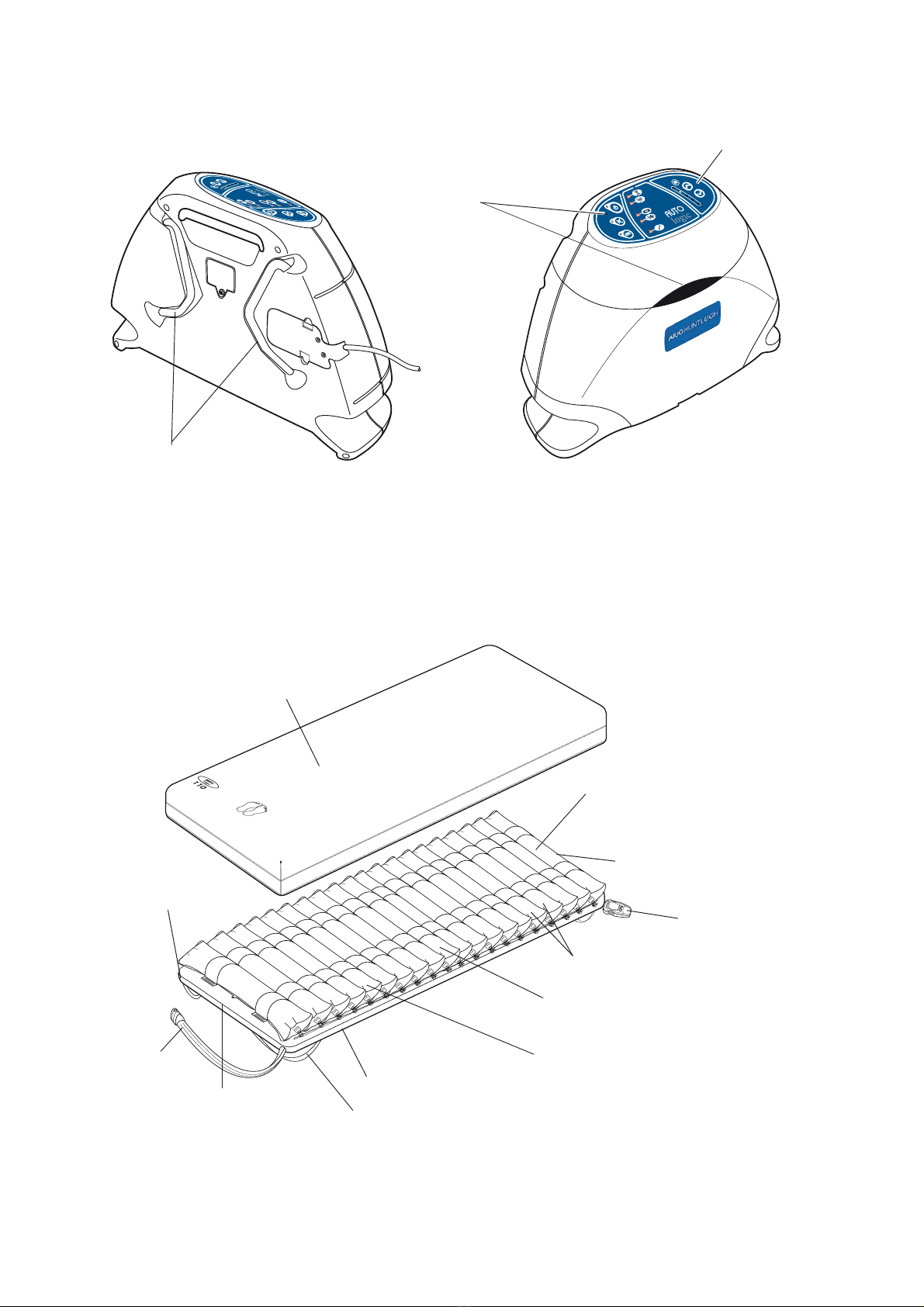

About Auto Logic The Auto Logic systems comprise a mattress
replacement, overlay or seat cushion, all operated by the
same pump. The pump incorporates Self Set
Technology (SST), which adjusts air pressure every
10 minutes for the Active (Alternating) mode and
20 minutes for the Reactive (Constant Lower Pressure)
(CLP) mode to suit the Body Mass Index (BMI) and
positionof thepatient.Both supportsystemscan beused
on standard hospital beds.
A full technical description of the Auto Logic system
can be found in the Service Manual, part number
SER0006, available from your ArjoHuntleigh sales
office.
Auto Logic Pump The Auto Logic pump comprises a moulded case with
non slip feet on the base and rear and integral hanging
brackets.
The controls are situated on the top of the pump and a
sophisticated alarm system differentiates between
normal operation and genuine system faults. If an alarm
situation is detected an indicator illuminates on the top
and front of the pump and an audible warning sounds.
The Autofirm system, once activated, creates a
temporary firm surface to allow nursing procedures to
be performed.

2
Auto Logic 110
Mattress Overlay The Auto Logic 110 mattress overlay comprises the
following components:
Control Panel
Power and Alarm
Indicators
Hanging Brackets
Detachable Cover
Cover Attachment Zips
10 Side Supporting Cell-in-Cells
3 Static Head Cells
(Dark Blue)
CPR Unit
Fixed
Corner Straps
Overlay Base Cover (Including Micro Air Loss System)
2 Standard Cells (Dark Blue)
5 Standard Cells (Dark Blue)
(Light Blue)
Serial Label
Cable
Management
(Inside Base Cover)
Tubeset

3
Detachable Cover The standardcovercomprises a 2-waystretchPU coated
knitted fabric zipped to a durable polyester base. The
zips are protected by flaps to prevent ingress of
contaminants and allow easy removal of the cover for
cleaning.
Alternative covers with advanced properties, such as
Glide IS2and Ventilate IS2are also available (Refer to
“COVER SPECIFICATION” on page 30).
Cells The mattress comprises 20 polyurethane (PU) cells
providing support to the user in either Active
(Alternating) or Reactive (Constant Lower Pressure)
modes. The cells are slightly curved to reduce patient
movement down the mattress.
The side supporting cells incorporate Cell-in-Cell
technology to help the transfer of patients on and off the
bed by keeping the edges of the mattress firm.
Micro Air Loss System A micro air loss system is incorporated into the base
cover which de-humidifies the air surrounding the cells
to reduce heat build up within the mattress and ensure
patient comfort. This system is separate from the cell
inflation to enable both micro air loss and patient
transport modes to be incorporated into the mattress.
CPR Function A CPR (Cardio-Pulmonary Resuscitation) control is
positioned at the head end of the mattress to enable the
air to be evacuated in under 10 seconds.
Tubeset The tubeset has a 3-way pneumatic connection which
incorporates a flexible, compact anti-kink tube that is
resistant to crushing and any subsequent obstruction of
air flow.
If the tubeset is disconnected from the pump, the
mattress automatically changes to Transport mode.
Overlay Base Cover The base cover for the mattress overlay is PU coated
polyester on the underside. Four corner retention straps
are incorporated, which slide under the corners of the
base mattress.

4
Auto Logic 175 & 200 Mattress Replacement
The Auto Logic 175 & 200 mattress replacements are of
a similar construction to the overlay with the addition of
a non-slip base. Within the non-slip base, the 175
mattress includes a foam underlay and the 200 mattress
has an air filled zoned sub-mattress both of which
replace the need for a mattress on the bed. The base can
be removed to convert the mattress replacement to an
overlay, refer to ArjoHuntleigh for more information.
Air Sub-Mattress
(200 Only) The Sub-Mattress provides an integral constant pressure
support which removes the need for a standard mattress.
The pressure in the central zone of the pad is
automatically adjusted in line with the Active
(Alternating)/Reactive (Constant Lower Pressure)
(CLP) of the mattress. The pressure in the perimeter
zone of the pad is maintained at a higher level to help
transfer of patients on and off the bed.
On the underside of the Sub-Mattress there are eight
straps to attach the mattress replacement to the bed
frame. The straps can be moved to any of the 10 anchor
points to allow attachment of the mattress to different
bed frames.
Securing Straps
175 - Non-slip base including foam underlay
Cover Attachment Zips
CPR Unit
Fixed Tubeset
Detachable Cover
3 Static Head Cells
(Dark Blue)
10 Side Supporting Cell-in-Cells
2 Standard Cells (Dark Blue)
5 Standard Cells (Dark Blue)
(Light Blue)
Cable
Management
200 - Air Filled Zoned Sub-Mattress (Non-Slip)

5
Aura Logic Seat
Cushion The Aura Logic seat cushion is an Active (Alternating)
pressure redistribution system that can be used on
standard hospital chairs.
Battery Pack
(Optional) The Battery Pack is an optional extra that allows the
pump to operate for a minimum of eight hours without a
mains power supply.
The Battery Pack easily slides onto the base of the pump
andwill rechargeitself whenthe pumpisoperating from
the mains power supply.
Detachable Cover
Alternating Cells
Zip
Non-Slip Base
Fixing Straps Fixed Tubeset
Serial Label
(Inside Base Cover)
Deflation Valves (on
underside for packing
& storage)
Caution
The optional battery pack is not suitable for use in the homecare
environment.

6
2. Clinical Applications
Indications The Auto Logic systems are indicated for the prevention
and/or management of all categories1of pressure ulcer,
when combined with an individualised, comprehensive
pressure ulcer protocol: for example, repositioning,
nutritional support, skin care. Selection should be based
upon a holistic assessment of the patient’s individual
care needs.
These systems represent one aspect of a pressure ulcer
managementprotocol;allotheraspectsofcareshould be
considered by the prescribing clinician.
If existing wounds do not improve or the patient's
conditionchanges theoveralltherapyregimen shouldbe
reviewed by the prescribing clinician.
The above are guidelines only and should not replace
clinical judgement.
The Auto Logic mattress and cushion are designed for
patients weighing up to 200kg (440 lb).
Contraindications Do not use Auto Logicsystems for patients with unstable
spinal fractures.
Cautions If patients have other unstable fractures, or conditions
which may be complicated by a soft or moving surface,
advice should be sought from an appropriate clinician
before use.
While the Auto Logic systems have been designed to
manage patients up to the weight limits indicated above,
those approaching this upper limit are likely to have
additional care and mobility needs and may be better
suited to a specialist bariatric system.
Active (Alternating) therapy cushions may be
unsuitablefor patientswithpoorsitting postureorpelvic
deformity; advice from a seating specialist should be
sought.
Care of the Patient
When Sitting Seated patients are at increased risk of pressure ulcers
particularly if they are immobile or have wounds over
the seating area. For optimal outcome, provide a
pressure redistributing seat cushion in a chair which
promotes a good sitting posture and has a level base seat
to support the cushion, in addition to an individualised
repositioning programme.
Mattress and cushion combinations may have different upper weight limits.
Cushions should be used in combination with pressure-redistributing
mattresses to provide 24-hour therapy.
1. NPUAP/EPUAP International Pressure Ulcer Guideline, 2009.

7
3. Installation
Preparing the
Systems for Use Remove the system from the packaging. You should
have the following items:
•Auto Logic pump including mains power cord and
hanging brackets.
•Auto Logic 110 mattress overlay, Auto Logic 175 or
200 mattress replacement or the Aura Logic seat
cushion, which all have integral tubesets and covers.
Do not use the mattress or seat cushion without the
cover.
• Battery Pack (optional).
Installing the Mattress
Auto Logic 110
Mattress Overlay 1. Place the overlay on top of the base mattress, with
the tubeset located near the foot end of the bed and
the CPR at the head end. The cells of the mattress
must be uppermost.
2. Secure the overlay to the base mattress by placing
and tightening the four long straps under the
corners of the base mattress.
WARNING
Bags supplied with this equipment may present a suffocation risk;
to avoid the risk of suffocation keep the bags away from babies and
small children.
Caution
Do not use the mattress overlay directly on the bed frame.

8
Auto Logic 175 or 200
Mattress Replacement 1. Remove the existing mattress from the bed frame
and check that there are no protruding bed springs
or sharp objects on the bed frame surface.
2. Unroll the mattress onto the bed frame and ensure
that the tubeset is located near the foot end of the
bed and the CPR at the head end. The cells of the
mattress must be uppermost.
3. Attach the mattress to the bed frame using the eight
fastener straps.
The eight fastener straps can be moved to any of the
10 anchor points on the base of the mattress
replacement. This allows for attaching the mattress
to different types of bed frame.
If the bed can be profiled to any position (i.e. raised
or lowered), attach the mattress to the movable
parts of the bed only.
Care should be taken at all times to check that
tubes/lines are positioned correctly.
To Complete the
Mattress Installation Complete the installation of the mattress overlay or the
mattress replacement as follows:
1. If not already fitted, place the protective cover over
the mattress. Ensure that the ArjoHuntleigh logo is
uppermost and at the foot end of the mattress.
2. Zip the cover onto the mattress starting from the
head end and taking care not to trap any material in
the zip.
3. Ensure that the CPR unit is clicked into the closed
position.
The CPR must be accessible at all times.
“Click”
WARNING
Make sure that the mains power cable is positioned to avoid
causing a hazard and is clear of moving bed mechanisms or other
possible entrapment areas. Refer to “Cable Management” on
page 9.

9
Installing the Pump 1. Position the pump, feet down, on any convenient
horizontal surface or alternatively suspend from the
bed foot rail by means of the swing out hooks.
2. Ensure that the mattress/seat tubeset is not “kinked”
or twisted and connect it to the pump until it clicks
into place. Ensure that the tubeset is securely
connected to the pump.
3. Insert the mains power plug into a suitable mains
power socket.
Battery Pack If you have a battery pack, refer to “Installing the
Battery Pack” on page 20.
Cable Management If using the mattress replacement or mattress overlay,
the power cable can be positioned in the cable
management flap running down the side of the mattress
as follows:
1. Locate the flap running along the mattress on the
opposite side to the tubeset and CPR.
2. Run the straight part of the cable along the side of
the mattress securing the flap round the cable using
the press studs.
System Operation The system is now ready for use. Refer to “Controls,
Alarms and Indicators” on page 12 and “Operation” on
page 15 for day-to-day operating instructions.
“Click”

10
Installing the
Aura Logic Seat
Cushion
The system should be installed as follows:
1. Check that there are no sharp objects on the chair
which may puncture the cushion.
2. Place the cushion on top of the chair surface. From
a standing position in front of the chair and facing
it, ensure that:
• The cells are uppermost.
• The tubeset appears from the front right corner of
the cushion.
• The cells in the seat cushion are in a horizontal
position across the chair, with the ‘V’ shape
pointing towards the front.
Cautions
• Do not use the Aura Logic seat cushion without a foam cushion
beneath it.
• Always use the Aura Logic seat cushion with the protective top
cover.
• Always use the Aura Logic seat cushion in the correct
orientation.
• Avoid trailing cables - ensure that cables and tubing are
positioned beneath the chair to avoid causing a hazard.
• Position the tubeset so it does not create a trip hazard and
always supervise babies and small children when the product
is in use.

11
3. Secure the seat cushion to the chair by using the
fixing straps as shown in the following illustrations.
4. If the chair is of the open sided construction, then
fix the cushion as shown below:
5. If the chair is of the closed side type with a
removable seat cushion, fix the seat cushion as
shown below:
6. If the chair is of the closed side type with a non-
removable seat cushion, then security will rely on
the anti-slip base material of the seat cushion.
7. Place the protective cover over the seat cushion and
ensure that the ArjoHuntleigh logo and the
orientation icon, printed on the cover, are
uppermost and at the front of the seat.
8. Zip the cover onto the seat cushion, taking care not
to trap any material in the zip.
9. Connect to the Auto Logic pump, refer to page 9.

12
4. Controls, Alarms and Indicators
Controls
Run/Standby Button Pressing the Run/Standby button will activate the pump.
The green indicators on the control panel and the front
of the pump will illuminate when the pump is on.
To switch the pump to Standby, the button must be
pressed for two seconds. This prevents accidental
operation.
Unless Transport mode is required, always put the
pumpinto Standbybefore disconnectingmattress or
seatpad.
Alarm Mute During an alarm condition (except Power Fail Alarm),
the sound of the alarm can be silenced by pressing this
button. The yellow indicator then remains on but the
alarms will be silenced for 15 minutes or until the alarm
condition has been corrected.
Reactive (CLP) Mode Selects the Reactive (Constant Lower Pressure) (CLP),
non-alternating mode. The yellow indicator illuminates
when the pump is in this mode. When the Active
(Alternating) mode (default) is selected, the yellow
indicator will be switched off.
Press the Reactive (CLP) Mode button for
approximately 4 seconds to activate the reactive mode.
The change in the mode will occur at the end of the next
complete alternating cycle, and so a maximum 10
minute delay may be experienced.
Run/Standby
Reactive (CLP) Mode
Alarm Mute Comfort
Service Indicator Power Fail Indicator
Battery Low Indicator
Wait Indicator Low Pressure Indicator
Autofirm
Controls
