Arkray SPOTCHEM D-00 QR User manual

D-00 QR i
1Premise
Thank you for purchasing our operation unit, the SPOTCHEM D-00 QR SD-9811.
This manual contains important information on the functions of the SPOTCHEM D-00 QR SD-9811.
This manual is issued by ARKRAY, Inc.
Read carefully prior to starting up the unit.
It is recommended to retain this operating manual for future use.
The SPOTCHEM D-00 QR (SD-9811) control unit is intended for the operation of SD-3810, SD-4810 and
SD-4820, which are intended for the quantitative and automated measurement of several physiological
markers in whole blood, serum, and plasma. This control unit is intended for use with SPOTCHEM D reagent
strips/plates/packs. Sample types vary depending on reagent. For information about the analyte, the function
and the target disease/condition as well as the intended use population, please refer to the reagent instructions
for use. For in vitro diagnostic use and professional use only.
This product conforms to the EMC Standard IEC61326-2-6:2012(EN61326-2-6:2013).
Class of emission: CISPR 11 Class A
This instrument is an IVD medical instrument.
This product conforms to Regulation (EU) 2017/746.
The electromagnetic environment should be evaluated prior to operation of the device. Do not use this device
in close proximity to sources of strong electromagnetic radiation, as these may interfere with the proper
operation.
NOTE: This instrument has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the instrument is operated in a commercial environment. This instrument generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the operating manual, may cause harmful
interference to radio communications. Operation of this instrument in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.

D-00 QR ii
2 Introduction
Read this operating manual thoroughly before using the instrument. This operating manual gives an outline of the instrument and
the proper procedures for operation and maintenance.
Follow the instructions in this operating manual in order not to defeat the purpose of protective features of the instrument.
If you have had or could have had any serious incident related to the device, please report it directly to the manufacturer or through
the authorised representative and to your local regulatory authority.
If you want to obtain information included in this operating manual in a language other than English, contact your distributor.
©2020 ARKRAY, Inc.
• It is strictly prohibited to copy any part of this operating manual without the expressed consent of ARKRAY, Inc.
• The information in this operating manual is subject to change without notice.
• ARKRAY, Inc. has made every effort to prepare this operating manual as best possible. Should you discover anything
strange, incorrect or missing, contact your distributor.
• BE CAREFUL WHEN HANDLING BLOOD.
This system (SPOTCHEM D-Concept) uses blood as sample. Blood may be
contaminated by pathogenic microbes that can cause infectious diseases.
Improper handling of blood may cause infection to the user or other individuals
by pathogenic microbes.
• This system is to be operated by qualified persons only. A qualified person is one
having adequate knowledge of clinical testing and the disposal of infectious
waste. Thoroughly read this operating manual before use.
• Discard used instruments in accordance with local regulations for biohazardous
waste.
NOTE:
• This instrument is precision equipment. Be careful when handling it and do not subject it to strong shocks or vibration.
• Do not place a collection cup or any other vessel containing a sample or other liquid on the unit. The sample or other
liquid can get inside the instrument and damage it.

D-00 QR iii
3 Symbols
The following symbols are used in this operating manual and labels on this instrument to call your attention to specific
items.
For the meaning of symbols indicated on the labels (including the shipping box) not described below, refer to the
leaflet included in the package.
For your safety
For optimal performance
Follow the instructions given here to prevent exposure to pathogenic microbes.
Follow the instructions given here to prevent injury and property damage.
IMPORTANT: Follow the instructions given here to obtain accurate measurement results.
NOTE: Information useful for preventing damage to the instrument or parts and other important information you should
keep in mind.
REFERENCE: Additional explanations that help you make the best use of the instrument and information on related
functions.

D-00 QR iv
4 About the Operating Manuals
The following operating manuals are provided with each SPOTCHEM D-Concept instrument.
Read the operating manuals for each measurement unit after first reading the “SPOTCHEM D-00 QR Operating
Manual”.
SPOTCHEM D-00 QR (operation unit) Operating Manual (this manual)
First read this manual.
The SPOTCHEM D-00 QR is an operation unit that can be connected to a measurement unit or existing model for
operating and making settings of the connected unit(s). This operating manual describes the necessary operations for and
how to make the various settings for taking measurements.
* There is also a 2D code type operation unit, SPOTCHEM D-00 QR. However, both units are described as “D-00” in this
manual.
SPOTCHEM D-01 (measurement unit) Operating Manual
The SPOTCHEM D-01 is a measurement unit that uses the SPOTCHEM D reagent pack to take various measurements.
This operating manual describes the method of measurements and maintenance.
SPOTCHEM D-02 (measurement unit) Operating Manual
The SPOTCHEM D-02 is a measurement unit that uses the SPOTCHEM D single reagent, multiple reagent and electrolyte
plate to take various measurements. This operating manual describes the method of measurements and maintenance.
SPOTCHEM D-03 (measurement unit) Operating Manual
The SPOTCHEM D-03 is a measurement unit that uses the SPOTCHEM D single reagent and multiple reagent to take
various measurements. This operating manual describes the method of measurements and maintenance.

D-00 QR v
5 Caution Labels
This instrument has several caution labels on the areas that have potential dangers. Please learn potential dangers
warned by each label and observe the precautions described below.
Rear side
Power input terminal
This is the power cord connector. Use the included power cord to prevent electrical
shock and fires. Do not use any other electrical cords. When the power does not
turn on, the fuse could be blown. Please contact your local distributor.
1
1

D-00 QR vi
Table of Contents
Chapter 1 Before Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1-1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-1-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-1-2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

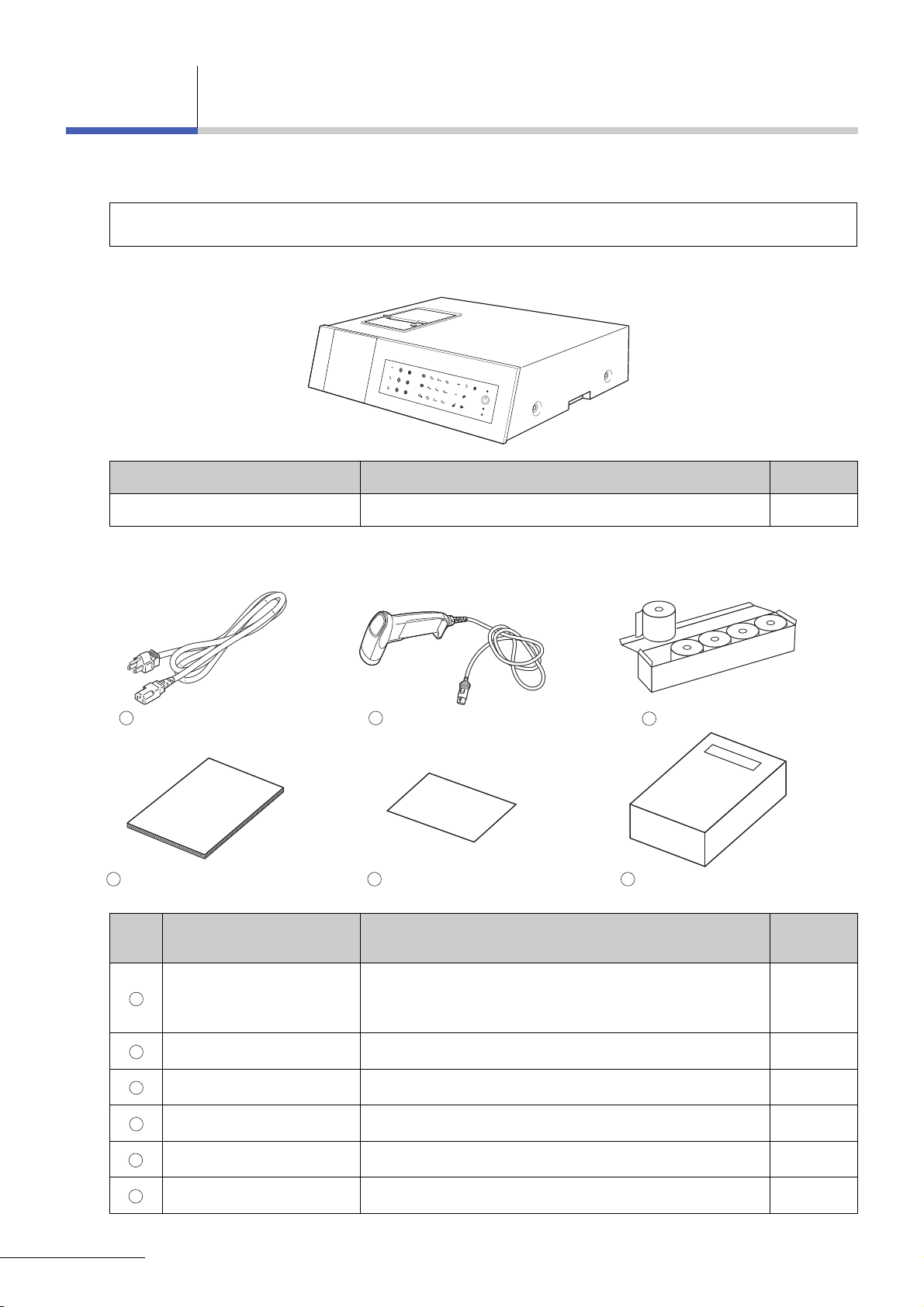

1-2 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-1 Instrument. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-3 Accessories Packing Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1-3 Part Names and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

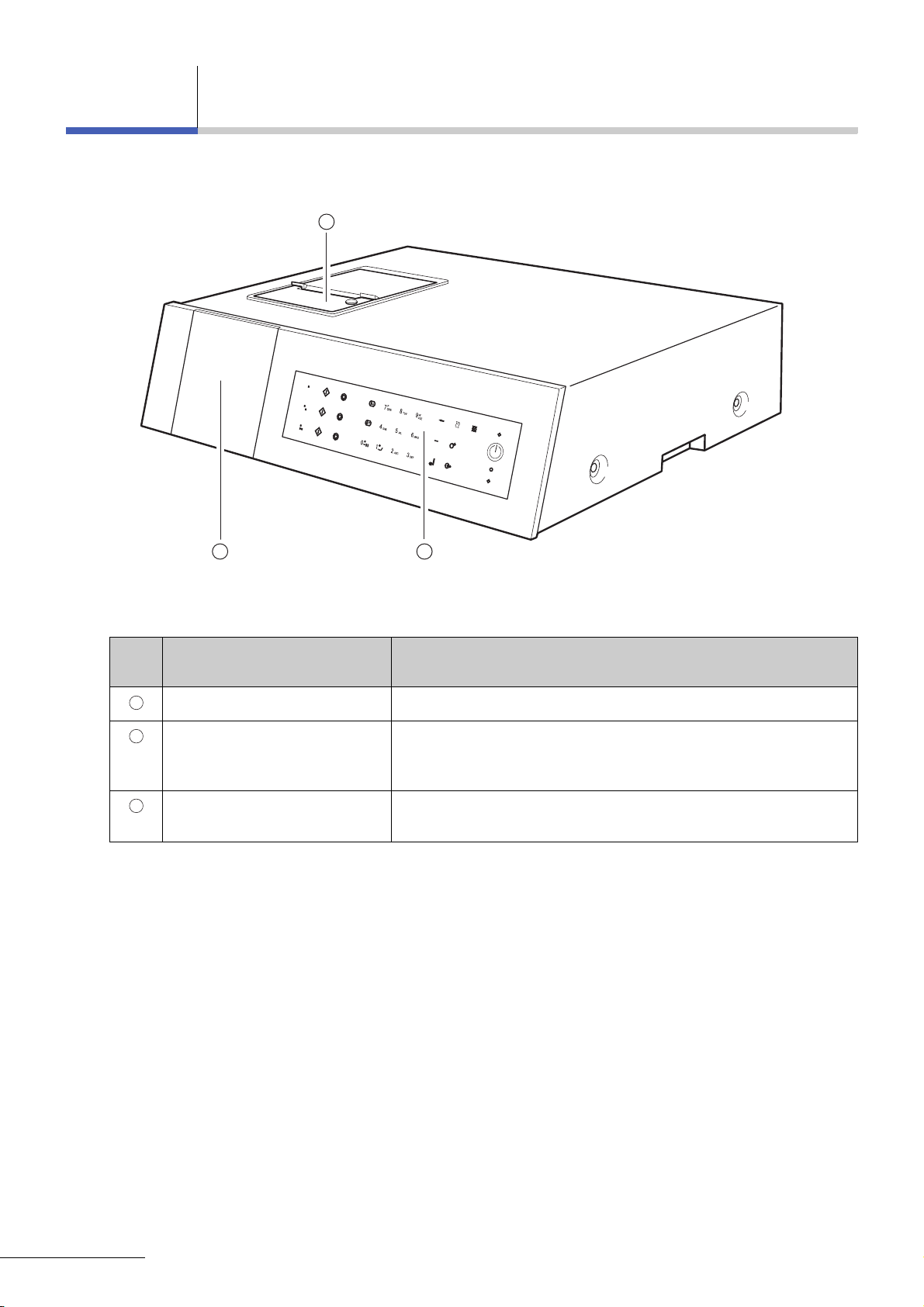

1-3-1 Front Side of Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1-3-2 Rear Side of Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
When connecting external devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

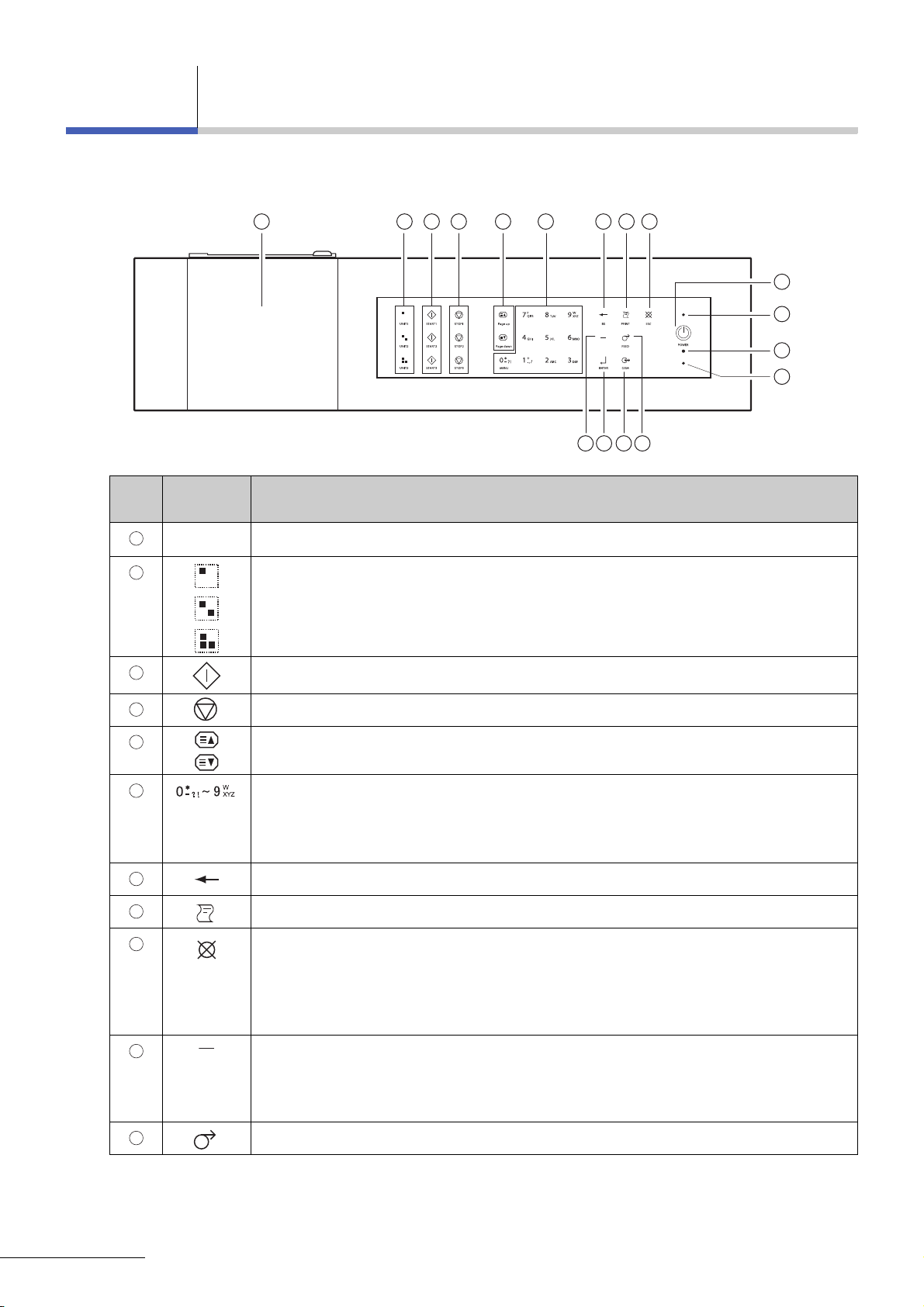

1-4 Operator Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1-5 Measurement Unit Connection and Display . . . . . . . . . . . . . . . . . . . 1-10
1-6 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1-6-1 Precautions for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1-6-2 Precautions for Moving the Instrument. . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1-6-3 Fixing the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1-6-4 Connecting the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Chapter 2 Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2-1 Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2-1-1 Status Indication Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2-1-2 Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2-1-3 Setting Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2-1-4 Message Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2-2 Menu Screen Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Moving menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
2-3 Setting Screen Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2-3-1 Setting Screen Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Cursor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Setting screen operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2-3-2 Changing Set Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2-3-3 Entering Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Entering characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Moving the cursor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Deleting characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
2-3-4 Entering Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
2-3-5 Entering Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
2-3-6 Entering Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
2-4 Message Screen Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
2-5 Operation when an Error Occurs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

D-00 QR vii
Chapter 3 Connecting Existing Models . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3-1 Existing Models that Can be Connected . . . . . . . . . . . . . . . . . . . . . . . 3-2
3-2 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
3-2-1 Connecting the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
3-2-2 Startup Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
3-3 Operation and Results Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3-3-1 Measurement Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3-3-2 Display of Results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
SP-4430 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
SI-3510 / SI-3511 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
SE-1520 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3-3-3 Printing of Results. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
SP-4430 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
SI-3510 / SI-3511 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
SE-1520 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Chapter 4 Menu Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
4-1 Menu Screen Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Settings available on the menu screen . . . . . . . . . . . . . . . . . . . . . . . . 4-2
4-2 Entering the Measurement Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4-3 Entering the Sample ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Sample ID restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Entering multiple sample IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
4-4 Measurement Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
4-4-1 Search for Measurement Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Maximum number of measurements to be stored in the memory . . . . 4-6
Search criteria and parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Using wildcards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
4-4-2 Checking and Printing Measurement Results. . . . . . . . . . . . . . . . . . . . . . 4-9
Reading the search screen and operable buttons . . . . . . . . . . . . . . . . 4-9
4-5 Sub Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
4-5-1 Clock Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
4-5-2 Option Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
4-5-3 Option Setting Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
4-5-4 Trouble List Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Maximum number of cases to be stored in the memory . . . . . . . . . . 4-19
Search criteria and parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
4-5-5 Checking and Printing Trouble List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Trouble list screen and available operations . . . . . . . . . . . . . . . . . . . 4-22
4-5-6 Turning On/Off Measurement Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

D-00 QR viii
Chapter 5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
5-1 Disinfection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5-2 Setting the Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Chapter 6 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
6-1 Message Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
6-2 Warning Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
6-3 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
6-4 Trouble Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Chapter 7 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
7-1 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

D-00 QR 1-1
1-1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-1-1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-1-2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1-2 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-1 Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-3 Accessories Packing Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1-3 Part Names and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1-3-1 Front Side of Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1-3-2 Rear Side of Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
When connecting external devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1-4 Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1-5 Measurement Unit Connection and Display . . . . . . . . . . . . . . . . . . . . . 1-10
1-6 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1-6-1 Precautions for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1-6-2 Precautions for Moving the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1-6-3 Fixing the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1-6-4 Connecting the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Chapter 1 Before Use
This chapter describes what should be known before using this instrument.

Chapter 1 Before Use
D-00 QR 1-2
1-1 Overview
1-1-1 Features
Simple operation
All operation and control of the connected measurement unit can be performed from the instrument’s operator panel
(excluding existing models).
Unit designing
This unit (operation unit) and measurement units are provided as separate units, thereby enabling you to combine the
required measurement units for an optimal system configuration.
Barcodes available for control
This reads the sample barcode and assigns the read barcode as an ID.
Large color LCD
The instrument employs a large, easy-to-view color LCD screen that makes the settings required for measurement and the
settings in the menu screen easy to understand and operate. When the printer’s printing paper runs out or an error occurs,
a description of the problem and the measures to be taken are displayed in a message to allow countermeasures to be taken
smoothly.
Can be connected to existing models
This instrument can connect to SPOTCHEM D-Concept Series measurement units as well as other existing units made by
ARKRAY to check and print the measurement results.
Space-saving
This instrument can connect to up to 3 measurement units stacked on top of each other. This allows the functions of 3
units to be used in the footprint for 1 unit and provides more efficient use of space.
Data management using connected external devices
Measurement results can be effectively utilized by using the optional data management software and external devices.
Reagent information input by 2D code (Reagent Info.)
Reagent lot information can be read by scanning the 2D code printed on the product box of a reagent.

1-1 Overview
D-00 QR 1-3
1-1-2 Specifications
SPOTCHEM D-00 QR (SD-9811)
*1: The manufacturing date is included in the serial number as shown below.
• 2nd and 3rd digits of the serial number: The last 2 digits of the manufacturing year
• 4th and 5th digits of the serial number: The manufacturing month
Item Specifications
Configuration Instrument, accessories
Number of connected devices Up to 3
Existing models that can
be connected
SPOTCHEM EZ SP-4430, SPOTCHEM IM SI-3510, SI-3511,
SPOTCHEM EL SE-1520
Startup time Approximately 1 minute
Display Large, 320 × 240-dot color LCD
Printer 58-mm-wide printing paper printer
Data storage capacity Measurement results: 100 measurements for each connected device
(Maximum 300 measurements)
Trouble list: 50 records for each connected device including the SPOTCHEM D-00 QR
(Maximum 200 records)
External output RS-232C (EIA-574) 1 port
Ethernet (10 BASE-T ethernet) 1 port (option)
*Cannot be used simultaneously
Communication speed RS-232C: 2400, 4800, 9600, 19200, 38400 bps
Barcode reader Handheld barcode reader
Operating environment Temperature: 10 to 30°C
Humidity: 20 to 80% RH (no condensation)
Storage environment Temperature: 1 to 30°C
Humidity: 20 to 80% RH (no condensation)
Environment during
transport
Temperature: -10 to 60°C
Humidity: 20 to 80% RH (no condensation)
(The environmental humidity level also should not exceed the absolute humidity
corresponding to 40°C/85% RH.)
Dimensions 408 (W) × 330 (D) × 103 (H) mm
Weight Approximately 5 kg
Supply voltage (Instrument) AC 100 - 240 V (Main power supply voltage variation must be within ±10%), 50/60 Hz
Sound pressure level 80 dB
Power input 300 VA or less
Location of use Indoor use only
Altitude 2,000 m
Pollution degree 2
Over voltage category II
Expected life 5 years (according to company data)*1

Chapter 1 Before Use
D-00 QR 1-4
1-2 Unpacking
The following items are included with this instrument. Check that all of these items are included. If any items are
missing or defective, please contact your distributor.
1-2-1 Instrument
1-2-2 Accessories
NOTE: For reagents and consumables used for measurement, refer to the manual of each measurement unit.
Items included Description Quantity
Instrument SPOTCHEM D-00 QR 1
Power cord
1
Printing paper
3
Operating manual
4
List of errors/troubles
5
Accessories packing box
6
2D code reader
2
Item
No. Items included Description Quantity
Power cord
Rating: 125V 13A (A Type Plug) and 250V 10A (C Type Plug)
Please use the appropriate power cord for your region's power
voltage.
2
2D code reader 1
Printing paper 58-mm-wide × 25-m-long roll, 5 rolls/box 1
Operating manual 1
List of errors/troubles 1
Accessories packing box 1
1
2
3
4
5
6

1-2 Unpacking
D-00 QR 1-5
1-2-3 Accessories Packing Box
Blower brush
1
Philips screwdriver
2
Hexagonal wrench
3
Item
No. Name Description Quantity
Blower brush Used for the measurement unit maintenance. 1
Philips screwdriver Used for the measurement unit maintenance. 1
Hexagonal wrench Used for the measurement unit installation. 1
1
2
3
This blower brush contains natural rubber latex which may cause allergic reactions.
If you feel unwell, immediately stop using the product and consult a doctor.

Chapter 1 Before Use
D-00 QR 1-6
1-3 Part Names and Functions
1-3-1 Front Side of Instrument
1
3
2
Item
No. Name Function
Display Displays instrument operation status, measurement results, errors etc.
Operator panel Contains the buttons for operating the instrument, such as for
measurement start and numerical entry.
For details, see “1-4 Operator Panel” (page 1-8).
Printer This is a thermal printer. Prints the measurement results and parameter
setting descriptions.
1
2
3

1-3 Part Names and Functions
D-00 QR 1-7
1-3-2 Rear Side of Instrument
When connecting external devices
1
2 5 6 7
34
Item
No. Name Function
Main switch Turns on/off the main power. During normal use, turn the power on
( | side) and during the specified maintenance or when not using the
instrument for a long time, turn the power off ( side).
Power input terminal Connects the power cord.
Cooling fan Expels warm air from inside the unit to prevent overheating.
Measurement unit connecting
terminals
Connect the various SPOTCHEM D-Concept measurement units (or
existing equipment).
Handheld barcode connecting
terminal
Connects the handheld barcode reader.
External device connecting
terminal 1 (RS-232C)
RS-232C interface for external device connection. For details, see “When
connecting external devices” (page 1-7).
External device connecting
terminal 2 (Ethernet)
An ethernet board can be connected to this terminal to allow LAN
connection. For details, see “When connecting external devices”
(page 1-7).
1
2
3
4
5
6
7
NOTE: Use the communication cable specified by ARKRAY when connecting the instrument to external devices. For
details, please contact your local distributor.

Chapter 1 Before Use
D-00 QR 1-8
1-4 Operator Panel
All SPOTCHEM D-Concept measurements are performed from the instrument’s operator panel. This section explains
the names and functions of the buttons on the operator panel.
Item
No. Symbol Function
(None) Shows the instrument status and setting information. For details, see “2-1 Screens” (page 2-2).
Press one of these buttons to select a measurement unit (or existing model).
Press this button to start measurement.
Press this button to cancel measurement.
Use these buttons to turn the pages of measurement result, search results etc.
• Use these buttons to numerical values.
• Use these buttons to specify a menu number during menu operation.
• Alphabetic characters can be entered when entering sample ID etc.
• Press [0] in the status indication screen to return to the [Main menu] screen.
Press this button to delete the most recent entry.
Press this button to print the measurement results.
Press this button to:
• cancel the processing being currently conducted;
• return to the upper-level menu;
• return to the previous screen without saving settings; or
• return to the status indication screen from the [Main menu] screen.
Press this button in the numerical value or password entry screen to:
• move the cursor to the right when entering character strings; or
• move the cursor between input fields when entering date and time.
Use this button in the item selection screen to highlight an item.
Press and hold this button to feed the printing paper.
12 3 4 5
14
15
16
17
10 12 13 11
6 7 8 9
1
2
3
4
5
6
7
8
9
10
11

1-4 Operator Panel
D-00 QR 1-9
Item
No. Symbol Function
Press this button to confirm the setting information.
Press this button to transfer the measurement results to the connected external device if any.
Press this button to turn the power on/off during normal use.
(None) Lights up blue when the power is turned on.
(None) Flashes orange when communicating with an external device.
(None) Flashes red when an error occurs.
12
13
14
15
16
17

Chapter 1 Before Use
D-00 QR 1-10
1-5 Measurement Unit Connection and Display
The connecting terminals ( ) on the rear side of this instrument connected to a measurement unit (or existing
model) correspond to the buttons on the operator panel. The on-screen position of the measurement unit
connected to this instrument is determined by the connected terminals.
The following shows an example of SPOTCHEM D-01 connected to and SPOTCHEM D-02 connected to on
this instrument. The relationship between the connected terminals and the on-screen positions of the measurement
units is as follows:
To operate a connected measurement unit (or existing model), press the buttons on the operator panel
corresponding to that unit.
The following is an example of using the button.
The measurement unit connected to is displayed.
The measurement unit connected to
is displayed.
Measurement unit (SPOTCHEM D-01)
Measurement unit (SPOTCHEM D-02)
Use these buttons to
select the measurement
unit connected to
and to start or cancel
measurement using that
unit.
Selects SPOTCHEM
D-01 connected to .
Cancels measurement
by SPOTCHEM D-01
connected to .
Starts measurement
using SPOTCHEM D-01
connected to .
Use these buttons to select the measurement unit
connected to and to start or cancel measurement
using that unit.

1-6 Installation
D-00 QR 1-11
1-6 Installation
1-6-1 Precautions for Installation
Before installing the instrument, read the following items and always take proper safety precautions.
• Determine a location for the instrument and assemble it in that location.
Do not move the instrument with the measurement unit or external device connected. Separate the
measurement unit and external device from the instrument before moving it. For safety reasons, always
transport the instrument with both hands holding handles.
• During installation, be careful not to get your hands trapped under the instrument.
• Install the rear side of the instrument at least 20 cm away from walls. Inadequate clearance between the
instrument and wall may cause overheating of the instrument or undesirable load on cable connections, thus
resulting in fire or incorrect measurement results. You will have trouble trying to turn off the main power switch
and disconnect connectors in the event of errors or trouble.
• Install the left side of the instrument (as seen from the front of the instrument) at least 20 cm away from walls.
Inadequate clearance between the instrument and walls may prevent maintenance work.
• Use the fixing brackets on measurement unit to fix the instrument to the measurement units. Failure to do so
may cause the instrument to fall due to strong external forces or vibrations resulting in damage to the
instrument and personal injury.
• When disconnecting a measurement unit from the instrument for maintenance or other works, always
disconnect the fastening brackets first.
• Install the instrument where temperature and humidity can be maintained in the following ranges.
Temperature: 10 to 30°C
Humidity: 20 to 80%
Installation in the measurement environment outside these ranges may result in incorrect measurement
results.
• Install the instrument on a level, vibration-free sturdy platform. Operation of the instrument in an unstable
place may cause trouble or malfunction of the instrument resulting in personal injury. Do not install the
instrument where it may fall or topple over.
•Do not install the instrument near places that store chemicals, near equipment that generates corrosive gas
or electrical noise, or near areas that may affect the temperature or humidity of the instrument, as this may
cause malfunction of or damage to the instrument and consequently lead to personal injury, or may otherwise
cause incorrect measurement results.
• Install the instrument in a place to avoid direct sunlight, condensation or wind. These factors may cause
incorrect measurement results, as well as deformation of or damage to the instrument.
• Supply the power of frequency and voltage (Voltage: AC 100 to 240 V; Frequency: 50/60 Hz). Failure to do
so may cause a fire, damage the unit, or result in personal injury.
• Use the power cord that came with the instrument to avoid electric shock and fire.
• The instrument should desirably be connected to an independent power outlet. In addition, the power input
for the instrument is a maximum of 300 VA.
• Always connect the instrument to a receptacle with ground terminal in order to prevent electrical shock. If the
receptacle available at the installation site does not have ground terminal, please contact your distributor.
• The main power voltage variation must be within ±10% of the nominal voltage.
• Standard transient overvoltage exists in the main power.
•Do not disassemble the instrument unless required for installation. Do not modify the instrument.
Disassembly and modification of the instrument may result in exposure to pathogenic microbes or cause fire
or damage to the instrument and consequently lead to personal injury.
• If you need to disassemble the instrument after use, wear protective gloves to prevent exposure to
pathogenic microbes.
Install the instrument under the supervision of a serviceperson.
