AromaTech Air stream single User manual

PRODUCT MANUAL
SET
ENT
SET ENT
(AIR STREAM SINGLE / AIR STREAM DUO)
SET ENT
What's inside the box:
Pump box, Empty oil drum, AC plug, PU tube(small size), mounting bracket, diffuser, HVAC
adaptor, silencer, PTFE tape, Product manual.
PRODUCT
MAN UAL
SET
ENT
PRODUCT
MAN UAL

CONTENT
NOTES
SPECIFICATIONS
OVERVIEW
WALL MOUNT INSTALLATION
TIME SETTING
SCENT INTENSITY AND CONSUMPTION
EQUIPMENT CLEANING
WARNING
TROUBLESHOOTING
1
2
3
5
6
9
11
13
10
Please comply with the following for safety reasons.
NOTES
!
Do not modify or disassemble the scent machine without first consulting
AromaTech.
In case of product failure please contact us.
Do not use the power chord if it is damaged, kinked or cut. It's a fire hazard.
To avoid electrical shock, do not touch the power adaptor or the machine while
plugged into the electrical socket during a thunderstorm or lightning.
Do not dismantle or try to repair the machine while its plugged into the electrical
outlet or in operation.
-1-

SPECIFICATION
【 Model 】
【 Dimension 】 163*160*165 mm(6" x 6" x 6") / 253x143x165mm(10" x 6" x 6")
【 Machine N.W. 】 3.65kg/8 lbs 4.65kg/10 lbs
【 Voltage 】 Input: AC100V~240V 50/60Hz
Output: DC12V 2A
【 Power 】 15W/25W
【 Technology 】 Twin-fluid atomization technology
【 Coverage 】
【 Bottle capacity 】 4 L
【 Material 】 Machine: acrylic,iron
Bottle: aluminum
Atomize head: aluminum
Connecting tube: PU
Input: AC100V~240V 50/60Hz
Output: DC12V 5A
8,000 SQ.FT/800 m 17,000 SQ.F.T/1500 m
Air stream single/
Air stream duo
.
-2- -3-
Handle
Air Pump
Manual
PRODUCT
MANU AL
SET
ENT

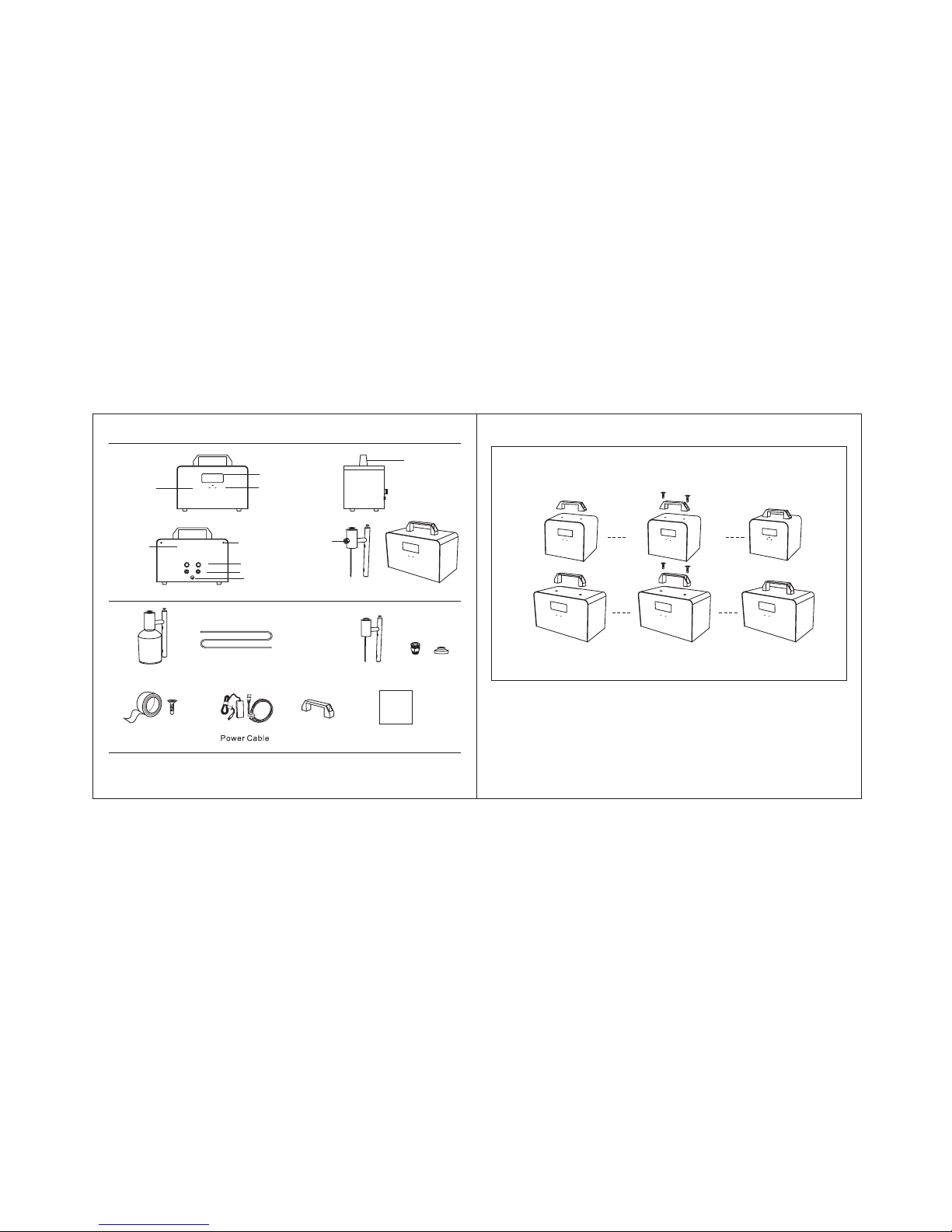

Mounting bracket and diffuser head,
HVAC adaptor,silencer
OVERVIEW
Front Panel
Air intake
Body
LCD monitor
Controls
Bottle PU tube
PTFE tape, screws Handle
DC connector
SET ENT
Air pump switch
Air outlet
diffuser
Mounting bracket
(Air stream single)
2 Air Tubes
power adaptor
22

-5-
Front Panel
Air intake
Body
Air Pump
LCD monitor
Controls
Bottle
Manual
PROD UCT
MANU AL
PU tube
PTFE tape, screws Handle
DC connector
SET E NT
SET ENT
OVERVIEW
Air pump switch
Air outlet
diffuser
Mounting bracket
(Air stream duo)
Mounting bracket and diffuser head,
HVAC adaptor,silencer
2 Air Tubes
-4-
Handle installation :
Align and fix the handle with screws.
SET
ENT
SET ENT
SET
ENT
SET
ENT
SET ENT SET ENT
Handle

Ceiling
Interior space
Min 1800 mm or 7 ft.
Min 300mm or
12 inches
Wall diffuser
Air tube
Max length 5m
Pump housing
VARIOUS METHODS OF INSTALLATION
Ceiling
Interior space
Min 1800 mm or 7 ft.
Min 300mm or
12 inches
Wall diffuser
Air tube
Max length 5m
Pump housing
Local space diffusion – diffuser is visible (Option B)
Local space diffusion – diffuser out of sight (Option A)
VARIOUS METHODS OF INSTALLATION
-7-
-6-

TIME SETTING
Screen Lock and Unlock
The LCD screen will automatically lock itself after 10 seconds if not used. Press SET and hold
for 5 seconds to unlock the display.
Power OFF
Turn off the power switch
Power ON
Connect the 12V adaptor to the outlet and turn ON the power switch. Local time and scent
intensity grade will come on.
Mon
TUES
WED
THUR
FRI
SAT
SUN
Mon-Sun 7 day timer
atomization grade
work icon
local time
-11-
Mon
TUES
WED
THUR
FRI
SAT
SUN
Local time setting
Press SET button for 3 seconds until you hear a beep to enter
local time setting menu. Press or▲button to choose the correct
day. Then press ENT button to move to local time setting. Press
or▲button to change the number. Press ENT button to move
to another position. Press SET to confirm (Figure 1).
(1)
-10-
1. Use the screws to fasten the bracket to the wall.
2.Wrap the neck of the bottle with PTFE tape to seal it and screw the bottle to the
diffuser.
4.Connect the other end of the air tube to the adaptor on the bracket.
5: Take an HVAC adaptor and screw it to the top of the diffuser.
6. Connect a separate 6 -12 inch air tube to the diffuser top.
7. Connect the air tube from the top of the diffuser into the air duct by drilling a 6mm
opening past the filters. Make sure the tube is pointing with the direction of the air
flow not against it.
Wall Mount Installation
3.Connect the air tube to the pumps air outlet.
8.Connect with power supply,turn on the air pump switch;
Air outlet
hole
HVAC connect ion
SET
ENT

-13-
(The first working period is set to factory default setting, 7 am ON and 21:00 OFF. The rest are
at set to 00:00)
(5)
Available
working period
07:00
-
21:00
00:00
-
00:00
00:00
-
00:00
00:00
-
00:00
00:00
-
00:00
Mon
TUES
WED
THUR
FRI
SAT
SUN
Intensity Setting
The scent machine has a total of 20 grades. Press
button to increase the intensity and button to
decrease. (Figure 5)
Mon
Thues
Thur
Wed
Fri
Sat
Sun
ON/OF F
ON/OF F
ON/OF F
ON/OF F
ON/OF F
ON/OF F
ON/OF F
ON/OF F ON/OFF O N/OFF ON /OF F
ON/OF F ON/OFF O N/OFF ON /OF F
ON/OF F ON/OFF O N/OFF ON /OF F
ON/OF F ON/OFF O N/OFF ON /OF F
ON/OF F ON/OFF O N/OFF ON /OF F
ON/OF F ON/OFF O N/OFF ON /OF F
ON/OF F ON/OFF O N/OFF ON /OF F
-12-
(2)
(3)
(4)
Setting Hours of Operation
There are 5 working periods available to set the hours of
operation. (Figure 2). Touch SET button to set working
period (ON1 & OFF1). Press or button to adjust the
number. Press ENT to move to the next setting. Once the
ON and OFF time is set choose the day of the week . Press
ENT, choose your day (Mon) then press button to
set the working time (under ON1) (Figure 3) or press
button to turn off the working time (under OFF1)
(Figure 4). Press E N T to move to the next day, Press SET
and repeat the steps to set TUES. Once settings are set
press SET to confirm.
Mon
TUES
WED
THUR
FRI
SAT
SUN
Mon
TUES
WED
THUR
FRI
SAT
SUN
Mon
TUES
WED
THUR
FRI
SAT
SUN

G10
G20
G10
G20
2.50
1.24
2.48
5.00
G9G8
G19G18
G9G8
G19G18
2.352.23
1.110.99
2.221.98
4.704.46
-15-
Consumption(ml/hr)
G1 G2 G7G6G5G4G3
G11 G12 G17G16G15G14G13
Aroma oil consumption
Consumption (ml/hr)
G1 G2 G7G6G5G4G3
G11 G12 G17G16G15G14G13
2.101.981.851.731.611.491.36
0.870.720.620.500.370.250.12
1.741.441.241.000.740.500.24
4.203.963.703.463.222.982.72
Air Stream Duo
Air Stream Single
Note: 1. The above data is based on using aroma oil.
2. Using other type of oil may have an effect on the consumption rate.
Stop(sec)
15s
15s
20s
20s
25s
30s
30s
30s
30s
30s
33s
40s
50s
60s
75s
80s
85s
120s
150s
300s
CONCENTRATION AND CONSUMPTION
Form 1 Atomization Concentration
-14-
Grade
G20
G19
G18
G17
G16
G15
G14
G13
G12
G11
Working(sec)
300s
150s
120s
85s
80s
75s
60s
50s
40s
33s
G10
G9
G8
G7
G6
G5
G4
G3
G2
G1
30s
30s
30s
30s
30s
25s
20s
20s
15s
15s

-17-
Problem
No diffusion
-Check if the power is ON or OFF.
-The pump is damaged and needs replacing.
-Air tube is loose and needs to be reconnected.
Little or no
spray coming out
Diffuser spraying liquid
Oil Spillage
Abnormal sound
No display on screen
-Make sure the power is ON.
-Check the plug for damage. Try another outlet. If plug is
damaged replace.
-Display screen is damaged. Replace.
Solution
-Diffuser core is damaged. Replace diffuser core.
-Machine is tilted or angled. Make sure it's upright at all
times.
-Bottle is loose. Screw it in properly and straight.
-Pump is loose or damaged. Tighten the pump or replace.
-Atomization head is blocked. Clean with alcohol.
-Diffuser core with straw is missing or damaged. Replace
with a new one.
-Pump is damaged and may need replacing.
-Check the air tube, if loose reconnect it.
Prior to submitting a warranty claim please try the below steps to
diagnose the problem and fix the the issue. For warranty information
please contact AromaTech at 1888.276.6245 or send us an email at
[e-mail]
WARNING
If the screen crashes, press ENT and hold for 5 seconds to reset the machine and bring it to
factory settings.
After installation make sure the diffuser, bottle and pump box are ALWAYS vertical and not
tilted or on its side.
Cleaning steps:
1. Empty the oil from a canister and replace with 50-100 ml of rubbing alcohol.
2. Screw the bottle into the diffuser and turn the machine ON for 5-10 min to clean out the
diffuser head and tube.
3. Pour out the rubbing alcohol (no rinsing required) and replace with your favorite aroma
oil blend.
Tips:
You can start using the scent machine immediately after cleaning it. There is no need to
wash the tube.
-16-
EQUIPMENT CLEANING
Machine cleaning:
1.When changing oil clean out the diffuser.
2. If scent diffusion becomes weak.
