AromaTech AroMini BT User manual

NEBULIZING FRAGRANCE DIFFUSER
User Guide
BT

Fragrances for Living

Contents
4 ENHANCE YOUR ATMOSPHERE
5FEATURES & SPECIFICATIONS
6TECHNOLOGY
7DIAGRAM OF PARTS
8QUICK START
9WHERE TO PLACE
10 SETTING SCENT INTENSITY
11 INTENSITY CYCLES & CONSUMPTION
12 CLEANING THE DIFFUSER
13 APP CONTROL & QR CODE
14 WARNINGS
17 WARRANTY AND SUPPORT
15-16 TROUBLE SHOOTING

Scent is the first thing people notice when they enter your home or business.
Now you can style your home ambience with your favorite aroma oils using
the most advanced scent technology. The AroMini BT will forever change the
way you use scent in your home or business.
The AroMini BT houses cold-air nebulization technology to provide the most pure
and scented environment. Our nebulization technology preserves the
integrity of our premium aroma oils creating a unique and memorable experience.
Cold-air, nebulization is an easy, heat free way to diffuse AromaTech’s aroma
oil blends. AromaTech diffusers elevate your ambience and home decor with
wonderful aromas to suit your everyday lifestyle and special occasions.
AromaTech truly creates a unique and inviting ambience in your home or business.
With the AroMini BT, you can create and control an exquisite scent experience
adjusted perfectly to match the size and conditions of a room. You can also
change the scent depending on your mood, occasions and time of day.
Enhance Your Atmosphere
Style your home with scent
4

— Revolutionary Nebulizing technology
— Bluetooth Connectivity
— App control
— Uniform and consistent scent day after day
— Constructed from recycled aluminum
— Adjustable scent intensity
— Whisper-quiet operation
— No water
— No heat
— No residue
PRODUCT NAME
COVERAGE
CONNECTIVITY
OIL CAPACTIY
REFILL
DIMENSIONS
WEIGHT
INPUT VOLTAGE
OUTPUT VOLTAGE
AROMINI BT
UP TO 1,000 SQ.FT
BLUETOOTH
120ML/4.5OZ MAX
AS DESIRED
3.4”W X 12”H
3LBS
110-240V AC
12V DC
Features
5

Each of our fragrance nebulizers uses patented cold-air nebulizing technology
to release nanoparticles into the air that leave behind no residue.
This technology preserves the integrity of our aroma oils to deliver pristine,
evenly distributed scent without using heat or diluting the oils in water or alcohol.
Using only AromaTech aroma oil blends will guarantee the best
performance of your diffuser. There is no need to mix or dilute with water,
carrier oils or alcohol. Our scents are produced to be used in the diffuser
without alteration. Simply fill the bottle with your favorite AromaTech
aroma oils and set the intensity.
Technology
6

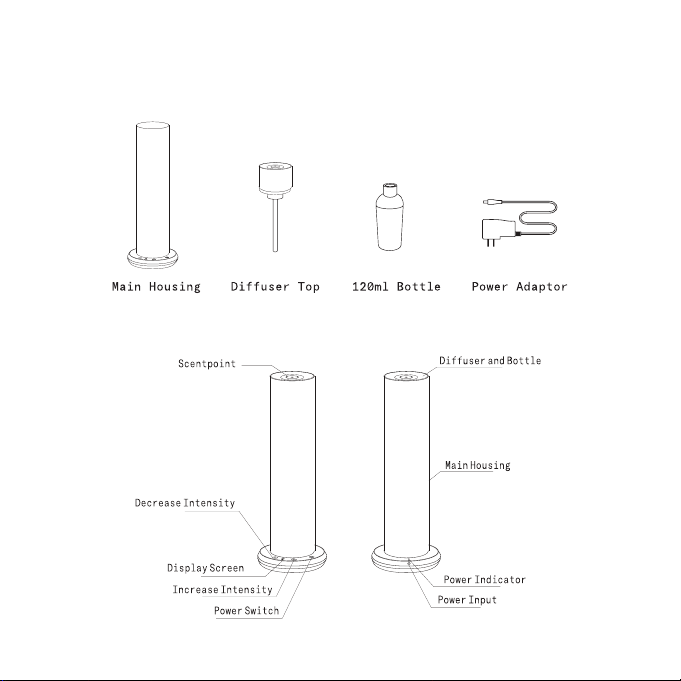

Back
Front
Diagram of Parts
7

1. Ensure AroMini BT is plued in and turned off.
2. Press down the top of the diffuser and pull up, exposing plastic bottle.
3. Unscrew bottle and fill desired amount of AromaTech aroma oil, not higher
than MAX fill level.
4. Screw bottle back onto top.
5. Align notches with air nozzle.
6. Push the lid down until you hear a click. Lid is then inserted correctly.
7. Press power button to turn on AroMini BT.
8. Use intensity buttons and set to desired intensity level.
9. Enjoy your AromaTech scenting experience!
Quick start
8

LOCATION
The AroMini BT is designed to be placed on a table-top, counter top or a shelf.
Do not place device on finely finished surface areas.
SCENTING COVERAGE
The AroMini BT can be adjusted to scent an area ranging
from 10 to 1,000 sq.ft (1 to 100sq.m)
DEVICE LOCATION
An important element of your scenting experience is to properly position
the device in the room to ensure optimal performance.
Choose the location where the aroma oil molecules can use the natural
airflow in a room. This is particularly important with air-conditioned
spaces. The best location for the AroMini BT is where there is good airflow.
Do not place the AroMini BT near an HVAC return grill, exhaust, fan, or
vent. Setting near open windows will cause the scent to escape the space.
Work with the natural airflow of the space.
Try a variety of locations and settings until you are happy with scent
coverage. Give the AroMini BT a little time to adjust to the new location
and setting before changing it again
Where to Place
9

Once the AromaTech aroma oil is placed in the device, basic operation
is simply adjusting the scent level to match the room size, ambience
or occasion. Simply turn the machine on using the intensity buttons.
Starting at level 1, after a few minutes, you will experience the scent
spreading around your space. If needed, adjust accordingly. Once you
have chosen the right setting, you should only have to adjust slightly
with different aroma oils.
Keep nose clear from the scent output when the device is operating.
Instead, waft air towards nose to experience the full aroma oil scent.
When changing the scent level, give the AroMini BT some time to equalize
the scent level throughout the space before you decide if you need to adjust.
AromaTech user profiles:
Low intenstiy- level 1-3 / 2hrs of operation per day
Medium intensity- level 4-6 / 4 hrs of operation per day
High intensity- level 7-9 / 8-10 hrs of operation day
Setting Scent Intensity
10

Intensity grade and consumption
11
Please note that while the device is running the nebulization process,
the intensity cycles turn on and off to ensure powerful scent coverage.
The on/off cycle compared to a steady stream of scent allows the occupants
of the space to notice the scent.
*The above consumption data may vary depending on the different aroma oil
GRADE
RUN TIME
(SEC)
PAUSE TIME
(SEC)
OIL
CONSUMPTION
(ML/HR)
1 5 240 0.03
2 10 220 0.08
3 15 200 0.13
4 15 180 0.18
5 20 160 0.23
6 20 120 0.28
7 25 100 0.33
8 25 80 0.38
9 25 60 0.44

Our AromaMini BT, aroma oils and diffuser cleaner is a system designed to work
together to provide an elevated scenting experience. In order to keep the
diffuser functioning at its best, make sure to clean it every time you
refill the bottle with a new scent. The nebulizer inside the diffuser can become
cloed so we only recommend using our specialized aroma oils. Other oils may
have thick, heavy base oils that could result in the diffuser malfunctioning.
Using non AromaTech oils in your device will void the warranty.
1. Ensure AroMini BT is turned off.
2. Press down the top of the diffuser and pull up, exposing plastic bottle.
3. Unscrew bottle and fill 1/4 full bottle with Diffuser Cleaner or Isopropyl (rubbing)
Alcohol.
4. Screw plastic bottle on to the top.
5. Swirl around to remove residue from bottle and outside of intake tube.
6. Align notch with air nozzle.
6. Push down to until you hear a click. Lid is then correctly inserted.
7. Turn on AroMini BT and set to #9 intensity level and leave on 5-10 minutes to
clean thoroughly.
8. Turn AroMini BT off and remove diffuser cleaner and fill with your next aroma oil.
Cleaning your diffuser
12

Expand the available diffuser features through the AromaTech Scenting App
to bring the ultimate ambience control to your fingertips. Simply download our
app from the Apple App Store or Google Play to unlock scheduling, setting
multiple start and stop times and changing days of operation.
Scenting App
13
Use this QR code for easy App connection and set up.

WARNINGS
— Only use the power adapter supplied with the device.
— Never operate the diffuser if the power adapter is damaged.
— Do not use the diffuser if any part of the device is broken.
— NEVER attempt to service, disassemble, or repair the device in anyway,
other than cleaning and refilling the Aroma oil bottle.
— When moving the device always keep it upright, do not tilt and
carry securely with both hands.
— Always place unit on a stable, level surface and ensure it is over 2’ away
from the ceiling.
— NEVER dilute oils with water or carrier oils.
— NEVER pour water in or on the device and never operate with wet hands.
— Do not cover the device with objects or material while in use.
— Ensure power adapter is never blocked when pued in.
— Keep nose clear from the scent output at the top of the diffuser when the
device is operating.
— ALWAYS keep out of reach of small children and pets.
— Store at room temperature 68-75 F (20-23 C), 30-35% Humidity
In the event of a problem or issue, please contact us at 1.888.276.6245
or [email protected]
14

Symptom Solution
Possible cause
Diffuser does not turn on
(display does not turn on)
Diffuser is turned on, but not
diffusing, can’t hear the air
pump.
Air pump is running but no
mist is visible and/or cannot
smell the scent
1. Power cord not connected
correctly.
1. Check if green light on
power cord is illuminated.
1. Diffuser is in pause/
rest mode between cycles.
2. Diffuser is not currently
scheduled to run.
1. Diffuser core could be
cloed.
2. Replace oil over MIN level
3. Make sure the top of the
diffuser is pushed down
until you hear a click.
1. Replace oil with diffuser
cleaner/rubbing alcohol, run
on level 9 for 10 minutes.
2. There is not enough aroma
oil remaining in bottle.
1. Bottle is overfilled.
3. Diffuser has been tipped
over/tilted.
2. Bottle is not screwed
in straight and firmly.
1. Ensure oil is filled below
MAX level.
3. Ensure device is on stable/
level surface.
2. Unscrew the bottle and
ensure it is secured straight
and firmly.
1. Wait for device to turn
back on by itself after pause
in cycle.
Or turn device off and on to
restart cycle.
3. Check schedule in App
2. Disconnect power cord
and re-connect carefully.
2. Diffuser is not connected
to the power outlet.
Oil is leaking
Trouble shooting
3. The top of the unit is not
pushed down securely
15

Unusual or loud noise
Turn diffuser off and
contact customer care
[email protected]
1.888.276.6245
Symptom Solution
Possible cause
Diffuser does not connect
to Scenting App.
Diffuser is on but it is making
a gurgling noise.
1. Someone else is connected
via Bluetooth to your device.
2. Phone is too far away
from diffuser.
1. The bottle is filled too
high.
1. Make sure the oil does not
exceed the max fill line.
1. The diffuser is designed
to cycle the pump on and off
and mists intermittently.
2. The time of the day is
outside of the scheduled
operating periods.
1. Turn your diffuser on and
then wait a full cycle, 10 min.
Diffuser light turns off during
normal running cycle.
2. Check scheduling in
the Scenting App.
Reset the diffuser by holding
down the power button till
you hear 2 beeps. Reconnect
to Bluetooth via the app
on your phone.
PLEASE Contact customer care for any questions or concerns that may arise.
The diffuser turned
off by itself, no blue light
on the base, no intesity
level showing.
16

All products designed by AromTech come with a 1-year limited warranty.
Failure to use AromaTech branded oils may cause your diffuser to malfunction
or not diffuse properly in which case warranty will be void. If you have any
questions or issues please reach out to our customer care experts:
Warranty and Support
17
[email protected]
1.888.276.6245

AROMATECHSCENT.COM
+1.888.276.6245
[email protected]
1202 N 54th ave, #103
Pheonix, Arizona, 85043
© 2022 AROMATECH INC.
DESIGNED IN THE USA
