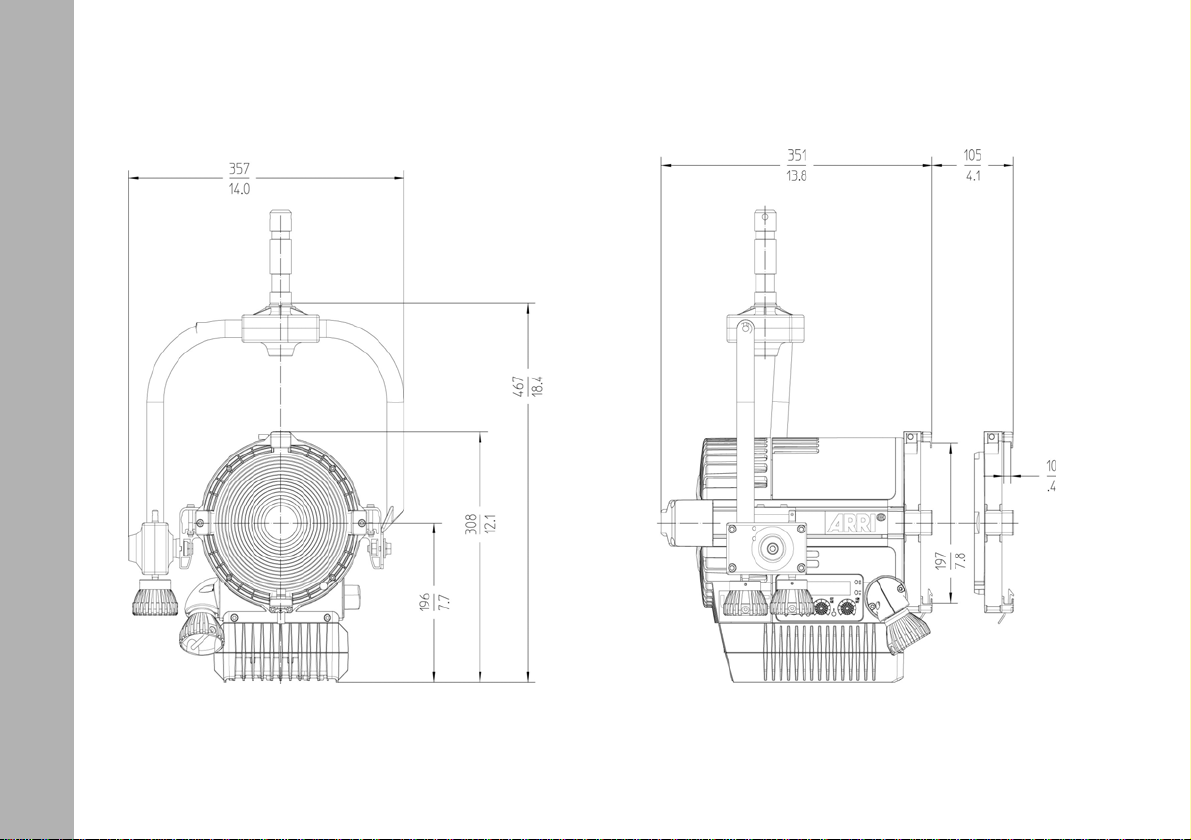

Dimensions
3
Dimensions
L7 man.

Dimensions
4
L7 P.O.

Content
5
Content
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Physical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Basic features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Control options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connector panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fixture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
DMX control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DMX mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
DMX data link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Fixture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
RDM commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ARRI Lighting Service Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
DMX Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Safety Information
6
Safety Information
Always follow these instructions to protect against
injury to yourself and damage to the product or other
objects.
Explanation of Warning Signs and Indications
Possible risk of injury or damage to equipment.
Risk of fire or electric shock. Possible risk of injury or
damage to equipment.
Caution! Hot surface. Possible high surface tempera-
ture. Risk of injury through burns.
Caution! High intensity light emission. Risk of eye
injury.
Note: Indicates further information.
General Notes
• This document contains important instructions and notes to
handle the product safe.
• Always follow all safety information for your own protection.
• Please contact a trained ARRI®service technician to do any
service and maintenance not described in this manual.
• Read the user manual and installation manual which are
shipped with accessories for the ARRI®L-Series®.
• Retain this user manual and all user and installation manuals
shipped with the system for further reference and possible
new owners of this product.
• ARRI®L-Series®products are intended for professional use
and may only be operated by qualified persons. They are not
for household use.
• Help protecting the environment by disposing the package
material at your local recycling center.
• All components comply to the guidelines listed below:
Low voltage directive 2014/35/EU
EMC directive 2014/30/EU
RoHS directive 2011/65/EU

Safety Information
7
General Safety Information
Read and understand all safety information and oper-
ation instructions before you operate or install the
product or the system.
Use only genuine spare parts or accessories that
have been recommended or approved by ARRI.
Other accessories or spare parts may cause hazards,
damage the product or invalidate the warranty.
Check all cables and devices for visible damage
before you work with the system. Defective electric or
electronic devices must not be used. Take special
care of the following components:
If the product or accessory is visibly damaged, the
product or accessory must no longer be used.
Replace or repair the respective part. In case of
repairs, please contact an authorized ARRI service
center.
Never attempt to repair any part of the product on
your own. Maintenance and repair work is only to be
carried out by an authorized ARRI service center.
Do not operate active versions the product if the
ambient temperature exceeds 45° C / 113° F (hybrid
versions: 35° C / 95° F). Observe all information given
in chapter “Specification” on page 45.
Do not expose the product to rain or moisture. Do not
use the product for 2 h when it was exposed to big
temperature differences as condensed moisture may
damage the product electrically when switched on.
Do not bypass any safety feature of the product.
Do not open the product. There are no user service-
able parts inside. The housing is sealed with an adhe-
sive seal that will break immediately when trying to
open the housing. Doing so will invalidate the war-
ranty.
In addition to regular visible checks ARRI recom-
mends that all electric components are checked for
electrical safety by a professional every 12 month.
Keep the protocol of the check.
Component Possible damage
Housing, lens Cracks, cuts, deformation
Cables Cuts, deformation, burns
Connectors Cracks, deformation, burns
Cable connectors Damaged
Threads Damaged

Safety Information
8
Specific Safety Information
Intensive use can cause the surface and the heat sink
to become warm. Let the product cool down complete
before you handle it.
Never cover air vents and the heat sink during opera-
tion. Keep a minimum clearance around the product
of 0.5 m / 1.65 ft.
WARNING! Intense light. Never look direct into the
light source.
Never point a light beam from another luminaire into
the light source. Do not place the product on heat
sources. Intense heat cause automatic power off
during operation.
WARNING! The stirrup must be mounted hanging or
standing vertically. Lateral load can cause deforma-
tion or breaking of the spigot and the stirrup.
Devices and accessories must be secured against fall
when mounted above floor level. Always observe
common and local safety regulations.
Never use the cables for transportation. Never hang
the product on its cables.
CAUTION! High voltage! Always disconnect the prod-
uct complete from mains voltage before you connect
or disconnect a cable!
Always check that the local AC power matches the
voltage and frequency range printed on the type label
of the product before use. Never use the product
when the AC power does not match.
Never connect the product to a dimmer-system or a
dimmer-channel in non-dim mode. To do so will dam-
age the electronics. Damages caused by connecting
the product to a not suitable power source are not
covered by the warranty.
Always keep cables away from the product during
operation. Do not tilt the power cable directly after the
cable glance. Water could immerse and cause short
circuits and damage the connector.
Disconnect all data cables prior to transport.
Not to observe these safety information or to ignore
common sense may cause serious injury or even
death. Damage to the product or other devices is pos-
sible.
Please observe the information given in the „Safety leaflet
ARRI lampheads“ (L5.40731.E). The leaflet is available for
download on our web site www.arri.com.

Safety Information
9
Replacing the Light Source
The light source contained in this luminaire shall only be re-
placed by the manufacturer or his service agent or a similar
qualified person.
Maintenance Information
•Donotcleanthesurfaceoftheproduct with solvents or strong
detergents.
• Clean the product with a soft cloth wetted with a mild deter-
gent. Do not rub the surface: lift stuck particles off with a soft
repeated press.
• Clean soiled electric contacts with cotton swabs wetted with
isopropyl alcohol.
• Keep electric contacts clean and replace corroded parts.
Intended use
This product is intended to illuminate persons and objects in a
dry environment.
Always follow the safety information.
Anyusageother thandescribed aboveisnotpermittedand can
damagethe product and lead to associated risks such as short-
circuit, fire, electric shock, etc. You are not allowed to modify
the product.
This product fulfills European and national requirements.

Introduction
10
Introduction
Thank you for selecting a LED luminaire of the L-Series from
ARRI. The L7 is a fresnel-luminaire equipped with a high
precision, micro-processor controlled LED light source. LED
luminaires are much more efficient than light sources with
conventional tungsten lamps. They are a perfect and easy
replacement for conventional fresnel-luminaires with tungsten
or daylight lamps.
The L-Series LED luminaires combine the advantages of the
LED technology with the ease of use of a traditional fresnel-
luminaire.TheL7integrates seamlessintoestablishedworking
practice. The optical system offers real fresnel characteristics
with an extreme smooth beam and clean shadows. The half
peak angle can be adjusted continuously from 15° - 50°.
The L7 emits white or colored light with adjustable color tem-
perature and adjustable green / magenta saturation. Please
find more detailed information in the section “Specification” on
page 45. The light spectrum is optimized for excellent color
rendition and fulfills perfect the demands of modern, digital
cameras. All models of the L7 can be controlled using the com-
mon DMX512-A protocol or the fixture menu.
The L7 can be powered by AC power. Please find more de-
tailed information in the section “Power” on page 17.
Features
Focus
Traditional fresnel-luminaires are able to spot and flood the
beam as needed. Whether it is a flood field for a pullback or a
tight spot for a bright highlight, the continuous focusability of
the L7 performs just as expected.
Versatile beam characteristics
The L7 provides the same ability as conventional fresnel-lumi-
naires to cut set elements and shape the beam with barndoors
and flags.
Even light field
Clean, defined shadows have traditionally been a trait of single
source tungsten and daylight fixtures. L7 fresnel-luminaires
provide the same single shadow properties lighting designers
expect, delivering natural results.
Vibrant colors, full spectrum lighting
True-to-life color rendition is an outstanding feature of the
L7, comparable to a full spectrum tungsten source. The fully tu-
neable white light of the L7-C can be adjusted for different skin
tones, camera sensors and mixed light environments. Full
gamut color mixing enables the rendition of all color shades,
making color filters dispensible.
Cool light beam
Like all LED light sources the L7 does emit nearly no infrared
or UV radiation and thus does not forward heat, making actors
feel comfortable in the light beam.

Introduction
11
Properties
Focus knob
The TRUE BLUE®style focus knobs provide precise adjust-
ment and rapid flood-to-spot with only a few turns. Knobs on
both sides of the fixture ensure easy access from all positions.
Sliding stirrup
The sliding stirrup design enables precise compensation for
front end accessories.
Yoke
With an extreme slim profile, the extruded aluminum yoke pro-
vides high strength without added weight. An optional, pole
operated yoke allows full operation of pan and tilt from the floor
and is therefore a popular choice for many studios.
Tilt-lock
The high strength tilt-lock provides extreme secure locking. It
eliminates movement and slippage and ensures that the light
beam will stay where you put it.
DMX-control
All functions of the L7 are controllable through DMX. The L7 is
also fully RDM compatible and is equipped with a feedback
channel for reporting all set parameters including system sta-
tus.
Fixture menu
Forlocation applications the L7 is equipped with a fixture menu
for manual adjustment of intensity, color temperature and plus/
minus green as well as hue and saturation (functions available
depending on version).
Unpacking
The L7 is supplied with:
• Power cable with power plug or bare ends and in line switch
(depending on version)
• Stirrup
• 28 mm spigot (mounted on p.o. stirrups)
• Short instruction

Overview
12
Overview
Spigot
Fuse holder
Focus knob
Connector panel
Tilt lock lever
Stirrup bracket
Stirrup
PowerCON connector
Fixture menu
Top latch
Safety catch
Handle
(depending on version)
Front view and back view, manual version

Overview
13
Pan
Tilt Focus
Side view, P.O. version

Physical Installation
14
Physical Installation
WARNING! Attach an approved safety-cable to
secure the product against clamp or bracket failure.
Lead the safety-cable through the stirrup and keep it
as short as possible. The safety-cable needs to be
approved at least 10 times the weight of the product
including all accessories mounted at the product.
Secure all accessories mounted at the product with
additional safety-cables to protect them from fall
down and cause injuries and damages.
WARNING! The rigging structure needs to be
approved for at least 10 times the weight of all
devices, equipment and cables installed on it.
WARNING! The stirrup must be mounted hanging or
standing vertically. Lateral load can cause deforma-
tion or breaking of the spigot and the stirrup.
CAUTION! Block access below the work area and
work from a stable platform whenever installing, ser-
vicing or moving the product or accessories.
IMPORTANT! Do not illuminate the display and the
fresnel-lens by high power light beams from a short
distance. The display and the light engine are dam-
aged by high brightness and heat radiation within
very short time.
To adjust the stirrup
You need
• a Torx20 screw driver,
• a 10 mm allen key and
• a torque wrench (37 ft-lbs)
to adjust the stirrup.
On delivery the stirrup is in the basic position (tilted back).
Loosen the Torx20 screws on both sides of the stirrup bracket
slightly and pull the stirrup bracket towards the rear of the pro-
duct. Loosen the lever of the tilt-lock and tilt the stirrup
upwards.
Slide the stirrup to the point of balance. The point of balance is
dependenton the accessories mounted attheproduct. Tighten
both Torx20 screws of the stirrup brackets. Do not overtighten
the screws. Tilt the stirrup to the desired position and tighten
the tilt-lock by using the lever. For better leverage, press the
knob on the tilt-lock-lever and turn the lever to the desired po-
sition.
To mount the spigot
Place the spigot and the distance plate on the 13 mm hole in
themiddleofthestirrup.Inserttheallenscrewwith washer and
spring washer and tighten it with a torque wrench to 37 ft-lbs
torque.

Basic features
15
To mount the device
Alwaysobserveall safetyinformation listedinsection“Physical
Installation” on page 14 when you mount the product and
accessories:
• Be aware of the maximum tilt angle 90° upwards and 90°
downwards.
Ensure that you install all accessories correct when you mount
the product above floor level:
• Top latched locked, safety catch snapped in.
• Set up tripods in a stable position. Tripods need to be ap-
proved for the load they need to carry.
• Always observe the additional load of cables and accesso-
ries!
Please observe the information given in the „Safety leaflet
ARRI lampheads“ (L5.40731.E), which is available for down-
load on our web site www.arri.com.
Basic features
Pan and tilt
Loosethe mountingscrew ofthetripod orthe appropriatefixing
screw of the mounting clamp to pan the L7. Tighten the screw
to avoid unintended movement. Loose the tilt-lock to tilt the L7
to the desired angle. Tighten the tilt-lock-lever to avoid unin-
tended movement.
To adjust the beam angle
Turnoneofthe focus knobs beneath the lens tube to adjust the
beam angle continuously. The entire lens tube moves in and
out. Two mechanisms protect the product from being dam-
aged:
• A predetermined braking point prevents the product from
damage, when the focus knob is turned with too high torque
at either end of the focus range.
• The self-impeding focus gear prevents the lens tube to move
itself in or out when the product is operated in a tilted position.
Use of accessories for beam shaping and light design
You can mount accessories such as a barndoor, filter holder or
scrim on the front side of the L7:
• Firmly press the button at the side of the top latch to open the
top latch.
•Insertthe accessoryfrom theupside intothe bracketsuntil the
safety catch engages. Slightly tilt the safety catch with your
finger for support.

Basic features
16
• Close the top latch. Make sure that the hook of the top latch
engages into the holding ring of the accessory.
DMX/RDM-interface
TheL7hasa DMX/RDM-interface.It has5-pin XLRconnectors
for DMX/RDM data input and throughput. Please find more de-
tailed information to establish a DMX/RDM data-link in section
“DMX data link” on page 26.
USB-interface
The L7 a mini-USB connector to upload firmware and set pa-
rameters. The USB-interface can be used for service purpose
like download error reports and set certain data. To do so you
need a software tool, the ARRI Lighting Service Manager
ALSM.
Download it free of charge from the ARRI web site
www.arri.com.
Please find more detailed information to work with the ALSM in
the user manual of the software. The manual is included in the
download package.
To turn on and use the product
Turnon the in line power switch or connect the L7 to AC power.
The L7 initializes for some seconds and is ready for operation.
The L7 will operate with the settings made on the fixture menu
or received by DMX. Please observe the following section to
use the L7.
Control options
You can set up or control the L7 with the options listed in the
table below:
Connector panel
Option Control Configuration Information
Fixture menu yes yes page 18
DMX yes no page 25
RDM no yes page 29
ALSM no yes page 32
1 USB connector
2 DMX input
3 DMX through
4 Fuse holder
1
3
52
4
5 PowerCON connector

Power
17
Power
WARNING! For protection from electric shock, always
connect the product electrically to ground (earth)
when connected to AC power. The AC mains power
supply must be fitted with a fuse or circuit breaker
and ground-fault (earth-fault) protection.
IMPORTANT! Ensure that persons do not look at the
light emission aperture when the product is con-
nected to AC power. The product can light up sud-
denly. The high intensity of the product can cause eye
irritation or injury when not respecting the safety dis-
tance.
IMPORTANT! Always connect the product direct to
AC power. Do not connect it to a dimmer-system.
Doing so will damage the product.
AC power
The L7 has an auto-sensing switch-mode power supply that
automatically adapts to AC power at
90 - 264 V ~, 50 - 60 Hz (nom.).
Before you connect the L7 to AC power, check that:
• the dimmer knob at the fixture menu is set to 0%, and
• no DMX signal is present at the DMX-input of the L7.
You can hard-wire the L7 to a building electrical installation.
You can install a power plug that is suitable for the local power
outlets on the power cable. Socket outlets or external power
switches that supply the L7 with power must be located near
the product and easily accessible so that the L7 can easily be
disconnected from power.
The L7 requires a power input cable with a Neutrik®
PowerCON®True1 NAC3FX-W cable connector. Cable
requirements are listed in chapter “Specification” on page 45.
ARRI offers power cables with PowerCON®cable connectors
and different plugs or bare ends (see “Order information” on
page 47).
To insert and remove the PowerCON®cable connector
• Line up the raised key of the connector and the keyway of the
input socket. Insert the cable connector without force in the
power input socket.
To lock the cable connector:
• Turn it a full quarter-turn clockwise.
To unlock the cable connector:
• Push the connector lock backwards and turn the cable con-
nector counter-clockwise. Pull the cable connector out of the
power input socket.

Fixture Menu
18
Fixture Menu

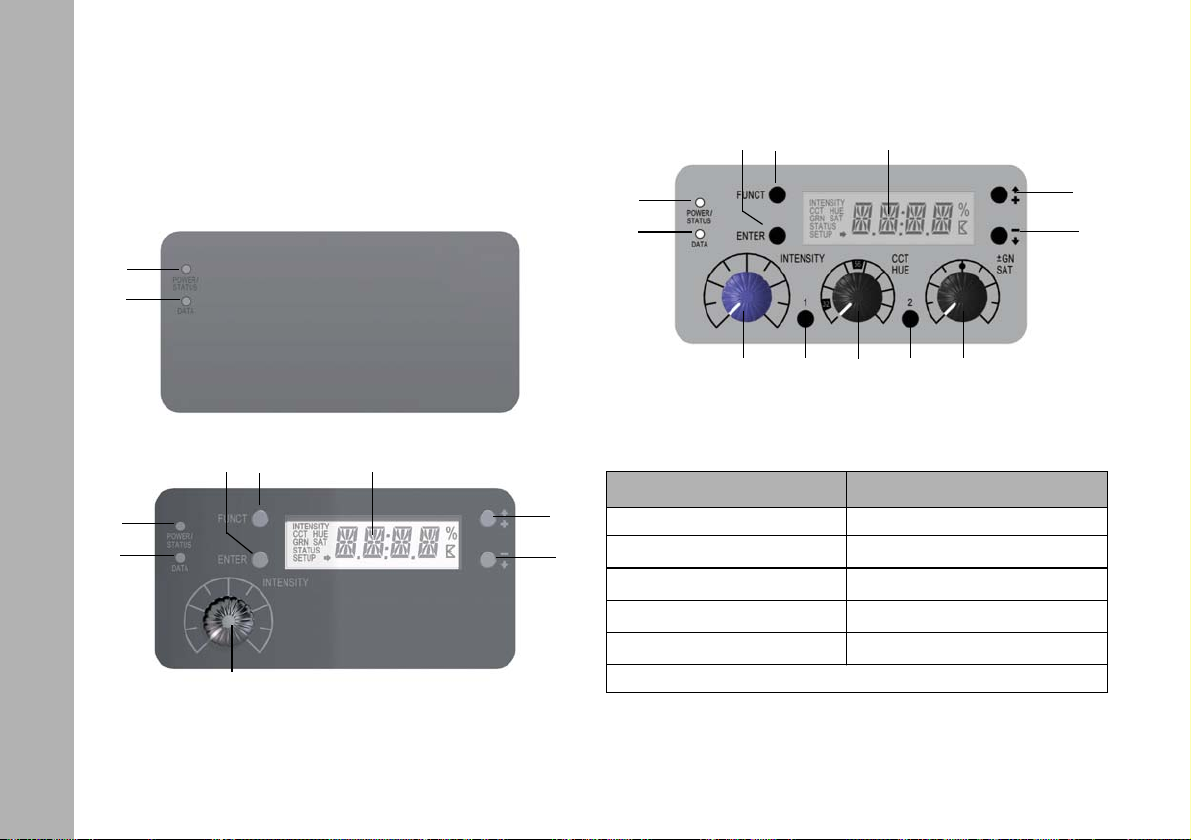

Depending on the model, the L7 is equipped with one of the fol-
lowing display or control panels:
Simple display field
Fixture menu with LC display and dimmer knob
Fixture menu with LC display, dimmer knob and color
control
Features of the fixture menu
Status indicator POWER/STATUS (1):
1
2
1
2
3
4
5
6
9
12
Color Indication
Green Fixture switched on. No error.
Red flashing (0,5s rhythm)*Warning fixture over temperature
Red*Fixture over temperature
Change from red to green*Fixture normal temperature
Red flashing (0,25s rhythm)*Calibration data not loaded
*Display lights up red when STATUS-LED is lit red
1
2
3
4
5
6
78
910 11
12

Fixture Menu
19
DATA (2)
The DATA indicator lights blue, when a valid DMX signal
is detected on the DMX-input.
FUNCT (3)
The FUNCT button has two functions:
• Normal operation: Switches between CCT and HSI
mode (only L7-C).
• Fixture menu open: Jump UP one menu level.
ENTER (4)
The ENTER button has three functions:
• Normal operation: Activate blinking arrow for calling up
MEM1 or MEM2.
• Fixture menu open: OPEN next menu level, or
• Confirm a setting.
+ / [up] (5)
The + / [up] button navigates the menu or increases a value.
Press the button long to activate the fast-run feature.
- / [down](6)
The- / [down] button navigatesthemenu or decreases a value.
Press the button long to activate the fast-run feature.
INTENSITY (9)
The rotary knob sets the intensity level.
CCT / HUE (10)
The rotary knob sets the color temperature (CCT) or the hue
(only L7-C in color mode).
GN / SAT (11)
The rotary knob sets the green/magenta saturation or the color
saturation (SAT, only L7-C in color mode).
MEMORY 1 and MEMORY 2 (7 and 8)
Activate or store a memory.
During operation the mode and recent values are displayed.
On the first menu level the values for INTENSITY, CCT/HUE
(only L7-C) and GN/SAT (only L7-C) can be retrieved via the +
/ [up]/- / [down] buttons. The menu STATUS, confirmed with
ENTER, calls up the next level which displays information on
faultless operation and the temperature of the light engine. To
retrievevalues for operating hours, DMX-version and firmware-
version, press ENTER to call up the third level. The FUNCT
button jumps up one menu level.
A detailed overview of the fixture menu is listed in section
“Fixture Menu” on page 27.
To set the operation mode (only L7-C)
Press the FUNCT button to switch from CCT mode to HSI
mode and vice versa.
IN CCT mode the L7 generates white light with optimized color
rendition. In HSI mode the L7 generates colored light. If satu-
ration is set very low, the L7 generates white light, but not with
optimized color rendition.

Fixture Menu
20
To set the color temperature and green/magenta
saturation in CCT mode
Set the color temperature continuously with the rotary knob
CCT/HUE.Setthe green/magentasaturationcontinuously with
the rotary knob GN/SAT.
Press the + / [up] or - / [down] button until GRN is displayed left
in the display (e.g. +0.23) to retrieve the currently set green/
magenta value. The color temperature is always displayed
(e.g. 4.150K).
To set the color in HSI mode (only L7-C)
Set the hue continuously with the rotary knob CCT/HUE. Set
the saturation continuously with the rotary knob GN/SAT.
Press the + / [up] or - / [down] button until SAT is displayed left
in the display (e.g. 45) to retrieve the currently set saturation
value. The hue is always displayed (e.g. 118°).
To set the brightness in both operating modes
Set the brightness in both operating modes continuously with
the rotary knob INTENSITY
Press the + / [up] or - / [down] button until INTENSITY is dis-
played left in the display (e.g. 24%) to retrieve the currently set
brightness value.
To set the fan mode
Set the fan mode using the fixture menu:
•Press the+ /[up]or -/[down] button,until SETUPisdisplayed
left in the display.
•Confirm with theENTERbutton. Press the+/ [up] or-/ [down]
button until FAN is displayed.
• Confirm with the ENTER button. The current fan mode is
displayed.
• Press the + / [up] or - / [down] button to select the fan mode
(see the table below). Confirm the selected mode with the
ENTER button. The fan mode is activated immediately.
• Press the FUNCT button two times to leave the menu.
