Arris G20 User manual

第1页 共 18 页

第2页 共 18 页
注意事项
本产品适合年满 18 周岁的成年人使用，因以下原因造成的人身伤害，财产损失等，本公司将 不承担任何
责任，请认真阅读以下条款：
This product is suitable for adults over 18 years of age.Due to the following reasons, the company
will not bear any responsibility for personal injury, property damage, etc. , please read the
following terms carefully:
1. 通过非正常渠道获取，使用非本公司产品或仿制产品。
2. 1. Obtained through abnormal channels, using non-company products or imitation products.
3. 未按本用户手册正确进行安装，设置及使用。
4. Installation, setup, and use have not been performed correctly in accordance with this user
manual.
3. 自行改装及更换非本公司生产的零件或配件，导致飞行器运行不良进而造成的伤害。
4. Self-refitting and replacement of parts or accessories not produced by our company, causing
damage to the aircraft due to poor operation .
5. 用户在饮酒，吸毒，身体或精神状态不佳的情况下操控飞行器。
6. The user controls the aircraft while under the influence of alcohol, drugs, or physical or mental
condition.
5. 操纵人员主观故意或操作不当引起的财产损失及人身伤害。
6. Property loss and personal injury caused by the operator's subjective intentional or improper
operation.
7. 飞行器零部件自然老化磨损导致的本产品运行不良。
8. This product runs poorly due to the natural aging and wear of aircraft parts.
9. 在超过本产品标注的严苛适用环境下使用本产品。
Use this product in a more severe and applicable environment than marked on this product.
10. 用户在能见度不足， 视线受阻的情况下使用本产品。
Users use this product when visibility is insufficient and their sight is blocked.
11. 用户在政府空中管制区域，禁飞区等使用本产品。
Users use this product in government air control areas, no-fly zones, etc.
12. 非正常使用导致的产品损坏。
Product damage caused by abnormal use.

第3页 共 18 页
认识 G20
G20 主要为 22L 级别的植保无人机解决方案，拥有稳定的结构，靓丽的外形，极强的可扩展性，可为
植保无人机厂家提供灵活的定制化解决方案。G20 采用全对称八轴布局方案，前后双药箱+左右双电池，
可以保证机身重心稳定，动力和电池双重冗余。其环抱式折叠结构可以最大程度减少机身折叠之后的体积，
方便运输转场，飞控仓采用叠层塔式结构，将电源板、信号板、主控模块、通讯模块、GPS 模块等不同功
能的飞控模块通过上下叠层的方式排布、布线清晰、便于维修。电池方面可选装定制化快拆智能电池方案、
采用分离式电池防打火模块、可以有效避免电池插拔的打火现象。我们还为 G20 预留了 RTK 天线安装位
置，可选配高精度 RTK 定位模块，实现厘米级定位精度，提高抗干扰能力。喷洒系统中可选配四个加长杆
喷头，配合四个压力水泵，强劲的喷洒系统可以保证药液雾化颗粒细腻，减少雾滴飘逸。
G20 is mainly a 22L-level agriculture drone solution. It has a stable structure, beautiful
appearance, and strong scalability, which can provide flexible customized solutions for
agriculture drone manufacturers. G20 adopts eight-axis embracing folding structure, with dual
front and rear double tank and dual left and right double batteries, which can ensure the stability
of the center of gravity of the fuselage, and dual redundancy of power and batteries.The
embracing folding structure can minimize the volume of the fuselage after folding, which is
convenient for transportation. The flight control adopts a stacked tower structure, which
integrates power boards, signal boards, main control modules, communication modules, GPS
modules and other functions. The flight control modules are arranged in a stacked manner, with
clear wiring and easy maintenance. For batteries, a customizable quick-release smart battery
solution can be optionally installed, and a separate battery anti-lighting module can be used to
effectively prevent the ignition of the battery when it is inserted and removed.We also reserve the
RTK antenna installation position for G20, and optional high-precision RTK positioning module
can be used to achieve centimeter-level positioning accuracy and improve anti-interference
ability.The spraying system can be optionally equipped with four extension rod spray nozzles and
four pressure water pumps. The powerful spraying system can ensure that the liquid medicine
atomization particles are fine and the mist droplets are reduced.

第4页 共 18 页
目录Contents
Attention
注意事项 …………………………………………………2
认识 G20 …………………………………………………2
To know the G20 agriculture drone
安装 Installation
拆箱检查 …………………………………………………5
Unboxing inspection
脚架安装 …………………………………………………5
Landing gear installation
机臂安装 …………………………………………………6
Arm installation
动力系统安装 ……………………………………………8
Motor set installation
飞控安装 …………………………………………………8
Flight control installation
喷洒系统安装 …………………………………………12
Spray system installation

第5页 共 18 页
附录 Appendix
参数 …………………………………………………14
Specifications

第6页 共 18 页
部件名称 Part Name
重要注意事项 Important note
1、 组装过程中请勿暴力组装，如遇困难可致电 0551-65536542
Please do not violently assemble during the assembly process, if you are
in trouble, you can call 0551-65536542
动力套装 Motor set 加 长 杆 双 喷 头 ( 硅 胶 版 )
Extension rod double nozzle
(silicone )
尼 龙 RTK 固 定 件 Nylon
RTK fixed part
40mm 碳管机臂
40mm carbon tube arm
脚架 Landing gear 前 后 头 罩 upper &
bottom hood
主碳管臂 Main carbon tube arm 雷达固定仓（选配）
Radar fixed (optional)
中 控 仓 middle flight
control
8mm 水 管 Water pipe 、 8-6 气 动 头
Pneumatic nozzle
无刷一体水泵
brushless pump
水管夹 Water pipe clamp 10L 快拆药箱
10L quick- release tank

第7页 共 18 页
2、 安装软管时，请勿过度弯折，以免产生折痕影响喷洒效果
When installing the hose, do not bend it excessively, otherwise it will cause
creases and affect the spraying effect.
3、 务必在完成所有安装及连线后，再连接飞行器电源
Be sure to connect the aircraft power supply after completing all
installation and connection
安 装 Installation
安装时请自备中强度螺丝胶。首先完成拆箱检查，随后进行脚架安装、机身安装、机臂安装、飞控
安装、动力系统安装、喷洒系统安装。若有其他选配方案，最后进行选配方案的安装。
Please prepare your own medium-strength screw glue for installation. First complete the
unpacking inspection, and then perform the landing gear installation, frame installation, arm
installation, flight control installation, power system installation, and spray system installation. If
there are other options, finally install the options.
拆箱检查 Unboxing inspection
EFT 为用户提供了以下文档资料
1、《产品装箱清单》
2、《产品安装说明》
建议用户使用《产品装箱清单》进行核对，认真检查物品是否缺失、损坏，如有问题，请及时联系本
公司。认真阅读《产品安装说明》，按照说明分步骤完成安装，并仔细阅读相关注意事项。
EFT provides users with the following documents
1. "Product Packing List"
2. "Product Installation Instructions"
It is recommended that users use the "Product Packing List" for checking, and carefully check
whether the items are missing or damaged. If you have any questions, please contact us in time.
Read the Product Installation Instructions carefully, follow the instructions to complete the
installation step by step, and read the relevant precautions carefully.

第8页 共 18 页

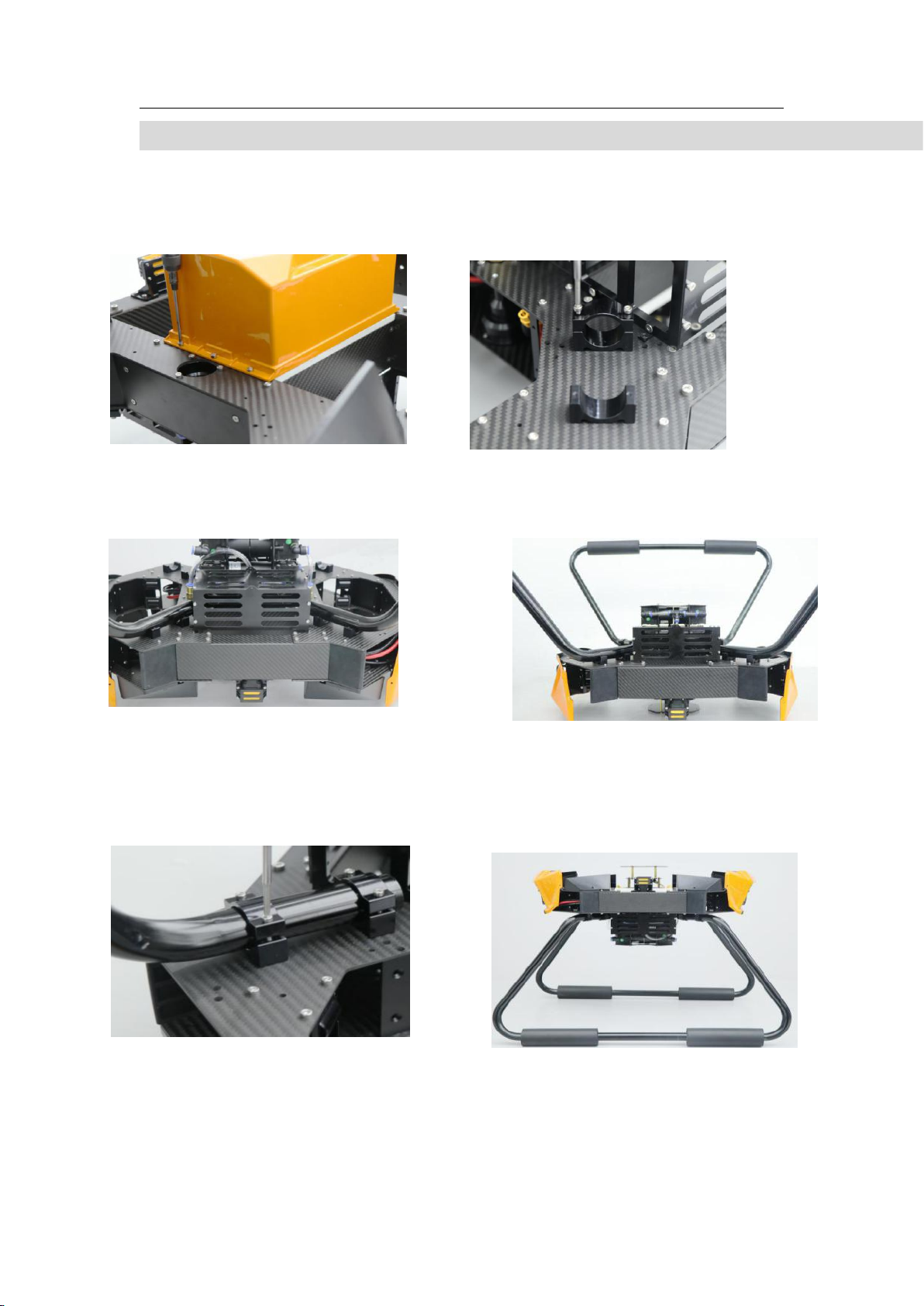

脚架安装 Landing gear installation
1.将机身中控上保护盖拆除，将机身翻转（图 1）
1. Remove the protective cover on the middle
control and turn the fuselage over (Figure 1
2. 机身底部朝上，将底部脚架固定座拆开（图 2）
2. The bottom of the frame is facing upwards,
and the bottom landing gear fixed part is
disassembled (Figure 2)
3.将脚架对准机身底部固定座，请务必注意脚架安装在机身左右两侧（图 3/4）
3. Align the landing gear to the bottom of the frame, please be sure to install the landing gear
on the left and right sides of the frame (Figure 3/4 ）
4.安装 M3*16 螺丝，首先无需螺丝完全紧固，只起到固定作用（图 4），再将机身翻转（图 5），将脚架调
整平衡后再拧紧螺丝，注意脚架固定末端需要抵到电池仓。.Install M3 * 16 screws. First, they do not need
to be fully tightened. They only serve for fixing (Figure 4), then turn the body over (Figure 5). Adjust
the balance of the landing gear and tighten the screws. Note that the fixed end of the landing gear
requires Arrive in the battery compartment.

翼飞特农业植保机机架安装说明书
第9页 共 18 页
机臂安装 Arm installation
机臂安装需要拆开机身部分零件，请务必注意这些零件原先的安装位置
Some parts of the frame need to be disassembled for the arm installation. Please pay attention to the original
installation position of these parts.
1、将机身上碳板鲨鱼鳍拆除，留意原鲨鱼鳍安装位置
1. Remove the carbon plate shark fin on the frame, pay
attention to the original shark fin installation position
2、将机身前后两端头罩左右两侧螺丝拆除
2.Remove the left and right screws on
the front and rear ends of the frame.
2、机身上碳板除图示螺丝无需拆除，其他螺丝全部拆除，把上碳板移走；
3. The carbon plate on the frame does not need to be removed except for the screws shown
in the figure. All other screws are removed and the upper carbon plate is removed;
4、拧松机身中部前后两侧 U 型板 M3*8 螺丝，拆下 U 型侧板
4. Loosen the U-shaped plate M3 * 8 screws on the front and back sides of the
middle of the frame, and remove the U-shaped side plate

第10 页 共 18 页

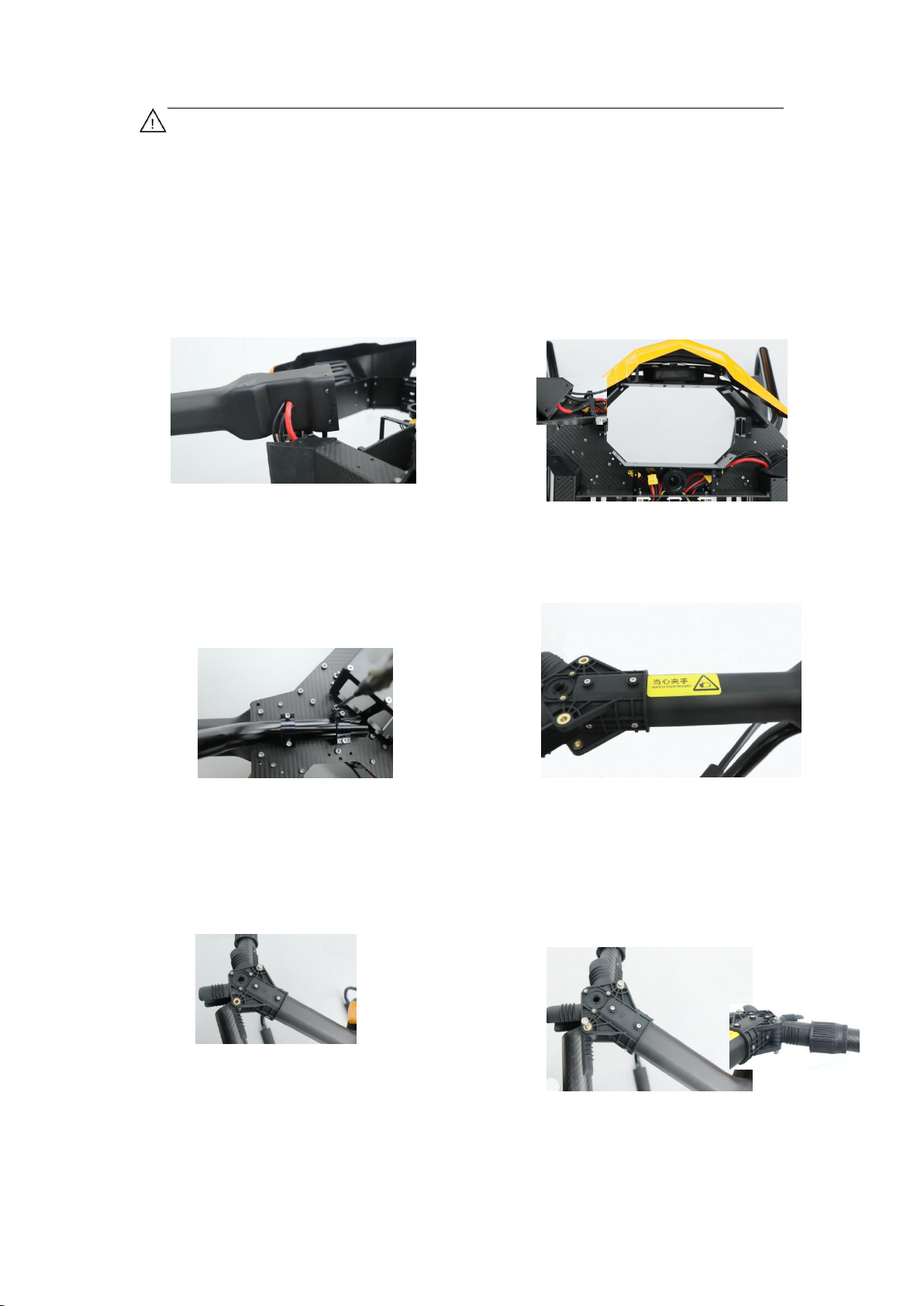

机臂安装，先安装四根主碳管臂，后安装 8 根碳管机臂，请务必注意将电源线穿入主碳管臂预留孔
位。For the arm installation, install four main carbon tube arms first, and then install eight
carbon tube arms. Be sure to insert the power cord into the main carbon tube arm to reserve
a hole.
1.从主碳管臂预留孔中穿入电源线 2.电源线传入机臂后与分电板预留电源线相连
1.Pass in the power cord from the reserved hole of the main carbon tube arm
2. After the power cord enters the arm, it is connected to the reserved power cord of the
distribution board.
3.使用 M4*12 螺丝，通过机身下板安装孔位固定
四根主碳管臂 3. Using M4 * 12 screws, fix the
four main carbon tube arms through the
mounting holes on the lower panel of the
frame.
4.贴上“当心夹手”标签
4. Label "Beware of Clamping Hands"
5. 将碳管机臂的尼龙注塑件对齐折叠件安装孔位
5. Align the nylon injection molded part of the
carbon tube arm with the mounting hole
position of the folding part
6.使用M6*60螺丝将碳管机臂固定在折叠件上，
注意套入碳管机臂套筒
6. Use M6 * 60 screws to fix the carbon tube
arm on the folding part.
Note the sleeve of the carbon tube arm

第11 页 共 18 页

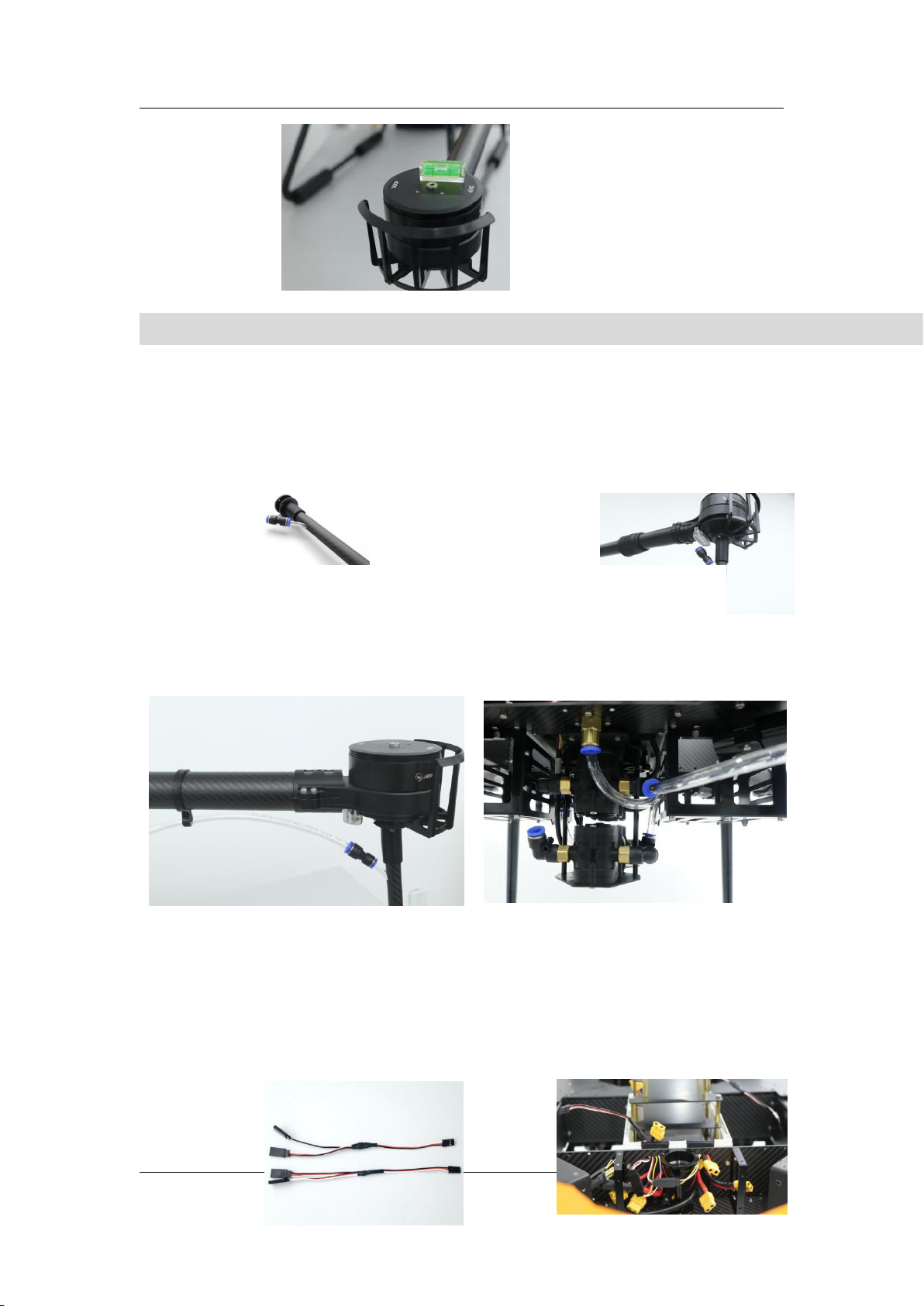

动力安装 Motor set installation
本次说明书使用好盈 X8 动力套装 ，建议飞机性能调试完毕后再进行螺旋桨安装
This manual uses the Hobbywing X8 motor set . It is recommended that the
propeller installation be performed after the aircraft performance is debugged
1、使用蛇皮网管将电源线和电调信号线套入，建议使用 10mm 热缩管缩紧蛇皮网管两端，避免蛇
皮网管分叉。焊接 XT60 公头，注意区分正负极。电机电源线与电调线长度为 1 米。
1. Use Snakeskin netting to cover the power cord and ESC signal cable. It is recommended
to use a 10mm heat Snakeskin netting to tighten the ends of the Snakeskin netting to
avoid the Snakeskin netting from splitting. Solder XT60 male, pay attention to distinguish
positive and negative. The length of the motor power cable and ESC cable is 1 meter.
2、机身头罩预留摄像头安装孔位为机头方向，参照机头方向依次安装动力，将电源线及信号线穿过
机臂，插入分电板预留动力电源线中，注意分清 CW,CCW 电机。2. The frame hood reserves the
camera installation hole for the head direction. Install the motor in turn according to the
direction of the head. Pass the power cord and signal line through the arm and insert it into
the reserved power power cord of the power distribution board. Pay attention to
distinguishing CW CCW motor.

第12 页 共 18 页

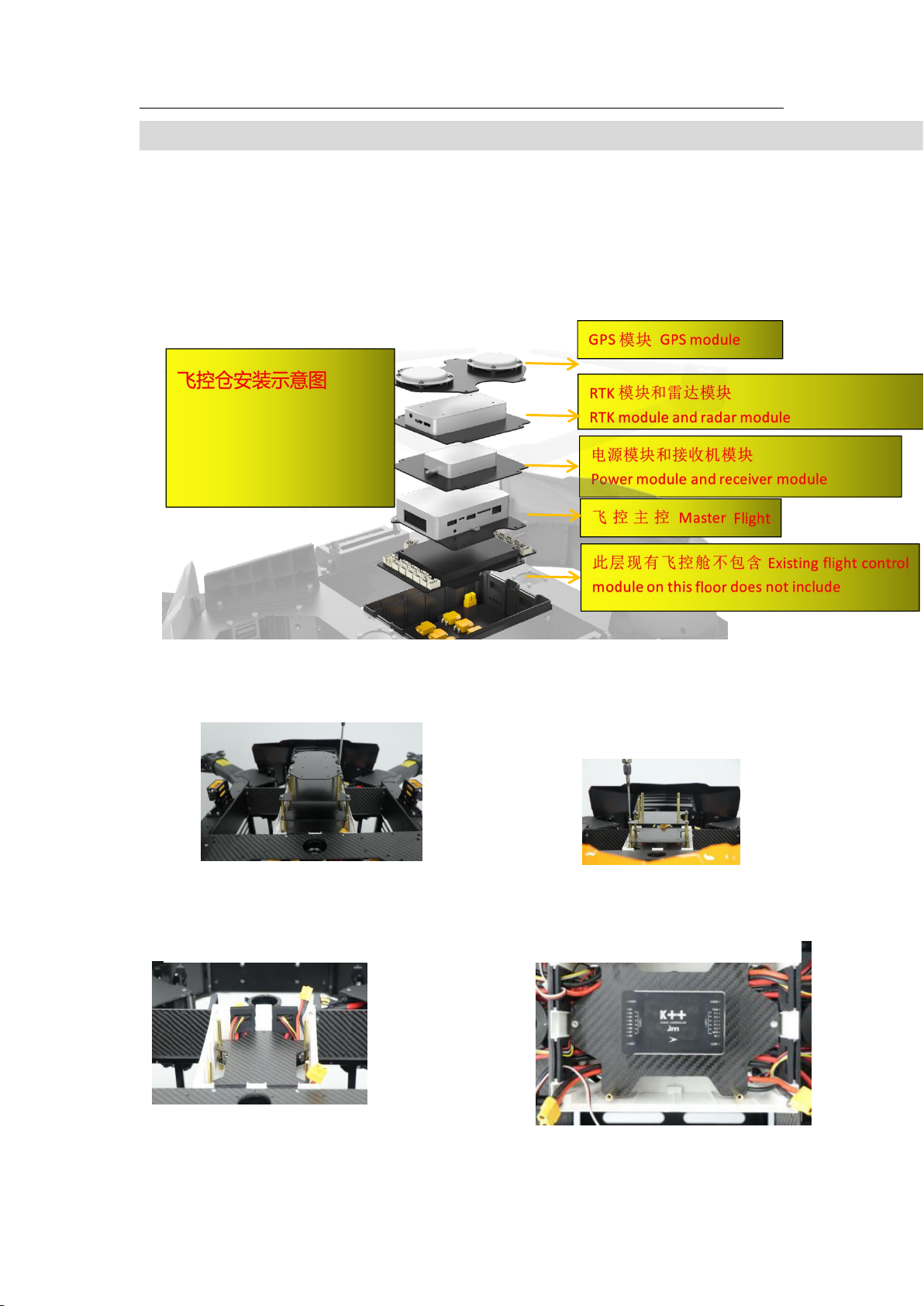

飞控安装 Flight control installation
This manual is equipped with Flight Control of JIYI K++ , matching Hobbywing X6 motor set
seat tube diameter 40mm, Fengying T12 remote control. Note that all power supply voltages of
the distribution board are 12S, and the circuits are connected in parallel.
1、拧松四颗 M3*8 螺丝，拆下 GPS 安装板
1. Loosen four M3 * 8 screws and remove the
GPS mounting plate
2、拧松 M3*32 铜柱，拆下两块飞控预留安装板
GPS 安 装 板 2. Loosen the M3 * 32 copper
pillars, and remove the two flight control
reserved mounting plates and GPS mounting
plates.
本手册配置极翼 K++飞控、匹配好盈 X8 电机座管径 40mm，风迎 T12 遥控器。注意分电板所有电
源电压为 12S，并联电路。
示意图 Flight control
installation diagram
1、将飞控主体使用 3M 胶或其他固定方式安装在飞控安装板，注意飞控方向
1. Mount the flight control body on the flight control mounting plate using 3M glue or other fixing methods,
pay attention to the direction of the flight control

第13 页 共 18 页

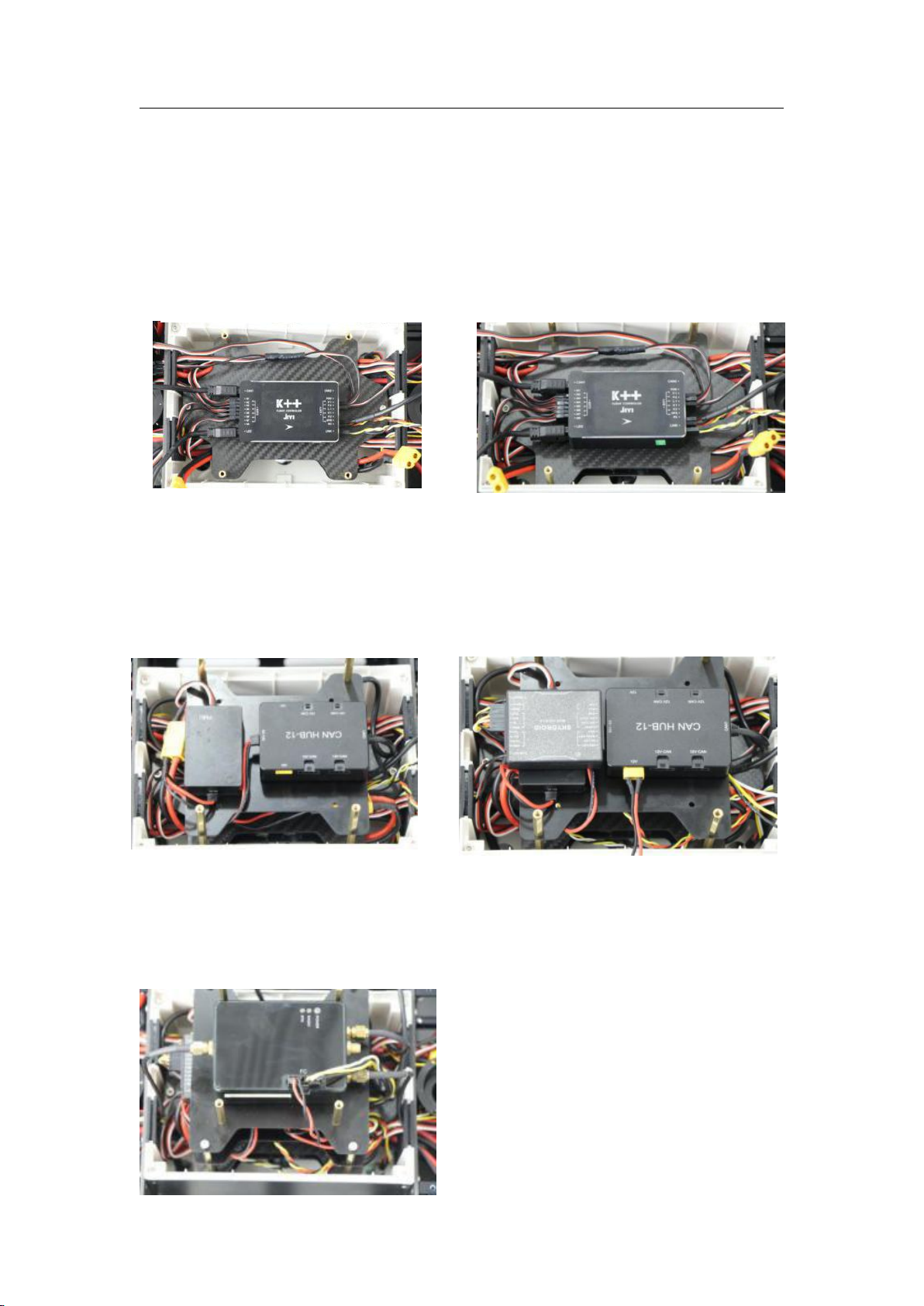

4、连接好飞控动力电调线，由于 K++飞控电调线线束不够长，需使用电调延长线。连接飞控其他附属
线束，以便于下一层安装。注意 LED 灯及天线、摄像头线束需要穿过主碳管臂安装在固定位置。
4. Connect the flight control power ESC cable. Because the K ++ flight control ESC wiring
harness is not long enough, you need to use an ESC extension cable. Connect the other
auxiliary harnesses of the flight controller to facilitate the next layer installation. Note that the
LED light, antenna, and camera wiring harness need to be installed in a fixed position through
the main carbon tube arm.
5、第二层用于安装 PMU 以及接收机、雷达模块等设备，如需安装前后避障、仿地等雷达，则需要安
装雷达仓。
5. The second layer is used to install PMU, receiver, radar module and other equipment. If you
need to install radars such as obstacle avoidance, ground imitation, etc., you need to install a
Radar Silo.
6、飞控仓第三层用于安装 RTK 或其他设备，注意 RTK 天线需穿过主碳管臂
6. The third layer of the flight control warehouse is used to install RTK or other equipment.
Note that the RTK antenna needs to pass through the main carbon tube arm.

第14 页 共 18 页
RTK 天线和接收机天线安装 RTK antenna and receiver antenna
installation
7、第四层用于安装 GPS 模块，可使用 3M 胶固定于碳板中心，注意 GPS 安装方向；
7. The fourth layer is used to install the GPS module. It can be fixed to the center of the carbon plate with 3M
glue. Pay attention to the GPS installation direction.

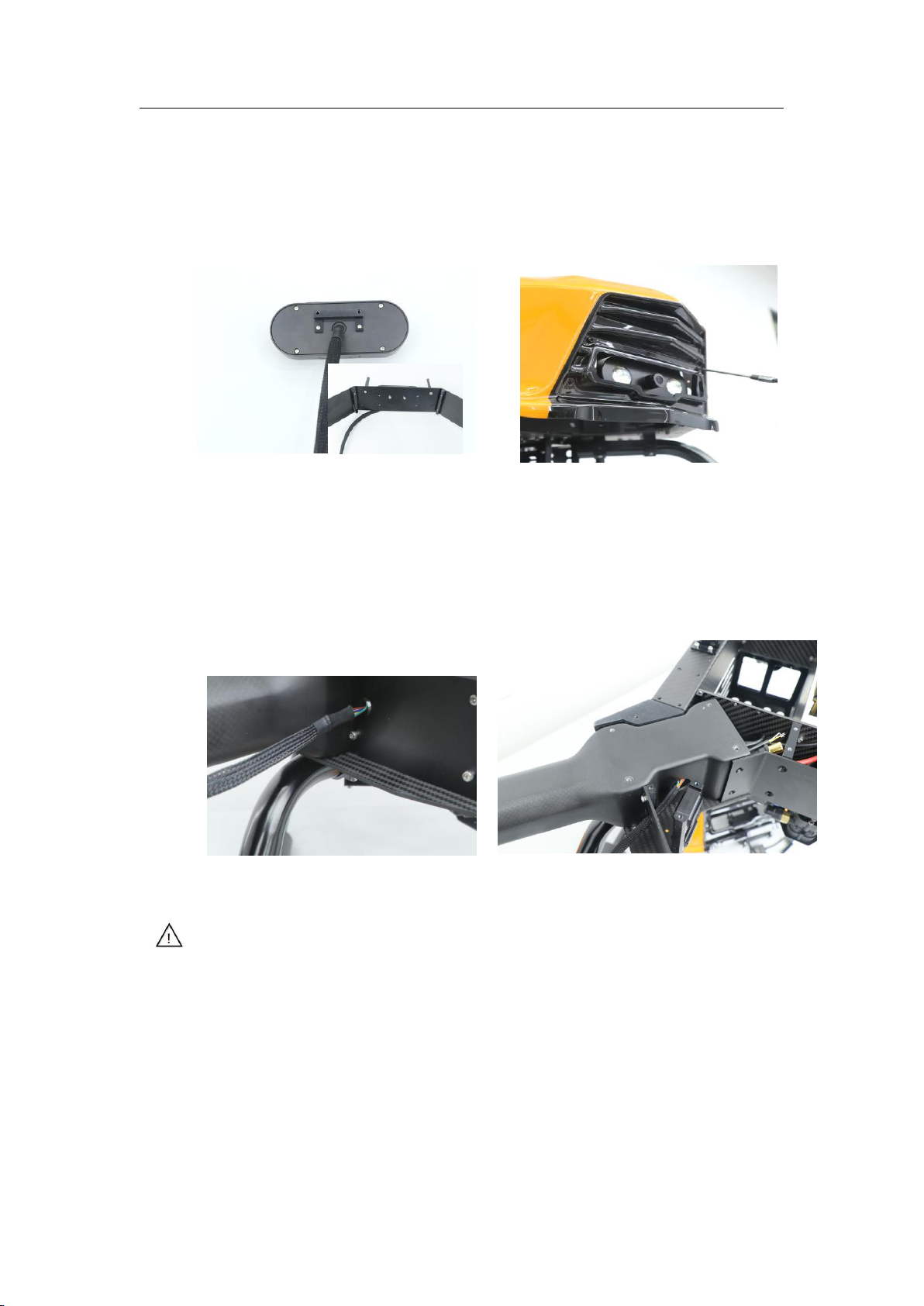

RTK 天线布局，天线需穿过机臂、到达机臂中折固定孔位，使用 RTK 固定件固定。
For RTK antenna layout, the antenna needs to pass through the arm to reach the fixed hole in the folding rod
middle parts of the arm and be fixed with RTK fixings.
接收机天线安装 Receiver antenna installation

第15 页 共 18 页
此时进行电机调平，需要将上碳板安装完毕、机臂完全展开，再进行校准，使用水平仪校准电机与机臂水
平，拧紧四颗 M4*14 固定螺丝。
At this time, to level the motor, you need to install the upper carbon plate and fully extend the arm, and then
perform calibration. Use a spirit level to calibrate the level of the motor and the arm.
摄像头安装，遥控器为：思翼 AK28 Camera installation, remote control: Siyi AK28
安装摄像头转接板，使用 M2*8 螺丝将转接板固定于摄像头背面，并安装于 U 型侧板前方。
Install the camera adapter plate, use M2 * 8 screws to fix the adapter plate on the back of the camera, and
install it in front of the U-shaped side plate.
摄像头的线束走向为穿过 U 型侧板预留孔，穿过主碳管臂，与接收机相连
The camera ’s wiring harness is reserved for passing through the U-shaped side plate, through the main
carbon tube arm, and connected to the receiver.
注意：动力及飞控安装完毕后，需按照拆卸顺序将上碳板、鲨鱼鳍、中控上盖安装完成。
Note: After the motor and flight control are installed, the upper carbon plate, shark fin, and central control upper
cover must be installed in the order of removal.

有第16 页 共 18 页
喷洒安装 Spray installation
1、将加长杆喷头软垫卸下，套入圆形垫片。将电机座垫片垫在电机座下方，拧紧两颗 M3*12 螺丝
1. Remove the soft pad of the extension rod nozzle, and insert it into a circular gasket. Place the
motor base gasket under the motor base and tighten the two M3 * 12 screws
1、使用 8mm 水管连接加长杆喷头，另一端连接一体无刷水泵出水口；
1. Use an 8mm water pipe to connect the extension nozzle, and connect the other end to the
integrated brushless pump outlet;
2、使用配件包中的 Y 型信号线，将四个一体水泵信号线并联为两个水泵信号线，并连接飞控水泵控制
通道；注意一体水泵电源出厂时已连接，无需改动
2. Use the Y-type signal cable in the accessory package to connect the four integrated pump signal cables in
parallel to two pump signal cables and connect the flight control pump control channel; note that the
integrated pump power supply is connected at the factory and does not need to be modified

第17 页 共 18 页
请在安装过程中，务必要注意安全，用户由于不当使用造成的伤害以及损失，EFT 不予负责
Please pay attention to safety during the installation process. EFT will not be
responsible for the injuries and losses caused by improper use.
附录 Appendix
规格参数 specifications
---------------------------------------------------------------------
一体水泵 产品规格 Integrated Water Pump Product Specifications
Size 尺寸：85*66*58mm（不含固定耳） Maximum power 最大功率：180W
Weight 重量：300g Maximum velocity 最大流速：5.5L/min
Supply voltage 供电电压：43----60V Stroke range 行程范围：1100-1900μs
Maximum current 最大电流：3A Pressure 压力：0.58Mpa
本产品标配 4 个 12S 一体水泵，实现 4 个加长杆喷头的喷洒作业，您可根据生产需要，调整水
泵数量，实现前喷和后喷。This product is equipped with 4 12S integrated water pumps as
机架参数 Frame specifications 推荐配置 Recommended configuration
Wheelbase 轴距：2122mm Motor 电机：
X8/8118 Hobbywing X8 motor set
opened size 展开尺寸:2050*2050*643mm Propeller 桨 叶 ： 28-32 寸 折 叠 桨
28-32inches folding propeller
Folded size 折叠尺寸:1107*1107*643mm ESC 电调：80A FOC
Tank capacity 药箱容量 11L*2 Supply voltage 供电电压： 12S
Frame weigh 机架重量:14kg（不含喷淋系统 Without spray
system）
Maximum takeoff weight 最大起飞重量：
55kg

第18 页 共 18 页
standard to realize the spraying operation of 4 extension rod spray nozzles. You can
adjust the number of water pumps according to production needs to achieve front
spray and rear spray.
