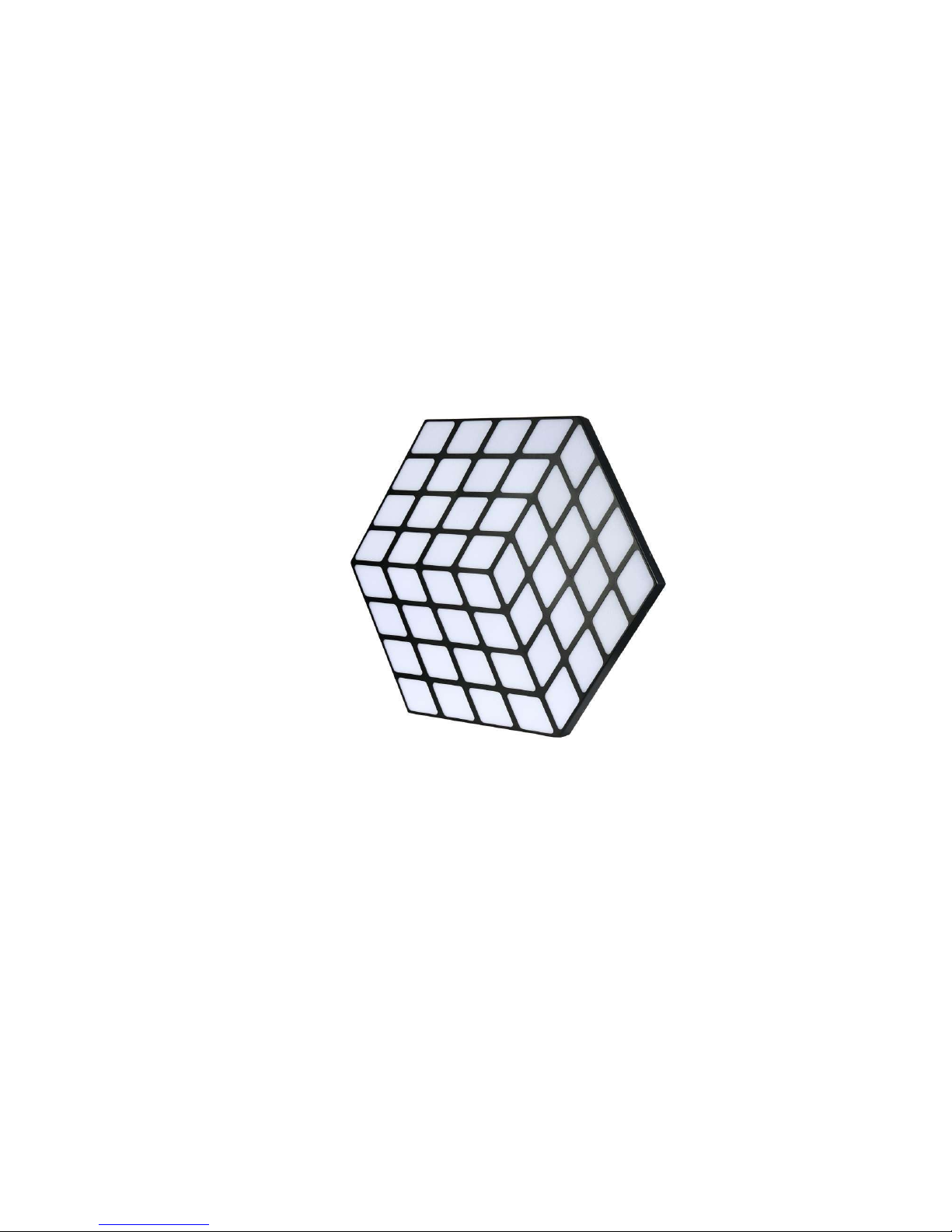

ArtFox Magic 3D User manual

Magic 3D
Please read through this manual before using this lamp

Product specifications and parameters:
Input voltage：AC90-240V 50/60Hz
Light Sources：192Pcs*0.5WSMD 5050 3in1 LED
Power consumption：60W
Size:680cm*590cm*150cm
N.W:7.35kg G.W:9.4kg
1.Graphic part：
A．function key
B．additional key
C．Subtract key
D．Confirmation key
A B C D
Operation description: press function key A will loop out different functions, press B or C key can
modify its parameter value. Press D key to confirm.
2. LED display window function comparison table (all functions are selected and then press D key to
confirm)
NO show function declaration
1 CH5/CH8/CH41/C144/C149 5 channel mode selection
2 d001
Channel address code 001-512)
Add and subtract address code value of
BCO C key
3 r255
switch to this state, you can adjust the
brightness of the red light, and press
the BCC key to adjust the brightness of
the red light r001-r255)
4 G255
Under this condition, the brightness of
green light can be adjusted, and the
brightness of green light can be
adjusted by pressing the B C key.
(G001-G255)
5 b255
switch to this state, you can adjust the
brightness of the blue light, and press
the BCC key to adjust the brightness of
the blue light b001-b255)
6 Pr01 switch to this function state, press BU
C to select 31 built-in programs
7 SP01 To switch to this feature state, press the
BCC key to adjust the speed of the

built-in program. SP01-SP16)
8 AUTO/AUDI Test mode, press BCkey to be able to
self-walk harmonics
9 EP00/EP01 The DMX512 drop signal remains
selected,
10 DISP Digital tube inverted display settings.
3．DMX512Channel description
5channel pattern
NO function Description
1 Total dimming Red, green, blue total dimmer9( 0-255) linear dimming,
from dark to bright
2 stroboflash (0-255) from slow to fast
3 Red dimming Red dimmer( 0-255) linear dimming, from dark to bright
4 Green dimming Green dimmer 0-255) linear dimming, from dark to
bright
5 Blue dimming Blue dimmer 0-255) linear dimming, from dark to bright
8channel pattern
NO function Description
1 Total dimming Red, green, blue total dimmer 0-255) linear dimming,
from dark to bright。
2 stroboflash (0-255)From slow to fast
3 Red dimming Red dimmer 0-255) linear dimming, from dark to bright
4 Green dimming Green dimmer 0-255) linear dimming, from dark to
bright
5 Blue dimming Blue light modulation, (0-255) linear dimming from dark
to bright
6 colour mixture A combination of colors.
7 kromprogramo The first 6 channels enable 0-10 / 11-255) built-in
programs.
8 Built-in program
speed
0-255 up speed slow down 0 fastest speed.
41channel pattern
NO function Description
1 Total dimming Red, green, blue total dimmer 0-255) linear dimming,
from dark to bright.
2 stroboflash From slow to fast
3 The first group of
lights dimming
Red dimmer 0-255) linear dimming, from dark to bright
4 The first group of
lights dimming
Green dimmer 0-255) linear dimming, from dark to
bright
5 first set of lamp
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
6 Second group of
lights dimming
Red dimmer 0-255) linear dimming, from dark to bright
7 Second group of Green dimmer 0-255) linear dimming, from dark to

lights dimming bright
8 Second group of
lights dimming
Green dimmer 0-255) linear dimming, from dark to
bright
9 Group 3 dimming Red dimmer 0-255) linear dimming, from dark to bright
10 Group 3 dimming Green dimmer 0-255) linear dimming, from dark to
bright
11 Group 3 dimming Blue dimmer 0-255) linear dimming, from dark to bright
12 4th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
13 4th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
14 4th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
15 5th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
16 5th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
17 5th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
18 6th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
19 6th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
20 6th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
21 7th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
22 7th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
23 7th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
24 8th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
25 8th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
26 8th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
27 9th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
28 9th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
29 9th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
30 10th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
31 10th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
32 10th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
33 11th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
34 11th group lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright

35 11th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
36 12th group lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
37 12th group lights
dimming Green dimmer 0-255) linear dimming, from dark to
bright
38 12th group lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
39 colour mixture A combination of colors.
40 kromprogramo The first 39 channels enable 0-10 / 11-255) built-in
programs.
41 Built-in program
speed
0-255 up speed slow down 0 fastest speed.
Four lanterns were divided into 12 groups
144channel pattern
NO function explain
1 First light dimming Red dimmer 0-255) linear dimming, from dark to bright
2 First light dimming Green dimmer 0-255) linear dimming, from dark to
bright
3 First light dimming Blue dimmer 0-255) linear dimming, from dark to bright
4 Second dimming Red dimmer 0-255) linear dimming, from dark to bright
5 Second dimming Green dimmer 0-255) linear dimming, from dark to
bright
6 Second dimming Blue dimmer 0-255) linear dimming, from dark to bright
7 Third dimming Red dimmer 0-255) linear dimming, from dark to bright
8 Third dimming Green dimmer 0-255) linear dimming, from dark to
bright
Third dimming Blue dimmer 0-255) linear dimming, from dark to bright
10 Fourth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
11 Fourth light dimming
Green dimmer 0-255) linear dimming, from dark to
bright
12 Fourth light dimming
Blue dimmer 0-255) linear dimming, from dark to bright
13 Fifth dimming Red dimmer 0-255) linear dimming, from dark to bright
14 Fifth dimming Green dimmer 0-255) linear dimming, from dark to
bright
15 Fifth dimming Blue dimmer 0-255) linear dimming, from dark to bright
16 Sixth dimming Red dimmer 0-255) linear dimming, from dark to bright
17 Sixth dimming Green dimmer 0-255) linear dimming, from dark to
bright
18 Sixth dimming Blue dimmer 0-255) linear dimming, from dark to bright
19 Seventh light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
20 Seventh light
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
21 Seventh light
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
22 Eighth light dimming
Red dimmer 0-255) linear dimming, from dark to bright
23 Eighth light dimming
Green dimmer 0-255) linear dimming, from dark to
bright
24 Eighth light dimming
Blue dimmer 0-255) linear dimming, from dark to bright
25 Ninth dimming Red dimmer 0-255) linear dimming, from dark to bright

26 Ninth dimming Green dimmer 0-255) linear dimming, from dark to
bright
27 Ninth dimming Blue dimmer 0-255) linear dimming, from dark to bright
28 Tenth light dimming Red dimmer 0-255) linear dimming, from dark to bright
29 Tenth light dimming Green dimmer 0-255) linear dimming, from dark to
bright
30 Tenth light dimming Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
31 11th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
32 11th lights dimming Green dimmer 0-255) linear dimming, from dark to
bright
33 11th lights dimming Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
34 Twelfth lights are
dimmed
Red dimmer 0-255) linear dimming, from dark to bright
35 Twelfth lights are
dimmed Green dimmer 0-255) linear dimming, from dark to
bright
36 Twelfth lights are
dimmed Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
37 Thirteenth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
38 Thirteenth light
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
39 Thirteenth light
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
40 14th light dimming Red dimmer 0-255) linear dimming, from dark to bright
41 14th light dimming Green dimmer 0-255) linear dimming, from dark to
bright
42 14th light dimming Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
43 15th light dimming Red dimmer 0-255) linear dimming, from dark to bright
44 15th light dimming Green dimmer 0-255) linear dimming, from dark to
bright
45 15th light dimming Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
46 Sixteenth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
47 Sixteenth light
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
48 Sixteenth light
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
49 Seventeenth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
50 Seventeenth light
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
51 Seventeenth light
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
52 Eighteenth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
53 Eighteenth light
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
54 Eighteenth light
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright

55 19th light dimming Red dimmer 0-255) linear dimming, from dark to bright
56 19th light dimming
Green dimmer 0-255) linear dimming, from dark to
bright
57 19th light dimming Green dimmer 0-255) linear dimming, from dark to
bright
58 Twentieth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
59 Twentieth light
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
60 Twentieth light
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
61 The twentieth light
dimmer
Red dimmer 0-255) linear dimming, from dark to bright
62 The twentieth light
dimmer
Green dimmer 0-255) linear dimming, from dark to
bright
63 The twentieth light
dimmer
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
64 Twenty-two lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
65 Twenty-two lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
66 Twenty-two lights
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
67 Twenty-third lights
are dimmed
Red dimmer 0-255) linear dimming, from dark to bright
68 Twenty-third lights
are dimmed
Green dimmer 0-255) linear dimming, from dark to
bright
69 Twenty-third lights
are dimmed
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
70 Twenty-four lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
71 Twenty-four lights
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
72 Twenty-four lights
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
73 Twenty - five lamp
dimming
Red dimmer 0-255) linear dimming, from dark to bright
74 Twenty - five lamp
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
75 Twenty - five lamp
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
76 Twenty-sixth lights
are dimmed
Red dimmer 0-255) linear dimming, from dark to bright
77 Twenty-sixth lights
are dimmed
Green dimmer 0-255) linear dimming, from dark to
bright
78 Twenty-sixth lights
are dimmed
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
79 Twenty-sixth lights
are dimmed
Red dimmer 0-255) linear dimming, from dark to bright
80 Twenty-seventh light
dimming Green dimmer 0-255) linear dimming, from dark to
bright

81 Twenty-seventh light
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
82 Twenty-eighth
dimming
Red dimmer 0-255) linear dimming, from dark to bright
83 Twenty-eighth
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
84 Twenty-eighth
dimming
Blue light dimming , ( 0 - 255 ) linear dimming , from
dark to bright
85 Twenty-ninth
dimming
Red dimmer 0-255) linear dimming, from dark to bright
86 Twenty-ninth
dimming
Green dimmer 0-255) linear dimming, from dark to
bright
87 Twenty-ninth
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
88 Thirtieth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
89 Thirtieth light
dimming
Green light, (0-255) linear dimming from dark to light
90 Thirtieth light
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
91 31th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
92 31th lights dimming Green light, (0-255) linear dimming from dark to light
93 31th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
94 Thirty-two lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
95 Thirty-two lights
dimming
Green light, (0-255) linear dimming from dark to light
96 Thirty-two lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
97 The thirty-third light
dimmer
Red dimmer 0-255) linear dimming, from dark to bright
98 The thirty-third light
dimmer
Green light, (0-255) linear dimming from dark to light
99 The thirty-third light
dimmer
The thirty-third light dimmer
100 Thirty-four lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
101 Thirty-four lights
dimming
Green light, (0-255) linear dimming from dark to light
102 Thirty-four lights
dimming
Thirty-four lights dimming
103 Thirty-five lights
dimming
Red dimmer 0-255) linear dimming, from dark to bright
104 Thirty-five lights
dimming
Green light, (0-255) linear dimming from dark to light
105 Thirty-five lights
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
106 Thirty-sixth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
107 Thirty-sixth light
dimming
Green light, (0-255) linear dimming from dark to light

108 Thirty-sixth light
dimming
Blue dimmer 0-255) linear dimming, from dark to brigh
109 Thirty - seven lamp
dimming
Red dimmer 0-255) linear dimming, from dark to bright
110 Thirty - seven lamp
dimming
Green light, (0-255) linear dimming from dark to light
111 Thirty - seven lamp
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
112 38th light dimming Red dimmer 0-255) linear dimming, from dark to bright
113 38th light dimming Green light, (0-255) linear dimming from dark to light
114 38th light dimming Blue dimmer 0-255) linear dimming, from dark to bright
115 Thirty - nine lamp
dimming
Red dimmer 0-255) linear dimming, from dark to bright
116 Thirty - nine lamp
dimming
Green light, (0-255) linear dimming from dark to light
117 Thirty - nine lamp
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
118 The fortieth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
119 The fortieth light
dimming
Green light, (0-255) linear dimming from dark to light
120 The fortieth light
dimming
The fortieth light dimming
121 41th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
122 41th lights dimming Green light, (0-255) linear dimming from dark to light
123 41th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
124 42th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
125 42th lights dimming Green light, (0-255) linear dimming from dark to light
126 42th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
127 43th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
128 43th lights dimming Green light, (0-255) linear dimming from dark to light
129 43th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
130 44th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
131 44th lights dimming Green light, (0-255) linear dimming from dark to light
132 44th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
133 The forty-fifth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
134 The forty-fifth light
dimming
Green light, (0-255) linear dimming from dark to light
135 The forty-fifth light
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
136 46th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
137 46th lights dimming Green light, (0-255) linear dimming from dark to light
138 46th lights dimming
Blue dimmer 0-255) linear dimming, from dark to bright
139 46th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
140 47th lights dimming Green light, (0-255) linear dimming from dark to light
141 47th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
142 48th light dimmer Red dimmer 0-255) linear dimming, from dark to bright
143 48th light dimmer Green light, (0-255) linear dimming from dark to light
144 48th light dimmer Blue dimmer 0-255) linear dimming, from dark to bright
149 channel mode

NO function explain
1 Total dimming Red, green, blue total dimmer 0-255) linear dimming,
from dark to bright
2 stroboflash From slow to fast
3 First light dimming Red dimmer 0-255) linear dimming, from dark to bright
4 First light dimming Green light, (0-255) linear dimming from dark to light
5 First light dimming Blue dimmer 0-255) linear dimming, from dark to bright
6 Second dimming
Red dimmer 0-255) linear dimming, from dark to bright
7 Second dimming Green light, (0-255) linear dimming from dark to light
8 Second dimming Blue dimmer 0-255) linear dimming, from dark to bright
9 Third lights are
dimmed
Red dimmer 0-255) linear dimming, from dark to bright
10 Third lights are
dimmed
Green light, (0-255) linear dimming from dark to light
11 Third lights are
dimmed
Blue dimmer 0-255) linear dimming, from dark to bright
12 Fourth light dimming
Red dimmer 0-255) linear dimming, from dark to bright
13 Fourth light dimming
Green light, (0-255) linear dimming from dark to light
14 Fourth light dimming
Blue dimmer 0-255) linear dimming, from dark to bright
15 Fifth dimming Red dimmer 0-255) linear dimming, from dark to bright
16 Fifth dimming Green light, (0-255) linear dimming from dark to light
17 Fifth dimming Blue dimmer 0-255) linear dimming, from dark to bright
18 Sixth dimming Red dimmer 0-255) linear dimming, from dark to bright
19 Sixth dimming Green light, (0-255) linear dimming from dark to light
20 Sixth dimming Blue dimmer 0-255) linear dimming, from dark to bright
21 Seventh light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
22 Seventh light
dimming
Green light, (0-255) linear dimming from dark to light
23 Seventh light
dimming
Blue dimmer 0-255) linear dimming, from dark to bright
24 Eighth light dimming
Red dimmer 0-255) linear dimming, from dark to bright
25 Eighth light dimming
Green light, (0-255) linear dimming from dark to light
26 Eighth light dimming
Blue dimmer 0-255) linear dimming, from dark to bright
27 Ninth dimming Red dimmer 0-255) linear dimming, from dark to bright
28 Ninth dimming Green light, (0-255) linear dimming from dark to light
29 Ninth dimming Blue dimmer 0-255) linear dimming, from dark to bright
30 Tenth light dimming Red dimmer 0-255) linear dimming, from dark to bright
31 Tenth light dimming Green dimmer 0-255) linear dimming, from dark to
bright
32 Tenth light dimming Blue dimmer 0-255) linear dimming, from dark to bright
33 11th lights dimming Red dimmer 0-255) linear dimming, from dark to bright
34 11th lights dimming Green dimmer 0-255) linear dimming, from dark to
bright
35 11th lights dimming Blue dimmer 0-255) linear dimming, from dark to bright
36 The twelfth dimming
Red dimmer 0-255) linear dimming, from dark to bright
37 The twelfth dimming
Green dimmer 0-255) linear dimming, from dark to
bright
38 The twelfth dimming
Blue dimmer 0-255) linear dimming, from dark to bright
39 Thirteenth light
dimming
Red dimmer 0-255) linear dimming, from dark to bright
