ArtFox Power Shine 14QX User manual

User Manual
POWER SHINE 14QX 14x30W RGB
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

CONTENTS
1. INSTRUCTION
Unpacking
Introduction
AC Power
Safety Instruction
Cleaning
2. FEATURE
3. SET UP
3-Pin to 5-Pin Conversion Chart
Setting up a DMX Serial Data Link
Master/Slave Fixture Linking
4. OPERATING INSTRUCTIONS
Operating modes
Product overview
Program Mode & Sound Mode
Master-Slave Operation
Master-Slave Connections and Settings
DMX Mode
5. DMX CHANNEL SUMMARY

LED WALL WASH LIGHT Introduction
Unpacking: Thank you for purchasing our products. Every unit has been thoroughly tested and has been shipped in
perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If
the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to
operate the unit has arrived intact. In the case damage has been found or parts are missing, Save the carton and all
packing materials. In the event a fixture must be returned to the factory. It is important that the fixture be returned in
the original factory box and packing.
Introduction: The unit is a DMX intelligent LED wall wash light. This light can be used in a stand alone mode or
connected in a Master/Slave configuration. The unit can also be controlled via DMX controller. This light has three
operating modes: stand alone mode, Master/Slave and DMX control mode.
AC Power: This fixture has an auto-switching power supply that can accommodate a wide range of input voltages. The
only thing necessary to do before powering on the unit is to make sure the line voltage you are applying is within the
range of accepted voltages. This fixture will accommodate between 100V and 240V AC. All fixtures must be powered
directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit. Even if the rheostat or
dimmer channel is used solely for a 0-100% switch.
Safety Instructions:
• To reduce the risk of electrical shock or fire, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt-age for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove or break off
the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an
internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user serviceable parts inside.
• Never operate this unit when its cover is removed.
• Never plug this unit in to a dimmer pack.
•Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”(15cm) between this
device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for outdoor and indoor use, Don’t dip the products into the water. IP 65 rating.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 3 for cleaning details.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
Please read these instructions carefully, which includes important information about the installation,
usage and maintenance of this product.

C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself, doing so will void
your manufacturer warranty. In the unlikely event your unit may require service please contact us.
Cleaning: Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out
periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust, dew).
LED WALL WASH LIGHT Features
Multi-voltage: AC100-240V, 50/60Hz
Power Consumption: 400 watts
Light source: 14pcs 30W 3 in 1 LEDs
Beam angle: 40 degree lens
IP 65 outdoor rated, Die cast case LED Wall Washer
Low noise operation, convection cooled
Long Life LED (rated at 50, 000 Hours)
Operational modes: DMX512, Master-Slave, Stand-Alone, DMX-512 Protocol
8/19/42 DMX Channel Modes
3 pin XLR data input & output
Electronic Dimming: 0 - 100%
Linear RGBW color mixing allows for infinite color possibilities
Flicker free - ready for TV / Video use
LED display with easy to use function keys
Color strobe effect
Low power consumption
Very low heat output
Run all night
Mounting bracket designed for floor, wall or truss mount
N. W: 10KG G. W.: 12KG
Dimensions (LxWxH): 1000x110x170MM
LED WALL WASH LIGHT Set Up
Notice: Be sure to follow figures two and three when making your own cables. Do not use the ground lug on the XLR
connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in
contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic behavior.

Figure 3

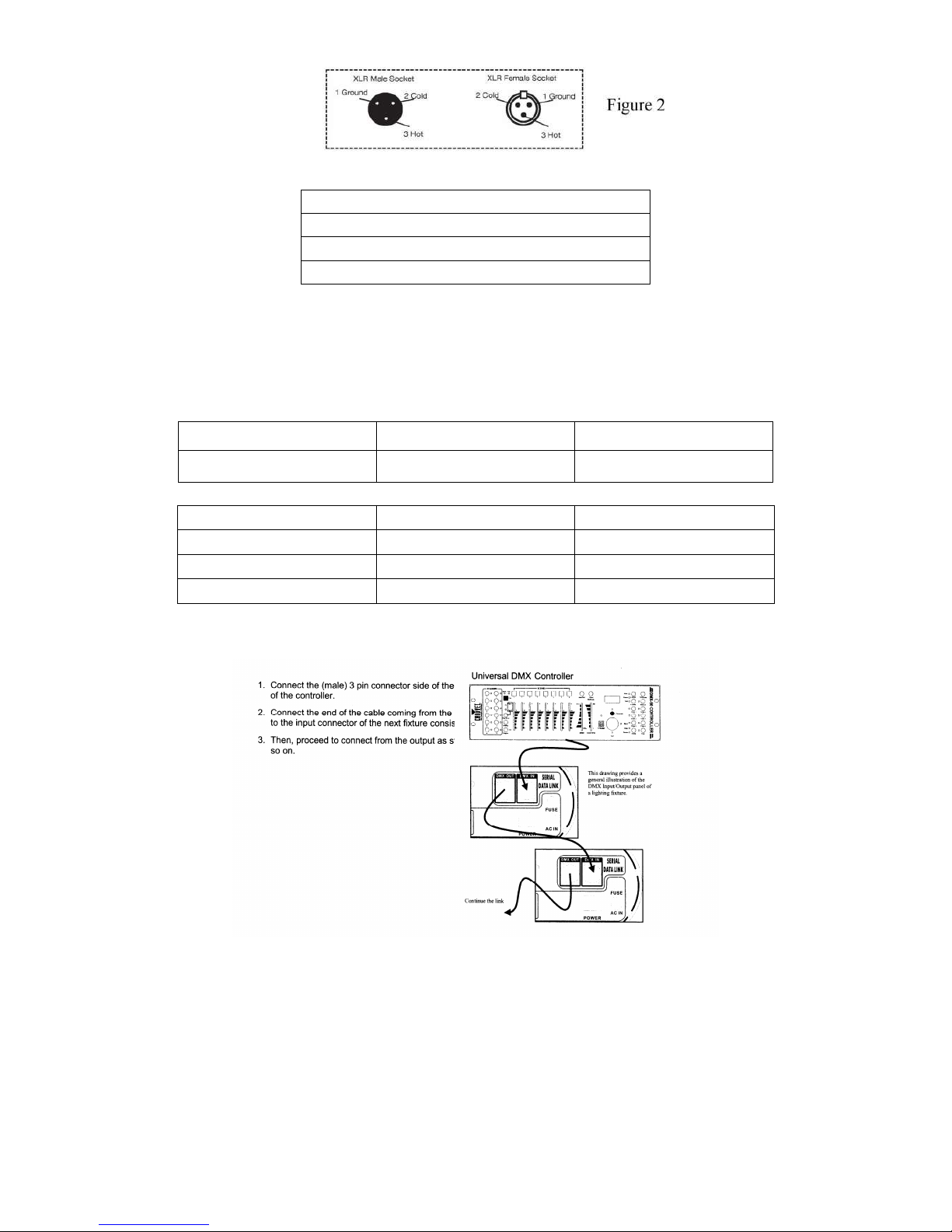

XLR Pin Configuration
Pin 1 = Ground
Pin 2 = Data Compliment(negative)
Pin 3 = Data True(positive)
3-Pin to 5-Pin Conversion Chart:
Note! If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. The
chart below details a proper cable conversion:
3-Pin to 5-Pin Conversion
Conductor 3 Pin Female(Output) 5 Pin Male(Input)
Ground/Shield Pin 1 Pin 1
Data(-) signal Pin 2 Pin 2
Data(+) signal Pin 3 Pin 3
Not Used Do not use
Not Used Do not use
Setting up a DMX Serial Data Link:
Master/Slave Fixture Linking:
1. Connect the (male) 3 pin connector side of the DMX cable to the output(female) 3 pin connector of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input
connector of the next fixture consisting of a (male) 3 pin connector. Then, proceed to connect from the output as
stated above to the input of the following fixture and so on.
Operating Modes:
You can use the unit in either a stand alone mode or a master/slave configuration, there are 2 modes to choose from:
• Program Mode - Choose a static color, color show, color fade show, or color cycle. The speed of the show is adjustable.

You can also have the unit strobe in this mode.
• Master/Slave Mode- Using the Master unit, choose your desired mode or program and
connect the “Slave” unit or units, All slaves will now follow the“Master” unit. But only one master.
• DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512
controller
Product overview:
(Diagram I)
A B C D
Button Function
<MENU> A Used to access the mode or to return to a previous mode option
<UP> B Change the value of function you choosing in ascending order
<DOWN> C Change the value of function you choosing in descending order
<ENTER> D locate the function of which you want to change the value
Press the Menu button, you can browse all the function, such as AUTO RUN, DMX MODE, SLAVE MODE, SOUND.
While the function you want, for example, if DMX MODE, the ADDR & MODE can be adjusted. You can press Menu
button to catch them, if Menu MODE, it has 23 models, press UP & DOWN to locate it.
Program Mode & Sound Mode:
In Program Mode you can pick your desired factory installed program; static color, color show, color fade, or color cycle.
You can apply a strobe effect to static colors, and contro
l the speed of the color shows, color fade, and color cycle.
1. Plug the fixture in and press the FN button till d001 display, you are now in program model. Press UP and DOWN to
find your desired effect.display, and press FN button to enter the DMX address and DMX mode selection, and then
press UP or DOWN buttons to adjust the DMX address and DMX mode. The channels value refers to the following
channel summary.
LED WALL WASHER LIGHT DMX Channels Summary
1．HOW TO OPERATE?
Press A button, there will be nine different modes.
The first two letters stands for functions (refer to Diagram II)
The last two letters stands for DMX address or speed. You can modify it with B or C button. And press D button for
confirmation.

2. KEY AND DISPLAY FUNCTIONS
2.1. Key instruction
MENU： Table1 function loops add；
UP： function value add；
DOWN： function value decrease；
ENTER： save the setting；
2.2. Display instruction
No. Show Function
1
CH6/CH9/CH3
3/CH61 4 modes
2 d001 DMX Address，Press twice Enter to confirm
3 r255 Red Dimming, From dark to light
4 G255 Green Dimming, From dark to light
5 b255 Blue Dimming, From dark to light
6 H255
Strobe, From dark to light Strobe,Speed from slow to
fast
7 Pr01 Built-in Program
8 Ld01/Ld02 Dimming modes, Ld01 fast dimmer, Ld02 smooth dimmer
9 SP01 Speed of Built-in Program
10 AUTO/Audi Auto run and Sound control
11 DISP Convert Led display
2.3 、DMX512 Configuration
8 Channels Mode:
Channel
DMX Value
Function
CH1
000-255
RGB Total Dimming, From dark to light
CH2
000-255
Strobe , from slow to fast
CH3
CH4
000-255
Red Dimming, From dark to light
000-255
Green Dimming, From dark to light
CH5
000-255
Blue Dimming, From dark to light
CH6
000-255
Color mixing
CH7
000-255
0-15 Enable CH1-CH7, 16-255 Built-in Program
CH8
000-255
Speed of Built-in Program, from fast to slow
19 Channels Mode:

Channel
DMX Value
Function
CH1
000-255
RGB Total Dimming, From dark to light
CH2
000-255
Strobe , from slow to fast
CH3
0-25
Open
26-35
Built-in programe 1
36-45
Built-in programe 2
46-55
Built-in programe 3
56-65
Built-in programe 3
66-75
Built-in programe 4
76-85
Built-in programe 5
86-95
Built-in programe 6
96-105
Built-in programe 7
106-115
Built-in programe 8
116-125
Built-in programe 9
126-135
Built-in programe 10
136-145
Built-in programe 11
146-155
Built-in programe 12
156-165
Built-in programe 13
166-175
Built-in programe 14
176-185
Built-in programe 15
186-195
Built-in programe 16
196-205
Built-in programe 17
206-215
Built-in programe 18
216-225
Built-in programe 19
226-235
Built-in programe 20
236-245
Built-in programe 21
246-255
Sound control
CH4
0-127
Left Macro direction
128-255
Right Macro direction
CH5
0-255
Macro speed
CH6
0-255
LED1 dimming
CH7
0-255
LED2 dimming
CH8
0-255
LED3 dimming
CH9
0-255
LED4 dimming
CH10
0-255
LED5 dimming
CH11
0-255
LED6 dimming
CH12
0-255
LED7 dimming
CH13
0-255
LED8 dimming
CH14
0-255
LED9 dimming
CH15
0-255
LED10 dimming
CH16
0-255
LED11 dimming
CH17
0-255
LED12 dimming
CH18
0-255
LED13 dimming
CH19
0-255
LED14 dimming
42 Channels Mode:
Channel
DMX Value
Function
CH
1
000-255
1# Red Dimming, From dark to light

CH
2
000-255
1# Green Dimming, From dark to light
CH3
000-255
1# Blue Dimming, From dark to light
CH
4
000-255
2# Red Dimming, From dark to light
CH5
000-255
2# Green Dimming, From dark to light
CH
6
000-255
2# Blue Dimming, From dark to light
CH7
000-255
3# Red Dimming, From dark to light
CH
8
000-255
3# Green Dimming, From dark to light
CH9
000-255
3# Blue Dimming, From dark to light
CH
10
000-255
4# Red Dimming, From dark to light
CH11
000-255
4# Green Dimming, From dark to light
CH
12
000-255
4# Blue Dimming, From dark to light
CH13
000-255
5# Red Dimming, From dark to light
CH
14
000-255
5# Green Dimming, From dark to light
CH15
000-255
5# Blue Dimming, From dark to light
CH
16
000-255
6# Red Dimming, From dark to light
CH17
000-255
6# Green Dimming, From dark to light
CH
18
000-255
6# Blue Dimming, From dark to light
CH19
000-255
7# Red Dimming, From dark to light
CH
20
000-255
7# Green Dimming, From dark to light
CH21
000-255
7# Blue Dimming, From dark to light
CH
22
000-255
8# Red Dimming, From dark to light
CH23
000-255
8# Green Dimming, From dark to light
CH
24
000-255
8# Blue Dimming, From dark to light
CH25
000-255
9# Red Dimming, From dark to light
CH
26
000-255
9# Green Dimming, From dark to light
CH27
000-255
9# Blue Dimming, From dark to light
CH
28
000-255
10# Red Dimming, From dark to light
CH29
000-255
10# Green Dimming, From dark to light
CH
30
000-255
10# Blue Dimming, From dark to light
CH31
000-255
11# Red Dimming, From dark to light
CH
32
000-255
11# Green Dimming, From dark to light
CH33
000-255
11# Blue Dimming, From dark to light
CH
34
000-255
12# Red Dimming, From dark to light
CH35
000-255
12# Green Dimming, From dark to light
CH
36
000-255
12# Blue Dimming, From dark to light
CH37
000-255
13# Red Dimming, From dark to light
CH
38
000-255
13# Green Dimming, From dark to light
CH39
000-255
13# Blue Dimming, From dark to light
CH
40
000-255
14# Red Dimming, From dark to light
CH41
000-255
14# Green Dimming, From dark to light
CH
42
000-255
14# Blue Dimming, From dark to light
