ArtFox Pixel Beam K7 User manual

User manual
Please read the instructions carefully before use
This product manual contains important information about the safe
installation and use of this projector. Please read and follow these instructions
carefully and keep this manual in a safe place for future reference.
Pixel Beam K7
7x15W 4IN1 Infinity Rotation LED Pixel Bar

2
1.Safety Instruction..................................................................................2
2.Technical Specification...........................................................................4
3.How to Control The Devicee ...................................................................5
4.Diagram ............................................................................................. 12
5.Trouble Shooting ................................................................................. 13
6.Fixture Cleaning .................................................................................. 14
STATEMENT
The product has well capability and intact packing when leave factory. All of
the user should comply with warning item and manual, any misuse cause of the
damages are not included in our guarantee, and also can not be responsible
for any malfunction & problem owing to ignore the manual.
1.Safety Instruction
Please keep this User Guide for future consultation. If you sell the unit to
another user, be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the
unit.
Before operating, ensure that the voltage and frequency of power supply
match the power requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
TABLE OF CONTENTS

3
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm
from adjacent surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as
it is fire hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head
only, but always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to 85℃.
DO NOT touch the housing bare-hand during its operation. Turn off the power
and allow about 15 minutes for the unit to cool down before replacing or
serving.
In the event of serious operating problem, stop using the unit
immediately.Never try to repair the unit by yourself. Repairs carried out by
unskilled people can lead to damage or malfunction. Please contact the nearest
authorized technical assistance center. Always use the same type spare parts.
DO NOT touch any wire during operation as high voltage might be causing
electric shock.
WARNING:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit
to rain or moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are
visibly damaged.

4
CAUTION:
There are no user serviceable parts inside the unit. DO NOT open the housing or
attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your nearest dealer.
INSTALLATION:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating. And make
sure that the structure to which you are attaching the unit is secure and is able to
support a weight of 10 times of the unit’s weight. Also always use a safety cable
that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.
2.Technical Specifications
Power Voltage: AC 100-240V, 50/60Hz
Power Consumption: 120W
Light Sources: 7 Multi-chip 4in1 RGBW 15 Watt LED sources
Beam Angle: 4°
Control
DMX Channel: 12/15/39 Channel
Control Modes: DMX512, Auto, Master-Slave, Music
Pan/Tilt
Continuous PAN and TILT rotation
Pan/Tilt Resolution: 16 bit
Construction
Display: LCD Display
DMX In/Out socket: 3-pin XLR sockets
Power Socket: Powercon in
Protection Rating: IP20

5
Features
85% optic efficiency
High-efficiency 67 mm PMMA optics
Continuous PAN and TILT rotation
Flicker free sources management, suitable for TV applications and all video
High-resolution stepper motors operated via microprocessors ensure extreme
accuracy and smooth movements.
Variable strobe effects
Size
Dimension: 58*17*25cm
Packing Size:640*320*245MM
Weight
Net Weight: 9Kgs
Gross Weight: 11Kgs
3.How to Control The Devicee

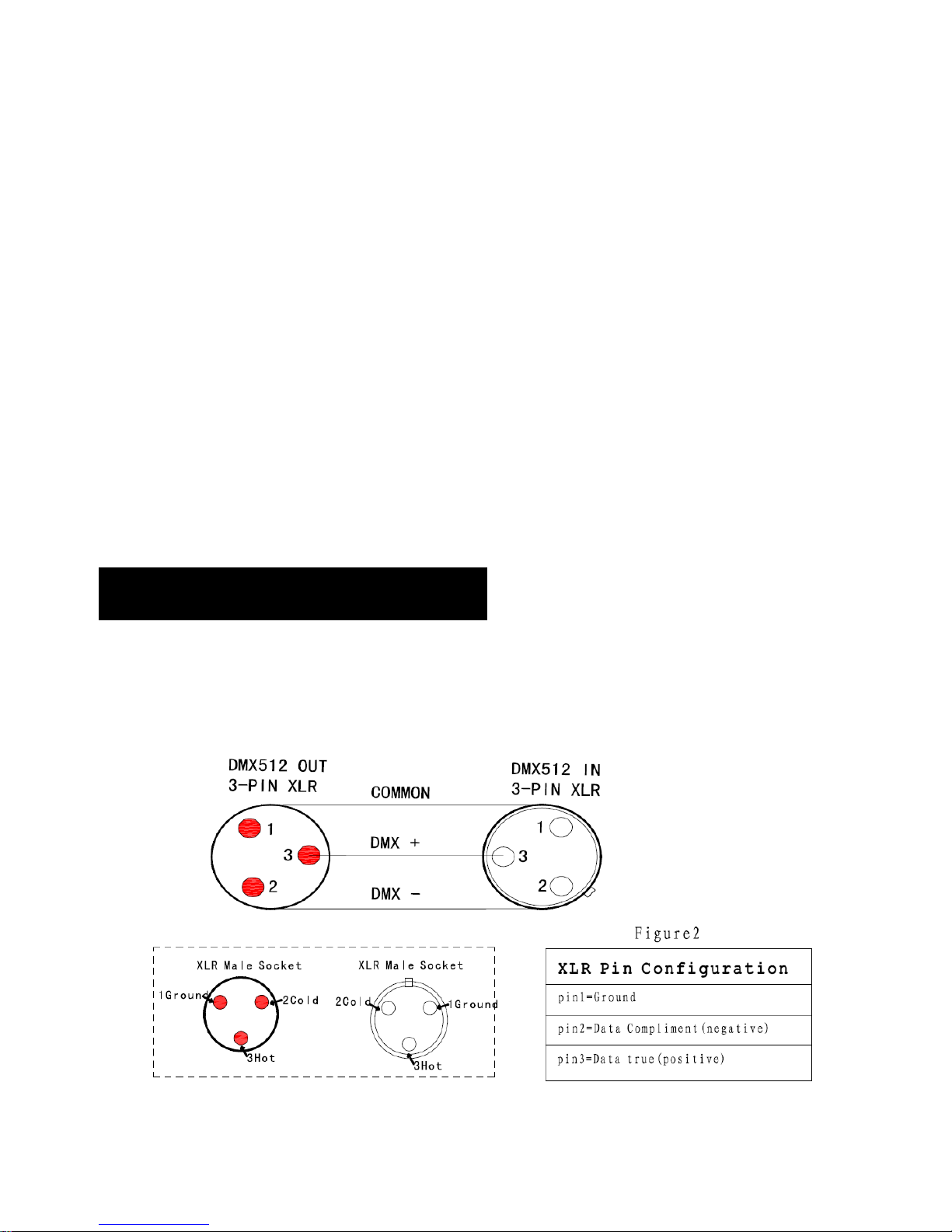

The DMX512 is widely used in intelligent lighting control,with a DMX 512
controller.connect several lights together,dmx in and dmx out, 3 pin XLR
connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

6
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code
1. Press "Menu" to "Set DMX Address",and press "ENTER" keys to enter into
2. Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
3Press "ENTER" keys to save and Exit,Press the "MENU" Keys does not
save and Exit
Address
Address=001
Reset
Reset=NO
Reset=YES
Manual
Manual
Pan
Pan
=000
Manual
Tilt
Tilt
=000
Manual
Red
Red
=000
Manual
Green
Green
=000
Manual
Blue
Blue
=000
Manual
White
White
=000
Manual
Strobe
Strobe
=000
Mode
12CH DMX
Basic
15CH DMX

7
Stand
39CH DMX
Extend
Auto
Alone
Auto
Master
Music
Alone
Music
Master
Option
Option
Display
Display
DelayOff
Option
Always
Option
Lost DMX
Lost DMX
=Clear
Lost DMX
=Hold
Advanced
Advanced
Code
Code
=000
Password
=008
Advanced
Adjust
Adjust
Pan
Pan
=+000
Adjust
Tilt
Tilt
=+000
Advanced
Mic Sens
Mic Sens
=080%
View
View
Hours
Hours
=0000H
Reset H
=NO
Reset H
=YES

8
View
DmxValue
CH=001
DMX=000
View
Version
=1.00F
YYYY.MM
Default
Load Def
=NO
Load Def
=YES
12/15/39 DMX channels mode:
Mode/Channel
Value
Function
Base
Standard
Extend
1
1
1
PAN Movement 8bit :
0-255
Pan Movement
*
2
2
Pan Fine 16bit :
0-255
Fine control of Pan movement
2
3
3
TILT Movement 8bit :
0-255
Tilt Movement
*
4
4
Tilt Fine 16bit :
0-255
Fine control of Tilt movement
*
5
5
Speed Pan/Tilt movement :
0-255
Speed fast to slow
3
6
6
Pan Continue Rotation :
0-9
No Function
10-129
Forward fast to slow
130-135
Stop
136-255
Backward slow to fast
4
7
7
Tilt Continue Rotation :

9
0-9
No Function
10-129
Forward fast to slow
130-135
Stop
136-255
Backward slow to fast
5
8
8
Dimmer :
0-9
Closed
10-255
Dimmer from 0%~100%
6
9
9
Strobe :
0-31
Closed
32-63
Open
64-95
Strobe from slow to fast
96-127
Open
128-159
Raiden strobe from slow to fast
160-191
Open
192-223
Random strobe from slow to fast
224-255
Open
7
10
10
LED Macro :
0-9
No Function
10-75
Static macro
76-95
Dynamic macro 1 from slow to fast
96-115
Dynamic macro 2 from slow to fast
116-135
Dynamic macro 3 from slow to fast
136-155
Dynamic macro 4 from slow to fast
156-175
Dynamic macro 5 from slow to fast
176-195
Dynamic macro 6 from slow to fast
196-215
Dynamic macro 7 from slow to fast
216-235
Dynamic macro 8 from slow to fast
136-255
Dynamic macro all from slow to fast
8
11
11
All Red : [LED Macro Valid]
0-255
Red Color ( 0%~100% )

10
9
12
12
All Green : [LED Macro Valid]
0-255
Green Color ( 0%~100% )
10
13
13
All Blue : [LED Macro Valid]
0-255
Blue Color ( 0%~100% )
11
14
14
All White : [LED Macro Valid]
0-255
White Color ( 0%~100% )
*
*
11
Red LED-array 1: [CH10 Invalid]
0-255
Red Color ( 0%~100% )
*
*
12
Green LED-array 1: [CH10 Invalid]
0-255
Green Color ( 0%~100% )
*
*
13
Blue LED-array 1: [CH10 Invalid]
0-255
Blue Color ( 0%~100% )
*
*
14
White LED-array 1: [CH10 Invalid]
0-255
White Color ( 0%~100% )
*
*
15
Red LED - array 2 :
0-255
Red Color ( 0%~100% )
*
*
16
Green LED - array 2 :
0-255
Green Color ( 0%~100% )
*
*
17
Blue LED - array 2 :
0-255
Blue Color ( 0%~100% )
*
*
18
White LED - array 2 :
0-255
White Color ( 0%~100% )
*
*
19
Red LED - array 3 :
0-255
Red Color ( 0%~100% )
*
*
20
Green LED - array 3 :
0-255
Green Color ( 0%~100% )
*
*
21
Blue LED - array 3 :
0-255
Blue Color ( 0%~100% )
*
*
22
White LED - array 3 :
0-255
White Color ( 0%~100% )

11
*
*
23
Red LED - array 4 :
0-255
Red Color ( 0%~100% )
*
*
24
Green LED - array 4 :
0-255
Green Color ( 0%~100% )
*
*
25
Blue LED - array 4 :
0-255
Blue Color ( 0%~100% )
*
*
26
White LED - array 4 :
0-255
White Color ( 0%~100% )
*
*
27
Red LED - array 5 :
*0-255
Red Color ( 0%~100% )
*
*
28
Green LED - array 5 :
0-255
Green Color ( 0%~100% )
*
*
29
Blue LED - array 5 :
0-255
Blue Color ( 0%~100% )
*
*
30
White LED - array 5 :
0-255
White Color ( 0%~100% )
31
Red LED - array 6 :
0-255
Red Color ( 0%~100% )
32
Green LED - array 6 :
0-255
Green Color ( 0%~100% )
33
Blue LED - array 6 :
0-255
Blue Color ( 0%~100% )
34
White LED - array 6 :
0-255
White Color ( 0%~100% )
35
Red LED - array 7 :
0-255
Red Color ( 0%~100% )
36
Green LED - array 7 :
0-255
Green Color ( 0%~100% )
37
Blue LED - array 7 :
0-255
Blue Color ( 0%~100% )

12
38
White LED - array 7 :
0-255
White Color ( 0%~100% )
12
15
39
Function :
0-24
No function
25-49
Reset (5 second)
50-74
No function
75-99
No function
100-124
No function
125-149
No function
150-174
Auto run
175-255
Music Control

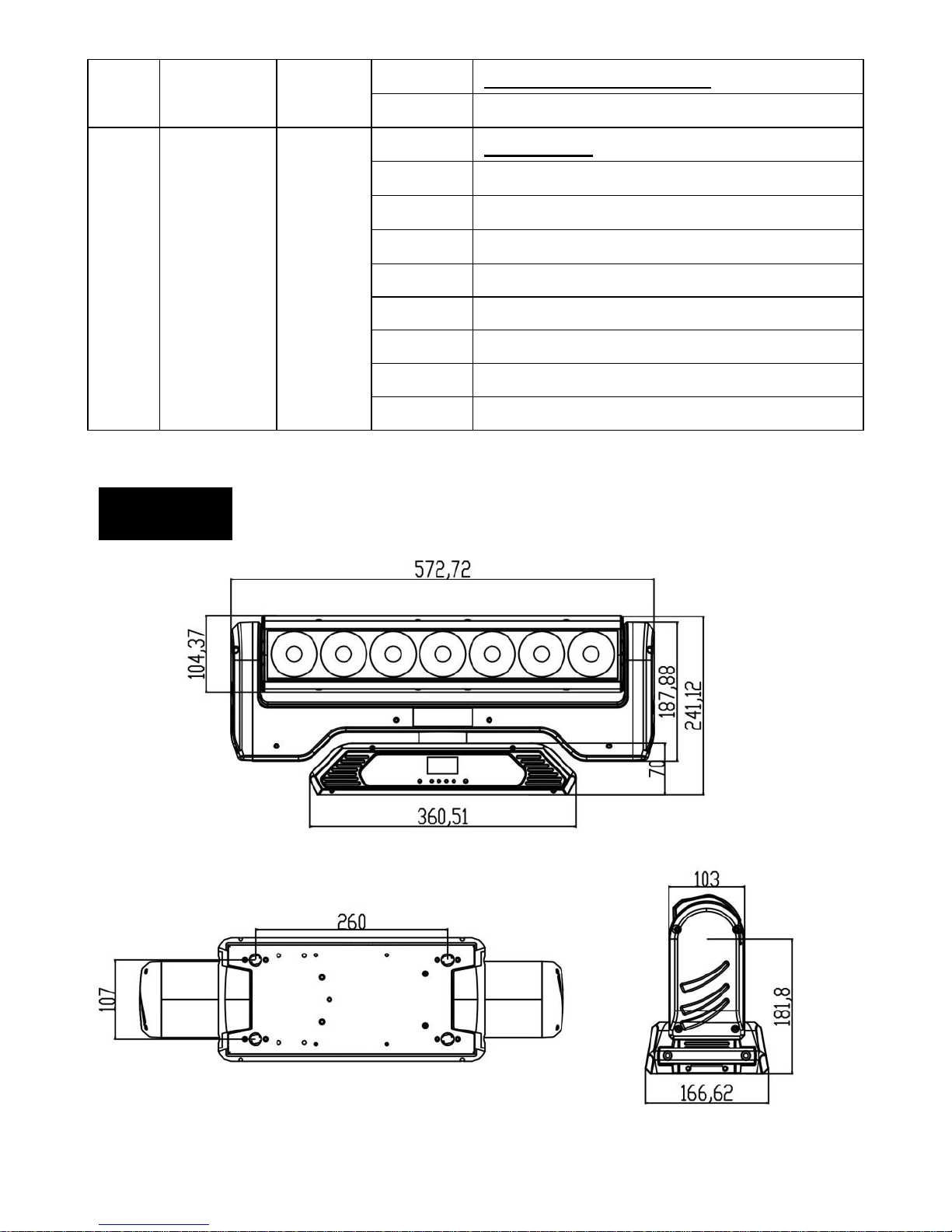

4.Diagram

13
5.Trouble Shooting
Following are a few common problems that may occur during operation. Here
are some suggestions for easy troubleshooting:
a. The unit does not work, no light and the fan does not work
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector.
3. Check the power on LED.
b. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link
properly.
2. If the DMX LED is on and no response to the channel, check the address
settings and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on
connectors or on PCB of the unit or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables
that may cause damage or interference to DMX interface circuit.
c. One of the channels is not working well
1. The stepper motor might be damaged or the cable connected to the PCB is
broken.
2. The motor’s drive IC on the PCB might be out of condition.

14
6.Fixture Cleaning
The cleaning of internal and external optical lenses and/or mirrors must be
carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: damp, smoky or particularly
dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the
internal optics at least every 30/60 days.
