INSTALLATION GUIDE

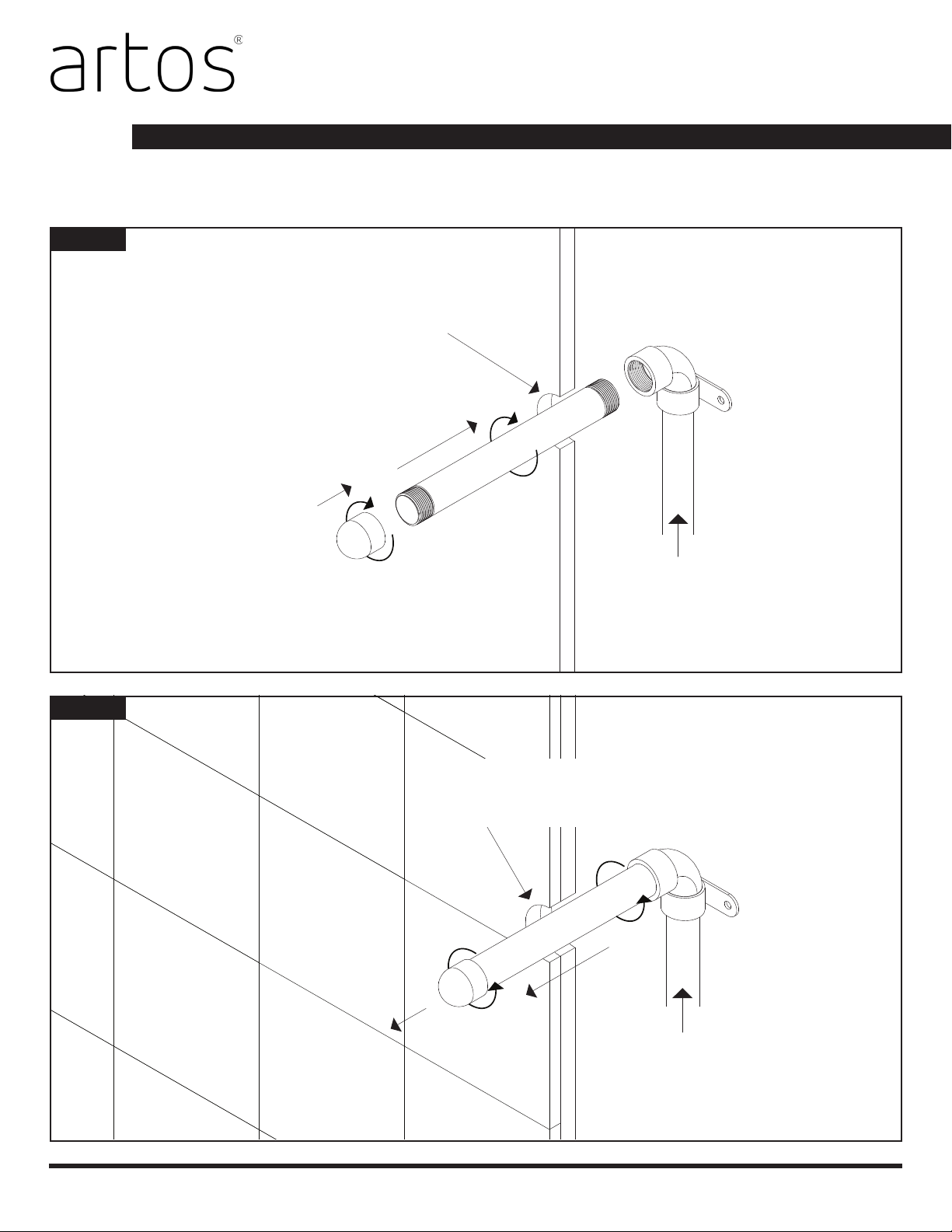

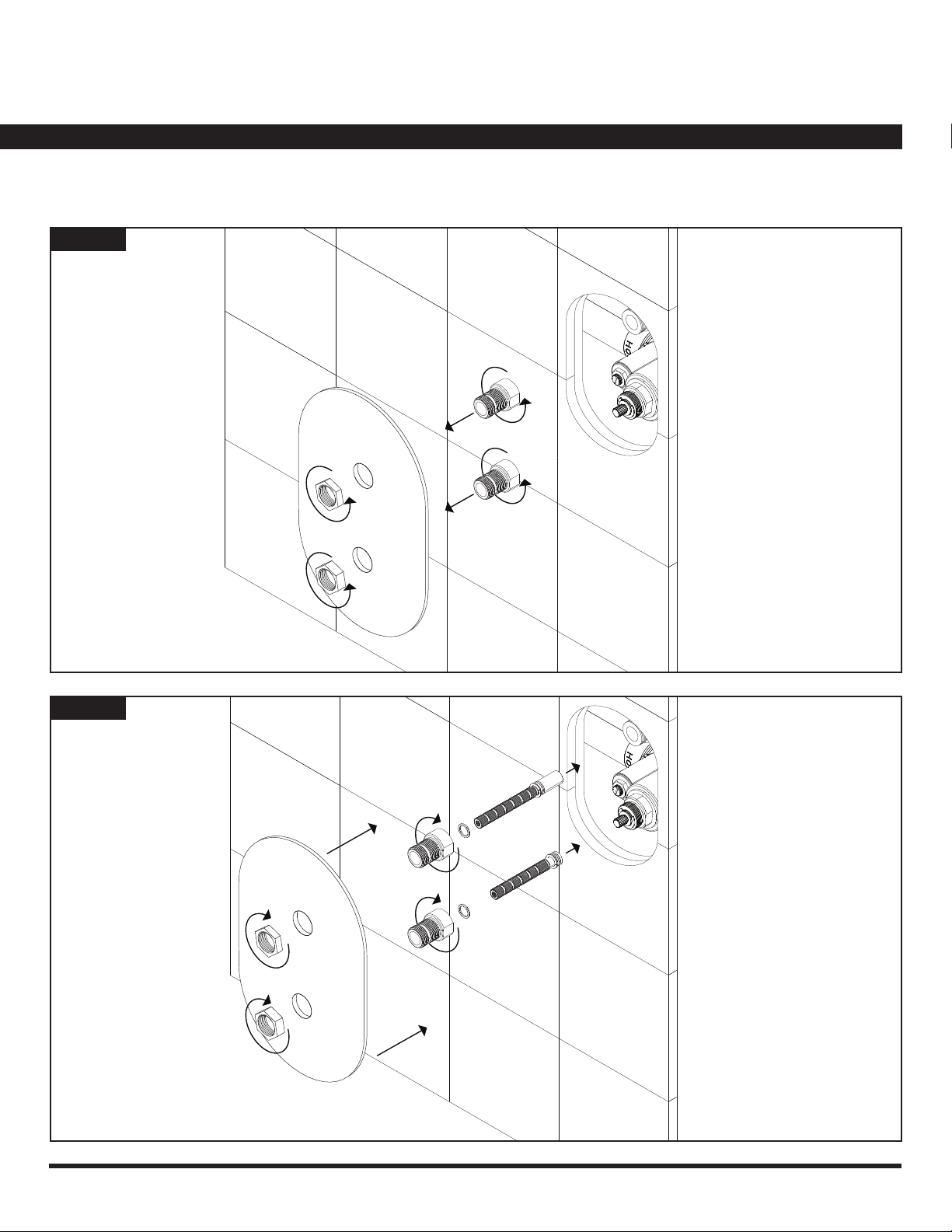

PS116
premier series shower set
BRUSHED NICKEL(PS116BN)
CHROME(PS116CH)

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
OPERATING SPECIFICATIONS
PS116
premier series shower set
FEATURES
Solid Brass
3-Outlets
INCLUDES
F903B-58TK
F907-5
F907-60
OPERATING PRESSURE
Minimum: 15 psi
Maximum: 75 psi
Above 90psi it may be necessary to install a pressure reducer
OPERATING TEMPERATURE
Maximum: 176°
FLOW CAPACITY
Hand Shower: 2.0 USGPM
Shower Head: 1.8 USGPM
Tub Filler: 6.0 USGPM
F901-8 APPROVAL

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.

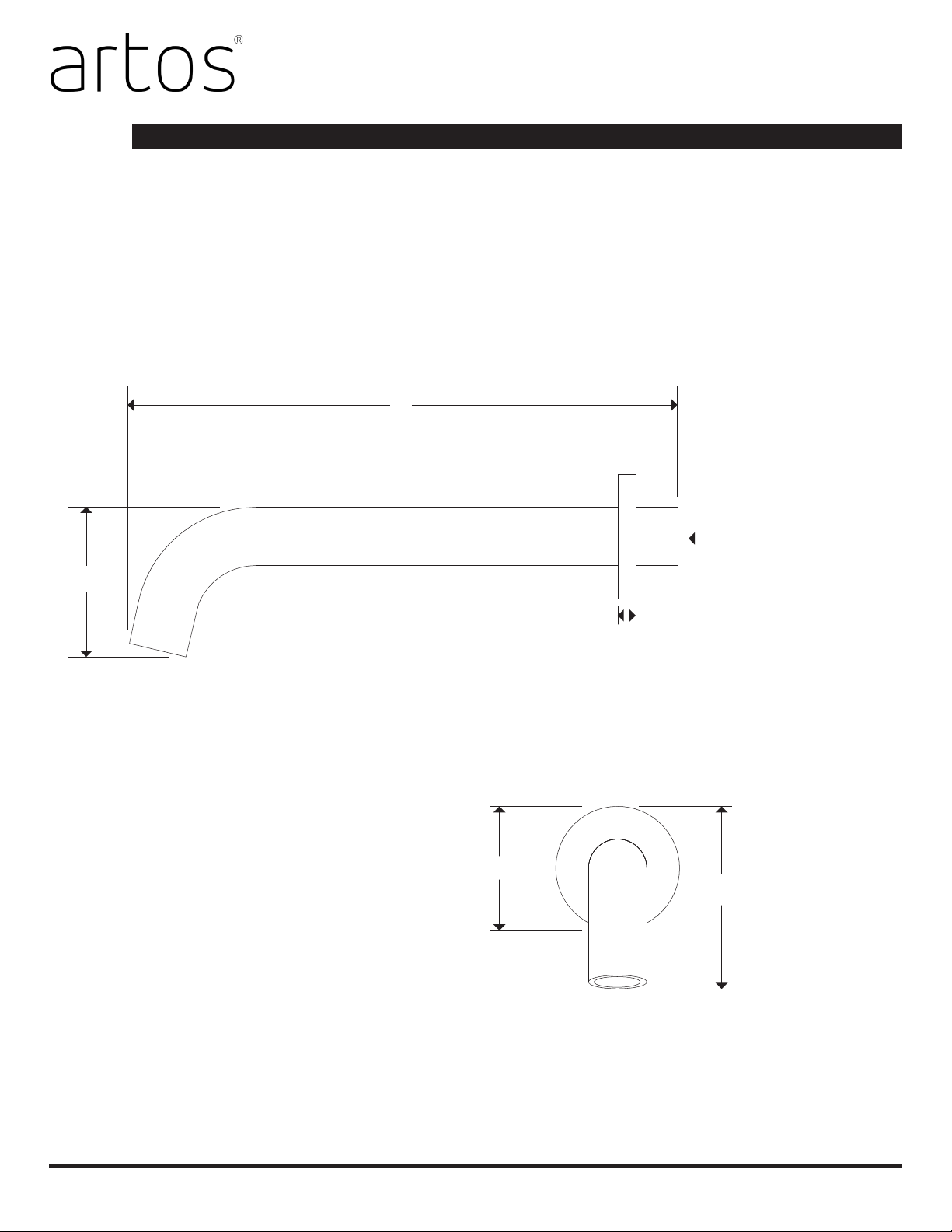

PRODUCT DIMENSIONS
PS116
premier series shower set
2-1/8”
1-3/8”
5-1/2”
3/16”
8-1/2”
1-1/4”
1-1/8”
for F903B-58TK

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PRODUCT DIMENSIONS
PS116
premier series shower set for F907-60
15-3/4”
2-7/8”
2-1/8”
13/16”
1/8”
Ø1/2” MALE
CONNECTION
9-3/4”
5/16”
SWIVEL ARM 1-11/16”

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PRODUCT DIMENSIONS
PS116
premier series shower set for F907-28
13/16”
7/8”
3/8”
2”
5/8”
HOSE LENGTH 60”
7-1/2”
7/8”
1-9/16”
30-1/2”
1/2” NPT
MALE INLET

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PRODUCT DIMENSIONS
PS116
premier series shower set for F908-4
9”
2-1/2”
3-1/16”
1”
5/16”
1/2” NPT FEMALE
THREAD
2-1/8”

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.

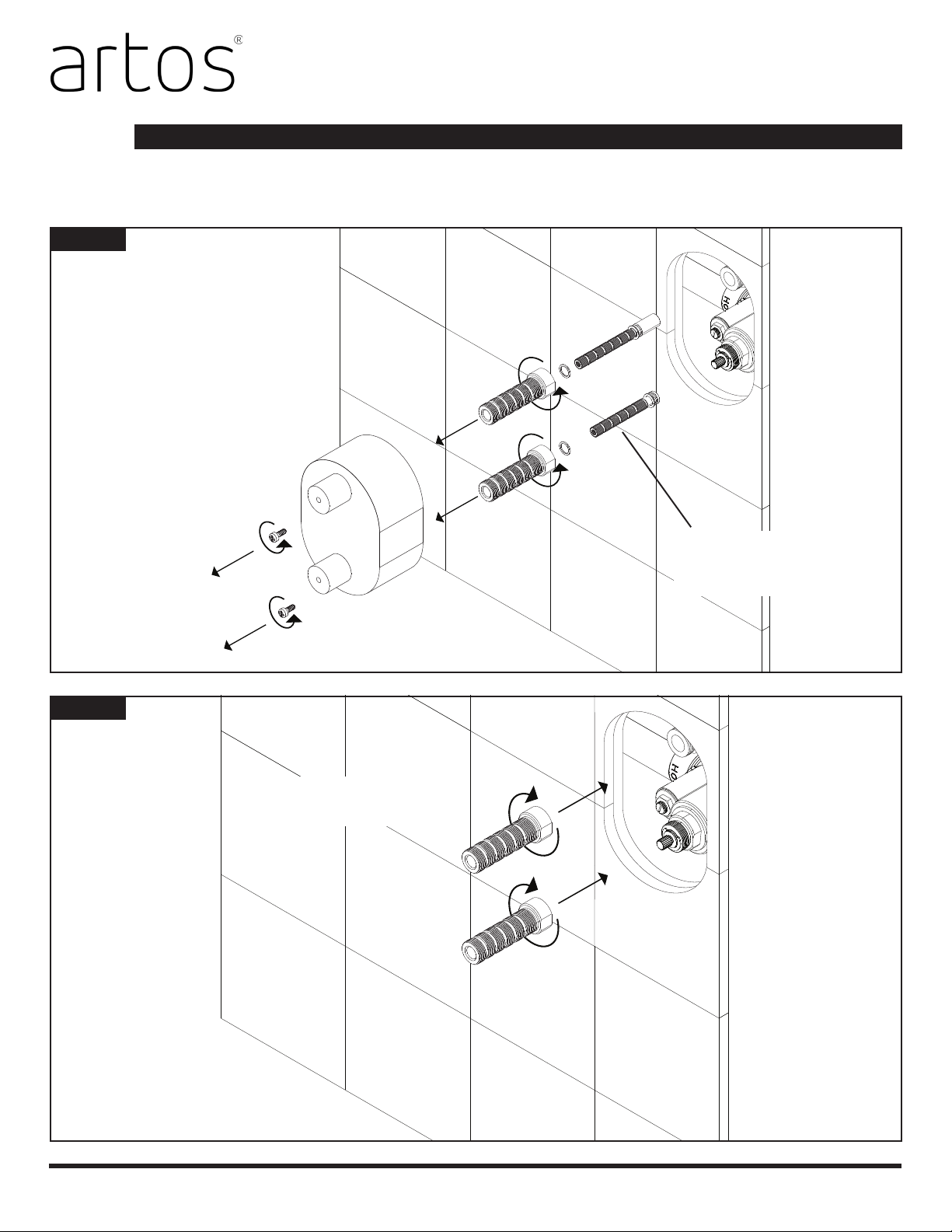

INSTALLATION STEPS
PS116
premier series shower set
STEP 1
STEP 2
REFIT OUTER
SPINDLES ONLY
NOTE: THERMOSTAT
INNER SPINDLE IS TIGHT
BUT IT WILL REMOVE
for F903B-58TK

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS116
premier series shower set
STEP 3
STEP 4
PLEASE NOTE THE OUTER
SPINDLES MUST NOT
PROTRUDE PAST THE
FRONT FACES OF THE
LOCKING NUTS

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.

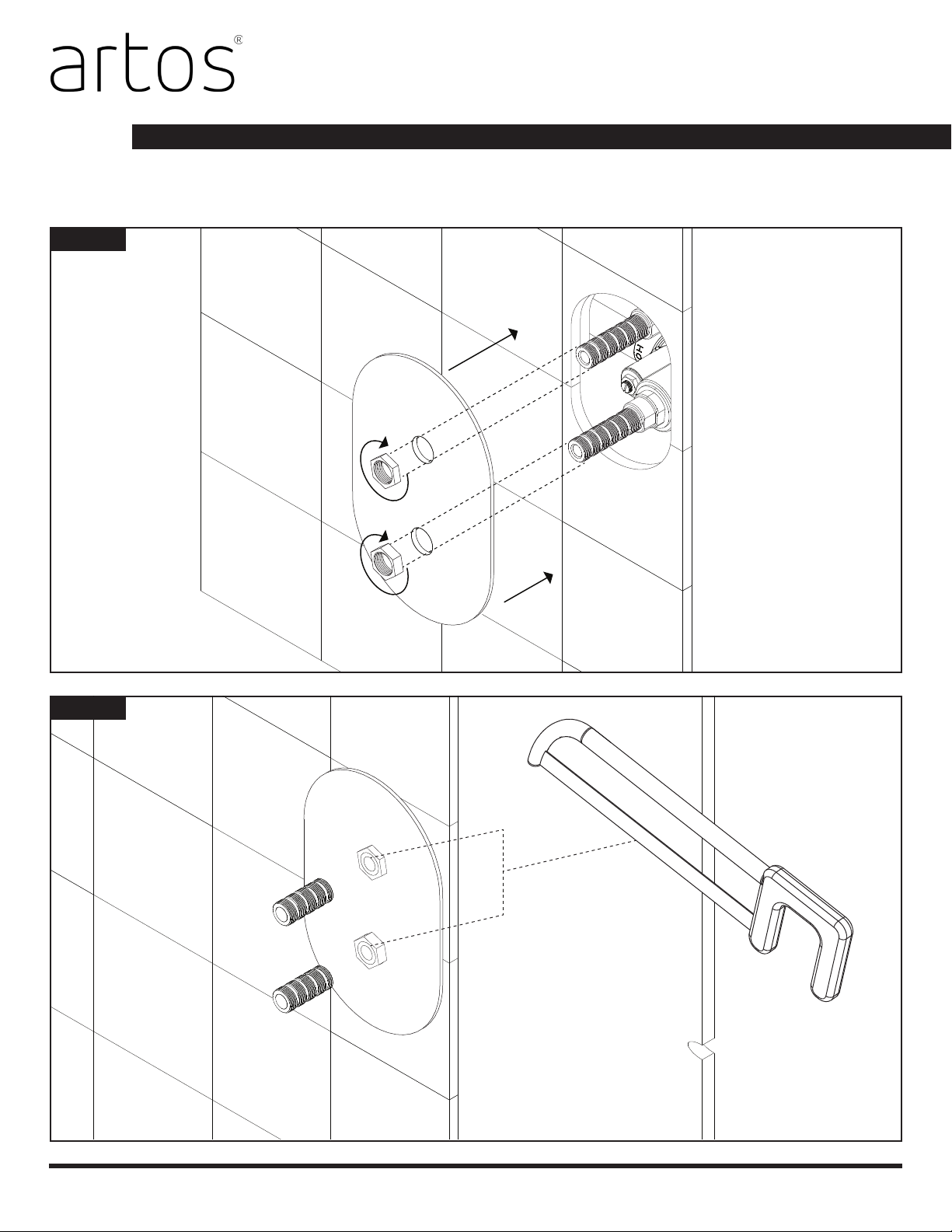

INSTALLATION STEPS
for F903B-58TK
PS116
STEP 5
STEP 6

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS
STEP 7
STEP 8
OR
3/4”
1/2”
for F903B-58TK
MIXED WATER
FROM CONTROL
SUGGESTED
MINIMUM 2”
1-3/8” DIAMETER THROUGH
FINISHED WALL
PS116
premier series shower set

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS116
premier series shower set
1-3/8” DIAMETER
THROUGH FINISHED
WALL
MIXED WATER
FROM CONTROL
MIXED WATER
FROM CONTROL
SUGGESTED
MINIMUM 2”
1-3/8” DIAMETER THROUGH
FINISHED WALL

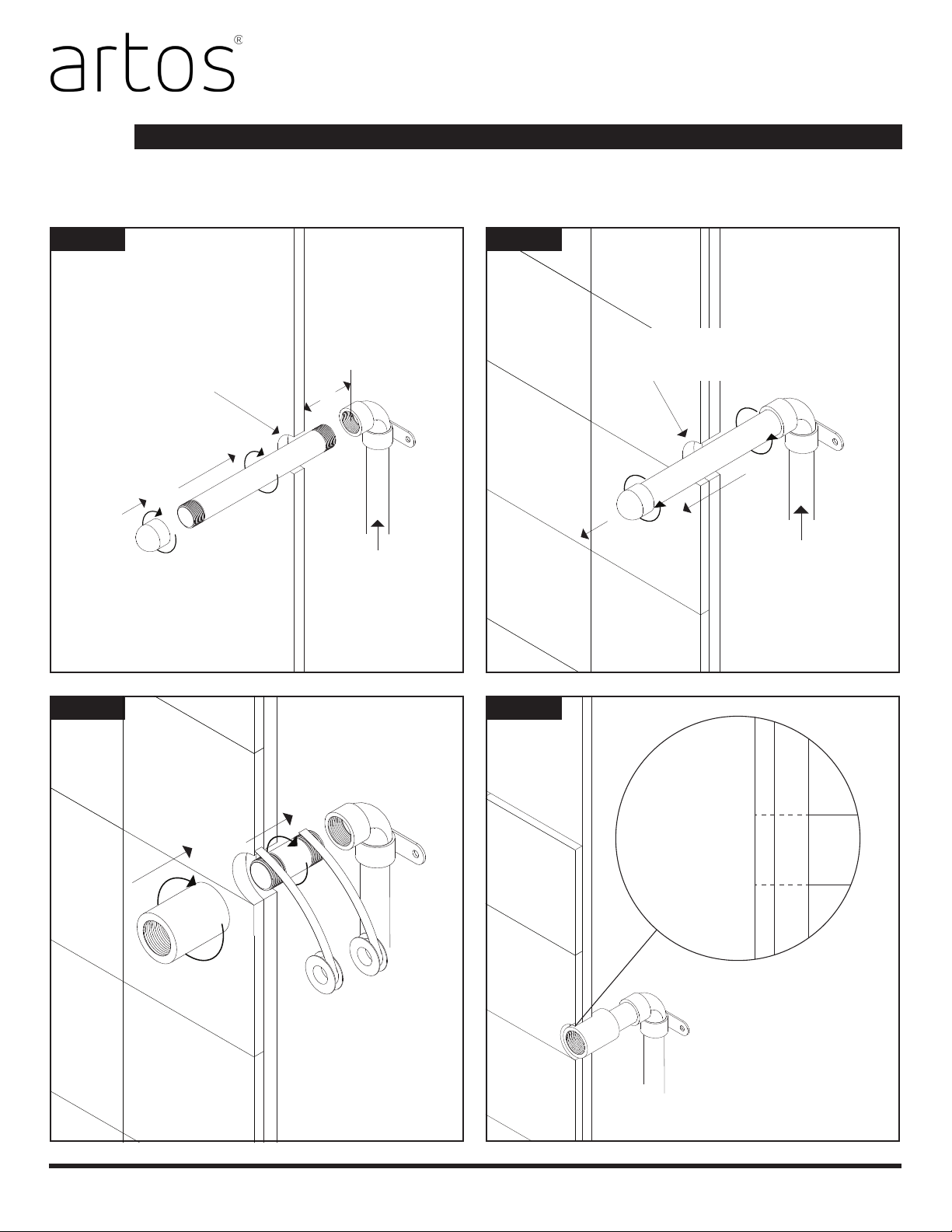

INSTALLATION STEPS
for F907-60
STEP 1
STEP 3
STEP 2
STEP 4
1/2” CONNECTOR
NEEDS TO BE FLUSH
WITH FINISH WALL

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
STEP 5
STEP 6
PS116
premier series shower set

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
STEP 7
STEP 8
INSTALLATION STEPS
for F907-60
PS116

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS116
premier series shower set
STEP 1 STEP 3
MIXED WATER
FROM CONTROL
MAX:1-5/8” MIN:1-1/8” DIAMETER
THROUGH FINISHED WALL
MIXED WATER
FROM CONTROL
MAX:1-5/8” MIN:1-1/8”
DIAMETER THROUGH
FINISHED WALL
*ALL DIMENSIONS ARE APPROXIMATE
SLIDE BAR
UNSCREWS
FROM LOWER
INLET/OUTLET
STEP 2

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS
for F907-28
PS116
STEP 4 STEP 5

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS116
premier series shower set

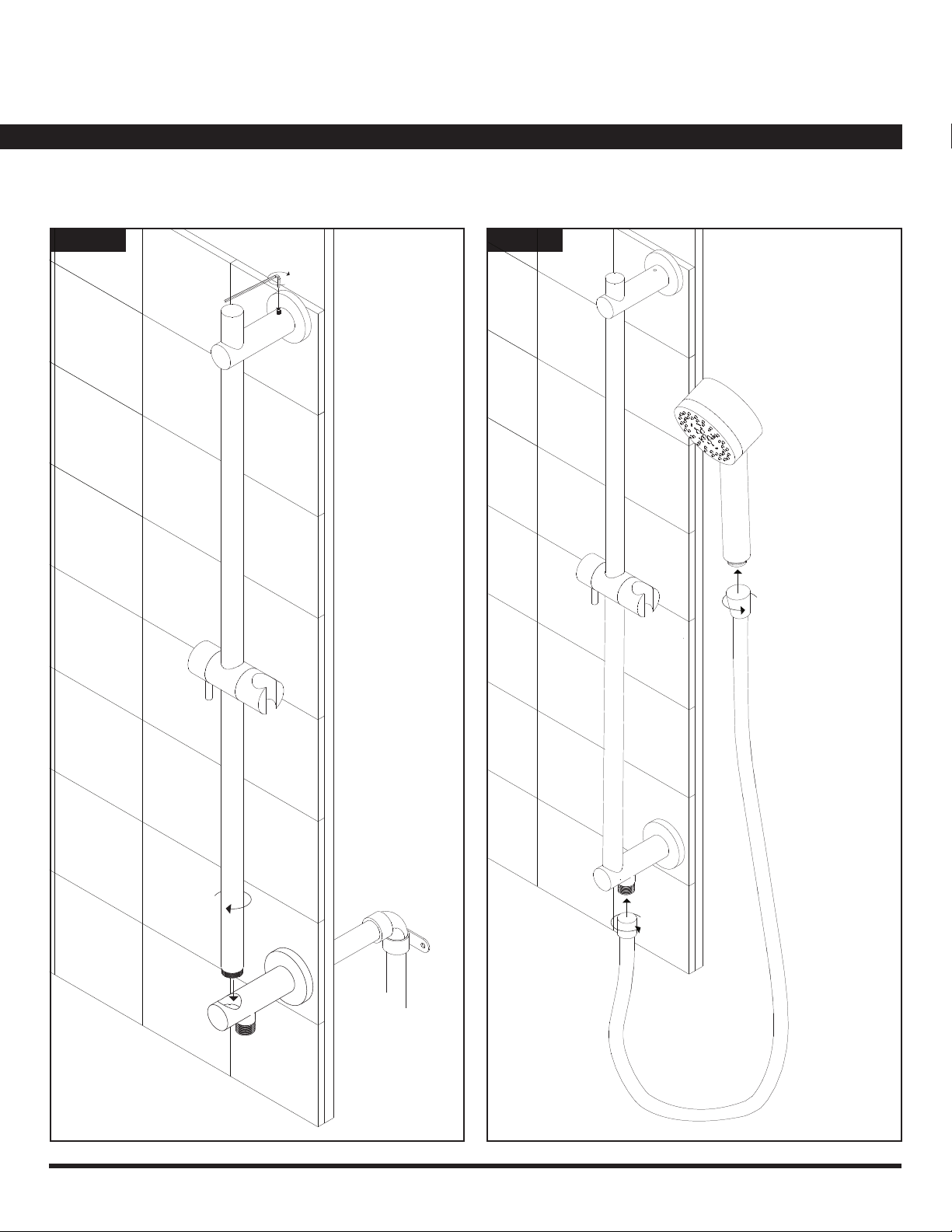

STEP 7 STEP 8

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS
for F907-28
PS116
STEP 9 STEP 10

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS116
premier series shower set
1-5/8” DIAMETER
THROUGH FINISHED
WALL
MIXED WATER
FROM CONTROL
STEP 1
STEP 2
MIXED WATER
FROM CONTROL
1-5/8” DIAMETER THROUGH
FINISHED WALL
REMOVE
TEMPORARY
PIPE

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.

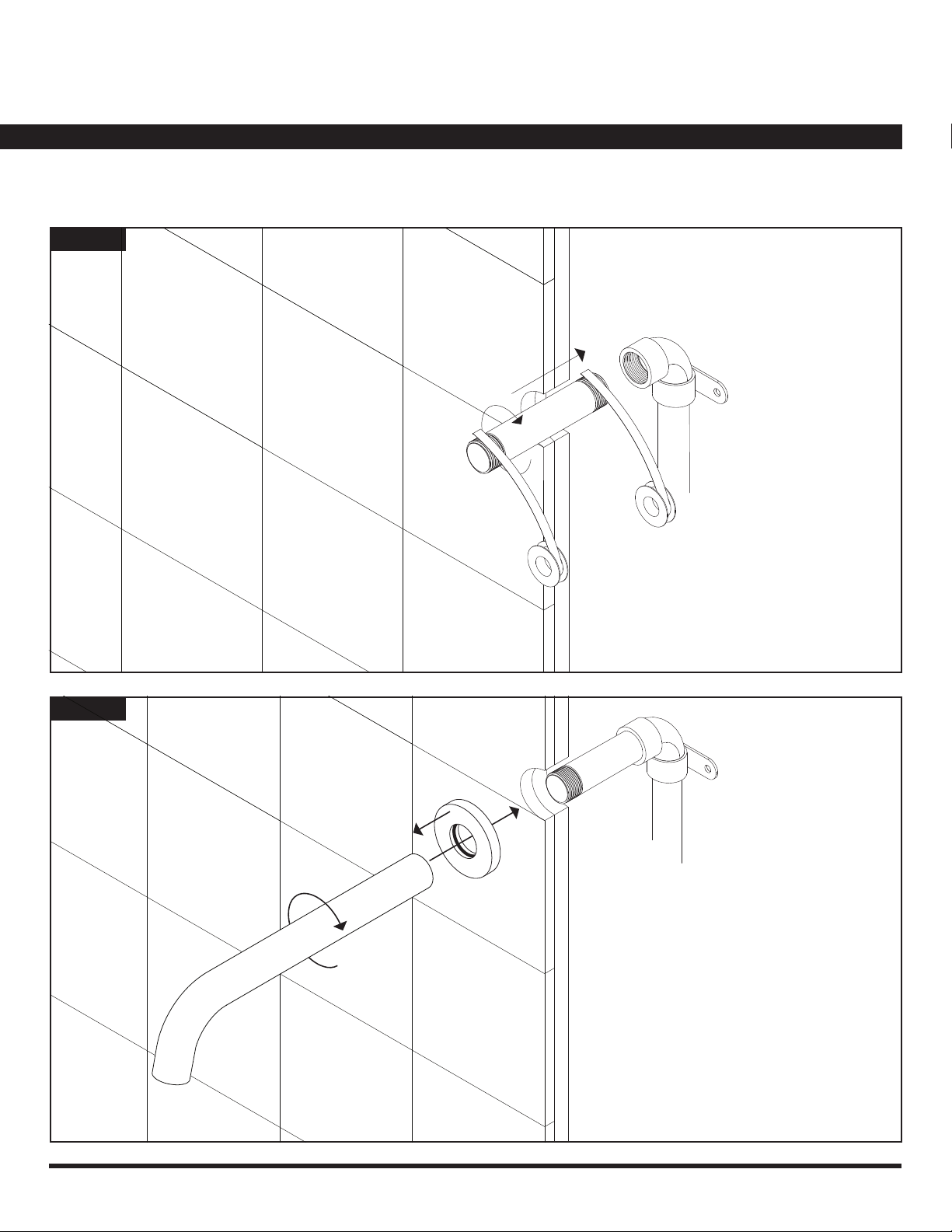

INSTALLATION STEPS
for F908-4
PS116
STEP 3
STEP 4

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.

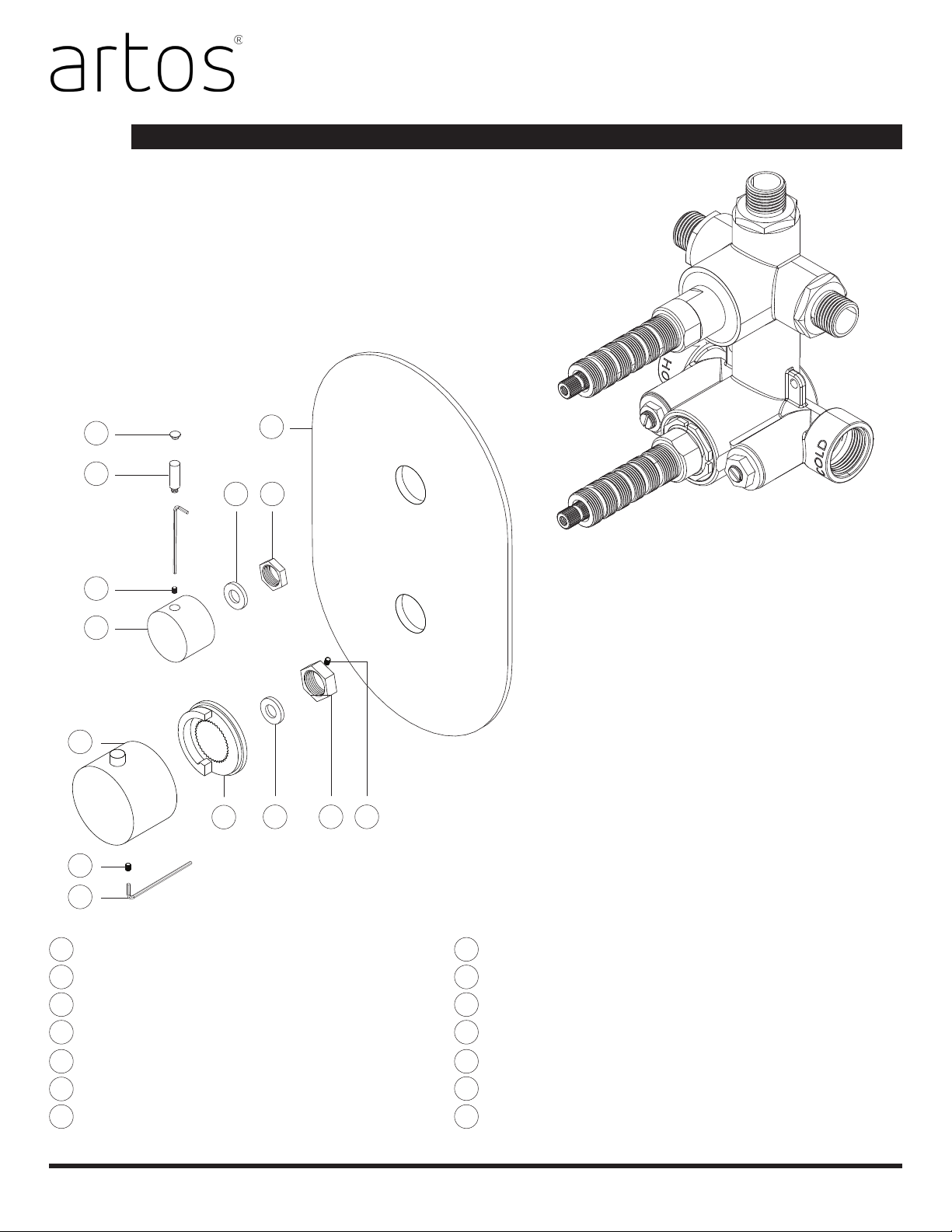

PARTS BREAKDOWN
PS116
premier series shower set
1
7
6
5
4
8910
11
13
12
14
23
1
2
3
4
5
6
7
ESCUTCHEON F903B-58TK XP1
DIVERTER LOCKING NUT F903B-58TK XP2
NYLON WASHER F903B-58TK XP3
HANDLE HOLE CAP F903B-58TK XP4
DIVERTER HANDLE LEVER F903B-58TK XP5
DIVERTER SET SCREW F903B-58TK XP6
DIVERTER HANDLE F903B-58TK XP7
8
9
10
11
12
13
14
LOCKING NUT SET SCREW F903B-58TK XP8
THERMOSTAT LOCKING NUT F903B-58TK XP9
NYLON WASHER F903B-58TK XP10
TEMPERATURE LIMITING RING F903B-58TK XP11
THERMOSTAT HANDLE F903B-58TK XP12
THERMOSTAT SET SCREW F903B-58TK XP13
ALLEN WRENCH F903B-58TK XP14
for F903B-58TK
