Artos PS140 User manual

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION GUIDE
PS140
premier series shower set
BRUSHED NICKEL(PS140BN)
CHROME(PS140CH)

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
OPERATING SPECIFICATIONS
PS140
premier series shower set
FEATURES
Solid Brass
2-Outlets
INCLUDES
F903B-58TK
F907-5
F907-60
OPERATING PRESSURE
Minimum: 15 psi
Maximum: 75 psi
Above 90psi it may be necessary to install a pressure reducer
OPERATING TEMPERATURE
Maximum: 176°
FLOW CAPACITY
Hand Shower: 2.0 USGPM
Shower Head: 1.8 USGPM
F901-8 APPROVAL

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PRODUCT DIMENSIONS
PS140
premier series shower set

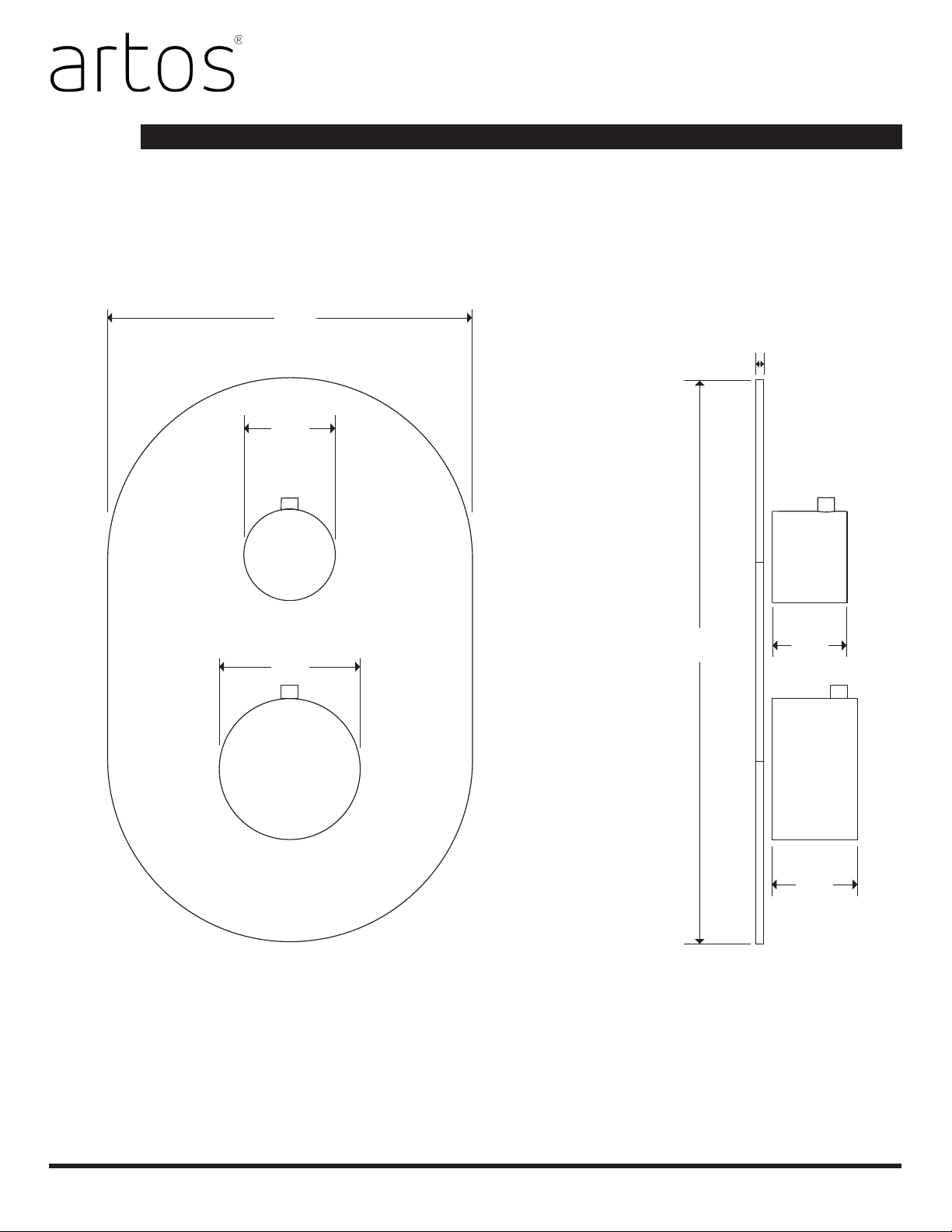

2-1/8”
1-3/8”
5-1/2”
3/16”
8-1/2”
1-1/4”
1-1/8”
for F903B-58TK

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PRODUCT DIMENSIONS
PS140

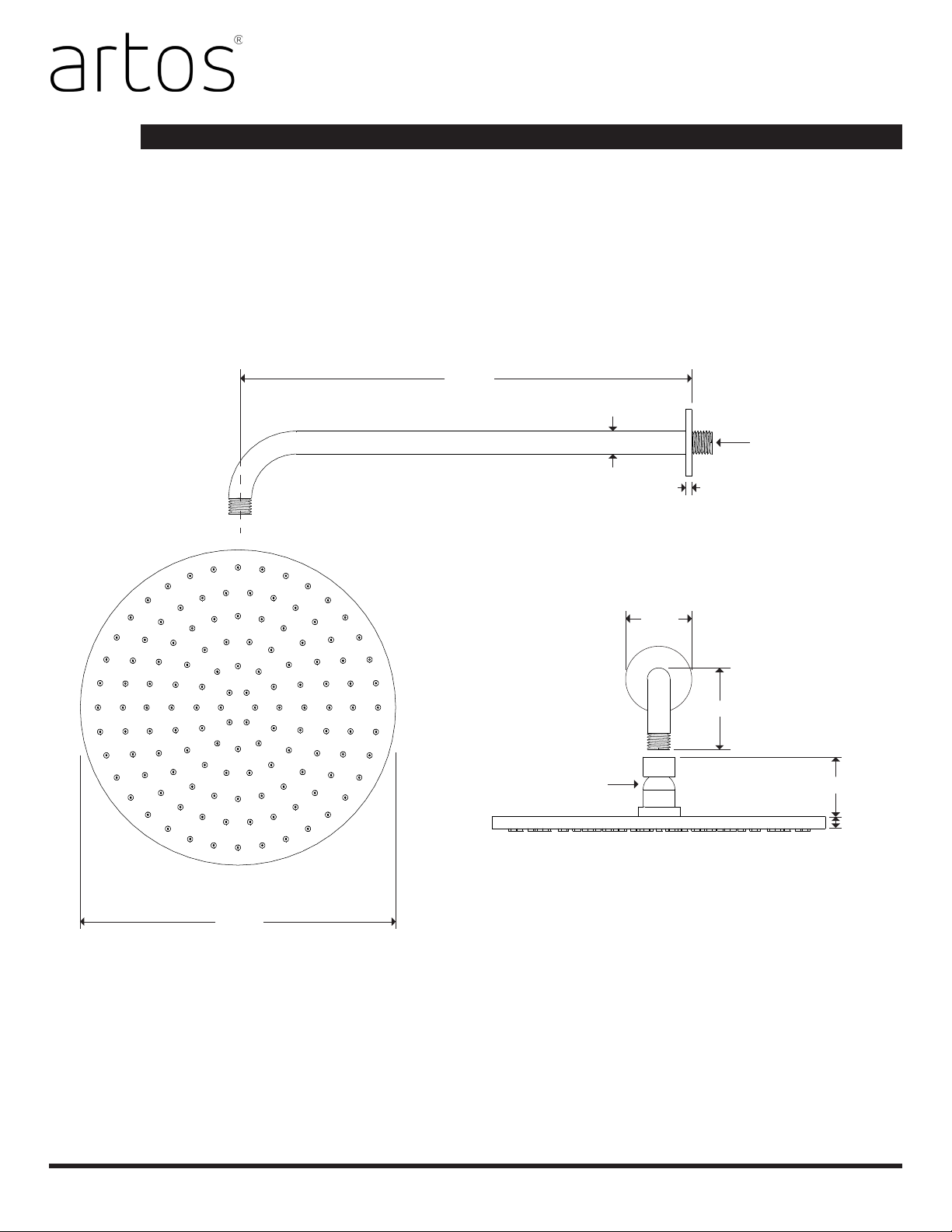

premier series shower set for F907-60
15-3/4”
2-7/8”
2-1/8”
13/16”
1/8”
Ø1/2” MALE
CONNECTION
9-3/4”
5/16”
SWIVEL ARM 1-11/16”

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PRODUCT DIMENSIONS
PS140
premier series shower set for F907-5
1”
5/8”
2-3/8”
2-3/4”
HOSE LENGTH 60”
1/2” NPT
FEMALE INLET
7-1/2”

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS140
premier series shower set

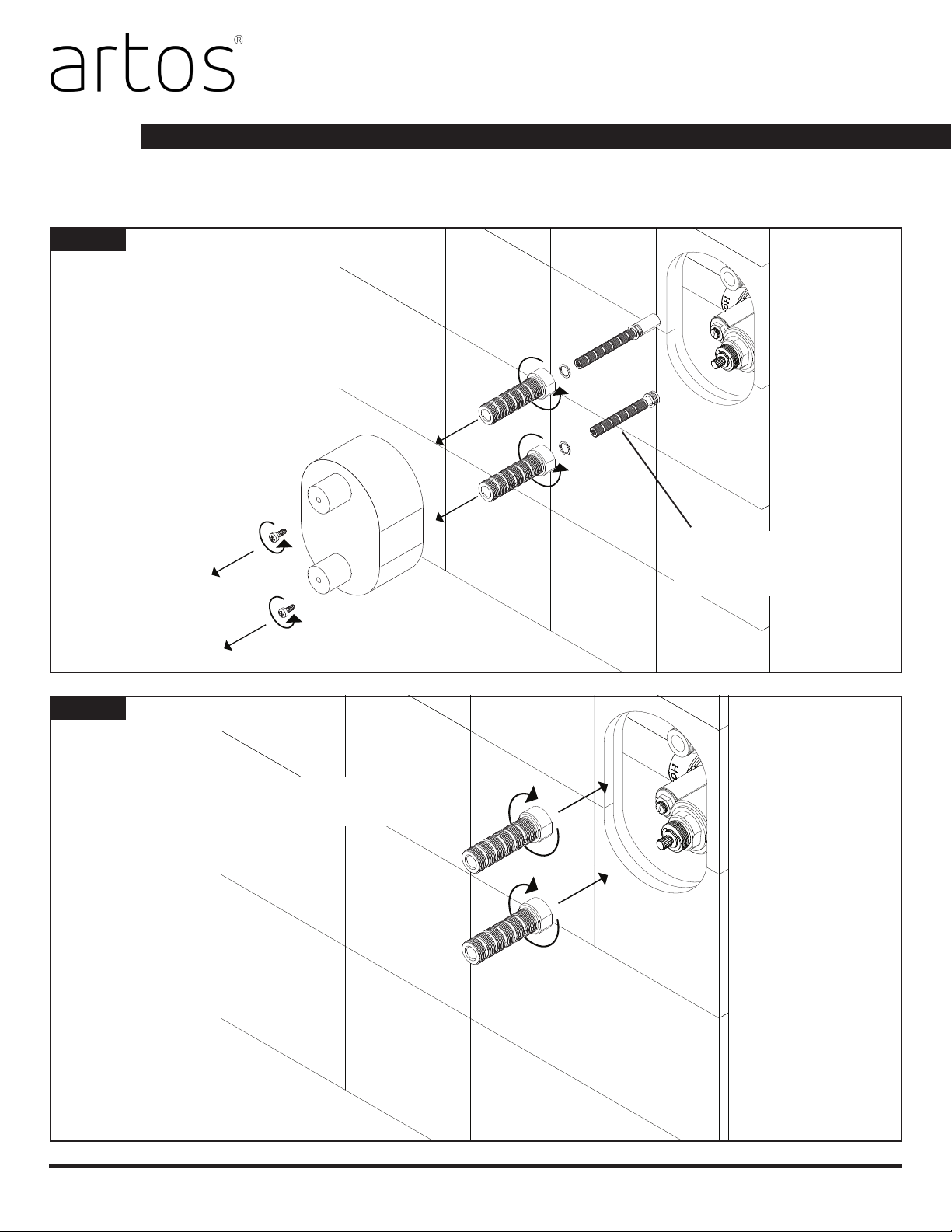

STEP 1
STEP 2
REFIT OUTER
SPINDLES ONLY
NOTE: THERMOSTAT
INNER SPINDLE IS TIGHT
BUT IT WILL REMOVE

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS
STEP 3
STEP 4
PLEASE NOTE THE OUTER
SPINDLES MUST NOT
PROTRUDE PAST THE
FRONT FACES OF THE
LOCKING NUTS
for F903B-58TK

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS140
premier series shower set

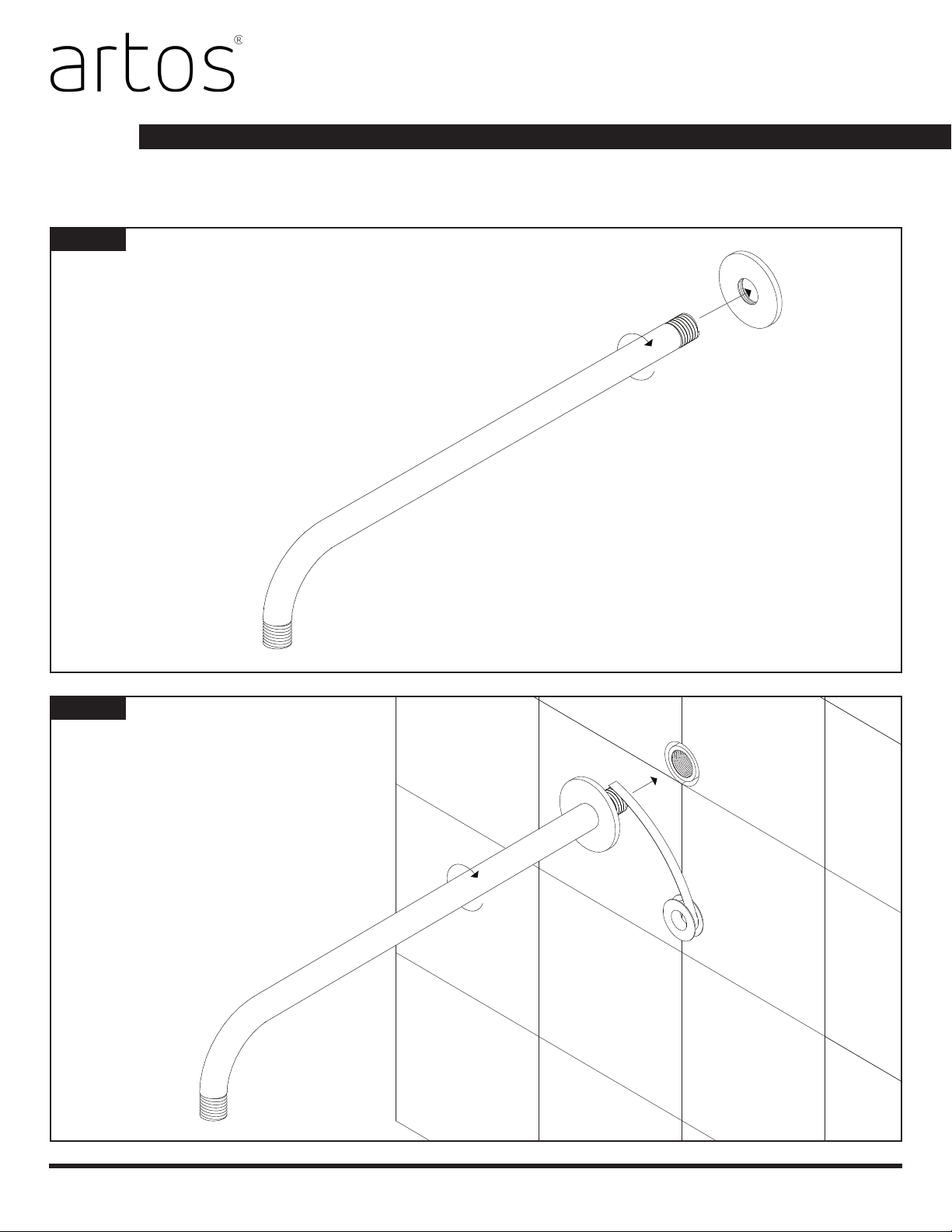

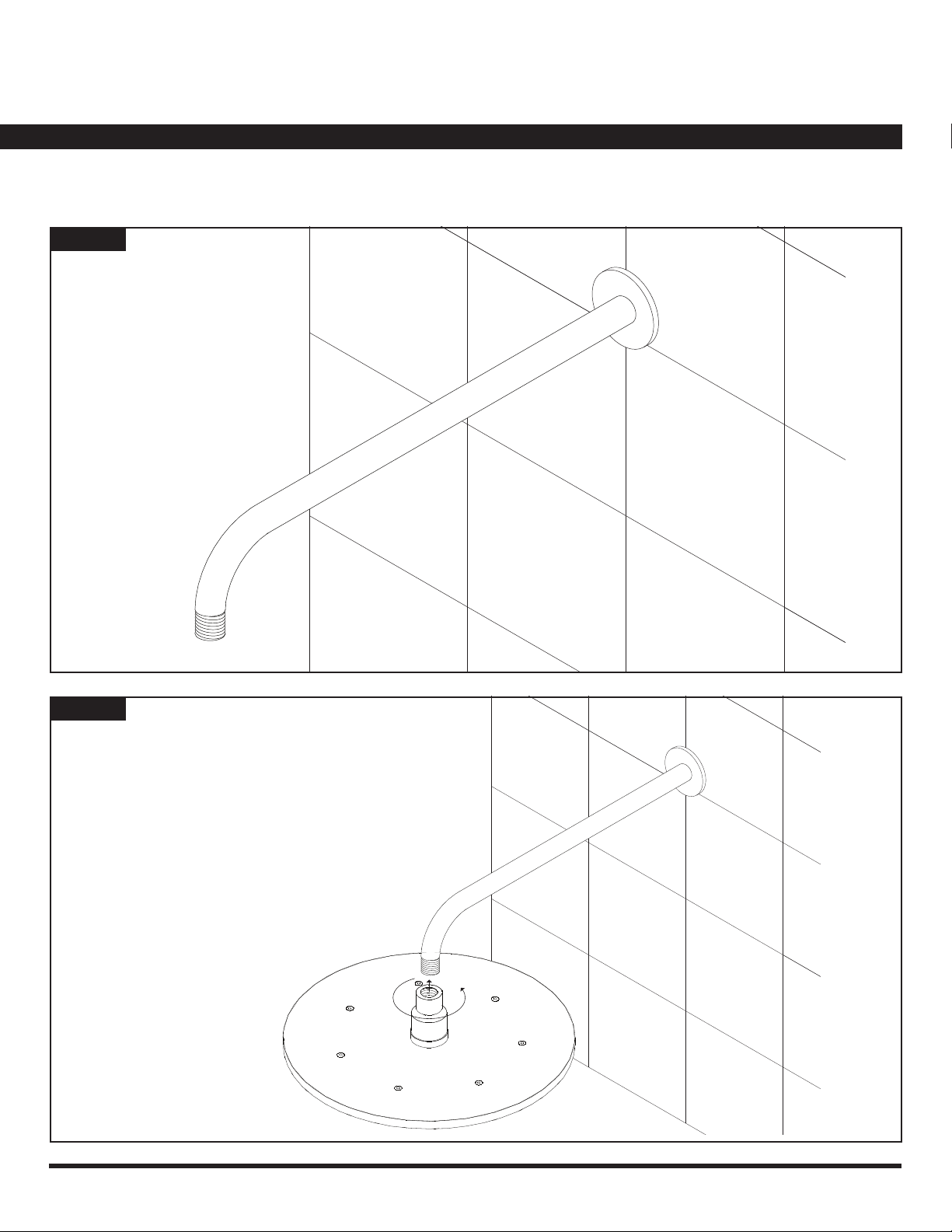

STEP 5
STEP 6

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS

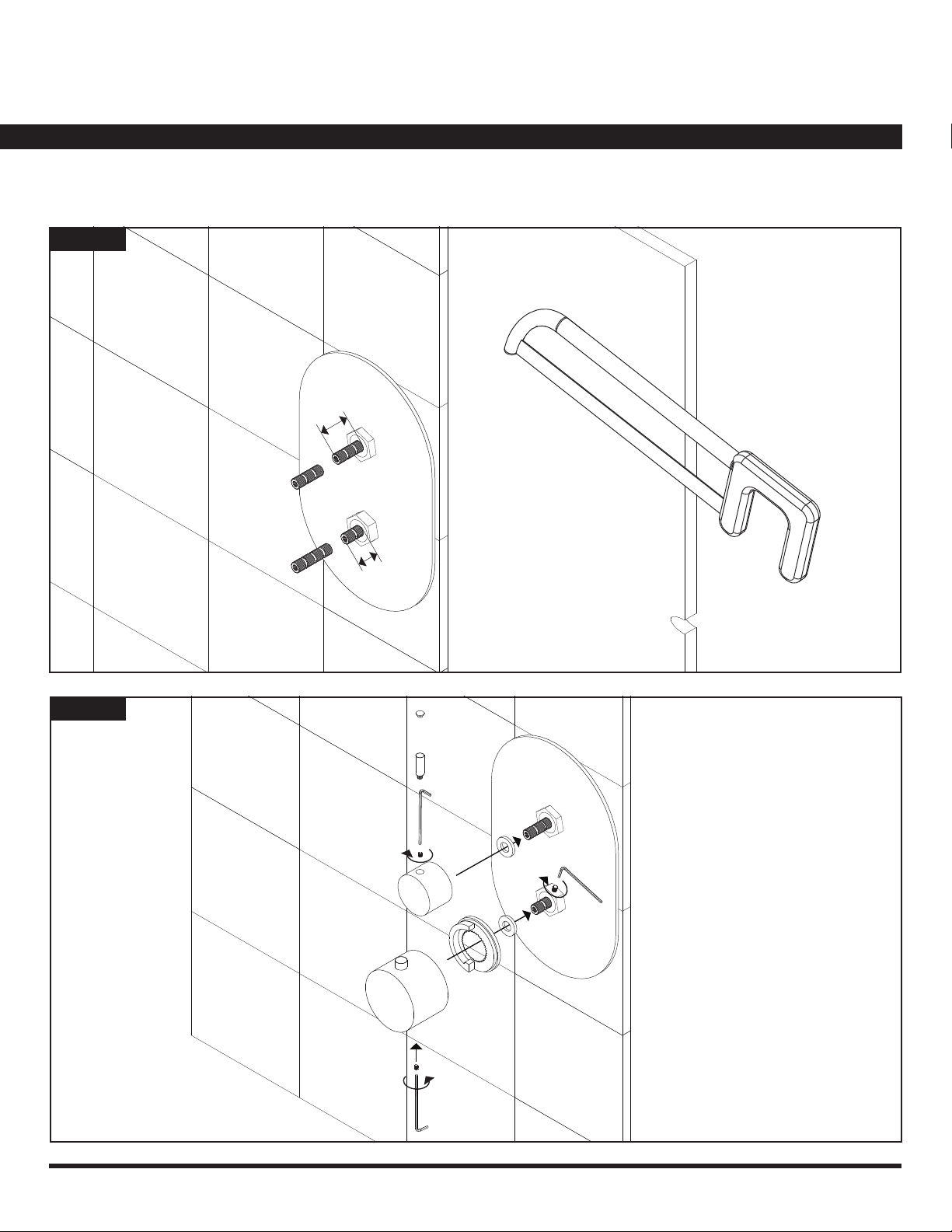

STEP 7
STEP 8
OR
3/4”
1/2”
for F903B-58TK

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS140
premier series shower set
STEP 1
STEP 2
1-3/8” DIAMETER
THROUGH FINISHED
WALL
MIXED WATER
FROM CONTROL
MIXED WATER
FROM CONTROL
SUGGESTED
MINIMUM 2”
1-3/8” DIAMETER THROUGH
FINISHED WALL

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS
for F907-60
STEP 3
STEP 4
1/2” CONNECTOR
NEEDS TO BE FLUSH
WITH FINISH WALL

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS140
premier series shower set
STEP 5
STEP 6

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS
STEP 7
STEP 8
for F907-60

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PS140
premier series shower set
STEP 1
STEP 3
MIXED WATER
FROM CONTROL
SUGGESTED
MINIMUM 2”
1-5/8” DIAMETER THROUGH
FINISHED WALL
1-5/8” DIAMETER
THROUGH FINISHED
WALL
MIXED WATER
FROM CONTROL
STEP 2
STEP 4

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
INSTALLATION STEPS
for F907-5
STEP 6
STEP 5

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.

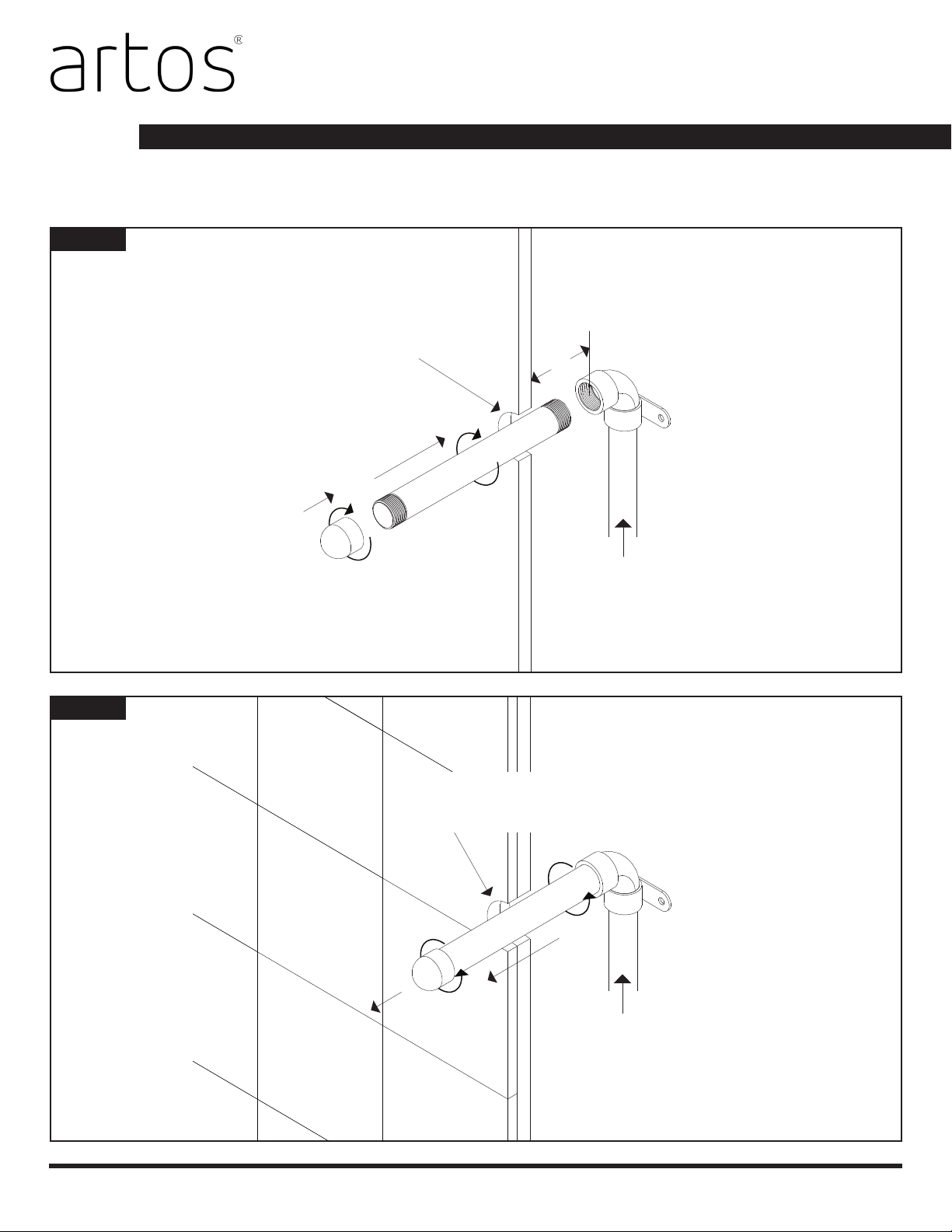

PARTS BREAKDOWN
PS140
premier series shower set
1
7
6
5
4
8910
11
13
12
14
23
1
2
3
4
5
6
7
ESCUTCHEON F903B-58TK XP1
DIVERTER LOCKING NUT F903B-58TK XP2
NYLON WASHER F903B-58TK XP3
HANDLE HOLE CAP F903B-58TK XP4
DIVERTER HANDLE LEVER F903B-58TK XP5
DIVERTER SET SCREW F903B-58TK XP6
DIVERTER HANDLE F903B-58TK XP7
8
9
10
11
12
13
14
LOCKING NUT SET SCREW F903B-58TK XP8
THERMOSTAT LOCKING NUT F903B-58TK XP9
NYLON WASHER F903B-58TK XP10
TEMPERATURE LIMITING RING F903B-58TK XP11
THERMOSTAT HANDLE F903B-58TK XP12
THERMOSTAT SET SCREW F903B-58TK XP13
ALLEN WRENCH F903B-58TK XP14
for F903B-58TK

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PARTS BREAKDOWN
PS140
premier series shower set for F907-60
2
3
4
5
6
7
8
1
1
2
3
4
5
6
7
8
ESCUTCHEON PLATE F907-60 XP1
SHOWER ARM F907-60 XP2
SWIVEL ARM SECURING NUT F907-60 XP3
SWIVEL ARM F907-60 XP4
SHOWER HEAD SCREWS F907-60 XP5
SHOWER HEAD TOP F907-60 XP6
RUBBER MATRI F907-60 XP7
SHOWER HEAD BOTTOM F907-60 XP8

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
PARTS BREAKDOWN
PS140
premier series shower set for F907-5
1
3
2
4
5
1
2
3
4
5
HAND SHOWER F907-5 XP1
HAND SHOWER CHECK VALVE F907-5 XP2
ESCUTCHEON PLATE F907-5 XP3
SHOWER OUTLET ELBOW AND HOLDER F907-5 XP4
SHOWER HOSE F907-5 XP5

WESTOVER, INC 13305 B STREET OMAHA, NEBRASKA 68144 T:877.927.8679WWW.ARTOS.US.COM
©2018 ed. All technical and pricing information is subject to change without prior notice. To confirm accuracy check with Artos customer service.
CARE & MAINTENANCE
shower kits are guaranteed for life against leaks and finishing
defects for as long as the original purchaser owns it.
Damage caused by accident, misuse, abuse, improper installation, improper cleaning
or alteration will void the warranty. This warranty does not cover replacement parts
where damage is caused by normal wear and tear. Westover, Inc is not responsible
for labor charges, installation or other incidental or consequential costs. Proof of
purchase must be provided with all claims.
For best results, keep the following in mind to retain the high quality finish of your
shower kit:
Use a soft, dampened sponge or cloth. On no account should you use an abrasive
material such as a brush, scouring pad or steel wool to clean surfaces.
Test your cleaning agent solution on an inconspicuous area before applying to the
entire product.
Wipe surfaces clean and rinse completely with water immediately after applying
cleaning agent.
An ideal cleaning technique is to rinse faucet thoroughly and blot dry any water
from the surface after each use.
LIMITED LIFETIME WARRANTY
Please register this product online at WWW.ARTOS.US.COM
ITEM NO. PS140
SERIAL NO.
®
®
PS140
premier series shower set
