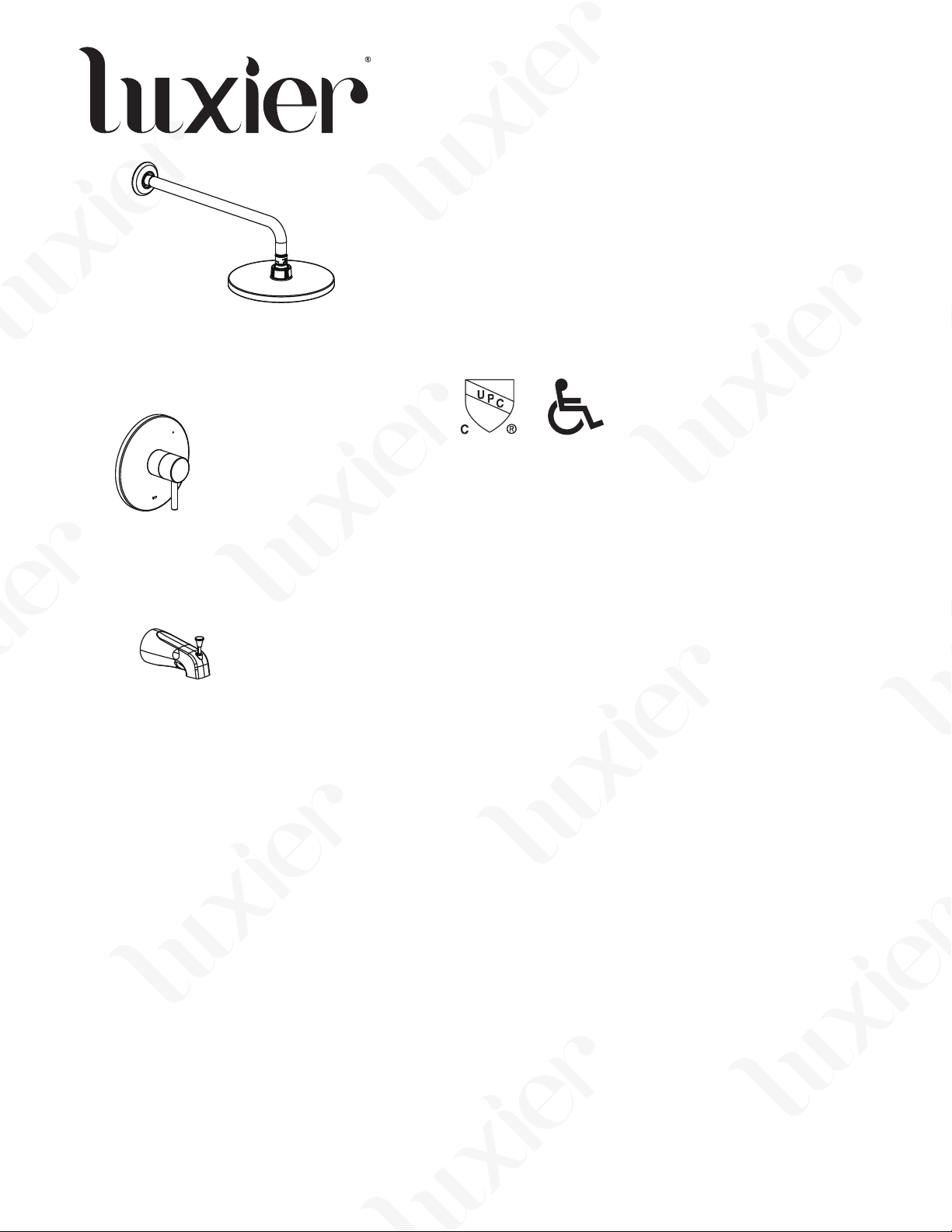

Luxier SS-C01-TB User manual

1SS-C01 Rev. C 072021
Luxier
SS-C01-TB (Brushed Nickel)
SS-C01-TC (Chrome)
SS-C01-TM (Matte Black)
SS-C01-TO (Oil Rubbed Bronze)
Specications:
Shower head ow rate: maximum 1.8 gpm at 80 psi
Plumbing connection: standard 1/2” pipe tting
Rainfall Shower System
IMPORTANT!
• Read and understand this instructions completely before installation. Failure to follow these
instructions could prevent the valve from working properly. Consult a professional installer if needed.
• This installation guide is subject to change without notice, please contact us to request the most
updated version of this installation guide.
• This is a general installation guideline, actual installation may vary. It is recommended the
installation is performed by a trained and experienced installer.
• Please follow all local building and plumbing codes.
• Proper pressure must be maintained for the pressure balance valve to work properly. Make sure
water pressure is about the same on both hot and cold water side.
• Product drawings in this installation guide is for illustration purpose only. Actual product may vary
depends on model.
• Always take extra precautions and wear appropriate safety equipment when installing this product.
• Unpack and inspect the parts from the package for shipping damage and make sure all parts are
included in the package. Keep the product in its package until you are ready to install.
• Make sure the installation site is clean and free of dust and debris.

2SS-C01 Rev. C 072021
Luxier
Thank you for purchasing Luxier products. Please read the information below and keep this
installation guide for future reference. If you require assistance, please contact our customer service
department at 1-877-711-8828, Monday - Friday 9AM - 5PM Paci c Time or by email at
[email protected].
Limited Lifetime Warranty (For USA Only)
The manufacturer warrants this product to be leak and drip free during daily normal household use
for as long as it is owned by the original purchaser of this product. Please keep a copy of the original
invoice as proof of purchase.
Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or
replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid
for the product (Valid within 30 days from the date of purchase); or (3) issue a credit to be applied
against the purchase of a new Luxier product. Shipping/delivery charges may apply and are in Luxier
USA’s sole discretion.
This limited warranty shall not apply to goods which have been subject to accident, negligence,
improper installation, product abuse, product misuse, or use of cleaners containing abrasives, alcohol
or other organic solvents, whether performed by a contractor, service company, or yourself, are
excluded from this warranty.
Our responsibility under this warranty is limited to only to replacement parts and no other costs.
Luxier USA will not be responsible for labor charges and/or damage incurred by installation, repair or
replacement, nor for any indirect incidental or consequential damages, losses, injury or costs of any
nature relating to this faucet. Except as provided by law, this warranty is in lieu of and excludes all
other warranties, conditions, and guarantees, whether expressed or implied, statutory or otherwise,
including without restriction those merchantability of  tness for use.
This limited warranty is non-transferable. This limited warranty only applies to products purchased
and installed in the United States. This limited warranty covers the original consumer purchase only
and does not include business, commercial or industrial use of this product. To obtain service under
the Limited Warranty, please contact Luxier USA at [email protected]. The Luxier USA Customer
Care Department will determine whether to repair or replace your product, issue a refund, or issue a
credit.
Recommended Tools and Materials
1. Safety Glasses 6. Adjustable Wrench
2. Teon (PTFE) Tape 7. Screwdriver Sets
3. Plumber’s Putty and Caulking 8. Torch
4. Tube Cutter 9. Hacksaw
5. Marker / Pencil

3SS-C01 Rev. C 072021
Luxier
01 Shower Head
02 Shower Arm
03 Flange
04 Valve Body
05 Rubber Gasket
06 Cap
07 Hot Water Stop Valve Assembly
08 Cold Water Stop Valve Assembly
09 Pressure Balance Cartridge
10 Cartridge Nut
11 Stem Extension
12 Threaded Nipple
13 Protective Cover*
14 Temporary Screws*
15 Protective Sleeve*
16 Escutcheon
17 O-Ring
18 Handle
19 Tub spout
20 Plunger
21 Spring
21 Screw
23 Stop Valve Nut
*Is NOT used in nal installation
Parts Diagram & Dimensions
13 1/4”
4 1/2”
2 1/2”
7 5/16”
4 15/16”
5 1/2”
2 9/16”
3”
7 7/8”
* Drawings not to Scale. All Measurements are Approximate *
1/2” NPT
1/2” NPT
20 21
22
23
1
2
3
4
5
6
7
8
9
10
11
12
13*
14* 15*
16
17
18
19

4SS-C01 Rev. C 072021
Luxier
Installation
2. Connect the valve to the plumbing system with proper
ttings. Perform a dry t before soldering pipes to the
valve. (Fig. C)
WARNING: Exposure to high temperature will damage
the cartridge (9) and stop valves (7, 8). Remove these
parts before soldering.
3. After the pipes are soldered, install the stop valves (7,
8), cartridge (9), stem (11), and threaded nipple (12) back
onto the valve body. NOTE: Make sure the cartridge is
installed in the upright position. The “UP” marking on the
cartridge should point upward. (Fig. C1)
4. Pressure test and ush the valve. NOTE: Pressure must
be approximately equal on both hot and cold side for the
valve to function properly. (Fig. D)
• Install a 1/2” iron pipe plug (not included) on the
shower and tub outlet.
• Turn the valve to ON position and check all connections
for leaks for about a minute.
• Turn the valve to OFF position after pressure test.
Make sure the pipes are free of debris or sediments
and remove both 1/2” plugs.
5. Install the tub spout pipe after pressure test. The 1/2”
male threaded nipple should extend about 4 3/16” from
the nished wall as shown in Fig. D1. NOTE: Apply some
PTFE tape on the male end of the threaded nipple before
connecting it to the pipe in the wall.
Finished Wall
Protective Cover
Recommended
2 11/16” - 3 7/16”
A
WARNING: Remove all parts before soldering
Stop Valve (7, 8)
Cartridge (9)
C
A1
30”
48”
min. 8”
* Drawing not to Scale
UP
(Shower)
DOWN
(TUB)
HOT
COLD
D
Pressue Balance Cartridge
C1
5.06”
D1
1. Position valve body in the wall. It is recommended the valve to be about 48” above the nished oor
and shower outlet to be about 30” above the valve (Fig. A1) The nished wall should be set between the
markers on the temporary protective cover. The recommended depth is 2 11/16” to 3 7/16”. (Fig. A) Make
sure the UP outlet is pointed upward. (Fig. B)
NOTE: Valve access hole on the wall should be 6” in diameter and outlet hole for shower arm is about
1 1/4” in diameter.
Mounting Hole
Mounting Hole
Cold WaterHot Water
B

5SS-C01 Rev. C 072021
Luxier
Installation (Cont.)
X
E1
13
15
E
7. Remove the handle and the escutcheon plate and set
them aside. Remove the threaded nipple (12) and the stem
extension (11) from the valve body. Use a hacksaw to trim
the threaded nipple (12) and stem extension (11) based
on the measurement taken in step 5 gure E1 as shown in
gure F. (NOTE: Do not trim the stem extension (11)
and threaded nipple (12) directly on the cartridge
because it will damage the cartridge. Trim the pieces
separately, do not trim both parts at the same time. It
is best to cut o only small amount of the brass stem
and test t the handle.)
8. Re-install the threaded nipple (12) and stem extension
(11) assembly to the valve body. Carefully slide the
escutcheon plate onto the valve and attach the handle
assembly shown in gure G.
9. Slide the ange (3) onto the shower arm (2) and apply
PTFE tape to both ends of the shower arm. Attach the
shower arm to the plumbing and slide the ange on the
wall. Attach the shower head (1) as shown in Fig. H.
(NOTE: Do not over tighten the connections.)
10. Apply some PTFE tape to the thread on the tub
spout pipe and install the spout as shown in Fig. I. The
installation is now complete.
11. Turn on the water and check for leaks at all
connections. Pull the diverter knob on the spout to divert
the water to the shower head. (Fig. J)
12. Turn on the water and check for leaks at all
connections. The installation is now complete.
X
X
11 12
F
G
32
1
H
IJ
5. Remove and discard the protective sleeve (15) and cover (13) from the valve. Slide the escutcheon
onto the valve as shown in Fig. E. Place the handle assembly on the stem extension and turn the handle
clockwise to install the handle. If there is a gap when the handle is attached to the valve measure and
write down the distance of the gap between the handle and the escutcheon plate as shown in Fig. E1.

6SS-C01 Rev. C 072021
Luxier

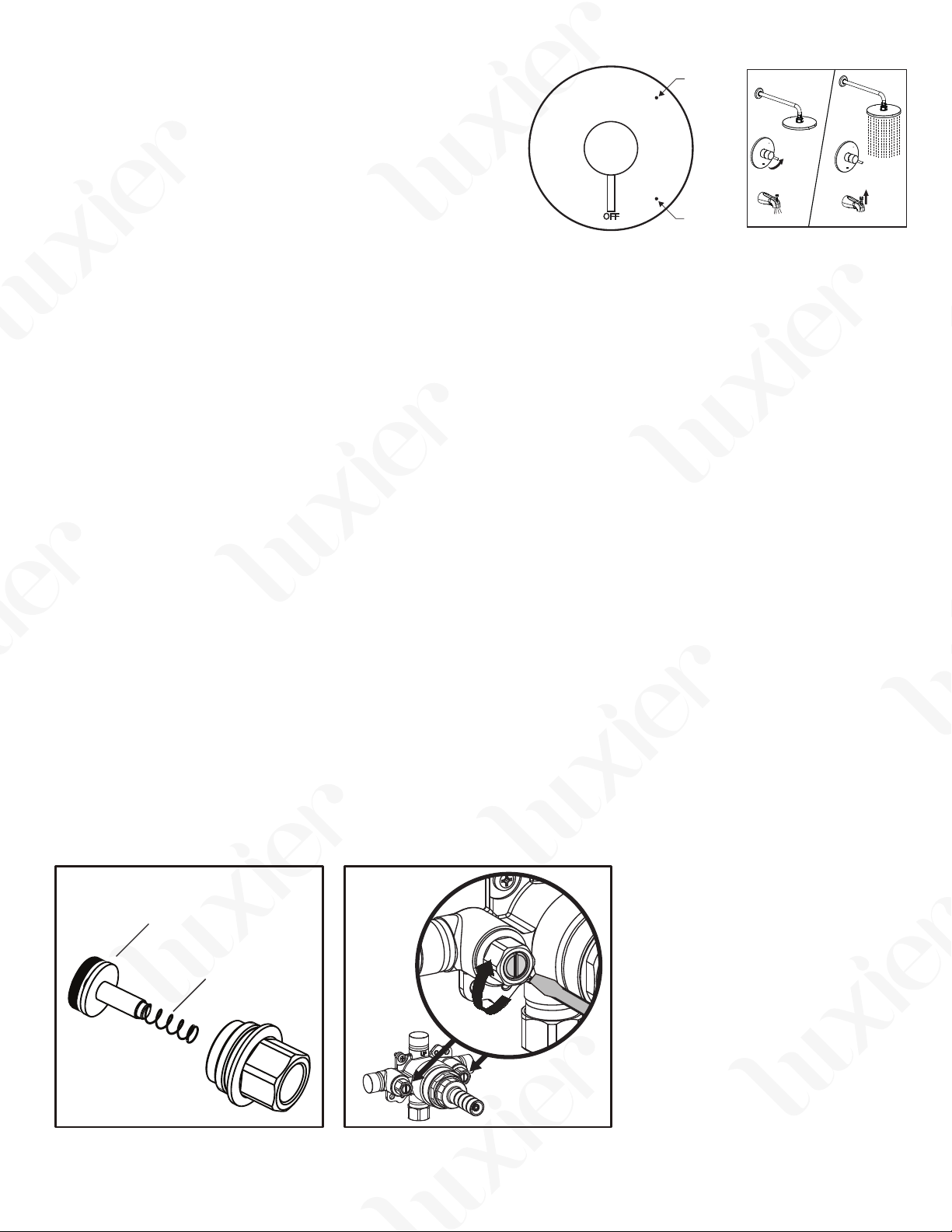

Operation
1. Turn the handle counter-clockwise from the OFF position
to the BLUE dot (cold water) to start the water ow. Continue
turning the handle to the RED dot (hot water) for achieve
the maximum hot water temperature. (CAUTION: Scalding
may occur if the control is set to maximum temperature.) It is
strongly recommended to set the handle halfway between the
BLUE and RED dots as the starting point. Gradually turn the
knob to set the desired water temperature.
2. Pull the diverter knob on the spout to divert water to the
shower head.
3. To turn o the water, return the handle to the OFF position.
COLD (blue)
HOT (red)
Troubleshooting
Problem
Shower valve produces loud humming / vibrating noise when water is running
Possible Cause
1. Debris or sediment inside the cartridge, valve body, or plumbing system
2. One or both the plungers inside the stop valves may have shifted (mis-aligned) during transport
Solution: Clean Out Debris and Reset the Plungers
1. Shut o water to the valve
2. Remove Handle and Escutcheon
3. Remove the Threaded Nipple, Stem Extension, and Cartridge Nut and pull out the Cartridge
4. Clean and make sure the Cartridge is free of debris and sediments
5. Remove both Stop valves with an adjustable wrench. (CAUTION: Be careful removing the Plungers
and the tiny Springs when removing the Stop Valves. See Fig. 1)
6. Clean out any remaining debris or sediments inside the valve body
7. Re-install the Stop Valves Assemblies (including the Plungers and Springs) and use a large at head
screwdriver, turn both screws on the stop valves clockwise to close the stop valves completely. Once
the valves are closed, turn the screws counterclockwise to open both valves again. Make sure to fully
open the valves for maximum water ow. This step will reset the Stop Valves. (See Fig. 2)
8. Re-install the Cartridge and assemble the parts
9. Turn of water to the valve and test the unit to complete the service
2
Plunger
Spring
1

7SS-C01 Rev. C 072021
Luxier
Maintenance Guide
Please follow the cleaning material manufacturer’s instructions. Damage caused by improper
treatment will not be covered by product warranty. In addition, pay attention to the following points:
• Regular cleaning can prevent mineral build up on faucet spout.
• Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
• Test the cleaner on a small area before using on the entire surface.
• Use a mild detergent such as liquid dishwashing soap and warm water for cleaning.
• Do not use abrasive / harsh chemical when cleaning the  xture as they will damage and dull the
 nish.
• When using spray cleaners, spray  rst onto a soft cloth or sponge. Never spray directly onto the
faucet as droplets can enter openings and gaps and cause damage.
• After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
Service the Valve and Pressure Balance Cartridge
NOTE: To maintain the performance of the shower valve. It is recommended to clean the pressure
balance cartridge at least once a year. More frequent cleaning is needed if the water has high mineral
content.
1. Remove shower trims (#16, #17, #18)
2. Turn o water supply at the stop valves (#7 and #8) by using a large at head screwdriver and turn
the valve clockwise to shut o the water.
3. Remove the threaded nipple (#12), stem extension (#11), and cartridge nut (#10) and pull out the
cartridge (#9) with a pair of pliers.
4. Use commercially available hard water scale remover to clean the valve. Dilute the solution as
instructed on the cleaner. Soak the valve for about 5 minutes in the solution and clean it with a soft
brush. Thoroughly wash o any cleaning solution and debris on the cartridge.
5. After cleaning, follow the above steps in reverse order to assemble the valve.
