ASA
JWM45
LABEL SPECIFICATION
JWM45
X1018AIMN00001
Blank Label : 602500940G (40x50mm)
Format : Code 128
Position : Unit(1PC)
Remark : 14 digits Barcode
2 digit Production Year
2 digit Production Month
3 Factory Code
1 N=New, R=Remanufaltured
5 Serial No
1 Customer Revision Control:
ES1=1, ES2=2, PP=A(SRA Approve)
MP=A
JWM45
PO# XXXXX
X1018AIMN00001
1. Unit label 2. GB label
Blank Label : 602500940G (40x50mm)
Format : Code 128
Position : GB(1PC)
Remark : 14 digits Barcode
3. PDF label
Blank Label : 60-25-00500G (152 x 102mm)
Format : Code 128
Position : Carton(2PC)
2D Barcode: Contained Info of Model No, PO, QTY & First Serial No.,
last Serial No.
XXXXX (ASA Model No)Model No:
Purchase Order Number.PO:
Number of units contained in the carton box.QTY:
Serial No assigned for each unit.Serial No:
28/09/2018
GB LOGO LABEL: (120x75mm)(2PC)
P/N:908W00000G
JWM45
QTY: 3
X1018AIMN00003
X1018AIMN00001
WHITE WARNING LABEL(170 x 20mm)(1PC)
FONT SIZE:16PT
P/N: 90AF00010G
WARNING: Cancer and Reproductive Harm-www.p65Warnings.ca.gov
R
MADE IN CHINA
JWM45
QUANTIT Y=1 PC
DESIGNED TO MOVE [YOU]
TM

CLASS 1 LASER PRODUCT
55MM
27MM
P/N:90AK00000G
4.CLASS 1 LASER PRODUCT LABEL
CUSTOMER:
REVISION:
DATE:
PAGE:
0
MODEL:
DESCRIPTION: OF:
27
MODEL:
DESCRIPTION:
ASA
JWM45
LABEL LOCATION ON UNIT
1. MODEL PLATE(80x80mm)
P/N: 508W100A0G
2. Unit label
JWM45
X1018AIMN00001
P/N: 602500940G P/N:908W00010G
3.WARNING LABEL
3
2
1
4
R
DESIGNED TO MOVE [YOU]
TM
www.asaelectronics.com
MADE IN CHINA
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCERT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
+12V DC NEGATIVE. GROUND
Power Input: DC 12V, 10A
USB Output: DC 5V, 1A(max)
FCC ID: 2AHU2JWM45
10AMP FUSE
10
20 11
1
THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J AT DATE OF MANUFACTURE
*REPLACE FUSE WITH DC 32V 10AMP ATO TYPE FUSE
IMPORTANT: DO NOT BRIDGE (COMBINE) SPEAKER OUTPUTS
FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO UNIT
PIN COLOR
1.VIOLET/BLACK
2.VIOLET
3.GREEN
4.GREEN/BLACK
5.N/A
6.GRAY
7.GRAY/BLACK
8.N/A
9.WHITE/BLACK
10.WHITE
11.N/A
12.N/A
13.N/A
14.BLUE
15.RED
16.BLACK
17.N/A
18.N/A
19.N/A
20.N/A
FUNCTION
RIGHT(B) SPEAKER -
RIGHT(B) SPEAKER +
LEFT(B) SPEAKER +
LEFT(B) SPEAKER -
RIGHT(A) SPEAKER +
RIGHT(A) SPEAKER -
LEFT(A) SPEAKER -
LEFT(A) SPEAKER +
AMP REMOTE(+12V DC 100MA)
+12V DC SWITCHED
GROUND
MODEL:JWM45
JENSEN 2-ZONE WALL STEREO
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
79.5MM
27.5MM
28/09/2018

JWM45
PO# XXXXX
X0718AIMN00001
JWM45
PO# XXXXX
X0718AIMN00001
CUSTOMER:
REVISION:
MODEL:
DESCRIPTION:
DATE:
PAGE: OF:
37
PACKING METHOD PACKING METHOD (CARTON)
PACKING METHOD
ASA
3 set Gift Box
pack in
each carton
QUICK REFERENCE GUIDE
P/N:918W30000G
PAPER-TRAY
P/N: 948W40100G
Unit + Silica Gel
wrapped with EPE Bag
P/N:978W35320G
ALL ACCESSORIES IN PE BAG
P/N: 97AK17300G
1).REMOTE CONTROL
P/N: 42AG44000G
2).20P POWER HARNESS
P/N: 458W20300G
PAPER-TRAY
P/N: 948W40000G
0
JWM45
P/N:810200020G
JWM45
PO# XXXXX
X0718AIMN00001
R
MADE IN CHINA
JWM45
QUAN TITY= 1PC
DESIGNED TO MOVE [YOU]
TM
WARNING: Cancer and Reproductive Harm-www.p65Warnings.ca.gov
R
MADE IN CHINA
JWM 45
QUANTITY=1PC
DESIGNED TO MOVE [YOU]
TM
WARNING: Cancer and Reproductive Harm-www.p65Warnings.ca.gov
R
MADE IN CHINA
JWM4 5
QUA NTITY =1PC
DESIGNED TO MOVE [YOU]
TM
WARNING: Cancer and Reproductive Harm-www.p65Warnings.ca.gov
Silica Gel
QUICK REFERENCE GUIDE
ACCESSORIES PE BAG
28/09/2018

250mm
155mm
220mm
JWM45
PO# XXXXX
X0718AIMN00001
CUSTOMER:
REVISION:
MODEL:
DESCRIPTION:
DATE:
PAGE: OF:
4 7
LABEL LOCATION IN GIFT BOX & CARTON
ASA
1. Gift Box Label
2. PDF Label
JWM45
QTY: 3
X0718AIMN00003
X0718AIMN00001
GB P/N:938W20000G
JWM45
PO# XXXXX
X0718AIMN00001
Font Size:16pt
Font Size:14ptFont Size:12pt
0
JWM45
XXXXX
JWM45
1-UP
P/N: 602500350G
3. Carton Label
QTY : 3 SETS
N.W : 4.6 KGS
G.W : 5.1 KGS
MEAS : 48 x 26 x 24CM
MODEL NO.: JWM45
PO :
MODEL NO.:
C/NO.:
MADE IN CHINA
CHICAGO
A S A
40 mm
85 mm
65*65mm
102*152mm
30 mm
35 mm
20 mm
102*152mm
30 mm
QTY : 3 SETS
N.W : 4.6 KGS
G.W : 5.1 KGS
MEAS : 48 x 26 x 24CM
MODEL NO.: JWM45
PO :
MODEL NO.:
C/NO.:
MADE IN CHINA
CHICAGO
A S A
65*65mm
50*20mm 50*20mm
R
MAD E IN CHIN A
JW M45
QU ANT IT Y= 1PC
DESIGNED TO MOVE [YOU]
TM
R
MAD E IN CHIN A
JW M45
QU ANT IT Y= 1PC
DESIGNED TO MOVE [YOU]
TM
WARNING: Cancer and Reproductive Harm-www.p65Warnings.ca.gov
R
MADE IN CHINA
JWM45
QUANTITY=1PC
DESIGNED TO MOVE [YOU]
TM
WARNING: Cancer and Reproductive Harm-www.p65Warnings.ca.gov
4. Index Label P/N: 6025004A0G
(Index#000000)
28/09/2018

CUSTOMER:
REVISION:
MODEL:
DESCRIPTION:
DATE:
PAGE: OF:
5 7
CARTON SPECIFICATION
ASA
A
SPECIFICATION :-
1. MATERIAL : A=A
2. PRINTING : 1 COLOR PROCESS PRINTING - BLACK (FONT : ARIAL)
3. QUALITY : NO DOUBLE IMAGE PRINTING, INK CONSISTENCY & NO OVERLAPING.
4. REMARK : COMPLETED 2 PCS/CTN
5. OTHERS : = BOX CERTIFICATED
6. TOLERANCE : ±3MM
PO: TO BE PRINTING ON CARTON (REFER TO MO)
C/NO: USING HANDWRITING (1,2,3....)
P/N: 948W10000G
CARTON SPECIFICATION
EXTERNAL DIMENSION: 48(L) x26(W) x 24(H)cm
0
JWM45
QTY : 3 SETS
N.W : 4.6 KGS
G.W : 5.1 KGS
MEAS : 48 x 26 x 24CM
MODEL NO.: JWM45
PO :
MODEL NO.:
C/NO.:
MADE IN CHINA
CHICAGO
A S A
QTY : 3 SETS
N.W : 4.6 KGS
G.W : 5.1 KGS
MEAS : 48 x 26 x 24CM
MODEL NO.: JWM45
PO :
MODEL NO.:
C/NO.:
MADE IN CHINA
CHICAGO
A S A
28/09/2018

CUSTOMER:
REVISION:
MODEL:
DESCRIPTION:
DATE:
PAGE: OF:
6 7
ASA
0
JWM45

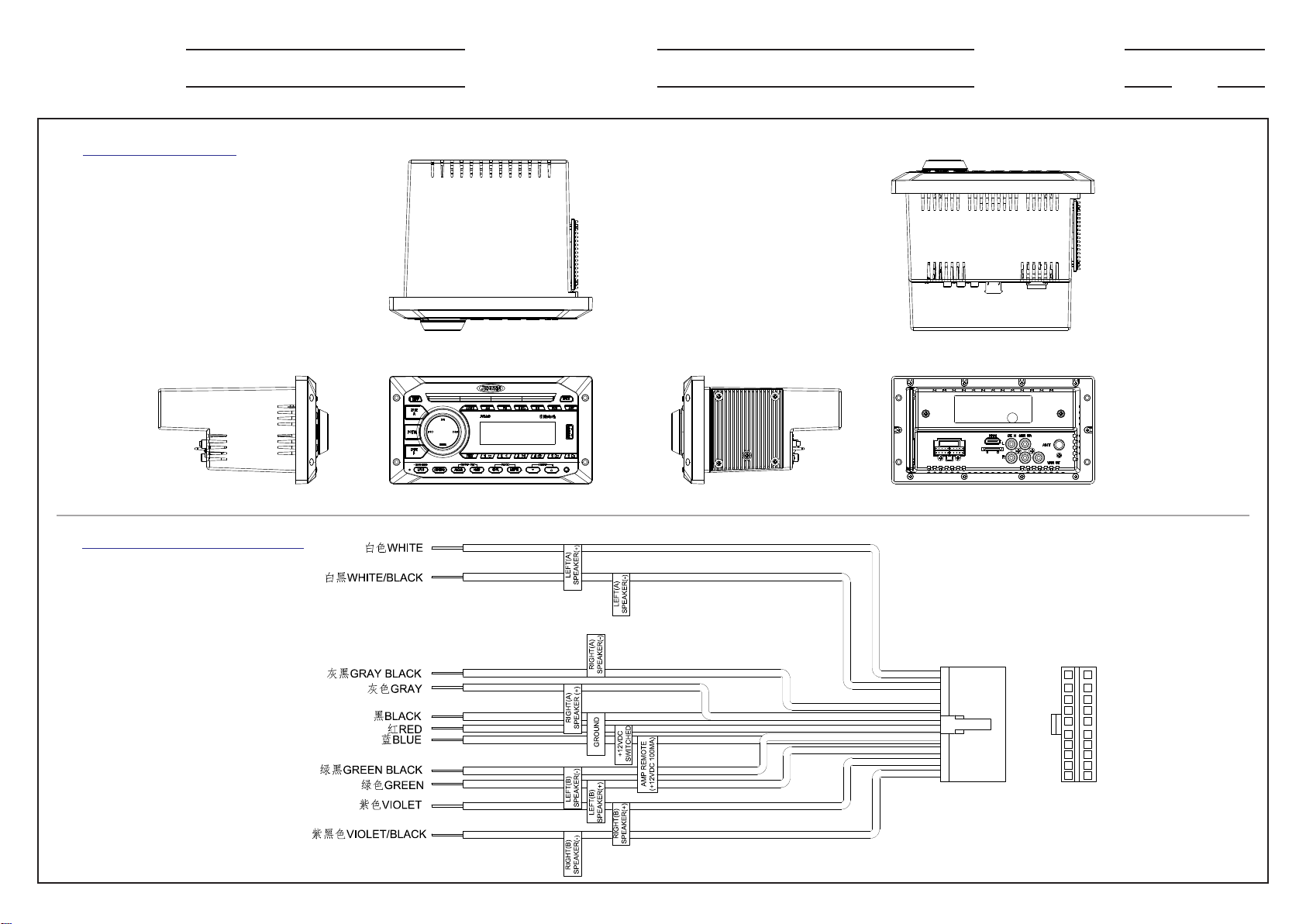

COSMETIC SPECIFICATION
1.UNIT SIX VIEWS
2. 20P POWER HARNESS
LEFT VIEW FRONT VIEW RIGHT VIEW BACK VIEW
BOTTOM VIEW
TOP VIEW
10
9
7
6
16
15
14
4
3
2
1
10
9
8
7
6
5
4
3
2
1
20
19
18
17
16
15
14
13
12
11
28/09/2018

CUSTOMER:
REVISION:
MODEL:
DESCRIPTION:
DATE:
PAGE: OF:
7 7

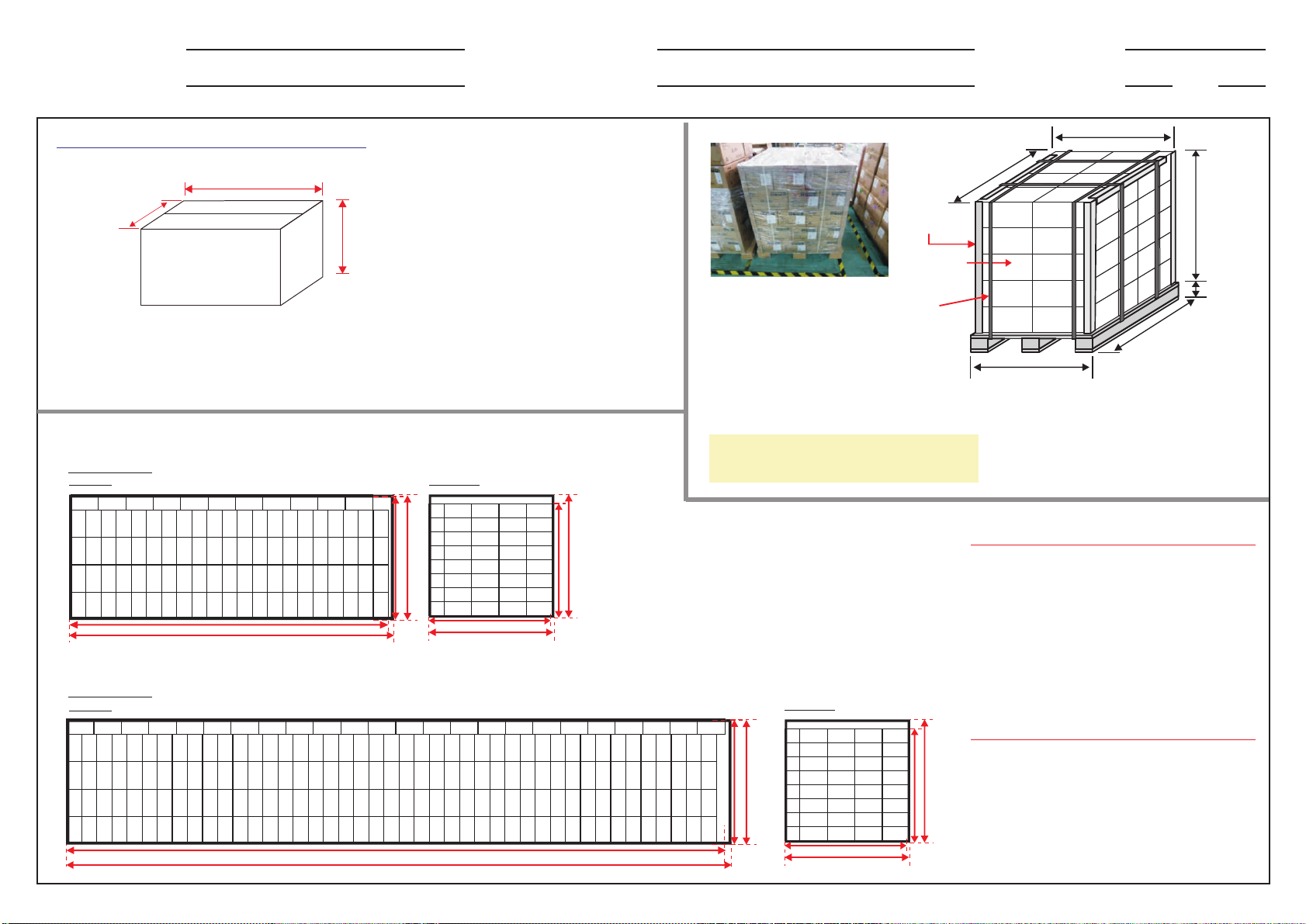

LOADING CAPACITY
ASA
0
JWM45
24cm(H)
48cm(L)
26cm(W)
Carton Quantity = 10pcs
Carton Dimension (external) = 48(L) x 26(W) x 24(H)cm
N.W = LBS/ KGS 9.9 4.5
G.W = LBS/ KGS 11.2 5.1
Customer Loading Capacity
20’ Container (without pallets)
Loading Quantity:
= 760 cartons x 3 sets
= 2,280 sets
40’ Container (without pallets)
Loading Quantity:
= 1,568 cartons x 3 sets
= 4,704 sets
= 95 x H8
= 196 x H8
2 x 480mm= 960mm
1,200mm
Angle
Protector
4x260mm=1040mm
1,000mm
125mm
P.P.
STRAPPING
(捆包带）
Pallet size: 1200 x 1000 x 125mm
Quantity per layer: 8 cartons
Stacking layer: 5 layers
Strap Foam
Example:
(48" x 40")
5x 24mm=1200 mm
Stacking Layer: 8 Layers
20’ Container
40’ Container
Top View Front View
220cm
224cm
200cm
Top View
1,188cm
580cm
224cm
567cm
223cm
223cm
1,176cm
224cm
223cm
Front View
220cm
224cm
200cm
223cm
