Asada ECOsaver V240SP User manual

REFRIGERANT RECOVERY MACHINE
ECOsaver V240SP
INSTRUCTION MANUAL
【Please read this manual before operating】

ECOsaver V240SP
1
Thank you for selecting ECOsaver V240SP.
● Please give this Operation Manual to the persons who operate this machine.
● The contents of this manual must be thoroughly read by the operating persons.
● Obtain the highest performance e󱐰ciency of this machine by an appropriate safe operation.
● Keep this manual at a safe place easily accessible by operating person.
● Do not use this machine for purposes other than originally intended.
● Check the following as soon the unit is delivered:
・ Is the specication same as the ordered product?
・ Is there damage or deformation caused during delivery transit?
・ Is there shortage of accessories?
If any dissatisfaction is found, please contact the store you have purchased or our sales department.
(The contents of this manual may be changed without prior notice for changes made for improvement.)
WARNING
CAUTION
 WARNINGFORSAFETY ........................... 2
 COMPONENTSOFTHEMACHINE ...... 6
Name of Each Part ...................................... 6
Specication ................................................. 7
Standard Accessories .................................. 7
Optional Accessories
(Recovery Cylinder) ...... 8
Optional Accessories (Other
Air-Conditioning Equipment) ...................... 8
 HOWTOUSE ................................................ 10
Preparation before Operation .................... 10
Liquid/Vapor Recovery Procedure ............ 12
Push/Pull Recovery Procedure .................. 16
Recovery Procedure of R410A or
When the Pressure of Refrigerant is High
........... 19
How to Restart the Recovery Machine ............... 20
How to Recover Di󱐯erent Type of Refrigerant .... 20
In Case the Machine Stops During Operation ...... 20
 RECOVERYCYLINDER ............................. 21
 MAINTENANCE&INSPECTION ........... 22
 BEFOREREQUESTINGREPAIR
 ORSERVICES .............................................. 24
 ELECTRICWIRINGDIAGRAM .............. 25
FLOWDIAGRAM ......................................... 26
Situation that may cause death or serious injury if the operating Personnel
contact or stand near the machine or the third party person Erroneously operates
the machine.
Situation that may cause minor to medium injury or may cause damage to the
machine, if the operating personnel contact or stand near the machine or The
third party person erroneously operates the machine.
Deadly
Poison
Caution
for Gas Explosion Fire No Fire Electric
Shock
Burn Rotating
Wear
Protective
Gear
Do Not
Disassemble
Grounding
Power
Source
Voltage
Handling of
Wire
Working
Condition Others User's
Manual
The warning signs used in this manual or on the product are divided in the following two categories
FORSAFEOPERATION
CATEGORIESOFWARNINGSIGNS
INDEX

ECOsaver V240SP
2
WARNING FOR SAFETY
● General warnings in operating this machine are mentioned in this section.
● While specic details are mentioned in each particular clause.
◆Whenperformingrecovery,chooselocationthathasgoodventilation.
Leakage of gas without sufficient ventilation may cause lack of oxygen cause
su󱐯ocation. 
◆Cannotrecoverammablegas(Hydrocarbonorthiskindofhydrocarbon
material)Whenmixexceptrefrigerants[Ammonia,hydrocarbon（propane,
isobutene,）etc]tothemachine,itmaycauseexplosion.
◆BurningFreoncreatesadeadlypoisonousCarbon Oxy-Chlorideand
inhalingofthisgasisverydangerous.
There should be absolutely no flammable material near the working area and must
operate under good ventilation.
◆Absolutelynorematerialandsmokingduringtheworkinprocess.
Cigarette light may creates Carbon Oxy-Chloride and ignite re.
◆Useprotectiveeyeglassandhandglovewhendisconnectinghoses.
If Freon gas was touch your skin or gets in your eyes, it may cause frostbite or damage
your eye-sight.
◆Donotclosethevalvesofthemachineandthehoseswhentheyarefull
ofliquidrefrigerant.
◆Donotoperateorstoragethemachineattheplacewheretemperature
getsabove40℃ .
It may cause explosion for expand liquid gas on the higher temperature site. When the
recovery operation will nish, do operation purge certainly.
◆Useouroriginalrecoverycylinders.
◆Donotoperatethemachinewithwethandsorintherain.
If you handle electric plug and power switch with wet hands or in the rain you may have
electric shock.
◆Makesuretohavethemachineearthed(grounded).
If the machine is not properly grounded, it may cause electric shock when the machine
has electric leak.
WARNINGFORSAFETY
WARNING

ECOsaver V240SP
3
◆Checkelectricpowerplugregularlytomakesurethereisnoproblem.
 Alwayshavethepluginsertedrmly.
When the plug has dirt or oil, and the connection is incomplete, it may cause electric
shock or re.
◆Donot havetheelectric cordconnectedwithotherelectricdevicesor
branchedwithothercords.
It may cause re.
◆Donotpulltheelectricpowersourcecordandremovefromtheoutlet.
It may cause re or injury.
◆ThepowersourceshouldbeAC220-240V10Aoruseageneratorwhose
capacityis3KVAormore.
If the capacity of the generator is not large enough, it may lead to heating, smoking or
re.
See the machine plate or this manual for the detailed specications.
◆Donot setupthemachine atlocationwheregasoline,thinner,or
ammableGasexists.
The recovery machine sparks at the start-up time and may ignite gasoline and thinner.
If leaked gasoline or flammable gas accumulates at near the machine, it may cause
explosion and re. 
◆Always turnoffthe switchandpulloutthepowersourcecordwhen
performinginspectionandmaintenance.
The machine may suddenly starts and cause accident.
◆Donotdisassemblebyun-authorizedrepairperson.
◆Donotoperatethemachinewiththecoverremoved.
It may cause abnormal movement and may cause injury or damage.
WARNING FOR SAFETY
WARNING

ECOsaver V240SP
4
CAUTION
WARNING FOR SAFETY
◆Installalteratthesuctionport.
Otherwise the compressor may be damaged.
◆Anextensioncordusedshouldbe athree-corecabtyre cablewitha
lengthof20morlesswhenitswirediameteris2.0mm2orwithalength
of30morlesswhenitswirediameteris3.5mm2.
An unsuitable extension cord (too thin or too long) may lead to starting failure or re.
Or electrical components such as capacitor, relay and so on may be damaged.
If the cord used is a two-core cord without a ground wire, you may get electric shock.
◆Donotrecoverrefrigerantwhichcontainssealant.
Sealant may clog the valves or the check valves.
◆Refrigerantwhichisunsureifit isliquidorvaporto berecoveredat
thevalveadjustedtoLIQUIDRECOVERYwithlesssuctionpressure.
If liquid refrigerant goes into the compressor under the vapor recovery procedure, the
compressor may be damaged.
◆Donotletvisitorstouchthemachine.
◆Donotusethemachinewhentheresultisunpredictable.
◆Donotusethemachineforpurposesotherthantheoriginalintent.
This machine is designed to recover the specied refrigerants.
◆Donotoperateunderanexcessiveheavyloadtothemachine.
Operating under an excessive load can not only cause damage to the machine but also
causes an accident.
◆Donotusethemachineonavibratingoororonaslopingplace.
The machine or the cylinder may fall down and lead to accident.
◆Theoperatingplatformandtheworkareamustbekeptneatandclean
atalltimeandhaveenoughlighting.
Poor working environment causes accident.
◆Donotoperatethemachineiftheoperatorisunderfatigueconditionor
inuencedbyalcoholicdrinkormedicines.
◆WhentheRecoveryMachineisnotinuse,storageatdryspaceandout
ofreachbychildren.
◆Donotuseaccessoriesotherthanreferredinthismanualorshownon
ourcatalogue.Useofotheraccessoriesmaycauseproblem.

ECOsaver V240SP
5
◆WhentheRecoveryMachineisdroppedorhit,inspectimmediatelyfor
damage,crack,dent,etc.
Recovery under damaged, cracked and dented condition may cause injury
◆Checkeverydayifthereisdeformedorcorrodedarea.
◆Ifabnormalcondition(strangesmell,vibration, strangenoise)is
noticed,stoptheunitandrefer tothePage24“BEFOREREQUESTING
REPAIRORSERVICES”inthemanual.
◆Requestforrepair orserviceinsteadofdisassemblingforrepair,
contactthestorewherethemachinewaspurchased.
◆Useourcylindersthatareexpresslymadeforrecoveryandrecycling.
◆EvacuationshouldnotbedonewhentheAutostop/runswitchisatthe
“Autostop”position.
Air may be left in the machine.
Low pressure switch trips to stop the machine when the suction pressure of the
compressor is approximately -26cmHg/-10inHg and be released automatically when the
pressure goes up.
◆Closethevalveofcylindercertainlywhennotinuse.
◆Donotrecoverwhereignitablethingsandinammablesexist.
◆Prepareareextinguisherforunexpectedcondition.
Warning For Safety
CAUTION
Cautions for recovery of R32, R1234yf, R1234ze (specic inert gas)

ECOsaver V240SP
6
Suctionpressuregauge Dischargepressuregauge
Highpressure
warninglamp
Suctionport
（Strainerbuilt-in）
Powerswitch
Breaker
Dischargeport
Powercord
entrypoint
Namelabel
Safetycable
Specificationslabel
1/4Charginghose
RED152cm
45°Ballvalve 1/4Charginghose
BLUE152cm
PowercordShoulderstrapFilter
Valve
Autostop/runswitch
Startswitch
Tankfulllamp
Recovery
completelamp
VAPOR
RECOVERY
START
PURGE
OFF
LIQUID
RECOVERY
COMPONENTS OF THE
MACHINE
Labels are required by law for safety and the warnings are placed on the recovery machine.
If the label comes o󱐯 the machine or became dirty and unreadable, request us for new label. Replace
the label at the same position on the machine.
COMPONENTSOFTHEMACHINE
NameofEachPart

ECOsaver V240SP
7
＊ 1 When the valve is at the “Vapor recovery” position.(Room temperature 25℃ )
＊ Specications are subject to change without prior notice.
＊ Recovery rates vary under di󱐯erent conditions.
Recovery rate R22 R410A
Vapor (g/min) 230 240
Liquid (g/min) 2,530 (Vapor recovery ＊ 1) 2,750 (Vapor recovery ＊ 1)
1,060 (Liquid recovery) 1,240 (Liquid recovery)
Push/Pull (g/min) 6,150 7,300
Specication
StandardAccessories
Description Code No.
ECOsaver V240SP main unit ー
1/4" Charging hose RED 152cm x 1 pce AI133
1/4" Charging hose BLUE 152cm x 1 pce AI137
1/4" Ball valve 45°(male x female) Y93843
Adapter for di󱐯erent diameter 5/16” female x 1/4" male Y06110K
Filter dryer 032F ES006
Shoulder Strap ES253
Power cord ES305
Instruction manual IM0436
Operation manual IM0437
Model ECOsaver V240SP
Code No. ES641
Recovery method Compressed vapor recovery method, Push/Pull method
Dimensions 440 x 265 x 360mm (L x W x H)
Weight 15kg
Compressor 750W (1HP) Oil less twin cylinders
Power source Single phase 220-240V (50/60Hz)
Applicable
refrigerants
R12, R22, R500, R502, R114, R124, R134a, R403B, R404A,
R407C, R407D, R410A, R412A, R413A, R417A, R422A,
R422D, R423A, R507A, R509A,R32, R1234yf, R1234ze
Power consumption 685/730W (50/60Hz)
Operating・Starting
current 3.7A / 3.6A (50/60Hz)・28A
Operating temperature 0 ～ 40℃
Ultimate vacuum － 68cmHg/ － 27inHg
Applicable cylinder
Float sensor type : Recovery cylinder (with oat sensor)
6L・12L・24L・40L・120L
Weighing type : Recovery cylinder (without oat sensor) with Limit Scale
12L・21L・24L・40L・120L
COMPONENTS OF THE
MACHINE

ECOsaver V240SP
8
＊ Our Limit Scale must be used when recovery
cylinders (without oat sensor) are used.
＊ Our original recovery cylinder should be used.
Description Capacity Port Code No.
Refrigerant
recovery cylinder
(with oat sensor)
1L
1/4" are
TF040
6L TF090
12L TF056
24L TF057
40L
1/4" are TF130
3/8" are TF131
120L
1/4" are TF110
3/8" are TF129
1/2" are TF097
3/4" are TF098
Description Capacity Port Code No.
Refrigerant
recovery cylinder
(without oat sensor)
24L
1/4" are
TF080
120L TF070
OptionalAccessories(OtherAir-ConditioningEquipment)
OptionalAccessories(RecoveryCylinder)
Name of Item Code No. Explanation of the Item
Limit Scale LS-45 Ⅱ LS452 Scale to be used to prevent over-lling when
recovery cylinder has no oat sensor.
Limit Scale LS-150 Ⅱ LS152
Filter TF011
Removes impurities and small particles from
the refrigerant to be recovered to protect
the machine.
Filter dryer 032 ES058
Removes oil, moisture, acid, impurities and
small particles from the refrigerant to be
recovered to protect the machine.
Vacuum pump 1.8CFM Eco WV210 High e󱐰cient 2-stage vacuum pump with a
check valve.
Cordless Vacuum Pump 1.5CFM VP151 Useful where has no power source.
Cooling unit CL3 (3/8") ES801
Improves the e󱐰ciency of recovery in
summer climate, recovery in a large volume
or recovery of R410A by using together with
a recovery machine.
Header TF013 Recovery of up to 6 units at the same time.
Piercing valve TF014
Makes a connection port for recovery from a
system which has no service port such as a
home use refrigerator, etc.
Solenoid valve opener RF4660507
Opens the solenoid valve on the refrigeration
system forcibly to recover refrigerant
completely.
1/4" Charging hose with pressure
gauge (for use with cylinder) Y02002A Connect to recovery cylinder and check the amount of air mixed in the refrigerant.
1/4" Hose with vacuum gauge Y02003A Checks depth of vacuum in the system being
recovered to judge completion of recovery.
Sight Glass ES603 Visually check refrigerant ow either in
vapor or liquid.
Adapter for di󱐯erent diameter
for auto A/C (quick type) 3/16"
female x 1/4" male
Y19120 Adapter to connect to the small service port
(3/16") for R12.
High pressure quick joint
for R134a (M12) Y03100A For quick connection to the service port (high pressure side) for R134a.
Low pressure quick joint
for R134a (M10) Y03200A For quick connection to the service port (low pressure side) for R134a.
COMPONENTS OF THE
MACHINE

ECOsaver V240SP
9
OptionalAccessories(OtherAir-ConditioningEquipment)
Name of Item Code No. Explanation of the Item
1/4" Hose with ball valve
(male x female) Y25980
Short hose with ball valve which prevents
refrigerant from discharging to the air when
the hose is disconnected.
1/4" Ball valve 45°
(male x female) Y93843 Prevent release of refrigerant when Disconnecting hose.
Quick charging valve A. Y18975 Can be used without leaking refrigerant.
Recovery speed improves without Schrader.
Charging hose plus Ⅱ with
SealRight tting
Various sizes
available
Low loss anti-blow back SealRight
tting traps refrigerant in the hose when
disconnected.
Charging hose plus Ⅱ for R410A Charging hose for R410A.
Charging hose plus Ⅱ with
ball valve for R410A Charging hose with ball valve for R410A.
Charging hose plus Ⅱ for R134a Charging hose for R134a.
COMPONENTS OF THE
MACHINE

ECOsaver V240SP
10
HOW TO USE
HOWTOUSE
PreparationbeforeOperation
● “Transportation” and “Evacuation of the air
in the cylinder” should be done in view of
the following environment of usage.
① Do not use the machine in rain or in areas
where water may enter into the machine.
A fan is built into the machine for cooling
and it may suck water.
② The recovery machine should be used in a
well-ventilated area.
When the machine is used in a poor
ventilated area, you may be choked from
lack of oxygen in case of refrigerant leak.
③ Keep re away to prevent phosgene (highly
toxic substance) being generated.
④ Combustible gases (hydrocarbon system)
cannot be recovered.
If any combustible gases [ammonia,
hydrocarbon (propane, isobutene) and so
on] enter into the recovery machine, it may
catch re and may explode.
● Please note the following points before use.
① Check the type of refrigerant to be
recovered.
② Evacuate the air from the refrigerant
recovery machine, charging hoses and
recovery cylinder (hereinafter called
recovery machine, hoses and cylinder).
③ Install a lter or a lter dryer at the suction
port of the recovery machine.
④
Set the valve to the “⓪ START” position before
starting the recovery machine.
⑤ Abnormal noise may be heard when a large
amount of damp refrigerant enters into the
compressor during liquid recovery.
Throttle the valve on the manifold until the
noise cannot be heard.
⑥ Do not close the valve of the hose or the
valve of the cylinder before stopping the
recovery machine during operation.
The gauge may be damaged.
Close the system side valve of manifold,
turn “OFF” the machine after set the valve
to “⓪ START”.
⑦ The temperature of the cylinder may rise
when the ambient temperature is high or
R410A is recovered.
Lower the temperature and pressure of the
cylinder according to “page 11 4) Helpful
Information” and “page 19 Recovery
Procedure of R410A or When the Pressure
of Refrigerant is High”.
⑧ Do not enter the air into the hoses and the
cylinder.
When the cylinder contains air, evacuate
the air from the vapor valve referring to
the chart of saturation temperature and
pressure.
The air can be evacuated before discharging
the refrigerant.
⑨ Use an oil separator when refrigerant with a
large amount of oil is recovered.
The compressor may be damaged when a
large amount of oil is recovered.
⑩ Do not recover virgin refrigerant.
The compressor may be damaged if virgin
refrigerant is recovered for a long time.
If you need to recover virgin refrigerant, put
some additional oil in the compressor.
⑪ Do not recover from air conditioners in
which any sealant has ever been charged.
The sealant may clog the valves or the
compressor and the recovery machine may
be damaged.
⑫ Do not evacuate the air from the cylinder by
using the recovery machine.
The compressor may be damaged if it is run
for a long time under vacuum.
⑬ When starting the machine, it may not start
unless the pressure in the compressor is
equalized.
Start the machine after equalizing the
pressure at the discharge side and
the pressure at the suction side of the
compressor according to “page 20 How to
Restart the Recovery Machine”.
1）EnvironmentofUsage
● All connections between the recovery machine and the cylinder should be disconnected during
transportation.
◆ Allconnectionsbetweentherecoverymachineandthecylindershouldbedisconnected
duringtransportation.
◆ Steerclearofinjurieswhenyoucarryaheavycylinder.
2）Transportation
CAUTION

ECOsaver V240SP
11
● Use our original recovery cylinders.
● Use cylinders on which the type of refrigerant to be recovered is mentioned.
● Empty cylinders should be evacuated before use.
● How to evacuate air (Vacuum pump is optional)
① Connect the suction port of the vacuum pump
to the vapor port of the cylinder with a hose.
② Switch on the vacuum pump.
③ Close the liquid port of the cylinder and open
the vapor port.
④ Close the vapor port of the cylinder when
the vacuum reaches -72cmHg/-28inHg to
-76cmHg/-30inHg.
⑤ Switch o󱐯 the vacuum pump.
⑥ Disconnect the hose between the vacuum pump
and the cylinder.
3）PreparationofCylinder
Liquidport Vaporport
Suction
port
Recoverycylinder Vacuumpump
● How to shorten the recovery time
① After liquid recovery is completed, recover
from both the liquid and the vapor ports.
② Remove the valve cores of the service ports
of the system if they have.
③ Remove the core depressors of the charging
hoses.
④ Use large size 3/8” hoses.
⑤ Replace the gaskets of the hoses if they are
deformed.
⑥ Recover refrigerant while operating the
crank case heater of the system.
⑦ Heat up the accumulator by a heat gun or
give it vibration if it is frozen.
⑧ Recover from multiple systems in one time.
● How to avoid rise in temperature and
pressure in the cylinder
① Put the recovery machine in a well-
ventilated shady area.
② Do not put the recovery machine and the
cylinder directly on the floor but put them
away from the oor.
③ Cool down the cylinder with wet cloths.
④ Use Cooling Unit (optional accessory) (See
page 19).
⑤ Reduce the suction pressure of the recovery
machine (See page 19).
⑥ Replace the cylinder with an empty one.
⑦ Cool down the cylinder with the sub-cooling
procedure (See page 19).
⑧ Use a 120L cylinder.
4）HelpfulInformation
HOW TO USE
◆ Thecylinderisdesignedaccordingtothespecicationsoftherecoverymachine.
 Thecylindermaybeoverlledandexplodediftheappropriatecylinderisnotused.
◆ Brand-newcylindershavenitrogeninside.
 Evacuationshouldbedoneafterdischargingnitrogenbyopeningthevaporvalve.
◆ Donotevacuateairfromcylinderswhichcontainrefrigerant.
 Therefrigerantwillbedischargedtotheairandthevacuumpumpoilwillblowout.
◆ Donotevacuateairfromcylindersbyusingtherecoverymachine.
 Thecompressormaybedamagedifitisrunforalongtimeundervacuum.
CAUTION
CAUTION

ECOsaver V240SP
12
◆ Whentherecoverymachinestopswith“Highpressurewarning”・”Recoverycomplete
(Autostop)”・”Tankfull”,removethecausebeforepushingtheStartswitch.
CAUTION
● This recovery method is the most basic and popular method.
Do not try other methods (Push/Pull recovery and so on) unless you master this method.
① Connect the hoses as above.
② Connect the safety cable to the connector on the cylinder or on Limit Scale.
③ Install a lter to the suction port of the recovery machine.

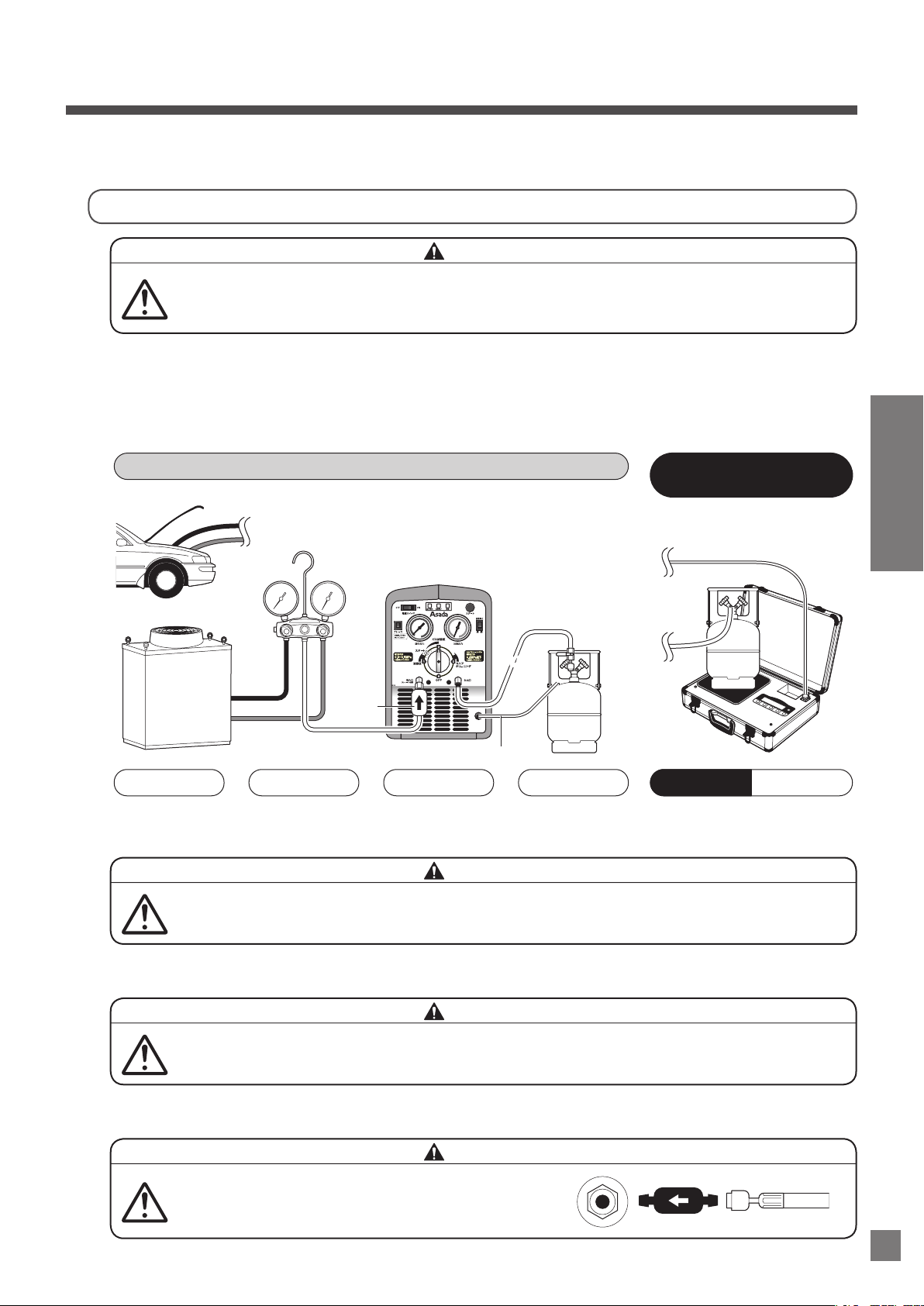

Liquid/VaporRecoveryProcedure
1）Connectionofthehosesandcords
Systemtobe
recovered
Safetycable
Manifold
Filter
Whenacylinderwithfloatsensorisused Whenacylinder
withoutfloatsensorisused
Manifold
(optionalaccessory)
V240SP
Recoverycylinder
withfloatsensor
High
Low
LimitScale
(optionalaccessory)
Recoverycylinder
withoutfloatsensor
Safetycable
Liquid
side
Vapor
side
◆ UseourLimitScale(CodeNo.LS452,LS152)whenacylinderwithoutoatsensorisused.
◆ Therecoverymachinewillnotstartwithoutconnectingthesafetycable.
◆ Makesuretheinstallingdirection.
◆ Replacethefiltereveryrecoveryof90kgor
whenitisclogged.
HOW TO USE
CAUTION
CAUTION
CAUTION

ECOsaver V240SP
13
① Open the low pressure side and the high
pressure side valves of the manifold.
② Set the valve of the recovery machine to the
“⓪ START” position.
③ Disconnect the hose connected to the liquid
port of the cylinder.
＊ Hold the hose tightly.
④ Open the ball valve of the hose.
⑤ Set the Auto stop/run switch to the “Run”
position.
⑥ Set the Power switch to the “ON” position.
⑦ Push the Start switch
＊ Do not set the Auto stop/run switch to the
“Auto stop” position.
Air may be left in the machine.
＊ Let the unit “Auto stop” by error, change
Auto stop/run switch to “Run” and push
Start switch.
⑧ Set the valve of the recovery machine to the
“② VAPOR RECOVERY”.
⑨ When the discharge pressure reaches to
a vacuum, set the valve of the recovery
machine to the “③ PURGE” position.
⑩ When the discharge pressure reaches to
vacuum again, connect the hose to the liquid
port of the cylinder.
Close the ball valve of the hose.
Valve operation Operation
End of operation
2）Evacuationoftheairfromtherecoverymachineandthehoses
8
12 2
CloseClose
Close
Close
High
Open
Disconnect
Connect
9
Run
Liquidvalve Vaporvalve
Close
Low
ONON
VAPOR
RECOVERY
PURGE
LIQUID
RECOVERY
1
Open
1
Open
4
Hose
3
10
5
Low High
Holdtightly
Systemtoberecovered
Manifold
(optionalaccessory)
V240SP Recoverycylinder
withfloatsensor
Hose(red)valve
Filter
Safetycable
Autostop/run
switch
7
Startswitch
6
OFF
13
Powerswitch
START
OFF
11
⑪ Set the Power switch to the “OFF” position.
⑫ Set the valve of the recovery machine to the
“⓪ START” position.
⑬ Close the low pressure side valve of the
manifold.
HOW TO USE

ECOsaver V240SP
14
HOW TO USE
3）Recoveryprocedure
● Recover from the high pressure side of the system in case of liquid recovery and recover from the
low pressure side in case of vapor recovery.
● Recover from the high pressure side (liquid refrigerant) when a large volume of refrigerant (5kg
or more) is recovered in one time.
◆ Refrigerantinsidethesystem,whichisunsureifitisliquidorvapor, to be liquid
recoveredwiththevalveadjustedto“① Liquidrecovery”withlesssuctionpressure.
◆ Throttlethevalveofthemanifoldtoregulatethesuction pressure to approximately
3kg/cm2/43.5psiwhenthepressurein the system is very high insummerorduring
vaporrecovery.
◆ Useanoilseparatorwhenrefrigerantwithalargeamountofoilisrecovered.
Close
12
Run
4
Liquidvalve Vaporvalve
Systemtoberecovered
Manifold
(optionalaccessory)
V240SP Recoverycylinder
withfloatsensor
Filter
Safetycable
ON
6
Startswitch
ON
5
OFF
1
Powerswitch
Autostop/run
switch
S
l
o
w
l
y
Autostop
10
Close
Open
8
Open
3
Open
3
Low
Open
8
Close
12
OFF
13
Close
12
Low
Open
3
Close
12
High
High
VAPOR
RECOVERY
PURGE
S
l
o
w
l
y
START
OFF
14 2
7
9
LIQUID
RECOVERY
Adjustsuctionpressureto
3〜5kg/cm2/43.5〜72.5psi
① Switch o󱐯 the system to be recovered.
② Set the valve of the recovery machine to the
“⓪ START” position.
③ Open Liquid valve of the cylinder and High
Pressure valves (Liquid side) of manifold
and the system.
Valve operation
Operation
End of operation
⑪ When the suction pressure reaches to
-26cmHg/-10inHg, the Recovery complete
lamp is on and the recovery machine stops
automatically.
⑫ Close both the low side and the high side
ports of the system.
⑬ Set the Power switch to the “OFF” position.
⑭ Set the valve of the recovery machine to the
“⓪ START” position.
CAUTION
START
VAPOR
RECOVERY
LIQUID
RECOVERY
VAPOR
RECOVERY
LIQUID
RECOVERY
START
⑨ Turn the valve slowly to the “② VAPOR RECOVERY”
position.
＊ Adjust suction pressure with valve to
3 ～ 5 kg/cm2／ 43.5 ～ 72.5psi.
＊ The valve position showing in the drawing at
the right is standard for 3kg/cm2／ 43.5psi.
＊ When the cylinder is
full, the Tank full lamp
is on and the recovery
machine stops.
⑩ Set the Auto stop/run
switch to the “Auto
stop” position.
④ Set the Auto stop/run switch to the “Run”
position.
⑤ Set the Power switch to the “ON” position.
⑥ Push the Start switch.
⑦
Turn the valve slowly to the “① LIQUID RECOVERY”
position.
＊ A d j u s t suction pressure with valve to
3 ～ 5 kg/cm2／ 43.5 ～ 72.5psi.
＊ The valve position
showing in the drawing
at the right is standard
for 3kg/cm2／ 43.5psi.
⑧ When liquid recovery
is completed and vapor
recovery starts, open
the valve of the low
pressure side of the manifold and the port
of the low pressure side of the system to be
recovered.

ECOsaver V240SP
15
4）Refrigerantclearing(Purge)procedure
◆ Alwaysperformthepurgeprocedureaftercompletingrecovery.
 Therecoverymachinemaybedamagedifanyrefrigerantisleftinthemachine.
CloseClose
Close
Open
6
4
ONON
Run
Close
High
Close
5
Close
Low
VAPOR
RECOVERY
PURGE
START
OFF
LIQUID
RECOVERY
Liquidvalve
Low High
Vaporvalve
Systemtoberecovered
Manifold
(optionalaccessory)
V240SP Recoverycylinder
withfloatsensor
Filter
Safetycable
3
Startswitch
2
Powerswitch
1
Autostop/run
switch
S
l
o
w
l
y
OFF
6
2kg/cm2/29psi
orless
◆Wearprotectivegoggles and
rubber(leather)gloves.
 Ifrefrigerantfallsinyoureyesor
touchesyourskin,itmayleadto
sightlossorcoldinjury.
① Set the Auto stop/run switch to the “Run”
position.
② Set the Power switch to the “ON” position.
③ Push the Start switch.
＊ Please refer to “P20 How to Restart the
Recovery Machine” if the unit does not run
smoothly and restart the unit
④ Turn the valve of the recovery machine
slowly to the “③ PURGE” position.
＊ Adjust suction pressure with valve to
under 2kg/cm2／ 29psi.
⑤
Close Liquid valve of the cylinder immediately
after suction pressure to vacuum.
＊ For restarting, see “page 20 How to Restart
the Recovery Machine”.
⑥ Set the Power switch to the “OFF” position.
Valve operation
Operation
End of operation
＊ There is vapor refrigerant left in the
recovery machine and the hose of the
discharge side.
Connect the hose of the discharge side
to an evacuated cylinder to recover the
refrigerant left in the recovery machine and
the hose.
⑦ Set the valve of the recovery machine to the
“④ OFF”.
⑧ Disconnect the hoses.
＊ Do not left any refrigerant in the recovery
machine.
⑨ Put the cap back on the connector of the
safety cable on the cylinder.
HOW TO USE
CAUTION
CAUTION

ECOsaver V240SP
16
HOW TO USE
Push/PullRecoveryProcedure
● This method is recommended for recovery from a system which has a large amount of refrigerant
(5kg or more).
● Recovery time can be reduced by recovering the liquid refrigerant in the system to the cylinder
and then recovering the remaining refrigerant in vapor.
● This method cannot be applied to the following systems.
・ Refrigeration and air-conditioning systems whose refrigerant volume is less than 5kg.
・ Systems which have a heat pump or a solenoid valve.
・ Systems which have an accumulator.
● There are some other cases to which this method cannot be applied.
Ask the manufacturer of the system if not clear.
1）Connectionofthehosesandcords
Safetycable
Whenacylinderwithfloatsensorisused
High
Low
Safetycable
Filter Sight-glass(optionalaccessory)
Ballvalve
(optionalaccessory)
Systemtobe
recovered
Whenacylinder
withoutfloatsensorisused
V240SP
Recoverycylinder
withfloatsensor
LimitScale
(optionalaccessory)
Recoverycylinder
withoutfloatsensor
Liquid
side
Vapor
side
① Connect the hoses as above.
② Connect the safety cable to the connector on the cylinder or on Limit Scale.
＊ Use optional hoses, Sight-glass (ES603) and 1/4” ball valve (Y93843).
◆ UseourLimitScale(CodeNo.LS452,LS152)whenacylinderwithoutoatsensorisused.
◆ Therecoverymachinewillnotstartwithoutconnectingthesafetycable.
CAUTION
CAUTION

ECOsaver V240SP
17
2）Evacuationoftheairfromtherecoverymachineandthehoses
8
7
2
ONON
OFF
Close
Run
Close
High
Open
Disconnect
Connect
Connect
Close
Liquidvalve
1
Close
Vaporvalve
1
Close
Low
13
Open 14
Ballvalve
VAPOR
RECOVERY
PURGE LIQUID
RECOVERY
Systemtoberecovered V240SP Recoverycylinder
withfloatsensor
Safetycable
6
Startswitch
5
Powerswitch
Hold
tightly
Vacuumpump
12
Ballvalve
Filter Sight-glass
4
Autostop/run
switch
10
Hose
3
9
11
START
OFF
① Close the liquid valve and the vapor valve of
the cylinder.
② Set the valve of the recovery machine to the
“⓪ START” position.
③ Disconnect the hose connected to the low
pressure side of the system and open the
ball valve.
＊ Hold the hose tightly.
④ Set the Auto stop/run switch to the “Run”
position.
⑤ Set the Power switch to the “ON” position.
＊ Do not set the Auto stop/run switch to the
“Auto stop” position.
Air may be left in the machine.
＊ If the “Auto stop” position is selected, the
recovery machine will stop automatically.
Set to the “Run” position to restart.
⑥ Push the Start switch.
⑦ Set the valve of the recovery machine to the
“② VAPOR RECOVERY”.
⑧ When the suction pressure reaches to
vacuum, set the valve of the recovery
machine to the “③ PURGE” position.
⑨ When the suction pressure reaches to
vacuum again, connect the hose to the low
pressure side of the system.
Valve operation
Operation
End of operation
⑩ Set the Power switch to the “OFF” position.
⑪ Open the ball valve of the hose connected to
the cylinder.
⑫ Connect the hose to a vacuum pump and
evacuate the air from the hose.
⑬ Close the ball valve of the hose.
⑭ Connect the hose to the liquid port of the
cylinder and open the ball valve.
◆Wearprotectivegoggles and
rubber(leather)gloves.
 Ifrefrigerantfallsinyoureyesor
touchesyourskin,itmayleadto
sightlossorcoldinjury.
HOW TO USE
CAUTION

ECOsaver V240SP
18
HOW TO USE
3）Recoveryprocedure
V240SP
Safetycable
ON
6
Startswitch
ON
4
OFF
12
Powerswitch
Filter Sight-glass
OFF
1
Scale
サイトグラス
Check
9
Run
5
Autostop/run
switch
S
l
o
w
l
y
Systemtoberecovered
Recoverycylinder
withfloatsensor
Autostop
8
Open
3
Close
14
Low
Open
3
Close
14
Liquidvalve
Open
3
Close
10
Vaporvalve
Open
3
Close
14
High
VAPOR
RECOVERY
PURGE
START
OFF
LIQUID
RECOVERY
2
7
13
① Switch o󱐯 the system to be recovered.
② Set the valve of the recovery machine to the
“⓪ START” position.
③ Open the liquid and the vapor valves of the
cylinder and also the low pressure side and
the high pressure side valves of the system.
④ Set the Power switch to the “ON” position.
⑤ Set the Auto stop/Run switch to the “Run”
position.
⑥ Push the Start switch.
⑦ Turn the valve of the recovery machine
slowly to the “② VAPOR RECOVERY” position.
⑧ Set the Auto stop/run switch to the “Auto
stop” position.
⑨ Make sure there is no liquid flow in the
sight-glass.
Valve operation
Operation
End of operation
⑬ Set the valve of the recovery machine to the
“④ OFF” position.
⑭ Close all valves.
⑮ Change the connection of the hoses and
perform vapor recovery according to
“Liquid/Vapor Recovery Procedure” as there
is still some vapor refrigerant left in the
system.
⑩ Close the vapor valve of the cylinder.
⑪ When the suction pressure reaches to
-26cmHg/-10inHg, the Recovery complete
lamp is on and the recovery machine stops
automatically.
⑫ Set the Power switch to the “OFF” position.
◆Wearprotectivegoggles and
rubber(leather)gloves.
 Ifrefrigerantfallsinyoureyesor
touchesyourskin,itmayleadto
sightlossorcoldinjury.
◆ IncaseofPush/pullrecovery,use
ascaletochecktheamountof
refrigerantrecovered.
 Whenthecylinderisfull,
refrigerantmayberecovered
continuouslyevenafterthe
recoverymachinestopsandmay
leadtooverlling.
CAUTION

ECOsaver V240SP
19
RecoveryProcedureofR410AorWhenthePressureofRefrigerantisHigh
● Reduce the suction pressure when R410A is
recovered at high ambient temperature.
● The recovery machine may not stop
automatically if the suction pressure is
20.4kg/cm2 /290psi or more.
In that case, stop the recovery machine
manually after confirming that the low
pressure gauge indicates 0kg/cm2 /0psi or
less.
1）Regulatethesuctionpressure
● Follow the following procedure when R410A or refrigerant at high pressure by heat is recovered.
See “Liquid/Vapor Recovery Procedure” for the standard operation.
● The following procedure is to cool down (sub-cool) the refrigerant in the cylinder instead of
putting the cylinder in water.
2）Cooldownthecylinder(Sub-cooling)
① Connect the hoses as above and recover
refrigerant.
② Set the valve of the recovery machine to the
“⓪ START” position when the temperature and
the pressure in the cylinder rise.
③ Close both the high and the low pressure
side valves of the manifold.
④ Open the vapor valve of the cylinder.
⑤
Turn the valve slowly to the “②VAPOR RECOVERY”
position.
＊ Adjust suction pressure with valve to
3 ～ 5 kg/cm2／ 43.5 ～ 72.5psi.
⑥ Close the vapor valve of the cylinder when
the pressure in the cylinder drops (reduce
the discharge pressure by 2kg/cm2 /29psi a
or more).
⑦ Set the valve of the recovery machine to the
“⓪ START”.
⑧ Open the high pressure side valve or the
low pressure side valve of the manifold and
continue recovery.
◆ Noncondensablesubstance(air)mayexistinthecylinderwhenthetemperatureofthe
cylinderrisesabnormallyduringrecovery.
 Removetheairorreplacethecylinder.
Filter
Safetycable
ON
6
ON
5
Startswitch
OFF
2
OFF
7
Powerswitch
Systemtoberecovered
Recoverycylinder
withfloatsensor
Autostop
5
Open
8
Close
3
Low
Open
8
Close
3
High
Open
4
Close
6
Vaporvalve
V240SP
Autostop/run
switch
Open
Liquidvalve
Manifold
(optionalaccessory)
Open
High
Open
Low
Suctionpressure
3kg/cm2/43.5psi
orless
Adjustpressure
byvalve
● Cooling Unit (Code No. ES801) can lower the temperature of refrigerant at high pressure.
It improves the recovery rate up to 20% by cooling refrigerant.
See the instruction manual of Cooling Unit for detailed information.
3）UseCoolingUnitCL3(optionalaccessory)
CAUTION
HOW TO USE
