ASIN Salt
ELECTROLYSER FOR DISINFECTION
OF THE SWIMMING POOL WATER
2021
EN
www.asekopool.com
USER MANUAL
Electrode TE–25
OF THE SWIMMING POOL WATER
Electrode TE–25
www.welldana.com

EN
2
General safety information
This user manual contain basic information that should be observed during assembly, start-up, operation,
and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly
and start/up, and must be accessible to every user of this unit. Additionally, all further safety information
in this document absolutely must be observed. Read and follow all instructions. In order to minimize the
danger of injury, do not allow children to use this product. Hazards from non-compliance with safety
information. Non-compliance with safety information can result in hazards to persons, the environment,
and the equipment. Non-compliance with safety information will result in a forfeit of any potential right to
damage compensation.
Insufficient personnel qualification
Hazards in the event of insuciently qualified personnel, potential consequence: Injury,
heavy material damage.
•
The system operator must ensure compliance with the required qualification level.
•
Any and all work may only be performed by correspondingly qualified personnel.
•
Access to the system must be prevented for insuciently qualified
persons, e.g. via access codes and passwords.
Potential overdosing of chemical agents
Despite ASIN Aqua® comprehensive safety functions, it is possible that
a probe failure and other errors could lead to an overdosing of chemical
agents. Potential consequence: Injury, heavy material damage.
•
Design your installation such that uncontrolled dosage is not possible in
the event of a probe failure or other errors, and/or such that uncontrolled
dosage is recognized and halted before damage is incurred.
•
Uncontrolled overdose of chemicals can cause harm to health and property. Even though
the device contains a number of security elements can not be ruled out that in case of failure
of the measuring probes, or the whole device may result in overdose of chemical agents.
Install the equipment so that uncontrolled overdose of chemicals was not possible and that
uncontrolled overdose has been detected in time before causing any harm. It is necessary to
use chemicals in such quantities that an overdose will not cause dangerous concentration of
chemical agents. Do not use chemicals in too large packages or with too high concentration.
Gaseous chlorine produced from dosing in standing water if dosing
outputs are not closed via the filter pump
If the flow switch is stuck or experiences another error, there is a risk of dosing into standing water.
Poisonous chlorine gas can be yielded when sodium hypochlorite and pH minus come together.
Non compliance with informational text
There is a great deal of informational text indicating hazards and their
avoidance. Not observing informational text may lead to hazards. Potential
consequence: gravest degree of injury, heavy material damage.
•
Read all informational text carefully.
•
Cancel the process if you are unable to exclude all potential hazards.

EN 3
Use of new functions
Because of the continued development, a ASIN Aqua® unit may contain functions, which
are not completely described in this version of the user manual. The use of such new or
extended functions without a profound and secure understanding by the operator may result in
malfunctions and severe problems. Potential consequence: Injury, heavy material damage.
•
Make sure to get a profound and secure understanding of a function
and relevant boundary conditions, before you start to use it.
•
Check for an updated version of the user manual or additional
documentation available for the relevant functions.
•
Make use of the integrated help function of the ASIN Aqua® to get
detailed information on functions and their parameter settings.
•
In case it should not be possible to get a profound and secure understanding of
afunction based on the available documentation, do not use this function.
Overdosing if pH value is wrong
If disinfection is enabled before the pH value is stable in the ideal range of 7.0 to 7.4, then it may lead
to heavy overdosing of chlorine or bromine. Potential consequence: Injury, heavy material damage.
•
Do not start disinfection with chlorine until the pH value is
stable in the ideal range between 7.0 and 7.4.
Conditions before using
Make sure you have a newest and updated version of the user manual and other documentation
for all functions of the unit. Use and read the integrated help features. In case of not
understanding the information about certain features of the unit, do not use these features.
Handling chemicals for pool water treatment
The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage
or personal harm. Aseko recommends you always use personal protective safety equipment
when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
WARNING:
Never mix the pH agent with the chlorine agent. When
carrying out maintenance on the clear plastic tubes or valves always rinse
with clean water to prevent mixing of the pH and chlorine agents.

EN
4

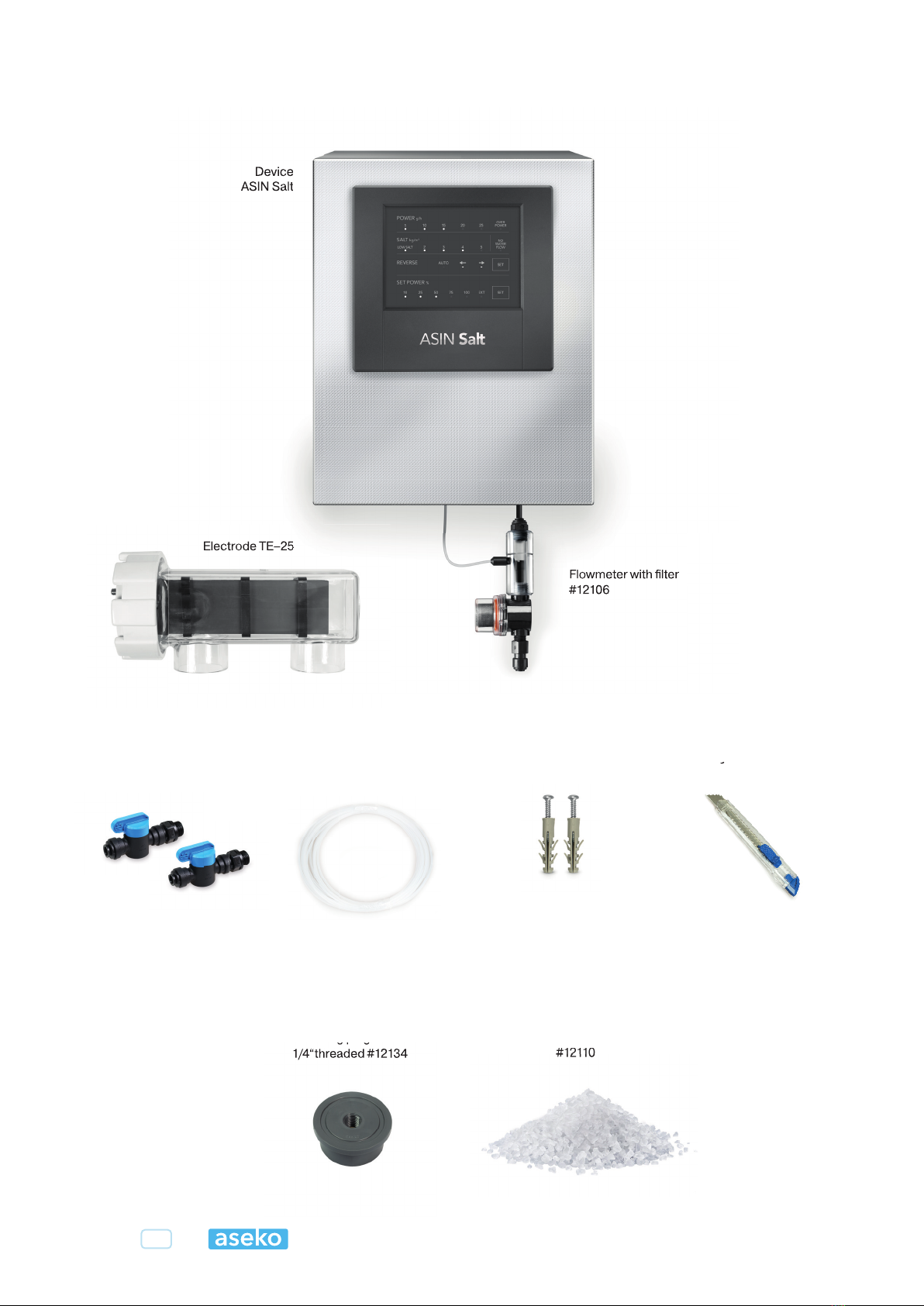

What do you receive in your box
Available optional accessories
Sharp knife for cutting
of interconnecting hose
of interconnecting hose
Dowels
and screws
Device
ASIN Salt
Electrode TE–25
Water valves 2 pcs #12006
PE Tube 1/4”(6.35 mm)
transparent 10m #12008
Biocid certified Salt
#12110
#12110
Inserting plug DN50
Inserting plug DN50
1/4“threaded #12134

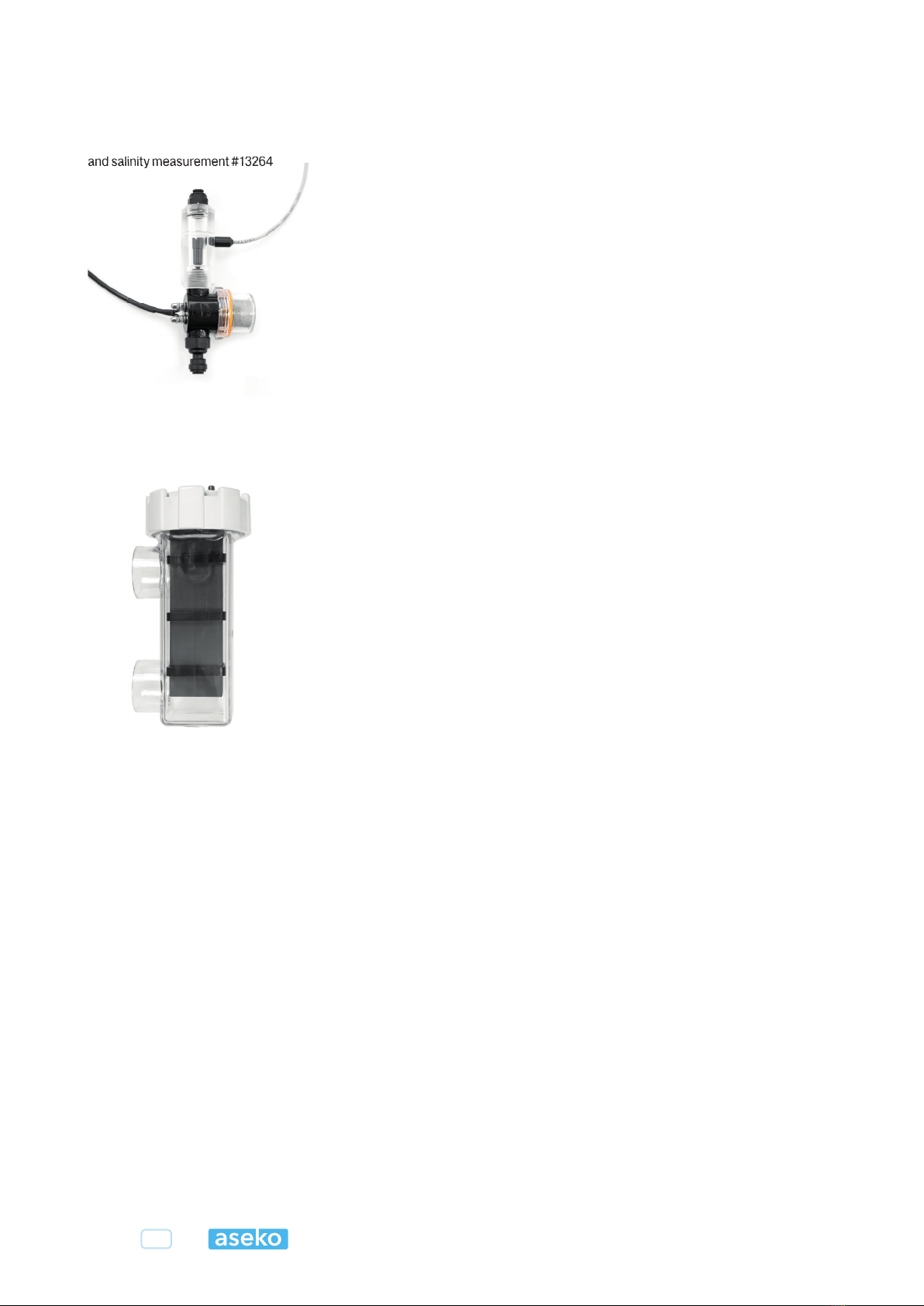

Flowmeter with filter
#12106

EN 5
ASIN Salt

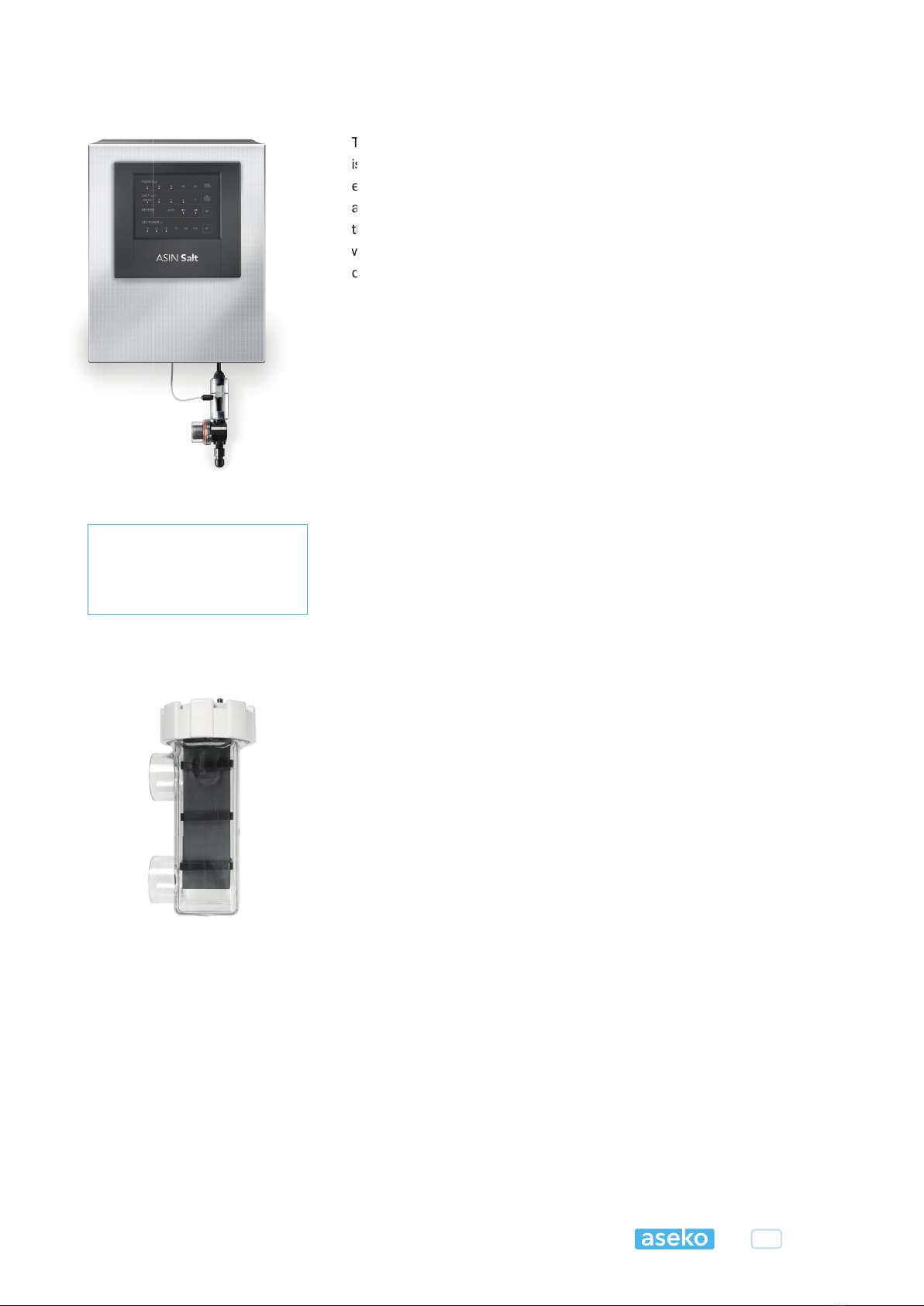

The ASIN Salt is a microprocessor-controlled electrolysis device. Salt water
The ASIN Salt is a microprocessor-controlled electrolysis device. Salt water
is electrolyzed by the modern system under the chlorine production, which
is electrolyzed by the modern system under the chlorine production, which
ensures the complete disinfection of the water and destroys bacteria, viruses
ensures the complete disinfection of the water and destroys bacteria, viruses
and green algae. During the electrolysis, the salt NaCl (4 kg / m3) contained in
and green algae. During the electrolysis, the salt NaCl (4 kg / m3) contained in
the water is broken down with the formation of chlorine, which remains in the
the water is broken down with the formation of chlorine, which remains in the
water in the form of hypochlorous acid. ASIN Salt consists of the electrolysis
water in the form of hypochlorous acid. ASIN Salt consists of the electrolysis
cell and the ASIN Salt control unit, which:
cell and the ASIN Salt control unit, which:
•
Enables the setting of the power in the range 10 - 100% (time control).
•
Detects the overload of the electrolytic cell.
•
Measures the salinity in the water.
•
Shows the performance of the electrolyzer in g CL/hour.
•
The self-cleaning of the electrolysis cell is ensured by switching.
Electrode TE–25
TE25 is a state-of-the-art electrolysis cell. The titanium construction with
ruthenium-iridium surface has a long service life and high performance. The
transparent housing is made of highly resistant ABS.
MAX POOL VOLUME
60 – 90m3

EN
6
ASIN Salt
40 °C
max.
5 °C
min.
4
0
c
m
4
0
c
m
4
0
c
m
4
0
c
m
1
5
0
c
m
ASIN Salt

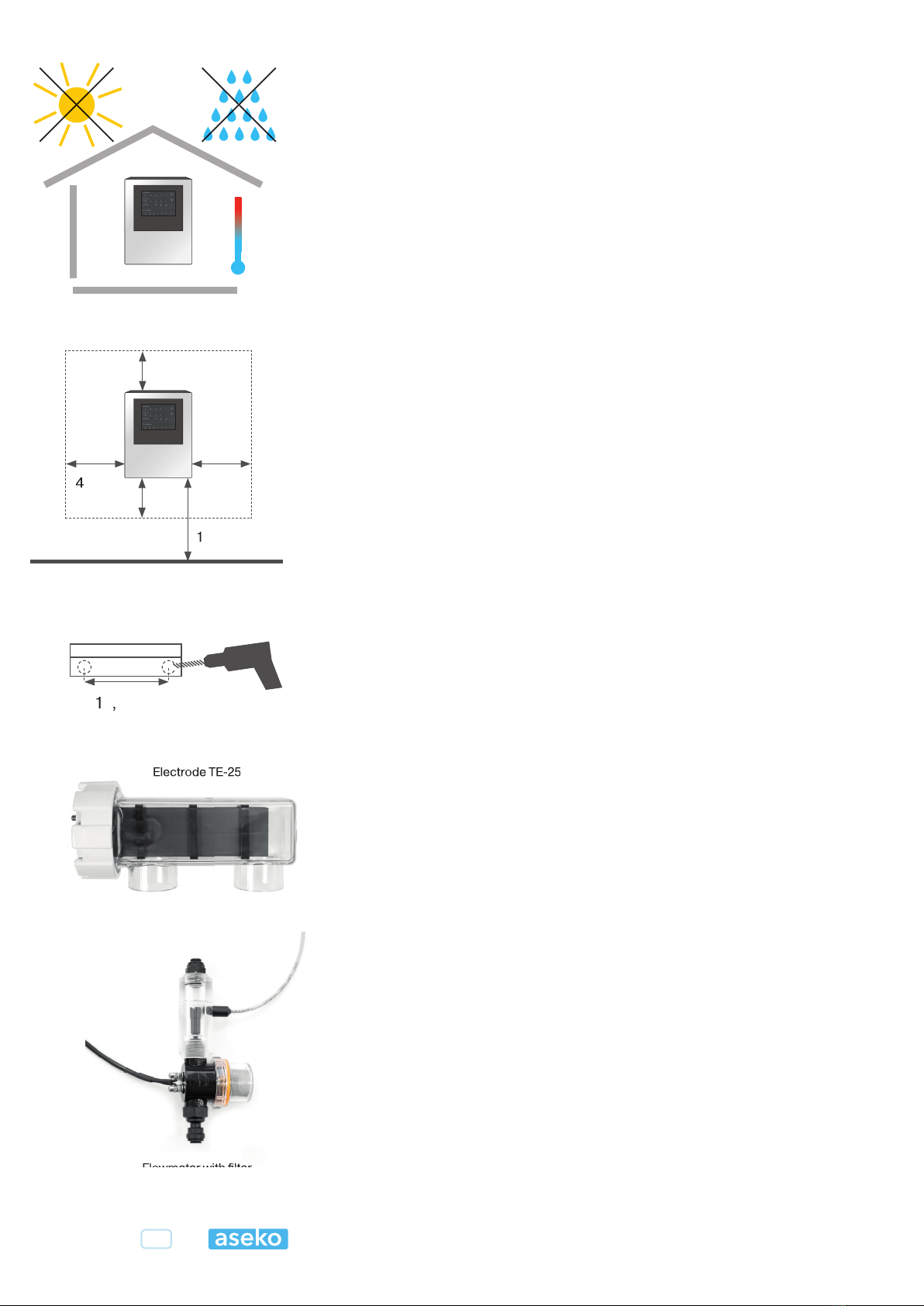

Installation of ASIN Salt
ASIN Salt is mounted on the wall in a dry and dust-free environment with
atemperature that does not fall below +5 ° C and does not exceed +40 ° C.
Amounting strip that is to be mounted on the wall is used for fastening.
Direct sunlight, high humidity and dust can damage ASIN Salt.
ASIN Salt
40 °C
max.
5 °C
min.
1
8
,
5
c
m
ASIN Salt
Electrode TE-25
Wall bracket
Flowmeter with filter
Flowmeter with filter
and salinity measurement

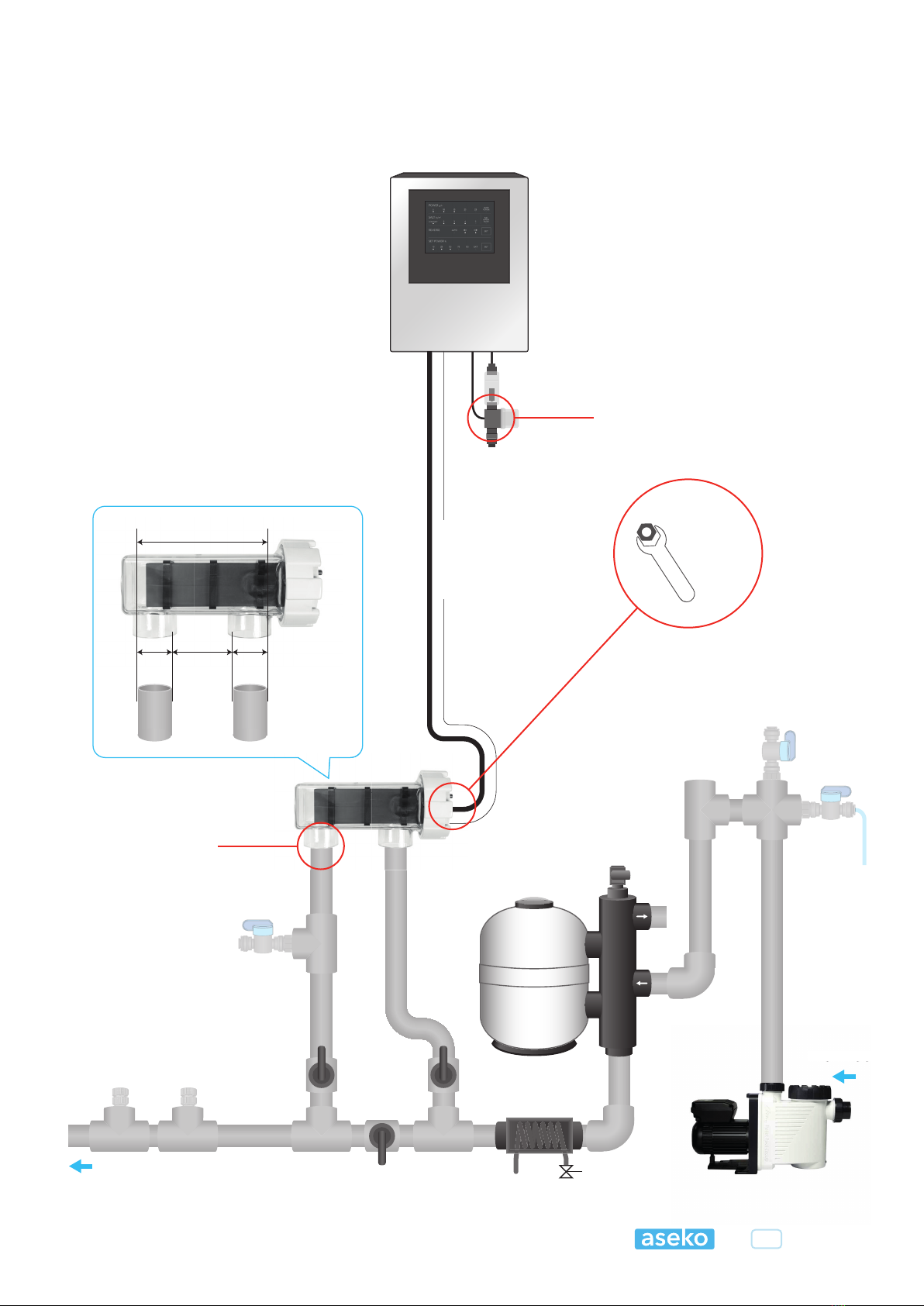

Assembly of the ElectrodeTE-25
The Electrode TE–25 is installed on the outlet water pipeline from the filtration in
the swimming pool. Assembly is carried out in the direct part of the pipe d = 50
by gluing. The kit for gluing is not included.
Salinity measuring unit
The salt content sensor is part of the sample water filter.

EN 7
50 84
184 mm
50 mm
Ø 50 mm
13 mm
20 Nm
ASIN Salt
Besgo
Salinity sensor
is now in
thefilter
Max 1,5 m
Gluing
TO POOL
Heating
FROM POOL
FROM POOL
FROM POOL

EN
8
When the electrode is in bypass is installed (which we recommend), either
the sample water extraction or the sample water return must also be installed
in the bypass.
This ensures that the electrode only receives electricity when when there is
w a t e r fl o w .

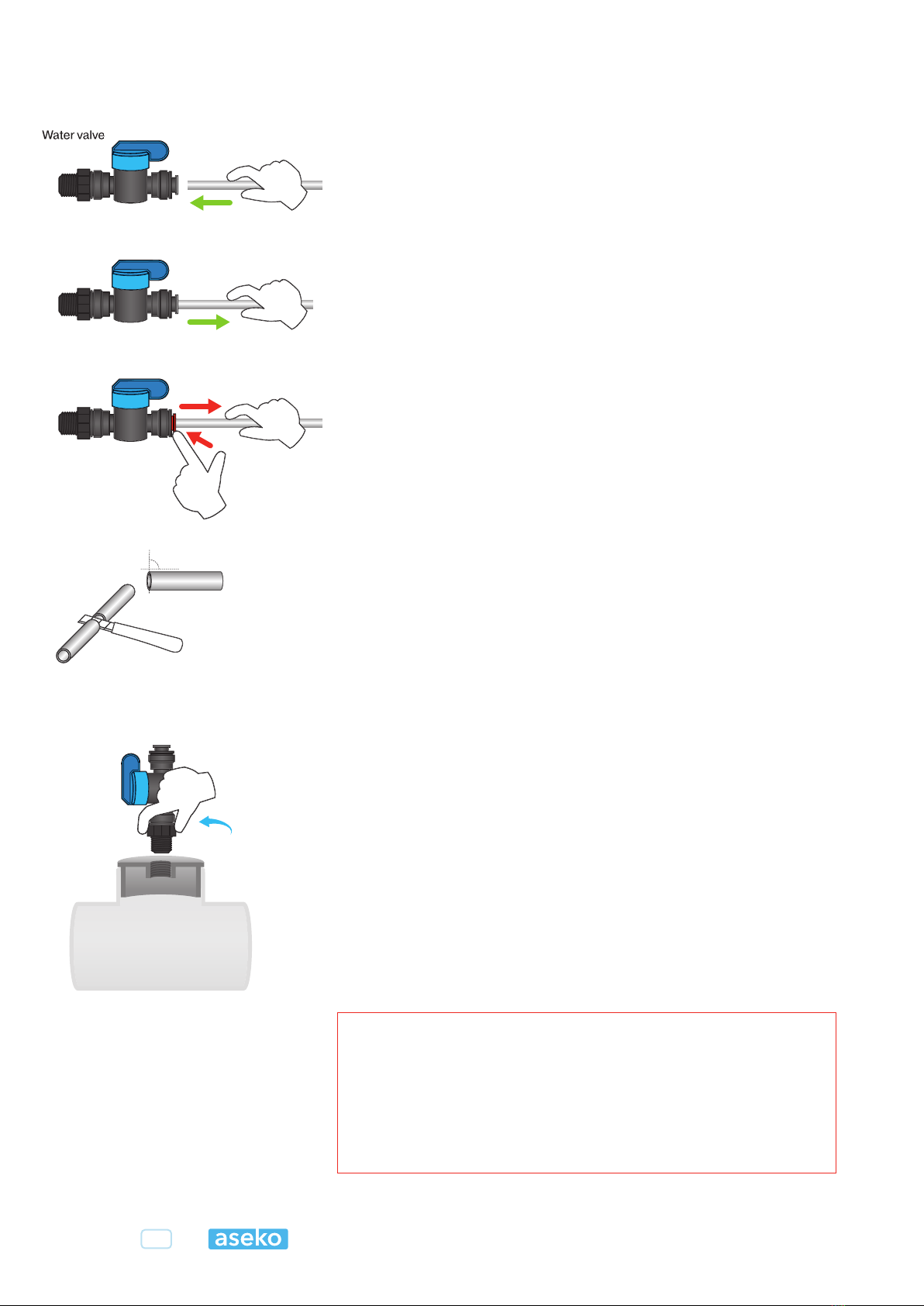

Pool Water Connection
The pool water to be measured must be connected to ASIN Salt. Connect the
measured water inlet downstream of the pump, upstream of the filter. Place the
water valve fitting to the T-joint, blinded by DN50 G1/4” threaded plug #12134.
•
The connecting fitting is installed in G1/4” thread.
Aseko provides the unique Speedfit connecting fitting for measured water
connection to your ASIN Salt. To connect the interconnecting tube, push it
into the Speedfit connector and then lock it by pulling back. To disconnect
the interconnecting tube, push and hold a circular collet and pull the
interconnecting tube out.
WARNING:
To treat PE tube ends, use a sharp knife (part of delivery). The use
of scissors or tongs deforms the tube end and leads to leaks.
WARNING:
Only hand tighten. Do not use tongs or any other tools.
1.
To ensure tightness of joints, cut the tube at 90 ° angle.
•
Use the sharp knife to cut plastic. The cut must be clean and smooth.
2.
Connect the water inlet to the measured water filter connection and the
water outlet to the probe housing connection. Make sure that measured
water pressure does not exceed 1.5 bar.
3.
The water outlet can be realized:
1. downstream of filtration
2. to non-pressure (overflow tank)
3. upstream of filter pump
Water valve
fi t t i n g
G1/4” thread
6.2x4 hose
CONNECTION
LOCKING
DISCONNECTION
Water valve fitting
Inserting DN50
plug
G1/4” threaded
T-joint
6.2x4 hose
90°
Pull out

EN 9
ASIN Salt

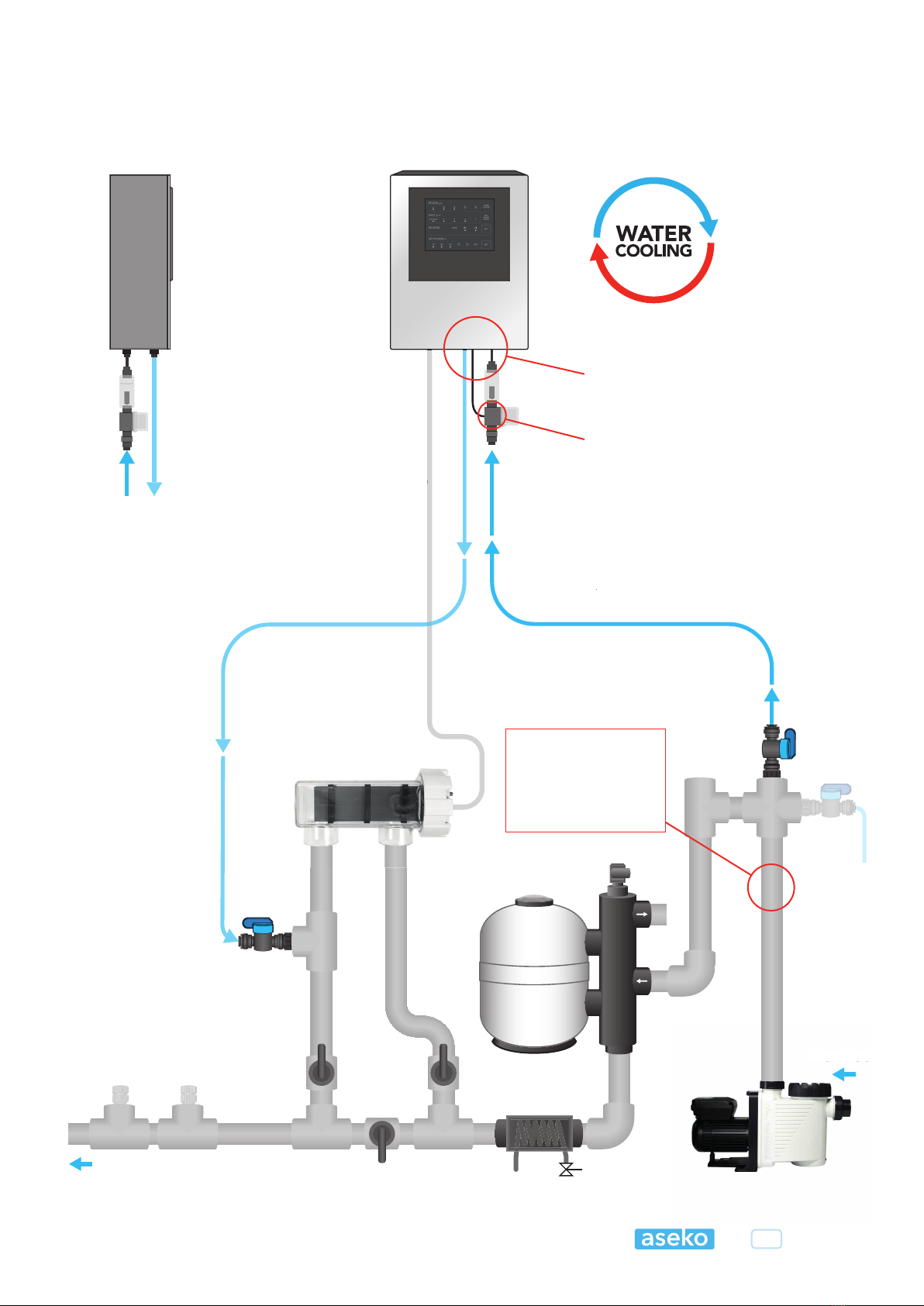

THE WATER OUTLET
POOL
WATER INLET
WATER INLET
IN
IN
OUT
OUT
OUT
Salinity sensor
is now in
thefilter
Water-cooled
Besgo
TO POOL
Heating
FROM POOL
FROM POOL
FROM POOL
Max. pool water
pressure
1,5 Bar

EN
10
Connection of the ASINSalt
toincrease performance
The ASIN Salt extension module must be connected to the ASIN AQUA Salt
control unit with a cable. To the external control too activate, select the EXT
mode on the led display.
Connection cable to ASIN Salt
up to 10
modules
Connection cable to ASIN Salt
up to 10
modules
up to 10
modules
( + ) ( + )
GND +12V B A
1
2
3
L
L
Bazénová roleta Hladinoměr Teploměr vzduch Teploměr voda Průtokoměr
Externí display
Topení Bez funkce
COM Speed 0 Speed 1 Speed 2 Speed 3
STOP LOW MEDIUM HIGH
230 V relé max 1A
ZDROJ NAPÁJENÍ
230 V ~ 50 Hz
Bezpotencionální relé Řízení variabilního čerpadla
Salinita
24 25222112 23873 4 5 6 9 10 19 20
Besgo 3 W Dnová výpust
30 31
Besgo 5 W Praní filtru Solenoid dopuštění
32 33 34 3526 27 28 29
131211 14
13 14 11 12
Roleta
Sepnuto – zavřená Rozepnuto – otevřená
Vstupy Salinita
COM
0123
36 37 38 39 40
Flow T water T out Level Cover Salinity Timer Bottom B.wash FillingHeating
VS pump
RS 485 Display RS 485
15 16 17 18
230 V ~ 50 Hz
T800mA
T1A
Pumpe
N
Ext out
In 15V
T fuse
L
NLNL
T fuse
T fuse
T fuse
T fuse
10
10
10
10
10
11
11
11
11
11
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
RS 485 Display
1 2
RS485 Salt IN 12V Salt Flow T fuse
34567
9 8
10 11
L2L115VAC
4 5

EN 11
Connection cable to ASIN Salt
TE 25 – ASIN Salt
TE 25 – ASIN Salt
TE 25 – ASIN AQUA Salt
TE 25 – ASIN AQUA Salt
HE ATING
TO POOL
FROM POOL
FROM POOL
up to 10
modules
Select the EXT mode

EN
12
Power Supply
Connection to the mains:
1.
Leave the mains switch in the o position.
2.
Connect the 230 V / 50 Hz mains cable to ASIN Salt. The mains socket outlet
must be protected by a residual current device (RCD).
3.
Change the mains switch over to the on position.
After Device has been switched on, the display will come on and the ASIN Salt.
Disconnection from the mains:
1.
Change the mains switch over to the o position.
2.
Disconnect the ASIN Salt mains cable from the 230 V / 50 Hz socket outlet.
WARNING:
If Device is used in the manner dierent from that specified by the
manufacturer, protection provided by Device may get damaged.
Power supply
230 V AC 50 Hz
Power consumption
157 W
Unit fuse
T2A
Electronics fuse
T125 mA
Protection class
IP30
Overvoltage category
II
Operation temperature
+5 to + 40°C
Max. measuring water pressure
1,5 bar
Dimensions
240 x 330 x 150 mm
Weight
5,5 Kg
RCD
Proudový
chránič
30 mA
230 V / 50 Hz
ASIN Salt
Residual
current device,
30 mA
230 V / 50 Hz
Installation must be
protected by a residual
current device (RCD).

EN 13
Operation
POWER g/h power
SALT kg/m
3
salinty
REVERSE polarity reverse
SET POWER power settings
POWER g/h
It shows how many grams of chlorine ASIN Salt produces per hour. When the
ASIN salt is overloaded, the OVER POWER LED flashes red.
SALT kg/m3
Shows the salinity in kg per m
3
of water. The red LOW SALT LED flashes
forvalues below 1.5 kg/m
3
. If the water flow is low, the NO WATER FLOW LED
flashesred.
REVERSE
Indicates and adjusts the direction of electrical current flow through the
electrodes. The auto mode changes the direction of the current flow
automatically after 1 hour. This mode is suitable for water with a higher
hardness. Alonger service life of the electrode can be achieved by lengthening
the reversal time, so that one of the two current flow directions can also
bepermanently set. This mode is only suitable for waters with
a low mineral content.
SET POWER %
Set the required power to 10, 25, 50, 75 and 100% of the current power.
The performance is regulated by shortening the production time.
In EXT mode, ASIN Salt is used as an extension of the ASIN AQUA Salt,
power is regulated according to the measurements.

EN
14
RECOMMENDED
WATER PARAMETERS
Salt concentration
1,5 - 4 kg/m
3
1,5 - 4 ppm
pH
7,2 - 7,6
Alkalinity
80 - 150 ppm
Calcium hardness
Max 250 ppm
max. 14 dH
System start-up
Salting the pool water
Chlorine generating depends on the salt concentration and water temperature.
As lower the temperature as lower the chlorine production. You can boost the
electrolyzer by increasing the salt concentration. 1 kg of salt per cubic meter
of water can increase the electrolyzis power for about 20%. Maximum salt
quantity is 4kg/m³.
Exceeding of the recomended salt concentration will overload power supply
components of the ASIN AQUA Salt. The main unit is protected by maximum
current control circuit. At overload is the power supply automatically discon-
nected. Thin the salt concentration before switching the power supply again.
Never use lower salt concentration than 3g/l - this expressively reduce the
electrode lifetime. Higher salt concentration is very corrosive and may cause
corrosion of pool equipment.
Disinfection is expressively affected by following:
•
temperature
•
intensity of sun shining
•
quantity of person using the pool
•
weather conditions
•
organic pollution
Instructions to operate the electrolyzer:
Never switch on the ASIN AQUA Salt before the salt concentration in the pool
water reach at least 3g/l. This may cause the electrode damage. Optimum
concentration is 4g/l.
Quantity of produced disinfection by ASIN AQUA Salt is controlled by salt
concentration, time of ASIN AQUA Salt operation.
Never switch on the ASIN AQUA Salt before dissolving of all salt.
Electrode connection to ASIN AQUA Salt must be done only when disconneted
power supply.
MAX POOL
VOLUME
Uncovered
60 m3
Covered
90 m3
Max. Salt
4 kg/m3
Min. Salt
1,5 kg/m3

EN 15
Salt to be used
Do not use rock salt. All additives may cause electrode lifetime shortening.
ASIN AQUA Salt is designed to electrolyze water with 4 kg/m
3
salt
concentration.
Electrode may get damaged at lower salt concentrations than 3 kg/m
3
. It is
necessary to provide routine salt concentration control. The salt concentration
is getting changed by the electrolyzer operation just minimally.
The main concentration waste is caused by filter backwashing, splashing and
strong rains (in case of outdoor pool).
Following sheet describe salt quantity in kg necessary to increase the con-
centration to 4 kg/m
3
.
SALT
CONTENT
kg/m3
POOL VOLUME
10
m
3
15
m
3
20
m
3
25
m
3
30
m
3
35
m
3
40
m
3
50
m
3
60
m
3
70
m
3
Salt quantity inkg, necessary to increase the concentration to 4 kg/m
3
0
40
60
80
100
120
140
160
200
240
280
0,25
37,5
56,25
75
93,75
112,5
131,25
150
187,5
225
262,5
0,5
35
52,5
70
87,5
105
122,5
140
175
210
245
0,75
32,5
48,75
65
81,25
97,5
113,75
130
162,5
195
22 7,5
1
30
45
60
75
90
105
120
150
180
210
1,25
27, 5
41,25
55
68,75
82,5
96,25
110
13 7,5
165
192,5
1,5
25
37,5
50
62,5
75
87,5
100
125
150
175
1,75
22,5
33,75
45
56,25
67, 5
78,75
90
112,5
135
15 7,5
2
20
30
40
50
60
70
80
100
120
140
2,25
17, 5
26,25
35
43,75
52,5
61,25
70
87,5
105
122,5
2,5
15
22,5
30
37,5
45
52,5
60
75
90
105
2,75
12,5
18,75
25
31,25
37,5
43,75
50
62,5
75
87,5
3
10
15
20
25
30
35
40
50
60
70
3,25
7,5
11,2 5
15
18,75
22,5
26,25
30
37,5
45
52,5
3,5
5
7,5
10
12,5
15
17, 5
20
25
30
35
3,75
2,5
3,75
5
6,25
7,5
8,75
10
12,5
15
17, 5
4
0
0
0
0
0
0
0
0
0
0
SALT
BIOCID CERTIFIED

EN
16
Maintenance
To ensure optimal performance, the ASIN Salt requires regular
visual inspection and maintenance.
Flowmeter with filter and salinity measurement
Rinse the sieve of the flow monitor regularly.
Durability of the electrolytic cell
Lifetime of the electrolytic cell is 8000 running hours. The electrodes in the
electrolytic cell are made of titanium with a ruthenium and iridium layer. During
electrolysis this layer gets consumed. Durability of the electrodes is reduced by
the following parameters:
• Low salt content
• Water temperature below 10 ° C
• Low water flow
• Too hard water
• pH below 7.5
• Addition of metals containing preparations
Electrolysis cell cleaning
Electrolysis cell cleaning
In operation, the electrolysis cell is gradually clogged by sediments from the
hard water, that must be eliminated repeatedly. The clogging of the electrolysis
cell decreases the electrolysis cell capacity. In this case, the electrolysis cell
has to be taken out and submerged in the cleaning bath for about 10 minutes.
The coating should disappear and the electrolysis cell can be used again.
Flowmeter with filter
and salinity measurement #13264
and salinity measurement #13264
Elektrolysezelle TE – 25

EN 17

EN
18

EN 19

www.asekopool.com
ASIN Salt
USER MANUAL
EN
www.welldana.com
