Basic Safety Instructions
This User Manual includes the basic safety instructions and information for
erection, commissioning, operation and maintenance of the ASIN Aqua device
(hereinafter referred to as “Device”). Therefore, before using Device, each
person, in particular that executing its erection, commissioning or maintenance,
and each its user unconditionally has to read this User Manual. This User Manual
has to be kept for later consultation and always available for all the users of
Device. All the safety instructions and information given in this User Manual shall
be unconditionally followed.
Risk of Non-Observance of Safety Instructions
Failure to observe the safety instructions given in this User Manual can result in
damage to Device and/or health and property, including environment.
Failure to observe the safety instructions and information given in this User
Manual shall result in exclusion or restriction of the prospective right to
compensation for damage.
Insufficient Qualifications of Persons Using Device
Unauthorised use of Device can result in damage to health and property. Device
erectionandcommissioningshallexclusivelybeperformedbyaskilledtechnician
or service company. A person performing Device erection and commissioning
shall train the user to such an extent that the user fully understands all the
risks related to incorrect manipulation of Device. Persons having insucient
qualification and knowledge of Device shall be denied access to Device and
manipulation of it. Furthermore, children and persons with reduced physical,
sensory or mental abilities are not allowed to use and handle Device unless they
are under supervision.
Overdose of Chemical Agents
Uncontrolled overdose of chemical agents can result in damage to health and
property. Despite the fact that Device includes a number of safety elements,
occurrence of overdose of chemical agents for water treatment cannot be
excluded in case of a failure of measuring probes or the entire Device. Install
Device so that uncontrolled overdose of chemical agents cannot occur and be
recognised in time before damage takes place. It is necessary to use chemical
agents in such concentrations and stock amounts that prevent their dangerous
concentration from being formed in water in case of a possible overdose. Do
not use too large packages of chemical agents or highly concentrated chemical
agents.
Formation of Chlorine Gas during Dosing of Chemical
Agents to Standing Water
If the checking flowmeter of Device is blocked or broken, there is a risk of dosing
chemical agents to standing water. In this case, a toxic chlorine gas is produced
by mixing of chlorine disinfection and pH reducing agent. The chemical agents
are not allowed to be dosed to standing water.

EN 3
MisapprehensionofSafetyInstructionsandInformation
This User Manual includes a large amount of safety instructions and
further information text. Failure to observe safety instructions as a result of
misapprehension may result in damage to health and property. Carefully read
the entire User Manual. Do not manipulate Device unless you are able to exclude
all potential hazards resulting from misapprehension of safety instructions and
other information.
Use of Device New Functions
Considering ongoing development, Device may include functions that are
not fully described in this version of the User Manual. The use of these new or
advanced functions without being fully comprehended by the user may lead to
Device damage and other serious consequences, including damage to health
and property. Make sure that all the users comprehend all the Device functions.
Conditions to be Met before You Start Using Device
Check whether you have the updated version of the User Manual and other
documentations for all the Device functions. Use the integrated help of Device.
If, on the basis of available information, you cannot fully comprehend some
functions of Device, do not use them.
Install ASIN Aqua in a covered, dry place far away from dust and high humidity
and make sure that all the electric connection are safe.
Do not attempt to open ASIN Aqua, do not replace any of internal parts. This
would damage electrical integrity of ASIN Aqua.
Handling of Chemical Agents for Pool Water Treatment
The chemical agents must be handled in a safe manner in order that no damage
or injury could occur. Aseko recommends to always use personal protective
equipment during manipulation of pool chemistry. For instructions, see the
safety data sheets (SDS)
WARNING: Never allow a pH agent to be mixed with Chlorine disinfection or any
other chemical (chlorine gas, which is toxic, could release). In maintaining plastic
tubes or valves, always rinse them with water to prevent them from being mixed.
RECOMMENDATION: Before using the pool, make sure that water parameters
are suitable for bathing using an Aseko hand tester.

EN
4
Box Content
Knife for cutting of
interconnecting hose
Interconnecting hose 1/4”
(6.35 mm) - transparent
Flowmeter
Pumps
Probe well
Measured water filter
Dowels
and screws
Closing valves 2 pcs
pH TESTER
Aseko Pool Technology
TESTER pH
HAZARD, GEFAHR,
DANGER,NEBEZPEČÍ
pH
Store in dry and dark place
An einem trockenenund dunklen O rt aufbewahren
Stockerdans un endroit sec et sombre
Skladujte v suhcu a temnu min. +5°C max. + 30°C
Producer: ASEKOspol. s r.o.
Videnska 340, 252 50,Vestec, CZE
Tel:[phone]
aseko.com
Expiration date
on the cap.
Content:20 litres
05
PP
ETHANOL SOLUTION
(ETHYL ALCOHOLSOLUTION)
UN 1170
pH testerWrench socket for
probes
OX tester
Device
ASIN AQUA Oxygen
Spray valve 4 pcs
Long Life pH probe Water thermometer with well ZPM
1/2”-1/4” adapter
Weight into barrel 4 pcs

EN 5
Accessories Available for Purchase
Chemistry Available for Purchase
20 l volume for pools
5 l volume for whirlpools
OXY PURE #13038
OXY PURE #13039
ALGICID #12156
ALGICID #12157
pH MINUS #12130
pH MINUS #12131
pH PLUS #12120 FLOC+C #12139
FLOC+C #12138
External touch display #12048 Pressure-type level gauge #12086
Air thermometer #12010
pH 7.00 Buer #12065Inserting DN50 plug
1/4” threaded #12134

EN
6
ASIN AQUA Oxygen
POWER OF SYNERGY
for crystal-clear and chlorine-free water
The principle is above all based on perfect removing of all the impurities as
well as larger bacteria by filtering. It is due to a unique mixture of coagulant
and flocculant FLOC+C, which after having been sprayed in ZPM (coagulation
mixer) shall gather even the smallest impurities to create larger floccules that
shall subsequently be perfectly removed by the special AFM (Activated Filter
Media). Thanks to the perfect mechanical treatment of water, it is sucient to
use minimum chemistry to keep water clean and safe. The basis for disinfection
and removal of algae is the modern polymeric ALGICIDE being non-oxidative,
hence very comfortable for skin. The OXYPURE preparation then only serves for
oxidation of water and its sparkly appearance.
OXY Pure
Active oxygen for clean and crystal-clear water.
pH control
ASIN AQUA Oxygen makes it possible to dose pH MINUS or pH PLUS.
ALGICIDE
The eective polymeric biocide protects water against algae, fungi, moulds and
bacteria.
FLOC+C
FLOC+C contains flocculation and coagulation components. Its continual dosing
improves filtration capability of catching even the smallest impurities.
AFM®(Activated Filter Media)
AFM is direct substitute for filter sand. It doubles eciency of the existing
filtration system. AFM®is resistant to biological pollution and formation of so-
called biofilm.
ZPM®(Zeta Potential Mixer)
ZPM increases eects of coagulation and flocculation for transition of smaller
dissolved solids (turbidity) to larger particles that can be removed by filtering.

EN 7
Filtration Time Control
Daily, automatic start of the filter pump, as required, by means of the time interval.
Water Level - Refilling
Water level is controlled by level gauge #12086. As required, it switches water
refilling on and o. If water level is too low, it switches refilling on, if water level
is too high, it activates backwashing (this requires an automatic backwashing
Besgo valve).
Filter Backwashing
The filter backwashing time interval can be adjusted (this requires an automatic
backwashing Besgo valve).
Water Temperature Control
The system can control water temperature by switching heating on (electrical
heating, gas heating, heat exchanger).
Freeze Protection
Unless you want to empty the pool during the winter season, this function can
ensure protection of the pool against freezing.
Aseko Web Services
The system can be connected to Internet using the integrated power adapter.
When on route, you can easily monitor data of your pool at http://ipool.aseko.com
or using the iPool Live application. If current values are higher or lower than the
adjusted limit values, you will receive the message directly to your smartphone.
Inorganic coagulant and
polymeric flocculant
Turbid water is
colloidal suspension
Coagulation
(inorganic coagulant)
< 1 second
Flocculation
(polymeric flocculant)
approx. 3 minutes
Filtration
(AFM - Activated
Filter Media)
ZPM
(Zeta Potential
Mixer)
FROM POOL
TO POOL
Only particles with
negative charge are
present in the pool water.
A charge of suspended
particles is neutralised in
ZPM.
Polymeric flocculant
causes that neutral
particles join together to
create solid floccules.
Solid floccules are
easily caught by
filter media.

EN
8
ASIN AQUA Oxygen Installation
ASIN AQUA Oxygen is to be wall mounted in dry and dust-free environment with
temperature ranging from +5°C to +40°C. Install the mounting rail, which serves
for attachment, to the wall. Select location so that free space at least 40 cm in all
directions and height above floor at most 150 cm are provided. Drill three holes
in the wall at the distance of 18.5 cm.
Use screws supplied with ASIN AQUA Oxygen for attachment.
WARNING: The location temperature should permanently be in the range from
+5°C to +40°C. Direct sunlight, high humidity and dust may lead to damage to
ASIN AQUA Oxygen.
• Before installing, make sure that water in the pool is clean and without
impurities.
• The maximum distance of spray valves from peristaltic pumps of ASIN AQUA
Oxygen must not be greater than 8 m.
• Vertical distance between ASIN AQUA Oxygen and the bottom of containers
must not exceed 2 m.
40 °C
max
5 °C
min
40cm
40cm 40cm
40cm
150cm
18.5 cm 18.5 cm
max 8m
max 2m
Wall bracket

EN 9

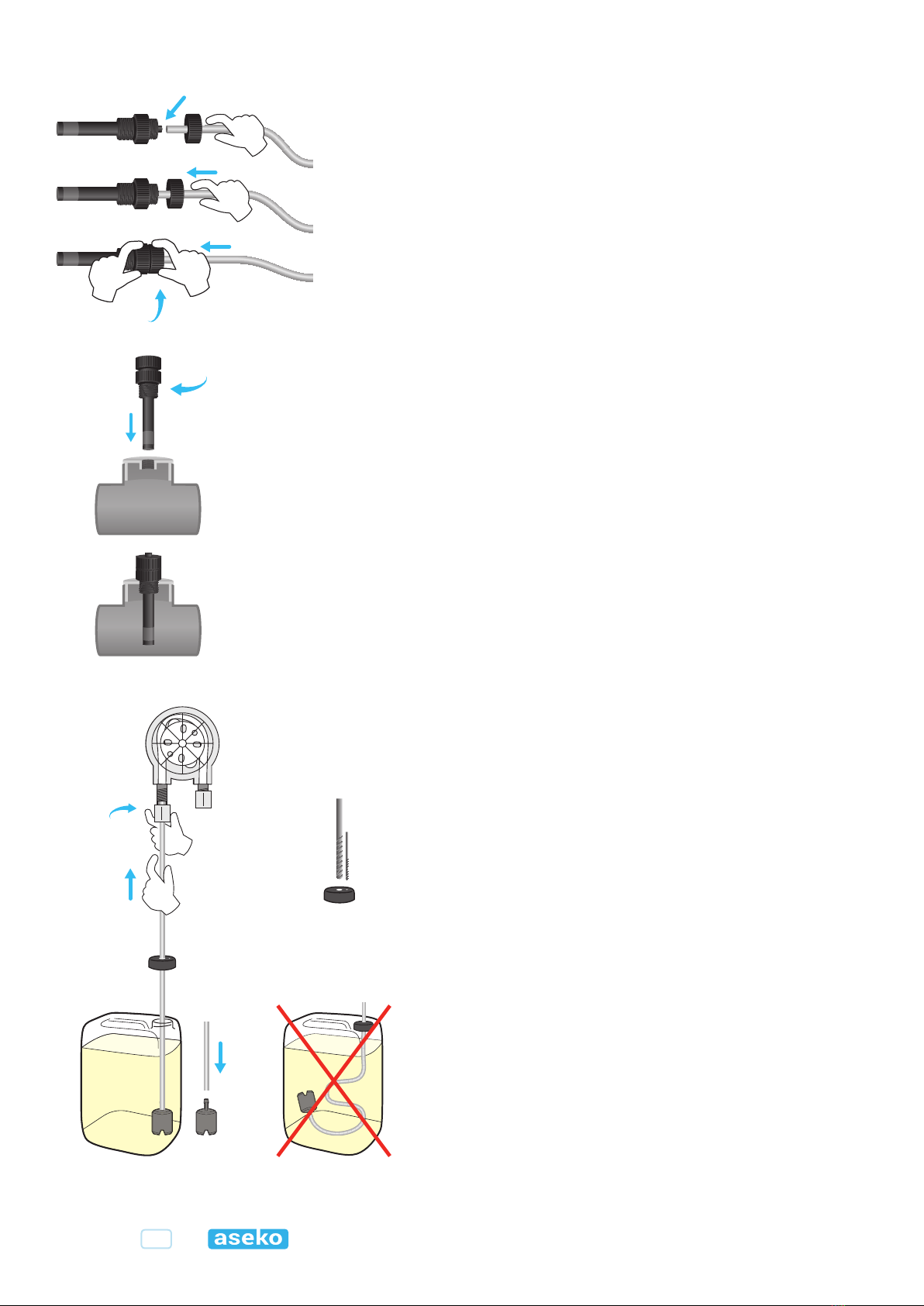

Probe Installation
1. Carefully insert the pH probe into the well.
2. Hand tighten or use the attached plastic wrench socket for probes.
3. Connect the connector and lock it by tightening a connector ring.
After probes have been inserted, slightly tightened and connectors have been
connected, ASINAQUAOxygen is ready for connection to water to be measured.
WARNING: Only hand tighten the probes or use the attached plastic wrench
socket for probes. Do not use tongs or any other tools.
Probe well
Long Life pH probe
#12012
Wrench socket for
probes

EN
10
Connection of Water to be
Measured
The pool water to be measured must be connected to ASIN AQUA Oxygen.
Connect the measured water inlet downstream of the pump, upstream of the
filter and ZPM (coagulation mixer).
Place the connecting fitting in the T-joint in which stick the DN50 1/4” threaded plug
#12134.
• The connecting fitting is installed in G 1/4” thread.
Aseko provides the unique Speedfit connecting fitting for measured water
connection to your ASIN AQUA Oxygen. To connect the interconnecting hose,
push it into the Speedfit connector and then lock it by pulling it. To disconnect the
interconnecting hose, push and hold a circular collet and pull the interconnecting
hose out.
WARNING: To treat hose ends, use a sharp knife (part of delivery). The use of
scissors or tongs deforms the hose end and leads to leaks.
WARNING: Only hand tighten. Do not use tongs or any other tools.
1. To ensure tightness of joints, cut the hose at 90° angle.
• Use the sharp knife to cut plastic. The cut must be clean and smooth.
2. Connect the water inlet to the measured water filter connection and the water
outlet to the probe well connection. Make sure that measured water pressure
does not exceed 1.5 bar.
3. The water outlet can be realised:
1. downstream of filtration
2. to non-pressure (overflow tank)
3. upstream of filter pump
After the water inlet has been connected and opened, your ASIN AQUA Oxygen
is ready to measure and adjust the pH value in your pool so as to achieve the
required values.
Connecting
fitting
1/4” thread 6.2x4 hose
CONNECTION
LOCKING
DISCONNECTION
Connecting
fitting
Inserting DN50
plug 1/4” threaded
T-joint
6.2x4 hose
90°
Pull out

EN 11
Odpad
Besgo
Ohřev
Teploměr
ZPM
koagulační
mixer
DO BAZÉNU
Z BAZÉNU
MEASURED WATER OUTLET
CAN BE REALISED:
1. downstream of filtration
2. to non-pressure (overflow tank)
3. upstream of filter pump
MEASURED
WATER OUTLET
MEASURED
WATER INLET
Thermometer
Waste
Heating
Besgo
ZPM
(Zeta
Potential
Mixer)
TO POOL
FROM POOL

EN
12
Connection of Spray Valves and
Dosed Agents
In this step, it is necessary to connect the spray valves of individual chemicals to
the dosing pumps and dosed agents.
Place the spray valve in the T-joint in which stick the DN50 1/4” threaded plug
#12134.
1. To ensure tightness of joints, cut the hose at 90° angle.
• Use the sharp knife to cut plastic. The cut must be clean and smooth.
2. Drill the 6 mm hole and the 1 mm hole (suction) into the OXYPURE canister
cap. Run the hose through the cap. Select the hose distance so that the hose
reaches the canister bottom and can be connected to the pump as straight
as possible. A long hose in the canister would bend and produce air bubbles.
3. Put a weight on the hose in the canister.
4. Connect the plastic hose from the OXYPURE canister to the
ASINAQUAOxygen pump (marked as 1 OXYGEN) to the left connection.
5. Connect the plastic hose to the 1 OXYGEN pump right connection and the
spray valve.
6. Hand screw the OXYPURE spray valve in the specified mounting hole (see
diagram).
• The spray valve is installed in G 1/4” thread.
To connect dosing of pH, algicide and flocculant, repeat steps 1 to 6 for other
pumps according to their marking.
• Check throughput of the spray valves and tightness of the entire system (see
installation test).
WARNING: Only hand tighten. Do not use tongs or any other tools.
Ø 1 mm
Ø 6,3 mm
Ø 1 mm
Ø 6,3 mm
Ø 1 mm
Ø 6,3 mm
T-joint with inserting
DN50 plug 1/4”
threaded

EN 13
Odpad
Besgo
Ohřev
Teploměr
ZPM
koagulační
mixer
DO BAZÉNU
Z BAZÉNU
Thermometer
ZPM
(Zeta
Potential
Mixer)
Waste
Besgo
HeatingTO POOL
FROM POOL

EN
14
RCD
Proudový
chránič
30 mA
Max 1,4 kW
230 v~
230 V / 50 Hz
Electrical Connection
Connection to the mains:
1. Leave the mains switch in the o position.
2. Connect the filtering device to the ASIN AQUA Oxygen switched socket outlet
(filtration power supply - max. 1.4 kW / 230 VAC).
3. Connect the 230 V / 50 Hz mains cable to ASIN AQUA Oxygen (on the right
side). The mains socket outlet must be protected by a residual current device
(RCD).
4. Change the mains switch over to the on position.
After Device has been switched on, the display will come on and the ASIN AQUA
Oxygen starting screen will appear.
Disconnection from the mains:
1. Change the mains switch over to the o position.
2. Disconnect the ASIN AQUA Oxygen mains cable from the 230 V / 50 Hz
socket outlet.
3. Disconnect the filtering unit mains cable from ASIN AQUA Oxygen.
WARNING: If Device is used in the manner dierent from that specified by the
manufacturer, protection provided by Device may be damaged.
Power supply 230 V / 50 Hz
Input power 24 VA
Power consumption (including filtration) 1,449 VA
Maximum input power of connected filtration 1.4 kW / 230 VAC
Fuse T800 mA; T160 mA; T6.3 A
Overvoltage category II
Protection degree IP30
Climatic resistance +5 to +40°C
Weight 6.7 kg
Installation wall mounted
Relay output contacts max. 230V/1A,
voltage-free
Discharge of dosing pumps 60 ml/min. / max. 1 bar
Measured water pressure max. 1 bar (no underpressure
required)
Dimensions 430 x 330 x 160 mm
Residual
current device,
30 mA
230 V / 50 Hz
Max. 1,4 kW
230 v~

EN 15
Connection of Accessories
1
12V
23456789
GND
T800mA
16 17 18 19
L L N N
T125mA
Externí displej
RS 485
Teploměr vody
Teploměr
venkovního
vzduchu
Relé topení
Solenoid dopouštění
Besgo ventil
Hladinoměr
Průtokoměr
Besgo valve
Refilling solenoid
Heating relay
Level gauge
Flowmeter
Water
thermometer
Outdoor air
thermometer
External display

EN
16
Test of Installation
WARNING: All obstacles, bubbles or leaks in the connecting hose will prevent
ASIN AQUA Oxygen from correctly functioning. The clear plastic hose makes it
possible for you to monitor flow of liquid to the spray valves.
Before commencing the operation, test ASIN AQUA Oxygen installation.
Most problems result from incorrectly performed installation.
Test
In the “Test of Outputs” menu, gradually start all the pumps and while they are
running, check tightness of all the connecting hose connections. Check the
spray valves for blockage and air bubbles in the hose.
Initial Dose
See page 22.
Check tightness of all the
connections.
Liquid must reach spraying and
subsequently the hose.
If bubbles are produced here,
the pump draws air in.
Again cut the hose correctly.
Monitor level in the
transparent plastic
hose.

EN 17
Control
Basic Screen
It shows measured, required values and status information.
For example, click the box OXY to display setting of the
required value.
Controls
Manual control allows to:
switch filtration on/off outside times adjusted.
tart filter washing outside times adjusted.
ON/OFF indicates the current state of filtration.
The timer allows to set the control mode and adjust times of
filtration duration.
ON - filtration follows times adjusted.
NONSTOP 24 h – filtration in operation for 24 hours
uninterruptedly.
For additional information on filtration setting, see “Filtration
Control Setting (TIMER)”.
Enter settings.
Settings
Back to the main screen.
Displays help/manual for the concrete screen.
Back to the previous screen.
Movement through Menu
Movement in menu to the previous page.
Indicator of the current page and the total number of pages.
Movement in menu to the next page.
ON - function is switched on
OFF - function is switched o

EN
18
Values Required
OXY PURE Setting
A suciently eective dose for most pools is 10 ml/m3per day. After several
days in operation, measure OXYPURE concentration using the hand tester and
change the dose, if required.
pH Setting
Considering that the ASIN AQUA Oxygen water treatment system is ecient in
the broad pH range, it is useful to enter the required pH value equal to pH value of
water you refill or slightly lower.
Required pH value = refilled water pH value
pH may change during operation but if it is in the range from 6.4 to 7.6, you do not
have to change this setting.
ALGICIDE Setting
A suciently eective dose for most pools is 10 ml/m3per day. If green algae
appear in the pool, you can increase the dose. After algae have disappeared, the
dose can be returned to 10 ml.
FLOC+C Setting
A FLOC+C dose follows the amount of circulating water flowing through the filter.
Based on your circulating pump discharge (in m3per hour), adjust the FLOC+C
dose value. This value ranges from 5 to 20 ml per hour for most domestic pools.

EN 19
ASINAQUAOxygenConfiguration
Date and Time
To ensure the correct function of timers, adjust the current values of date and
time.
Pool Volume
To ensure the correct function of ASIN AQUA Oxygen, enter the correct pool
volume. Calculate your pool volume in m3:
Length (L) times width (W) times depth (D) is volume (V) - (L×W×D=V).
Enter the value using + and - buttons.
WARNING: The pool volume has eect on the maximum safe dose, enter the
correct value.
Filtration Timer
Filtration can be NONSTOP in operation for 24 hours or in one up to two time
intervals.
Variable Pump Control
ASIN AQUA Oxygen allows to control the circulating pumps with a SPECK and
PENTAIR variable drive. During time intervals adjusted on TIMER, the pump
is running at speed 2, outside adjusted time intervals (when the pump would
normally beswitched o), the pump is running at speed1. Incase of backwashing,
the pump is running at speed 3.
Individual speeds 1, 2, 3 are adjusted directly on the pump according to the
respective pump manual.
Automatic Filter Washing
Considering that the ASIN AQUA Oxygen technology is in particular based
on the high eciency of filtering and removing even the finest impurities, it is
necessary to wash the filter on a regular basis. The automatic washing function
ensures the filter washing on a regular basis in the preselected intervals.
To enable this function, it is necessary to use the automatic 5-way BESGO valve.
Its moving is enabled by the relay No. 17 switching on. When the relay switches
on, the BESGO valve is enabled and moved to the required position by the action
of pressure water or air. See the BESGO manual.

EN
20
Heating Control
Water Temperature Measurement and Heating Control
The high-accuracy electronic thermometer is used for water temperature
measurement. This should be installed in the inlet pipe from the pool. Never
mount it downstream of the heat exchanger. Significant distortion of temperature
occurs. When temperature drops below the required value, the relay No. 15
switches on enabling your heat source (heat pump, electric heating, gas boiler
circulating pump).
Heating Control Function Takes Priority over Filtration Control
If you select the temperature control to take priority over the filtration timer,
heating as well as the circulating pump will be in operation even after the adjusted
time for the circulating pump run has elapsed. The pump will stop only after the
required temperature has been achieved. It will restart at time adjusted in the
timer.
Heating Time Adjustment
This function allows to adjust time for which heating will be in operation. This is
particularly useful for switching on the heat pumps which have a higher eciency
during the day when outdoor temperature is higher.
Heating at Outdoor Temperature (above or below)
This function allows to adjust outdoor air temperature at which or below which
ASIN AQUA Oxygen starts heating. This function requires installation of the
outdoor air thermometer #12010.
Freeze Protection
To enable the function, it is necessary to install outdoor air thermometer
#12010.
• After the freeze protection has been enabled, ASIN AQUA Oxygen checks
outdoortemperature.Ifoutdoortemperatureislowerthan0°C,filtrationstarts.
After 15 minutes elapse, ASIN AQUA Oxygen will measure temperature of the
pool water.
• If the pool water temperature drops below the value set in the freeze
protection (4°C), ASIN AQUA Oxygen will continue filtering and start the pool
water heating. After the required freeze protection temperature has been
reached, heating and filtering will stop.
• If outdoor temperature continues being below zero, filtering will start in
6hours again for 15 minutes in order to control water temperature.
