ASI 2650-22H-22USF-21USR User manual

ASSEMBLY INSTRUCTIONS
Thank you for purchasing this quality product. Be sure to check all packing material carefully
for smallparts that may have come loose inside the carton during shipment.
TOOLS REQUIRED (NOT PROVIDED):
PHILLIPS SCREWDRIVER
NO. DESC Q'TY
AHEADBOARD 1 PC
BFOOTBOARD 1 PC
CSTORAGE RAILS 2 PCS
DCROSS BAR 1 PC
EBED SLATS ROLL 4 PCS
FHEADBOARD POST
（
L + R
）
2 PCS
GLONG SUPPORT LEG 8 PCS
HCONNECT PANEL 2 PCS
ISHORT SUPPORT LEG 2 PCS
J
STORAGE DRAWER
SUPPORT LEG
4 PCS
NO. DESCRIPTION SKETCH SIZE Q'TY
aAllen Key 4 x 74 x 29mm 1 PC
bBolt
∮
1/4"x 15 x 45mm 12 PCS
cSpring Washer
∮
1/4"x
∮
11x 2mm T 16 PCS
dFlat Washer
∮
1/4"x
∮
18 x 2mmT 16 PCS
eBolt
∮
1/4"x 15 x 38mm 4 PCS
gSTRAIGHT ALLEN KEY 4*100mm 1 PC
NO. DESCRIPTION SKETCH SIZE Q'TY
aAllen Key 4 x 74 x 29mm 1 PC
cSpring Washer
∮
1/4"x
∮
11x 2mm T 2 PCS
dFlat Washer
∮
1/4"x
∮
18 x 2mm T 2 PCS
eBolt
∮
1/4"x 15 x 38mm 2 PCS
fScrew #8 x 30mm 10 PCS
gSTRAIGHT ALLEN KEY 4*100mm 1 PC
NO. DESCRIPTION SKETCH SIZE Q'TY
aAllen Key 4 x 74 x 29mm 1 PC
bBolt
∮
1/4"x 15 x 45mm 6 PCS
cSpring Washer
∮
1/4"x
∮
11x 2mm T 6 PCS
dFlat Washer
∮
1/4"x
∮
18 x 2mm T 6 PCS
gSTRAIGHT ALLEN KEY 4*100mm 1 PC

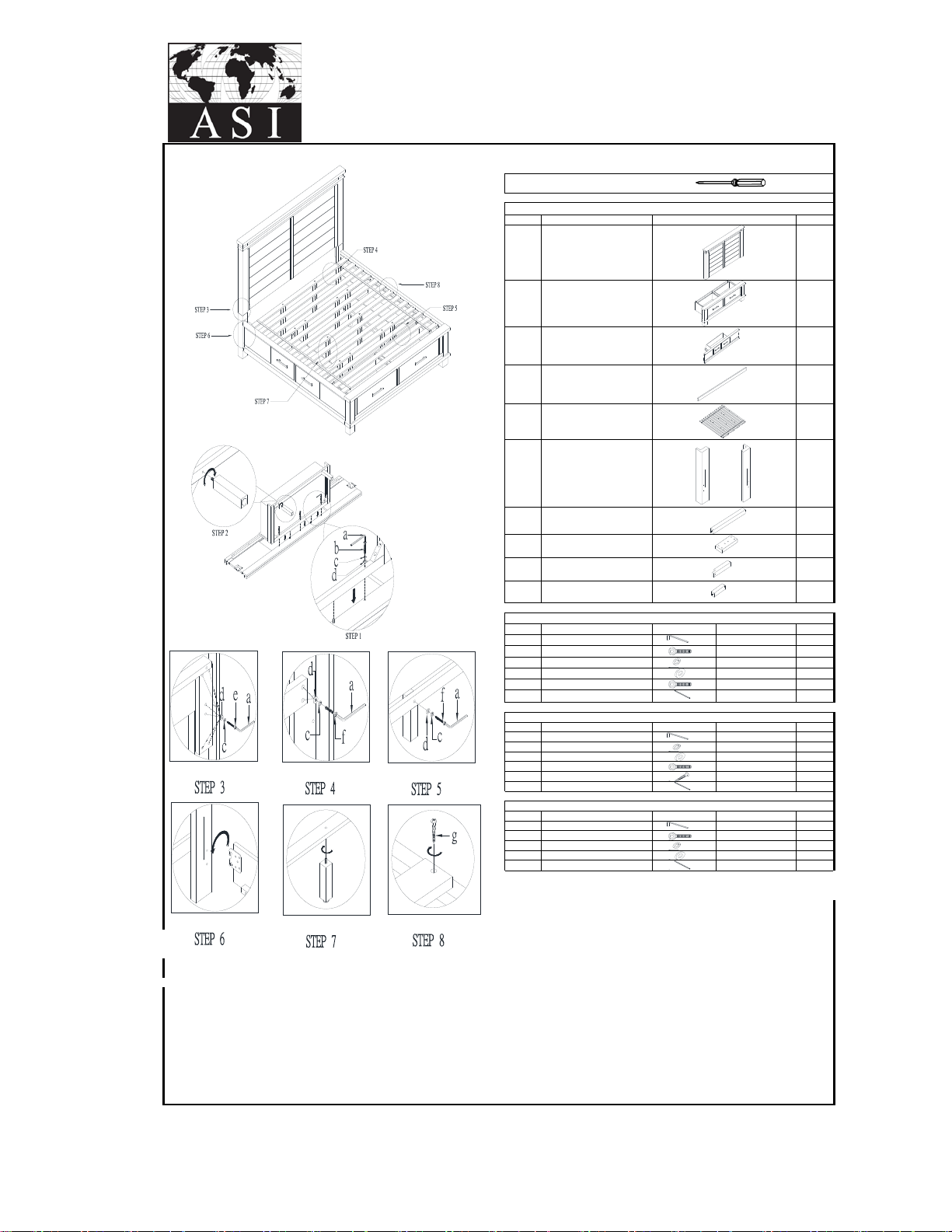

STEP1: ATTACH DRAWER TO THE RAIL PENAL BY USING ALLEN KEY (a),BOLT (b),SPRING WASHER (c) AND FLAT WASHER (d).
STEP 2: ATTACH STORAGE DRAWER SUPPORT LEG (J) TO THE STORAGE RAILS (C) BY TURNING THE SUPPORT LEG CLOCKWISE.
STEP3: ATTACH CONNECT PANEL (H) TOHEADBOARD POST(F) AND HEADBOARD (A) BY USING ALLEN KEY (a), BOLT(b), SPRINGWASHER (c) AND FLAT WASHER (d).
STEP4: ATTACH CROSS BAR (D) TO THEHEADBOARD POST(F) BY USING ALLEN KEY (a), BOLT (e), SPRING WASHER (c) AND FLAT WASHER (d).
STEP5: ATTACHED SHORT SUPPORT LEG (I) TO THEFOOTBOARD (B) BY USING ALLEN KEY (a), BOLT(f), SPRING WASHER (c) AND FLATWASHER (d).
STEP6: HANG STORAGERAILS (C) TOTHE HEADBOARD POST (F) AND FOOTBOARD (B).
STEP 7: ATTACH SUPPORT LEG (G) TO SLATS (E) BY TURNING CLOCKWISE.
STEP 8: ATTACH SLATS (E) TO STORAGE RAILS (C) BY USING SCREW (g).
IMPORTANT NOTE:
1. HARDWARE BAG FOR HEADBOARD IS PACKED WITH HEADBOARD.
2. HARDWARE BAG FOR FOOTBOARD AND SLATS IS PACKED WITH FOOTBOARD. Made In Vietnam
Page 1 of 1
EXCLUSIVE AMERICAN SIGNATURE DESIGN-DO NOT REPRODUCE WITHOUT WRITTEN PERMISSION
ITEM NO.: 2650-22H-22USF-21USR
KING BED W/STORAGE FOOTBOARD & 2 SIDE STORAGE
RAILS
PARTS LIST
SKETCH
HARDWARE LIST FOR HEADBOARD
HARDWARE LIST FOR FOOTBOARD AND SLATS
HARDWARE LIST FOR STORAGE RAILS

ASSEMBLY INSTRUCTIONS
THANK YOU FOR PURCHASING THIS QUALITY PRODUCT. BE SURE TO CHECK ALL PACKING MATERIAL
CAREFULLY FOR SMALL PARTS THAT MAY HAVE COME LOOSE INSIDE THE CARTON DURING SHIPMENT.
NO DESCRIPTION QTY
ANIGHT STAND 1 PC
BBUN FEET 4 PCS
NO DESCRIPTION SKETCH SIZE QTY
aAllen Key 4 x 74 x 29mm 1 PC
bBolt ∮1/4"x 15 x 70mm 4 PCS
cSpring Washer ∮1/4"x∮11x 2mm T 4 PCS
dFlat Washer ∮1/4"x∮18 x 2mm T 4 PCS
eWOODEN DOWEL 10*40mm 8 PCS
fSTRAIGHT ALLEN KEY 4*100mm 1PC
g
TIPPING RESTRAINT 1 set
Important note:
The hardware bag is packed with NIGHT STAND.
Page 1 of 1
MADE IN VIETNAM
HARDWARE LIST:
STEP 1: Lay the night stand (A) up side down on a soft surface. Insert wooden dowel (e ) to the bottom of night stand (A).
Attach bun feet (B) by using allen key (a), bolt (b), spring washer (c), flat washer (d).
SKETCH
ITEM NO.: 2650-36
NIGHT STAND
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
PARTS LIST:

ASSEMBLY INSTRUCTIONS
THANK YOU FOR PURCHASING THIS QUALITY PRODUCT. BE SURE TO CHECK ALL PACKING MATERIALS
CAREFULLY FOR SMALL PARTS THAT MAY HAVE COME LOOSE INSIDE THE CARTON DURING SHIPMENT.
NO DESCRIPTION QTY
ADRAWER DRESSER 1 PC
BBUN FEET 4 PCS
C
CENTER SUPPORT LEG 1 PC
D
LANDSCAPE MIRROR 1 PC
EMIRROR SUPPORT 2 PCS
NO DESCRIPTION SKETCH SIZE QTY
aAllen Key 4 x 74 x 29mm 1 PC
bBolt ∮1/4"x 15 x 70mm 4 PCS
cSpring Washer ∮1/4"x∮11x 2mm T 4 PCS
dFlat Washer ∮1/4"x∮18 x 2mm T 4 PCS
eWOODEN DOWEL 10*40mm 8 PCS
f
TIPPING RESTRAINT 1 set
gSTRAIGHT ALLEN KEY 4*100mm 1PC
NO DESCRIPTION SKETCH SIZE QTY
aAllen Key 4 x 74 x 29mm 1 PC
hBolt ∮1/4"x 11.5 x 32mm 8 PCS
cSpring Washer ∮1/4"x∮11x 2mm T 8 PCS
dFlat Washer ∮1/4"x∮18 x 2mm T 8 PCS
gSTRAIGHT ALLEN KEY 4*100mm 1PC
Important note:
1. The furniture tipping restraint is stapled to the back of the dresser.
2. The hardware bag for the Drawer Dresser is packed with Drawer Dresser.
3. The hardware bag for the Landscape Mirror is packed with Landscape Mirror.
Page 1 of 1
MADE IN VIETNAM
LANDSCAPE MIRROR HARDWARE LIST:
STEP 2: With another person's assistance, lift the mirror (D) and
attach mirror support (E) into position on top of the dresser.
Secure the mirror in place by using allen key (a), bolt (h), spring
washer (c), flat washer (d).
STEP 1: Lay the drawer dresser (A) up side down on a soft
surface. Insert wooden dowel (e ) to the bottom of drawer dresser
(A). Attach bun feet(B) by using allen key (a), bolt (b), spring
washer (c), flat washer (d). Attach center support leg (C) to the
bottom of drawer dresser (A).
DRAWER DRESSER HARDWARE LIST:
ITEM NO.: 2650-01&02
DRAWER DRESSER & LANDSCAPE MIRROR
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
PARTS LIST:
SKETCH
f
h
