Asko OP8693S User manual

Instructions for use
OVEN
OP8693S / BO6PY4T1-42

EN Manual EN 3 - EN 46
Pictograms used
Important information
Tip

EN 3
CONTENTS
Your oven
Your oven 3
Initial use 3
Operation 3
Use 3
Cleaning 3
Solving problems 3
Your oven and the environment 3
Cooking test 3
Introduction 4
Control panel 5
Description 6
Guide rails/Telescopic guide rails 6
Accessories 7
Door 8
Cooling fan 8
Touch screen 8
Main displays 9
Function-setting display 11
Stand-by display 12
Initial use
Initial use 13
Operation
Using the ‘Plus’ menu 15
Opening the keyboard 17
Use
Oven function 18
Using the ‘Extras’ functions 20
Fast preheat 21
Functions table 22
Culisensor 26
Delayed start 28
Stage cooking 29
Gratin 31
Additional functions 32
Settings 36
Cleaning
Cleaning the appliance 38
Steam clean 38
Pyrolysis 39
Removing and cleaning the guide rails 40
Replacing the oven light bulb 41
Removal and installation of the oven door 42
Removal and installation of the oven door glass 43
Solving problems
General 44
Your oven and the environment
Disposal of the appliance and packaging 46

EN 4
Introduction
Congratulations on choosing this Asko oven.
This product is designed to offer simple operation and optimum
user-friendliness. The oven has a wide range of settings enabling you to
select the correct cooking method every time.
This manual shows how you can best use this oven. In addition to
information about operating the oven, you will also find background
information that may be useful when using the appliance.
Please read the separate safety instructions
carefully before using the appliance!
Read this manual before using the appliance and keep it in a safe
place for future use.
Installation instructions are supplied separately.
YOUR OVEN

EN 5
YOUR OVEN
Control panel
01. On/Off key; use to:
▷switch on the appliance.
▷switch to stand-by.
▷switch off the appliance. Keep the ‘On/Off’ key pressed until the
appliance switches off.
02. X key; use to:
▷go a step back in the menu.
▷close or answer ‘No’ to a pop-up.
▷close or cancel a menu or function.
03. Key lock key; use to:
▷Lock all the keys to clean the dashboard or to prevent that the
appliance gets into progress accidentally. Hold the key pressed
until the key lock is enabled.
04. Confirm key; use to:
▷confirm settings.
▷start a function.
▷close or answer ‘Yes’ to a pop-up.
05. Touch screen/display
10 15
10 10 2015
040502
01 03

EN 6
YOUR OVEN
Description
1. Control panel
2. Oven levels
3. Oven door
4. Door handle
Guide rails/Telescopic guide rails
• The oven has four or five guide rails (Level 1 to 4/5), depending on
the model. Level 1 is mainly used in combination with bottom heat.
The two upper levels are mainly used for the grill function.
• Place the oven rack, baking tray or steam dish in the gap between
the guide rail sliders.
• A number of shelf levels can have fully-retractable telescopic guide
rails, depending on the model.
▷Pull the telescopic guide rails out of the oven cavity completely
and place the oven rack / baking tray / steam dish on them.
Then slide the oven rack / baking tray / steam dish on the
telescopic guide rails, back into the oven cavity.
▷Only close the oven door when the telescopic guide rails have
been returned completely back into the oven cavity.
Note: remove the guide rails / telescopic guide rails out of the
oven if you are going to use the Pyrolysis function!
1
3
Level 1
Level 2
Level 3
Level 4
Level 5
2
4

EN 7
Accessories
Your appliance is accompanied by a range of accessories, depending
on the model. Only use original accessories; they are specially suited
toyour appliance. Be sure that all the accessories that are being used
are able to withstand the temperature settings of the chosen oven
function.
Note: not all accessories are suitable/available for every appliance
(itmay also differ by country). When purchasing, always provide the
exact identification number of your appliance. Please see the sales
brochures or check online for more details about optional accessories.
Note: never place an accessory on the bottom of the oven!
Accessories that can be supplied with your appliance (depending on the model)
Enamelled baking tray; to be used for pastries and cakes.
• Do not use the enamelled baking tray for microwave functions!
• Suitable for pyrolysis cleaning.
Oven rack; mainly used for grilling. A steam dish or pan with food
can also be placed on the oven rack.
• The oven rack is equipped with a safety peg. Lift the rack slightly
at the front to slide it out of the oven.
• Do not use the oven rack for microwave functions!
Deep enamelled baking tray; to be used for roasting meat and
baking moist pastry.
• Do not place the deep baking tray on the lowest level during
a cooking process, except when using it as a drip tray during
grilling, roasting or roasting with a spit roast (when available).
• Do not use the deep enamelled baking tray for microwave
functions!
• Suitable for pyrolysis cleaning.
Glass baking tray; for microwave and oven use.
• NOT suitable for pyrolysis cleaning.
Culisensor; can be used to measure the core temperature of the
dish. When the desired temperature is reached, the cooking process
will be stopped automatically.
Pyrolysis guide rails; only use these guide rails to clean an
enamelled baking tray during pyrolysis (replace the guide rails /
telescopic guide rails with these special pyrolysis guide rails).
• Please note: the high temperature during pyrolysis may cause the
pyrolysis guide rails to discolour.
YOUR OVEN

EN 8
YOUR OVEN
Door
• The door switches interrupt the operation of the oven when the door
is opened during use. The oven continues operating when the door
is closed.
• This oven has a ‘Soft close door system’. When closing the oven
door, this system dampens the movement, from a certain angle, and
silently closes the oven door.
Cooling fan
• The appliance is equipped with a cooling fan that cools the casing
and control panel.
Touch screen
• Operate your oven’s touch screen by tapping or swiping it.
• Tap the display to open a function or adjust a setting.
• Swipe the display for further information/show options or adjust
a setting.
Tapping: Swiping:
EXTRASOVEN FAST PREHEAT
10
:
15
:
:
Hot air
PROGRAMS
180 30
31
°C
10:15
For the best response, touch the keys with the main part of your
fingertip. Every time you tap a key during use, a short tone will sound
(unless this is adjusted in the settings).

EN 9
YOUR OVEN
Main displays

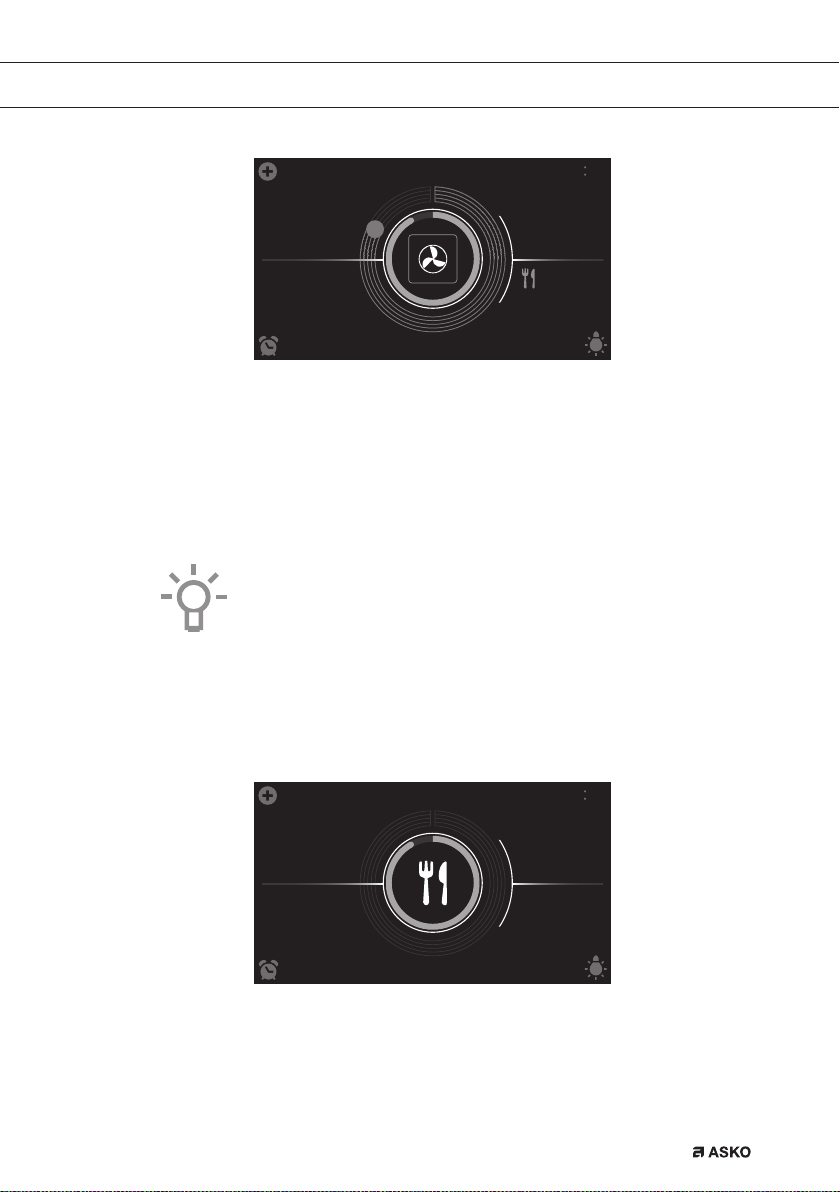

Start display
EXTRASOVEN FAST PREHEAT
10:15
01
03
02
04
05
07
06

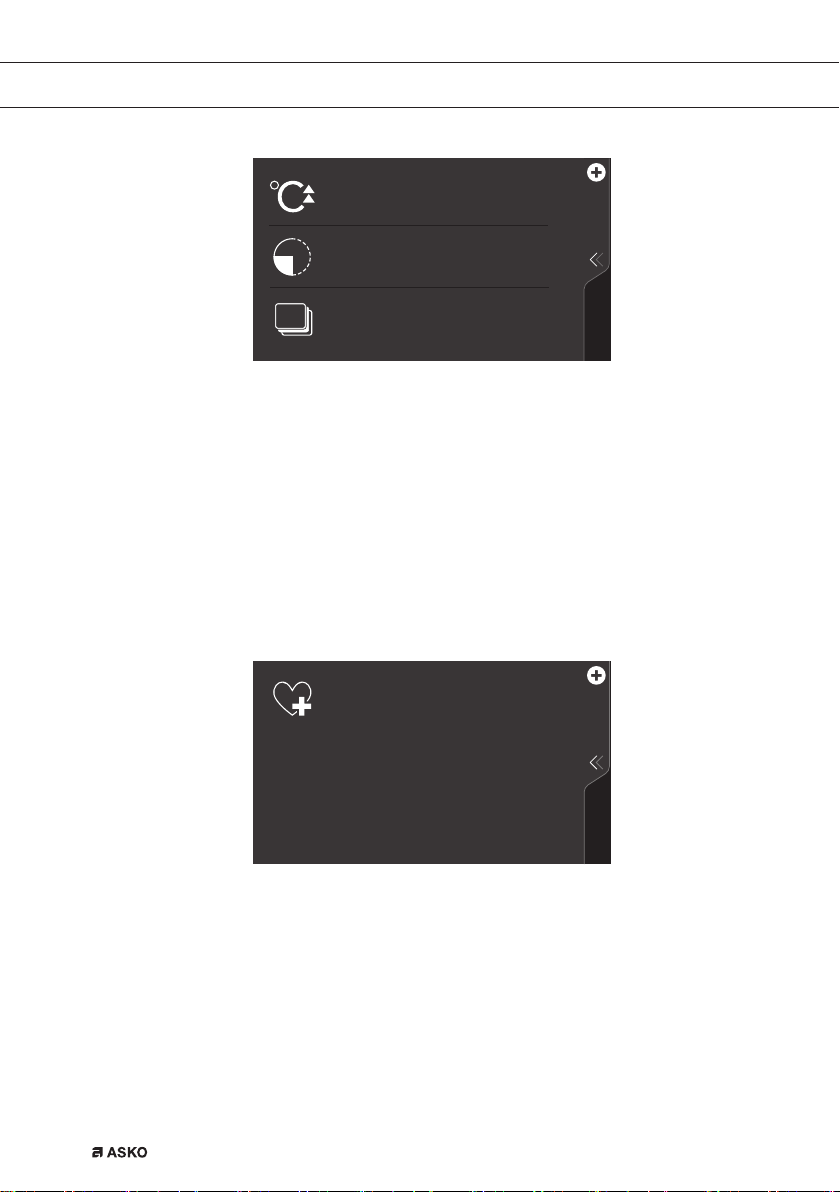

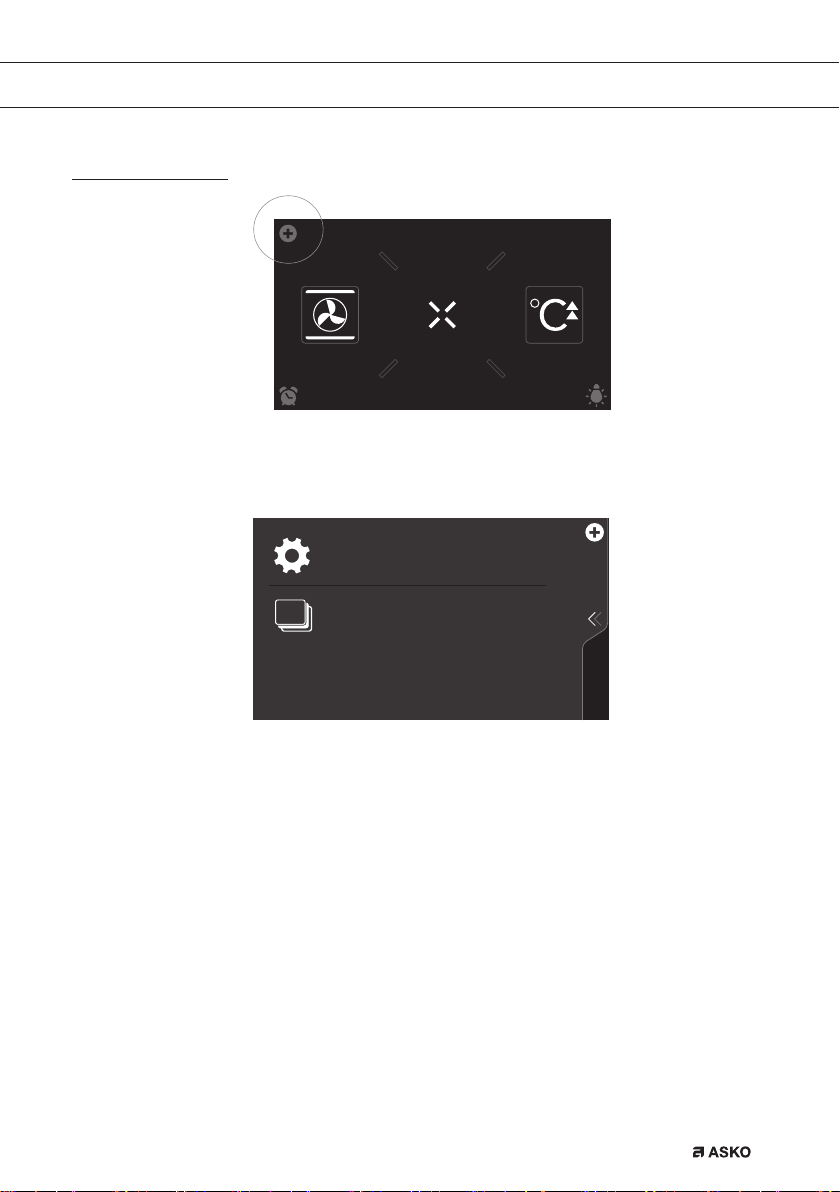

Plus menu (01)
• Tap the plus symbol to open the ‘Plus’ menu. The contents of this
menu changes according to the control options available at that
time.
Oven (02)
• Tap ‘OVEN’ to open the oven function menu.
Egg timer (03)
• Tap the egg timer symbol to open the egg timer menu. The egg
timer can be used independently from the oven function.
▷The longest possible alarm time is 24 hours.
▷When an egg timer goes off, a pop-up will appear and an
acoustic signal will sound.
▷Tap on the X key, confirm key or the display to switch off
the signal and close the pop-up. The sound signal will stop
automatically after approximately 1 minute.
Extras (04)
• Tap on ‘EXTRAS’ to show the appliance’s extra functions.
Time (05)
• The time is shown here.
Fast preheat (06)
• Tap on ‘FAST PREHEAT’ to open the fast preheat function.

EN 10
YOUR OVEN
Light (07)
• Tap on the ‘lamp’ symbol to switch the oven light on or off.
• The oven light will also light up when you open the oven door or
start cooking. The oven light will dim automatically (unless this is
adjusted in the settings).

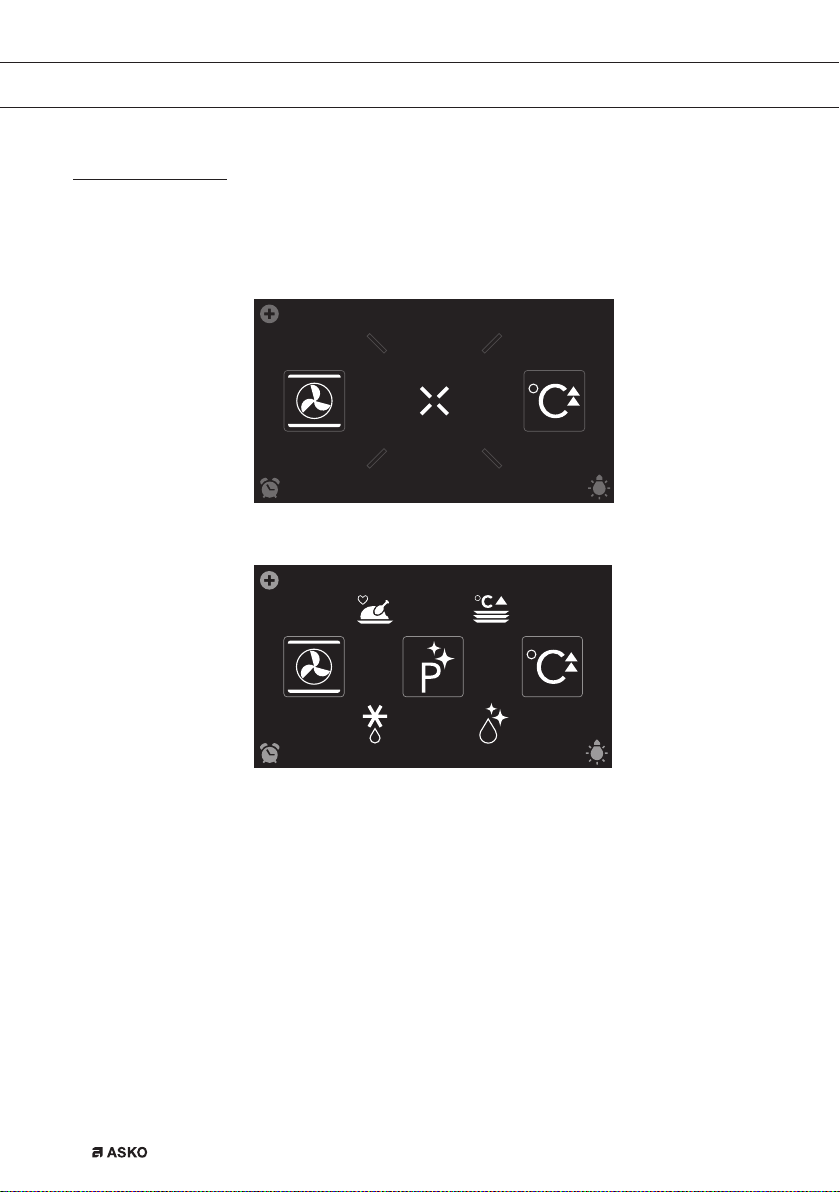

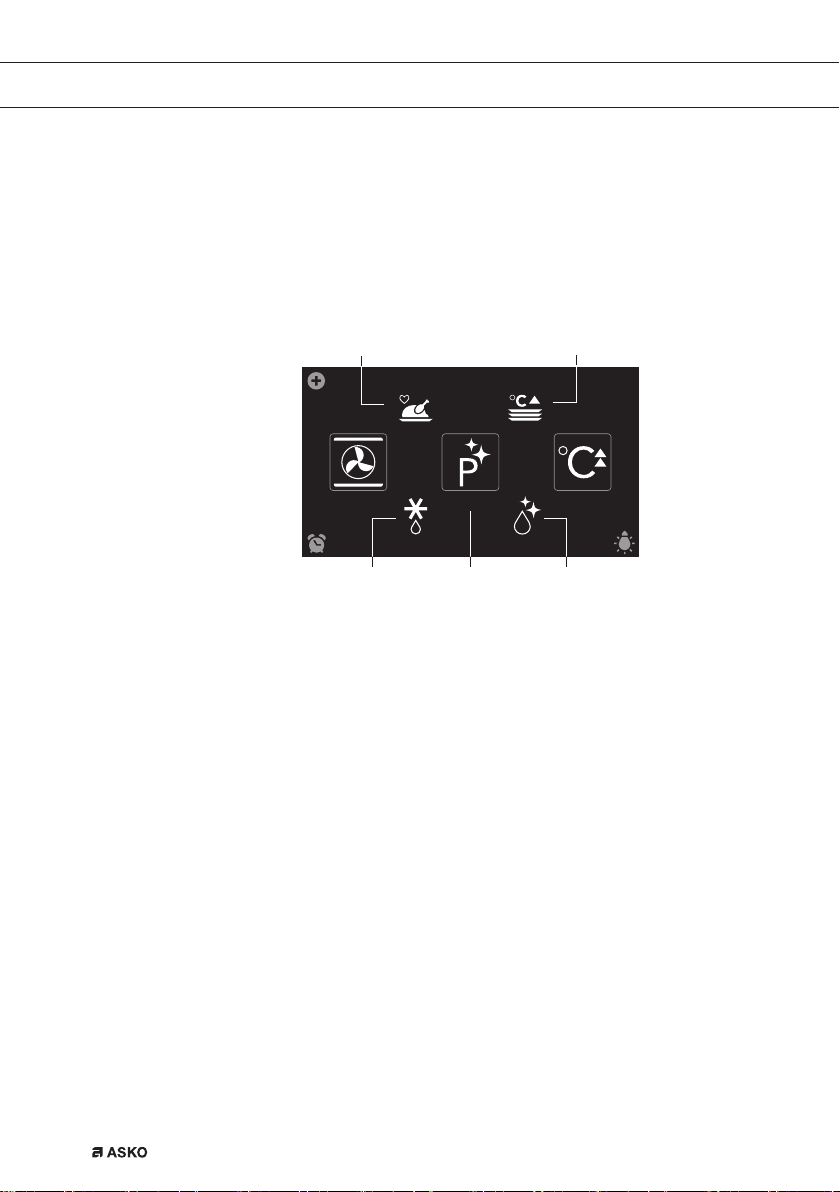

Extras display
PYROLYSIS
PROGRAMS WARMING
CLEANINGDEFROST
10:15
0201 03
04
05
Defrost (01)
• Tap on ‘DEFROST’ to open the defrost function.
Pyrolysis (02)
• Tap on ‘PYROLYSIS’ to open the pyrolysis function.
Cleaning (03)
• Tap on ‘CLEANING’ to open the cleaning function.
Warming (04)
• Tap on ‘WARMING’ to open the warming function menu.
Plate warming and keep warm can be found here.
Programs (05)
• Tap on ‘PROGRAMS’ to open the programs menu. The favourites
and automatic programs can be found here.

EN 11

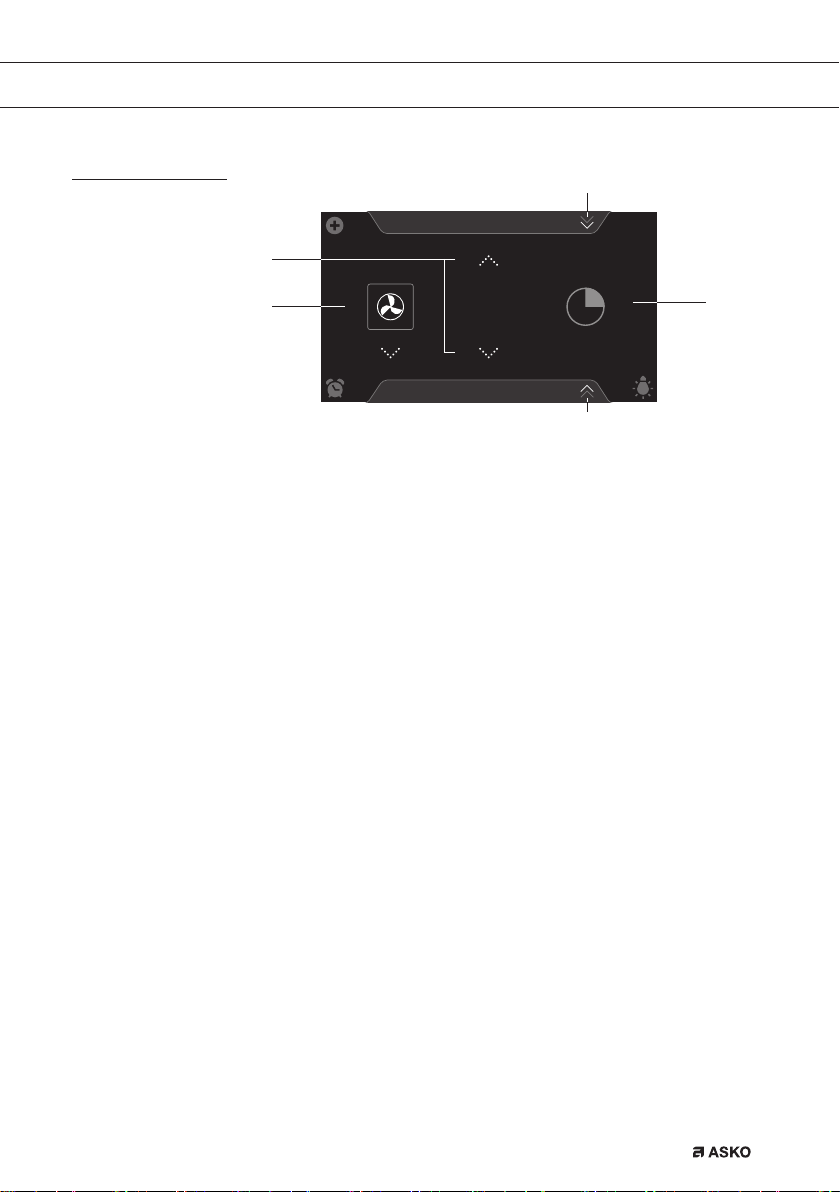

Function-setting display
Hot air
PROGRAMS
10
:
15
180°C
01
02
05
04
03
Selecting a function (01)
• Tap on the arrows above and below the function or sweep over the
symbol to select a function (see also ‘Opening the Keyboard’).
Setting the temperature (02)
• Tap on the arrows above and below the temperature or sweep
over the temperature indicator to select a temperature or (see also
‘Opening the Keyboard’).
Cooking time (03)
• Tap the cooking time symbol if you want to set a cooking time. If a
cooking time is already stated, it is necessary to set this.
• Tap on the arrows above and below the time or swipe over the time
to adjust it (see also ‘Opening the Keyboard’).
Programs (04)
• Tap on ‘PROGRAMS’ to open the program menu. The favourites
and automatic programs can be found here.
Info tab (05)
• The name of the selected function appears in the bottom tab of
the display. Tap on the tab to request more information about the
selected function.
YOUR OVEN

EN 12

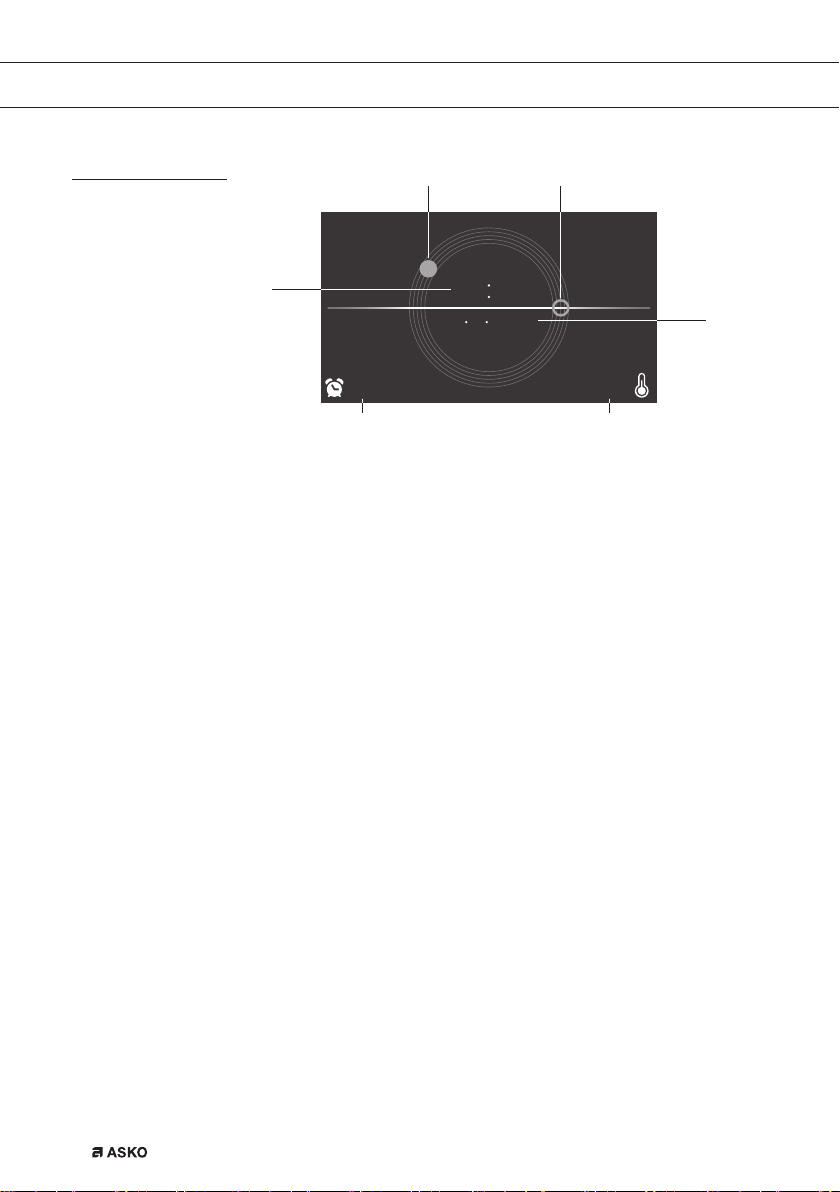

Stand-by display
10 15
10 10 2015
9:27 125°C
01
05 06
02 03
04
Display time (digital/01)
• Actual time of day.
Display time (analog/02 and 03)
• Actual time of day.
• The hour hand of the analog clock is indicated with a ‘closed’
circle (02) and the minute hand with an ‘open’ circle (03).
Display of date (04)
• Actual date.
Display egg timer (05)
• The expiring egg timer.
Display descending temperature (06)
• Actual temperature in the oven (waste heat).
YOUR OVEN

EN 13
Initial use
• Clean the oven interior and accessories with hot water and
washing-up liquid. Do not use aggressive cleaning agents, abrasive
sponges and similar.
• The oven will emit a particular odor when it is used for the first
time; this is normal. Make sure that there is good ventilation during
initial use.
When the appliance is plugged in for the first time or after the appliance
was disconnected from the mains for a longer period of time, you have
to set ‘Language’, ‘Time’ and ‘Date’.

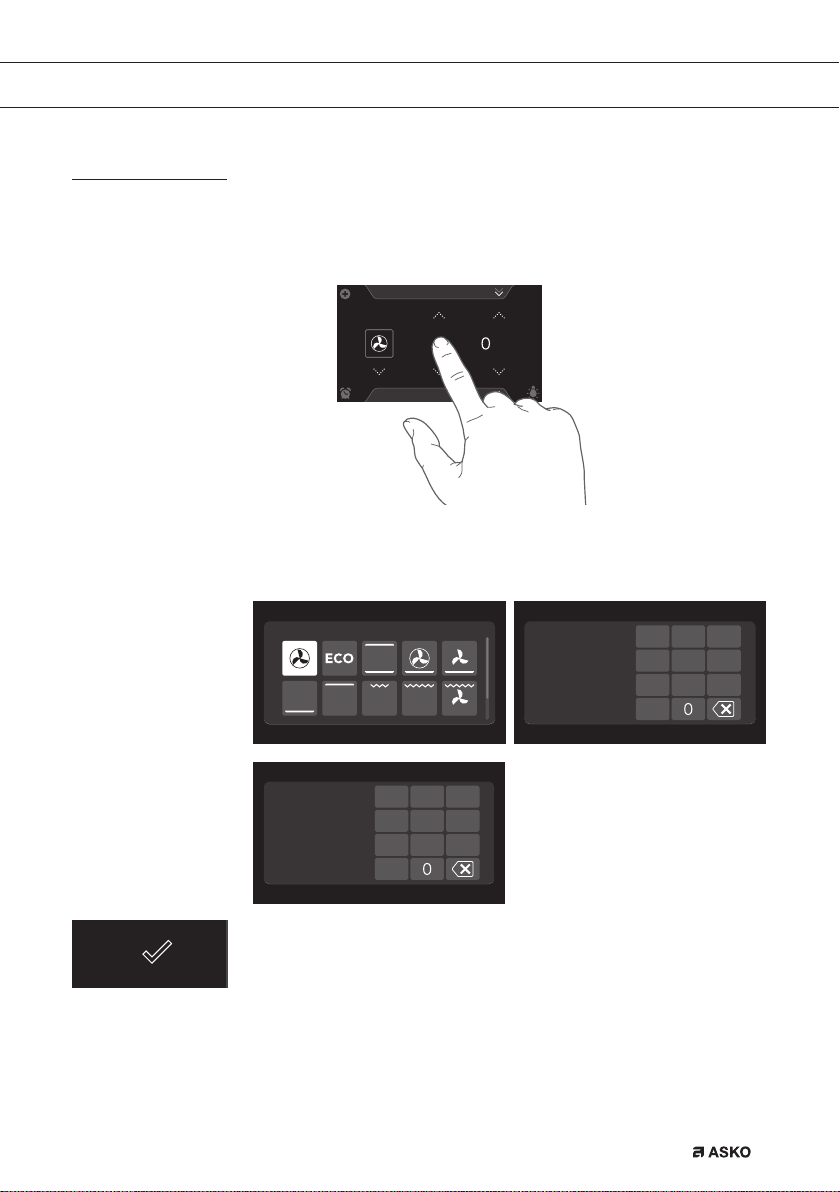

Setting the language
English
Nederlands
Deutsch
Francais
LANGUAGE
Set the desired language in which the appliance’s display texts will
appear. ‘English’ is selected as standard.
1. Swipe over the display to view all languages.
2. Tap on a language to select this.
3. Press on the confirm key to save the set language.
10 15
10 10 2015
INITIAL USE

EN 14
Setting the time
TIME
12:00
1. Tap on the arrows above and below the time or swipe over the time
to adjust it.
2. For fast entry, tap in the centre of the time display; a pop-up
keyboard will appear on which the desired time can be typed
(see ‘Opening the Keyboard’ chapter).
3. Press on the confirm key to save the set time.
Setting the date
DATE
DAY MONTH YEAR
01 01 2015
1. Tap on the arrows above and below the day, month or year or
swipe over the day, month or year to adjust these.
2. Press on the confirm key to save the set date.
The appliance is now ready for use.
The language, time and date can be adjusted in the settings menu
(see ‘Settings’ chapter). The settings menu can be opened from the
start display via the ‘Plus’ menu.
10 15
10 10 2015
10 15
10 10 2015
INITIAL USE

EN 15
OPERATION
Using the ‘Plus’ menu
EXTRASOVEN FAST PREHEAT
10
:
15
The ‘Plus’ menu comprises a number of functions or settings.
The offered plus functions depend on the display that is active.
SETTINGS
Combine up to three functions in one
cooking process
Go to the appliance settings
STAGE COOKING
• From the start display, the following functions/menus can be found
in the ‘Plus’ menu:
▷Settings; Set your preferences (see ‘Settings’ chapter).
▷Stage cooking; Combine up to three functions in one cooking
process (see ‘Stage cooking’ chapter).

EN 16
OPERATION
Preheat the oven space quickly
Don't insert the dish yet
FAST PREHEAT
DELAYED START
The cooking process starts automatically at
the preferred time
STAGE COOKING
Combine up to three functions in one
cooking process
• From the oven function-settings display, the following functions can
be found in the ‘Plus’ menu:
▷Fast preheat; Preheat the oven space quickly to the desired
temperature within a cooking process (see ‘Fast preheat’
chapter).
▷Delayed start; The cooking process will start automatically at
the time you set.
▷Stage cooking; Combine up to three functions in one cooking
process (see ‘Stage cooking’ chapter).
▷Gratin; To add the grill function at the end of the progress (gratin
time will be added at the end of the cooking process).
ADD TO FAVOURITES
Save the current cooking settings to your
favourites
• When an oven function is started, the following functions can be
found in the ‘Plus’ menu:
▷Add to favourites; Add the settings for the cooked dish to your
favourites (see ‘Additional functions’ chapter).
▷Gratin; To add the grill function at the end of the progress (gratin
time will be added at the end of the cooking process).

EN 17
Opening the keyboard
A keyboard can be opened for fast entry of a function, temperature or
cooking time. A quick setting can be selected with this or a value can
be entered.
Hot air
PROGRAMS 10:15
180°C 30H:M
:
1. Tap in the centre of the function symbol, temperature or cooking
time (activated). The keyboard appears.
Set function
2
4 5
7 8
13
9
6
000
Set temperature
°C
2
4 5
7 8
Set cooking time 13
9
6
00:00H:M
2. Enter the desired value or tap the desired value.
3. If the set value is not confirmed automatically, press on the confirm
key to confirm the entry.
10 15
10 10 2015
OPERATION

EN 18
USE
Oven function
Use the oven functions to cook dishes using, for instance, hot air,
bottom heat or grill.
Hot air
PROGRAMS
10
:
15
180°C
• Various oven functions can be selected.
• A temperature and a cooking time can be set for each oven function.
• ‘Plus’ menu functions such as fast preheat, stage cooking and
delayed start can also be selected. Tap on the plus symbol for this.
See the ‘Using the ‘Plus’ menu’ chapter.
Using an oven function
Select the oven function appropriate for the meal you are cooking.
Consult the Functions table for this. You can also consult the info tab.
Tap on the tab at the bottom of the display to request more information
about the selected function.
1. Switch on the oven using the ‘On/Off’ key.
2. Place the dish in the oven.
3. Tap ‘OVEN’ to open the oven function menu.
4. Select an oven function (see ‘Function-setting display’ chapter).
5. Select a temperature (see ‘Function-setting display’ chapter).
6. Tap the ‘cooking time’ symbol and set a cooking time (see
‘Function-setting display’ chapter).
Cooking can also be started without a cooking time being set. You
should then skip step 6.
7. Select any additional settings using the ‘Plus’ menu (for example
fast preheat).
8. Start cooking the dish using the confirm key.
10 15
10 10 2015

EN 19
USE
165 23:54
10:45
°C
180°C
10 21
• The following values can now be read in the display:
▷current temperature (165 °C)
▷set temperature (180 °C)
▷status indicator time (outer circle)
▷status indicator temperature (inner circle)
▷cooking time (23:54)
▷end time (10:45)
• Tap in the middle of the display during cooking to open a pop-up
display with settings. Adjust these if desired.
• At the end of a dish’s cooking time a sound signal will sound.
The signal can be switched off by opening the oven door or
pressing a key.
• The selected settings can be saved in ‘Favourites’.
Open ‘ADD TO FAVOURITES’ from the ‘Plus’ menu (see ‘Saving a
cooking method’ in the ‘Additional functions’ chapter).
165 0:00
°C
10 50
Display view at the end of cooking.

EN 20
USE
Using the ‘Extras’ functions
Open the ‘Extras’ display to select the pyrolysis function. A cleaning
program, warming functions or automatic programs can also be
selected.
EXTRASOVEN FAST PREHEAT
10
:
15
Tap on ‘EXTRAS’ to show the appliance’s extra functions.
PYROLYSIS
PROGRAMS WARMING
CLEANINGDEFROST
10
:
15
The following programs can now be selected:
• Pyrolysis (see ‘Cleaning’ chapter)
• Cleaning (see ‘Cleaning’ chapter)
• Warming (see ‘Additional functions’ chapter):
▷Plate warming
▷Keep warm
• Programs (see ‘Additional functions’ chapter):
▷Favourites
▷Automatic programs
• Defrost
