INSTRUCTIONS FOR USE

Instructions for use
Pyrolytic oven
Dear customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet all of your expectations and full fill your needs
for many years to come.
The Scandinavian design is a combination of clean lines, everyday
functionality and high quality. This is the hallmarks for all of our
products and this is why they are so highly appreciated all over the
world.
To get the most out of your new ASKO product, we recommend that
you read the installation and operating instructions before using the
machine.

2
Safety recommendations
This appliance is intended for Domestic
Cooking use and should be used in
accordance with the information and
instructions included within this manual.
Any deviation from this may result in
damage or personal injury.
— This oven was designed for use by
private persons in their homes. It is
intended solely for cooking foodstuffs. This
oven does not contain any asbestos-based
components.
— The appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure that they
can use the appliance safely.
— Young children should be supervised to
ensure that they do not play with the
appliance.
Accessible parts will become hot when in
use. To avoid burns and scalds children
should be kept away.
— Do not use a steam cleaner to clean a
hob, oven or range.
— Do not spray aerosols in the vicinity of
the appliance when it is in operation.
— Accessible parts will become hot when
in use. To avoid burns and scalds children
should be kept away.
— Always turn the grill off immediately after
use as fat left there may catch fire.
— When you receive the appliance,
unpack or have it unpacked immediately.
Give it an overall inspection. Make note of
any concerns or reservations on the
delivery slip and make sure to keep a copy
of this form.
— Your appliance is intended for standard
household use. Do not use it for
commercial or industrial purposes or for
any other purpose than that for which it
was designed.
— Do not modify or attempt to modify any
of the characteristics of this appliance. This
would be dangerous to your safety.
— Never pull your appliance by the door
handle.
— Before using your oven for the first time,
heat it up while empty for approximately
30 minutes. Ensure that the room is
sufficiently ventilated. You may notice a
particular odour or a small amount of
smoke. All of this is normal.
— During cooking, ensure that the door of
your oven is firmly closed so that the seal
can properly fulfil its function.
— When in use, the appliance becomes
hot. Do not touch the heating elements
located inside the oven. You are at risk of
incurring serious burns.
— When inserting or removing your dishes
from the oven, do not bring your hands
near to the upper heating elements; use
insulated cooking mitts.
— After cooking, do not touch the
cookware (grid, turnspit, etc.) with bare
hands
— Never place aluminium paper directly in
contact with the bottom element (See the
“Description of your oven” chapter), the
accumulated heat could cause
deterioration of the enamel.
— Do not place heavy items on the open
oven door; ensure that children cannot
climb or sit on it.
— To avoid damaging the control panel of
your appliance, do not leave the door open
when the oven is functioning or still hot.
— The oven must be turned off for all
attempts to clean the cavity.
— Intensive and prolonged use of the
appliance may require additional ventilation
achieved by opening the window or
increasing the power of the mechanical
fan. In addition to the accessories provided
with your oven, only use dishes that are
resistant to high temperatures (follow
manufacturer’s instructions).
— After using your oven, ensure that all the
controls are in the off position.
During use some external parts of this
appliance become hot. They can remain
hot for some time after the oven has been
turned off. Care should be taken to avoid
burns.Children should be kept away at all
time during use and in the cool down
periods to safeguard against burns.
Safety

3
Safety
Care for the environment
— This appliance’s packing materials are
recyclable. Recycle them and play
a role in protecting the environment
by depositing them in municipal
containers provided for this
purpose.
— Your appliance also contains many
recyclable materials. It is therefore marked
with this logo to indicate that used
appliances must not be mixed with other
waste. Recycling of the appliances
organised by your manufacturer will thus
be undertaken in optimum conditions,in
accordance with European directive
2002/96/CE relative to electrical and
electronic equipment waste. Consult your
city hall or your retailer to find the drop-off
points for used appliances that is nearest
to your home.
— We thank you for your help in protecting
the environment.
Warnings
Installation should only be performed
by qualified installers and technicians.
This appliance complies with the
following European directives:
- Low Voltage Directive 73/23/CEE
modified by directive 93/68/CEE for
attribution of CE approval.
- Electromagnetic Compatibility
Directive 89/336/CEE modified by
directive 93/68/CEE for attribution of
CE approval.
- CE Regulation 1935/2004 concerning
materials and objects designed to
come into contact with foodstuffs.
Warnings
Keep this user guide with your
appliance. If the appliance is ever sold
or transferred to another person,
ensure that the new owner receives the
user guide. Please become familiar
with these recommendations before
installing and using your oven. They
were written for your safety and the
safety of others.
Ensure the appliance is switched off
before replacing the lamp to avoid the
possibility of electric shock.
Accessible parts will become hot when
in use. To avoid burns and scalds
children should be kept away.

4
Please read these instructions before
installing and using your oven.
The oven has been designed for domestic
use only for cooking food. No asbestos has
been used in its construction.
Using for the first time
Before you use your oven for the first time,
leave it empty and, with the door closed,
turn it on to maximum temperature and let
it heat up for 30 minutes. This "runs the
oven in". During this time there may be
some smell from the mineral wool that
insulates the oven and there could be
some smoke. This is perfectly normal.
Normal use
- Always close the door properly. The oven
is fitted with a seal designed to work with a
closed door.
- Never lean or let anyone sit on the oven
door when it is open.
- The oven parts and accessories can
become hot when the door is left partially
open and the grill on. Always keep children
at a safe distance.
- When the oven is on it will get hot. Take
care not to touch the heating elements
inside the oven.
- Always protect your hands with oven
gloves or something similar when removing
food, accessories or containers from the
oven.
- Do not line your oven with kitchen foil.
The metal will increase the heat produced
and could ruin the food and damage the
enamel.
- Before carrying out the pyro-cleaning of
your oven, be sure to remove all oven
accessories and wipe away major spillage.
- Do not use a steam or high-pressure
cleaner.
- During the cleaning cycle accessible
surfaces become much hotter than during
normal cooking. Keep children at a
distance.
- Always check that the oven is off before
you clean the inside.
- For your safety your oven is equipped
with an AUTOMATIC STOP should you
inadvertently forget to turn off your oven.
After 10 hours' operation, the AS
(Automatic Stop) function is activated and
your oven stops heating. AS is displayed in
place of the time and a series of
2 successive pips is sounded for a certain
time.
Recommendations

5
Contents
Recommendations 2
Using for the first time 2
Normal use 2
Contents 5
Your oven, how it works 6
Oven features 6
Introduction to the programmer 7
Accessories 8
Anti-tip safety shelf 8
Multi-purpose baking tray
(reserved for pastries) 8
Multi-purpose baking tray
(dripping pan) 8
45 mm multi-purpose dishFully
accessible sliding rail system 9
Child safety 9
Safety activation 9
Open with safety engaged 9
Safety deactivation 9
Using your appliance 10

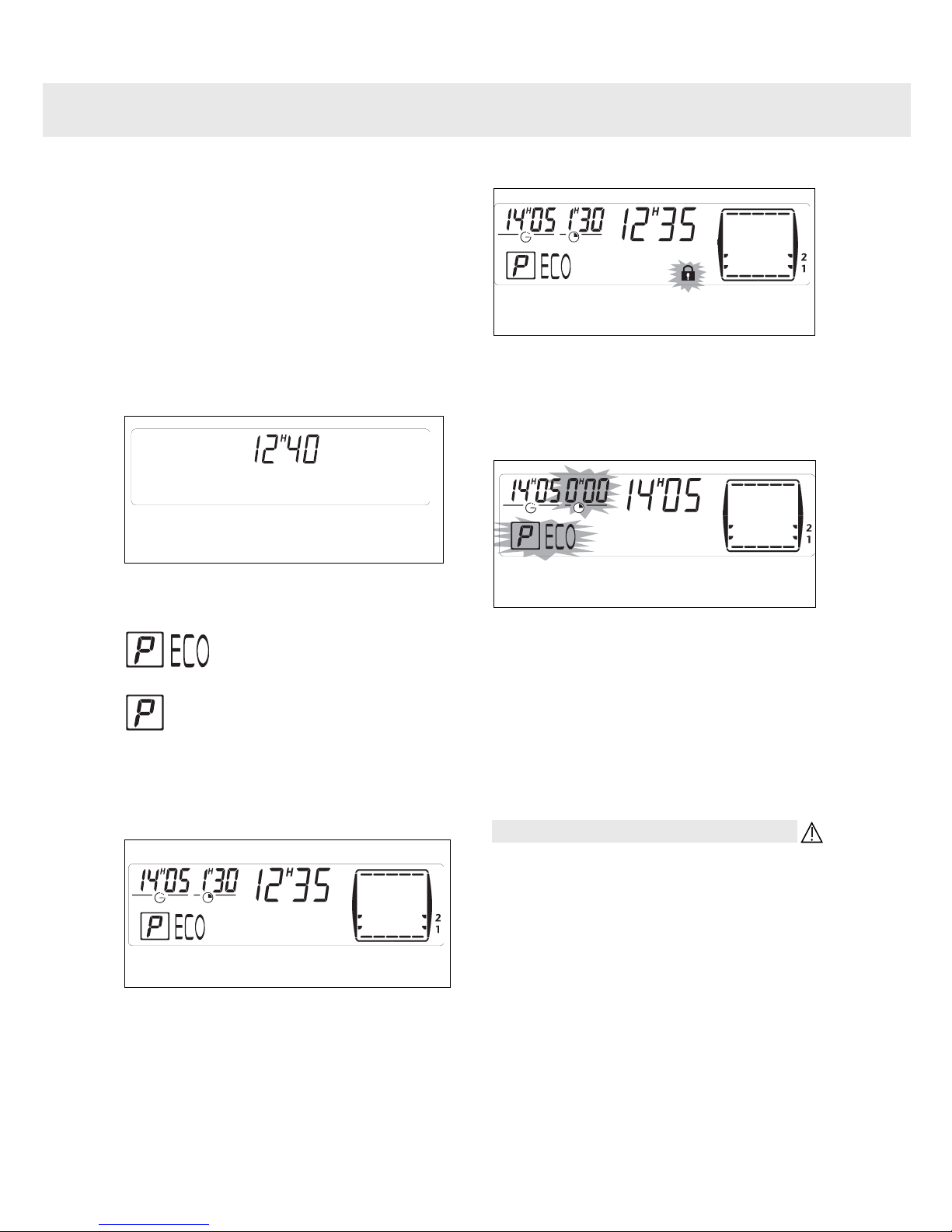

Using the programmer 10
How to set the time 10
Immediate cooking 11
Programmed cooking 12
Cooking with immediate start
and programmed duration 12
Cooking with delayed start and
chosen cooking end time 13
Using the timer function 14
Oven cooking modes 16
Circulating heat* 16
Combined heat 16
Fan grill 16
Grill high 16
Conventional 16
ECO* 17
Warming oven 17
Defrosting 17
Caring for and cleaning your oven 18
Perform a pyrolysis 18
Immediate pyrolysis 18
Delayed pyrolysis 19
Cleaning the outer surfaces 20
Cleaning the door (model WITH
PYROLYSIS function) 20
Disassembling the door 20
Troubleshooting 22
What if… 22
Installer's information 23
Connecting up 23
Housing 24
General maintenance 25
Changing the light bulb 25

6
Oven features
1 Programmer
2 Function selector switch
3 Light
4 Wire shelf supports
Your oven, how it works
1
4
2
2
3

3
6
2

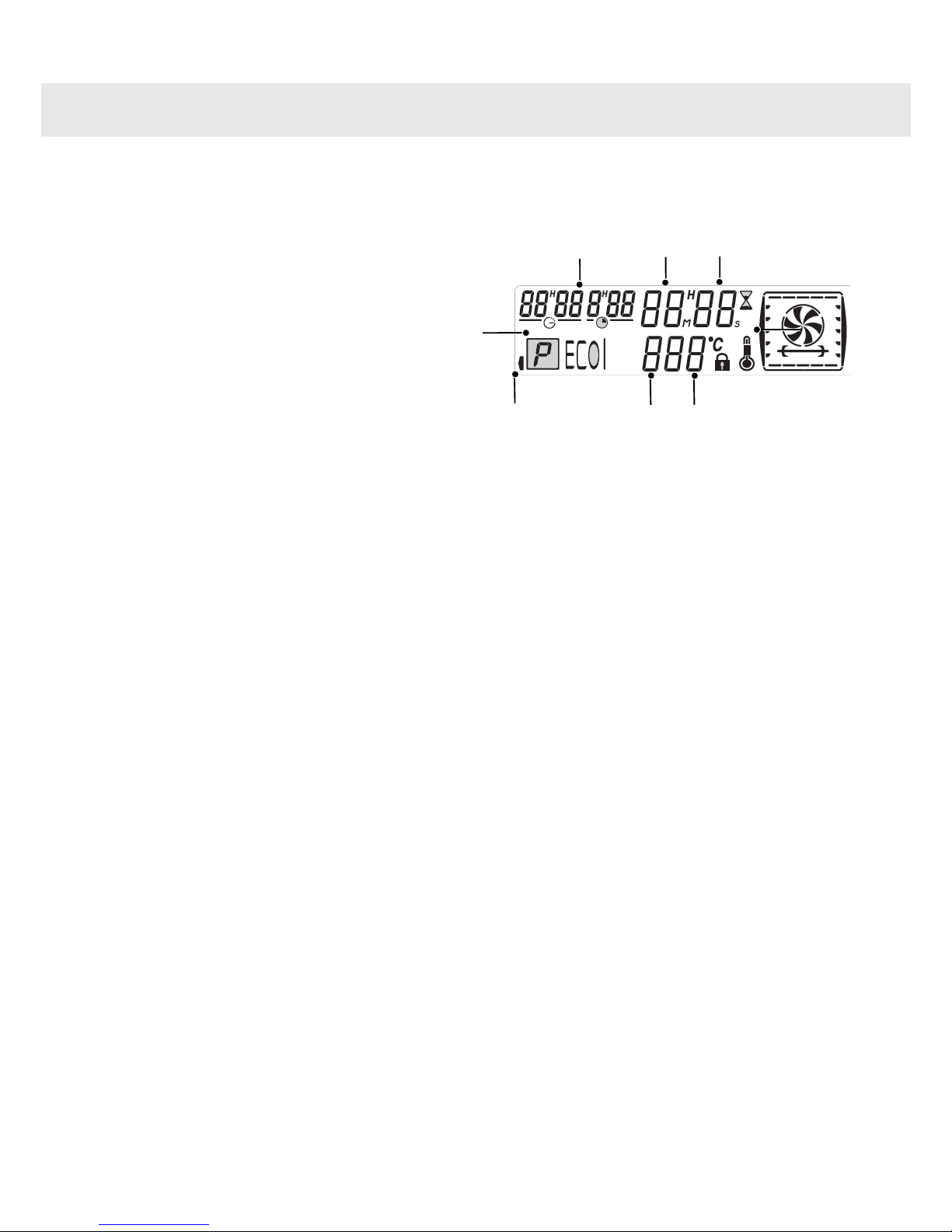

Introduction to the programmer
1 Time and cooking time display
2 Cooking time indicator
3 Cooking end time indicator
4 Timer display
5 Locked door indicator
6 Pyrolisis
7 Temperature display
7
Your oven, how it works
14
75

8
Accessories

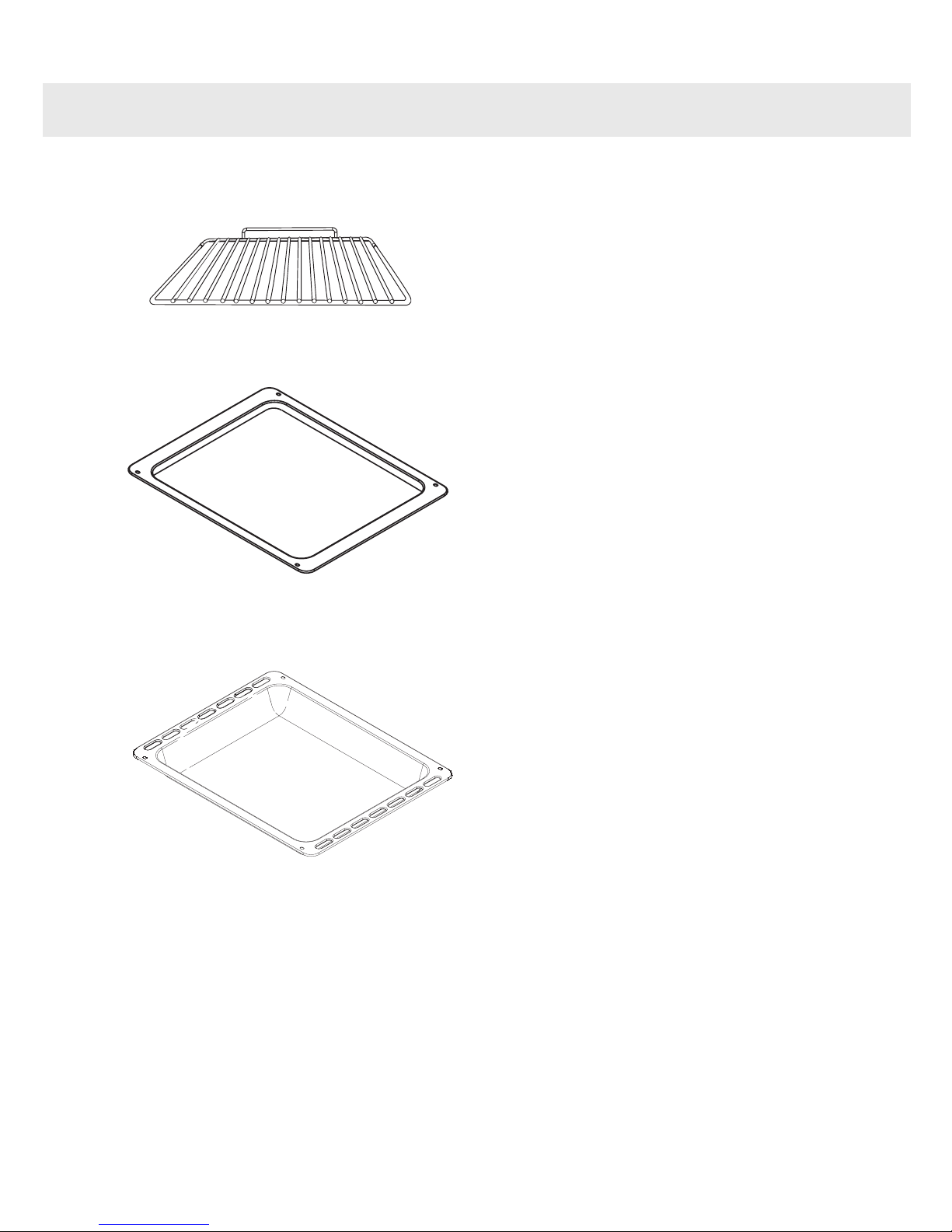

Anti-tip safety shelf
Food can either be placed on the shelf in a
dish or cake tin for cooking or browning. This
should be used for grilled meat (which should
be placed directly on it).
Multi-purpose baking tray
(reserved for pastries)
This tray has a raised edge and can be
used for baking pastries (choux buns,
meringues, small cakes, flaky pasties, etc).
Inserted in the runners under the shelf, it
catches the cooking juices and fat from
grilled meat. It can also be used half-filled
with water as a double boiler.
Joints should not be cooked in this tray
uncovered because fat could spit all over
the oven sides.
Multi-purpose baking tray
(dripping pan)
This is used to catch the cooking juices
and fat from cooking carried out in the high
grill or pulsed grill settings. It can also be
used as a cooking dish for suitably sized
joints (for example: a chicken surrounded
by vegetables, at medium temperature).
Inserted under the shelf,this pan catches
cooking juices and fat from grilled food. It
can also be used half filled with water as a
double boiler.
BACK
FRONT

45 mm multi-purpose dish
Fully accessible sliding rail
system
Thanks to the new sliding rail system with
support (fully accessible) handling food is
more practical and easier as the trays can
be effortlessly removed for simpler
handling. The trays can be completely
removed, providing full access. Their
stability ensures that food can be handled
safely, reducing the risk of burns. This
means that you can take food out of the
oven far more easily. The drip tray at the
bottom of the oven collects the juice and
fat from roasting, and can be used half-
filled with water as a bain-marie. Do not
place meat or poultry directly on the drip
tray for roasting. This would inevitably
produce splashes and dirty the sides of the
oven.
Warning
Remove the sliding rail system before
starting a PYROLYSIS.
Child safety
Safety activation
- Open the door.
- Press the switch on the panel until the
system is engaged and then close the
door.
Open with safety engaged
- Press the lever and then open the door.
Safety deactivation
- Open the door and press the switch on
the panel.
9

10
Using Your Appliance
Using the programmer
How to set the time
When supplied with electricity
The displays flashes 12:00.
Set the time by pressing the + or – touch
controls (holding your finger on the touch
control allows you to scroll through the
numbers rapidly).
Example: 12:30
Press the “ ” button to confirm.
The display stops flashing.
To reset the time on the clock
Press and hold the “ ” touch
control for a few seconds until the
display is flashing, then release.
Audible beeps indicate that it is now
possible to set the time.
2
1
Adjust the clock setting with the + and –
touch controls.
Press the “ ” button to confirm.
Warning
If the “ ” button is not pressed, the
adjustment will be automatically
recorded after a few seconds.

11
Immediate cooking
The programmer should display only the
time.
It should not be flashing.
Select the function of your choice.
Example: position .
Your oven recommends the optimal
temperature for the chosen cooking mode.
You can still adjust the temperature by
pressing the °C button.
Adjust the temperature using the + and –
touch controls.
Place your dish in the oven based
on the recommendations provided
by the cook book.
After these steps, the oven heats up and
the temperature indicator flashes.
A series of beeps will be emitted when the
oven reaches the selected temperature.
The temperature stops flashing.
To stop cooking, press the button.
Warning
After a cooking cycle, the cooling fan
continues to operate for a period of
time in order to guarantee optimal oven
reliability.
Warning
All types of cooking are done with the
door closed.
2
1
Using Your Appliance

12
Using Your Appliance
Programmed cooking
Cooking with immediate start and
programmed duration
Select the desired cooking mode
and adjust the temperature.
Press the “ ” button until the
cooking time indicator starts to flash
“”.
The display flashes to indicate that you
can now adjust the setting.
Press the + or – buttons to set the
desired time.
Example: 30 min cooking time.
The cooking time is automatically recorded
after a few seconds.
The cooking time display stops flashing.
Press the button to start cooking.
After these three steps, the oven heats
up:
A series of beeps will be emitted when the
oven reaches the selected temperature.
At the end of cooking (end of programmed
time):
- The oven stops
- The cooking time indicator flashes
- A series of beeps sounds for a few
minutes. The beeps can be definitively
stopped by pressing any touch control.
The display returns to the time of day.
3
2
1

13
Cooking with delayed start and chosen
cooking end time
Proceed as with programmed cooking.
After setting the cooking time,
press the “ ” button until
the end of cooking indicator flashes
“”.
The display flashes to indicate that you
can now adjust the setting.
Press the + or – button to set the
desired cooking end time.
Example: end of cooking at 13:25.
The cooking end time is automatically
recorded after a few seconds.
The cooking end time display stops
flashing.
After these 2 steps, oven heating is
delayed so that cooking ends at 13.25.
At the end of cooking (end of programmed
time):
- The oven stops
- The cooking time indicator and 0:00 flash
- A series of beeps sounds for a few
minutes. The beeps can be definitively
stopped by pressing any touch control.
The display returns to the time of day.
The oven cavity is lit when cooking starts
and the light switches off at the end of
cooking.
2
1
Using Your Appliance

14
Using Your Appliance
Using the timer function
Your oven’s programmer can be used
as an independent timer that allows you
to count down a time without operating
the oven.
In this case, the timer display has priority
over the clock display.
Press the “ ” button until the
timer symbol begins flashing.
-> 0.00 and a small hourglass
both flash.
Enter the desired time by pressing
the + or – buttons.
Press the “ ” button to confirm,
or wait for a few seconds.
The display stops flashing after a few
seconds and the timer starts working,
counting down the time in seconds.
Once the time has expired, the timer emits
a series of beeps to notify you.
The beeps can be stopped by pressing
any touch control.
Note
It is possible to change or cancel the
timer at any time.
3
2
1

15
Setting the brightness of the
display
You can adjust the brightness of your
display. To do this:
Set and confirm the time on your
programmer to 0:10.
Press and hold down the
“COOKING TIME” button until
is displayed.
Press the + or – buttons in order to
obtain the desired brightness.
Validate by releasing the “Cooking
time” button.
After having adjusted the brightness to
your liking, return your programmer to the
current time of day.
You can adjust the brightness of your
display. To do this:
Press and hold the “START and C°”
buttons for a few seconds until is
displayed. All buttons light up for
one second.
Your display is locked.
To unlock it, repeat this step. -> the
lock symbol disappears
2
1
3
2
1
Using Your Appliance

16
Circulating heat*
(recommended temperature 180°C
min 35°C max 235°C)
• Cooking controlled by the heating
element located at the back of the oven
and by the fan.
• Rapid temperature increase: Some
dishes can be placed in the oven while it is
still cold.
• Recommended for keeping white meat,
fish and vegetables moist
For cooking multiple items on up to three
levels.
Traditional pulsed
(recommended temperature 200°C
min 35°C max 275°C)
• Cooking controlled by the upper and
lower heating elements and by the fan.
• Rapid temperature increase. Some
dishes can be placed in the oven while it is
still cold.
• Recommended for meats, fish and
vegetables preferably placed in a
terracotta dish.
Fan assisted grill
(recommended temperature 200°C
min 180°C max 230°C)
• Cooking controlled, alternately, by the
upper element and by the fan.
• Preheating is unnecessary. Roasts and
poultry are juicy and crispy all over.
• Slide the drip tray onto the bottom shelf
support.
• Recommended for all poultry and roasts
on the spit, for cooking leg joints
thoroughly, and cuts of beef. To retain fish
steaks’ moist texture.
High grill
(recommended temperature 275°C
min 180°C max 275°C)
• Cooking controlled by the upper element.
• The double grill covers the entire grid
surface.
• It is recommended for grilling chops,
sausages, toast or prawns placed on the
grid.
Traditional
(recommended temperature 240°C
min 35°C max 275°C)
• Cooking controlled by the upper and
lower heating elements.
• After preheating, you can cook most
dishes, recommended for keeping white
meat, fish and vegetables moist.
The oven cooking modes

17
ECO*
(recommended temperature 200°C
min 35°C max 275°C)
• Cooking controlled by the upper and
lower heating elements.
• This position allows for energy savings
while preserving the quality of the cooking.
• The ECO position is used for the energy
label performance.
• All types of cooking are done without
preheating.
Keeping warm, pulsed
(recommended temperature 80°C
min 35°C max 100°C)
• This position allows you to keep your
food warm by spurts of heat from the
element at the back of the oven combined
with fan.
• Recommended for letting dough rise for
bread, brioche, kouglof... without
exceeding 40°C (plate warming,
defrosting).
Defrosting
(recommended temperature 30°C
min 30°C max 50°C)
• You can defrost in your oven with a
minimum amount of heat as the fan
circulating the air accelerates temperature
exchanges.
• Recommended for defrosting delicate
foods (strawberries, raspberries).
By increasing the temperature slightly, you
can defrost foods meant to be cooked
immediately after defrosting (meats, etc.).
•Proceed with caution to prevent the
food from cooking. Meats should be
placed on the 2nd shelf support of the
grid, so that they are not in contact with
the defrosting juices; the drip tray on the
1st shelf support.
The oven cooking modes
* Programme(s) used to obtain the results indicated on the energy label in compliance with
European standard EN 50304 and in accordance with European Directive 2002/40/EC.

18
Performing a pyrolysis
Immediate pyrolysis
Remove the grids and trays from
the oven and clean any major spill
residue.
Check that the programmer is
displaying the time of day and that it
is not flashing.
You can choose between 2 pyrolysis cycle
times:
pyrolysis lasting 1 hour 30
minutes.
pyrolysis lasting 2 hours.
Press
P twice for Eco Pyro.
Press the pyrolysis button required.
E.g.: 1 hour 30 minutes.
When pyrolysis begins, the symbol is
displayed in the programmer along with
the pyrolysis cycle time.
The symbol is displayed in the
programmer indicating that the door is
locked.
When pyrolysis finishes, 0:00 flashes as
well as the symbol.
Press any button to restore the time
display.
The oven is clean and once again
ready for the cooking application of
your choice.
Warning
During Pyrolytic Cleaning the Oven
becomes very hot. Allow extra time
making sure the oven has cooled
sufficiently before opening the door.
4
3
2
1
Caring for and cleaning your oven
