Asko WM70 User manual

Service manual:Washing machine
Type:WM70

Service manual WM70
2

Type:WM70
Service manual
Contents
Updates..................................................................................................................................................................................................................................................4
Introduction .........................................................................................................................................................................................................................................5
General product information.....................................................................................................................................................................................................6
Troubleshooting strategy..............................................................................................................................................................................................................7
Overview: Panels and programs ..............................................................................................................................................................................................8
Program tables ...............................................................................................................................................................................................................................10
Program selection, options and making settings WM70.3......................................................................................................................................18
Program selection, options and making settings WM70.2......................................................................................................................................26
Program selection, options and making settings WM70.1......................................................................................................................................28
Service menu WM70.3...............................................................................................................................................................................................................31
Service menu WM70.2...............................................................................................................................................................................................................34
Service menu WM70.1...............................................................................................................................................................................................................35
Shop program ................................................................................................................................................................................................................................36
Fault indications WM70.3..........................................................................................................................................................................................................37
Fault indications WM70.2..........................................................................................................................................................................................................38
Fault indications WM70.1..........................................................................................................................................................................................................39
Components and measurement values............................................................................................................................................................................40
Thermistor measurement values..........................................................................................................................................................................................40
Technical data...................................................................................................................................................................................................................................41
Tools......................................................................................................................................................................................................................................................41
Wiring diagram WM70.3...........................................................................................................................................................................................................42
Wiring diagram WM70.2...........................................................................................................................................................................................................43
Wiring diagramWM70.1 CIM.................................................................................................................................................................................................44
Wiring diagram WM70.1 UM.................................................................................................................................................................................................45
Rehanging the door......................................................................................................................................................................................................................46
Replacing panels, control unit and detergent compartment................................................................................................................................49
Replacing front panel, door, cover plate and the hinges..........................................................................................................................................52
Emergency opener for door lock.........................................................................................................................................................................................53
Wash agitator removal...............................................................................................................................................................................................................54

Service manual WM70
4
Updates
Rev Date Description Sign
01 2010-10-06 First version developed BPA

Service manual WM70
5
Introduction
You are holding the service manual for WM70 type washing machines.
It should be easy to service a washing machine. It is important that you, as a service technician, are
given the conditions to be able to carry out work in an efficient and satisfactory way. Our hope is
that this service manual is a useful tool for your daily work.

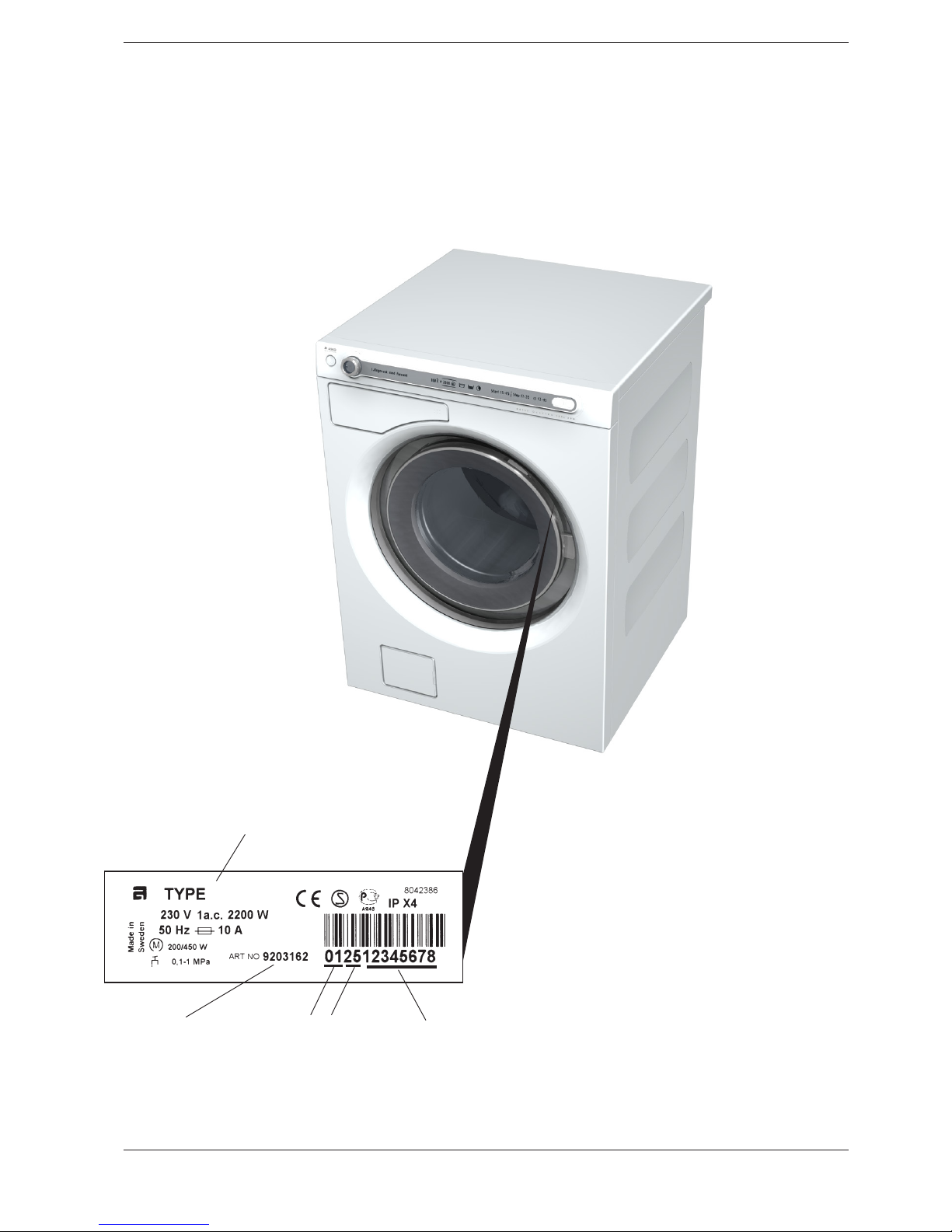

The type designation is located by the inside of the glass door (see image below).
WM 60.C
Type designation
Product number Serial number
Year Week
WM70

Service manual WM70
6
General product information
In conjunction with the introduction of the WM70 (August 2010), our washing machines have
been altered in a number of areas. Here we present the changes to the wash drum and wash
agitators.
s,ARGER WASH DRUM
- 60 litres (previously 50 litres)
- 23 mm deeper, the drum is now 343 mm deep in total (previously 320 mm)
- 30 mm larger diameter, 480 mm in total (previously 450 mm)
s.EW DRUM HOLE PATTERN TO CAUSE AS LITTLE WEAR AS POSSIBLE ON CLOTHING
s.EW AGITATORS THAT IMPROVE THE WASH PROCESS
All cylinder holes flanged to reduce wear on
textiles.
Area with large holes (3.7 mm) to remove
larger objects, such as grit.
Area with smaller holes (2,2mm) to reduce
wear on textiles.
The angle of the edge of the cylinder, combined
with the shape of the agitators, moves the load
towards the middle of the drum. This improves
drum balance and reduces wear on textiles.
Hourglass-shaped agitators:
s -OVE THE LOAD TOWARDS THE SMALLER GENTLER HOLES
in the middle of the drum.
s -OVE LARGER OBJECTS SUCH AS GRIT TOWARDS THE
larger holes at the edges of the drum.

Service manual WM70
7
Troubleshooting strategy
At Asko, we believe in always remaining focused on the customer, and as an ASKO service
technician, you are one of the most important ambassadors of our brand. As such, it is important
that the customer finds the service callout a pleasant experience. Troubleshooting is an important
part of the service callout, and as such we have drawn up a troubleshooting strategy that
describes, in broad terms and step by step, what you need to do to find and diagnose faults arising
in our machines.
s!SK THE CUSTOMER TO DESCRIBE THE PROBLEM
s#HECK WHETHER THE CUSTOMERS DESCRIPTION MATCHES ANY SERVICE CODE
s#HECK THAT THE MACHINE IS CORRECTLY INSTALLED
- Electrical connection - Drain
- Water connection - Machine correctly levelled
Fault found?
Incorrect installation or external factors that affect performance and functionality (for
example, water pressure, electrical supply, drainage).
4HE MACHINE OPERATES NORMALLY .O DEVIATIONS CAN BE FOUND 4HE CUSTOMER PROBABLY NEEDS
to be informed about proper use of the machine. If necessary, also inform the customer
about the guarantee conditions and the fact that the customer will be charged for the
callout.
Yes
Open the service menu:
1, Check the settings
2. Run a test cycle
 .OTE ANY FAULT CODES
If the above actions do not uncover the fault:
s#ONDUCT GENERAL TROUBLESHOOTING 5SE THE DOCUMENTATION AVAILABLE AT 3ERVICE3AVER
(service manuals, service memos, wiring diagrams and other documents).
Yes
.O
Fault found?
.O
Fault diagnosed?
Repair and check function/
safety.
Contact technical support
for assistance.
Carry out the actions
suggested by technical
support.
Satisfied customer!
OK?
.O
Ja
Yes
.O
Yes

Service manual WM70
8

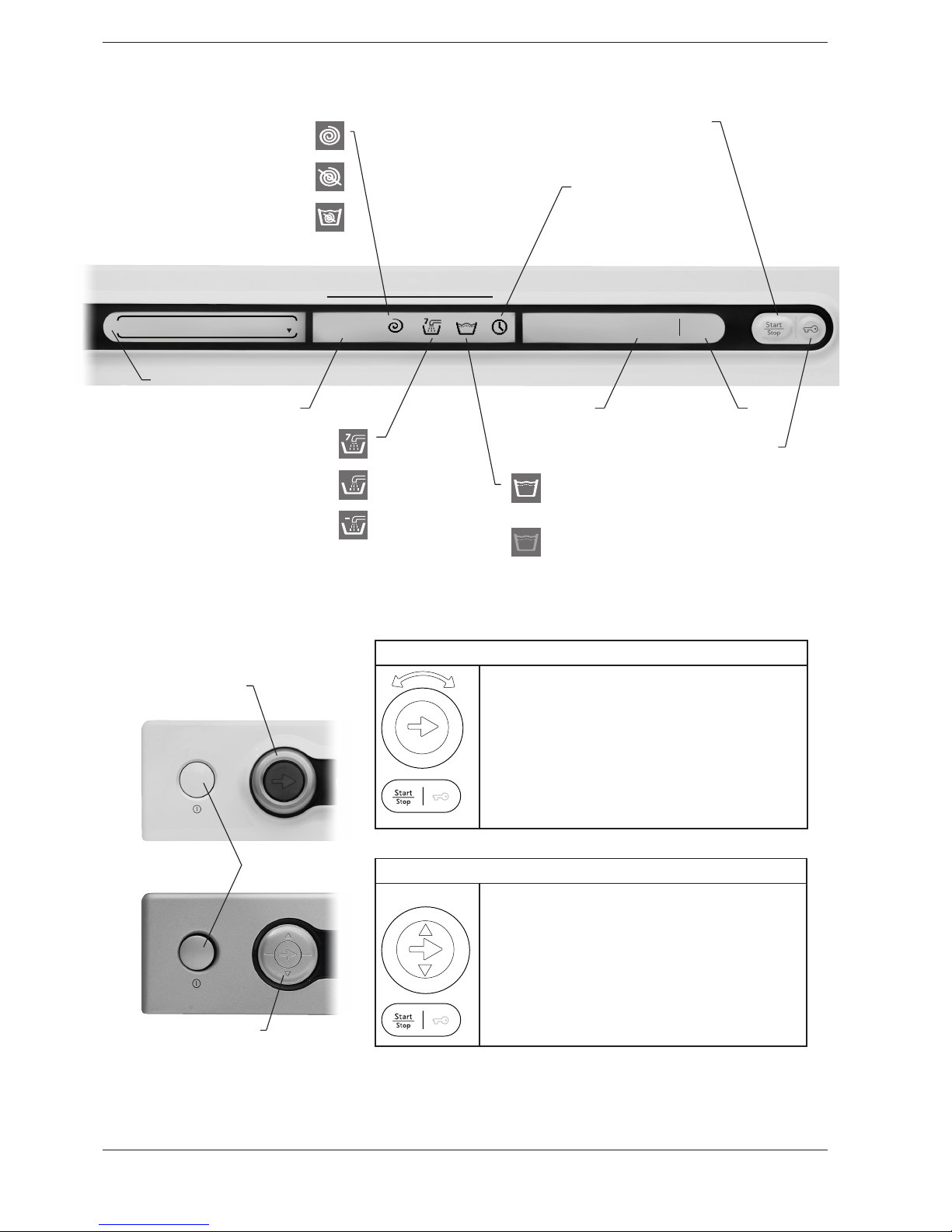

Overview: Panels and programs
Programs: 14, where one consists of the menu for settings (Program 15)
for V826, it is possible to add a program(stain program)
Optionsl: 6
Settings: 8
J1
S1 S3
LCD 1 LCD 2LCD 3
S2
Programs: 14, where one consists of the menu for settings (Program 15)
for V826, it is possible to add a program(stain program)
Options: 6
Settings: 8
S1
S4
S5
S3
S2
,#$ ,#$ ,#$ 3
Programs: 12
Options: 1 or 5
Settings: 3
WM70.2
WM70.3

Service manual WM70
9
Programs: 10
Options: 4 or 6
Settings: 1
WM70.1

Service manual WM70
10
Machine type:WM70.3
Water IIncludes level intake .UKBER OF RINSES .UMBER OF SPINS Time Energy
Market: EU
Max load: 8kg
Rinse setting: 3
Prog ,OAD Pre-
wash
,AST Temp Rpm l ! no. no. h:mm kWh
P1 Auto
P2 Stain
P3 Time program
P4 Heavy Cotton Yes 1/1 95 1600 85 5 3 2:46 2,17
60 1600 77 5 3 2:40 1,20
P5 .ORMAL 7HITE#OLOUR Cotton .O 1/1 60 1600 65 3 4 3:15 1,20
40 1600 65 3 4 2:57 0,67
P6 Quick White/Colour Cotton .O 1/1 60 1600 59 3 4 1:39 1,17
P7 Super Quick Cotton .O 1/2 40 1600 33 3 1 0:48 0,45
P8 Easy care/Sportswear Cotton .O 1/2 40 1200 52 2 1 1:20 0,52
P9 Synthetics Synthetics .O 1/2 40 800 38 4 1 1:22 0,39
P10 Wool Wool .O 1/3 30 800 68 ! 3 1 0:46 0,49
P11 Hand Wool .O 1/3 30 800 68 ! 3 1 0:46 0,49
P12 Rinse program Cotton .O 1/2 -1600 13 ! 1 1 0:18 0,07
P13 Spin program Cotton .O 1/2 -1600 0 0 1 0:13 0,06
P14 Drain program - - - - - 0 0 0 0:01 0,00
Program
The tables present a few examples of the energy, water and time consumption of a few different
programme settings. Consumption can vary according to water pressure, water hardness, water
supply temperature, room temperature, load weight and content, variations in the power supply
AND SELECTED OPTIONS )N THE EXAMPLES PRESENTED HERE THE RINSE SETTING WAS SET TO h.ORMALv AND
no options were selected.
00 4HIS PROGRAMME HAS BEEN TESTED IN ACCORDANCE WITH %. 
P5 40°C programme for test institutes. 40°C option must be selected.
P1 Short programme for test institutes, max ½-load.
