Asko W6564W User manual

Operating Instructions
Washing Machine
ASKO W6564W
Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfil your needs for many years
to come.
Scandinavian design combines clean lines, everyday functionality and high
quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most out of your new machine, we recommend that you read the
operating instructions before using the machine. The operating instructions
also include information on how you can help protect the environment.
WARNING: Read the instructions before using the machine.

Before using your machine for
the first time 4
Transport protection 4
Packing material 4
Washer door 4
Checking water hardness 4
Safety instructions 5
General 5
Installation 5
Overflow guard function 5
Transport/Winter storage 5
Recycling 5
Child safety 6
Keep an eye on children! 6
Description of the washing machine 7
Dispenser 8
Advice and tips before washing 9
Sorting your laundry 9
Clothing 9
Laundry labels 9
Laundry label symbols 9
Coloured cotton 9
Unbleached linen 9
Wool 10
Rayon fibres and synthetic fibres 10
Reducing allergic reactions 10
Save time and energy 10
High water level 10
Economy and efficiency 10
Detergents 10
Dyeing fabrics 10
Washing 11
Sort your laundry. 11
Turn on the main power switch 11
Open the washer door and load
the washing 11
Add detergent and fabric softener,
as required 11
Select the program 12
Select options 15
Close the washer door and press the
Start/Stop button 17
Time remaining 17
To add or remove washing after the
program starts 17
Stopping or changing a program 17
Once the program has finished 17
Settings 18
You can change the following settings: 18
Door opening 18
Extra rinses 18
Care and cleaning 19
Cleaning the trap and the drainage
pump 19
Cleaning the detergent compartment 19
Cleaning the outside of the machine 19
Cleaning the inside of the machine to
avoid unpleasant smells 20
Rinse holes under the agitator 20
If you have hard water 20
Troubleshooting 21
The washer door will not open 21
If nothing else works, the washer
door can be opened as follows: 21
The machine will not start 21
2
Contents
Original instruction

After power failure 21
Wet washing still in the machine 21
Error messages 22
Technical information 23
Information for test institute 23
Technical data 25
Transport protection 26
Installation 27
Positioning the washing machine 27
Adjusting the feet 27
Connection to water supply 27
Drainage connection 28
Electrical installation 28
Connection on delivery 28
Service 29
Before contacting the service division 29
Quick guide 32
3
Contents

4
Transport protection
Remove any transport protection devices before
installing the machine. See the "Transport
protection" chapter.
Packing material
Sort waste materials in accordance with local
guidelines.
Washer door
• The washer door will not open until the
machine is connected to the electricity
supply.
• To open the door manually, see "The washer
door will not open" in the "Troubleshooting"
chapter.
• The machine cannot be started when the
door is open.
• To open the washer door while a program is
running, see "Close the door and press the
Start/Stop button" in the "Washing" chapter.
Checking water hardness
The quantity of detergent needed depends,
amongst other things, on how hard the water
is. See the detergent pack for details. Phone
your local water company to check the water
hardness in your area.
NOTE!
Each machine is tested before leaving the
factory. A small amount of water may remain
in the drain pump, though this does not affect
quality or damage the machine.
Before using your machine for the first time
See Quick guide on the last page

5
General
• Read the operating instructions and keep
them in a safe place.
• Installation should be carried out by qualified
ASKO technicians.
• The machine should only be used for
washing items as described in these
instructions. It is not intended for dry
cleaning.
• Use only detergent intended for machine
washing!
• Use only detergents and softeners for
machine wash. Manufacturer may not
assume responsibility for any damage and
eventual discolouring of gaskets and plastic
components as a consequence of incorrect
use of bleach and/or colouring agents.
• Never use detergents containing solvents,
since there is a danger of creating toxic
gasses which may damage the machine and
result in ignition or explosion.
• Remove any transport protection devices
before using the machine. See the "Transport
protection" chapter.
• Repairs and maintenance must be carried
out by a qualified professional.
• Damaged mains cables must only be
replaced by a qualified electrician.
• The machine is not designed to be used by
persons (even children) that are physically
or mentally handicapped or lack experience
and knowledge. Such persons must receive
instruction in how to use the machine or be
supervised by a person responsible for their
safety.
• Children must be watched to ensure they do
not play with the machine.
• In the enclosed plastic bag you will find a tool
for opening the washer door in emergencies.
Installation
See the "Installation" chapter.
Overflow guard function
If the machine’s water level rises above the
normal level, the overflow guard function begins
to pump water out and shuts offthe water
intake. If the water level has not dropped within
60 seconds, the program is terminated.
Transport/Winter storage
If the machine is to be transported or stored in
unheated premises where the temperature can
fall below freezing, do as follows:
• Empty the filter and the drainage pump. See
the "Care and cleaning" chapter.
• Shut offthe water to the washing machine,
loosen the supply hose to the intake valve
and let the water run out from the valve and
hose.
• After emptying the pump, a small amount of
water may remain in the machine. This does
not affect quality or damage the machine.
Recycling
This machine is manufactured and labelled
for recycling. In order to prevent injuries, the
machine must be made unusable once the
decision has been taken to dispose of it.
Contact your local authority for information
about where and how your machine can be
recycled correctly.
Safety instructions

6
Child safety
Keep an eye on children!
• Always close the door and start the
programme immediately once you have
added detergent.
• The appliance is not intended for use by
young children or infirm persons without
supervision.
• Young children should be supervised
to ensure that they do not play with the
appliance.
• Store detergent and fabric softener out of the
reach of children!
CAUTION!
If this appliance is supplied from a cord
extensions set or electrical portable outlet
device, the cord extension ser or electrical
portable outlet device must be positioned so
that it is not subject to splashing or ingress of
moisture.
Activate child safety catch (for detergent
compartment)
On the inside of the detergent compartment is a
child safety catch.
Activated child
safety catch
Inactivated child
safety catch
When the child safety catch is activated you
must press the release button to pull out the
detergent compartment.

7
Description of the washing machine
1. Main power switch
2. Dispenser
3. Program panel
4. Serial number plate (on inside of washer
door)
5. Drainage pump cover
6. Drainage pump (behind cover)
7. Washer door
1
75,6
234

8

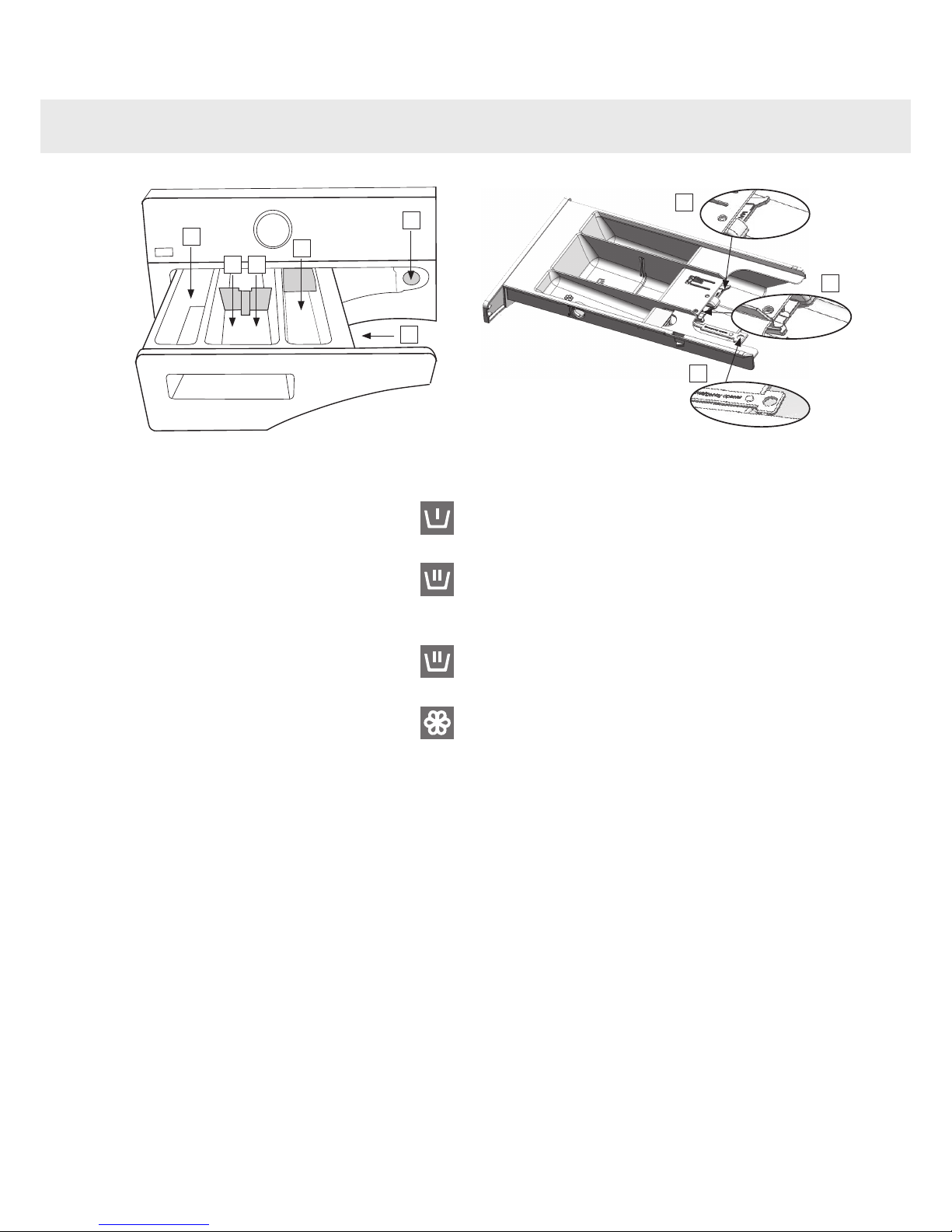

Dispenser
14
5
6
23
1. Pre-wash
2. Main wash with liquid detergent.
Use the separator (A).
3. Main wash with powder detergent.
Do not use the separator.
4. Fabric softener
5. Release button
6. Child safety catch
A
B
C

9
Advice and tips before washing
Here are some tips that may help you before
washing.
Sorting your laundry
• Sort items according to:
• how soiled they are
• colour
• material
Clothing
1. Do up zips and close Velcro straps so that
they don’t harm fabrics.
2. New coloured items may contain excess dye
and should therefore be washed separately
the first few times.
3. Turn delicate items inside out. This reduces
the risk of burling and fading.
4. Empty pockets and wash them inside out if
possible.
Laundry labels
Look at the item's laundry label. The table below
shows suitable wash programs for different
materials and wash loads. Using modern
washing machines and detergents, for example
compact detergents, you can usually wash at
lower temperatures. It is a good idea to use trial
and error to find out what produces the best
results.
Laundry label symbols
Examples of washing instructions and recommended programs. Always follow the washing instructions for each garment.
Laundry labels Material Program
Cotton, linen, white and light-coloured items. Everyday wash 60 °C to 95 °C
Cotton, linen, cotton/polyester. Light and dark-coloured garments. Quick 60 °C
Acrylic, viscose, modal, acetate, polyester, polyamide and
elastane. Light and dark-coloured garments.
Easy Care 40 °C
or
Wool, silk and other very delicate garments Wool/hand wash 30 °C to 40 °C
or Coloured cotton
Coloured cotton
Coloured cotton items with the washing
instruction 60 °C should be washed at 60 °C for
the first time in order to remove any excess dye.
If you do not do so, there is a risk that the colour
will run. Use detergent without bleach in order to
preserve the colour of the fabric.
Unbleached linen
Unbleached linen fabrics should be washed
at 60°C, using detergent containing no bleach
or optical whiteners. Heavily-soiled linen can
occasionally be washed at higher temperatures,
but not too often because the heat can destroy
the linen’s shine and strength.

10
Advice and tips before washing
Wool
These fabrics are labelled either machine wash
or hand wash. The Wool/hand wash program is
at least as gentle as washing by hand.
Wool is especially sensitive to processes such
as washing. If you do not wish to spin dry, you
can squeeze out the water using terry towels. In
this case select No spin.
To find out how to choose this setting, see the
"Washing" chapter. However, most garments
can withstand a short spin. Choose a short spin
by selecting a spin speed of 800 rpm or less.
Rayon fibres and synthetic fibres
Materials made of rayon fibres, such as viscose,
and some synthetic fibres are very delicate and
require much space so as not to crease. Only
half fill the drum when washing and choose a
spin speed of 800 rpm or lower.
NOTE!
Viscose and acetates are fragile when wet.
Reducing allergic reactions
The washing machine has a Super Rinse
option. Use this for people with sensitive skin,
such as those with allergies and small children.
Save time and energy
Use the Everyday wash program to save time
and energy. This program has a shorter main
wash than Normal, but is often sufficient for
lightly soiled washing.
High water level
If you want more water for the main wash and
rinses, you can use the High water level option.
This is automatically selected in the Wool/Hand
program.
Economy and efficiency
You can save energy by not using higher
temperature programs than necessary.
• Select Quick if you just need to freshen up
shirts or exercise clothes, for example. This
will save both water and energy.
• If you select a fast spin speed, this reduces
energy consumption when drying in a tumble
dryer or drying cabinet.
• Always wash with a full load when using
the Heavy, Everyday wash and Normal
programs.
• Avoid pre-washing. Modern machines and
detergents clean effectively without pre-
washing. Pre-washing is only necessary for
heavily soiled washing.
Detergents
Eco-labelled detergents are less harmful to the
environment.
Detergent overdosing does not give better
washing results; it merely causes a greater
impact on the environment; can also hinder the
wash performance.
Try to use less detergent, and increase only if
you are not satisfied with the results.
Dyeing fabrics
If you want to dye fabrics in the machine, select
the Everyday wash program with the Super
Rinse option. Select temperature according to
the dye manufacturer’s recommendations.
Choose a low spin speed if the fabric to be dyed
is a blended material such as polyester/cotton.
NOTE!
Add the dye directly to the washing drum – not
to the detergent compartment. After dyeing, you
should run the machine empty using the same
program. Use the normal amount of detergent.
NOTE!
Due to environmental concerns, we discourage
the use of strong chemicals. When using agents
for bleaching or stain removal, there is a risk
of rust (corrosion) and discolouration of the
machine.

11
Washing
1Sort your laundry.
See the "Advice and tips before washing"
chapter.
Place underwired bras in a laundry net.
Empty pockets. Coins, nails and the like can
cause damage to the machine and fabrics. See
the "Advice and Tips" section before washing.
2Turn on the main power switch
NOTE!
Power on
Press the on/offbutton for min. 1 sec and max.
5 sec.
Power off
Press the on/offbutton for min. 5 sec.
If the ON/OFF command is not correctly
accepted by the machine,wait min. 8 sec before
any further press.
3Open the washer door and load
the washing
If the washer door is closed, press the
Door opening button (key symbol). The door
opens once all water has drained from the
machine. Load the washing. The wash program
chart shows how much washing can be washed
with each program.
4Add detergent and fabric
softener, as required
The detergent packaging will have
recommendations for how much detergent you
should use. The machine holds 7 kg of washing.
If you only have a small amount of laundry in
the machine, you can reduce the amount of
detergent used.
Powder detergent
Pour the powder into the compartment for the
main wash, and pre-wash as well if desired.
Liquid detergent
When using a liquid detergent, observe the
detergent manufacturer's recommendations.
We recommend using a laundry ball with thick
detergents. In the main detergent compartment,
use the section wall (A) – see figure in the
section Dispenser. Add the detergent into the
front compartment of the detergent dispenser.
Wash ball or net
If you use a wash ball or net, place it directly in
the drum and select a program without pre-
wash.
NOTE!
Detergent overdosing does not give better
washing results; it merely causes a greater
impact on the environment; can also hinder the
wash performance.
Try using less detergent, and increase only if
you are not satisfied with the results.
Fabric softener
Pour the fabric softener into the
compartment with the symbol. Follow
the recommendations on the fabric softener
packaging.
NOTE!
Do not fill above the compartment’s maximum
fill level. Otherwise fabric softener will run in too
early, and will impair washing results.

12
Washing
5Select the program
You select a program by turning the
program selector. An LED lights up
beside the selected program and the estimated
program time is shown on the display. Use the
option buttons to select any options.
Auto
Heavy
Normal
Quick Easy Care
Synthetics
Wool/hand wash
Rinse
Spin & Drain
Everyday wash
1. Auto
This program automatically adjusts the length of
the main wash and the number of rinses to the
amount of laundry loaded in the machine.
2. Heavy
Program for heavily soiled laundry, with dirt
that needs to be fully dissolved before the main
wash. A pre-wash is used to do this. You can
select the temperature freely, so follow the
washing instructions for each garment. The
highest temperature, 95 °C, is suitable for very
heavily soiled laundry. The spin speed can
be selected freely. The machine adapts the
program time and water consumption to the
load size.
3. Normal
Program for normal to heavily soiled laundry,
whites and colours. You can select the
temperature freely, so follow the washing
instructions for each garment.
60 °C is a good temperature for heavily soiled
cotton garments, as well as for garments worn
next to the skin. Select 40 °C if the laundry is
less soiled. The spin speed can be selected
freely. The machine adapts the program time
and water consumption to the load size.
4. Everyday wash
A standard program for lightly to moderately
soiled laundry. The temperature can be selected
freely, so follow the washing instructions for
each garment. Garments worn next to the skin
ought to be washed at 60 °C. Very lightly soiled
laundry often comes clean already at 40 °C.
The spin speed can be selected freely. The
machine adapts the program time and water
consumption to the load size.
5. Quick
Fast program for laundry that just needs
freshening up. The program can be run at any
temperature, so follow the washing instructions
for each garment.
The lower the selected temperature, the shorter
the program time. Garments worn next to the
skin ought to be washed at 60 °C. The spin
speed can be selected freely.
6. Easy Care
Program for synthetic, mixed fibre and easy
care cotton. The program has a high water
level and as such is also suitable for cushions,
quilted jackets and the like. Read the washing
instructions carefully and remember, for
example, that fabric softener must not be
used with the membranes found in some
outer garments. A washing temperature up to
60 °C and a spin speed up to 1200 rpm can be
selected.
7. Synthetics
Program for delicate garments made of
synthetic fibre, mixed fibre, rayon and easy care
cotton. The maximum temperature is 60 °C,
but follow the washing instructions for each
garment. Many synthetics will come clean at
40 °C. Garments worn next to the skin ought to
be washed at 60 °C. The maximum spin speed
is 800 rpm.

13
8. Wool/hand wash
A gentle laundry program for wool, silk and
garments that should be washed by hand. The
highest temperature is 30 °C. This program has
a short spin. The maximum spin speed is 800
rpm.
9. Rinse
This program performs one cold rinse cycle +
spin. Suitable for laundry that just needs to be
dampened and for cleaning cloths and mops.
10. Spin & Drain
Used to just spin the wash. If you only want
to drain the machine of water, select the
symbol (no spin).
Washing

14
Washing
Program chart
Program Prewash Temp. °C Number of Rinses Spin Speed rpm Max. load (kg) Water consumption (approx. liter) Energy consumption (approx. kWh) Program time (approx. hrs and min.)
1. Auto
2. Heavy X 95 5 1600 7 85 2.2 2:45
X 60 5 1600 7 75 1.2 2:40
3. Normal 60 2 1600 7 60 1.13 3:21
40 2 1600 7 60 0.47 3:06
4. Everyday wash 60 3 1600 7 60 1.1 1:40
5. Quick 40 2 1600 3.5 25 0.4 0:45
6. Easy Care 40 2 1200 3.5 60 0.6 1:40
7. Synthetics 40 3 800 2.5 30 0.4 1:20
8. Wool/hand wash 30 3 800 2.5 70 0.5 0:50
9. Rinse 1 1600 3.5 15 0.1 0:18
10. Spin & Drain 1600 3.5 0.1 0:15
Consumption data may vary from the given values depending on variations in water pressure, water hardness, water inlet temperature,
room temperature, fluctuations in the electricity, type and volume of the laundry and any extra options.
Adjustment of the displayed washing time
Advanced technology allows the appliance
to sense the amount of laundry and add the
required amount of water during the washing
process. Depending on the washing load,
washing time can be longer or shorter and the
time displayed will be adjusted accordingly.
Moreover, displayed washing time may change
due to differences in inlet water temperature.
At low inlet water temperatures, washing time
can be longer; at higher temperatures, it can be
shorter.
Unevenly distributed laundry or lumps of
laundry in the washing machine drum can cause
problems such as vibration and noisy operation.
The appliance can sense such lumps and will
try to redistribute the laundry. Smaller loads
(e.g. one towel, one sweater, one bathrobe
etc.) or clothes made of materials with special
geometrical properties are virtually impossible
to distribute evenly across the washing machine
drum (slippers, large items etc.). This results
in several attempts to redistribute the laundry,
which in turn leads to longer program duration.

15
Washing
6Select options
You can select options to adjust the
wash program to suit your own specific
requirements. The available options depend on
the selected program. If the option is available
for the selected program, the symbols lights up
when you press the button.
The machine will remember the options you
select for each program (with one exception
– Delayed Start). You can still change the
selected options the next time you select the
program in question.
Temperature
• Select the temperature by pressing
the button until the LED by the desired
temperature lights.
• You can select temperatures between 20 °C
and 95 °C. For Wool/hand wash you cannot
choose a temperature higher than 40 °C.
For Synthetics or Easy Care the maximum
temperature is 60 °C.
Spin
• Select the spin speed by pressing the button
until the LED by the desired speed lights.
• You can select speeds between 400
and 1600 rpm, No spin or No drain. The
maximum spin speed varies according to the
program selected, so check the LEDs around
the button.
• , means that the program does not include
a spin cycle and ends by draining.
• No drain means that the program does not
include a spin cycle and ends with the water
from the final rinse still in the machine. The
washing will remain covered by the water
from the final rinse, stopping it from getting
creased. If you have selected "No drain", you
must select the Spin & Drain program and
the symbol (no spin) once the program
has ended to drain the water from the
machine before you open the washer door.
Super wash
Super wash can be selected to better dissolve
difficult stains and heavy soiling on clothing.
This option adds a cold pre-wash and the wash
time in cold water is extended by approximately
six minutes. The main wash time is also
extended.
• Select Super wash by pressing the button by
the symbol.
• An LED next to the button lights when this
option is activated.
High water level
• High water level means that additional water
is used during the main wash and rinse
cycles. This option can be used with all
programs except Wool/hand wash, Rinse
and Spin & Drain.
• Select High water level by pressing the
button by the symbol.
• An LED next to the button lights when this
option is activated.
NOTE!
The machine takes in the additional water for
the high water level about 15 minutes after the
main wash has started.
Cold
30°
40°
50°
60°
95°
800
1600
1200
400

16
Washing
Super rinse
Use the Super Rinse option if you want to
increase the number of rinses. The maximum
number of rinses is seven, and the number
of rinses varies depending on the selected
program. Recommended for persons with
extremely sensitive skin and/or in areas with
very soft water. This option cannot be selected
with Rinse or Spin & Drain.
• Select Super Rinse by pressing the button
under the symbol.
• An LED next to the button lights when this
option is activated.
Delayed start
When you select Delayed Start, the machine
will start 1–24 hours after you press the Start/
Stop button.
• Press the button by the symbol to activate
Delayed Start.
• By pressing the button again you can delay
the start in whole hours up to a maximum of
24 hours.
• Press Start/Stop, and the machine counts
down 1 hour at a time and starts after the
selected delay.
If you change your mind and want to cancel
Delayed Start, you must press and hold Start/
Stop for three seconds.
NOTE!
Remember to press the Start/Stop button to
start the program.
NOTE!
Make sure the detergent compartment is
completely dry before you add detergent,
otherwise there is a risk that the detergent will
clump before the machine starts.

17
7Close the washer door and
press the Start/Stop button
Time remaining
When the program starts an estimated program
time, in hours and minutes, is displayed. The
remaining time is updated three times during
the program, based on the actual load and
the incoming water temperature. The first
update takes place after about 15 minutes. The
remaining time is last updated just before the
final rinse.
To add or remove washing after the
program starts
If you want to add or remove items after the
program has started, you can stop the program
by pressing and holding the Door opening
button (key symbol) for three seconds. The
program time flashes on the display. When you
restart the machine, add any extra detergent
needed and close the washer door. The
machine continues automatically from the point
where the program was interrupted.
Stopping or changing a program
You can stop a program by pressing the Start/
Stop button for three seconds. To restart the
machine, select a new program, add any extra
detergent needed and press the Start/Stop
button.
NOTE!
Do not open the detergent compartment while
themachine is running.
Washing
8Once the program has finished
The text "End" is shown on the display
for 2 minutes. The machine then turns
off.
The washer door opens automatically once the
program has finished. If you want to deactivate
the automatic door opening function, see the
"Selecting settings" section.
• Remove the load.
If you have small children or pets at home, close
the washer door once you have removed the
laundry.
NOTE!
Upon completion of the washing cycle, close the
water faucet and unplug the mains cord.

18
Settings
You can change the following
settings:
• Automatic door opening.
• Extra rinses.
Door opening
If you choose Automatic door opening the
Washer door will open once the program has
finished.
1. Turn offthe machine using the main power
switch.
2. Press and hold the Super rinse button and
then switch on the main power switch.
3. “AdO” is shown on the display if Automatic
door opening is activated or “AdF” if the
option has not been activated.
4. Press the Super Rinse button to change the
setting.
5. Press the Door opening button to save the
setting.
Extra rinses
Upon delivery, your washing machine is set to
use three rinses in the Everyday wash program.
If you want to increase the number of rinses to
five for this program, do as follows:
1. Turn offthe machine using the main power
switch.
2. Press and hold the Delayed start button and
then switch on the main power switch.
3. The display shows "R O" if extra rinses
(5 rinses) is activated or "R F" if it is not
activated (3 rinses).
4. Turn the program selector to change the
setting.
5. Press the Door opening button to save the
setting.

19

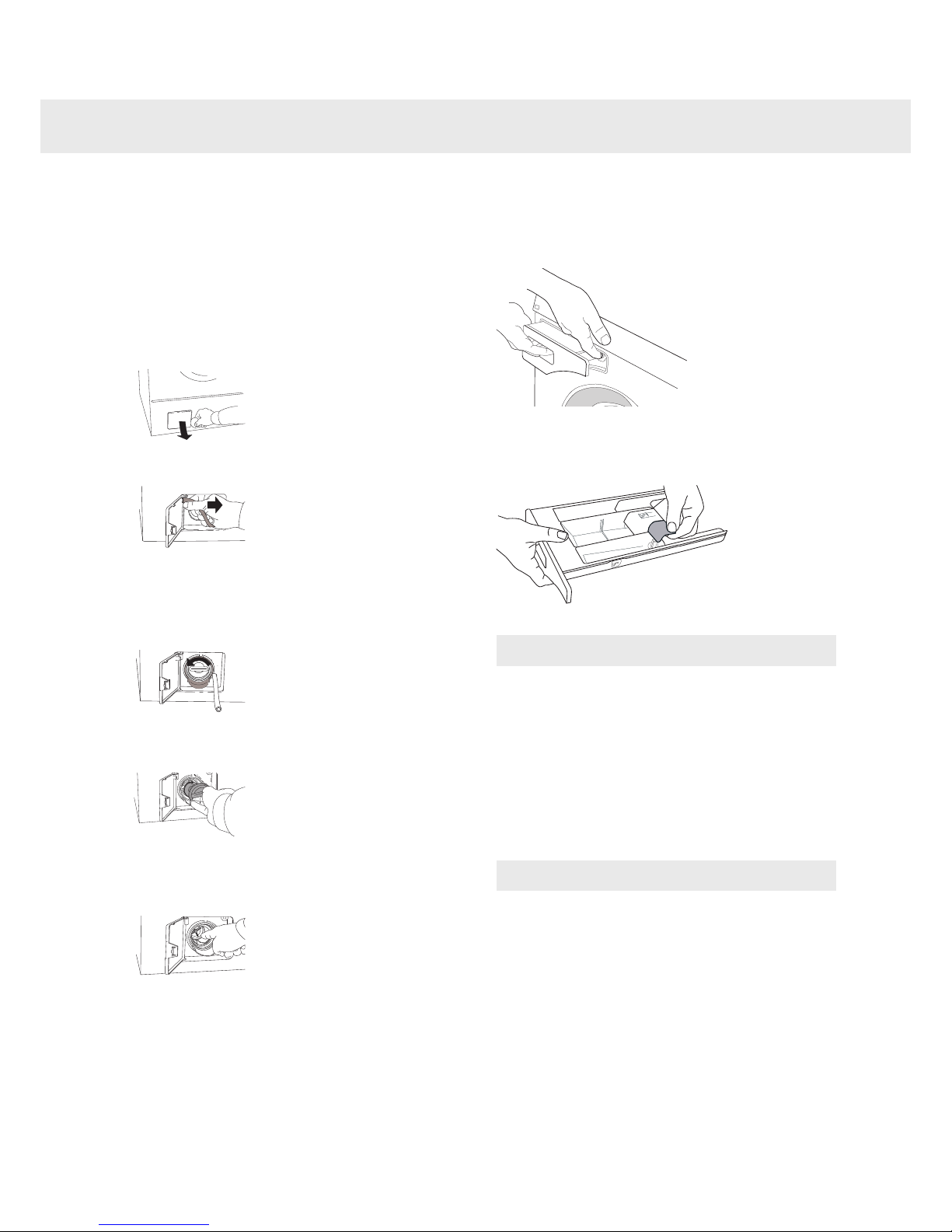

Cleaning the trap and the drainage
pump
The washing machine has a trap where smaller
objects such as coins and hairpins can collect.
To clean the trap and the drainage pump, do as
follows:
1. Make sure the machine is empty of water and
switched offat the mains.
2. Open the door.
3. Unhook the drainage hose from the
connector inside the door and drain the water
into a suitable container, such as a shallow
bowl.
4. Turn the cover anti-clockwise to open the
pump. Remove the cover.
5. Remove any items and so forth from the
pump housing and the cover. Also check that
the pump blades right at the back rotate.
6. Screw on the cover, replace the drainage
hose on the hatch pin and close the hatch.
Cleaning the detergent compartment
Pull out the detergent compartment using the
release button.
Rinse the compartment and scrub it clean. The
cover in the fabric softener compartment can be
removed.
NOTE!
Do not run the detergent compartment through
a dishwasher!
Cleaning the outside of the machine
Clean the outside of the machine and the
program panel with a mild cleaner. Do not
use any solvents, as these can damage the
machine.
NOTE!
Do not hose down the machine with water!
Care and cleaning

20
Care and cleaning
Cleaning the inside of the machine to
avoid unpleasant smells
Modern detergents often allow clothes to be
washed at low temperatures. This means that
small deposits can build up in the machine.
These, in turn, may lead to unpleasant smells
developing; especially if constantly using cold
wash.
To avoid this, we recommend running a 95 °C
wash program once a month. When you do
this, use a small quantity of detergent. It is not
necessary to put any washing in the machine.
Rinse holes under the agitator
If you suspect that objects such as nails or
paper clips may have fallen into the wash
drum, you should check the space under the
agitator. Such objects can rust and cause spots
on clothing. Nails and other sharp objects can
cause holes in fabrics.
Do as follows:
1. Insert a screwdriver or the like into the hole
on the agitator as illustrated and carefully pry
to the left.
2. Use your other hand to grasp the agitator and
pull it towards you.
3. Lift the agitator.
4. Remove any objects.
5. Place the agitator in the mounting hole with
the F-mark towards you. Ensure that all the
agitator fasteners are in their holes in the
drum. Push it in until it catches.
If you have hard water
If you live in an area with hard water (high
limescale content), a greyish-white coating may
form on the wash drum. To remove this coating,
pour approximately 20 gram of citric acid into
the wash drum and run any 95 °C program.
Repeat if necessary.
