Instructions – Parts List
Mustang 3100 Airless Paint Sprayer
– For portable spray application of architectural paints and coatings –
Model 246792
3000 psi (207 bar, 20.7 MPa) Maximum Working Pressure
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in this manual.
Save these instructions.
Table of Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grounding and Electrical Requirements 4. . . . . . . . . . .
Pressure Relief Procedure 5. . . . . . . . . . . . . . . . . . . . . . .
Component Function and Identification 6. . . . . . . . . . . .
Setup 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Priming 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tip Selection 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spraying Techniques 16. . . . . . . . . . . . . . . . . . . . . . . . . . .
Shutdown and Cleaning 18. . . . . . . . . . . . . . . . . . . . . . . .
General Repair Instructions 21. . . . . . . . . . . . . . . . . . . . .
Basic Troubleshooting 22. . . . . . . . . . . . . . . . . . . . . . . . .
Advanced Troubleshooting 24. . . . . . . . . . . . . . . . . . . . . .
List of Kits 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Motor Diagnostics 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Board Diagnostics 32. . . . . . . . . . . . . . . . . . . . . .
Pump Diagnostics 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pump Repair 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASM Warranty 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts

2 309884
Specifications
This equipment is not intended for use with flammable or combustible materials used in places such as
cabinet shops or other “factory” or fixed locations. If you intend to use this equipment in this type of
application, you must comply with NFPA 33 and OSHA requirements for the use of flammable and
combustible materials.
The following general warnings are related to the setup, use, grounding, maintenance and repair of this equipment.
Additional, more specific warnings may be found throughout the body of this manual where applicable. Symbols
appearing in the body of the manual refer to these general warnings. When these symbols appear throughout the
manual, refer back to these pages for a description of the specific hazard.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
DUse equipment only in well ventilated area.
DEliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop clothes (potential static arc).
DSprayer generates sparks. When flammable liquid is used in or near sprayer or for flushing or
cleaning, keep sprayer at least 20 ft (6 m) away from explosive vapors.
DKeep work area free of debris, including solvent, rags and gasoline.
DDo not plug or unplug power cords or turn lights on or off when flammable fumes are present.
DGround equipment and conductive objects in work area. Read Grounding instructions.
DIf there is static sparking or you feel a shock, stop operating immediately. Do not use equipment
until you identify and correct the problem.
DKeep a fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
DTurn off and disconnect power cord before servicing equipment.
DUse only grounded electrical outlets
DUse only 3–wire extension cords.
DEnsure ground prongs are intact on sprayer and extension cords.
DDo not expose to rain. Store indoors.
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in this equipment. Such use could result in a serious chemical reaction,
with the possibility of explosion, which could cause death, serious injury and/or substantial property
damage.

309884 3
WARNING
SKIN INJECTION HAZARD
High pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like
just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
DDo not point gun at anyone or any part of the body.
DDo not put your hand over the spray tip.
DDo not stop or deflect leaks with your hand, body, glove, or rag.
DEngage trigger lock when not spraying.
DFollow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking or servicing equipment.
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
DDo not exceed the maximum working pressure or temperature rating of the lowest rated system
component. Read Technical Data in all equipment manuals.
DUse fluids and solvents that are compatible with equipment wetted parts. Read Technical Data in
all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
DCheck equipment daily. Repair or replace worn or damaged parts immediately with genuine ASM
replacement parts only.
DDo not alter or modify equipment.
DUse equipment only for its intended purpose. Call your ASM distributor for information.
DRoute hoses and cables away from traffic areas, sharp edges, moving parts and hot surfaces.
DDo not kink or overbend hoses or use hoses to pull equipment.
DKeep children and animals away from work area.
DDo not operate the unit when fatigued or under the influence of drugs or alcohol.
DComply with all applicable safety regulations.
TOXIC FLUID HAZARD
Toxic fluid or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
DRead MSDS’s to know the specific hazards of the fluids you are using.
DStore hazardous fluid in approved containers and dispose of it according to all applicable guide-
lines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes, but is not limited to:
DProtective eye wear.
DClothing and respirator as recommended by the fluid and solvent manufacturer.
DGloves.
DHearing protection.

4 309884
Grounding and Electric Requirements
The sprayer must be grounded. Grounding reduces
the risk of static and electric shock by providing an
escape wire for the electrical current due to static.
build up or in the event of a short circuit.
DThe sprayer requires a 120 Vac, 60 Hz, 15A
circuit with grounding receptacle. Never use an
outlet that is not grounded or an adapter.
Fig. 1 ti3001b
DDo not use the sprayer if the electrical cord has a
damaged ground prong. Only use an extension
cord with an undamaged, 3–prong plug.
Fig. 2 ti5572a
DRecommended extension cords for use with this
sprayer:
D25 ft (7.6 m) 18 AWG
D50 ft (15.2 m) 16 AWG
D100 ft (30.5 m) 14 AWG
D150 ft. (45.7 m) 12 AWG
Smaller gauge or longer extension cords may reduce
sprayer performance.
DGround sprayer gun through connection to a
properly grounded fluid hose and pump.
DGround fluid supply container. Follow local
code.
DGround solvent pails used when flushing.
Follow local code. Use only conductive, metal pails,
placed on a grounded surface such as concrete.
Do not place the pail on a non–conductive surface
such as paper or cardboard, which interrupts the
grounding continuity.
Fig. 3 ti5850a
DGround the metal pail by connecting a ground
wire to the pail by clamping one end to pail and the
other end to ground such as as water pipe.
Fig. 4
ti5851a
DMaintain grounding continuity when flushing or
relieving pressure by holding metal part of spray
gun firmly to side of a grounded metal pail, then
trigger gun.
Fig. 5
ti6912a
Thermal Overload
To reduce risk of injury from motor starting unex-
pectedly when it cools, always turn power switch
OFF if motor shuts down.
DMotor has a thermal overload switch to shut itself
down if overheated.

309884 5
Pressure Relief Procedure
Follow Pressure Relief Procedure when you
stop spraying and before cleaning, checking, servicing or transporting
equipment.
1. Turn power switch OFF and unplug power cord.
Fig. 6
2. Turn Spray–Prime/Drain valve to PRIME/DRAIN to
relieve pressure.
Fig. 7 PRIME
3. Turn pressure to lowest setting. Hold metal part of
gun firmly to a grounded metal pail. Trigger gun to
relieve pressure.
Fig. 8
ti6912a
4. Engage trigger lock.
Fig. 9
ti6763b
DLeave Spray–Prime/Drain valve in PRIME/DRAIN
position until you are ready to spray again.
DIf you suspect the spray tip is clogged or that
pressure has not been fully relieved after following
the above steps, VERY SLOWLY loosen tip guard
retaining nut or hose end coupling to relieve pres-
sure gradually. Then loosen completely. Clear
hose or tip obstruction.

C
H
F
X
D
A
W
B
M
L
J
P
K
G
E
Mustang 3 Spray
Gun
Q
R
S
T
V
U
ti5453b
ti6911a
6 309884
Component Identification and Function

309884 7
Component Identification and Function
AElectric motor (inside of enclosures) Provides mechanical power to pump
BPower switch For manually turning on/off electrical power to motor (“I” is ON / “0” is OFF)
CPressure Control knob For manually increasing (turn clockwise) and decreasing (turn
counter-clockwise) fluid pressure in pump, hose, and spray gun
DPump fluid outlet fitting Threaded connection for paint hose
EPump filter DFilters fluid coming out of pump to reduce tip plugging and improve finish
DSelf cleans during pressure relief
FPiston pump (behind black cap) Pumps and pressurizes fluid and delivers it to paint hose if necessary. Black
cap permits quick removal of outlet valve.
GSuction tube Draws fluid from paint pail into pump
HPrime tube (with diffuser) Drains fluid in system during priming and pressure relief
JSpray/Prime/Drain valve control DDirects pressurized fluid to paint hose in SPRAY position (pointing forward)
DDirects fluid to drain tube in PRIME/DRAIN position (pointing down)
DAutomatically relieves system pressure in overpressure situations
KFluid inlet connection and inlet valve Where suction tube connects to pump and inlet valve
LInlet screen Prevents debris from entering pump
MPaint hose Transports high-pressure fluid from pump to spray gun
PAirless spray gun Manually-controlled, hand-held on/off device for fluid being sprayed
QTip base Reduces risk of fluid injection injury
RSpray tip DAtomizes fluid being sprayed, forms spray pattern, and controls fluid flow
according to hole size
DReverses for unplugging without disassembly
STrigger safety lever Prevents accidental triggering of spray gun
TGun fluid inlet fitting Threaded connection for paint hose
USwivel Allows spray gun to swivel without twisting paint hose
VGun fluid filter (in handle) Filters fluid entering spray gun to reduce tip plugging and improve finish
WHose/Cord wrap bracket Stows paint hose and electrical cord
XPail hanger For transporting pail by its handle

8 309884
Setup
1. Unscrew tip and base assembly from gun to
prepare for priming.
2. Uncoil hose and connect one end to gun.
3. Connect other end of hose to sprayer.
NOTE: If hose is already connected, make sure
connections are tight.
4. Turn OFF power switch.
5. Turn Pressure Control Knob all the way left
(counterclockwise) to minimum pressure.
NOTE: To select function, align symbol on Pressure
Control Knob label with arrow on sprayer. (Fig. 10)
Fig. 10

309884 9
Priming
NOTE: If spraying lacquers, purchase Lacquer Con-
version Kit 248202, and follow all Priming
procedures for oil–based materials.
Oil–based or Water–based Materials

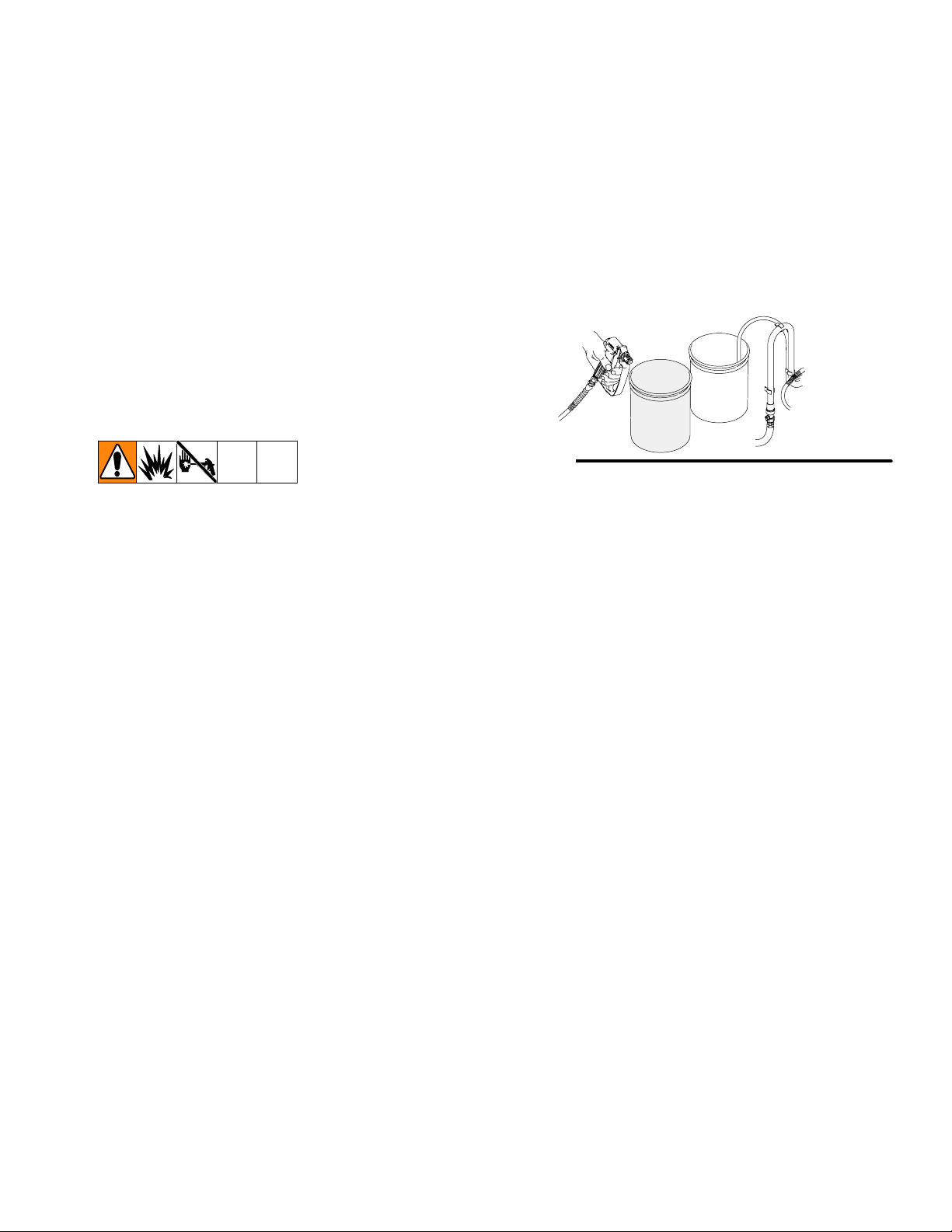

1. Turn Spray/Prime valve to PRIME.
Fig. 11
PRIME
2. Separate prime tube (smaller) from suction tube
(larger).
Fig. 12
prime
tube
suction
tube
3. Place prime tube in waste pail.
Fig. 13
4. If spraying oil–based materials, submerge suction
tube in mineral spirits or compatible oil–based
cleaning solution.
If spraying water–based materials, submerge
suction tube in water.
Fig. 14
Mineral Spirits WATER
OR
5. Plug sprayer into grounded outlet.
6. Point gun into waste pail.
Fig. 15
WASTE ti6913a
7. Turn power switch ON.
Fig. 16
8. Turn up pressure control knob until pump starts.
Fig. 17
ti6906a
9. Allow fluid to flow out of prime tube, into waste
pail, for 30 to 60 seconds.
10. Turn power switch OFF.
11. Submerge suction tube in paint.
Fig. 18
PAINT

10 309884
Priming
12. Turn power switch ON.
Fig. 19
13. When paint starts to come out of prime tube, pull
and hold gun trigger, and turn Spray/Prime valve to
SPRAY.
When paint comes out of gun, release trigger.
Fig. 20
WASTE SPRAY
pull and hold trigger
paint
ti6914a
NOTE: Motor stopping indicates pump and hose are
primed with paint.
14. Attach drain tube to suction tube.
Pump Check Valves
Storing pump in water, inadequate flushing, or ingested
debris can cause either of the pump’s two check
valves to malfunction. If the pump does not prime
after 30 seconds, try to jar the check balls loose by
tapping the inlet valve with a small wrench as the
sprayer is on and running.
CAUTION: Excessive shock will fracture or cause
other dama
g
e to the
p
um
p
.
Fig. 21
Tap here
ti6915a
HINT: To determine if the inlet valve ball is sticking,
unscrew inlet valve from pump and check it. Inlet valve
can be removed without removing suction tube.
If sprayer continues to cycle (motor and pump run)
after you release gun trigger, the pump valves may be
obstructed or worn. If they are worn, Valve Repair Kits
are available. Consult an ASM authorized service
center.

309884 11
Priming
Preparing to Spray Oil–Based Materials After Spraying Water–Based
Materials
NOTE: To spray water–based materials after spraying
oil–based materials, follow the procedure outlined
below, using water instead of mineral spirits to flush
system.
1. Turn Spray/Prime valve to PRIME.
Fig. 22
PRIME
2. Separate prime tube (smaller) from suction tube
(larger).
Fig. 23
prime
tube
suction
tube
3. Place prime tube in waste pail.
Fig. 24
4. Place suction tube in bucket of mineral spirits.
Fig. 25 Mineral Spirits
5. Plug sprayer into grounded outlet.
6. Point gun into waste pail.
Fig. 26
WASTE ti6913a
7. Turn power switch ON.
Fig. 27
8. Turn up Pressure Control knob until pump starts.
Fig. 28 ti6906a
9. Flush until mineral spirits flow out of prime tube
into waste pail, for 30 to 60 seconds.
10. Turn power switch OFF.
Fig. 29
11. Submerge suction tube in paint.
Fig. 30
PAINT

12 309884
Priming
12. Turn power switch ON.
Fig. 31
13. When paint starts to come out of prime tube, pull
and hold gun trigger, and turn Spray/Prime valve to
SPRAY.
When paint comes out of gun, release trigger.
Fig. 32
WASTE SPRAY
pull and hold trigger
paint
ti6914a
NOTE: Motor stopping indicates pump and hose
are primed with paint.
14. Attach drain tube to suction tube.
NOTE: If pump does not prime after 30 seconds see
Pump Check Valves, page 10.

309884 13
Setup
Installing Tip and Base
1. Place trigger safety lever in Safety ON position.
2. Make sure tip and base parts are assembled in
order shown.
Fig. 33
ti6770a
ti6771a
ti6916a
3. Screw tip and base assembly onto gun and tighten
retaining nut by hand.
Fig. 34
ti6772a
NOTE: Point the arrow shaped handle on the Uni tip
forward to SPRAY and backward to UNCLOG
obstructions.
Fig. 35
UNCLOG – arrow
points backward
SPRAY – arrow
points forward
ti6774a
ti6775a
NOTE:
DTip must be pushed all the way into base.
DNever pull gun trigger when arrow shaped handle is
between SPRAY and UNCLOG positions.

14 309884
Tip Selection
Selecting a Tip Hole Size
Tips come in a variety of hole sizes for a range of fluids. Your Mustang sprayer includes the tip most likely to satisfy
common spraying applications. Use the following table to determine the range of recommended tip hole sizes for
each fluid type.
Tip Hole Sizes
(expressed as
Coatings
(
expressed as
diameter, based on
area of elliptical
orifice)
stains enamels oil-base
primers and
paints
interior
latex paints
exterior
latex paints
acrylics
0.011 in. (0.28 mm) X
0.013 in. (0.33 mm) X X X X
0.015 in. (0.38 mm) X X X X
0.017 in. (0.43 mm) X X X X
0.019 in. (0.48 mm) X X
HINTS:
DAs you spray, the tip wears and enlarges. Starting
with a tip hole size smaller than the maximum will
allow you to spray within the rated flow capacity of
the sprayer while using the tip you selected.
DMaximum tip hole size supported by the Mustang
sprayer is 0.017 in. (0.43 mm).
Example: For an 8 to 10 in. (203 to 254 mm) fan width and
a 0.013 in. (0.33 mm) hole size order Part No. 59–413.
Using the Right Tip for the Job
Consider the coating and the surface to be sprayed.
Make sure you use the best tip hole size for that
coating and the best fan width for that surface.
Tip Hole Size
Tip hole size controls the flow rate — the amount of
paint that comes out of the gun.
HINTS:
DGenerally, use larger tip hole sizes with thicker
coatings and smaller tip hole sizes with thinner
coatings.
DThe maximum tip hole size that a sprayer can
support is related to its maximum flow rate. The
maximum tip hole size supported by the Mustang
sprayer is 0.017 in. (0.43 mm).
DTips wear with use and need periodic replacement.
Fan Width
Fan width is the size of the spray pattern, which deter-
mines the area covered with each stroke. For a given
tip hole size, narrower fans deliver a thicker coat, and
wider fans deliver a thinner coat.
HINTS:
DSelect a fan width best suited for the surface being
sprayed.
DWider fans allow for faster coverage on broad,
open surfaces.
DNarrower fans allow for better control on small,
confined surfaces.

309884 15
Tip Selection
Understanding the Tip Number
The last three digits of the tip number (example:
59–413) contain information about the hole size and
about the fan width on the surface when the gun is
held 12 in. (30.5 cm) from the surface being sprayed.
First digit when doubled
= approximate
fan width.
Last two digits = tip hole size
in thousands of an inch.
413 tip has a
0.013 in. hole size
413 tip has 8 to 10 in.
fan width

16 309884
Spraying Techniques
This sprayer is set up for most airless spraying ap-
plications. Details on tip selection, tip wear, coat
thickness, etc. are provided on page 14.
NOTE: Motor runs only when gun is triggered.
Sprayer is designed to stop pumping when gun trigger
is released.
Pressure Adjustment
DAlign arrow on sprayer with function symbol on
Pressure Control Knob. Turning knob to right
(clockwise) increases pressure at gun. Turning it
left, (counterclockwise) decreases pressure.
Preventing Excessive Tip Wear
DSpray should be atomized (evenly distributed, no
gaps at edges) (Fig. 36). Start at low pressure
setting, increase pressure a little at a time until
paint is atomized.
Fig. 36
Agood
spray pattern
pressure
too low
gaps at edges
DTo prevent excessive tip wear, spray at lowest
pressure that atomizes paint.
DIf maximum pressure of sprayer is not enough for
good spray pattern, tip is too large or too worn.
Getting Started with Basic Techniques
DHold gun 12 in. (30 cm) from surface and aim
straight at surface. Tilting gun to direct spray angle
causes an uneven finish (Fig. 37).
Fig. 37
12 in.
(30 cm)
even
finish
thin
uneven
finish
thick
DFlex wrist to keep gun pointed straight. Fanning
gun to direct spray at angle causes uneven finish
(Fig. 38).
Fig. 38

309884 17
Spraying Techniques
Triggering Gun
DPull trigger after starting stroke, release trigger
before end of stroke. Gun must be moving when
trigger is pulled and released (Fig 39).
Fig. 39
pull release
Aiming Gun
DAim tip of gun at edge of previous stroke to overlap
each stroke by half (Fig. 40).
Fig. 40
aim
here

18 309884
Shutdown and Cleaning
NOTE: If spraying lacquers, purchase Lacquer
Conversion Kit 248202, and follow Pail Flushing
procedure.
NOTE: For short shutdown periods (breaks on the
job), leave suction tube and prime tube in paint and
relieve pressure by turning Spray/Prime Valve to
PRIME. For extended shutdown periods, clean
sprayer by flushing as instructed in this section.
Pail Flushing
DFor flushing after spraying non–water/solvent
coatings with compatible flushing fluid. For water–
based coating, see Zip Flushing, page 19.
Do not clean with materials having flash points lower
than 70_F (21_C). Use water–based materials or
mineral spirits type material only. For complete infor-
mation about your fluid, request the MSDS from the
fluid distributor or retailer.
NOTE: In Step 1, the sprayer must be under pressure
for the fluid filter system to be activated. If the sprayer
has no pressure, it needs to be primed.
1. With Power switch OFF, lift suction tube and prime
tube from paint pail, and let them drain into paint
for awhile. Place suction tube in flushing fluid pail,
and place prime tube in waste pail. Turn
Spray/Prime valve to PRIME to relieve fluid
pressure into waste pail.
WASTE
FLUSHING
FLUID
9567
A
PRIME
Fig. 41
2. Turn Pressure Control knob to the left
(counterclockwise) to minimum pressure. Trigger
gun into waste pail to relieve pressure that might
be in hose.
NOTE: To minimize splashing, aim gun at inside
wall of empty waste pail.
3. Remove tip & base assembly from gun, and place
in flushing fluid pail.
Fig. 42
ti6768a
4. Turn Power switch ON, and slowly align arrow on
sprayer and bucket symbol on Pressure Control
knob until pump starts. Continue flushing until
about 1/3 of flushing fluid is gone from flushing
fluid pail.
5. Turn Power switch OFF, and turn Prime valve to
SPRAY.
SPRAY
Fig. 43

309884 19
Shutdown and Cleaning
6. Trigger gun into paint pail, and turn Power switch
ON. When flushing fluid comes out of gun, release
trigger.
7. Move gun to waste pail, and trigger it to flush
pump, hose, and gun into waste pail. Continue
until remaining flushing fluid is gone from flushing
fluid pail.
NOTE: To minimize splashing, aim gun at inside wall
of pail.
8. Fill unit with pump storage fluid or mineral spirits.
Zip Flushing
DFor flushing after spraying water–based coatings.
This procedure is for flushing after spraying water–
based coatings.
1. With Power Switch OFF, lift suction tube and prime
tube from paint pail, and let them drain into paint
for awhile. Place suction tube in flushing fluid pail,
and place prime tube in waste pail. Turn
Spray/Prime valve to PRIME to relieve fluid
pressure into waste pail.
2. Turn Pressure Control knob to the left
(counterclockwise) to minimum pressure. Trigger
gun into waste pail to relieve pressure that might
be in hose.
NOTE: To minimize splashing, aim gun at inside wall of
empty waste pail.
3. Remove tip & base assembly from gun, and place
in flushing fluid pail.
4. Screw Zip Flush attachment onto garden hose.
Close lever on Zip Flush attachment.
5. Unscrew inlet screen from suction tube and place
tube in waste bucket.
6. Connect garden hose to suction tube with Zip
Flush attachment. Leave prime tube in waste pail.
7. Turn Spray/Prime Valve to SPRAY. Align arrow on
sprayer with bucket symbol on Pressure Control
Knob.
8. Open lever on Zip Flush attachment. Turn on
garden hose.
NOTE: Step 9 is for returning paint in hose back to
paint pail. One 50–foot (15–meter) hose holds
approximately 1 quart (1 liter) of paint.
9.
a. Pull and hold gun trigger and point gun into
paint pail.
WASTE
PAINT
Fig. 44
b. Turn power switch ON to begin pumping paint
in hose back into paint pail.
c. When water comes out of gun, keep gun trig-
ger pulled and move aim of gun to waste pail.
10. Keep gun triggered and aimed into waste pail for
1–2 minutes, until relatively clear water comes out
of gun.
11. Turn Spray/Prime valve to PRIME.
12. Let water flow through sprayer into waste pail for
20 seconds.
13. Turn power switch OFF.
14. Close Zip Flush attachment. Turn off garden hose.
15. Unscrew Zip Flush attachment from suction tube.
Cleaning Fluid Filter
1. Disconnect airless spray hose from sprayer.
Remove fluid filter from sprayer. Check it for
debris. If needed, clean filter with water and
brush.
NOTE: The filter prevents particles from entering paint
hose. Although filter is self–cleaning, remove and
clean it after each use to insure peak performance.
2. Install filter.
3. Tighten outlet fitting and reconnect hose to
sprayer.

20 309884
Shutdown and Cleaning
Replacing Water with Storage Fluid
NOTE: Never leave water in pump. Always pump
storage fluid through system after cleaning. Water left
in the sprayer will corrode and ruin pump.
1. Place suction hose in storage fluid bottle and
prime tube in waste pail.
2. Turn Spray/Prime Valve to PRIME.
3. Turn pressure control knob all the way left
(counterclockwise) to minimum pressure.
4. Turn power switch ON.
5. Align arrow on sprayer to roller symbol on
pressure control knob.
6. When storage fluid runs out of prime tube (5–10
seconds) turn power switch OFF.
7. Turn Spray/Prime Valve to SPRAY to keep storage
fluid in sprayer during storage.
