aspiron AS-CA032 User manual

Please read before product use.
Save this manual for future reference.Made in China.
1
Model :AS-CA032
Bed Cleaner User Manual

Important safety instructions
Please follow the following basic warnings when using this product:
1. ultraviolet rays can harm the skin and eyes of humans and animals. Do not
directly irradiate human body, plants or animals.
2. The object to be irradiated and sterilized is first tested locally to avoid
damage to light sensitive or non-UV resistant substances.
3. Please do not deliberately destroy the roller at the bottom of the product
(safety switch) so that the UV lamp loses protection.
4. Unplug when not in use or before maintenance.
5. To reduce the risk of shock, do not use outdoors or on wet surfaces.
6. Please follow this instruction manual. Use only the functions recommended in
this manual.
7. when the plug or power cord is damaged.Do not use it.
8. This product is intended for general household use, please do not use for
commercial or other purposes.
9. Do not suck glass slag, screw and other sharp hard objects, as well as
construction waste, to avoid damage to the machine.
10.Do not place the machine on a hot surface.
11.Do not use when the air duct is blocked. Otherwise, the motor will be damaged.
12.Do not use when dust cup or filter is not installed. Otherwise, the motor
will be damaged.
Special note:
Some special groups are not suitable for using this product, such as children,
disabled people, people with mental illness. Unless they are using the product
under supervision to ensure safety. Please ensure that children do not use this
product as a toy.
2

Product component name and schematic diagram
1. Dust cup 7. UV light window
2. Dust cup release button 8. Ultrasonic pore
3. Power switch 9. Power cord
4. Functional display 10. Main machine
5. Handle 11. Roll brush perspective window
6 UV protection switch 12. Rolling brush
Product technical parameters
Product
category
sterilization and mite
removal vacuum cleaner Product model CY003
Rated
voltage 120V ~ 50Hz Machine power
power cord
400W
length 5m Noise ≤83dB（A）
vacuum ≥ 10kPa Dust capacity 0.3L
N.W.: 1.9 Kgs Product dimension 290mm*240mm*235mm
3

Circuit diagram
Machine operation instruction
1. Plug the power cord into the socket and switch on the power supply. Gently
press the power supply in the display area of the screen to enter the automatic
mode. When the machine is put on the working surface (bed sheet, quilt), UV,
ultrasonic display work, lift the machine out.
In normal operation, under the induction of dust mite intelligent sensor,
through the control of computer chip, the color band display of dust mite
quantity in the air intake echoes the work of the motor. When the air intake
sensor detects the increase of dust mite quantity in the air intake, the blue
light band display changes from left to right from blue to red (full red at
most), and the motor speed increases, the data display will also increase
synchronously (maximum 100). When the amount of dust mites in the wind
decreases, the blue display is increased synchronously, and the motor data
decreases
When the machine is working, press the switch again, the machine becomes full
speed, press the machine again to close
4

2. Place the machine on the item to be cleaned (such as a bed), and slowly push
and pull the machine back and forth for cleaning. (Recommended cleaning speed
is less than 20 seconds per meter, back and forth three times).
3. The inside of the dust cup cover is equipped with an aromatherapy tablet
installation box. Users can choose the aromatherapy tablets of the same
specifications, which can keep the indoor environment with fresh fragrance
after use. After separating the dust cup upper cover assembly from the dust cup
assembly according to the cleaning and maintenance method, pull up the aroma
cover as shown in the figure, put the aroma piece (diameter 18.5, thickness
6.5) and press the aroma cover. Reinstall the upper cover assembly on the dust
cup and place it in the position of the main engine.
Note: This machine is equipped with 2-point protection and anti-tipping
function. The machine stops UV sterilization and ultrasonic mite removal
function when lifting too high. When using, please adjust the height between
the machine and the contact surface to ensure the normal operation of the
machine. If the UV lamp is raised too high and the ultrasonic function does not
work, it is a normal reaction.
Cleaning and maintenance
Clean the dust cup assembly and brush assembly regularly. Because the mites in
the adsorbed cotton may not be killed and will continue to reproduce, in order
to avoid secondary pollution, it is necessary to pour ash in time, clean the
dust cup assembly and the rolling brush assembly, and replace the new fine
filter cotton when the high efficiency filter cotton is seriously polluted.
Here's how:
1. Turn off the machine and remove the power plug
power switch
Lamp strip
5

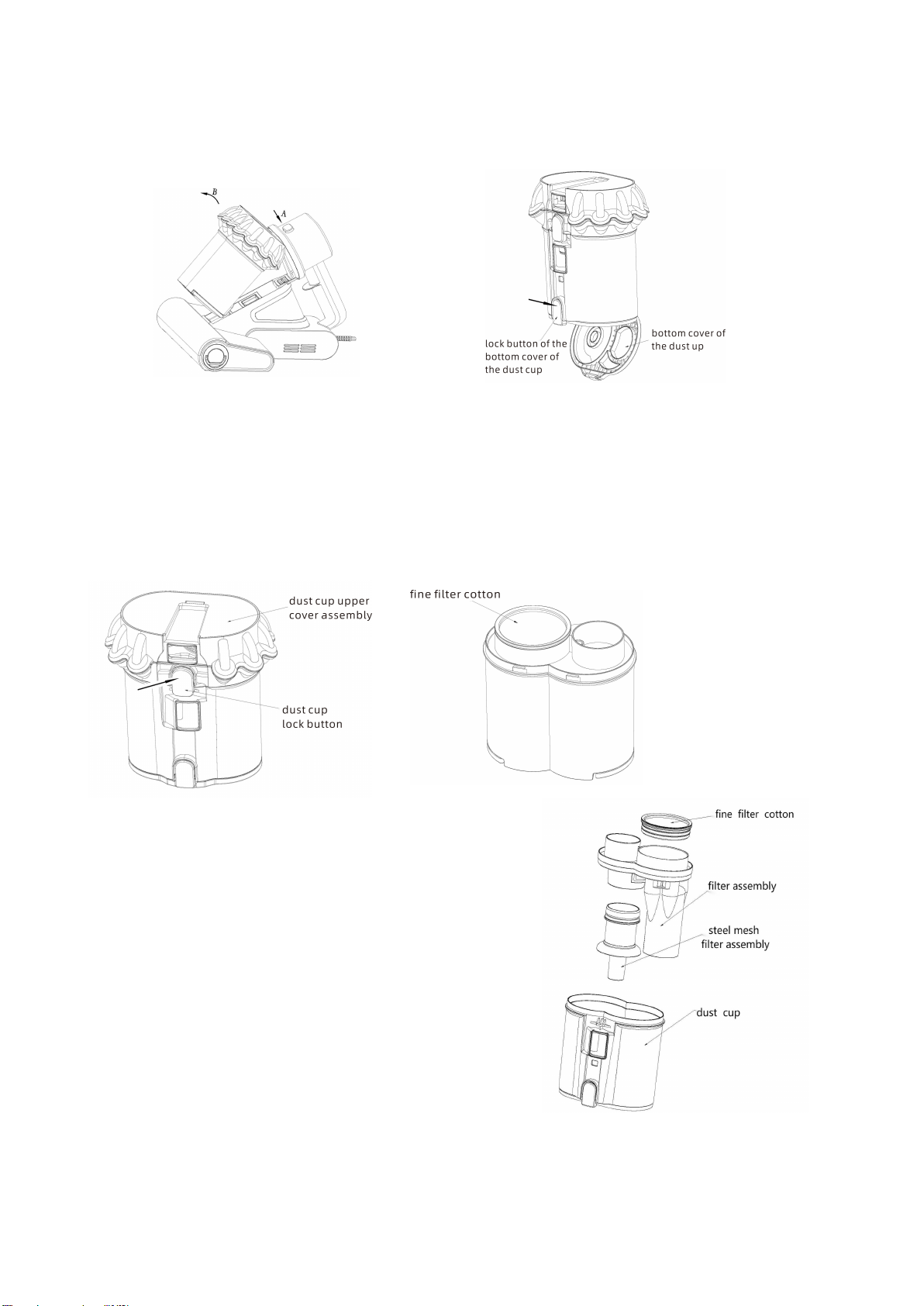

2. Press A as shown in figure A to press the release button of the dust cup,
cover the dust cup and rotate according to Figure B, lift the dust cup, and
remove the dust cup
3. One-button ash pouring: Hold the dust cup and press the lock button of the
bottom cover of the dust cup in the direction of the figure. The bottom cover
of the dust cup will open automatically and the dust will be poured out
4. Clean and replace the fine filter cotton. Press the dust cup lock button
according to the figure, remove the dust cup cover assembly, and then remove
the fine filter cotton according to the figure, wash with water, dry it, put it
back, and close the cover again (it is recommended to replace the fine filter
cotton that has been cleaned for several times).
5. Clean the inner parts of the dust cup:
after removing the upper cover assembly,
Remove the parts shown one by one and clean
them with water until they are fully cleaned
Reload after drying.
6

6. After the dust cup parts are reinstalled in place,
install the upper cover assembly. Cover the top as shown
After the two buckle positions of the component are
aligned with the installation slot on the dust cup,
properly clamp into the dust cup, and then
Press the opposite position step by step,
when all in place, dust cup lock button to
close the lid
7. Cleaning roller brush components:
Open the small handle at the end of the
rolling brush assembly according to the
drawing and pull it out. When cleaning,
After holding the handle, rinse the rolling
brush with clean water and let dry,Reload.
TLoading method: Push the brush rolling component
inward through the mounting hole of the shell.
When a crisp sound is generated, the brush rolling
component has slipped into the installation position.
At this time, the end is flush with the casing and installed in place.
Machine cleaning and storage
1. All routine care and maintenance work must be done after the vacuum cleaner
is unplugged.
2. Often clean the garbage in the dust bucket to avoid the failure of the mite
removal instrument.
3. Mite removal instrument surface can not be scrubbed with gasoline or oil,
the application of soft cloth or neutral detergent scrub, scrub cloth must be
wrung out, can not be water into the vacuum cleaner electrical components.
4. Bundle the power cord and put it away together with the machine.
5. Keep the storage area dry.
6. Heavy objects should not be stacked above the machine.
7
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference
that may cause undesired operation.

8
已出Piron
Manufacturer : She nzhen Aspi ron Tech nology Co.,Ltd.
Address : Room 2803B ,Building C,Galaxy World Phase II,Minle
Community,Minzhi Street,Longhua
District,Shenzhen,Guangdong ,China
E-Mai l: [email protected]
