:: Introduction
:: KIT Features
:: Other Helpful Items
Associated Electrics, Inc.
26021 Commercentre Dr.
Lake Forest, CA 92630
http://www.TeamAssociated.com · http://www.RC10.com · http://twitter.com/Team_Associated · www.facebook.com/Team Associated
Customer Service
Tel: [phone]
Fax: [phone]
Thank you for purchasing this Team Associated product. This assembly manual contains instructions and
tips for building and maintaining your new RC10 B64D.
Please take a moment to read through this manual to help familiarize yourself with these steps.
We are continually changing and improving our designs; therefore, actual parts may appear slightly
different than in the illustrations.
New parts will be noted on supplementary sheets located in the appropriate parts bags.
Check each bag for these sheets before you start to build.
It all started with a 1-2-3 sweep. In 2007, the RC10B44 swept the podium at the I.F.M.A.R. World
Championships. Since then, Team Associated’s first 1:10 scale 4WD buggy has held a dominant place at
the front of the field. The B44 platform has gone on to win numerous National and International titles and
added two more I.F.M.A.R. World Championships to its legacy in 2011 and 2013.
Speed, grip and durability. Designed to take advantage of today’s faster-than-ever tracks, the RC10B64D
Team Kit offers increased durability, all new suspension geometry, a wider tuning window, improved weight
distribution, and easy maintenance. Excelling on dirt and clay surfaces, the B64D’s adjustable axle height
and roll centers result in a stable yet nimble platform. With a new and improved center differential, the
B64D rewards the driver with maximum drive out of all four wheels.
Additional RC10B64D Team Kit Features:
• V2 12mm “Big Bore” threaded aluminum shocks with 3mm TiN coated shafts and low friction x-rings for
improved smoothness
• Factory Team floating aluminum motor mount and aluminum/carbon servo mounts
• Refined arm mount geometry with quick and easy tuning
• Front and rear anti-roll bars keep chassis flat for increased corner speed
• Narrow, 7075 hard-anodized aluminum chassis with centralized mass. Easy access center gear differential
• Strengthened front and rear suspension with hard-anodized aluminum caster blocks and carbon fiber
shock towers
• Team Associated clear body and screw-mounted wing by JConcepts™
• All-metric hardware throughout
• Silicone Shock Fluid (Refer to catalog for complete listings) • Silicone Diff Fluid (Refer to catalog for complete listings)
• Body Scissors (AE Part # 1737) • Reamer / Hole Punch • Wire Cutters • Hobby Knife
• FT Hex Wrenches (AE Part # 1655) • Needle Nose Pliers • Thread Lock (AE Part #1596)
• Soldering Iron • Calipers or a Precision Ruler • Green Slime shock lube (AE Part # 1105)

3
:: Hardware - 1:1 Scale View
Notes:
2.5x8mm (31448)
3x6mm (31541)
Aluminum (8551)
Titanium (91591)
3x8mm (25201)
Aluminum (8553)
Titanium (91592)
3x10mm (25202)
Aluminum (8555)
Titanium (91593)
3x16mm (25204)
Titanium (91596)
Flat Head (fhcs)
M3 Nut (91477)
M3 Alum. Locknut, Blue (31550)
M3 Locknut, Black (25215
M3 Locknut w/Flange (25612)
FT 3mm Locknuts, Blue(25392)
M4 Locknut w/Flange (91148)
FT M4 Locknut, Blue (31551)
M4 Locknut, Serrated (91738)
Nuts (lock/plain)
2x4mm (31510)
Aluminum (8545)
2.5x8mm (31521)
3x6mm (31531)
Aluminum (8550)
Titanium (91580)
3x8mm (31532)
Aluminum (8552)
Titanium (91581)
3x10mm (25211)
Aluminum (8554)
Titanium (91582)
3x12mm (89202)
Titanium (91583)
3x14mm (25187)
Titanium (91584)
3x16mm (89203)
Titanium (91585)
3x20mm (25188)
Titanium (91587)
3x24mm (89204)
Titanium (91589)
Button Head (bhcs) Ball Bearings
3x7x3mm (91475)
5x8x2.5mm (31400)
5x10x4mm (91560)
6x13x5 (91562)
10x15x4 (91563)
3x3mm (25225)
3x20mm (91737)
Set Screws
Cap Head (shcs)
1.6 x 5mm (91611)
2x5mm (31511)
Servo Mount Washer (7337)
(.250 x .125 x .815)
FT Ballstud Washer, Aluminum
(0.5mm) (31381)
FT Ballstud Washer, Aluminum
(1mm) (31382)
FT Ballstud Washer, Aluminum
(2mm) (31383)
Shims and Washers
Ballstuds
Silver HD 4mm (91451)
FT Ti HD 4mm (91750)
Ti Nitride HD 4mm (91452)
HD 6mm (91047)
FT HD Ti 6mm (91751)
Ti Nitride HD 6mm (91118)
Silver HD 8mm (91048)
FT Ti HD 8mm (91752)
Ti Nitride HD 8mm (91119)
HD 10mm (91049)
FT Ti HD 10mm (91753)
Ti Nitride HD 10mm (91120)

4
:: Table of Contents
:: Notes
1....................Cover
2....................Introduction
3....................1:1 Hardware “Fold Out”
4....................Table of Contents
5....................Chassis Build
(Bag 1.1, 1.2)
5 - 7..............Differential Build
(Bag 2.1, 2.2, 2.3)
7 - 8..............Steering Rack Build
(Bag 3.1, 3.2)
8 - 10...........Front Gearbox Build
(Bag 4.1, 4.2, 4.3)
10 - 11.........Steering Block Build
(Bag 5.1, 5.2)
11 - 12........Servo Build
(Bag 6.1, 6.2)
12 - 13........Rear Gearbox Build
(Bag 7.1, 7.2)

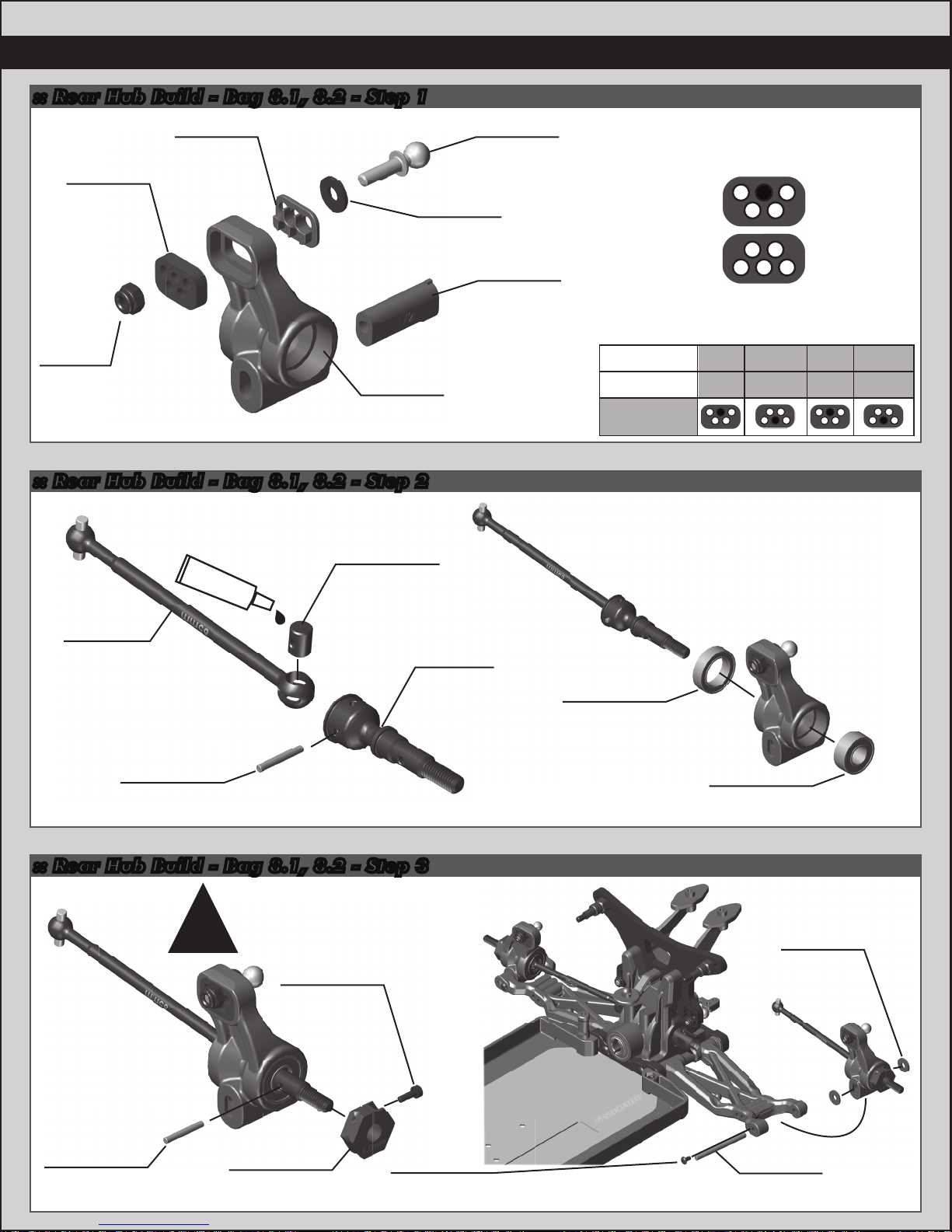

14.................Rear Hub Build
(Bag 8.1, 8.2)

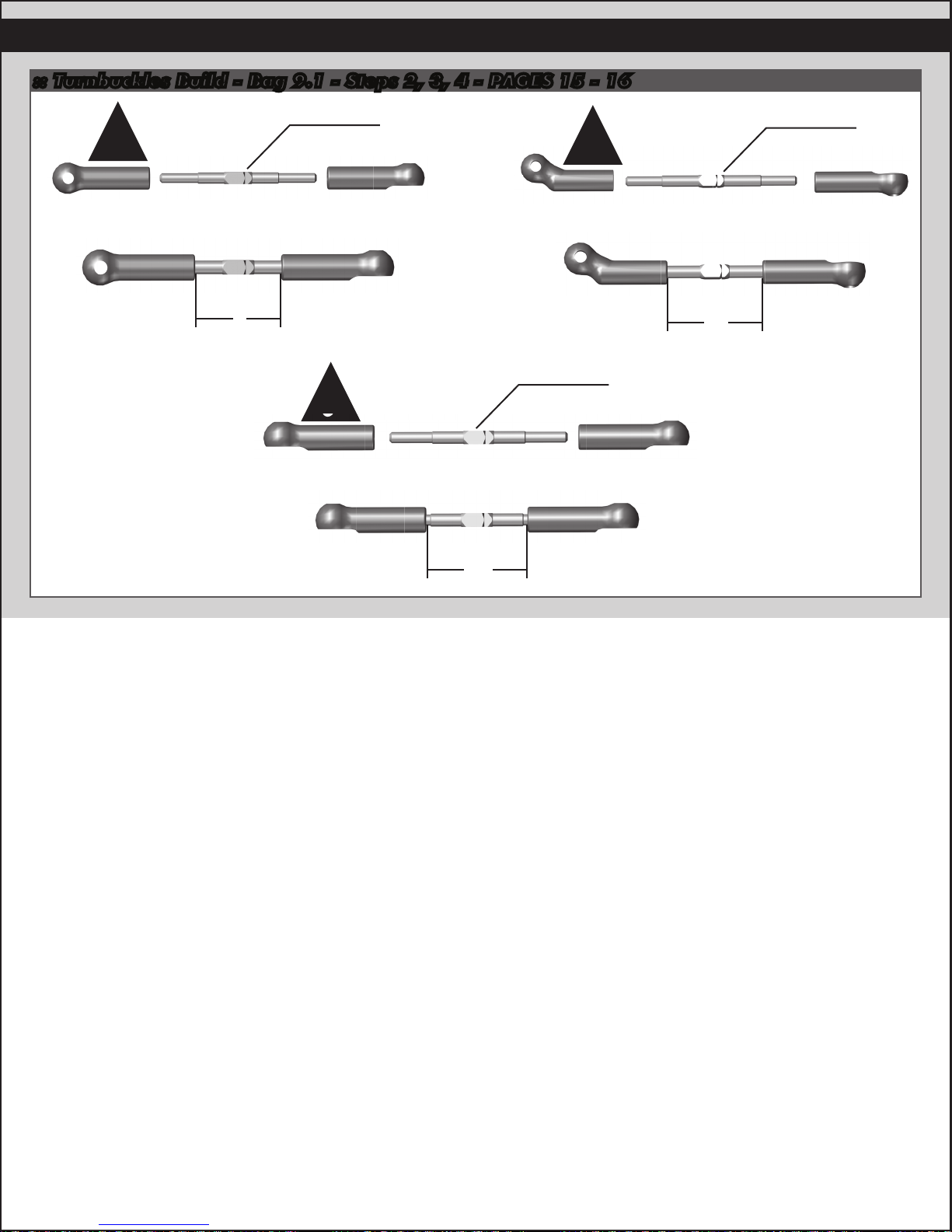

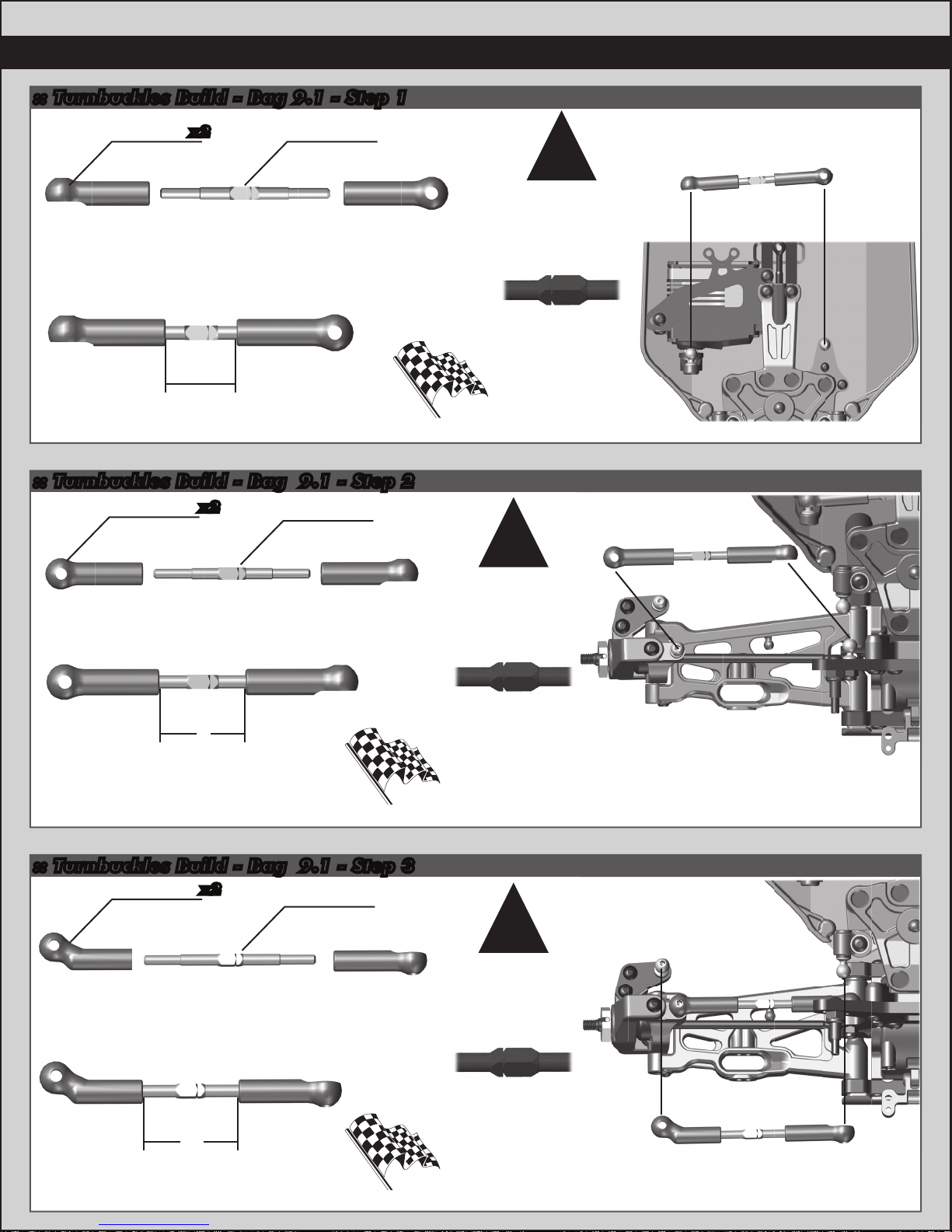

15 - 16........Turnbuckles Build
(Bag 9.1)

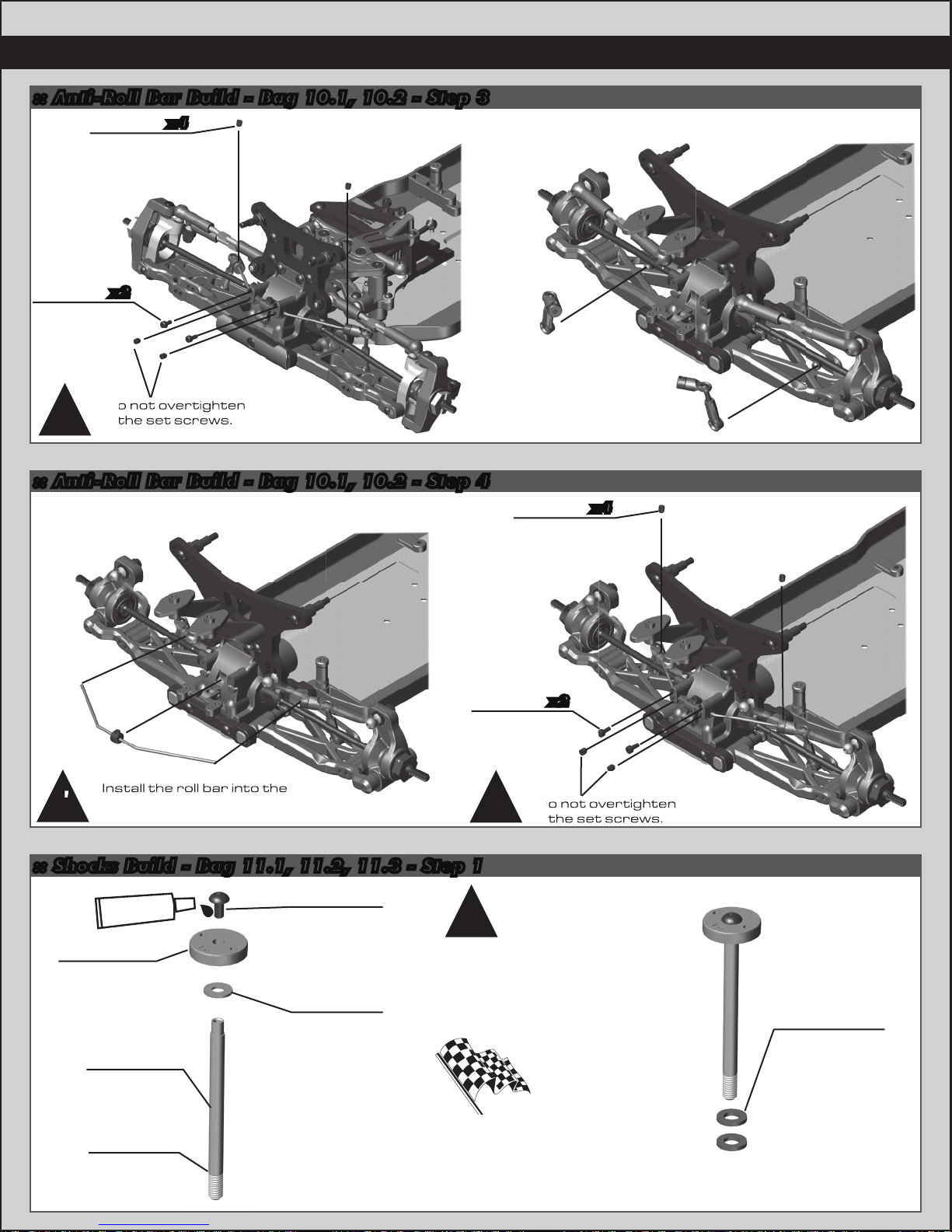

16 - 17.........Anti Roll Bars Build
(Bag 10.1, 10.2)

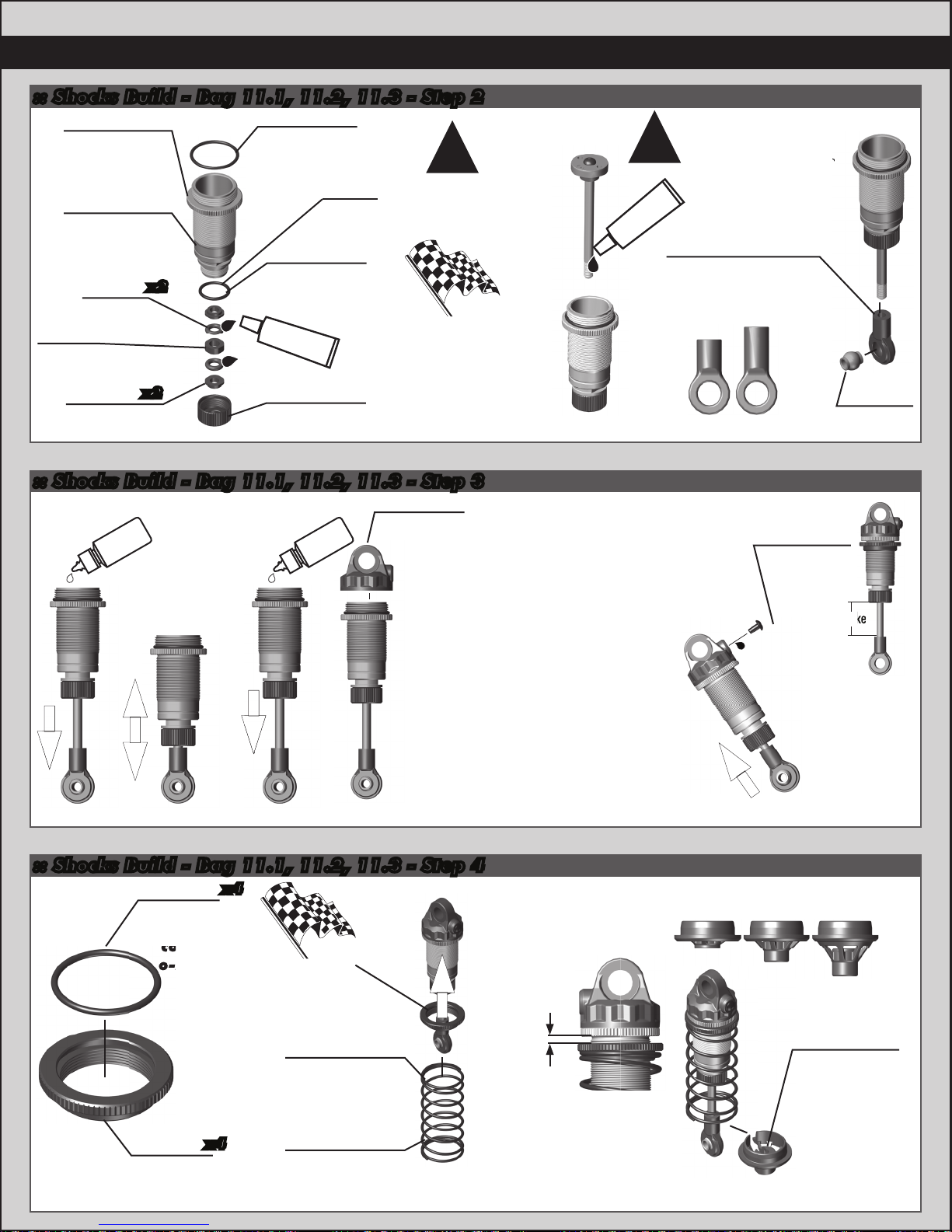

17 - 19........Shocks Build
(Bag 11.1, 11.2, 11.3)
19 - 21........Center Bulkhead Build
(Bag 12.1, 12.2)
21 - 22........Electronics, Wheel & Tire,
Wing & Body Install
(Bag 13.1, 13.3)
23 - 31........Catalog
32.................Setup Sheet “Kit Setup”
33.................Setup Sheet “Blank”
34.................Back Cover
Associated Electrics, Inc.
26021 Commercentre Dr.
Lake Forest, CA 92630
http://www.TeamAssociated.com · http://www.RC10.com · http://twitter.com/Team_Associated · http://bit.ly/AEonFacebook
Customer Service
Tel: [phone]
Fax: [phone]
There is a 1:1 hardware foldout page in the
front of the manual. To check the size of a part,
line up your hardare with the correct drawing
until you find the exact size. Each part in the
foldout has a number assigned to it for ordering
replacement parts.
This symbol indicates a special
note or instruction in the manual.
This symbol indicates a Racers Tip.
!

5
:: Chassis Build - Bag 1.1, 1.2 - Step 1
:: Front and Rear Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 1
:: Front and Rear Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 2
1/17
92002
B64 Side
Rails
92003
B64
Steering
Posts
92000
B64
Chassis
25202
3x10mm
FHCS
25202
3x10mm
FHCS
31541
3x6mm
FHCS
25204
3x16mm
FHCS
25215
M3
Locknut
x3
x2
x5
92079
Shim
5x8.5x0.17
92079
Shim
5x8.5x0.17
92080
Front/Rear
Gear Diff Case
92078
Diff Outdrive
O-Ring
92078
Diff Outdrive
O-Ring
92079
Shim
2.55x6.1x.25
92077
Diff Cross
Pin
92077
Planet Gear,
Metal
92075
B64 Ring
Gear, 42T
92077
Sun Gear
Pin
92077
Sun Gear,
Metal
92082
Gear Diff
Outdrives
92082
Gear Diff
Outdrives
x3
x3
x4
x2
x4
92047
Battery
Post
92047
Battery
Strap
Mount
x2
#6588
black grease
#6588
black grease
#1596
thread lock

6
:: Front and Rear Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 3
:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 1
:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 2
Tighten the
screws evenly in a
crossing order!
!
92077
Sun Gear,
Metal
92077
Sun Gear,
Metal
92077
Diff Cross
Pin
92077
Planet Gear,
Metal
x4
x2
x4
92077
Sun Gear
Pin
92077
Sun Gear
Pin
92079
Shim
5x8.5x0.17
92078
Diff Outdrive
O-Ring
92080
Center Gear
Diff Case
92082
Gear Diff
Outdrives
x3
31448
2.5x8mm
FHCS
92078
Diff
Gasket
x4
10k diff
fluid #5455
92079
Shim
2.55x6.1x.25
12
3
4
#6588
black grease

7

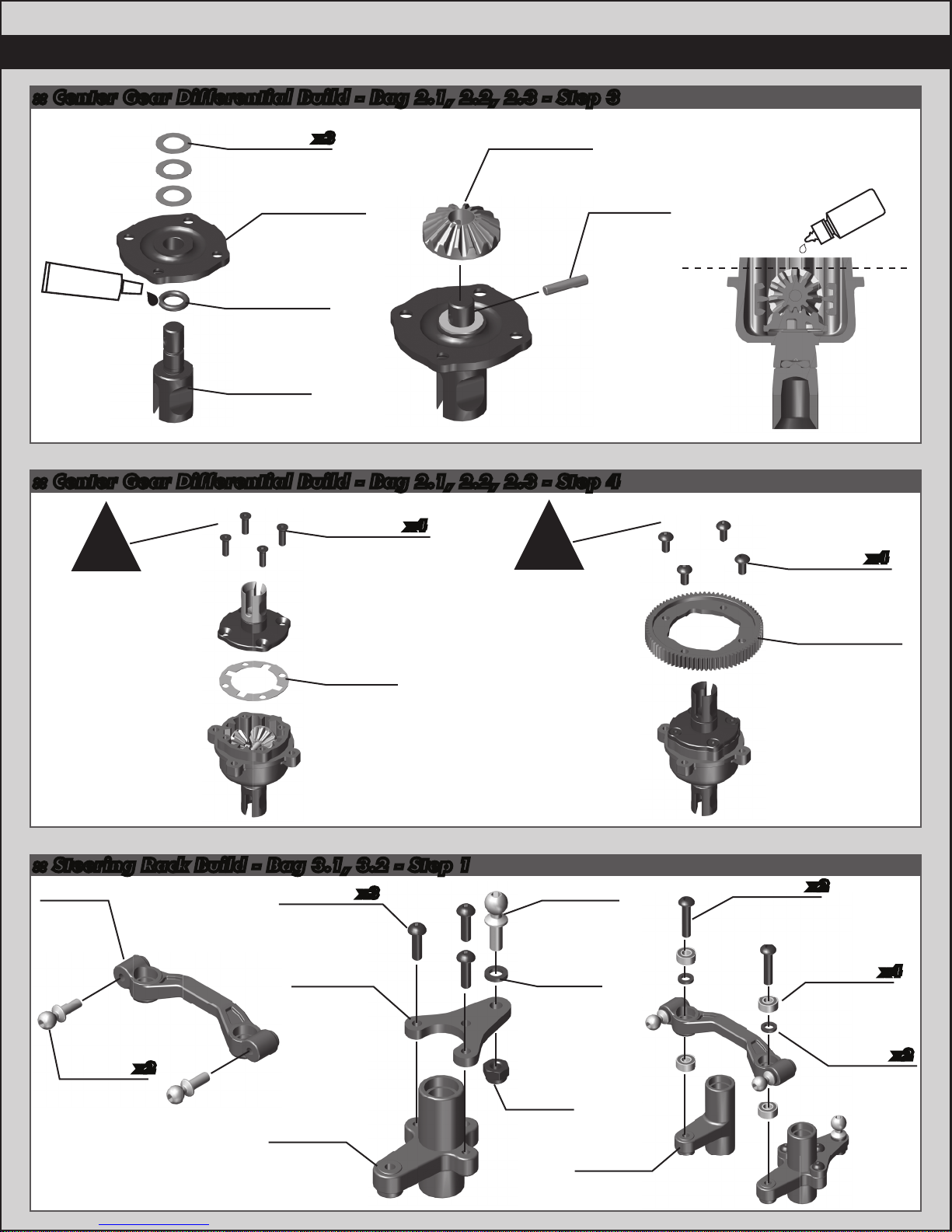

:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 3
:: Center Gear Differential Build - Bag 2.1, 2.2, 2.3 - Step 4
:: Steering Rack Build - Bag 3.1, 3.2 - Step 1
Tighten the
screws evenly in a
crossing order!
Tighten the
screws evenly in a
crossing order!
!
!
92077
Sun Gear,
Metal
92077
Sun Gear
Pin
92079
Shim
5x8.5x0.17
92078
Diff Outdrive
O-Ring
92085
B64 Spur
Gear, 81T
92083
Aluminum
Center Diff
Cap
92082
Gear Diff
Outdrives
x3
1
1
2
2
3
3
4
4
100k diff
fluid #5459
31382
1mm
Shim
91048
HD 8mm
Ball Stud
91048
HD 8mm
Ball Stud
25215
M3
Locknut
92004
B64
Bellcrank
92004
B64
Steering
Rack
31521
2.5x8mm
BHCS
x2
x3
31382
1mm
Shim
25187
3x14mm
BHCS
91475
3x7x3mm
Bearing
92004
B64
Bellcrank
x2
x2
x4
31448
2.5x8mm
FHCS 31531
3x6mm
BHCS
92078
Diff
Gasket
x4
x4
92005
Bellcrank
Input Arm,
18mm
#6588
black grease

8
:: Steering Rack Build - Bag 3.1, 3.2 - Step 2
:: Front Gearbox Build - Bag 4.1, 4.2, 4.3 - Step 1
:: Front Gearbox Build - Bag 4.1, 4.2, 4.3 - Step 2
NOTE:
Align the hook at the end of
the Input Shaft Retainer in
the flat section of the input
shaft.
NOTE:
The steering rack should
swing freely left and right
once assembled. Do not
overtighten!
!
!
91563
10x15x4mm
Bearing
89202
3x12mm
BHCS
31400
5x8x2.5mm
Bearing
92014
Arm
Mount
Inserts
92008
B64
Gearbox
92018
B64 LRC
Arm
Mount, B
92072
B64 Input
Shaft
Retainer
92071
B64 Input
Shaft, 17T
x2
x2
x4
x2
1° Up
Arm Mount
Insert, B Plate
92079
Outdrive
Diff Shims
91563
10x15x4mm
Bearing
25211
3x10mm
BHCS
92008
B64
Gearbox
Cap
31521
2.5x8mm
BHCS
92008
B64
Gearbox
x8
x2
x2
#6588
black grease

:: Front Gearbox Build - Bag 4.1, 4.2, 4.3 - Step 3
9
:: Front Gearbox Build - Bag 4.1, 4.2, 4.3 - Step 4
:: Front Gearbox Build - Bag 4.1, 4.2, 4.3 - Step 5
NOTE:
Install FWD Center
Dog Bone as shown!
NOTE:
Add one drop of
black grease to
all screws holding
the gearbox !
!
!
25202
3x10mm
FHCS
25202
3x10mm
FHCS
92065
B64 FWD Center
Dog Bone, 82mm
25188
3x20mm
BHCS
91048
8mm HD
Ball Stud
92009
B64 Front
Shock Tower
91533
Shock
Standoff,
Short
25215
M3
Locknut
25211
3x10mm
BHCS
25204
3x16mm
FHCS
31541
3x6mm
FHCS
92038
B64 Front
Body Post
92038
B64 Top
Plate
x4
x3
x2
x2
x2
x2
x4
x2
#1596
thread lock
#6588
black grease

10

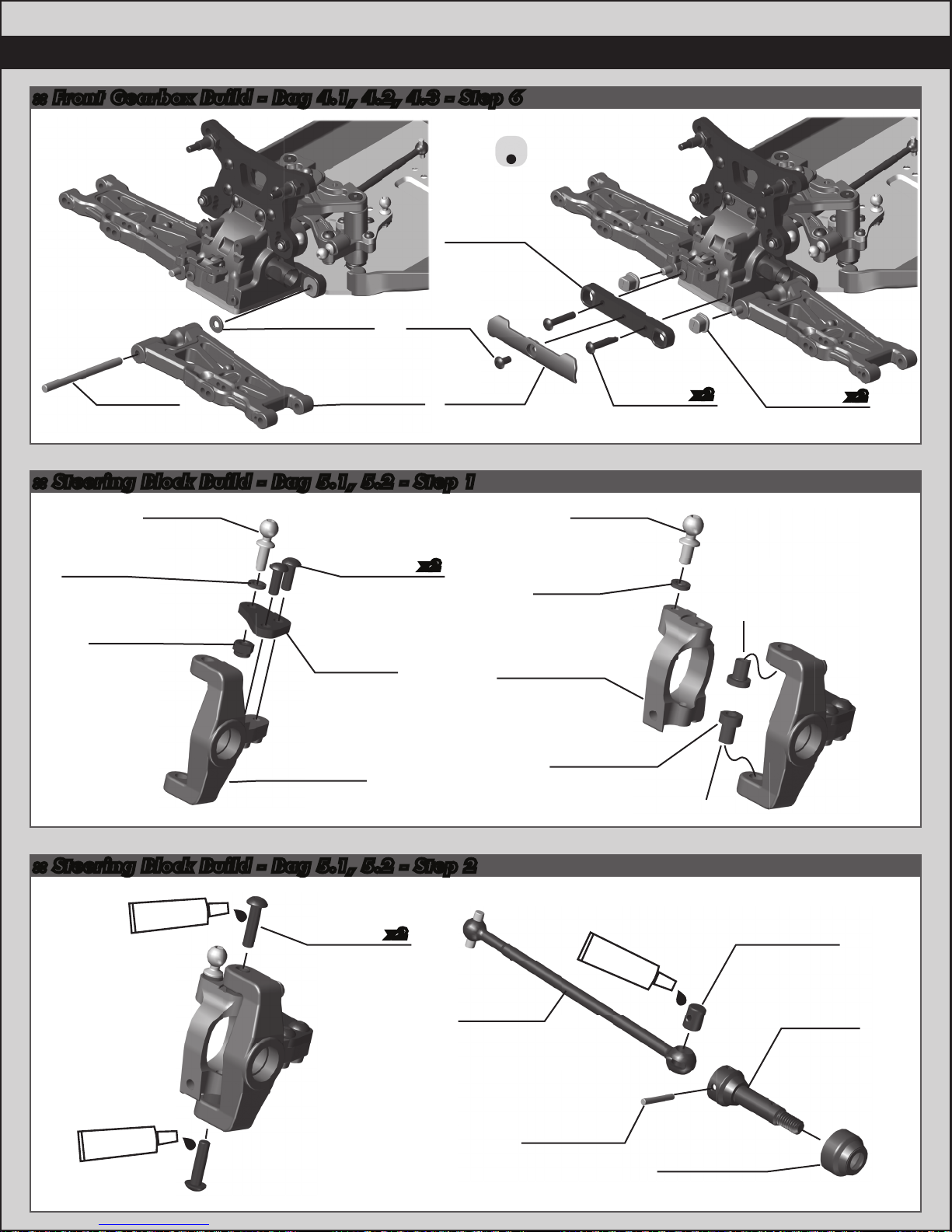

:: Steering Block Build - Bag 5.1, 5.2 - Step 1
:: Steering Block Build - Bag 5.1, 5.2 - Step 2
:: Front Gearbox Build - Bag 4.1, 4.2, 4.3 - Step 6
89202
3x12mm
BHCS
31532
3x8mm
BHCS
92014
Arm Mount
Inserts
92025
B64 Front
Arms
92032
B64 Alum.
Steering
Arms
92031
B64 Steering
Blocks
92029
B64 Alum.
Caster Block,
10 Degree
91403
Caster Block
Bushings,
Offset
Thin
Thick
92024
Hinge Pin
92025
B64 Front
Arm Shim,
1mm
31531
3x6mm
BHCS
92037
B64 Front
Bumper
91438
CVA Rebuild
Kit
92016
B64 LRC
Arm
Mount, A
x2
x2
x2
91048
HD 8mm
Ball Stud
92058
B64 Front
CVA Bone.
76mm
92061
B64 Front
CVA Retainer
91047
HD 6mm
Ball Stud
31382
1mm
Shim
25215
M3
Locknut
31382
1mm
Shim
89202
3x12mm
BHCS
91438
CVA Rebuild
Kit,
92060
B64 Front
CVA Axle
x2
1° Down
#1596
thread lock
#1596
thread lock
Arm Mount
Insert, A Plate
#6588
black grease

:: Steering Block Build - Bag 5.1, 5.2 - Step 3
11
:: Steering Block Build - Bag 5.1, 5.2 - Step 4
:: Servo Build - Bag 6.1, 6.2 - Step 1
92059
B64 Front
Crush Tube
92063
B64 Front
Wheel Hex,
12mm
9956
Front Hex
Roll Pin
91560
5x10x4mm
Bearing
31531
3x6mm
BHCS
92041
B64 Floating
Servo Brace
31532
3x8mm
BHCS
7337
Servo Mount
Washer
92040
B64 Servo
Mount
31622
FT Servo
Mount
x2
x3
x4 x4
92024
Hinge Pin
31510
2x4mm
BHCS
89009
Servo Horn
Ring
91451
HD 4mm
Ball Stud
9180
Servo
Horn
Servo not
included!
A servo screw
is included,
but may not
fit your exact
servo!
Included servo spacers
can be installed between
the servo mounting tabs
and servo mounts to
correctly align your servo.
!

12
:: Rear Gearbox Build - Bag 7.1, 7.2 - Step 1
:: Rear Gearbox Build - Bag 7.1, 7.2 - Step 2
:: Servo Build - Bag 6.1, 6.2 - Step 2
31541
3x6mm
FHCS
25201
3x8mm
FHCS
31532
3x8mm
BHCS
92039
B64 Chassis
Brace, Front
x4
x2x2
#1596
thread lock
92043
B64 Front
Chassis
Brace Mount
NOTE:
Align the hook at the end of
the Input Shaft Retainer in
the flat section of the input
shaft.
!
91563
10x15x4mm
Bearing
92008
B64
Gearbox
92072
B64 Input
Shaft
Retainer
92071
B64 Input
Shaft, 17T
x2
89202
3x12mm
BHCS
92014
Arm
Mount
Inserts
92019
B64 Arm
Mount, C
x2
x2
0° - Center
Arm Mount
Insert, C Plate
92079
Outdrive
Diff Shims
91563
10x15x4mm
Bearing
25211
3x10mm
BHCS
92008
B64
Gearbox
Cap
31521
2.5x8mm
BHCS
x8
x2
x2
92008
B64
Gearbox
#6588
black grease

:: Rear Gearbox Build - Bag 7.1, 7.2 - Step 3
:: Rear Gearbox Build - Bag 7.1, 7.2 - Step 4
13
:: Rear Gearbox Build - Bag 7.1, 7.2 - Step 5
92012
B64 Rear
Shock Tower
92050
B64 Wing
Mount
92048
B64 Rear
Arms
92048
B64 Rear
Arm Shim,
1mm
92038
B64 Rear
Body Mount
92024
Hinge Pin
92021
B64 Arm
Mount, D
89204
3x24mm
BHCS
25211
3x10mm
BHCS
25187
3x14mm
BHCS
89202
3x12mm
BHCS
25202
3x10mm
FHCS
25204
3x16mm
FHCS
x2
x2
x3
x2
x3
x2
91048
8mm HD
Ball Stud
91720
Shock
Standoff,
Long
25215
M3
Locknut
x2
x2
x2
92014
Arm Mount
Inserts
x2
0° - Center
Arm Mount
Insert, D Plate
NOTE:
Add one drop of
black grease to
all screws holding
the gearbox !
!
#6588
black grease

14
:: Rear Hub Build - Bag 8.1, 8.2 - Step 3
:: Rear Hub Build - Bag 8.1, 8.2 - Step 2
:: Rear Hub Build - Bag 8.1, 8.2 - Step 1
Rear Hub Link Setting:
Up A
A
B
B
C
C
D
D
E
E
Down
Rear Hub
Insert 0/3
Tab up
0 (low) + 3mm + 1mm + 2mm
1/2
Tab up
0/3
Tab down
1/2
Tab down
Recommended
Ballstud location
for axle height
Axle Height
92024
Hinge Pin
92055
Rear Arm
Shims
91049
10mm HD
Ball Stud
89218
3x8mm
Washer
92055
B64 Rear
Hub Insert,
1/2 - Tab Up
92055
B64 Rear
Hub (left)
92055
B64 Rear
Hub Link
Nut
92055
B64 Rear
Hub Link
Insert
25215
M3
Locknut
91438
CVA Rebuild
Kit
91436
Wheel Hex
Pin
91609
Wheel Hex,
5.0mm
31510
2x4mm
BHCS
91611
1.6x5mm
SHCS
91563
10x15x4mm
Bearing
91562
6x13x5mm
Bearing
92057
B64 Rear
CVA Bone,
65mm
91438
CVA Rebuild
Kit,
92062
B64 Rear
Axle
#6588
black grease
Do not
overtighten the
#91611 SHCS!
!

:: Turnbuckles Build - Bag 9.1 - Step 1
x2
:: Turnbuckles Build - Bag 9.1 - Step 2
15
:: Turnbuckles Build - Bag 9.1 - Step 3
92027
3x42mm
Turnbuckle
91722
Ballcup
x291722
Ballcup 91723
3x48mm
Turnbuckle
x291722
Ballcup 91723
3x48mm
Turnbuckle
Steering
Build x2
Front Camber
Build x2
Servo Link
Build x1
24.40mm
21.25mm
15.90mm
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
!
!

91723
3x48mm
Turnbuckle
Steering
Build x2
24.40mm
Use
#91723
3x48mm
Turnbuckle!
Use
#91723
Turnbuckle!
!
!
:: Turnbuckles Build - Bag 9.1 - Steps 2, 3, 4 - PAGES 15 - 16
91723
3x48mm
Turnbuckle
Rear Camber
Build x2
20.00mm
#91723 3x48mm Turnbuckle Supplement
91723
3x48mm
Turnbuckle
Front Camber
Build x2
21.25mm
Use
#91723
3x48mm
Turnbuckle!
!
3x48mm
turnbuckle!

16
:: Anti-Roll Bar Build - Bag 10.1, 10.2 - Step 2
:: Anti-Roll Bar Build - Bag 10.1, 10.2 - Step 1
:: Turnbuckles Build - Bag 9.1 - Step 4
Thread in the Anti Roll Bar
Ballstud until the threads
are flush with the top of the
Turnbuckle Eyelet
!
92054
Anti Roll
Bar Eyelet
92054
Anti-Roll
Bar Coupler
92054
Anti Roll Bar
Ballstud
31305
Turnbuckle
Eyelet
91723
3x48mm
Turnbuckle
x291722
Ballcup
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Rear Camber
Build x2
20.00mm
Front Anti Roll Bar Install
Orient the notch
to the left
throughout the
car. It indicates
which end has the
left hand threads!
!
25225
3x3mm
Set Screw
92054
Anti-Roll
Bar Collar
92051
Front Anti
Roll Bar,
1.2mm
(Green)
92053
Rear Anti
Roll Bar,
1.5mm
(Blue)
Install the roll bar into the
Anti Roll Bar Coupler until
it bottoms out.
!
Once the roll bar, collet, and
set screw are installed, the
collet may need to be
rotated to ensure free
movement once installed
into the gearbox.
!

:: Anti-Roll Bar Build - Bag 10.1, 10.2 - Step 4
17
:: Shocks Build - Bag 11.1, 11.2, 11.3 - Step 1
:: Anti-Roll Bar Build - Bag 10.1, 10.2 - Step 3
4187
Nylon Spacer,
(.030)
Front:
2 spacers
Rear:
0 spacers
91634
12mm V2
Shock Piston
(1.6 front)
(1.7 rear)
91617
V2 3x23
Shock Shaft
TiN (front)
31510
M2 x 4mm
BHCS
89278
2.5mm
Washer
91619
V2 3 x 27.5
Shock Shaft
TiN (rear)
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
Mount the shock
pistons with the
number facing up!
Do not overtighten
the set screws.
Do not overtighten
the set screws.
Install the roll bar into the
Anti Roll Bar Coupler until
it bottoms out.
!
!
!
!
Do not overtighten
the set screws.
Install the roll bar into the
!
Do not overtighten
the set screws.
25225
3x3mm
Set Screw
25225
3x3mm
Set Screw
31511
2x5mm
SHCS
31511
2x5mm
SHCS
x4
x4
x2
x2
#1596
thread lock
Rear Anti Roll Bar Install

:: Shocks Build - Bag 11.1, 11.2, 11.3 - Step 4
18
:: Shocks Build - Bag 11.1, 11.2, 11.3 - Step 3
:: Shocks Build - Bag 11.1, 11.2, 11.3 - Step 2
91304
12mm
threaded
collar
91491
12mm
threaded
collar
o-ring
x4
x4
collar
o-ring
91310
12mm shock
spring cup
Front:
(5mm offset)
Rear:
(0mm offset)
91331
12mm front
spring, Yellow
(3.75lb)
91336
12mm rear
spring, Green
(2.00lb) Build x2 front and x2 rear shocks
Racers Tip:
Use your finger to rub
shock oil on the o-ring for
smoother adjustment!
#91310 12mm Shock Spring Cups
0mm 5mm 9mm
Front Shock: 37.5 wt
#5433
Rear Shock: 30 wt
#5422
Shock fluid
Steps 9-10Step 8Steps 6-7Steps 4-5Steps 2-3
Shock Bleeding Steps:
1. Before assembly, install each bleed
screw 1-2 turns into the shock cap,
then remove the screw. This will
make it easier when you are bleed-
ing your shocks.
2. Pull shock shaft down.
3. Fill shock body 3/4 full with silicone
shock fluid.
4. Slowly move the shock shaft up and
down to remove air from under the
piston.
5. Wait for bubbles to come to sur-
face.
6. Fill shock body to top with silicone
shock fluid.
7. Place a drop of oil in the cap and on
cap threads.
8. Install cap (without bleed screw)
and tighten completely.
9. Slowly compress shaft all the way
to bleed excess silicone shock fluid
out the hole in the cap (use rag
around shock to catch excess fluid).
10. Install M2x4mm button head
screw until snug while shaft is fully
compressed.
Stroke
Front: 21.00mm
Rear: 27.5mm
Stroke
Stroke
Shock fluid
91492
M2 x 4mm
BHCS
91449
12mm
Shock Cap
91480
12x23mm V2
Shock Bodies
(front)
91481
12x27.5mm
V2 Shock
Bodies (rear)
91495
V2 Shock
Hat Bushing
91495
V2 Shock
Spacer
91493
X-Ring
31327
VCS3 Shock
Bottom Cap
31327
VCS3 Shock
Bottom Cap
O-Ring
91491
12mm
Shock Cap
O-Ring
x2
x2
#1105
green slime
Lightly rub shock oil
on the o-ring before
installation!
There is a short and
long shock eyelet.
Front shocks use
the long eyelet, rear
shocks use the
short eyelet.
Racers Tip:
Coating the X-rings
with green slime
(#1105) helps seal
& reduce o-ring
swell! Green slime
not included in kit!
!!
#1105
green slime
the long eyelet, rear
91721
Shock Eyelet
Front Shocks - Long
Rear Shocks - Short
91721
Shock
Pivot Ball
Short / Long
Front:
8.25mm
Rear:
6.00mm

:: Center Bulkhead Build - Bag 12.1, 12.2 - Step 1
19
:: Center Bulkhead Build - Bag 12.1, 12.2 - Step 2
:: Shocks Build - Bag 11.1, 11.2, 11.3 - Step 5
#1596
thread lock
25201
3x8mm
FHCS
25202
3x10mm
FHCS
25612
M3 Locknut
w/Flange
25612
M3 Locknut
w/Flange
91447
Shock
Bushing 91447
Shock
Bushing
89203
3x16mm
BHCS
92039
B64 Rear
Chassis
Brace, Long
92046
B64 Center
Bulkhead
92044
B64 Motor
Mount
92039
B64 Rear
Chassis
Brace Mount
25187
3x14mm
BHCS
92065
B64 Rear Center
DogBone, 110mm
25187
3x14mm
BHCS
x4
x3
An optional short rear
chassis brace is included.
!
B A BA
