Thank you for purchasing this Team Associated product. This assembly manual contains instructions and tips for building and
maintaining your new vehicle. Please take a moment to read through the manual and familiarize yourself with the steps.
We are continually changing and improving our designs; therefore, actual parts may appear slightly different than the illustrations.
New parts will be noted on supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before
you start to build.
• New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump / jump handling
• 13mm machined shock pistons, 2x1.6mm front and 2x1.8mm rear
• New front ballstud mount and top plate with angled steering system for improved steering consistency
• New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability
• Updated rear suspension with wider C and D mounts from the RC10B6.4 series
• New longer 92.5mm CVA driveshafts for more rear grip
• 7.0mm blue aluminum rear clamping hexes with laser etching
• New chassis side rails with the RC10B6.4 fan mount system
• New short course truck length aluminum chassis with 22.5° kick-up to complement updated front-end geometry and with new
shape to reduce chassis scrub with the track surface
• 20°, 22.5°, and 25° molded bulkheads included for a complete range of caster and kickup options
• B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles
• B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel
throw
• Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in
a weight bias placed further forward
• Factory Team RC10B6.4 11g aluminum ESC tray
• Cyanoacrylate glue (CA)(#1597)
• Thread locking compound (#1596)
• Tires and Inserts, Fronts and Rears
• Wheels w/12mm Hex
Black Method Wheels #71040
Associated Electrics, Inc.
21062 Bake Parkway.
Lake Forest, CA 92630
http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebook.com/TeamAssociated/
Customer Service
Tel: [phone]
Fax: [phone]
Your new SC6.4 Team Kit comes unassembled
and requires the following items for completion
(Refer to www.rc10.com and www.Reedypower.com
for complete listings):
• RC two channel surface frequency radio system
• AA-size batteries for transmitter (#302 alkaline)
• Electronic Speed Control, ESC
• Steering servo
• 540 size electric motor
• Pinion gear (48P), size determined by type/wind of motor
• Battery charger (a peak detection charger, or LiPo compatible charger)
• 2 cell LiPo battery pack
• Polycarbonate 1/10 Short course body
• Polycarbonate specific spray paint
• Silicone Shock Fluid (Refer to www.rc10.com for complete listings):
• Body Scissors (AE Part #1737) • FT Body Reamer • Shock Pliers (#1681)
• FT Hex/Nut Wrenches (AE Part #1519, 1650) • FT Ballcup Wrench (#1579) • FT Universal Tire Balancer (#1498)
• Green Slime shock lube (AE Part #1105) • FT Dual Turnbuckle Wrench (#1114) • Calipers or a Precision Ruler
• Soldering Iron • Hobby Knife • Wire Cutters
• Needle Nose Pliers

3

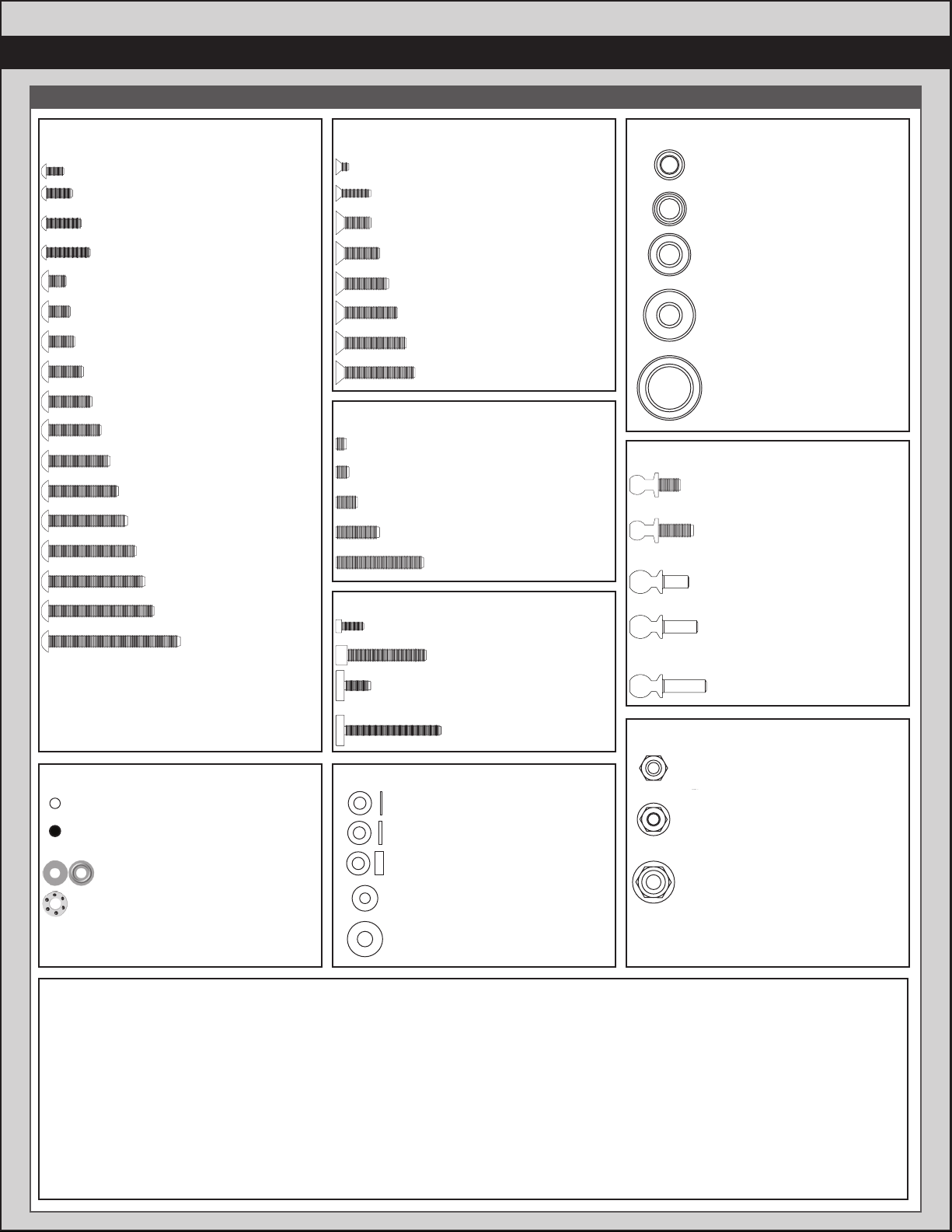

:: Hardware - 1:1 Scale View:: Hardware - 1:1 Scale View
Notes:
2x3mm (91749)
2.5x8mm (31448)
3x8mm (25201)
3x10mm (25202)
3x12mm (25203)
3x14mm (89208)
3x16mm (25204)
3x18mm (89209)
Flat Head (fhcs)
2x4mm (31510)
2.5x6mm (31520)
2.5x8mm (31521)
2.5x10mm (31522)
3x4mm (91158)
3x5mm (31530)
3x6mm (31531)
3x8mm (31532)
3x10mm (25211)
3x12mm (89202)
3x14mm (25187)
3x16mm (89203)
3x18mm (2308)
3x20mm (25188)
3x22mm (25189)
3x24mm (89204)
3x30mm (91478)
Button Head (bhcs) Ball Bearings
4x7x2.5mm (31732)
5x8x2.5mm (8680)
5x10x4mm (91560)
5x12x4mm (91567)
10x15x4mm (91563)
M3 Plain Nut (91477)
M3 Alum. Locknut, Blue (31550)
M3 Locknut, Black (25215
M3 Locknut w/Flange (25612)
FT 3mm Locknuts, Blue(25392)
M4 Nuts:
Serrated Steel (Silver)(91826)
FT Alum. Locknut (Blue) (25391)
Serrated Steel (Black) (91738)
Serrated Steel LP (Black) (91150)
Nuts (lock/plain)
Ballstuds
Silver 5mm long (31283)
Silver 8mm long (31284)
HD 6mm (91047)
Ti HD 6mm (91751)
HD 8mm (91048)
Ti HD 8mm (91752)
HD 10mm (91049)
Ti HD 10mm (91753)
5.5x0.5mm (31381)
5.5x1.0mm (31382)
5.5x2.0mm (31383)
2.6x6mm Washer (89278)
3x8mm Washer (89218)
Shims and Washers
3x2.5mm (31500)
3x3mm (25225)
3x5mm (89219)
3x10mm (4671)
3x20mm (91737)
Set Screws
Socket Head (shcs)
1.6 x 5mm (91611)
3 x 18mm (25191)
3 x 6mm (41089)
3 x 22mm (41095)
3/32 Carbide Diff Balls (6581) (kit)
3/32 Ceramic Diff Balls (6584)
(FT Option)
Thrust Washer (91990)
Caged Thrust Washer (91990)
Diff Balls

4
:: Table of Contents:: Table of Contents
:: Notes:: Notes
This symbol indicates a special
note or instruction in the manual.
This symbol indicates a Racers Tip.
1................... Cover
2................... Introduction
3...................1:1 Hardware “Fold Out”
4................... Table of Contents
5....................Bag 1: Steering
5 - 8..............Bag 2: Front Suspension
8 - 9..............Bag 3: Caster Blocks
9 - 10...........Bag 4: Rear Suspension
10 - 11.........Bag 5: Ball Diff
11 - 13........Bag 6: Gearbox
14.................Bag 7: Rear Hubs
14 - 15........Bag 8: Turnbuckles
16 - 18........Bag 9: Shocks
19 - 22........Bag 10: Battery Strap, Body,
and Wheels
23.................Notes
24 - 25.......Tuning Tips
26................Back Cover
!There is a 1:1 hardware foldout page in the
front of the manual. To check the size of a part,
line up your hardware with the correct drawing
until you find the exact size. Each part in the
foldout has a number assigned to it for ordering
replacement parts.
Associated Electrics, Inc.
21062 Bake Parkway.
Lake Forest, CA 92630
http://www.RC10.com · http://twitter.com/Team_Associated · http://www.instagram.com/teamassociatedrc/ · http://www.facebook.com/TeamAssociated/
Customer Service
Tel: [phone]
Fax: [phone]

:::: Bag 1Bag 1 -- StepStep 22
:::: Bag 2Bag 2 -- StepStep 11
5
:::: Bag 1 -Bag 1 - Step 1Step 1
4/23
91973
Steering
Bellcrank
(Right)
Front
91973
Steering
Bellcrank
(Left)
Note orientation
of steering rack.
!TOP
x2x2
x2x2
91974
Steering Hat
Bushing
91974
Steering Hat
Bushing,
Low
x2x2
x2x2
89202
M3 x 12mm
BHCS
25191
M3 x 18mm
SHCS
31283
5mm Ball
Stud, Long
31732
4 x 7 x 2.5
Ball Bearing
31732
4 x 7 x 2.5
Ball Bearing
91973
Steering
Rack
x4x4
x4x4
x2x2
x2x2
91048
Heavy-duty
Ballstud,
8mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
x2x2
x2x2
91049
Heavy-duty
Ballstud,
10mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
71182
Front Ball
Stud Mount
High 2.5°0°22.5°25°
High 0°2.5°22.5°25°
High 0°0°22.5°22.5°
High -2.5°0°22.5°20°
High -2.5°2.5°22.5°22.5°
High -2.5°5°22.5°25°
Low 2.5°2.5°22.5°2 7. 5 °
Low 2.5°5°22.5°30°
Low 0°5°22.5°2 7. 5 °
Steering Bulkhead Caster
Insert Chassis Total
Insert
SC6.4 Kickup/Steering Option Chart
(Low position)
Bellcranks down,
hat side on top
(High position)
Bellcranks up,
hat side on bottom
!
Note:
Check the screw length as
both 14mm and 16mm are
in the screw bag. Use the
shorter of the two screws!
! !
!
Check the screw length as
both 14mm and 16mm are
in the screw bag. Use the
shorter of the two screws!
!
x2x2
89208
M3 x 14mm
FHCS
91979
Bulkhead
(use +2.5°)
71175
SC6.4
Chassis
+2.5
>
ZERO
-2.5
>
0
There are two bulkheads
included in the kit (0 °, 2.5 °).
0 °is the standard used. The
arrows on the 2.5 °bulkhead
should point forward for the
desired setting.

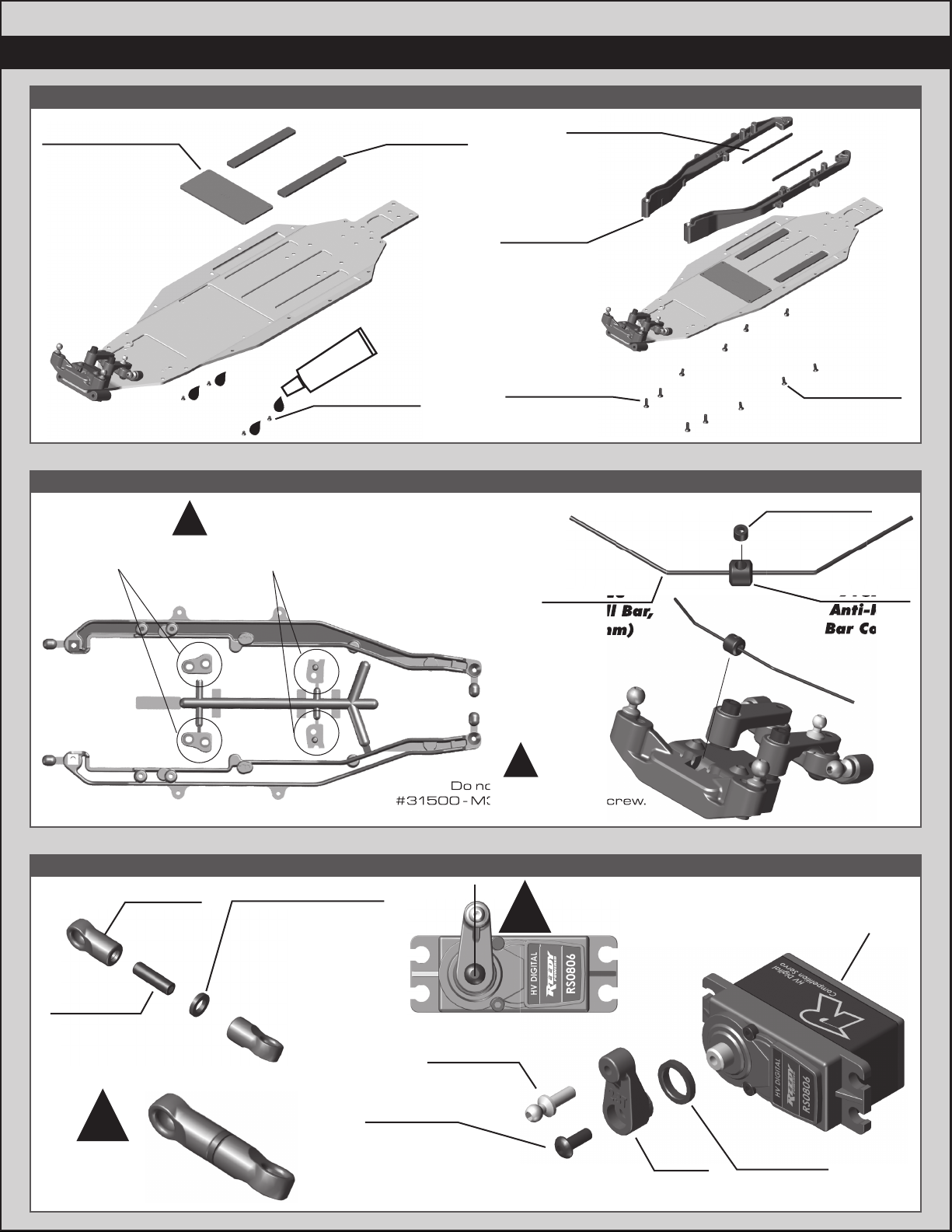

6
:::: Bag 2Bag 2 --Step 2Step 2
:::: Bag 2Bag 2 --Step 4Step 4
:::: Bag 2Bag 2 --Step 3Step 3
4671
M3x10mm
Set Screw
91997
Steering
Link, B6.4
31382
FT Ballstud
Washer, Aluminum
(1mm)
Tighten the
steering link ball
cups all the way
until snug.
!
x2x2 Align the servo horn 90 degrees.
Use sub trim after build to
center steering.
!
91728
Servo Horn
Ring
31284
8mm Ball
Stud, Long
91728
Servo
Horn
Servo not
included!
31531
M3 x 6mm
BHCS
23T: Sanwa/ KO/ JR / Spektrum
24T: Hitec
25T: Reedy/ Futaba/Savox /ProTek / MKS
31500
M3 x 2.5mm
Set Screw
91821
Anti-Roll
Bar Collar
71128
Anti-Roll Bar,
(1.3mm)
Do not overtighten
#31500 - M3 x 2.5mm set screw.
You could bend the bar!
Do not discard these highligted
parts! You will install them in Step 6.
!
!
91821
Anti-Roll
Bar Collar
71128
Anti-Roll Bar,
(1.3mm)
#31500 - M3 x 2.5mm set screw.
x4x4
91749
M2 x 3mm
FHCS
91976
B6.4 FT Alum.
Chassis Weight,
11g
91734
Battery
Foam, B6
#1596
thread lock
x4x4 x7x7
25202
M3 x 10mm
FHCS
71176
Side Rails
(L & R)
25201
M3 x 8mm
FHCS
91988
Battery
Foam, B6.4
Do not overtighten
#31500 - M3 x 2.5mm set screw.

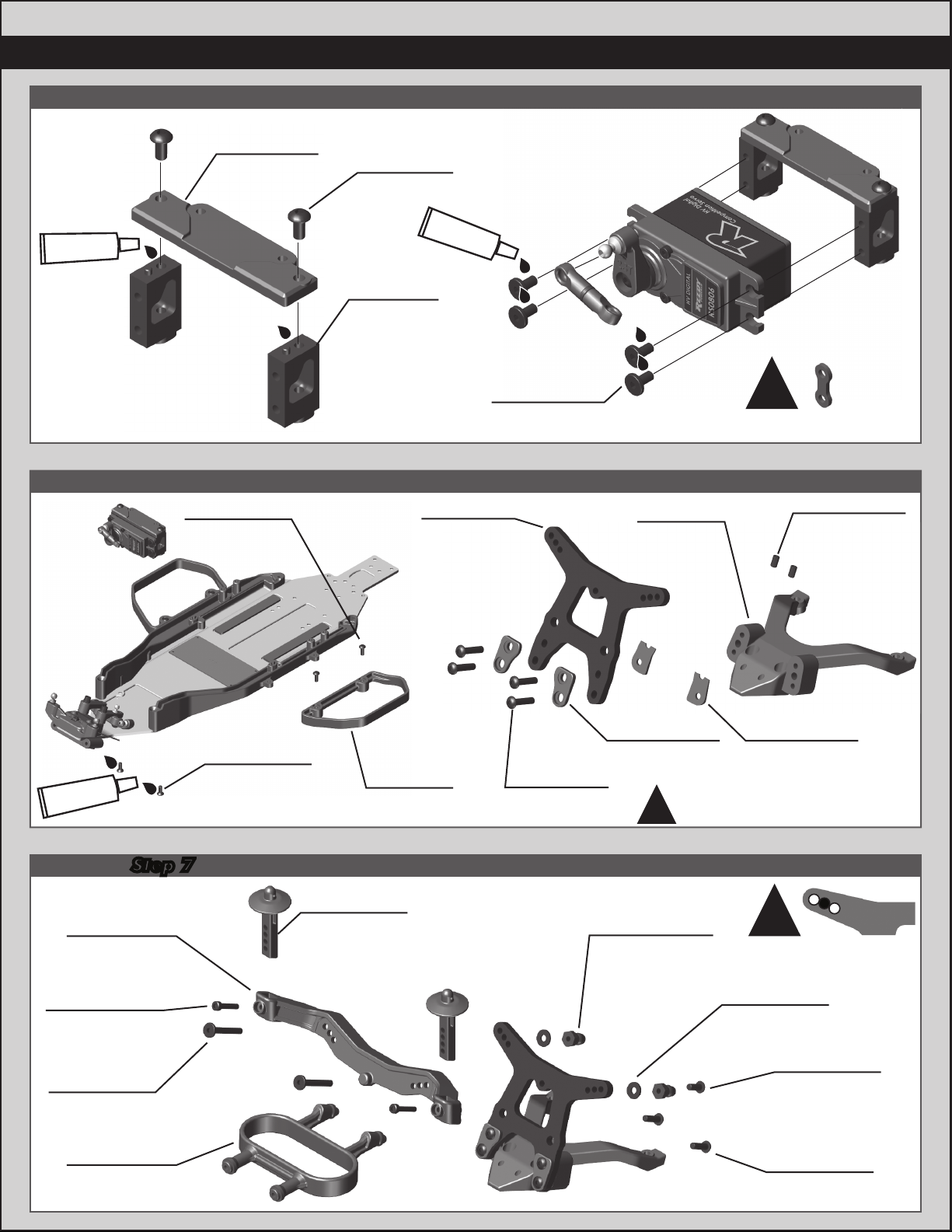

7
:::: Bag 2 -Bag 2 - Step 7
:::: Bag 2Bag 2 --Step 6Step 6
:::: Bag 2Bag 2 --Step 5Step 5
31531
M3 x 6mm
BHCS
91885
Servo Mount
Brace
91887
Servo
Mount
x2x2
x2x2
#1596
thread lock
#91728 - Servo Spacers
are not required for most servos.
!
41089
M3 x 6mm
LP SHCS
x4x4
#1596
thread lock
25187
M3 x 14mm
BHCS
x4x4
#1596
thread lock
71182
Top Plate,
B6.4
71178
Front Shock
Tower, SC6.4
Do not overtighten set screws.
Make sure there is free
movement in the anti-roll bar.
!
89219
M3 x 5mm
Set Screw
71176
Wedges,
Rear
71176
Wedges,
Front
x2x2
x2x2x2x2
x2x2
25202
M3 x 10mm
FHCS 71124
Nerf Bars
(L & R)
!
91815
Shock Bushing,
10mm
71124
Front Bumper
Brace
71123
Front Body
Mount
x2x2
25211
M3 x 10mm
BHCS
31532
M3 x 8mm
BHCS
x2x2
332211
71123
Rear Body
Post
71032
M2.5 x 14mm
SHCS
89218
M3 x 8mm
Washer
41095
M3 x 22mm
LP SHCS
x2x2
x2x2 x2x2
x2x2
x2x2
31532
M3 x 8mm
BHCS

:::: Bag 3 - Step 1Bag 3 - Step 1
:::: Bag 2 - Step 9
8
:::: Bag 2 -Bag 2 - Step 8Step 8
25215
M3 Locknut,
black
71144
Steering
Block Arm,
+1mm
91047
Heavy-duty
Ballstud,
6mm
Build 2 (1 left, 1 right)
x2x2
31531
M3 x 6mm
BHCS
91560
5 x 10 x 4
Bearing
71111
Front Axle,
8.5mm
91901
Steering
Block
(4mm)
#1596
thread lock
There are two sets of steering
blocks included with your kit, a 3mm
and a 4mm. The 4mm steering
blocks are used for the kit setup.
!
Bearing
There are two sets of steering
blocks included with your kit, a 3mm
4L - 1
91670
Front Hinge Pin
(Inner, 3x34mm)
25225
M3 x 3mm
Set Screw
x2x2
x2x2
25204
M3 x 16mm
FHCS
x2x2
25211
M3 x 10mm
BHCS
71124
Front
Bumper
x2x2
25225
M3 x 3mm
Set Screw
x2x2
31510
M2 x 4mm
BHCS
91820
Front Anti-
Roll Bar Link
91821
Anti-Roll
Bar Pivot
71103
Front Arms,
T6.1 (L & R)
91657
Front Hinge
Pin Brace,
B6
x2x2
25211
M3 x 10mm
BHCS
x2x2
25187
M3 x 14mm
BHCS
x2x2
The front hinge pin
brace has a sharp
edged side, and a
rounded edge side.

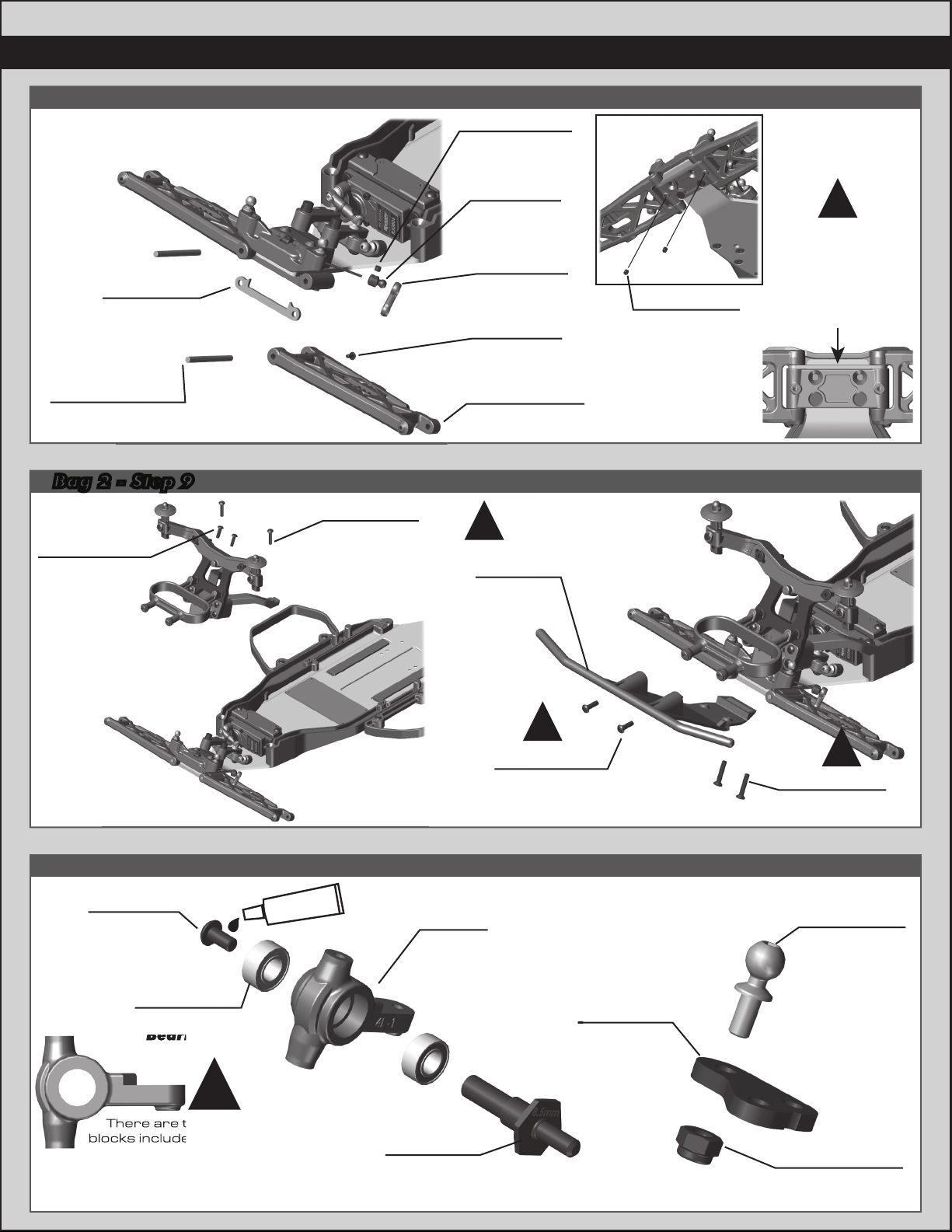

Mount the sharp
edge side towards
the bulkhead.
Install bulkhead screws,
then flex up to install
front screws!
!
!
1
2

:::: Bag 4 - Step 1Bag 4 - Step 1
:::: BagBag 3 - Step 33 - Step 3
9
:::: Bag 3 - Step 2Bag 3 - Step 2
Build 2 (1 left, 1 right)
91049
Heavy-duty
Ballstud,
10mm
25215
M3 Locknut,
black
31520
M2.5 x 6mm
BHCS
91901
Caster
Block Insert
(+2.5°)
There are three caster
block inserts included
(0°, +/- 2.5 °, +/- 5 °).
+2.5 ° is the standard
insert used.
Tab up =positive caster
Tab down =negative caster
!
91901
Caster
Block
You can install the kit
included #31520 screw
to use as a steering
stop setting.
You can install an
optional #4670 set
screw to better hold
the caster block inserts
and hinge pin.
31531
M3 x 6mm
BHCS 31532
M3 x 8mm
BHCS
Build 2 (1 left, 1 right) Build 2 (1 left, 1 right)
Build 2 (1 left, 1 right)
#91670 - Hinge Pin will be
tight in the caster blocks,
but should rotate freely
in the front arms.
Use shorter
screw in front!
!
!
25187
M3 x 14mm
BHCS
89202
M3 x 12mm
BHCS
91676
Caster Hat
Bushing
Top: 2mm
Bottom: 1mm
x2x2
71105
Rear Arms
(L & R)
91737
M3 x 20mm
Set Screw
See next
step for pill
chart tips
!
Arm Mount C: 1° Out 91882
Aluminum
Arm Mount, C
92014
Arm Mount
Inserts
(1°)
x2x2
31541
M3 x 6mm
FHCS
x2x2
#1596
thread lock
31510
M2 x 4mm
BHCS
91776
Caster Block
Spacer
91670
Front Hinge Pin
(Outer, 3x26mm)

10
:::: Bag 5 - Step 2Bag 5 - Step 2
:::: Bag 5 - Step 1Bag 5 - Step 1
:::: Bag 4 - Step 2Bag 4 - Step 2
8680
5 x 8 x 2.5mm,
Bearing
6581
3/32 Carbide
Diff Balls
91419
Diff Gear,
52T
91701
Ball Diff
Outdrive
91701
Ball Diff
Outdrive
7666
Diff Drive
Ring
7666
Diff Drive
Ring
x14x14
#6591
diff lube
#6591
diff lube
#6591
diff lube
Build Tip:
The bottom side of the gear has
3 injection dots. This side faced
down will keep the diff balls from
falling thru the holes
Build Tip:
Install the first washer (groove
up), add grease #6588. Install
the caged thrust washer.
Add grease on top of the balls,
then install the 2nd washer
(grooves down).
Build Tip:
Do this entire step with the
diff screw on the end of your
wrench for better control.
!
!
!
!
Anti-SquatToe-In
3°
Kit Setup
1°
Kit Setup
Arm Mount C:
1° Out
° Out
° Out
Arm Mount D:
1° Out
° Out
° Out
Arm Mount D:
1° Out
#6588
black grease
91990
Thrust
Washer
91990
Caged
Thrust
Bearing
6573
Diff Thrust
Bolt
x2x2
Install the first washer (groove
up), add grease #6588. Install
Add grease on top of the balls,
Do this entire step with the
diff screw on the end of your
wrench for better control.
8680
5 x 8 x 2.5mm,
Bearing
91883
Aluminum
Arm Mount, D
91670
Rear Hinge Pin
(Inner, 3.5x48mm)
92014
Arm Mount
Inserts (1°)
x2x2
x2x2
The (#91882) C and (#91883) D aluminum
arm mounts allow for a large amount of setup
combinations when using the (#92014) 0.5°
and 1°arm mount inserts.
For a complete list of pill setup combinations,
see page 24, or visit our website by using the
link below.
http://bit.ly/B6PillChart

11

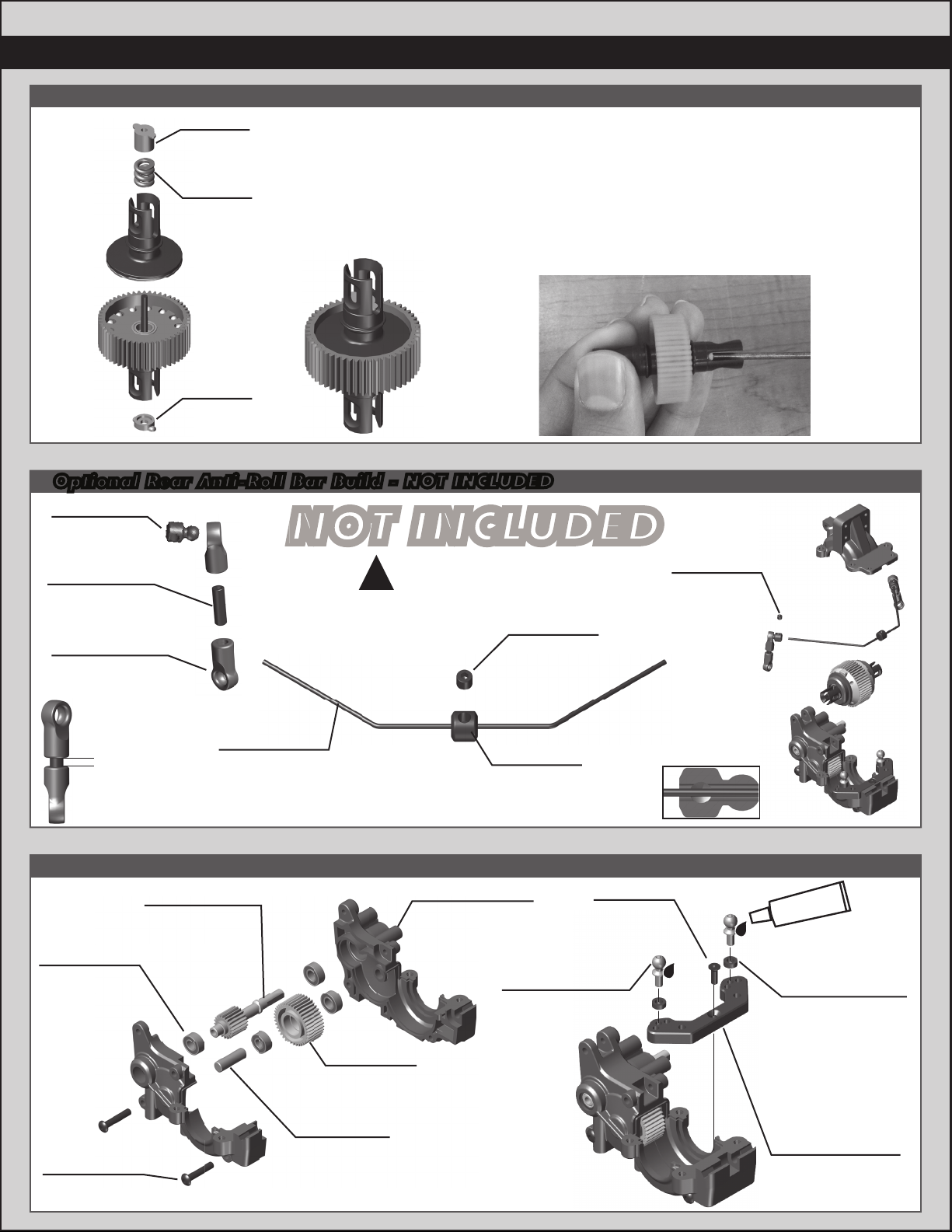

:::: Bag 6 - Step 1Bag 6 - Step 1
:::: Optional Rear Anti-Roll Bar Build - NOT INCLUDED
:::: Bag 5 - Step 3Bag 5 - Step 3
As you tighten the diff bolt, you will notice the T-nut ears moving
closer to the bottom of the outdrive slot. This compresses the
spring behind the T-nut. The spring should be completely
compressed at the time the T-nut reaches the end of the slot.
Caution! Pay close attention to the feeling when the spring is
completely compressed. Do not overtighten the bolt. When you
feel the spring completely compressed, loosen the diff bolt 1/8
of a turn. Your diff should now operate smoothly but with
resistance as the outdrives move in opposite directions.
After you have driven the car once, re-check the diff setting.
6575
Diff
cover
6575
Locking
T-nut
6582
Diff
thrust
spring
91791
B6.1 Laydown
Gearbox
(right & left)
91560
5 x 10 x 4,
Bearing
89203
3x16mm
BHCS
31472
2.5x8mm
FHCS
91716
Idler Gear
39T
91799
B6.1 Laydown
Top Shaft
91132
Idler Gear
Shaft,
Aluminum
x4x4
x2x2
91048
Heavy-duty
Ballstud, 8mm
x2x2 x2x2
91775
B6.1 Rear
Ballstud Mount,
Aluminum
31383
Ballstud
Washers,
5.5x2.0mm,
Blue Aluminum
#1596
thread lock
25225
M3 x 3mm
Set Screw
91821
Anti-Roll
Bar Collar
91823
Anti-Roll Bar,
(1.3mm)
!
Build x2 (right and left side)
91997
Steering Link
Ball Cup
x2x2
91821
Anti-Roll
Bar Pivot
4671
M3 x 10mm
Set Screw
2mm
Do not overtighten
#25225 - M3 x 3mm set
screw. You could bend the bar!
25225
M3 x 3mm
Set Screw
x2x2
bar end is flush
with pivot tip
NOT INCLUDEDNOT INCLUDED

12
:::: Bag 6 - Step 4Bag 6 - Step 4
:::: Bag 6 - Step 3Bag 6 - Step 3
:::: Bag 6 - Step 2Bag 6 - Step 2
Diff Height
1
0
3
Kit
Setup
2
2
1
2
1
3
0
3
0
91791
B6.1 Laydown
Gearbox Top
89202
3 x 12mm
BHCS
89203
3 x 16mm
BHCS
x2x2
x2x2
91819
B6.1 Shock
Pivot Ball
91709
Laydown
Chassis
Brace
89203
3 x 16mm
BHCS
25188
3 x 20mm
BHCS
25202
3 x 10mm
FHCS
91813
B6.1 Gear
Guard 71145
T6.2 Laydown
Motor Plate
x3x3
92295
Octalock
Spur Gear,
78T 48P
91799
B6.1 Top
Shaft Screw
and Pin
x2x2
92288
Octalock
Slipper Pad,
19mm
91803
B6.1 Slipper
Hub, Inner
91804
B6.1 Slipper
Hub, Outer
!
#92295 spur gear
walls should point
away from gear box.
There’s also a
72T, 48P spur
gear (#92293)
included for
stock motor use!
#6591
diff lube
Add a drop of Diff
Lube (#6591) to
the teeth of the diff
gear, idler gear, and
top shaft.
!
91792
B6.1 Diff
Height Insert
91563
10x15x4
Bearing
x2x2
x2x2
!
Diff Height Inserts:
The number on top is the
setting. Stock diff height is
3-0, 3 on top.

:::: Bag 6 - Step 7Bag 6 - Step 7
13
:::: BagBag 6 - Step 66 - Step 6
:::: Bag 6 - Step 5Bag 6 - Step 5
See page 20 for gear
mesh, and slipper clutch
setting instructions!
! !
Set nut
flush with
top shaft.
91801
Slipper Spring
Adapter, Inner
91801
Slipper Spring
Adapter, Outer
91801
B6.1 Slipper
Spring
25612
M3 Locknut,
Flanged
25202
M3 x 10mm
FHCS
x6x6
x2x2
x2
92159
Shock
Bushing,
10mm
71148
Rear Shock
Tower, SC6.2 x2x2
89202
M3 x 12mm
BHCS
x4x4
41095
M3 x 22mm
LP SHCS
x2x2
332211
!
x2
x2
25187
M3 x 14mm
BHCS
71123
Rear Body
Post
71032
M2.5 x 14mm
SHCS
25211
M3 x 10mm
BHCS
71125
Rear Upper
Bumper Brace
71125
Rear Lower
Bumper Brace
25215
M3 Locknut
71037
M3 x 45mm
BHCS
x4x4
x2x2 x2x2
x2x2
x2x2
25204
M3 x 16mm
FHCS
25187
M3 x 14mm
BHCS
71125
Rear Skid
Plate
71123
Rear Body
Mount
71125
Rear Bumper

14
:: Bag 7 - Step 3 :::: BagBag 8 - Step 18 - Step 1
:::: BagBag 7 - Step 27 - Step 2
:::: Bag 7 - Step 1
Build x2 (right and left side)
91611
M1.6 x 5mm
SHCS
91436
CVA Wheel
Hex Pin
91610
Clamping Wheel
Hex, 7mm Offset
(rear)
Do not overtighten the
1.6 x 5mm SHCS into the
Clamping wheel hex.
!
Build x2 (right and left side)
#6588
black grease
#6588
black grease
91563
10 x 15 x 4
Bearing
91567
5 x 12 x 4
Bearing
92207
CVA Axle,
66mm 91438
CVA Pin
91438
CVA
Coupler
71155
CVA Bone,
92.5mm
92179
Rear Hub
Spacer
x2x2
92188
Rear Hub
Hinge Pin
31510
M2 x 4mm
BHCS
Build x2 (right and left side)
89202
M3 x 12mm
BHCS
x2x2
M3 x 12mm
91047
Heavy-duty
Ballstud,
6mm
92180
Rear Hub
Link Mounts
92179
Rear Hub
Insert
92267
Rear Hub
31383
Ballstud Washers,
5.5x2.0mm, blue
x3x3 Rear Axle Height
1
0
3
2
+3mm
+2mm
+1mm
+0mm
Kit
Setup
0
3
1
2
1
2
0
3
#1596
thread lock
#1596
thread lock
It is important that the turnbuckle eyelets move freely
once snapped on to the ballstud. If the fit is too tight,
the car handling will be inconsistent. To check, grab
turnbuckle eyelet with fingers and rotate the cup. If
there is resistance, lightly squeeze ball cup with needle
nose pliers as shown and test again. It is important
that the ball cup be snapped onto the ballstud before
squeezing with needle nose pliers. Be sure to check
and adjust the fit for each ball cup that is installed.
Hinge Pin will be tight in
the rear hub, but should
rotate freely
in the rear arms.
!

15

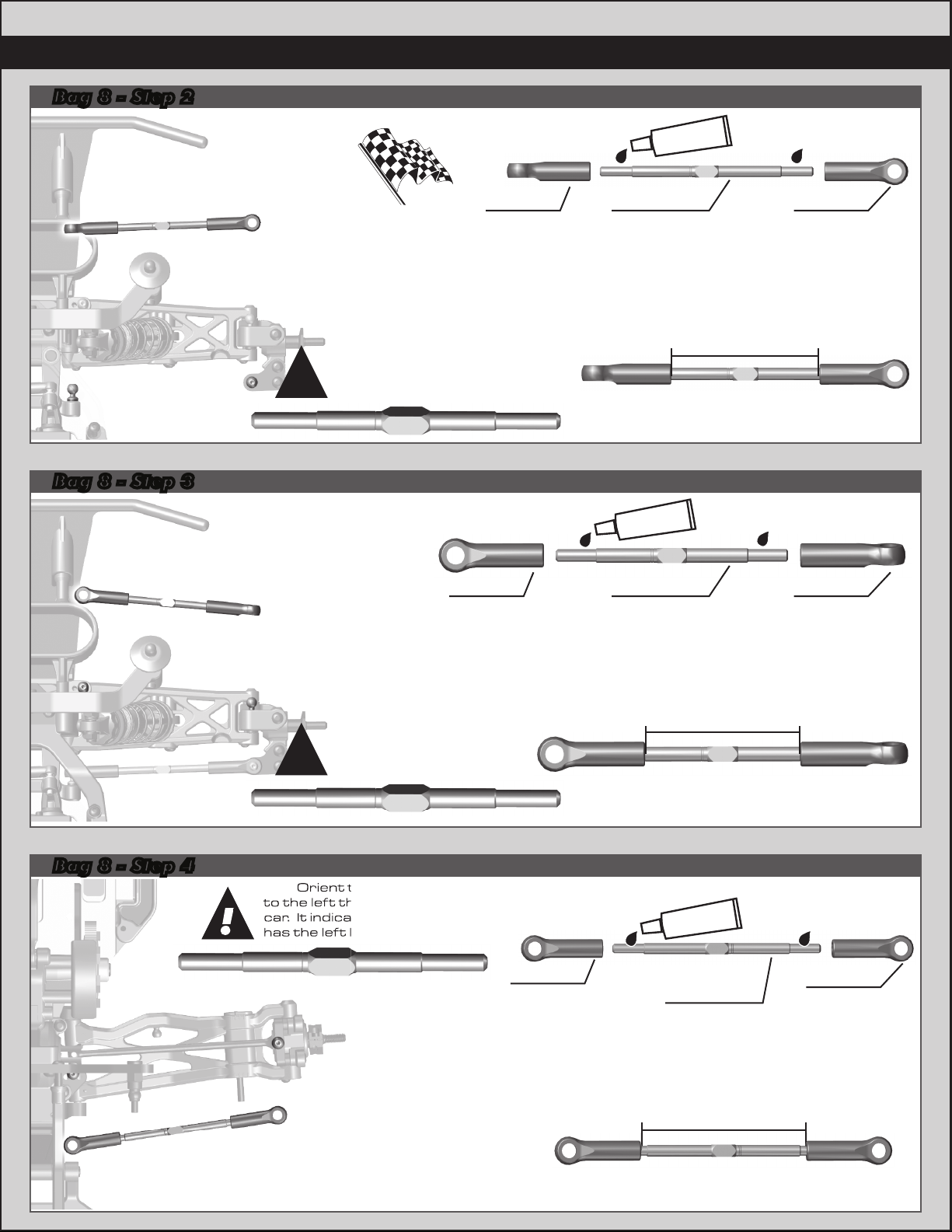

:::: Bag 8 - Step 4
:::: Bag 8 - Step 3
:::: Bag 8 - Step 2
Build x2 (right and left side)
Rear Camber Turnbuckle
50.70mm
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
92308
Ball Cup,
3.5mm
92308
Ball Cup,
3.5mm
92308
Ball Cup,
3.5mm
92308
Ball Cup,
3.5mm
92308
Ball Cup,
3.5mm
92308
Ball Cup,
3.5mm
92340
Turnbuckle
3.5x67mm
92339
Turnbuckle
3.5x58mm
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Build x2 (right and left side)
Stering Turnbuckle
43.30mm
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
92340
Turnbuckle
3.5x67mm
Build x2 (right and left side)
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
#6588
black grease
#6588
black grease
37.70mm
Front Camber Turnbuckle
#6588
black grease
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!

16

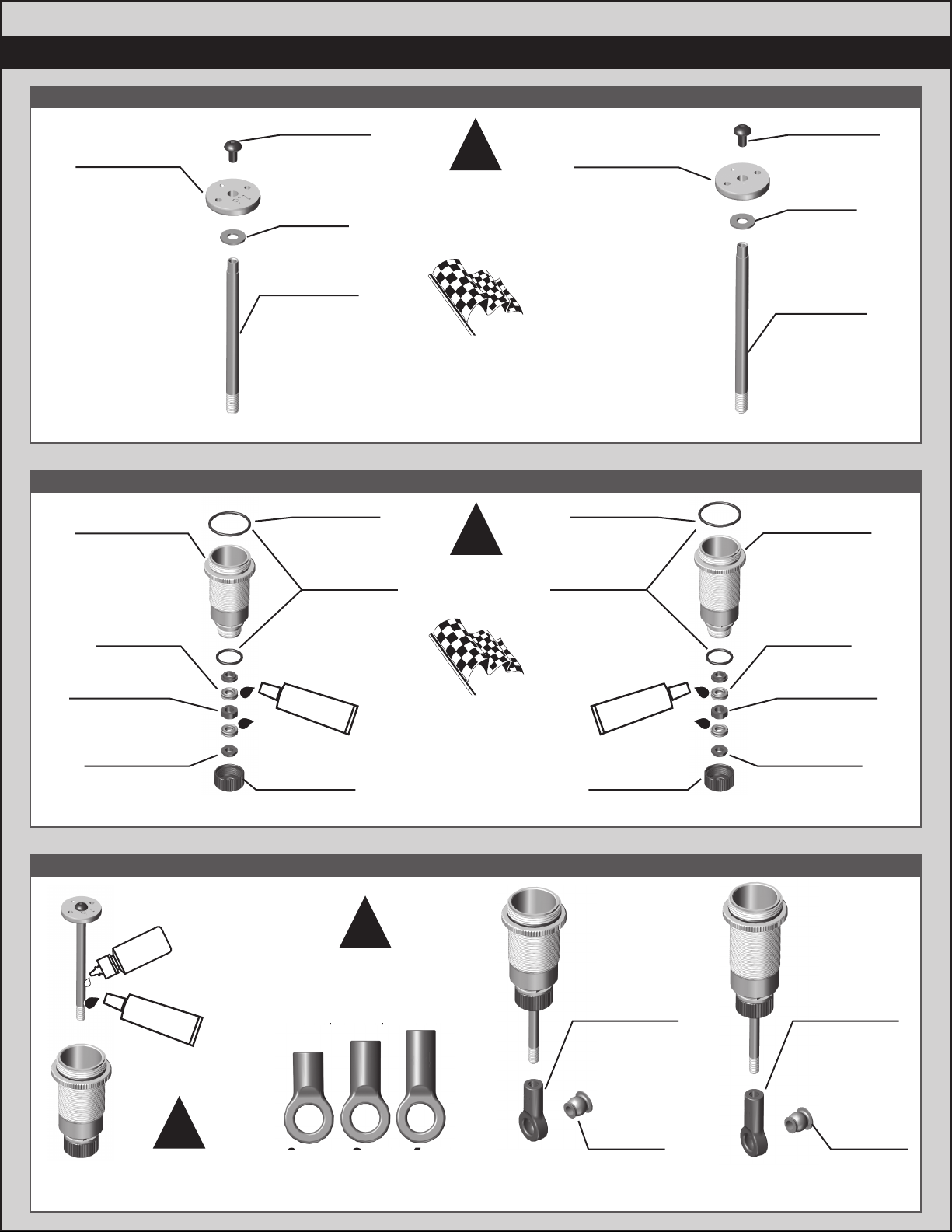

:::: Bag 9 - Step 3Bag 9 - Step 3
:::: Bag 9 - Step 2Bag 9 - Step 2
:::: Bag 9 - Step 1Bag 9 - Step 1
Build x2 front shocks
Build x2 front shocks
Build x2 front shocks
Build x2 rear shocks
Build x2 rear shocks
Build x2 rear shocks
Racers Tip:
Use a marker over
the numbers on the
pistons to make
them easily visible!
Mount the shock
pistons with the
number facing up!
!
91936
FT 13mm
Shock Piston,
2mm [2x1.6]
“front”
91938
FT 13mm
Shock Piston,
2mm [2x1.8]
“rear”
91619
V2 3 x 27.5
Shock Shaft
TiN “front”
31510
M2 x 4mm
BHCS
31510
M2 x 4mm
BHCS
89278
2.6mm
Washer
89278
2.6mm
Washer
91623
V2 3 x 35
Shock Shaft
TiN “rear”
Lightly rub shock oil
on the O-ring before
installation!
Racers Tip:
Coating the O-rings
with green slime
(#1105) helps seal
& reduce O-ring
swell! Green slime
not included in kit!
!
91922
13x27.5mm
Shock Bodies
“front”
71158
13x36mm
Shock Bodies
“rear”
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Spacer
91996
13mm Shock
Spacer
91493
X-Ring
91493
X-Ring
31327
VCS3 Shock
Bottom Cap
31327
VCS3 Shock
Bottom Cap
91996
13mm
Shock Cap
O-Ring
91996
13mm
Shock Cap
O-Ring
x2x2 x2x2
x2x2 x2x2
#1105
green slime
#1105
green slime
Shock fluid
There are 3 lengths of
shock eyelet in the kit.
Pay attention to length when
building as these affect your
droop and uptravel.
Lightly rub shock
fluid or green
slime on threads
!
!
#1105
green slime
91997
Shock Eyelets
Front Shocks
+2mm
91997
Shock Eyelets
Rear Shocks
+2mm
91819
Shock
Pivot Ball
91819
Shock
Pivot Ball
0mm +2mm +4mm
droop and uptravel.
0mm
+2mm
+4mm
+2 +4
0

17
:::: Bag 9 - Step 6Bag 9 - Step 6
:::: Bag 9 - Step 5Bag 9 - Step 5
:::: Bag 9 - Step 4Bag 9 - Step 4
Front Shock: 30wt
#5422
Rear Shock: 30wt
#5422
Shock fluid Shock fluid
Steps 9-10Step 8Steps 6-7Steps 4-5Steps 2-3
#5422
31510
M2 x 4mm
BHCS
91926
13mm
Shock Cap
Stroke
Front: 28.5mm
Rear: 34.5mm
Stroke
Stroke
91996
13mm
Threaded
Collar
91928
13mm
Threaded
Collar
O-ring
x4x4
x4x4
Build x2 front shocks
Build x4
Build x2 rear shocks
71161
13mm Front
Spring, Gray
L54mm
(4.60lb)
71163
13mm Rear
Spring, Green
L72mm
(2.35lb)
Racers Tip:
Use your finger to rub
shock fluid on the O-ring
for smoother
adjustment!
91966
13mm Shock
Spring Cup
“Rear - 5mm”
91966
13mm Shock
Spring Cup
“Front - 5mm”
Front:
4.80mm
Rear:
8.00mm
#91926 13mm Shock Spring Cups
0mm 5mm 9mm
Shock Bleeding Steps:
1. Before assembly, get each bleed screw and
thread it 1-2 turns into the shock cap, then
remove the screw. This will make it easier
when you are bleeding your shocks.
2. Pull shock shaft down.
3. Fill shock body 3/4 full with silicone shock fluid.
4. Slowly move the shock shaft up and down to
remove air from under the piston.
5. Wait for bubbles to come to surface.
6. Fill shock body to top with silicone shock fluid.
7. Place a drop of oil in the cap and on cap
threads.
8. Install cap (without bleed screw) and tighten
completely.
9. Slowly compress shaft all the way to bleed
excess silicone shock fluid out the hole in the
cap (use rag around shock to catch excess
fluid).
10. Install M2x4mm button head screw until snug
while shaft is fully compressed.

18

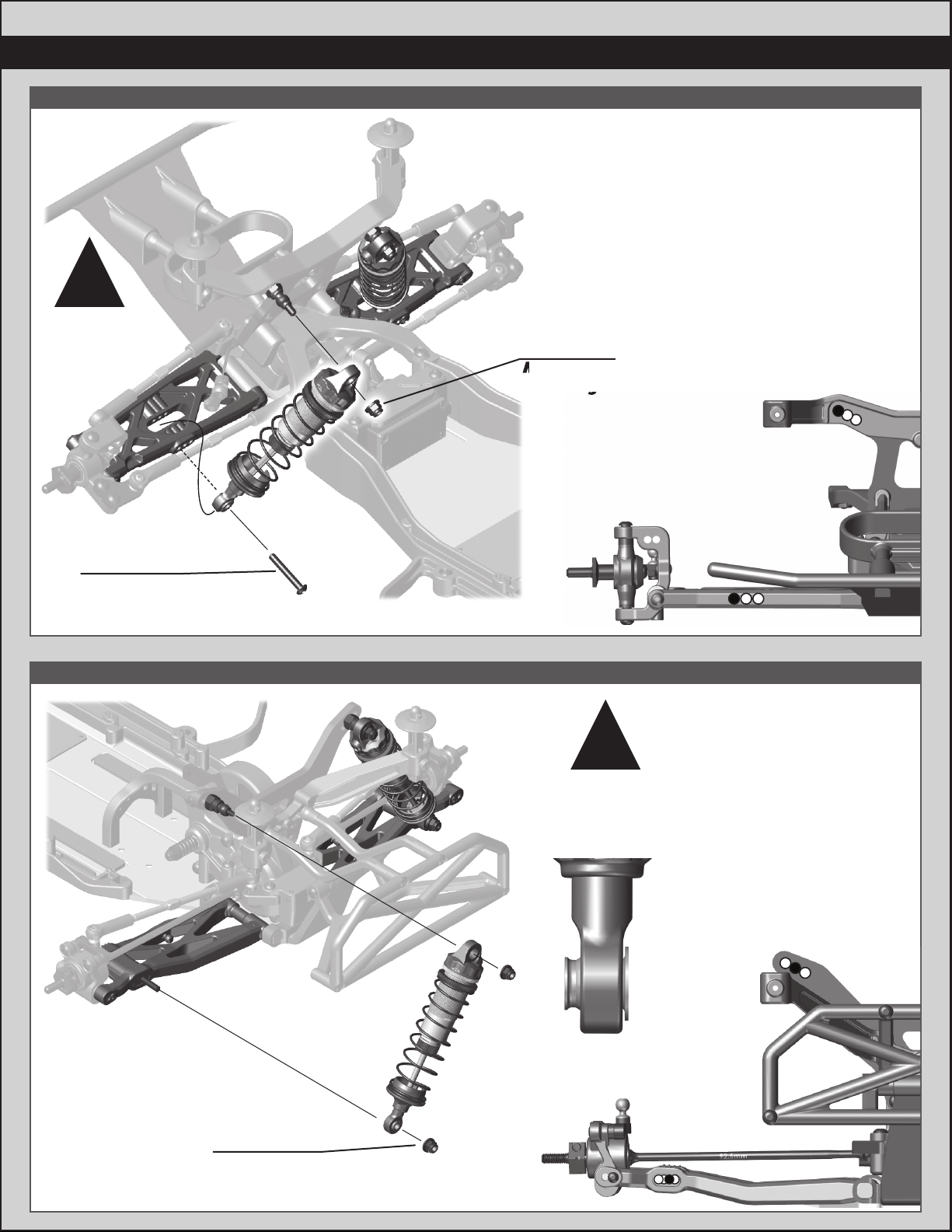

:::: Bag 9 - Step 7Bag 9 - Step 7
:::: Bag 9 - Step 8Bag 9 - Step 8
Build x2 (right and left side)
25612
M3 Locknut
w/Flange
M3 Locknut
Build x2 (right and left side)
Use outside
hole in
front arm!
!
25188
M3 x 20mm
BHCS
x2x2
25612
M3 Locknut
w/Flange
Make sure the
flange on the
shock pivot ball is
towards the rear
arm.
!
3322
BCD A
11
w/Flange
3322
BC A
11

19

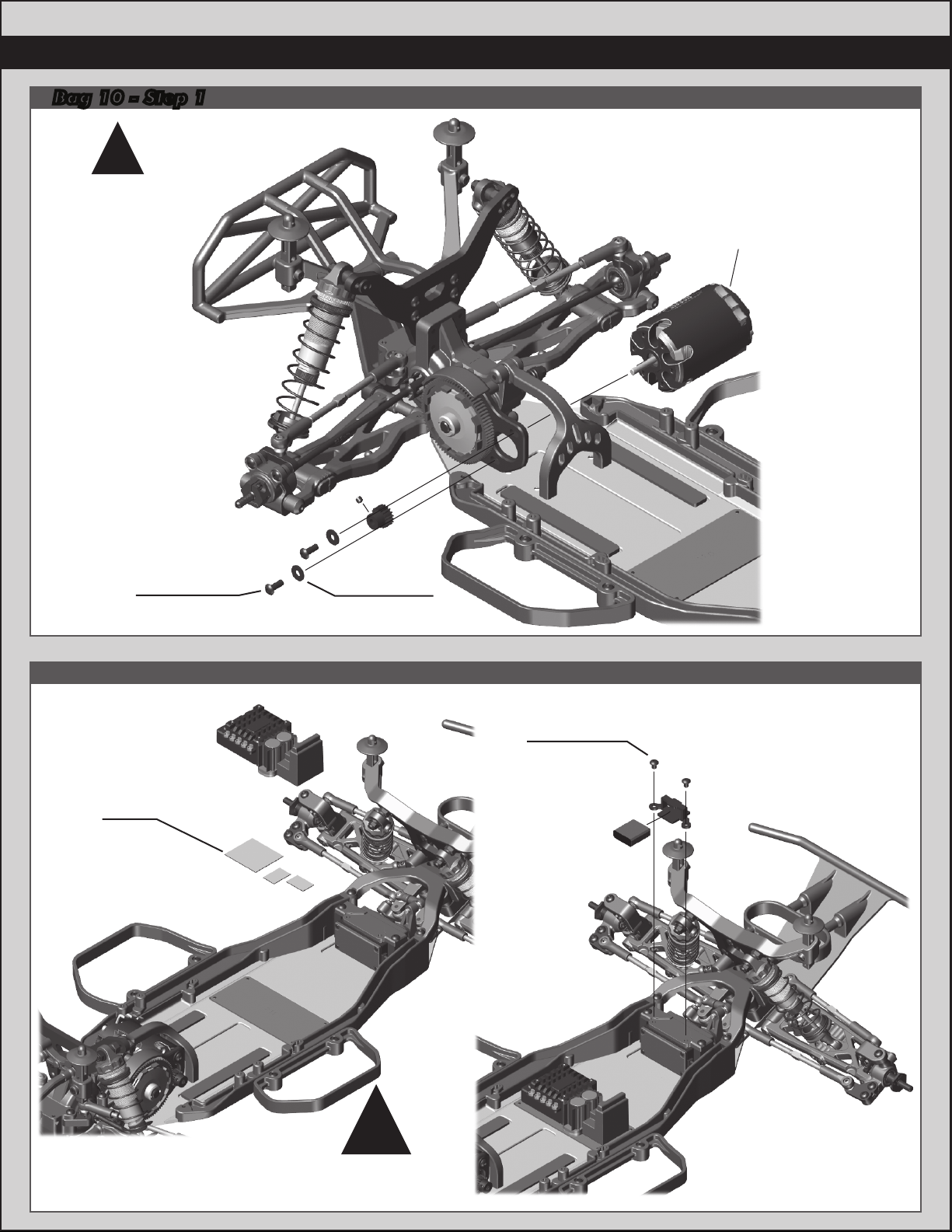

:::: Bag 10 - Step 1
:::: Bag 10 - Step 2Bag 10 - Step 2
See page 25 for
gear mesh setting
instructions!
!
Motor not included!
Pinion & Setscrew
not included!
31532
M3 x 8mm
BHCS
x2x2
x2x2 89218
3 x 8mm
Washer
ESC not
included!
6727
Servo
Tape
Antenna can be mounted
on the right or left side of
the chassis.
!
Receiver not
included! Transponder
not included!
91158
M3 x 4mm
BHCS
x2x2

20
:::: Bag 10 - Step 3Bag 10 - Step 3
:::: Bag 10 - Step 4Bag 10 - Step 4
31531
M3 x 6mm
BHCS
89218
3 x 8mm
Washer
x2x2
x2x2
x2x2
91731
Battery
Strap, B6
91731
B6 Battery
Strap Nut
Make sure the
battery strap
shoulder screw is
flush with the top of
your battery pack!
!RRFF
Fan mount options:
#1 - Laydown gearbox
#2 - Layback gearbox
#3 - Endbell location
#4 - Plug (no fan)
!
123 4
Fan not included!
25201
M3 x 8mm
FHCS
89203
M3 x 16mm
BHCS
91978
Fan Mount
#1
flush with the top of
your battery pack!
Battery
not included!
91730
Battery Strap
Shoulder
Screw
x2x2
