Aston Tire Changer ATC-8823 User’s Manual
Installation, Operation and Maintenance User’s Manual
Aston Tire Changer Model# ATC-8823
ASTON TECHNOLOGIES, INC.

www.astontechusa.com
2
Aston Tire Changer ATC-8823 User’s Manual
Warning!
FAILURE TO OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE INJURY OR DEATH. PLEASE READ
THIS ENTIRE MANUAL PRIOR TO INSTALLATION AND OPERATION. BY USING THIS PRODUCT, YOU
AGREE THAT YOU FULLY UNDERSTAND AND COMPREHEND THE FULL CONTENTS OF THIS MANUAL.
MAKE SURE ALL OPERATORS READ AND UNDERSTAND. KEEP YOUR INVOICE WITH THIS MANUAL FOR
FUTURE REFERENCE. MANUFACTURER SHALL NOT BE LIABLE FOR ANY INJURY TO PERSONS ON
DAMAGE TO THINGS CAUSED BY FAILURE TO COMPLY WITH THESE REGULATIONS AND CAN CANCEL
WARRANTY COVERAGE.
Failure to follow danger, warning, and caution instructions may lead to serious personal injury or death to
operator or bystander or damage to property. Do not operate this machine until you read and understand all
the dangers, warnings and cautions in this manual.
OWNER’S RESPONSIBILITY
To maintain machine and user safety, the responsibility of the owner is to read and follow these instructions:
•Follow all installation instructions.
•Make sure installation conforms to all applicable Local, State, and Federal Codes, Rules, and
Regulations; such as State and Federal OSHA Regulations and Electrical Codes.
•Carefully check the unit for correct initial function.
•Read and follow the safety instructions. Keep them readily available for machine operators.
•Make certain all operators are properly trained, know how to safely and correctly operate the unit,
and are properly supervised.
•Allow unit operation only with all parts in place and operating safely.
•Carefully inspect the unit on a regular basis and perform all maintenance as required.
•Service and maintain the unit only with authorized or approved replacement parts.
•Keep all instructions permanently with the unit and all decals on the unit clean and visible.
IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING UNIT
•Read and understand all safety warning procedures before operating the machine.
•Before performing any services or maintenance, always disconnect the machine from its air supply
source. Pump the bead breaker pedal several times to evacuate all compressed air from the machine
and disconnect the unit from its electrical supply source.
•Keep hands and feet clear. Remove hands and feet from any moving parts.
•Keep work area clean and dry. Cluttered, damp or wet work areas invite injuries.
•Keep children away from work area. Do not allow children to handle this machine.
•Consider work area environment. Do not expose equipment to rain. DO NOT use in damp or wet
locations. Keep area well lighted.
•Only trained operators should operate this equipment. All non-trained personnel should be kept
away from work area. Never let non-trained personnel come in contact with or operate machine.

www.astontechusa.com
3
Aston Tire Changer ATC-8823 User’s Manual
•Use machine correctly. Use machine in the proper manner. Never use adapters other than what is
approved by the manufacturer.
•Do not override or disable safety valves and/or devices.
•Always insure that all safety procedures are followed before any attempt is made to work on or near
the equipment.
•Dress properly. Non-skid steel-toe footwear is recommended when operating machine.
•Guard against electric shock. This equipment must be grounded while in use to protect the operator
from electric shock. Never connect the green power cord wire to a live terminal. This is for ground
only.
•DANGER! The motor on this machine contains high voltage. Disconnect power at the receptacle
before performing any electrical repairs. Secure plug so that it cannot be accidentally plugged in
during service.
•WARNING! RISK OF EXPLOSION. This equipment has internal arcing or sparking parts which
should not be exposed to flammable vapors. This machine should not be located in a recessed area
or below floor level.
•Maintain with care. Keep unit clean for better and safe performance. Follow manual for proper
lubrication and maintenance instructions. Keep control pedals and/or buttons dry, clean and free
from grease and oil.
•STAY ALERT. Watch what you are doing. Use common sense. Do not use tools when you are tired
or distracted from the job at hand.
•Check for damaged parts. Check for condition of all moving parts, breakage of parts or any
condition that may affect the machines operation. Do not use if any component is broken or damaged.
Replace or repair damaged or worn parts immediately.
•Never remove safety related components or device from the machine. Do not use if safety related
components are damaged or missing.
•To reduce fire hazard, keep engine/motor exterior free of oil, solvent, or excessive grease.
•Illegible and missing warning labels must be replaced immediately. Do not use the tire changer if
one or more labels are missing. Do not add any object that could prevent the operator from seeing
the labels.
TIRE AND WHEEL SERVICE SAFETY INSTRUCTIONS
Only properly trained personnel should service tires and wheels. Read all safety and operating instructions
thoroughly before use. The following safety instructions are for one-piece wheels only.
•Always refer to the manufacturer’s procedures for multi-piece wheels.
•The machine must be connected to a power supply line circuit bracket set for 30mA.
•Always keep all working surfaces clean and free of debris.
•Always wear durable personal protective work clothing and safety gear during tire service activity.
•To avoid personal injury and/or machine damage, always make sure the tire rim is firmly secured
on the tire changer with the jaws.
•Always remove all wheel weights and the valve core to deflate the tire before servicing.
•Never place your hands between the vehicle wheel rim and the jaws during the locking/clamping
stage.

www.astontechusa.com
4
Aston Tire Changer ATC-8823 User’s Manual
•Always be aware of what each person is doing and what they will do before attempting any two-
person operation.
•Always cover the electric motor and switch box before cleaning the tire changer. Be sure water or
cleaner does not enter the motor or switch box.
•Always disconnect the electric power and air supply before attempting any maintenance.
Demounting & Mounting
•Always clean and inspect the wheel prior to any service.
•Never stand on the frame or work table while demounting or mounting a tire.
•Always keep hands, feet, and other objects away from moving parts while the machine is turned on.
•Always place the narrow bead seat to the outside when clamping. Failure to demount the tire from
the narrow bead seat side may cause damage to the tire beads.
•Always apply an approved rubber lubricant to rim flanges and both tire beads before demounting
or mounting and seating the beads.
•Never mount a tire on a damaged or rusty wheel as tire or wheel failure may result during inflation.
Explosion from failure may result in severe injury or death of the operator and bystanders.
Inflation
•Always be sure the bead opposite the tool is in the drop center before rotating the tire when
demounting or mounting to avoid damage to the tire beads.
•Always follow all applicable Local, State, and Federal Codes, Rules, and Regulations; such as the
Federal OSHA Standard Number 1910.177.
•Always use an approved inflation chamber or inflation cage equipped with a self-gripping chuck
and remote inflation gauge and valve.
•Always inflate the tire to manufacturer’s recommended cold operating pressure.
•DO NOT OVER INFLATE! Tire or wheel failure during and after inflation may result in an
explosion capable of causing severe injury or death.
•Never reinflate a tire that has been run under inflated or flat without first demounting the tire and
checking for wheel and tire damage.
•Always inspect the tire interior for loose or broken cords, cuts, penetrating objects, and other
damage. Discard tires that cannot be properly repaired.
•Never rework, weld, heat or braze wheels.
•Never strike the tire or wheel with a hammer.
•Always be sure the tire diameter exactly matches the wheel diameter.
Danger!
Tire failure under pressure can be hazardous. When possible, always place wheels inside an approved
inflation chamber or cage before inflating. Use an approved remote inflation valve, hose, and gauge. Always
wear safety goggles for eye protection. Do not stand beside the wheel or cage during inflation. Keep hands
and other parts of the body out of the cage during inflation. Observe the tire pressure frequently. Do not

www.astontechusa.com
5
Aston Tire Changer ATC-8823 User’s Manual
exceed the manufacturer’s recommended maximum inflation pressure. Failure to follow these instructions
may cause the tire and rim to separate with tremendous force, resulting in serious personal injury or death.
Semi-automatic swing arm tire changer
Parameters: rim: 12"-24", Tire width：14"-26", tire diameter: 1160mm

www.astontechusa.com
6
Aston Tire Changer ATC-8823 User’s Manual
TABLE OF CONTENTS
Overview...............................................................................................................................................................................8
1.1 Important note.........................................................................................................................................................8
1.2 Qualified users ........................................................................................................................................................8
1.3 Notes .......................................................................................................................................................................8
1.4 Danger warning signs..............................................................................................................................................9
1.5 Noise standard.......................................................................................................................................................10
Equipment description ........................................................................................................................................................10
2.1 Product introduction..............................................................................................................................................10
2.2 Specifications........................................................................................................................................................10

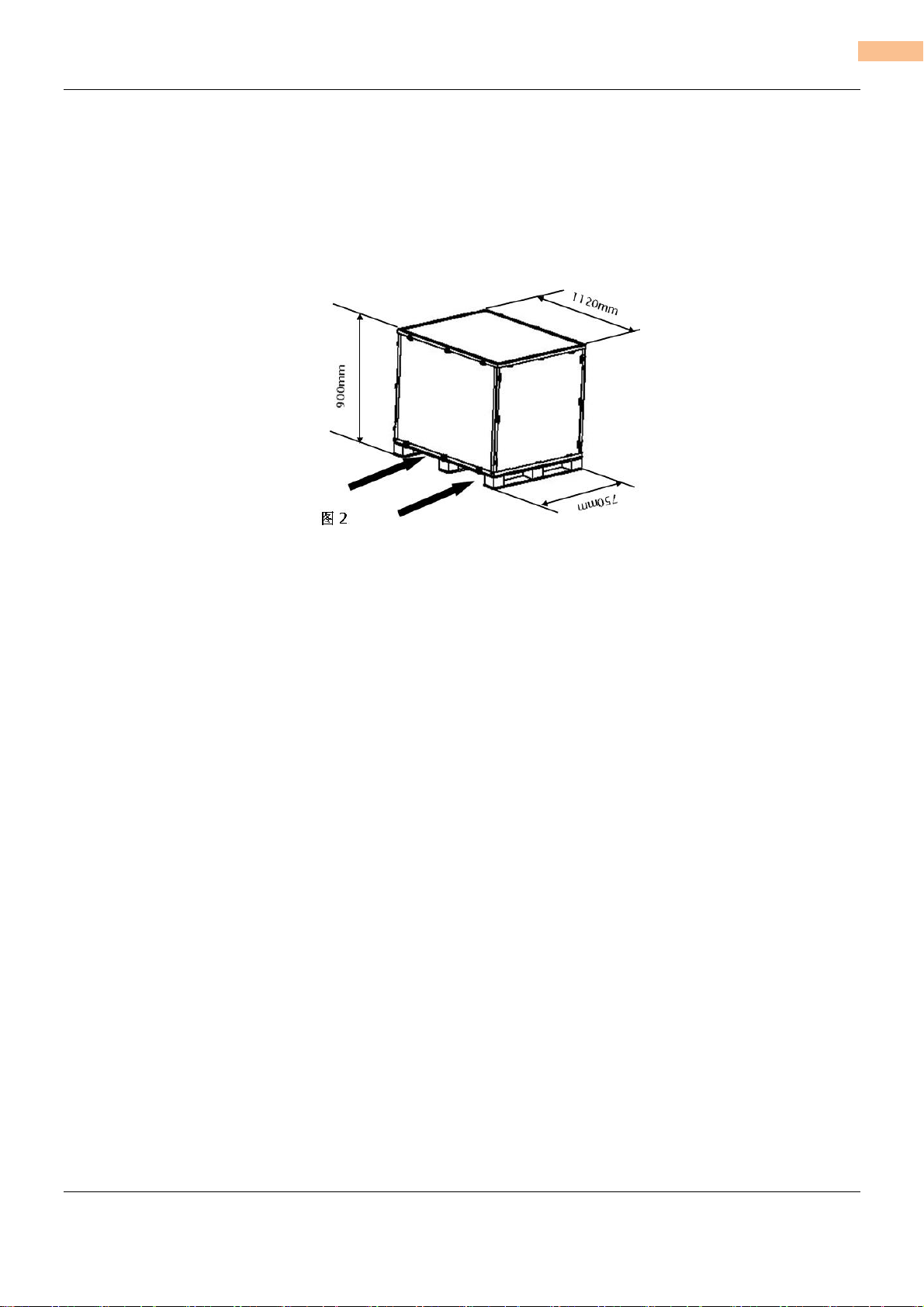

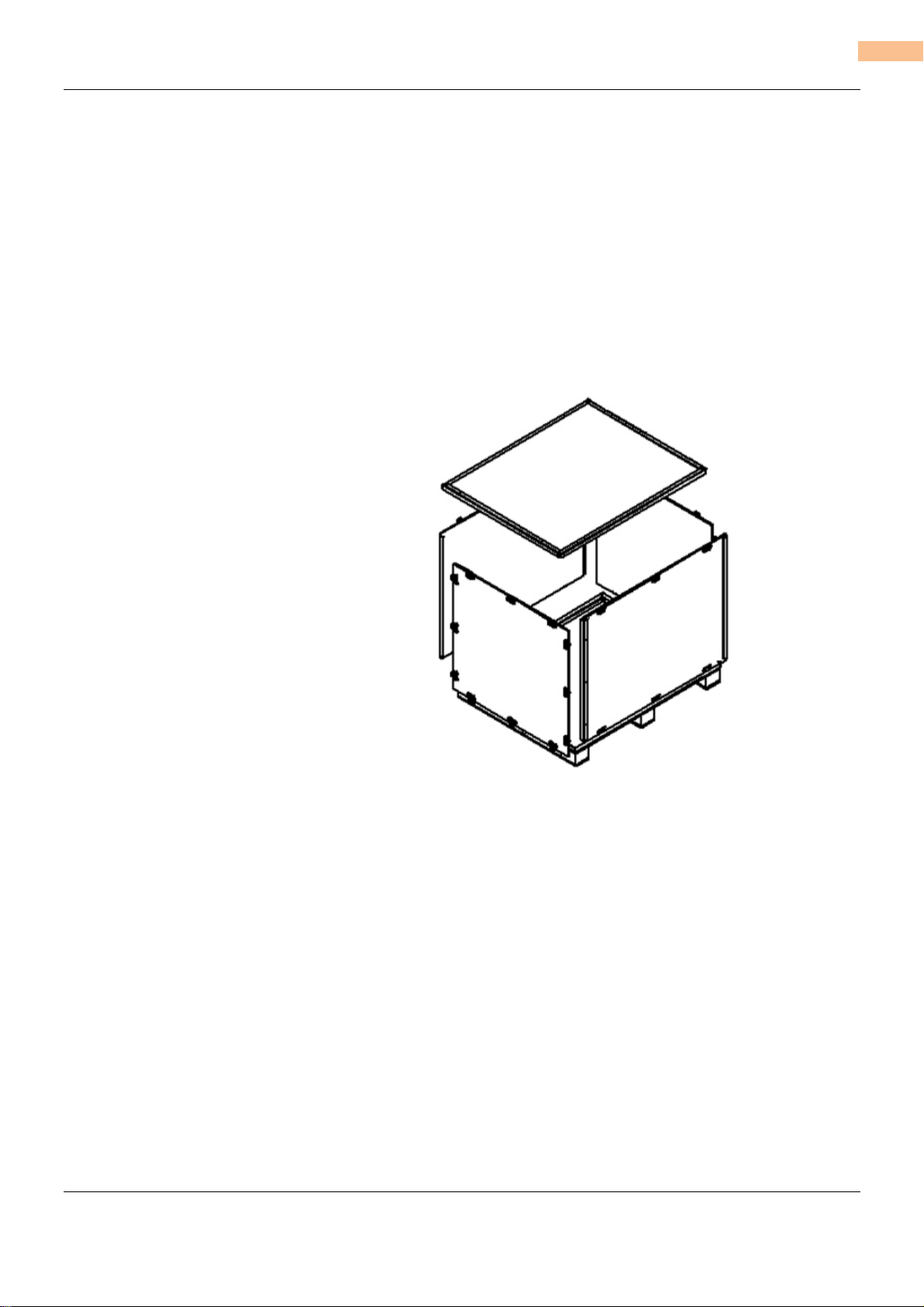

2.3 Transportation .......................................................................................................................................................11

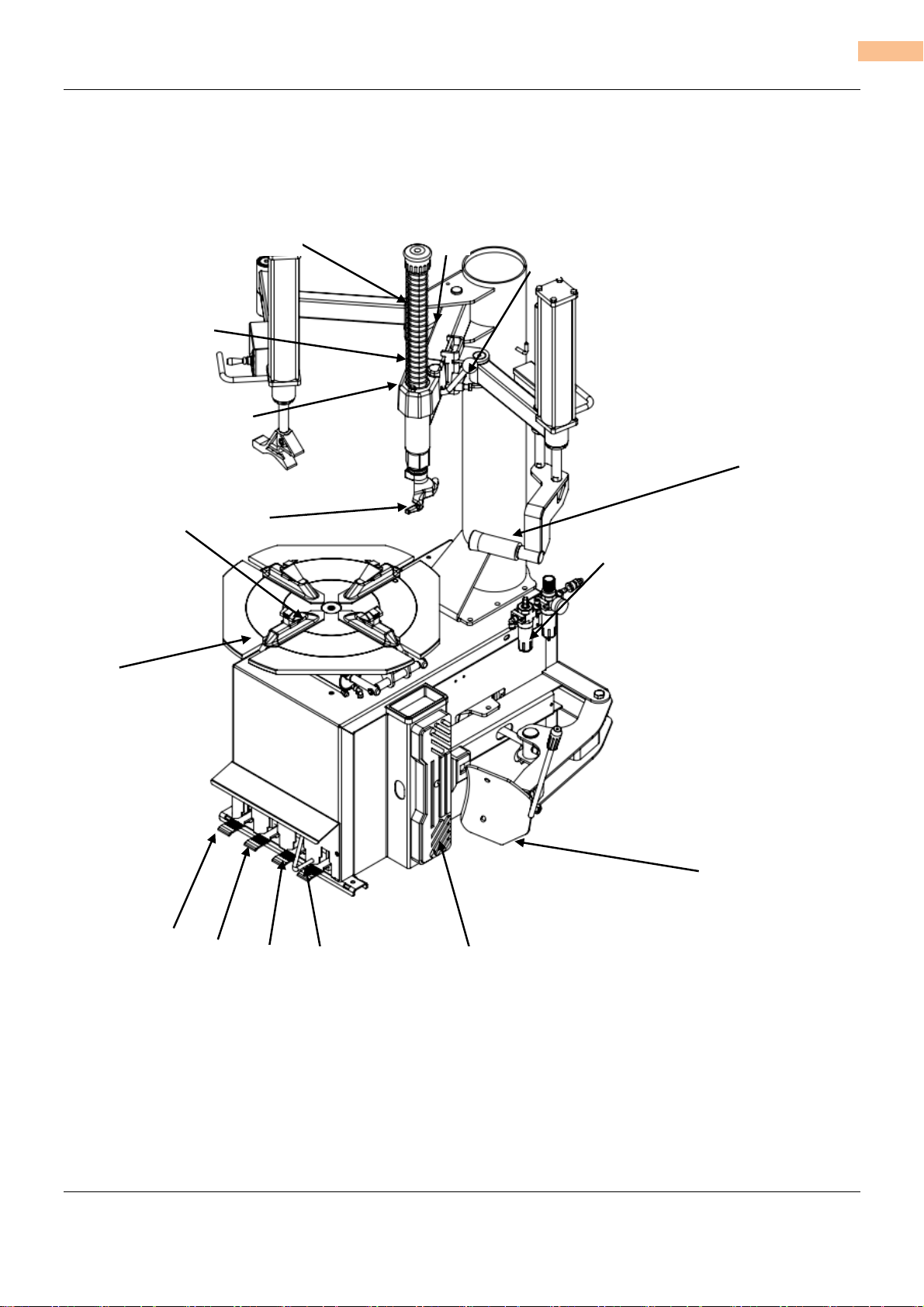

2.4 Figure and part name..........................................................................................................................................11
Installation and commissioning instructions.......................................................................................................................14
3.1 Installation Preparation .........................................................................................................................................14
3.2 Precautions during installation..............................................................................................................................15
3.3 Main installation procedure...................................................................................................................................15
3.4 Check the project table after installation...............................................................................................................16

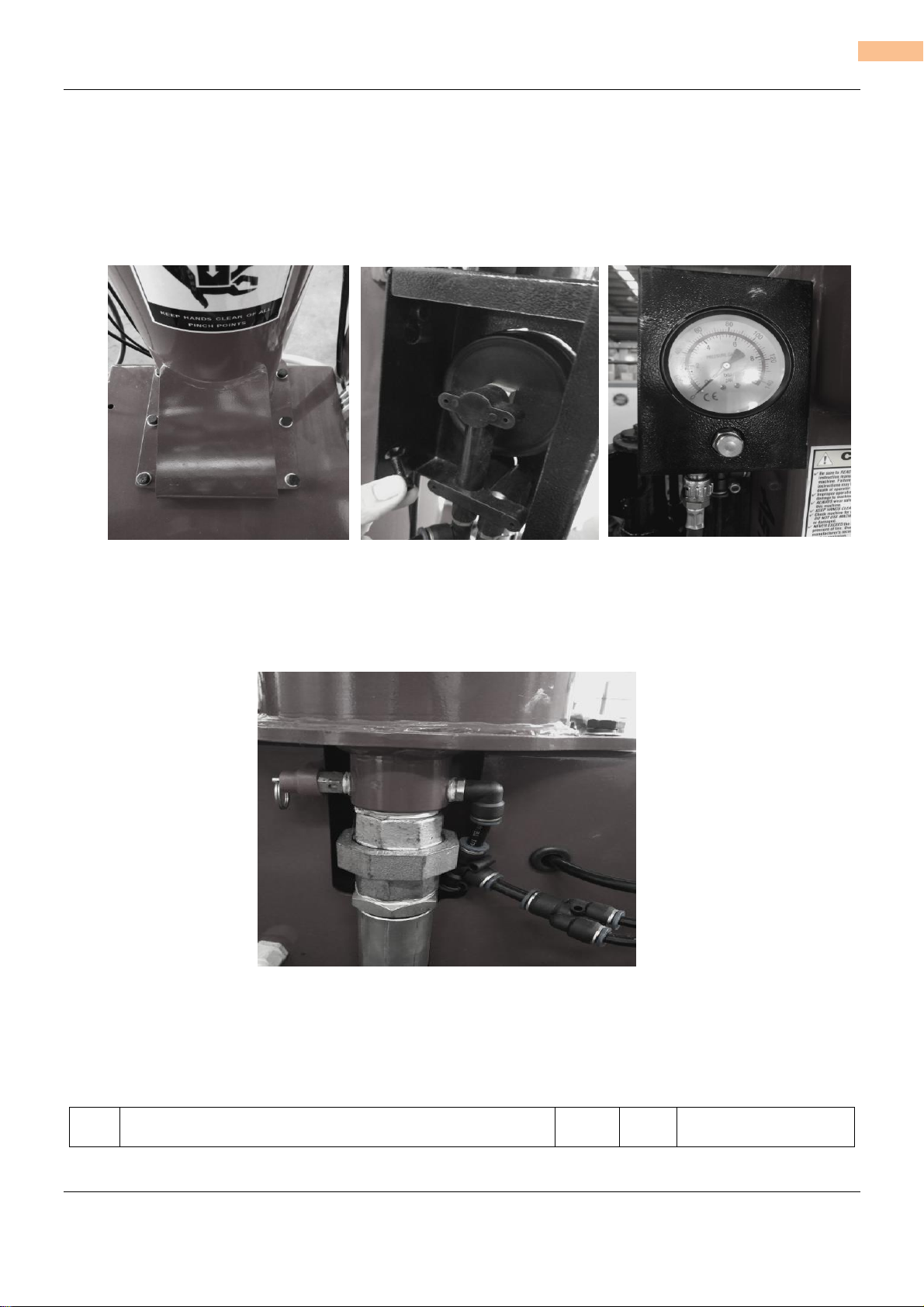

3.5 Commissioning and debugging.............................................................................................................................17
Operation.............................................................................................................................................................................18
4.1 Operating notes .....................................................................................................................................................18
4.2 Disassembly operation process .............................................................................................................................18
4.3 Mounting.….…………………………………………………………………………………………………………………………………………………….24

www.astontechusa.com
7
Aston Tire Changer ATC-8823 User’s Manual
Maintenance.........................................................................................................................................................................35
5.1 Maintenance..........................................................................................................................................................35
5.2 Storage and scrap ..................................................................................................................................................38
Fault causes and Solutions ..................................................................................................................................................38
Parts List and Exploded Drawings ........................................................................................................................................40
Warranty….……….………….…………..……………………………………………………………………………………………………………………………….42

www.astontechusa.com
8
Aston Tire Changer ATC-8823 User’s Manual
Overview
1.1 Important note
1.1.1 Thank you for your purchase and use of this product. Please read and follow the safety
instructions. Keep them readily available for machine operators.
1.1.2 Service and maintain the unit only with authorized or approved replacement parts.
1.2 Qualified users
1.2.1 Make certain all operators are properly trained, know how to safely and correctly
operate the unit, and are properly supervised.
1.2.2 Electrical appliances must be operated by the normal electrician.
1.2.3 Do not attempt to operate this equipment if you have never been trained on basic tire
service and mounting / dismounting procedures.
1.3 Notes
1.3.1 Before using the product, please carefully read every part of the manual, especially the
operation of the safety and mechanical maintenance of the part.
1.3.2 Use the tire assembly machine must be operated by professional training personnel.
1.3.3 Tire disassemble is forbidden to use in explosive gas.
1.3.4 Before the machine is connected, the user must ensure that the use of power and gas
supply and mechanical requirements, the circuit system must be operated by professional
staff.
1.3.5 In the operation process, do not face close to the turntable, so as to avoid dust and
other debris hit the operator's eyes. In order to ensure safety, mechanical operation, to be
careful, do not touch the inflatable pedal, so as to avoid accidents.
1.3.6 To operate tire inflation must be very careful, strictly according to the instructions for
operation, if the tire suddenly burst, tire assembly machine design and structure is not to
protect the operator's personal safety (or any mechanical in the vicinity of the kind).
1.3.7 Operation of the tire changer, necklace, loose clothing, etc., may give the operator to
bring personal injury.
1.3.8 In the process of removing or installing the operation of the tire, the turntable has
always been to ensure that the clockwise rotation; if there is a counter clockwise rotation
indicates that the turntable is a failure or operator error.

www.astontechusa.com
9
Aston Tire Changer ATC-8823 User’s Manual
1.3.9 Manufacturers are responsible for the damage caused by the use of other parts of the
manufacturer or the damage of the safety device.
1.3.10 periodically check the oil mist, oil, if the oil level is low and need to unscrew the oil
cup and then add. Oil mist using models for ISO Hg and viscosity for ISO vg32 oil mist
special oil (such as: Esso Fedis k32, 1405, Mobil Vacouline, KLUBER32)
1.3.11 if the product is not used for a long time, please user A. disconnect all power supply,
B. and lubricate the turntable fixture slide to prevent oxidation.
1.3.12 when deciding to scrap equipment, to determine the total energy of all the energy to
be cut off, according to the relevant laws and regulations for all non-ferrous metals and non-
ferrous metal scrap processing.
1.4 Warning signs

www.astontechusa.com
10
Aston Tire Changer ATC-8823 User’s Manual
1.5 Noise standard
The noise of the tire changer shall be less than 70dB. for your health, and it is recommended
that you place a noise meter in your operating area.
Equipment description
2.1 Product introduction
This model of semi-automatic tire changer is a convenient and quick disassemble and
installation of wheel size of 10” to 28”, the tire width of 14＂-26＂and the diameter of the
tire is 1160mm.
2.2 Specifications
Special points
Specifications
Outer rim
12＂－24＂
Inner rim
14＂－26＂
Maximum tire diameter
1160mm（46＂）
Maximum tire width
380mm（15＂）
Pressing force (10bar)
5510 lbs. (2500kg)
Operating air pressure
8bar－10bar（116－145psi）
Maximum charge pressure
3.5bar（50psi）
Power supply voltage
120V 1ph／220V 3ph
Motor power
1.5kw
Outline dimension
1120×750×860
Net weight
529 lbs. (240kg)
Working state noise
＜70dB（A）

www.astontechusa.com
11
Aston Tire Changer ATC-8823 User’s Manual
2.3 Transportation
Handling of the machine must be performed only with an appropriate lifting device such as a forklift
or pallet jack. Only personnel who are experienced and qualified on material handling procedures
should handle any transportation or moving of machine.
2.4 Figure and part name
G：Wheel Clamp
P：Tower
U：Bead Breaker Pedal
I：Mounting / Dismounting head
R：Bead Breaker
V2：Turntable Pedal
V3: Pedal Inflatable
Z: Bead Breaker Pad

www.astontechusa.com
12
Aston Tire Changer ATC-8823 User’s Manual
Y: Turntable
N: Horizontal Pendulum arm
K: Locking Handle
Q: Oil Drier
V1: Wheel Clamp Pedal
C: Turbo Blast Hose Assembly
E: Hand Wheel
M: Vertical Reverse Spring

www.astontechusa.com
13
Aston Tire Changer ATC-8823 User’s Manual
E
K
C
P
N
I
G
Y
R
Q
Z
U
V2
V1
M
V3

www.astontechusa.com
14
Aston Tire Changer ATC-8823 User’s Manual
Installation and commissioning instructions
3.1 Installation Preparation
3.1.1 installation location
⚫The area should provide the operator with enough space to use the equipment in a safe manner.
⚫The area selected should be well lit, easy to clean and should be away from oil, grease, brake lathe
chips, etc. Avoid areas where bystanders and customers may be present.
⚫Equipment installation location should be at least up to the standard shown in Picture, which can ensure
the normal operation and the machine parts are not subject to any restrictions. The tire changer is
forbidden to use in explosive gas.
3.1.2 Installation equipment and tools

www.astontechusa.com
15
Aston Tire Changer ATC-8823 User’s Manual
◇Installation equipment and tools
3.1.3 inspection products
◇The shipment should be thoroughly inspected as soon as it is received. The signed Bill
of Lading is acknowledgement by the shipping carrier as receipt of this product as listed
in your invoice as being in a good condition of shipment. If any of these goods listed on
this Bill of Lading are missing or damaged, do not accept goods until the shipping carrier
makes a notation on the freight bill of the missing or dam- aged goods. Do this for your
own protection.
3.1.4 Unpacking
◇Check the packaging damage and
the rain and other damage
phenomenon, using the tool unpack
the packing as shown in Picture,
please dispose of packaging box,
lest the environmental pollution.
◇Check the condition of the machine,
in accordance with the packing list
to check if there is any damage or
lost, once found contact the dealer
and manufacture immediately. If
you find that the leakage but still installed, we will not assume any responsibility. If you
have any questions, please do not use the machine, the supplier contact.
3.2 Precautions during installation
◇All bolts must be tightened.
◇Power cord, no broken skin, no broken pipe, and other damage.
3.3 Main installation procedure
3.3.1 Standard configuration installation
Figure 5

www.astontechusa.com
16
Aston Tire Changer ATC-8823 User’s Manual
◆The first step: unscrew wooden pallet fixing screws, tire changer placed at the
installation site. (installation site must conform to the requirements.
◆The second step: unscrewing the bolts from the box, the column is installed in the
machine box on the specified position, tighten the bolts.
◆The third step: Fix the inflation box on the left side of tower with box.
◆The forth step: Fix the turbo blast at back of machine box.
3.4 Check the project table after installation
No.
Inspection item
Yes
No
Remarks
Figure 6-c

www.astontechusa.com
17
Aston Tire Changer ATC-8823 User’s Manual
1
Whether the power supply voltage is consistent
with the requirements of the equipment
2
Whether the components are installed correctly
3
Whether the bolts, screws, nuts are tightened
Note: Please fill in the inspection item list after the installation is finished.
3.5 Commissioning and debugging
3.5.1 Commissioning
◇After the installation of the machine but before the connection with the power supply, it
is necessary to determine the user's power supply, the gas source and the requirements
of the machine is consistent.
◇The machine is connected to the circuit, the circuit must be fitted with a fuse that is in
line with the operating rules. The automatic circuit breaker of 25A is required to be
operated by professional personnel. The power plug of the tire changer is provided with
the customer.
◇The compressed air system is connected to the machine by a pipe joint on the right side
of the tank.
3.5.2 Debugging
◇Step 1: turn on the power and gas supply, depress the Turntable Rotation pedal, turntable
should be clockwise. Raise the Turntable Rotation pedal, the turntable should be anti-
clockwise rotation. (If the turntable is opposite to the specified rotation direction, the
position of the two lines in the three-phase plug should exchange position.)
◇The second step: depress the Bead Breaker Pedal, start the Bead Breaker device; when
the pedal is released, the Bead Breaker device to return to the original position.
◇The third step: depress the Jaw Clamp Pedal, open the 4 clamps; release the Jaw Clamp
Pedal, the Jaw Clamps returns to the original position.
◇The forth step: Swing Arm / Vertical Shaft / Mount-Demount Head Assembly

www.astontechusa.com
18
Aston Tire Changer ATC-8823 User’s Manual
Operation
4.1 Operating notes
◇Check the connection of air pipe is in place, ensure that no air leakage, ensure the
operation space to meet the requirements, then start work.
◇Before any operation, the gas in the tire is needed to be released, and the balance block
of the tire balancing device is removed.
4.2 Disassemble operation process
4.2.1 Bead Loosening
◇Deflate tire completely by removing the valve core from the valve stem. To avoid
damaging the clamps and/or wheel, move the clamps to their full inward position before
positioning a tire for bead loosening.
◇Pull the bead breaker blade away from the machine and roll the wheel into position. If
servicing a performance wheel or any other wheel with Tire Pressure Sensor), make sure
that the valve stem is either in the 12 o’clock or 6 o’clock position.
◇Position the bead breaker blade against the tire next to, but not on, the rim or the sidewall
of the tire. Press the breaker pedal to actuate the blade and loosen the bead. It may be
⚫Raise the Vertical Shaft / Mount-demount
head assembly to the highest position and
lock it in place by pushing the Locking
Handle up.
⚫Check the Socket Head Cap Screw on the
Cap, tighten if necessary.
⚫Check the operation of the Vertical Shaft
and the Locking Handle.
⚫Check that the Mount/Demount Head bolt
and set screws are tightened.

www.astontechusa.com
19
Aston Tire Changer ATC-8823 User’s Manual
necessary to loosen the bead in multiple locations around the tire. Use extra care in
positioning the bead breaker blade on larger wheels/tires, and on alloy wheels.
◇Turn wheel around and repeat procedure on the other side of the wheel. This should be
the long side of the drop center. It will be easier to clamp the wheel to the table top if
the lower bead is loosened last.
◇Determine the mounting side of the wheel. The mounting side is the narrow side of the
drop center.
4.2.2 Wheel Clamping
◇Fixed the block in the left helper arm in
the center of wheels.
◇Place tire/wheel assembly on Table
Top with mounting side up.
◇Place tire/wheel assembly on Table
Top with mounting side up.

www.astontechusa.com
20
Aston Tire Changer ATC-8823 User’s Manual
◇Use the Wheel Clamp Foot Pedal to move the Clamps inward (pedal down) or outward
(pedal up).
4.2.3 Tire mounting
◇Apply tire manufacturer’s approved rubber lubricant liberally to entire circumference of
both upper and lower beads after loosening bead and placing on table top.
◇After the wheel is secured to the Turntable, swing the Vertical Arm into position. Use
the large adjusting Knob to position the Mount/Demount Head directly over the edge of
the rim.
◇Push the Vertical Shaft down and position the Mount/ Demount Head into contact with
the rim edge.
◇Pull the locking handle towards you to lock the Vertical Shaft into position. As the slide
is locked, the Mount/ Demount Head will move upward approximately 1/8 inch and
backward 1/8 inch from the rim edge. The Mount/Demount head roller should not be in
