ENGLISH __________________________________________________________________
IMPORTANT: The instruction manual you are holding includes essential information on the safety measures to be implemented for
installation and start-up. Therefore, the installer as well as the user must read the instructions before beginning installation and start-up.
Keep this manual for future reference.
Disposal of waste electrical and electronic domestic systems in the European Union.
All the products marked with this symbol indicates that the product shall not be mixed or disposed with your
household waste at their end of use. It is responsibility of the user to eliminate this kind of wastes depositing them in
a recycling point adapted for the selective disposal of electrical and electronic wastes. The suitable recycling and
treatment of these wastes contributes in essential way to the preservation of the Environment and the health of the
users. For further information regarding the points of collection of this type of wastes, please contact to the dealer
where you acquired the product or to your municipal authority.
For optimum performance of the HELIOX UV LP Treatment System, we recommend you to follow the instructions given below:
1. CHECK THE CONTENTS OF THE PACK:________________________________________________________________________
You should find the following elements inside the box:
UV reactor.
Flow switch FS-1+ cable (3 m. / 9.8 ft.) (1).
Control panel.
Lamp power cables LP-0410 x
n (5 m. /16.4 ft..). (1) ( n, depending on the number of lamps).
Micro-switch cable LP-025/M x1 (5 m. /16.4 ft..). (1).
Operation Manual.
(1) Custom cable lengths may be supplied on demand.
2. GENERAL FEATURES: ___________________________________________________________________________________
The germicidal effects of ultraviolet light (UV) with wavelengths around 260 nm are well known for over 100 years. Its use has been
increasing in recent years as it presents a number of advantages over chemical disinfection systems, since virtually UV light no alters the
physical and chemical composition of water, it is very effective against any type of microorganism (algae , bacteria, viruses, fungi, yeasts,
etc.) further minimizing the risks of handling and dosing of potentially hazardous chemicals. Moreover, UV treatment reduces the levels of
combined chlorine in water, thereby producing significant water savings by reducing the volume and frequency of renewal of pool water.
The HELIOX UV LP treatment system in addition to maintaining a certain level of chlorine in water, ensure the sanitary quality of pool water.
The HELIOX UV LP treatment system will operate when the pool recirculation (pump and filter) is operational.
The HELIOX UV LP treatment systems are designed and manufactured with the latest technology in UV treatment of water, thus ensuring
continuous operation and minimal maintenance.
o Electronic ballast with integrated control (high efficiency + 98%).
o Operation hour counter.
o Input for external flow switch.
o Alarm output.
o AMALGAM low-pressure UV lamps.
o Lamp lifetime: 16.000 hours (depending on the number of ignitions).

2
3. CERTIFICATIONS: ___________________________________________________________________________________
The HELIOX UV LP range of systems are certified for pool and spa end use:
Certified products:
PE versions:
63135 Heliox UV LP P95
63136 Heliox UV LP P140
64347 Heliox UV LP P180
64348 Heliox UV LP P220
64349 Heliox UV LP P260
63137 Heliox UV LP P300
 EC Declaration of Conformity
The products listed above are in compliance with:
o Low Voltage Directive 2006/95/EC.
o Electromagnetic Compatibility Directive 2004/108/EC.
o Directive ROHS 2011/65/EC.
I.D. ELECTROQUIMICA, S.L.
Pol. Ind. Atalayas, c./ Dracma R-19
E-03114 Alicante
Spain
Gaspar Sánchez
General Manager

3
.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: when installing and using electrical equipment, basic safety precautions
should always be followed, including the following:
READ AND FOLLOW ALL THE INSTRUCTIONS
A yellow-green wire connector marked (*) is provided on this unit to connect
a minimum No. 8 AWG for US (UL) and a No. 6 AWG for Canada (CSA)
solid copper conductor between this unit and any metal equipment, metal
enclosures of electrical equipment, metal water pipe or conduit within 5 feet
(1.5 m.) of the unit.
One bonding lug marked (*) is provided on the head of the UV chamber
suitable for No. 8 AWG (US) and No. 6 AWG (Canada) and secured to the
chamber by paint breaking washer and nut.
(*) IEC 60417, symbol 5019
This product must be connected to a circuit protected by a ground fault circuit
interrupter.
The equipment should be installed and handled by truly qualified people.
Current electrical and accident prevention regulations should be followed.
Under no circumstances will the manufacturer be held responsible for the
assembly, installation or start-up, nor any handling or fitting of components
unless they are carried out on its premises.
Check all the electrical connectors are well tightened to avoid false contacts
and their consequent overheating.
Install the control panel so that the cooling grids (if exist) are not obstructed.
For indoor use only. This unit is not intended for outdoor use.
Prior to the installation or replacement of any system component make sure
it has been previously disconnected from the mains, and there is no water
flow through it. Use only spare parts supplied by AstralPool.
Never remove the lock nut of the quartz sleeve when the water is
recirculating through the UV reactor as it could be expelled and causing
damage.

4
The UV light generated by this equipment can cause serious damage if the
eyes or skin are exposed directly to the lamp. Never connect the system
when the lamp is out of the reactor.
Do not handle the UV lamps until completely cold.
Always handle the UV lamp with gloves, as fat and other impurities deposited
on the surface may reduce its performance and durability. In case you have
to clean the lamp surface use a soft cloth soaked with alcohol.
SAVE THE INSTRUCTIONS

5
4. SYSTEM DESCRIPTION
Fig. 1
1.- Control panel. 7.- Inputs for sensor cables.
2.- Touchscreen. 8.- UV chamber.
3.- Main switch. 9.- Cover.
4.- Power cable input. 10.-.Stands.
5.- Output for UV reactor Ground cable. 11.- D200 inlet/outlet flanges.
6.- Outputs for lamp power cables 12.- Flow-switch (FS-1).

6
5. INSTALLATION:_________________________________________________________________________________________________
5.1. General considerations
 In order to guarantee a good state of conservation, the HELIOX UV LP system must be installed in a dry and well ventilated place
at the technical room. The protection degree of HELIOX UV LP systems does not allow outdoor installation.
 The temperature at the installation area must be within 36oF (2oC) and 104oF (40oC) and the relative humidity must not exceed
80%.
 Install the unit as far away as possible from any storage of chemical products and sources of moisture.
Warning
Beware of corrosive atmosphere formation due to pH decreasing solutions (specially, those
ones based on hydrochloric acid "HCl"). Do not install the HELIOX UV LP system near to any
stores of these chemicals. We strongly recommend the use of chemicals based on sodium
bisulphate or diluted sulphuric acid.
5.2. Installation of the UV reactor
The reactor of HELIOX UV LP systems must be installed HORIZONTALLY, as shown in the recommended installation diagram (Figs. 3).
Warning
Observe flow direction indications located on the UV chamber.
The reactor of the HELIOX UV LP/LP+ systems is made of polyethylene within which are housed the UV lamps. The HELIOX UV LP system
should always be installed after the filtration system, and before any other device in the installation such as heat pumps, control systems,
dosage systems, salt electrolysis systems, etc.
The installation of the UV system should allow easy access to the UV lamp by the user. The location of the HELIOX UV LP system must have
an effective dimensions that allow the complete removal of the UV lamp from the sleeve (approximately 2 m.).
It is highly recommended to install the HELIOX UV LP system in a place of the pipe that can be easily isolated from the rest of the installation
by two valves, so that the tasks of maintenance can be carried out with no need of partial or total draining of the swimming pool. Where the
system is installed on a by-pass (recommended option), a valve to regulate the flow must be introduced.
Warning
Prior to the installation or replacement of any system component make sure it has been
previously disconnected from the mains, and there is no water flow through it. Use only spare
parts supplied by AstralPool.

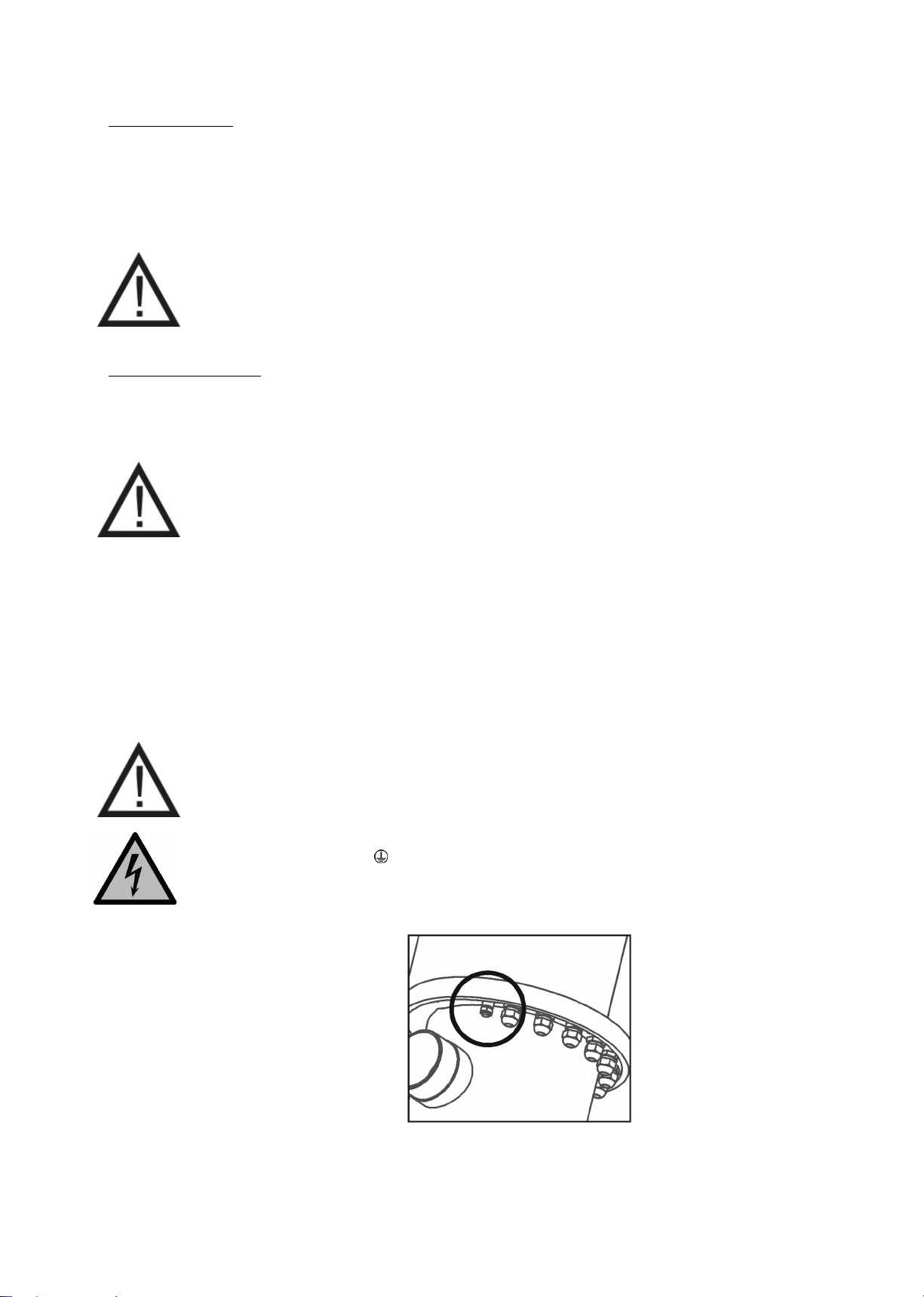

One bonding lug marked
(*)
are provided on the head of the UV chamber suitable for No. 8
AWG (US) and No. 6 AWG (Canada) and secured to the chamber by paint breaking washer
and nut.
Fig. 2

7
Legend
1. Filter.
2. Pump.
3. UV reactor.
4. Other equipment (dosage pumps, controllers, heat exchangers, etc.).
5. Flow-switch.
Fig.3. HELIOX UV LP systems. Recommended installation diagram.
5.3. Installation of the control panel
 Always install the CONTROL PANEL of the HELIOX UV LP system vertically and on a rigid surface (wall), so that the touchscreen
located on the front panel is at the level of the eyes.
 Cooling fan and grids (if exist) must not be blocked.
Warning
The equipment should be assembled and handled by truly qualified people.
Current electrical and accident prevention regulations should be followed.
Do not attempt to alter the system to operate at a different voltage.
Both the power of the HELIOX UV LP system control panel and the interconnection of the UV lamp and the sensors must be made at the
terminal block at the base inside the control panel. The control panel base has a series of cable glands for the correct fixation of the power
cables and sensors. In any case the length or section thereof should be amended, without first consulting an AstralPool authorized
technician.
Warning
Use copper conductors only.
Permanently connected.

8
CONTROL PANEL: FIELD WIRING DIAGRAM
LP P95 Model
T.block Control Panel Input Wire Wire description
PE
POWER 230 VAC / 50-60 Hz. / 1-PHASE (1)
GROUND
1 LINE
2 NEUTRAL
PE UV REACTOR BONDING (2) GROUND
3
LAMP 1
LAMP UV-1/1
LP-0410/1
BLACK “1”
4 LAMP UV-1/2 BLACK “2”
5 LAMP UV-1/3 BLACK “3”
6 LAMP UV-1/4 BLACK “4”
7
LAMP 2
LAMP UV-2/1
LP-0410/2
BLACK “1”
8 LAMP UV-2/2 BLACK “2”
9 LAMP UV-2/3 BLACK “3”
10 LAMP UV-2/4 BLACK “4”
27 FLOW SWITCH INPUT POTENTIAL-FREE CONTACT
28
29 HEAD DETECTOR SW-1 LP-025-M BLACK “1”
30 SW-2 BLACK “2”
31 ALARM OUTPUT (3) POTENTIAL-FREE CONTACT
32
LP P140 Model
T.block Control Panel Input Wire Wire description
PE
POWER 230 VAC / 50-60 Hz. / 1-PHASE (1)
GROUND
1 LINE
2 NEUTRAL
PE UV REACTOR BONDING (2) GROUND
3
LAMP 1
LAMP UV-1/1
LP-0410/1
BLACK “1”
4 LAMP UV-1/2 BLACK “2”
5 LAMP UV-1/3 BLACK “3”
6 LAMP UV-1/4 BLACK “4”
7
LAMP 2
LAMP UV-2/1
LP-0410/2
BLACK “1”
8 LAMP UV-2/2 BLACK “2”
9 LAMP UV-2/3 BLACK “3”
10 LAMP UV-2/4 BLACK “4”
11
LAMP 3
LAMP UV-3/1
LP-0410/3
BLACK “1”
12 LAMP UV-3/2 BLACK “2”
13 LAMP UV-3/3 BLACK “3”
14 LAMP UV-3/4 BLACK “4”
27 FLOW SWITCH INPUT POTENTIAL-FREE CONTACT
28
29 HEAD DETECTOR SW-1 LP-025-M BLACK “1”
30 SW-2 BLACK “2”
31 ALARM OUTPUT (3) POTENTIAL-FREE CONTACT
32
(1) Not supplied with the unit
(2) Not supplied with the unit. Bonding must be made with a solid copper conductor minimum No. 8 AWG (USA) / 6 AWG (Canada)
(3) Contact closed in case of active alarm.
(1) Minimum recommended wire size
Model 230 V / 1-PHASE Model 230 V / 1-PHASE
LP P95 3 x AWG 16
(3 x 1.50 mm2)
LP P220 3 x AWG 14
(3 x 2.50 mm2)
LP P140 LP P260
LP P180 3 x AWG 14
(3 x 2.50 mm2) LP P300 3 x AWG 12
(3 x 4 mm2)

9
LP P180 Model
T.block Control Panel Input Wire Wire description
PE
POWER 230 VAC / 50-60 Hz. / 1-PHASE (1)
GROUND
1 LINE
2 NEUTRAL
PE UV REACTOR BONDING (2) GROUND
3
LAMP 1
LAMP UV-1/1
LP-0410/1
BLACK “1”
4 LAMP UV-1/2 BLACK “2”
5 LAMP UV-1/3 BLACK “3”
6 LAMP UV-1/4 BLACK “4”
7
LAMP 2
LAMP UV-2/1
LP-0410/2
BLACK “1”
8 LAMP UV-2/2 BLACK “2”
9 LAMP UV-2/3 BLACK “3”
10 LAMP UV-2/4 BLACK “4”
11
LAMP 3
LAMP UV-3/1
LP-0410/3
BLACK “1”
12 LAMP UV-3/2 BLACK “2”
13 LAMP UV-3/3 BLACK “3”
14 LAMP UV-3/4 BLACK “4”
15
LAMP 4
LAMP UV-4/1
LP-0410/4
BLACK “1”
16 LAMP UV-4/2 BLACK “2”
17 LAMP UV-4/3 BLACK “3”
18 LAMP UV-4/4 BLACK “4”
19 FLOW SWITCH INPUT POTENTIAL-FREE CONTACT
20
21 HEAD DETECTOR SW-1 LP-025-M BLACK “1”
22 SW-2 BLACK “2”
23 ALARM OUTPUT (3) POTENTIAL-FREE CONTACT
24
LP P220 Model
T.block Control Panel Input Wire Wire description
PE
POWER 230 VAC / 50-60 Hz. / 1-PHASE (1)
GROUND
1 LINE
2 NEUTRAL
PE UV REACTOR BONDING (2) GROUND
3
LAMP 1
LAMP UV-1/1
LP-0410/1
BLACK “1”
4 LAMP UV-1/2 BLACK “2”
5 LAMP UV-1/3 BLACK “3”
6 LAMP UV-1/4 BLACK “4”
7
LAMP 2
LAMP UV-2/1
LP-0410/2
BLACK “1”
8 LAMP UV-2/2 BLACK “2”
9 LAMP UV-2/3 BLACK “3”
10 LAMP UV-2/4 BLACK “4”
11
LAMP 3
LAMP UV-3/1
LP-0410/3
BLACK “1”
12 LAMP UV-3/2 BLACK “2”
13 LAMP UV-3/3 BLACK “3”
14 LAMP UV-3/4 BLACK “4”
15
LAMP 4
LAMP UV-4/1
LP-0410/4
BLACK “1”
16 LAMP UV-4/2 BLACK “2”
17 LAMP UV-4/3 BLACK “3”
18 LAMP UV-4/4 BLACK “4”
19
LAMP 5
LAMP UV-5/1
LP-0410/5
BLACK “1”
20 LAMP UV-5/2 BLACK “2”
21 LAMP UV-5/3 BLACK “3”
22 LAMP UV-5/4 BLACK “4”
23 FLOW SWITCH INPUT POTENTIAL-FREE CONTACT
24
25 HEAD DETECTOR SW-1 LP-025-M BLACK “1”
26 SW-2 BLACK “2”
27 ALARM OUTPUT (3) POTENTIAL-FREE CONTACT
28
(1) Not supplied with the unit
(2) Not supplied with the unit Bonding must be made with a solid copper conductor minimum No. 8 AWG (USA) / 6 AWG
(3) Contact closed in case of active alarm.
(1) Minimum recommended wire size
Model 230 V / 1-PHASE Model 230 V / 1-PHASE
LP P95 3 x AWG 16
(3 x 1.50 mm2)
LP P220 3 x AWG 14
(3 x 2.50 mm2)
LP P140 LP P260
LP P180 3 x AWG 14
(3 x 2.50 mm2) LP P300 3 x AWG 12
(3 x 4 mm2)

10
LP P260 Model
T.block Control Panel Input Wire Wire description
PE
POWER 230 VAC / 50-60 Hz. / 1-PHASE (1)
GROUND
1 LINE
2 NEUTRAL
PE UV REACTOR BONDING (2) GROUND
3
LAMP 1
LAMP UV-1/1
LP-0410/1
BLACK “1”
4 LAMP UV-1/2 BLACK “2”
5 LAMP UV-1/3 BLACK “3”
6 LAMP UV-1/4 BLACK “4”
7
LAMP 2
LAMP UV-2/1
LP-0410/2
BLACK “1”
8 LAMP UV-2/2 BLACK “2”
9 LAMP UV-2/3 BLACK “3”
10 LAMP UV-2/4 BLACK “4”
11
LAMP 3
LAMP UV-3/1
LP-0410/3
BLACK “1”
12 LAMP UV-3/2 BLACK “2”
13 LAMP UV-3/3 BLACK “3”
14 LAMP UV-3/4 BLACK “4”
15
LAMP 4
LAMP UV-4/1
LP-0410/4
BLACK “1”
16 LAMP UV-4/2 BLACK “2”
17 LAMP UV-4/3 BLACK “3”
18 LAMP UV-4/4 BLACK “4”
19
LAMP 5
LAMP UV-5/1
LP-0410/5
BLACK “1”
20 LAMP UV-5/2 BLACK “2”
21 LAMP UV-5/3 BLACK “3”
22 LAMP UV-5/4 BLACK “4”
23
LAMP 6
LAMP UV-6/1
LP-0410/6
BLACK “1”
24 LAMP UV-6/2 BLACK “2”
25 LAMP UV-6/3 BLACK “3”
26 LAMP UV-6/4 BLACK “4”
31 FLOW SWITCH INPUT POTENTIAL-FREE CONTACT
32
33 HEAD DETECTOR SW-1 LP-025-M BLACK “1”
34 SW-2 BLACK “2”
35 ALARM OUTPUT (3) POTENTIAL-FREE CONTACT
36
(1) Not supplied with the unit
(2) Not supplied with the unit Bonding must be made with a solid copper conductor minimum No. 8 AWG (USA) / 6 AWG
(3) Contact closed in case of active alarm.
(1) Minimum recommended wire size
Model 230 V / 1-PHASE Model 230 V / 1-PHASE
LP P95 3 x AWG 16
(3 x 1.50 mm2)
LP P220 3 x AWG 14
(3 x 2.50 mm2)
LP P140 LP P260
LP P180 3 x AWG 14
(3 x 2.50 mm2) LP P300 3 x AWG 12
(3 x 4 mm2)

11
LP P300 Model
T.block Control Panel Input Wire Wire description
PE
POWER 230 VAC / 50-60 Hz. / 1-PHASE (1)
GROUND
1 LINE
2 NEUTRAL
PE UV REACTOR BONDING (2) GROUND
3
LAMP 1
LAMP UV-1/1
LP-0410/1
BLACK “1”
4 LAMP UV-1/2 BLACK “2”
5 LAMP UV-1/3 BLACK “3”
6 LAMP UV-1/4 BLACK “4”
7
LAMP 2
LAMP UV-2/1
LP-0410/2
BLACK “1”
8 LAMP UV-2/2 BLACK “2”
9 LAMP UV-2/3 BLACK “3”
10 LAMP UV-2/4 BLACK “4”
11
LAMP 3
LAMP UV-3/1
LP-0410/3
BLACK “1”
12 LAMP UV-3/2 BLACK “2”
13 LAMP UV-3/3 BLACK “3”
14 LAMP UV-3/4 BLACK “4”
15
LAMP 4
LAMP UV-4/1
LP-0410/4
BLACK “1”
16 LAMP UV-4/2 BLACK “2”
17 LAMP UV-4/3 BLACK “3”
18 LAMP UV-4/4 BLACK “4”
19
LAMP 5
LAMP UV-5/1
LP-0410/5
BLACK “1”
20 LAMP UV-5/2 BLACK “2”
21 LAMP UV-5/3 BLACK “3”
22 LAMP UV-5/4 BLACK “4”
23
LAMP 6
LAMP UV-6/1
LP-0410/6
BLACK “1”
24 LAMP UV-6/2 BLACK “2”
25 LAMP UV-6/3 BLACK “3”
26 LAMP UV-6/4 BLACK “4”
27
LAMP 7
LAMP UV-7/1
LP-0410/7
BLACK “1”
28 LAMP UV-7/2 BLACK “2”
29 LAMP UV-7/3 BLACK “3”
30 LAMP UV-7/4 BLACK “4”
31 FLOW SWITCH INPUT POTENTIAL-FREE CONTACT
32
33 HEAD DETECTOR SW-1 LP-025-M BLACK “1”
34 SW-2 BLACK “2”
35 ALARM OUTPUT (3) POTENTIAL-FREE CONTACT
36
(1) Not supplied with the unit
(2) Not supplied with the unit Bonding must be made with a solid copper conductor minimum No. 8 AWG (USA) / 6 AWG
(3) Contact closed in case of active alarm.
(1) Minimum recommended wire size
Model 230 V / 1-PHASE Model 230 V / 1-PHASE
LP P95 3 x AWG 16
(3 x 1.50 mm2)
LP P220 3 x AWG 14
(3 x 2.50 mm2)
LP P140 LP P260
LP P180 3 x AWG 14
(3 x 2.50 mm2) LP P300 3 x AWG 12
(3 x 4 mm2)

12
5.4. UV lamp connection
Connect the UV lamp(s) installed within the UV reactor to the corresponding terminals on the control panel using the Wires supplied with the
unit (LP-0XX/n) (see page 8-11). To do this, remove the cover on the top of the UV reactor, and connect the wires to the corresponding
terminals:
Fig .5
1.- LP-0410 lamp power Wires (black wires labelled “1” to “4”. Wire number must exactly match the number of the terminal block as shown in
the following figure).
2. LP-025-M microswitch Wire (black wires, labelled “1” and “2”. Wire relative position is not relevant).
Warning
This unit is equipped with an automatic mechanism (micro-switch) for shutting off the power of
the UV lamp whenever the cover is removed.
Once the connection is made, close the UV reactor head.
Should also connect the ground wire to the bonding lug marked (*) on the head of the UV chamber suitable for No. 8 AWG (US) and No. 6
AWG (Canada), and secure to the chamber by paint breaking washer and nut.
Fig. 6
Warning
Prior to the installation or replacement of any system component make sure it has been
previously disconnected from the mains, and there is no water flow through it.
Check all the electrical connectors are well tightened to avoid false contacts and their
consequent overheating.

13
5.5. Installation of the external flow detector
1. Vertically install the FS-1 flow detector (flow switch) supplied with the unit using a ¾” male threaded saddle (Fig. 7a).
2. There is an arrow on the head of the flow detector. Make sure that this arrow is parallel to the pipe shaft and pointing in the
direction that the water flows (Fig. 7b).
3. Do not install the flow detector near magnetic objects. They could affect the operation of the magnetic device it contains and
reduce its reliability.
Fig. 7a Fig. 7b
Connect the FS-1 flow-switch to the corresponding terminals at the terminal block inside the control box. (see page 8-11).
5.6. Controls and indicators
The HELIOX UV LP treatment systems are equipped with a touchscreen located on the front of the control panel, which includes an
advanced software that allows full control both on the treatment process and on the power of the UV lamp. Also on the front panel it is the
main switch of the system.
5.7. Start-up
1. Make sure the filter is clean to 100%, and that the pool and the installation does not contain copper, iron and algae.
2. The analytical condition of the water is very important to ensure that the HELIOX UV LP system works with the highest levels of
effectiveness. Before starting the system check that the following parameters are within the recommended levels:
 Iron: less than 0.3 mg./l.
 Hardness: less than 120 mg./l.
 Turbidity: less than 1 NTU.
 Manganese: less than 0.05 mg./l.
 TSS: less than 10 mg./l.
 UV Transmittance: higher than 75%.
If the levels of any of these parameters exceed the recommended values is recommended to do a proper pre-treatment to correct them.
3. Balance the pool water. This allows us to obtain a more efficient treatment with a lower concentration of free chlorine in the water, and a
longer operating of the lamp in addition to a lower calcium scaling on the quartz sleeve.

14
a) pH must be in the range 7.2-7.6
b) Alkalinity must be in the range 60-120 ppm.
4. Check that all hydraulic connections are properly assembled and that there are no leaks in any of them.
5. Let recirculate the water at least for a few minutes to evacuate air and any dirt that might be inside the UV reactor.
6. Connect the system using the main switch [2] on the front side of the control panel (Fig. 1).
Warning
Never connect the system when the lamp is out of the reactor.
For units with POLYETHYLENE reactor:
63135 Heliox UV LP P95
63136 Heliox UV LP P140
64347 Heliox UV LP P180
64348 Heliox UV LP P220
64349 Heliox UV LP P260
63137 Heliox UV LP P300
Do not operate the system at flow lower than 20 m3/h (88 gpm).

15
6. OPERATION:___________________________________________________________________________________________________
6.1. System main screen
Once the firmware is loaded, the main control screen of the system appears. This screen is divided into different areas of information.
6.2. System initialization
RUN
This icon will remain rotating whenever the UV system is in operation.
LAMP HOUR COUNTER
This indicator shows the hours of operation of the lamps.
LAMP STATUS
This icon shows the current status of the ballast and the corresponding lamp. I con without blinking indicates that ballast and
lamp are in operation.
6.3. Alarm management
This icon will blink whenever there is an active alarm in the system.
The ALARM contact (terminals [31] - [32]) will remain closed.
ATTENTION: the FLOW and PROTECTOR alarms DO NOT activate the
ALARM contact.

16
FLOW
Whenever the installed sensor detects an insufficient or null water flow inside
the UV reactor, the system disconnects the UV lamps and the “Flow” indication
of the screen will flash.
WARNING:
Once restored the water flow, the system automatically resets and becomes
operative again.
UV REACTOR COVER OPEN
The unit is equipped with an automatic mechanism for shutting off the power of
the UV lamps whenever the reactor cover is removed. These two icons will
blink whenever the UV reactor cover is not properly mounted.

17
7. MAINTENANCE:_________________________________________________________________________________________________
Prior to the installation or replacement of any system component make sure it has been
previously disconnected from the mains, and there is no water flow through it. Use only spare
parts supplied by AstralPool.
Do not handle the UV lamp until completely cold.
7.1. Replacement of the UV lamp
FREQUENCY:
 UV lamp must be replaced each time the number of hours of operation established by the manufacturer is reached.
 When COMBINED CHLORINE levels in the pool are abnormally high.
1.- Remove the front panel by releasing the two screws (1) that fix it to the body of the UV reactor.
2.- Release the locking nut of the corresponding Wire gland (2).
3.- Release the locking nut of the lamp (3, 4).
4.- Remove the lamp (5) by holding it from the power connector until the ceramic end is visible.
Remember
A
lwa
y
s handle the UV lamp with
g
loves, as fat and other impurities deposited on the surface
may reduce its performance and durability. In case you have to clean the lamp surface use a
soft cloth soaked with alcohol.
5.- Holding the lamp with a hand from its ceramic end, carefully remove the power connector.
6.- Pull out the lamp from the quartz sleeve trying to maintain their verticality so that it does not suffer any torsion.
Fig. 8

18
7.- Insert the new lamp, always holding it from the ceramic ends, and maintaining its verticality, to about 3/4 of its total length.
8.- Holding the lamp with a hand from its ceramic end, carefully connect again the power connector.
9.- Completely enter the lamp into the quartz sleeve.
10.- Tighten the locking nut of the lamp.
11.- Reassemble the cover in its original position so that it is properly fixed with its screws.
Remember
Whenever the lamp is replaced you must reset the hour counter of the system.
To do this, press the 'RESET LAMPS' icon on the main screen. The following screen will appear:
Press for at least 3 seconds the icon corresponding to the lamp whose counter is to be reset, until both counters,
Hours and Ignitions, go to zero.
Press the ‘Home’ button to return to the main screen.
7.2. Cleaning of the quartz sleeve
FREQUENCY:
 You should check at least ONCE A YEAR, the quartz sleeve does not contain any kind of deposit on its surface (lime, iron,
manganese, organic matter, etc.).
 In any case, clean the quartz sleeve EACH TIME YOU REPLACE THE LAMP.
To do this, disconnect the system and remove the lamp as described in Section 7.1.
REMOVAL OF THE QUARTZ SLEEVE
1.- Follow the procedure described in paragraph 6.1 to remove the lamp from the quartz sleeve.
2.- During the cleaning process of the sleeve make sure that the lamp has been placed in a safe place to avoid that its surface becomes dirty
or damaged.
Remember
Always handle the UV lamp with gloves, as fat and other impurities deposited on the surface
may reduce its performance and durability. In case you have to clean the lamp surface use a
soft cloth soaked with alcohol.
