Regency Fireplace Products NARRABRI F100B Quick start guide

Model: F100B
Owners &
Installation
PLEASE KEEP THESE INSTRUCTIONS FOR
FUTURE REFERENCE
Manual
January-06-2014
919-204a
WARNING:
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Refer to this manual. For assistance or
additional information consult an authorised installer, service agency or
the distributor.
FOR YOUR SAFETY
Do not store or use petrol or other flammable vapours and liquids in the
vicinity of this or any other appliance.
Installation and service must be performed by an authorised installer,
service agency or the gas supplier.
NARRABRI™FREESTANDING WOOD
FIRE

Regency Narrabri™ Freestanding Wood Fire
2
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Shouldyouhaveanyquestionsaboutyourproductthatarenotcoveredinthismanual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this wood fire is not properly installed, a house fire may result. For your safety,
followtheinstallationinstructions,contactlocalbuilding,fireofficials,orauthorityhavingjurisdiction
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.

Regency Narrabri™ Freestanding Wood Fire 3
TABLE OF CONTENTS
MAINTENANCE
Maintenance..........................................................................9
Creosote................................................................................9
- Ways to Prevent & Keep Units Free of Creosote.........9
Glass Maintenance................................................................9
Door Latch Adjustment..........................................................9
Wood Storage........................................................................9
PARTS LIST
Stove Assembly...................................................................10
WARRANTY
Warranty..............................................................................11
Data Badge............................................................................4
Unit Dimensions ....................................................................5
Heat Shield Position..............................................................5
INSTALLATION
Residential Installation...........................................................6
Safety Guidelines and Warnings...........................................6
Brick Installation ....................................................................6
Clearance to Combustibles ...................................................7
Floor Protection.....................................................................7
OPERATING INSTRUCTIONS
Operating Instructions ...........................................................8
Air Slide Control.....................................................................8
First Fire ................................................................................8

Regency Narrabri™ Freestanding Wood Fire
4

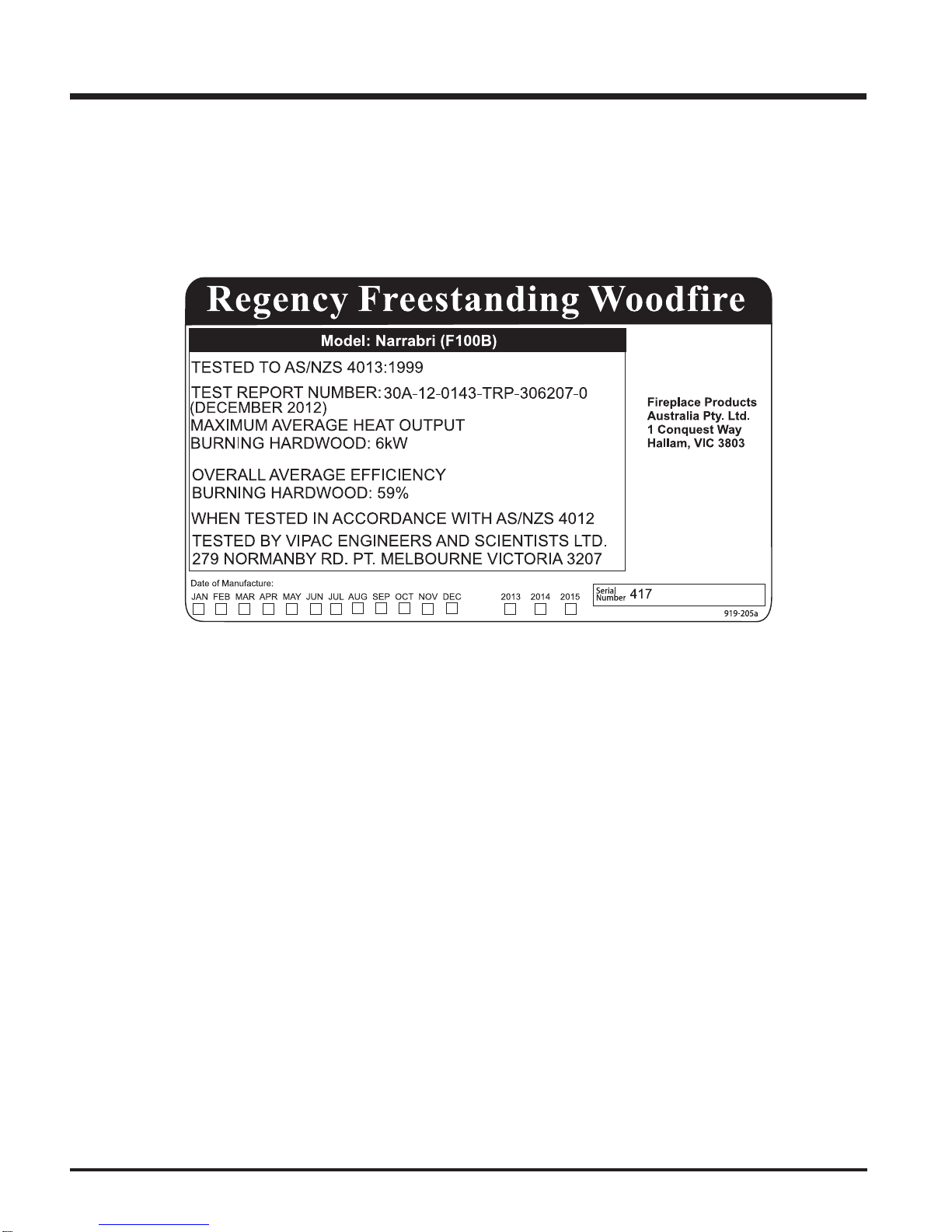

This is a copy of the label that accompanies
each F100B Freestanding Wood Fire. We
have printed a copy of the contents here for
your review.
SAFETY LABEL
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.

Regency Narrabri™ Freestanding Wood Fire 5
BOTTOM SHIELD AND LEG
INSTALLATION
UNIT DIMENSIONS
679
193
490
340
250
353
458
505
153
145
40
5
4
3
2
1
1. Carefully roll unit on it's back
2. Bolt each leg from the inside onto the firebox with heat shield
in place.
3. Position heat shield on the inside of each leg. Ensure a 5 mm
gap remains (width of top of each leg).
Heat shield must be properly fitted.
1 Bottom shield
2 Legs x 4
3 M6 washer x 8
4 Spring washer x 8
5 Screws x 16

Regency Narrabri™ Freestanding Wood Fire
6
INSTALLATION
1) Please read this entire manual before you
install and use your new wood fire. Failure
to follow instructions may result in property
damage, bodily injury or even death. Be
awarethatlocalCodesandRegulationsmay
override some items in this manual. Check
with your local inspector.
2) THE APPLIANCE AND FLUE-SYSTEM
SHALLBEINSTALLEDINACCORDANCE
WITH AS/NZS 2918:2001 AND THE AP-
PROPRIATE REQUIREMENTS OF THE
RELEVANTBUILDINGCODEORCODES.
APPLIANCES INSTALLED IN ACCORD-
ANCE WITH THIS STANDARD SHALL
COMPLYWITHTHEREQUIREMENTSOF
AS/NZS4013WHEREREQUIREDBYTHE
REGULATORY AUTHORITY.
ANYMODIFICATIONOFTHEAPPLIANCE
THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY
IS CONSIDERED TO BE IN BREACH OF
THEAPPROVALGRANTEDFORCOMPLI-
ANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR
FLUE-SYSTEM COMPONENTS FROM
DIFFERENT SOURCES OR MODIFYING
THE DIMENSIONAL SPECIFICATION OF
COMPONENTS MAY RESULT IN HAZ-
ARDOUS CONDITIONS. WHERE SUCH
ACTION IS CONSIDERED, THE MANU-
FACTURER SHOULD BE CONSULTED
IN THE FIRST INSTANCE.
3) Select a position for your Regency Stove.
Consult the minimum clearance chart for
your model and set the stove in place. For
closeclearanceinstallationuselisteddouble
wall connector systems.
4) Toinsureverticalalignment,suspendaplumb
bob from the ceiling over the exact center
of your stove flue and mark a spot on the
ceilingtoindicate thecenterof thechimney.
5) Checkthattheareaabovetheceilingisclear
for cutting. Re-confirm the clearance from
thestovetocombustiblestoinsurethatthey
are within the prescribed limits.
6) Markthelocationofthepedestalbaseonthe
floor, then move the stove aside and mark
the position of the floor protector.
7) Installchimneyaccordingtochimneymanu-
facturers instructions. The performance of
your wood fire is governed to a very large
part by the chimney system. Too short a
chimney can cause difficult start-up, dirty
glass,backsmokingwhendoorisopen,and
RESIDENTIAL
INSTALLATION
SAFETY GUIDELINES
AND WARNINGS
1) Never use petrol, petrol type lantern fuels,
kerosene, charcoal lighter fuel, or similar
liquids to start or ‘freshen up’ a fire in your
heater.Keepallsuchliquidswellawayfrom
the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Donotburnanyquantitiesofpaper,garbage,
and never burn flammable fluids such as
petrol, naptha or engine oil in your stove.
4) Ifyouhavesmokedetectors,preventsmoke
spillage as this may set off a false alarm.
5) Do not overfire heater. If the chimney con-
nector, flue baffle or the stove top begin to
glow,youareoverfiring.Stopaddingfueland
closethedraftcontrol. Overfiringcancause
extensive damage to your stove including
warpage and premature steel corrosion.
Overfiring will void your warranty.
6) Do not permit creosote or soot build-up
in the chimney system. Check and clean
chimney at regular intervals. Failure to do
so can result in a serious chimney fire.
7) Your Regency stove can be very hot. You
may be seriously burned if you touch the
stove while it is operating, keep children,
clothing and furniture away. Warn children
of the burn hazard. For safety reasons a
guard around the fire is recommended.
8) The stove consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the stove is in
use.
9) Do not connect this unit to a chimney flue
serving another appliance.
10) Do not use grates or andirons or other
methods for supporting fuel. Burn directly
on the base or bricks where supplied.
11) Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the fire.
12) Do not connect your unit to any air distribu-
tion duct.
13) Your wood fire should burn dry, standard
firewood only. The use of cut timber, ply-
wood,“mill ends”,etc. isnotallowed asthis
fuel can easily overheat your wood fire.
Evidenceofexcessiveoverheatingwillvoid
your warranty. As well, a large portion of
sawmill waste is chemically treated timber,
which is illegal to burn in many areas. Salt
drift wood and chemically treated fire logs
also must not be burned in your wood fire.
14) No combustible material should be closer
than the clearances as specified on page
7.
15) DO NOT OPERATE WITH BROKEN
GLASS.
evenreducedheatoutput.Tootallachimney
maypromptexcessivedraftwhichcanresult
in very short burn times and excessive heat
output.
8) The floor protector must be of non-com-
bustible material. Refer to page 7 for floor
protector clearances.
9) Whenthe floor protection is complete,posi-
tion the stove with the flue collar centered
under the installed chimney.
10) Inseismicallyactiveareas,Regencyrecom-
mends that your unit is secured to the floor
by using the bolt down holes inside the
pedestal.
11) Do not connect this unit to a chimney
serving another appliance.
BRICK INSTALLATION
Firebrick comes installed in each stove and is
made to extend the life of your stove and to
radiate heat more evenly.
Important: Remove the packing material from
above and below the top bricks. Check to see
thatallfirebricksareintheircorrectpositionsand
have not become misaligned during shipping.

Regency Narrabri™ Freestanding Wood Fire 7
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS
INSTALLATION
Floor Protection
Acombustible floor must be protected by non-combustible material (like
tile, concrete board, or as defined by local codes) extending beneath
the heater as follows;
From Sides: 200mm
From Front: 300mm (In front of door opening)
From Back: 200mm
The floor protector should consist of 12mm thick cement fibre sheet
which has a thermal conductivity of .23W/m.K
The flue pipe shall extend not less than 4.6m above the top of the floor protector.
NOTE: Installation must be carried out by a licensed installer in accordance
with AS/NZS 2918:2001.
IMPORTANT
* (1) The Hawkwind Standard flue kit:
Triple skin standard kit when fitted with 1 length 900mm x 180
degree solid backed decromesh.
Hawkwind
Standard *(1)
A 480mm
B 200mm
C 300mm
D 200mm
E 200mm
F 300mm
G 850mm
H 950mm

Regency Narrabri™ Freestanding Wood Fire
8
OPERATING INSTRUCTIONS
4) After about 45 minutes, when your wood
hasbeguntoburnstrongly,adjustyourdraft
controldownto keepthefireat amoderate
level.
WARNING: Never build a roaring fire in
a cold stove. Always warm your stove
up slowly!
5) Once a bed of coals has been established
on the base of the firebox, you may adjust
the draft control to a low setting to operate
the unit at its most efficient mode.
6) Duringthefirstfewfires,keepthecombus-
tion rate at a moderate level and avoid a
large fire. Only after 5 or 6 such fires can
you operate the stove at its maximum
setting, and only after the metal has been
warmed.
7) For the first few days, the stove will give
off an odour from the paint. This is to be
expected as the high temperature paint
becomesseasoned.Windowsand/ordoors
should be left open to provide adequate
ventilation while this temporary condition
exists. Burning the stove at a very high
temperaturethefirstfewtimesmaydamage
thepaint.Burnfiresatamoderatelevelthe
first few days.
8) Do not place anything on the stove top
during the curing process. This may result
in damage to your paint finish.
Pull - Open
WARNING: To build a fire in ignorance
or to disregard the information con-
tainedinthissectioncancauseserious
permanentdamagetotheunitandvoid
your warranty!!
AIR SLIDE CONTROL
Boththeprimaryandairwashdraftsarecontrol-
led by the control rod located on the right side
of the unit (when facing the unit). To increase
your draft - pull open, and to decrease - push
closed. Allunitshaveasecondarydraftsystem
that continually allows combustion air to the
induction ports at the top of the firebox, just
below the flue baffle.
OPERATING
INSTRUCTIONS
Withyourunitnow correctlyinstalledandsafety
inspected by your local authority, you are now
ready to start a fire. Before establishing your
first fire, it is important that you fully understand
the operation of your draft control.
CAUTION: THIS APPLIANCE MUST BE
MAINTAINEDANDOPERATEDATALLTIMES
IN ACCORDANCE WITH THESE INSTRUC-
TIONS.
CAUTION: THE USE OF SOME TYPES OF
PRESERVATIVE-TREATEDWOODASAFUEL
CAN BE HAZARDOUS.
WARNING:ANY MODIFICATIONOFTHEAP-
PLIANCETHATHASNOTBEENAPPROVED
IN WRITING BY THE TESTING AUTHORITY
IS CONSIDERED AS BREACHING AS/NZS
4013.
WARNING: DO NOT USE FLAMMABLE
LIQUIDS OR AEROSOLS TO START OR
REKINDLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQ-
UIDS OR AEROSOLS IN THE VICINITY OF
THIS APPLIANCE WHEN IT IS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN
HEATER INSTALLATION CLEARANCES.
WARNING: OPEN AIR CONTROL (AND
DAMPERWHENFITTED)BEFOREOPENING
FIRING DOOR.
Forsafetyreasonsandinordertoavoid
overfiring of yourunitdo not burnyour
fire with the door open or ajar.
FIRST FIRE
When your installation is completed and in-
spected you are ready for your first fire.
1) Open control fully.
2) Open firebox door and build a small fire
using paper and dry kindling on the firebox
base. Securedooronthefireboxandwaita
fewminutes for agood updraftin the flueto
establishthefire. (Leavingthedoor slightly
open will help your fire start more rapidly.)
CAUTION: Never leave unit unattended
ifdoorisleftopen. Thisprocedure is for
fire start-up only, as unit may overheat
if door is left open for too long.
3) With the draft still in the fully open position
addtwoorthreeseasonedlogstoyour fire.
Form a trench in the ash bed to allow air to
reach the rear of the firebox prior to closing
the door.
Push - Closed

Regency Narrabri™ Freestanding Wood Fire 9
9) During the first few days it may be more
difficult to start the fire.As you dry out your
firebrick and your masonry flue, your draft
will increase.
10) Forthoseunitsinstalledathigherelevations
or into sub-standard masonry fireplaces,
drafting problems may occur. Consult an
experienced dealer or mason on methods
of increasing your draft.
11) Somecrackingandpoppingnoisesmaybe
experiencedduringtheheatingupprocess.
Thesenoiseswillbeminimalwhenyourunit
reaches temperature.
12) Before opening your door to reload, open
draftfullyforapproximately10to15seconds
until fire has been re-established. This will
minimize any smoking.
13) Allfuelburningappliancesconsumeoxygen
during operation. It is important that you
supply a source of fresh air to your unit
while burning.Aslightly opened window is
sufficient for the purpose. If you also have
a fireplace in your home, a downdraft may
becreatedbyyourRegencyStovecausing
a draft down your chimney. If this occurs,
slightly open a window near your unit.
CAUTION: Ifthebodyofyourunit,fluebaffle
or any part of the chimney connector starts
toglow,youareoverfiring. Stoploadingfuel
immediatelyandclosethedraftcontroluntil
the glow has completely subsided.
14) Greenorwetwoodisnotrecommendedfor
yourunit. Ifyoumustaddwetorgreenfuel,
openthedraftcontrolfullyuntilallmoisture
has been dispersed by the intense fire.
Once all moisture has been removed, the
draft control may be adjusted to maintain
the fire.
15) If you have been burning your stove on a
low draft, use caution when opening the
door. After opening the damper, open the
door a crack, and allow the fire to adjust
before fully opening the door.
16) The controls of your unit or the air supply
passagesshouldnotbealteredtoincrease
firing for any reason.
17) If you burn the unit too slowly or at too low
a setting your unit will not be operating as
efficiently as it can. An easy rule of thumb
says that if your glass is clean, then your
flue is clean and your exhaust is clean.
Burn the stove hot enough to keep your
glass clean and you won't need to clean
your flue as often.
MAINTENANCE
CREOSOTE
When wood is burned slowly, it produces
tar and other organic vapours, which when
combined with moisture, form creosote. The
creosote vapours condense in the relatively
cool chimney flue of a slow burning fire. As a
result,creosoteresidueaccumulatesontheflue
lining. When ignited, this creosote can result
in an extremely hot fire.
WARNING: Thingstorememberincase
of a chimney fire:
1. Close all draft and damper controls.
2. CALL THE FIRE DEPARTMENT.
Ways to Prevent and Keep Unit
Free of Creosote
1) Burnstove with thedraft control wide open
for about 10-15 minutes every morning
during burning season.
2) Burn stove with draft control wide open for
about10-15minutes everytimeyouapply
freshwood.Thisallowsthewoodtoachieve
thecharcoal stagefasterand burnsup any
unburned gas vapours which might other-
wise be deposited within the system.
3) Onlyburnseasonedwood! Avoidburning
wet or green wood. Seasoned wood has
been dried at least one year.
4) A small hot fire is preferable to a large
smoulderingonethatcan depositcreosote
within the system.
WOOD STORAGE
Store wood under cover, such as in a shed, or
covered with a tarp, plastic, tar paper, sheets
of scrap plywood, etc., as uncovered wood can
absorb water from rain or snow, delaying the
seasoning process.
MAINTENANCE
It is very important to carefully maintain your
fireplace stove, including burning seasoned
wood and maintaining a clean stove and chim-
ney system. Have the chimney cleaned before
the burning season and as necessary during
the season, as creosote deposits may build up
rapidly. Moving parts of your stove require no
lubrication.
5) Thechimneyandchimneyconnectorshould
beinspectedatleastonceeverytwomonths
duringthe heatingseason to determine is a
creosote buildup has occured.
6) Have chimney system and unit cleaned
by competent chimney sweeps twice a
year during the first year of use and at
least once a year thereafter or when a
significant layer of creosote has accu-
mulated(3mm/1/8"or more)itshouldbe
removed to reduce the risk of a chimney
fire.
GLASS MAINTENANCE
Your Regency stove is supplied with 5 mm
Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. In
the event that you break your glass by impact,
purchaseyour replacementfrom anauthorized
Regencydealeronly,andfollowourstep-by-step
instructions for replacement.
Allow the stove to cool down before cleaning
the glass, do not clean the glass when it is hot.
Do not use abrasive cleaners.

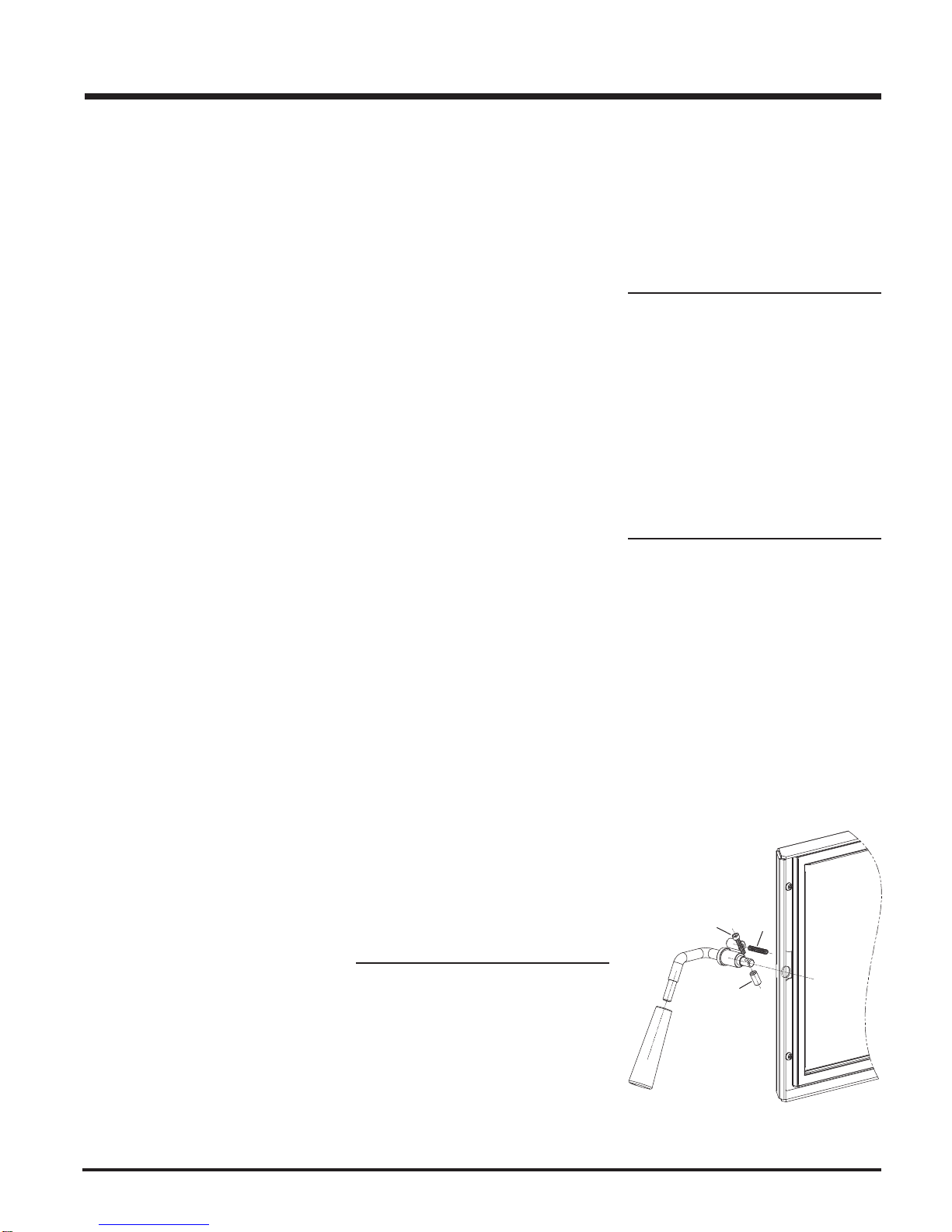

Rear View of Door shown
Allen Screw
Latching
Sleeve
Set
Screw
DOOR LATCH
ADJUSTMENT
The door latch may require adjustment as the
door gasket material compresses over time.
Follow the steps below to allow the latch to
be moved closer to the door frame, causing a
tighter seal;
1) Unscrew latching sleeve.
2) Remove allen screw.
3) Spindoorhandleclockwisetodesireddepth.
4) Re-install allen screw and latching sleeve.
5) Adjust set screw to proper depth to ensure
thatthehandledoesnotrotate 360 degrees.

Regency Narrabri™ Freestanding Wood Fire
10

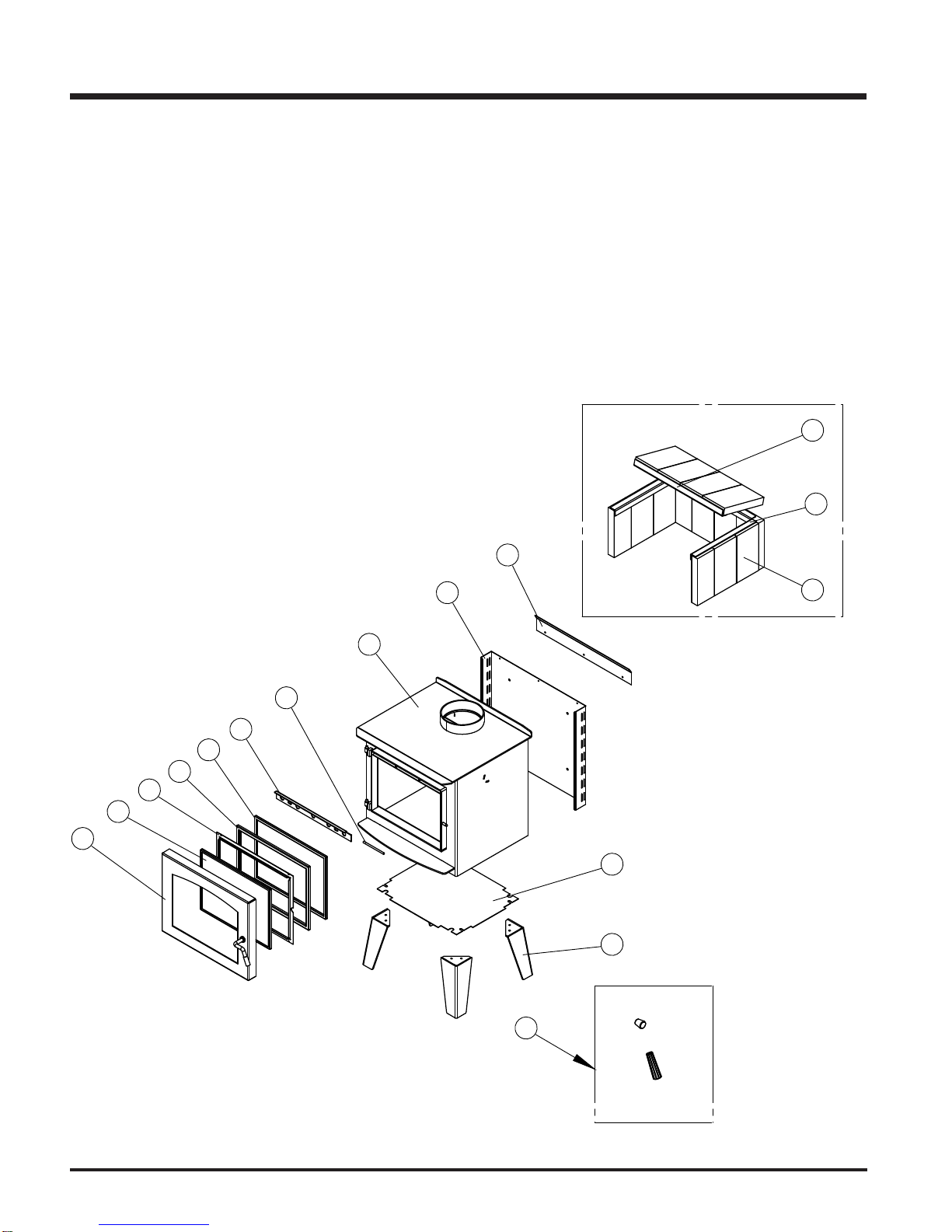

STOVE ASSEMBLY
PARTS LIST
# Part # Description # Part # Description
1 1481000 Firebox assembly 10 1482100 Door Frame (without handle)
2 1480103 Rear Shield 11 1480102 Bottom Shield
3 1480101 Air deflector 12 1484000 Leg
4 1141602 Air slide shaft 13 1481007 Top Brick Supporter
5 1485000 Air slide 14 1483000 Firebrick retaining bracket
6 3720103 Door rope seal 15 1486000 Firebrick Set
7 1482202 Gasket retaining bracket 16 7530106 Bakelite Handle Set
8 1482201 Glass retaining bracket 919-204 Manual
9 1482001 Ceramic glass
15
13
14
10
9
8
6
5
1
2
3
11
12
7
4
16

Regency Narrabri™ Freestanding Wood Fire 11
WARRANTY
Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal QualityAssurance Team
carefully inspects each unit thoroughly before it leaves our door. Fireplace Products Australia Pty. Ltd. is pleased to extend this
warranty to the original purchaser of a Regency Product. This warranty is not transferable.
The Warranty:
Covered under the agreement against manufacturer's defects from the date of purchase are the following components:
The Firebox for 15 years; (Parts & labour for the first 5 Years and parts only thereafter)
Steel Baffles for 12 months;
Cast Iron Liners / Baffles for 2 years;
Electrical components (ie. fans, switches) for 12 months. (Parts & labour from the invoiced purchase date)
Regency Fireplace Products is not liable for freight or labour on any wood burning appliance replaced in field.
Repair/replacement parts purchased by the consumer from Regency Fireplace Products after the original coverage has expired on the unit will
carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labour cover-
age is included with these parts.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at Regency Fireplace Product's option,
through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested. In
areas where there is not an approved service agent or the closest approved service agent is situated more than thirty (30) kilometres from the installation,
Regency is not obliged to arrange warranty repairs and travel and/or additional labour charges will apply.
It is the general practice of Regency Fireplace Products to charge for larger, higher priced replacement parts and issue credit once the replaced component
has been returned to Regency Fireplace Products and evaluated for manufacturer defect.
The authorised selling dealer is responsible for all in-field service work carried out on your Regency product. Regency Fireplace Products will not be liable
for results or costs of workmanship from unauthorised service persons or dealers.
At all times Regency Fireplace Products reserves the right to inspect product in the field which is claimed to be defective.
All claims must be submitted to Regency Fireplace Products by authorized selling dealers. It is essential that all submitted claims provide all of the neces-
sary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty
will be invalid.
Exclusions:
This warranty does not extend to or include paint, door or glass gasketing, neo-ceramic glass, firebrick or trim. It does not cover installation and operational
related problems such as over-firing, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops,
mountains,inadequateflueingorventilation,excessiveoffsets,negativeairpressurescausedbymechanicalsystemssuchasfurnaces,fans,clothesdryersetc.
At no time will Regency Fireplace Products be liable for any consequential damages which exceed the purchase price of the unit. Regency
Fireplace Products has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, field modifications or upgrades will not be
performed.
Regency Fireplace Products will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
Regency Fireplace Products will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorisation from Regency
Fireplace Products may nullify your warranty on this product.

© Copyright 2014, FPI Fireplace Products International Ltd. All rights reserved.
Installer: Please complete the following information
Dealer Name & Address:______________________________________________
___________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.:__________________________________________________________
Register your Regency®warranty online
www.regency-fire.com.au
Reasons to register your product online today!
• View and modify a list of all your registered products.
• Request automatic email notification of new product updates.
• Stay informed about the current promotions, events, and special
offers on related products.
• Help assure you get the most out of your warranty.
• Eliminate confusion and frustration if warranty** service is required in
the future.
** Proof of purchase required at time of warranty request.
