Astrohog IP0032 User manual

Contents
1
1
1
2
3
3
3
IP Phone Manual IP Phone Manual
Page
8
8
9
10
12
19
24
30
30
32
1. Introduction
1.1 Hardware Overview
1.2 Software Overview
2. Keypad interface for IP Phone demo system
2.1 Keypad description
2.2 IP or PSTN
2.3 Keypad Function and setting List
3. Setup the VoIP Phone by Web Browser
3.1 Login
3.2 System Information for the VOIP PHONE
3.3 Phone Book
3.4 Phone Setting
3.5 Network
3.6 SIP Settings
3.7 NAT Trans
3.8 Others
3.9 System Auth
3.10 Save Change
3.11 Update
3.12 Reboot
1. LCD
2. OK
3. PHBOOK
4. MENU/ESC
5. VOL +
6. VOL -
7. NUMBER KEY
8. REDIAL
9. H.F
10. H.F MIC
11. CALL IN
12. CALL OUT
6
DESCRIPTION
1
2
3
45
7
8
9
10
11 12
13 14
15 16
17
18
19
13. CONF
14. FLASH
15. HOLD
16. POWER
17. UP/DEL
18. DOWN
19. HANDSET
20. PSTN
21. WAN
22. LAN
23. DC7.5V
This user's manual is for VoIP Phone with FXO interface. This user's manual will explain
the keypad instruction, web configuration and command line configuration for the VoIP
Phone. Before using the VoIP Phone, some setup processes are required to make the
VoIP Phone work properly. Please refer to the Setup Menu for further information.
1.1 Hardware Overview
1. Introduction
The VoIP Phone has the following interfaces for Networking, telephone interface, and
power connector.
32
33
34
20 21 22 23
4

32
IP Phone Manual IP Phone Manual
Two RJ-45 Networking interface, these two interfaces support 10/100Mps Fast Ethernet.
you can connect one RJ-45 Fast Ethernet port to the ADSL or Switch, and connect the
other one to your computer.
1.2 Software Overview
Network Protocol
SIP v1 (RFC2543), v2(RFC3261)
IP/TCP/UDP/RTP/RTCP
IP/ICMP/ARP/RARP/SNTP
TFTP Client/DHCP Client/ PPPoE Client
Telnet/HTTP Server
DNS Client
Tone
Ring Tone
Ring Back Tone
Dial Tone
Busy Tone
User Programming Tone
Phone Function
Volume Adjustment
Speed dial, Phone book
Flash
Speaker Phone
Codec
G.711: 64k bit/s (PCM)
G.723.1: 6.3k / 5.3k bit/s
G.726: 16k / 24k / 32k / 40k bit/s
(ADPCM)
G.729A: 8k bit/s (CS-ACELP)
G.729B: adds VAD & CNG to G.729
IP Assignment
Static IP
DHCP
PPPoE
Voice Quality
VAD: Voice activity detection
CNG: Comfortable noise generator
LEC: Line echo canceller
Packet Loss Compensation
Adaptive Jitter Buffer
Security
HTTP 1.1 basic/digest
authentication for Web setup
MD5 for SIP authentication
(RFC2069/ RFC 2617)
Firmware Upgrade
TFTP
Console
HTTP
FTP
QoS
ToS field
Call Function
Call Hold
Call Waiting
Call Forward
Caller ID
3-way conference
NAT Traversal
STUN
Configuration
Web Browser
Console/Telnet
Keypad
DTMF Function
In-Band DTMF
Out-of Band DTMF
SIP Info
SIP Server
Registrar Server
(three SIP account)
Outbound Proxy
2. Keypad interface for IP Phone demo system
2.1 Keypad description
3, d, e, f, D, E, F
3
4, g, h, I, G, H, I
4
5, j, k, l, J, K, L
5
6, m, n, o, M, N, O
6
7, p, q, r, s, P, Q, R, S
7
8, t, u, v, T, U, V8
9, w, x, y, z, W, X, Y, Z9
0, space0
*, o, :, @
*
Start dialing process
#
Key Name Description Note
1, -, ?, !, ?
1
2, a, b, c, A, B, C
2
This is "Transfer" to the other phone number
Flash
REDIAL This is "REDIAL" the same number again
This is "HOLD" function
HOLD
This is "OK", accept settingOK
This is Up and Down key
UP/DOWN
This is the "Menu" key to set the IP Phone
MENU
This the Speaker Phone
This is three way conference function
This is Incoming call list
H-F
Conf
Call In
This is Phone Book list
This is out going call list
This is volume setting
Call Out
Volume -/+
Phone Book
2.2 IP or PSTN
If you want to use PSIN to dial the number, please firstly press 0,LCD will display
PSTN Dialing.

54
IP Phone Manual IP Phone Manual
SNTP: Enabled / Disable SNTP.
Primary SNTP: Set Primary SNTP server IP address.
Secondary SNTP: Set Secondary SNTP server IP address.
Time zone: Set Time zone.
Adjustment Time: Set adjustment time period.

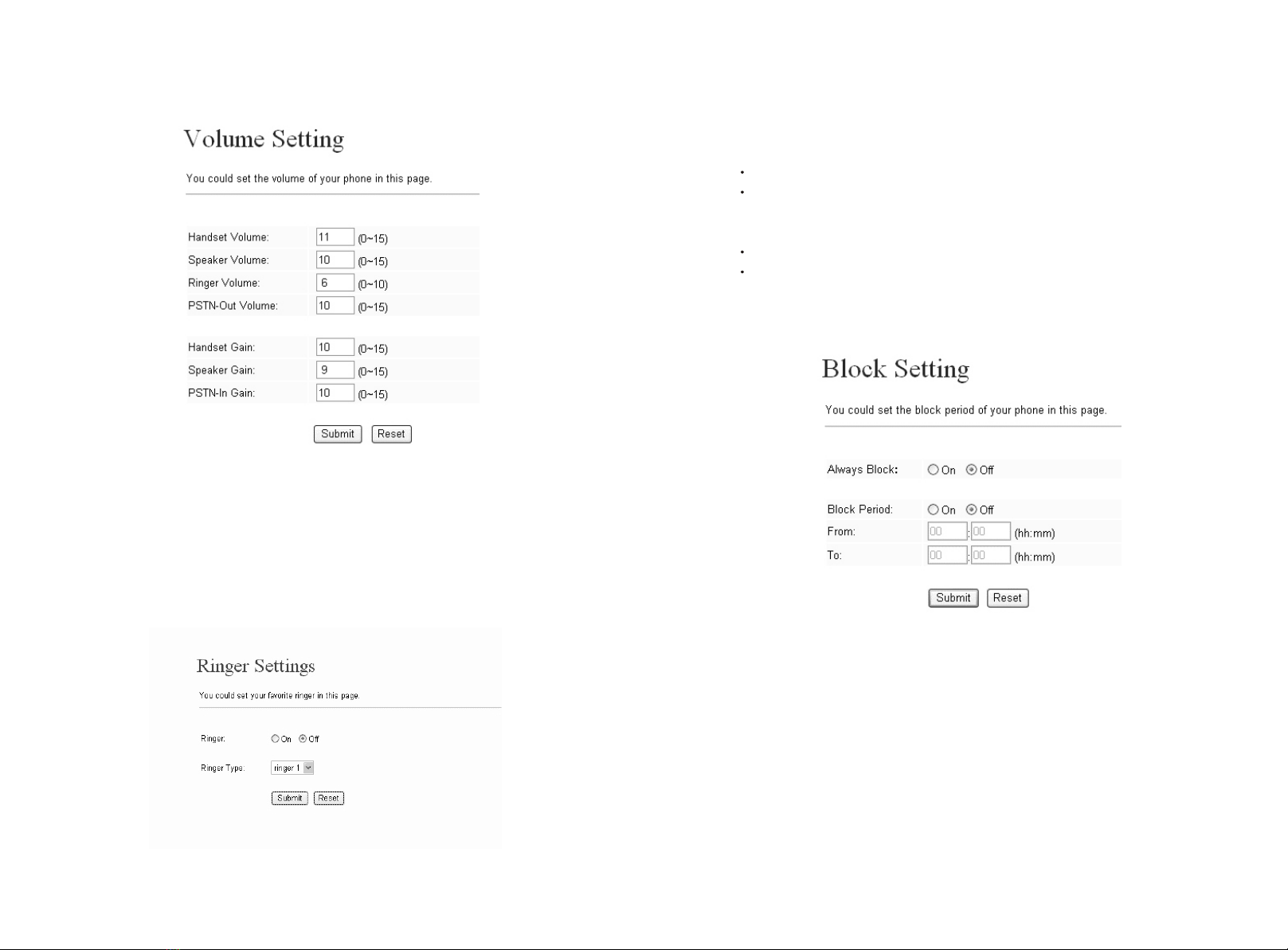

4 Volume and Gain
Handset volume: Set Handset volume from 0~12 (max.) for
you to hear.
Speaker volume: Set Spearer phone volume from 0~12
(max.) for you to hear.
Handset Gain: Set Handset Gain from 0~12 (max.) for the
other site to haer.
Speaker Gain: Set Spearer phone Gain from 0~12 (max.) for
the other site to haer.
5 Ringer
Ringer volume: Ringer volume setting from 0~15 (max.).
Ringer type: Ringer tone selection from 1~4.
6 Auto Dial: Set Auto Dial time from 3~9 seconds.
7 Auto Answer: This function will active on IP Phone with FXO
interface. Set Auto Answr for user can re-dial a call from IP call to
PSTN call or from PSTN call to IP call.
8 Answer Counter: This function will active on IP Phone with FXO
interface. Set Auto Answer will active after the numbers of ring.
2.3 Keypad Function and setting List
Call history
Phone setting
Network
Phone Book
1 Search: Search Phone Book.
2 Add entry: Add new phone number to phone book.
3 Speed dial: Add speed dial phone number to speed dial list.
4 Erase all: Erase all phone number from Phone Book.
1 Incoming calls: Show all incoming call.
2 Dialed numbers: Show all dialed call.
3 Erase record: Delete call history.
All: Delete all call history.
Incoming: Delete all incoming call.
Dialed: Delete all dialed out call.
1 Call forward
All Forward.
Activation: To Enabled/Disabled this function.
Number: Forward to a Speed Dial Number.
Busy Forward.
Activation: To Enabled/Disabled this function.
Number: Forward to a Speed Dial Number.
No Answer Forward.
Activation: To Enabled/Disabled this function.
Number: Forward to a Speed Dial Number.
Ring Timeout: Set the Ring times to start the no answer
forward function, ex: 2 means after 2 rings then forward to
the dedicated number.
2 Block Setting
All: Reject all the coming calls
By Time: Reject all the coming calls for a period
Duration: Set the start time and end time to Block Setting.
3 Date/Time setting: Date and Time Setting.
Date & Time: Set the IP Phone Date and Time.
SNTP setting
1 WAN Setup
IP Type
Fixed IP client: set netmork address by hand
DHCP client: set network address using DHCP method
PPPoE client: set network
Fixed IP setting
IP Address: the network address setup of this phone
Subnet mask: subnet mask setting
Default Gateway: gateway IP address setting
MAC address: MAC address setting
address using PPPoE

7
6
IP Phone Manual IP Phone Manual
SIP Settings
1 Service domain
First realm
Activation: first sip server enabled/disabled
User name: SIP user name setting
Display name: SIP display name setting
Register name: SIP register name setting
Register password: SIP ergister password setting
Proxy server: SIP Proxy server address setting
Domain server: Domain server address setting
Outbound proxy: Outbound Proxy address setting
Second realm
Activation: second SIP sip server enabled/disabled
User name: SIP user name setting
Display name: SIP display name setting
Register name: SIP register name setting
Register password: SIP ergister password setting
Proxy server Proxy: SIP Proxy server address setting
Domain server: Domain server address setting
Outbound proxy: Outbound Proxy address setting
Third realm
Activation: Third SIP sip server enabled/disabled
User name: SIP user name setting
Display name SIP: SIP display name setting
Register name: SIP register name setting
Register password: SIP ergister password setting
Proxy server Proxy: SIP Proxy server address setting
Domain server: Domain server address setting
Outbound proxy: Outbound Proxy address setting

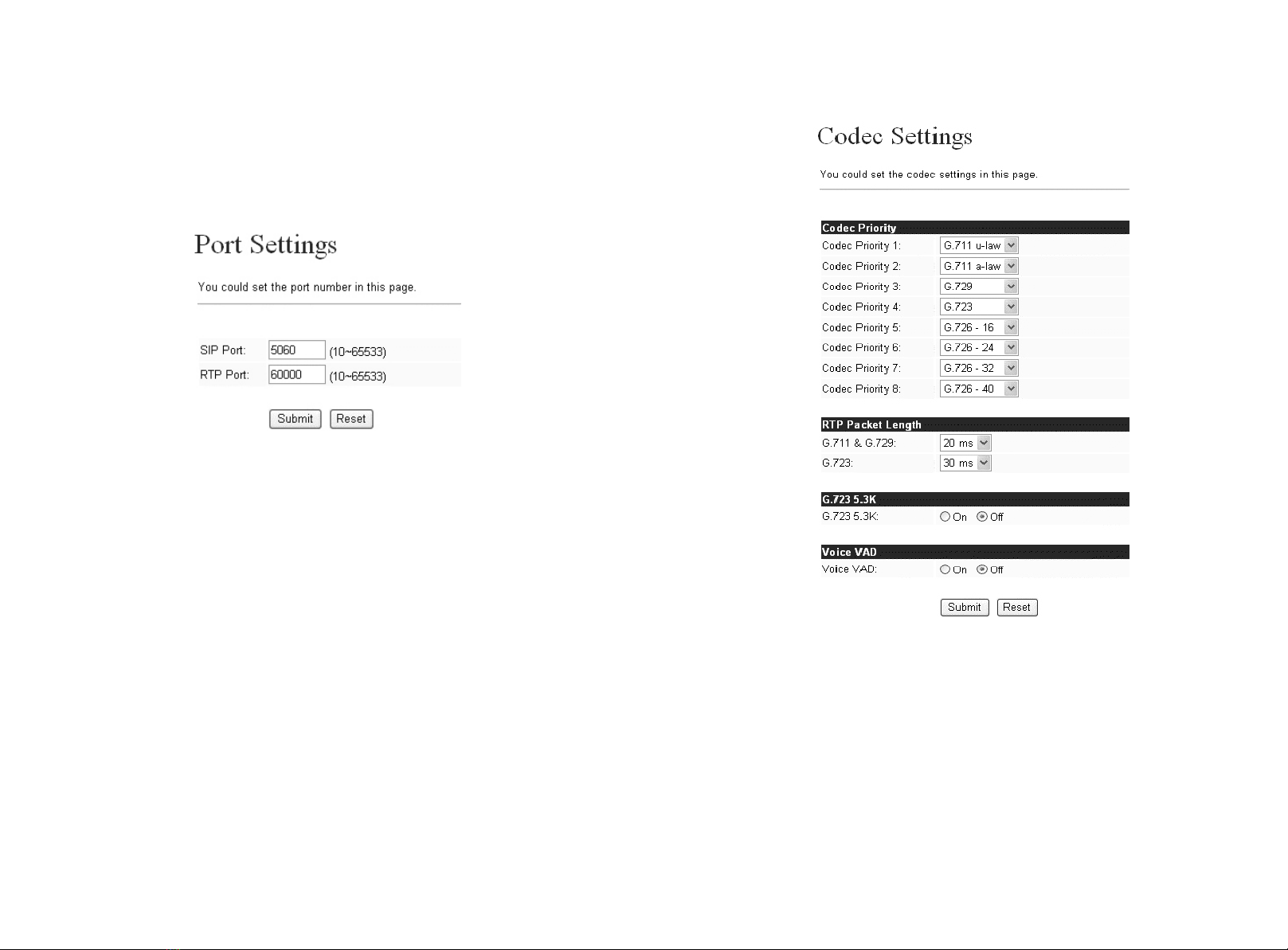

2 Codec
Codec type
G.711 uLaw:
G.711 aLaw:
G.723:
G.729:
G.726-16:
G.726-24:
G.726-32:
G.726-40:
VAD: Voice Active Detection Enable/Disable.
3 RTP setting
Outband DTMF: Outband DTMF Enable/Disable
Duplicate RTP
No duplicate:
One duplicate:
Two duplicate:
4 RPort Setting: RPort Enabled/Disabled RPORT setting
5 Hold by RFC: disabled/enabled setting
6 Status: Show the SIP Proxy register status. You can use UP/Down
key to check each Realm's status.
First Realm:
Second Realm:
Third Realm:
PPPoE setting
User name: PPPoE user name setting
Password: PPPoE Password setting
2 LAN Setup
Bridge: set Ethernet interface into bridge mode
NAT: set Ethernet interface into NAT mode
3 DNS
Primary DNS: First DNS address setting
Secondary DNS: second DNS address setting

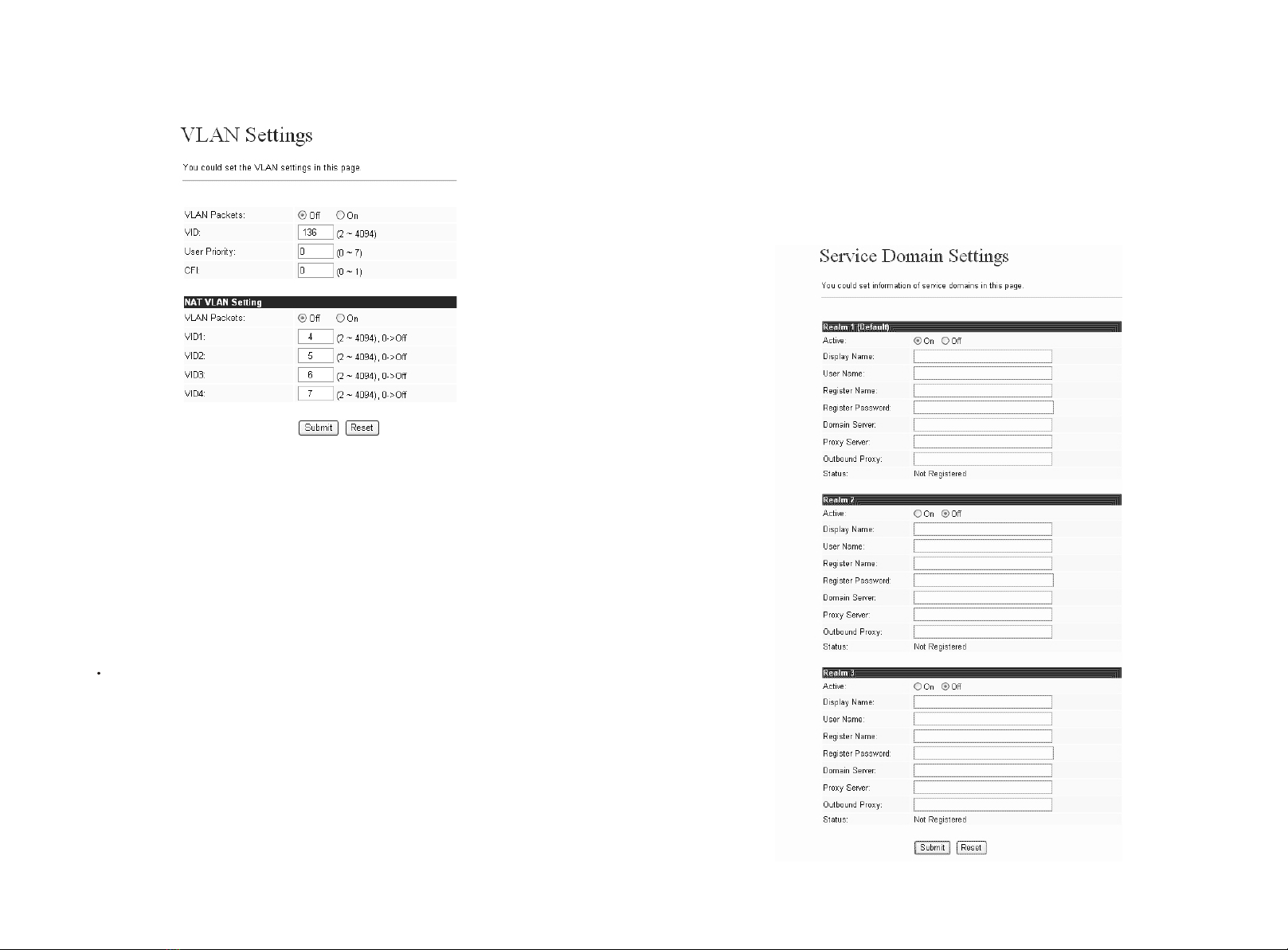

4 VLAN
Activation: enabled/disabled ULAN setting
VID: setting VID 2~4094
Priority: setting preferred 0~7
CFI: 0~1
5 Status: Show WAN, LAN IP address and MAC address.
If you want to use Keypad to set the SIP setting, you have to go to
item 7 (Administrator) System to input the password, or
you can not change the SIP setting.
Authentication

9
8
IP Phone Manual IP Phone Manual
NAT Transversal
Default the IP Phone's NAT is enabled, WAN port is in DHCP Client Mode, LAN port is
in DHCP Server Mode. You can connect you PC on LAN port, then you will get an IP
Address from the IP Phone.
The IP Phone provides a built-in web server. You can use Web browser to configure
the IP Phone. First please input the IP address http://192.168.123.1:9999 in the Web
page. Please remember to add the port number :9999.
3. Setup the VoIP Phone by Web Browser
2. Click the Login button will move into the VOIP PHONE web based management
information page.
3. If you change the setting in the Web Management interface, please do remember
to click the Submit button in that page. After you finished the change of the
setting, click the Save function in the left side, and click the Save Button. When
you finished the setting, please click the Reboot function in the left side, and click
the Reboot button in that page. After the system restart, all the setting can work
properly.
3.2 System Information for the VOIP PHONE
1. When you login the web page, you can see the VOIP PHONE current system
information like firmware version, company etc in this page.
2. Also you can see the function lists in the left side. You can use mouse to click the
function you want to set up.
1 Auto Config
Config Mode: You can select Disable/TFTP/FTP to do the auto
config function. This function must work with the Auto Config
Server.
TFTP server: Setting the TFTP server IP address.
FTP server: Setting the FTP server IP address.
FTP Login Name: Setting the login name to the FTP server.
FTP Password: Setting the Password to the FTP server.
2 Default setting: You can restore to the default setting.
3 System Authentication: To do the SIP setting from Keypad, need
to input the password first. Default is test.
4 Version: This will show the system's firmware version.
5 Watch Dog: You can use this to enable Watch Dog function to do
the debugging.
6 Restart: You can use this function to restart your IP Phone.

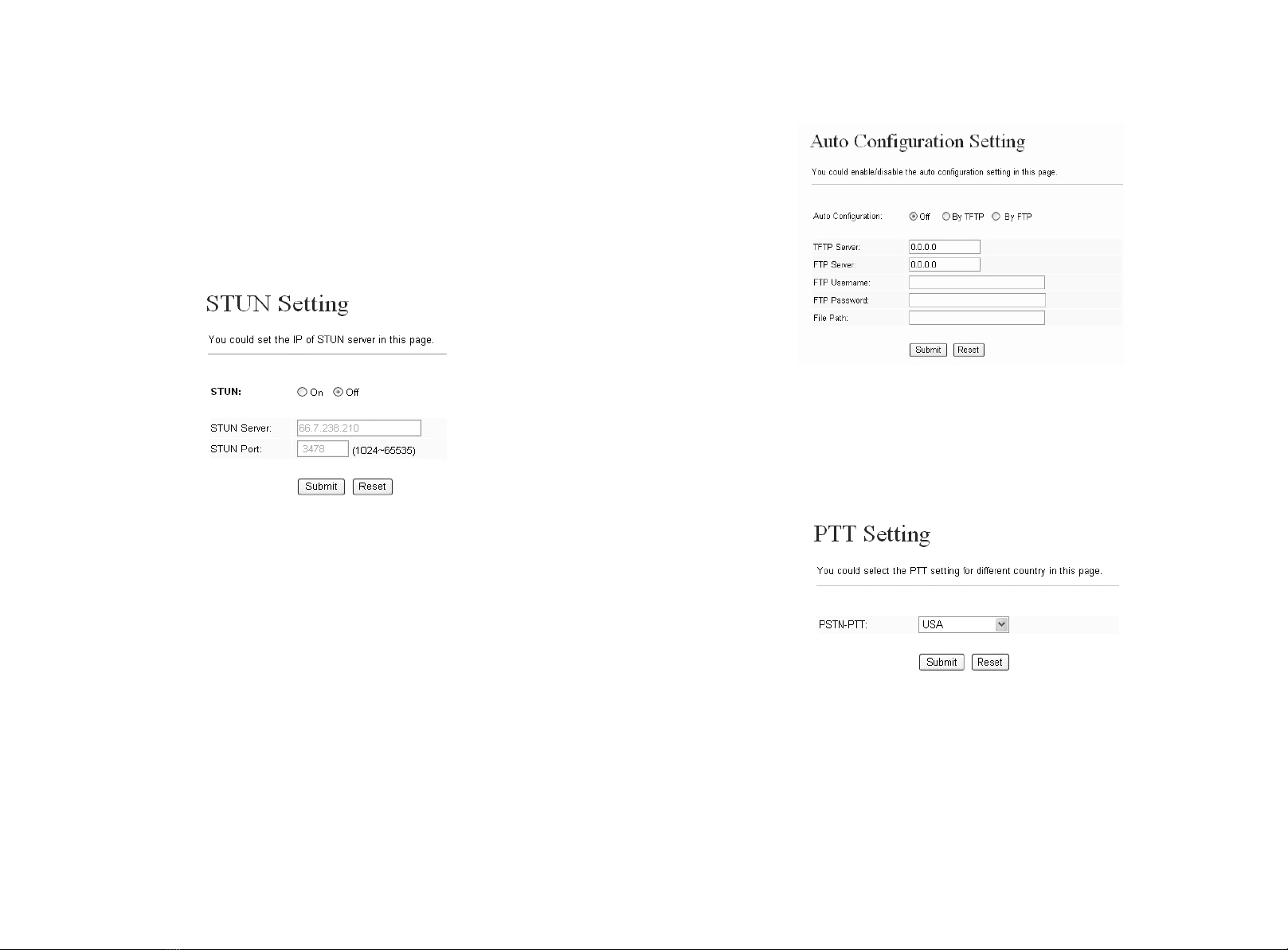

STUN setting
STUN: STUN disabled/enabled
STUN server setting
Administrator
3.1 Login.
1. Please input the username and password into the blank field. The default setting is:
For Administrator, the username is: root; and the password is: test. If you use
the account login, you can configure all the setting.
For normal user, the username is: system or user; and the password is: test.
If you use the account login, but you can not configure the SIP setting.

11
10
IP Phone Manual IP Phone Manual
3.3 Phone Book
1. In Phone Book contains Phone Book and Speed Dial Settings. You can setup the
Phone Book and Speed Dial number. The Phone Book can store 140 phone numbers
and the Speed Dial can store 10 phone numbers. If you want to use Speed Dial you
just dial the speed dial number (from 0~9) then press #.
3. In Speed Dial setting function you can add/delete Speed Dial number. You can
input maximum 10 entries speed dial list.
If you need to add a phone number into the Speed Dial list, you need to input
the position, the name, and the phone number (by URL type). When you
finished a new phone list, just click the Add Phone button.
If you want to delete a phone number, you can select the phone number you
want to delete then click Delete Selected button.
If you want to delete all phone numbers, you can click Delete All button.
2. In the Phone Book function you can add/delete the phone number in the phone
book list. You can input maximum 140 entries phone book list.
If you need to add a phone number into the phone book, you need to input the
position, the name, and the phone number (by URL type). When you finished a
new phone list, just click the Add Phone button.
If you want to delete a phone number, you can select the phone number you
want to delete then click Delete Selected button.
If you want to delete all phone numbers, you can click Delete All button.

13
12
IP Phone Manual IP Phone Manual
3.4 Phone Setting
1. In Phone Setting contains Call Forward, SNTP Settings, Volume Settings, Block
Setting, Caller ID, Auto Dial Setting, Dial Plan, Flash Time Setting, Call Waiting
Setting and Soft-Key Setting functions.
SNTP Setting function: you can setup the primary and second SNTP Server
IP Address, to get the date/time information. Also you can base on your
location to set the Time Zone, and how long need to synchronize again.
When you finished the setting, please click the Submit button. If there is
nothing need to change, please click the Save Change Item in the left side,
then click the Save button. The change you made will save into the system
and the system will Reboot automatically.
Handset Volume is to set the volume you hear from the handset.
Speaker Volume is to set the volume you hear from the speaker phone.
Ringer Volume is to set the ringer volume.
Handset Gain is to set the volume send out the handset.
Speaker Gain is to set the volume send out from the micro phone.
When you finished the setting, please click the Submit button.
If there is nothing need to change, please click the Save Change Item in the
left side, then click the Save button. The change you made will save into the
system and the system will Reboot automatically.
from
2. Call Forward function: you can setup the phone number you want to forward in
this page. There are three type of Forward mode. You can choose All Forward,
Busy Forward, and No Answer Forward by click the icon.
All Forward: All incoming call will forward to the number you choosed. You can
input the name and the phone number in URL field. If you select this function,
then all the incoming call will direct forward to the speed dial number you
choose.
Busy Forward: If you are on the phone, the new incoming call will forward to
the number you choosed. You can input the name and the phone number in
URL field.
No Answer Forward: If you can not answer the phone, the incoming call will
forward to the number you choosed. You can input the name and the phone
number in URL field. Also you have to set the Time Out time for system to
start to forward the call to the number you choosed.
When you finished the setting, please click the Submit button.
If there is nothing need to change, please click the Save Change Item in the
left side, then click the Save button. The change you made will save into the
system and the system will Reboot automatically.
3. Volume Setting function: you can setup the Handset Volume, Ringer Volume, and
the Handset Gain.

15
14
IP Phone Manual IP Phone Manual
4. Melody Setting function: you can select the melody for the imcoming call. When
you finished the setting, please click the Submit button. If there is nothing need
to change, please click the Save Change Item in the left side, then click the Save
button. The change you made will save into the system and the system will
Reboot automatically.
5. Block Setting function: you can setup the Block Setting to keep the phone slience.
You can choose Always Block or Block a period.
Always Block: All incoming call will be blocked until disable this feature.
Block Period: Set a time period and the phone will be blocked during the time
period. If the From time is large than the To time, the Block time will from
Day 1 to Day 2.
When you finished the setting, please click the Submit button.
If there is nothing need to change, please click the Save Change Item in the
left side, then click the Save button. The change you made will save into the
system and the system will Reboot automatically.
6. Auto Answer function: You can set the Auto Answer function to answer the incom-
ing call by the phone. If the call is come from the IP, then the phone can let user
to redial the call to PSTN phone number. If the call is coming from PSTN, then the
phone can let user to redial to IP Phone number. Auto Answer Counter is to set
after the ring count meet the number you set then the auto answer will enable.
For security issue, You'd better to set the PIN Code. If you have set the PIN code,
you will hear a tone to inform you input the PIN Code then you can dial out.

17
16
IP Phone Manual IP Phone Manual
7. Dial Plan Setting function: This function is when you input the phone number by
the keypad but you don't need to press #. After time out the system will dial
directly.
Symbol explan:
or
x or X 0,1,2,3,4,5,6,7,8,9
+
Replace rule: If replace prefix code is ON and prefix number is matched with
rule then 005 will replace prefix.
Auto Dial Time: Stop dialing after seconds then send dial number out.
Dial Plan: When match with pattern then send dial number out but if fisrt digit
is 0then dial plan will be ignored.
Example:
*xx
If dial with 8 digits then send number out
#xx
10x
11x
Xxxxxxxx
If matched with one of *00,*01 .*99 then will send number out
If matched with one of #00,#01 .#99 then will send number out
If matched with one of 100,101 .109 then will send number out
If matched with one of 110,111 .119 then will send number out
Auto Prefix: Number for add before dial number.
Prefix Unset Plan: When first digit or dial numeb match with pattern then
ignore auto prefix.
xxxxxx
0
1
xxxxx
dial numbers are 5 digits ignore auto prefix
dial numbers are 4 digits ignore auto prefix
Ignore auto prefix if first digit is '1'
Iignore auto prefix if first digit is '0'
When you finished the setting, please click the Submit button.
If there is nothing need to change, please click the Save Change Item in the
left side, then click the Save button. The change you made will save into the
system and the system will Reboot automatically.
8. Flash Time Setting function: When you use the PSTN Phone and you need to press
the Hook to do the Flash (Switch to the other phone line or HOLD), this function is
for you to set the time you press the Hook to represent the Flash function.

19
18
IP Phone Manual IP Phone Manual
9. Call Waiting Setting function: If user doesn't want to be inform there is a new
incoming call, user can set the function off. When you finished the setting, please
click the Submit button. If there is nothing need to change, please click the Save
Change Item in the left side, then click the Save button. The change you made
will save into the system and the system will Reboot automatically.
10. Soft-key Setting function: User can define the Pick Up and Voice mail function as a
foft-key. This function need to work with Proxy Server and the device also need to
have the Pick Up key and voice mail key. For example, if the Server define the pick
up key is *7, then user have to input the *7 in Pick up key field. When user press
the IP Phone's Pick up key, the IP Phone will send out *7 to process the Pick up
function.
When you finished the setting, please click the Submit button. If there is
nothing need to change, please click the Save Change Item in the left side,
then click the Save button. The change you made will save into the system
and the system will Reboot automatically.
3.5 Network
1. In Network you can check the Network status, configure the WAN Settings, LAN
Settings, DDNS settings and VLAN Settings.
2. Network Status: You can check the current Network setting in this page.
3. WAN Settings: In this page you can configure the IP Phone WAN port's setting.
The WAN port is for you to connect to the ADSL Router, Broadband Router. Also
you can use PPPoE to get the WAN IP address from your ISP.

21
20
IP Phone Manual IP Phone Manual
The IP Phone's default setting is NAT mode. If you don't need to use the NAT
Mode, you can chang to Bridge Mode. If you change the setting to Bridge
Mode, then the LAN setting will not effect and will be the same as WAN port.
The WAN port default is DHCP Client mode, You can change the setting to
Fixed IP Mode, or PPPoE Mode.
If you change the WAN port's setting to Fix IP Mode, then you have to make
sure the IP address. Net Mask, Gateway, and DNS setting is suitable in your
current network environment.
If you change the WAN port's setting to PPPoE Mode, you have to input a
correct username/password to get the IP address from your Internet Service
Provider.
When you finished the setting, please click the Submit button.
If there is nothing need to change, please click the Save Change Item in the
left side, then click the Save button. The change you made will save into the
system and the system will Reboot automatically.
4. LAN Settings: In this page you can configure the IP Phone LAN port's setting.
The LAN port's default IP address is 192.168.123.1, Net Mask is 255.255.255.
0., and DHCP Server enabled. The start IP address if 150, end IP adress is 200.
It is not necessary to change the LAN settings.
You can connect your PC to the LAN port, set your PC as DHCP Client mode,
then you can get IP address from the phone.
When you finished the setting, please click the Submit button.
If there is nothing need to change, please click the Save Change Item in the
left side, then click the Save button. The change you made will save into the
system and the system will Reboot automatically.

23
22
IP Phone Manual IP Phone Manual

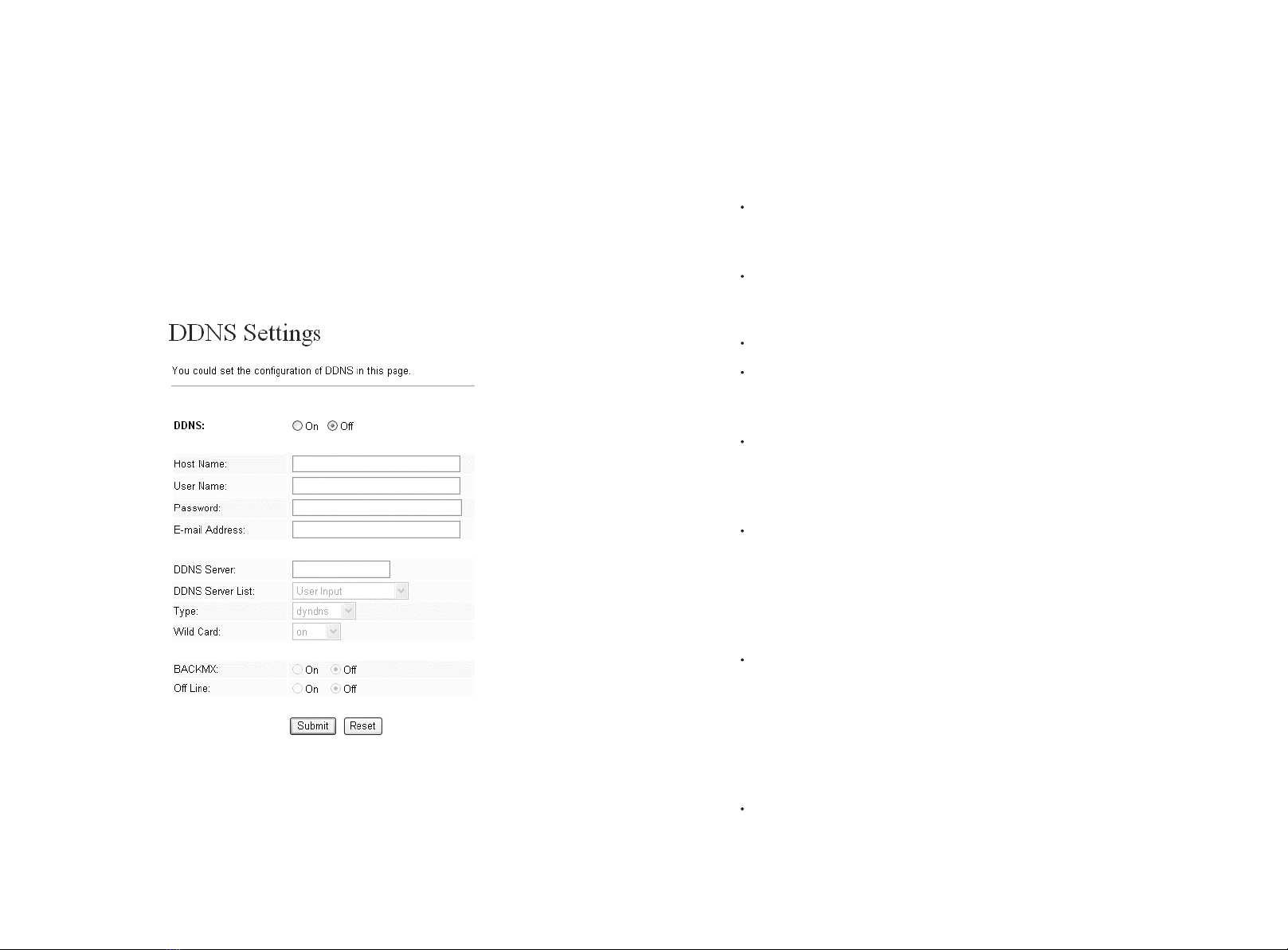

5. DDNS Setting: You can configure the DDNS setting in this page. You need to have
the DDNS account and input the informations properly. You can have a DDNS acc-
ount with a public IP address then others can call you via the DDNS account. But
now most of the VoIP applications are work with a SIP Proxy Server. When you fi-
nished the setting, please click the Submit button. If there is nothing need to cha-
nge, please click the Save Change Item in the left side, then click the Save button.
The change you made will save into the system and the system will Reboot
automatically.
6. VLAN Setting: You can set the VLAN setting in this page. There are two parts in
this page. First one is to set the packets related to the phone, and the second
parts is if you use the VLAN setting in the NAT Mode.
There are two kind of destination packets will come from the phone WAN port,
one kind of packets will go to the phone, the other will go through the LAN
port to the PC.
VLAN Packets: if you enable the first VLAN Packets and set the VID, User Prio-
rity, and CFI, then all the incoming packets will be check with the IP Address
and the VID.
If there is nothing need to change, please click the Save Change Item in the
eft side, then click the Save button. The change you made will save into the
system and the system will Reboot automatically.
VID: You can follow your service provider to set your VID.
User Priority: Defines user priority, giving eight (2^3) priority levels. IEEE 802.
1P defines the operation for these 3 user priority bits. Usually this will be
defined by your service provider.
CFI: Canonical Format Indicator is always set to zero for Ethernet switches.
CFI is used for compatibility reason between Ethernet type network and Token
Ring type network. If a frame received at an Ethernet port has a CFI set to 1,
then that frame should not be forwarded as it is to an untagged port.
When you enable the first VLAN Packets and set the VID, User Priority, and
CFI, then all the incoming packets with the phone IP address and the same
VID will be accept by the phone. If the incoming packets with the phone IP
address but the different VID then the packets will be discard by the phone.
The Other incoming packets with different IP address will go through the LAN
port to the PC.
NAT VLAN Setting: When you set your device in NAT mode, the phone can
help you to filter the wrong incoming packets. You can separate the other de-
vice connectd behind the phone into 4 VLAN group. You can set different VID
for these 4 groups. When the incoming packets go through the phone WAN
port then the phone will check the VID, if the packets is not going to the pho-
ne (with the phone IP address and the correct VID), and the VID is not these
four VID you set, then the packets will be discard by the phone.

25
24
IP Phone Manual IP Phone Manual
3.6 SIP Settings
1. In SIP Settings you can setup the Service Domain, Port Settngs, Codec Settings,
Codec ID Settings, RTP Setting, RPort Setting and Other Settings. If the VoIP
service is provided by ISP, you need to setup the related informations correctly
then you can register to the SIP Proxy Server correctly.
2. In Service Domain Function you need to input the account and the related inform-
ations in this page, please refer to your ISP provider. You can register three SIP
account in the VoIP Phone. You can dial the VoIP phone to your friends via first
enable SIP account and receive the phone from these three SIP accounts.
First you need click Active to enable the Service Domain, then you can input
the following items:
You can see the Register Status in the Status item. If the item shows Registered,
then your VoIP Phone is registered to the ISP, you can make a phone call direcly.
If you have more than one SIP account, you can following the steps to register to
the other ISP.
When you finished the setting, please click the Submit button.
Display Name: you can input the name you want to display.
User Name: you need to input the User Name get from your ISP.
Register Name: you need to input the Register Name get from your ISP.
Register Password: you need to input the Register Password get from your ISP.
Domain Server: you need to input the Domain Server get from your ISP.
Proxy Server: you need to input the Proxy Server get from your ISP.
Outbound Proxy: you need to input the Outbound Proxy get from your ISP.
If your ISP does not provide the information, then you can skip this item.

27
26
IP Phone Manual IP Phone Manual
3. Port Settings: you can setup the SIP and RTP port number in this page. Each ISP
provider will have different SIP/RTP port setting, please refer to the ISP to setup
the port number correctly. When you finished the setting, please click the Submit
button.
4. Codec Settings: you can setup the Codec priority, RTP packet length, and VAD
function in this page. You need to follow the ISP suggestion to setup these items.
When you finished the setting, please click the Submit button.
5. Codec ID Settings: you can set the Codec ID to meet the other device's
requirement. When you finished the setting, please click the Submit button.

29
28
IP Phone Manual IP Phone Manual
6. DTMF Setting: you can setup the RFC2833 Out-Band DTMF, Inband DTMF and
Send DTMF SIP Info in this page. To change this setting, please following your ISP
information. When you finished the setting, please click the Submit button.
7. Rport Function: you can setup the RPort Enable/Disable in this page. To change
this setting, please following your ISP information. When you finished the setting,
please click the Submit button.
8. Other Settings: you can setup the Hold by RFC, Voice/SIP QoS and SIP expire time
in this page. To change these settings please following your ISP information. When
you finished the setting, please click the Submit button. The QoS setting is to set
the voice packets' priority. If you set the value higher than 0, then the voice
packets will get the higher priority to the Internet. But the QoS function still need
to cooperate with the others Internet devices.

31
30
IP Phone Manual IP Phone Manual
3.7 NAT Trans
1. In NAT Trans. you can setup STUN function. These functions can help your VoIP
Phone working properly behind NAT.
2. STUN Setting: you can setup the STUN Enable/Disable and STUN Server IP addre-
ss in this page. This function can help your VoIP Phone working properly behind
NAT. To change these settings please following your ISP information. When you
finished the setting, please click the Submit button.
3.8 Others
1. In Others you can setup Auto Config, PTT Setting and ICMP Setting function. The
function can configure your VoIP Phone automatically.
2. Auto Config: you can setup the Auto Configuration Enable/Disable and auto confi-
guration by FTP or TFTP. You need to select the way to do the Auto Configuration-
and set the Server IP address in this page. This function can automatically down-
load the configure file to setup your phone. When you finished the setting, please
click the Submit button.
3. PTT Setting: you can setup the PTT in this page. When you are using different co-
untry's PSTN Phone or connect to different country's PSTN Line, you have to set
the country's setting to meet the requirement. When you finished the setting,
please click the Submit button.
4. ICMP Setting: you can setup the ICMP echo Enable/Disable in this page. This fun-
ction can disable echo when someone ping this device, it can avoid haker try to
attack the device. When you finished the setting, please click the Submit button.

3.9 System Auth
3.10 Save Change
In Save Change you can save the changes you have done. If you want to use new
setting in the VoIP Phone, You have to click the Save button. After you click the Save
button, the VoIP Phone will automatically restart and the new setting will effect.
3.11 Update
1. In Update you can update the VoIP Phone's firmware to the new one or do the
factory reset to let the VoIP Phone back to default setting.
3. In Default Setting you can restore the VoIP Phone to factory default in this page.
You can just click the Restore button, then the VoIP Phone will restore to default and
automatically restart again.
33
32
IP Phone Manual IP Phone Manual
In System Authority you can change your login name and password.
2. In New Firmware function you can update new firmware via HTTP in this page.
You can ugrade the firmware by the following steps:
Select the firmware code type, Risc or DSP code.
Click the Browse button in the right side of the File Location or you can type
the correct path and the filename in File Location blank.
Select the correct file you want to download to the VoIP Phone then click the
Update button.

3.12 Reboot
Reboot function you can restart the VoIP Phone. If you want to restart the VoIP Phone,
you can just click the Reboot button, then the VoIP Phone will automatically.
34
IP Phone Manual
