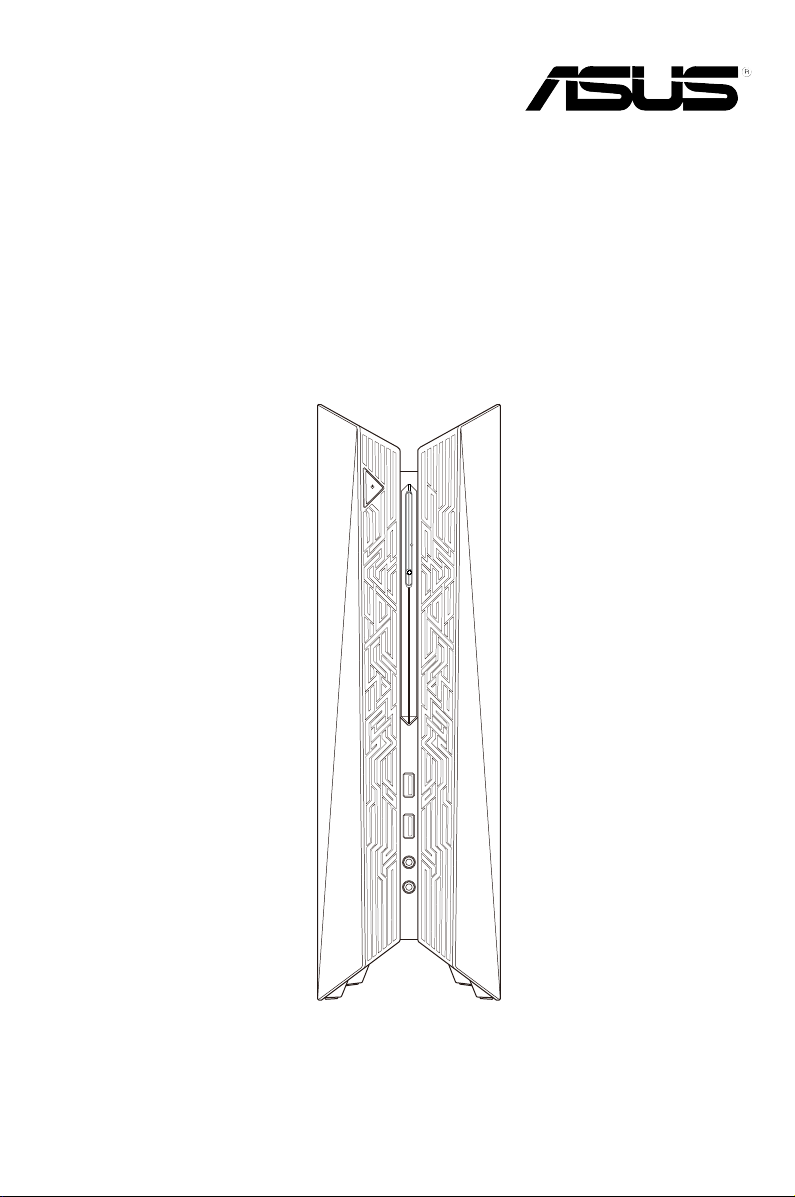

Asus G20CI User manual

Desktop PC
G20CI
User Guide

2
Copyright © 2016 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK
Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such
repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is
defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF
ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS
MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE
ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights
of their respective companies, and are used only for identification or explanation and to the owners’benefit,
without intent to infringe.
E12139
First Edition (V1)
October 2016

3
Contents
Notices ................................................................................................................................................ 4
Safety information ........................................................................................................................... 8
Conventions used in this guide................................................................................................... 9
Where to find more information................................................................................................. 9
Package contents...........................................................................................................................10
Chapter 1: Getting started
Welcome!...........................................................................................................................................11
Getting to know your computer...............................................................................................11
Setting up your computer...........................................................................................................16
Turning your computer ON ........................................................................................................17
Chapter 2: Connecting devices to your computer
Connecting a USB storage device............................................................................................19
Connecting microphone and speakers..................................................................................20
Connecting multiple external displays ..................................................................................23
Chapter 3: Using your computer
Proper posture when using your Desktop PC......................................................................25
Using the optical drive .................................................................................................................26
Chapter 4: Connecting to the Internet
Wired connection...........................................................................................................................27
Wi-Fi connection (on selected models only)........................................................................31
Chapter 5: Troubleshooting
Troubleshooting .............................................................................................................................33
Appendix: Windows®10 User Manual
Starting for the first time .............................................................................................................43
Using the Windows®10 UI ...........................................................................................................44
Keyboard shortcuts .......................................................................................................................48
ASUS contact information
ASUS contact information...........................................................................................................50

4
Notices
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for
protecting our environment. We believe in providing solutions for you to be able to responsibly
recycle our products, batteries, other components, as well as the packaging materials. Please go to
http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals)
regulatory framework, we published the chemical substances in our products at ASUS REACH
website at http://csr.asus.com/english/REACH.htm
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• Thisdevicemaynotcauseharmfulinterference;and
• Thisdevicemustacceptanyinterferencereceivedincludinginterferencethatmaycause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmenttoanoutletonacircuitdierentfromthattowhichthereceiveris
connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
The use of shielded cables for connection of the monitor to the graphics card is required to
assure compliance with FCC regulations. Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the user’s authority to operate this
equipment.
Lithium Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type recommended by the manufacturer. Dispose of used batteries according
to the manufacturer’s instructions.

5
IC: Canadian Compliance Statement
Complies with the Canadian ICES-003 Class B specifications. This device complies with RSS 210
of Industry Canada. This Class B device meets all the requirements of the Canadian interference-
causing equipment regulations.
This device complies with Industry Canada license exempt RSS standard(s). Operation is subject
to the following two conditions: this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
Cut appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Cet appareil
numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du
Canada.
Cet appareil est conforme aux normes CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes.
(1) cet appareil ne doit par provoquer d’interférences et
(2) cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.
This class B digital apparatus complies with Canadian ICES-003.
KC: Korea Warning Statement
Avertissement relatif aux batteries Lithium-Ion
MISE EN GARDE: Danger d’explosion si la pile n’est pas remplacée correctement.
Remplacer uniquement avec une pile de type semblable ou équivalent, recommandée
par le fabricant. Mettez au rebut les batteries usagées conformément aux instructions
du fabricant.

6
VCCI: Japan Compliance Statement
VCCI Class B Statement
This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or
television receiver, it may cause radio interference. Install and use equipment according to the
instruction manual.
Equipment registered based on the confirmation measurement at the user
installation site.
This is a product for which interference was measured at the present installation site and confirmed
to comply with the standard of Voluntary Control Council for Interference by Information
Technology Equipment (VCCI). Before using the equipment at any location other than the present
installation site, the member shall measure interference for confirmation and register the result to
VCCI.
RF Equipment Notices
CE: European Community Compliance Statement
The equipment complies with the RF Exposure Requirement 1999/519/EC, Council
Recommendation of 12 July 1999 on the limitation of exposure of the general public to
electromagnetic fields (0–300 GHz). This wireless device complies with the R&TTE Directive.
Wireless Radio Use
This device is restricted to indoor use when operating in the 5.15 to 5.25 GHz frequency band.
Exposure to Radio Frequency Energy
The radiated output power of the Wi-Fi technology is below the FCC radio frequency exposure
limits. Nevertheless, it is advised to use the wireless equipment in such a manner that the potential
for human contact during normal operation is minimized.
FCC Bluetooth Wireless Compliance
The antenna used with this transmitter must not be colocated or operated in conjunction with any
other antenna or transmitter subject to the conditions of the FCC Grant.
Bluetooth Industry Canada Statement
This Class B device meets all requirements of the Canadian interference-causing equipment
regulations.
Cet appareil numérique de la Class B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.

7

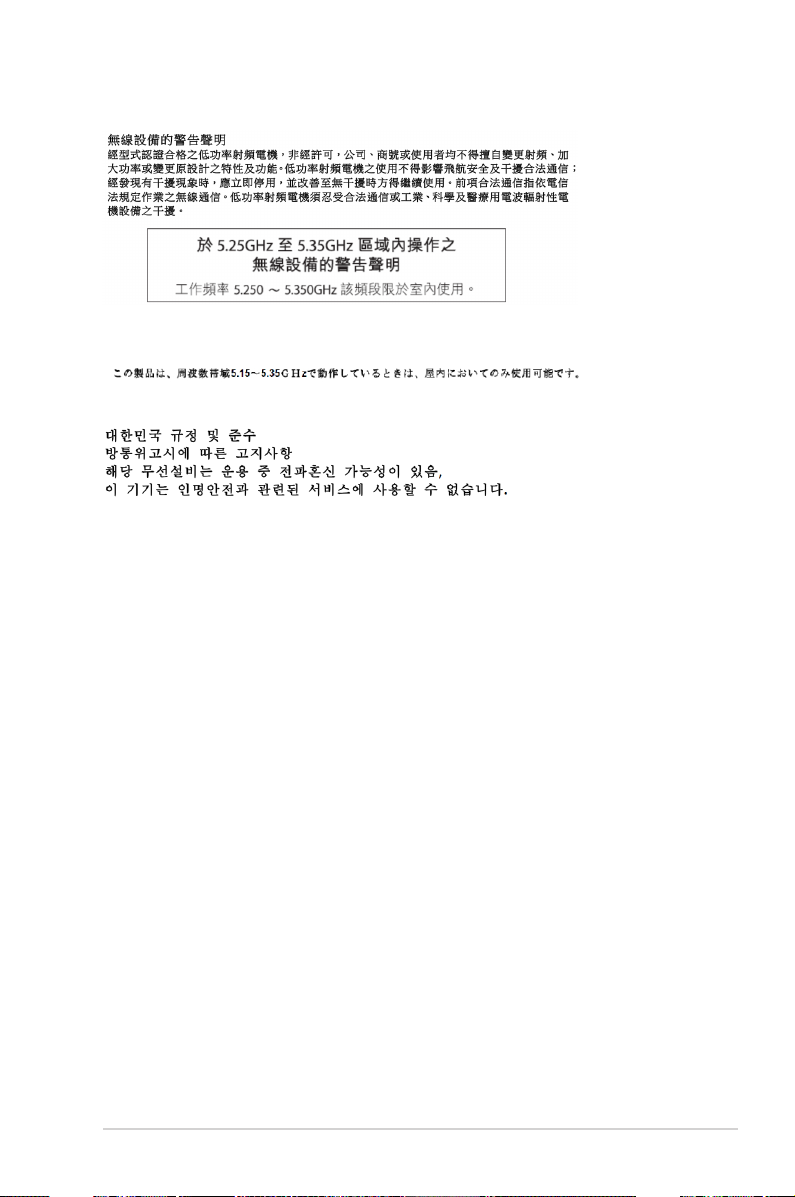

BSMI: Taiwan Wireless Statement
Japan RF Equipment Statement
KC (RF Equipment)

8
Safety information
Disconnect the AC power and peripherals before cleaning. Wipe the Desktop PC using a clean
cellulose sponge or chamois cloth dampened with solution of nonabrasive detergent and a few
drops of warm water then remove any extra moisture with a dry cloth.
• DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been
damaged.
• DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak.
• DO NOT place or drop objects on top and do not shove any foreign objects into the Desktop
PC.
• DO NOT expose to strong magnetic or electrical fields.
• DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during
electrical storms.
• Batterysafetywarning:DO NOT throw the battery in fire. DO NOT short circuit the contacts.
DO NOT disassemble the battery.
• Usethisproductinenvironmentswithambienttemperaturesbetween0˚C(32˚F)and40˚C
(104˚F).
• DO NOT cover the vents on the Desktop PC to prevent the system from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet
before relocating the system.
• Seek professional assistance before using an adapter or extension cord. These devices could
interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure
about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service
technician or your retailer.
Hazardous moving parts. Desktop should be completely shutdown before servicing product.
Replacing fan components should only be attempted by qualified service personnel.
Hazardous Moving Parts Warning
WARNING: Keep fingers and other body parts away from any moving parts.

9
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used
throughout this manual.
Where to find more information
Refer to the following sources for additional information and for product and software updates.
ASUS websites
The ASUS website provides updated information on ASUS hardware and software products.
Refer to the ASUS website www.asus.com.
ASUS Local Technical Support
Visit ASUS website at http://support.asus.com/contact for the contact information of local
Technical Support Engineer.
DANGER/WARNING:Information to prevent injury to yourself when trying to
complete a task.
CAUTION: Information to prevent damage to the components when trying to
complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.

10
Package contents
• Ifanyoftheaboveitemsisdamagedormissing,contactyourretailer.
• Theillustrateditemsaboveareforreferenceonly.Actualproductspecicationsmayvarywith
different models.
Desktop PC
G20CI
Keyboard x1 Mouse x1
Power cord x1
2nd Power cord x1 (on
selected models only)
Power adapter x1
2nd adapter x1 (on selected
models only)
Warranty Card x1
Installation Guide
Installation Guide x1

Welcome!
Thank you for purchasing the ASUS Desktop PC!
The ASUS Desktop PC provides cutting-edge performance, uncompromised reliability, and user-
centric utilities. All these values are encapsulated in a stunningly futuristic and stylish system
casing.
Read the ASUS Warranty Card before setting up your ASUS Desktop PC.
Getting to know your computer
Illustrations are for reference only. The ports, their locations and the chassis color vary with
different models.
ASUS G20CI 11
Chapter 1
Getting started

Front
Power button. Press this button to turn on your computer.
Optical disk drive bay. There is an optical disk drive in this bay.
Optical disk drive eject button. Press this button to eject the optical disk drive tray.
USB 3.1 Gen1 ports. These ports connect to USB 3.1 Gen1 devices such as a mouse,
printer, scanner, camera, PDA, and others.
• DONOTconnectakeyboard/mousetoanyUSB3.1Gen1portwheninstallingWindows®
operating system.
• DuetoUSB3.1Gen1controllerlimitations,USB3.1Gen1devicescanonlybeusedundera
Windows®OS environment and after USB 3.1 Gen1 driver installation.
• USB3.1Gen1devicescanonlybeusedasdatastorageonly.
• WestronglyrecommendthatyouconnectUSB3.1Gen1devicestoUSB3.1Gen1portsfor
faster and better performance for your USB 3.1 Gen1 devices.
Microphone port. This port connects to a microphone.
Headphone port. This port connects to a headphone or speaker.
LED Lighting Effect. Customizable via the lighting control in ASUS Command, this LED
lighting effect shows through the pattern.
12 Chapter 1: Getting started
ENGLISH
ENGLISH

Rear
USB 3.1 Gen2 ports. These 9-pin Universal Serial Bus (USB) ports connect to USB 3.1
Gen2 devices.
USB 3.1 Gen1 ports. These ports connect to USB 3.1 Gen1 devices such as a mouse,
printer, scanner, camera, PDA, and others.
• DONOTconnectakeyboard/mousetoanyUSB3.1Gen1portwheninstallingWindows®
operating system.
• DuetoUSB3.1Gen1controllerlimitations,USB3.1Gen1devicescanonlybeusedundera
Windows®OS environment and after USB 3.1 Gen1 driver installation.
• USB3.1Gen1devicescanonlybeusedasdatastorageonly.
• WestronglyrecommendthatyouconnectUSB3.1Gen1devicestoUSB3.1Gen1portsfor
faster and better performance for your USB 3.1 Gen1 devices.
ASUS G20CI 13
ENGLISH
ENGLISH

Audio 2.1, 4.1, 5.1, or 7.1-channel configuration
LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub.
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10Mbps connection
ORANGE Linked ORANGE 100Mbps connection
BLINKING Data activity GREEN 1Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
Line In port (light blue). This port connects to a tape, CD, DVD player, or other audio
sources.
Line Out port (lime). This port connects to a headphone or speaker. In a 4.1, 5.1,
or 7.1-channel configuration, the function of this port becomes Front Speaker Out.
Supported by ASUS Audio Wizard.
Microphone port (pink). This port connects to a microphone.
Center/Subwoofer port (orange). This port connects to the center/subwoofer
speakers.
Rear Speaker Out port (black). This port connects to the rear speakers in a 4, 6, and
8-channel audio configuration.
Optical S/PDIF out port. This port allows you to connect your PC to amplified speakers,
headphones, or Sony/Phillips Digital Interconnect Format (S/PDIF) compliant devices.
Refer to the audio configuration table below for the function of the audio ports in a 2.1, 4.1,
5.1, or 7.1-channel configuration.
Port Headset 2.1-channel 4.1-channel 5.1-channel 7.1-channel
Light Blue Line In Line In Line In Side Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange - - Center/Subwoofer Center/Subwoofer
Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out
14 Chapter 1: Getting started
ENGLISH
ENGLISH

ASUS Graphics Cards. The display output ports on these optional ASUS Graphics Cards
may vary with different models.
USB 3.1 Gen2 Type C port. This Universal Serial Bus (USB) Type C port is for USB 3.1
Gen2 mobile or peripheral devices.
Power jack 1. This port connects to a 180W adapter (Dual adapters needed on selected
models).
Adapter rating:
• 180W
Input rating: 100-240V ~ 50-60Hz 2.34A
Output rating: 19.5V 9.23A
Power jack 2. This port connects to a 230W adapter (Dual adapters needed on selected
models).
Adapter rating:
• 230W
Input rating: 100-240V ~ 3.2A 50-60Hz
Output rating: 19.5V 11.8A
Air vents. These vents allow air ventilation.
DO NOT block the air vents on the chassis. Always provide proper ventilation for your
computer.
USB 3.1 Gen1 ports. These ports connect to USB 3.1 Gen1 devices such as a mouse,
printer, scanner, camera, PDA, and others.
ASUS G20CI 15
ENGLISH
ENGLISH

Setting up your computer
This section guides you through connecting the main hardware devices, such as the external
monitor, keyboard, mouse, and power cord, to your computer.
Connecting an external monitor
To connect an external monitor:
1. Connect your monitor to the graphic output port of the discrete graphic card.
2. Plug the monitor to a power source.
Connecting a USB keyboard and a USB mouse
Connect a USB keyboard and a USB mouse to the USB ports on the rear panel of your computer.
`
16 Chapter 1: Getting started
ENGLISH
ENGLISH

3. Wait until the operating system loads automatically.
For details on shutting down your Desktop PC, refer to the Windows®10 User Manual, which can
be found in this manual.
Power button
Turning your computer ON
This section describes how to turn on your computer after setting up your computer.
Turning your computer ON
To turn your computer ON:
1. Turn your monitor ON.
2. Press the power button on your computer.
ASUS G20CI 17
ENGLISH
ENGLISH

18 Chapter 1: Getting started
ENGLISH
ENGLISH

Connecting a USB storage device
This desktop PC provides USB 2.0/1.1, USB 3.1 Gen1 and USB 3.1 Gen2 ports on the front and rear
panels. The USB ports allow you to connect USB devices such as storage devices.
To connect a USB storage device:
 • InserttheUSBstoragedevicetoyourcomputer.
Front panel Rear panel
ASUS G20CI 19
ENGLISH
ENGLISH
Chapter 2
Connecting devices to your computer

Connecting Headphone and Mic
Connecting microphone and speakers
This desktop PC comes with microphone ports and speaker ports on both the front and rear panels.
The audio I/O ports located on the rear panel allow you to connect 2.1-channel, 4.1-channel,
5.1-channel, and 7.1-channel stereo speakers.
Connecting 2.1-channel Speakers
20 Chapter 2: Connecting devices to your computer
