Asus PE200S Series User manual

PE200S Series
Desktop PC
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by
any means, except documentation kept by the purchaser for backup purposes, without the express
written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS,
LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to
the owners’benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND
SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR
LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE
PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2019 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled
to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including
death) and damage to real property and tangible personal property; or any other actual and direct
damages resulted from omission or failure of performing legal duties under this Warranty Statement,
up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort
or infringement under this Warranty Statement.
This limit also applies to ASUS’suppliers and its reseller. It is the maximum for which ASUS, its
suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY
CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3)
SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES
(INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS
INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support/
First Edition
October 2019
E15759

PE200S Series 3
Contents
About this manual.............................................................................................................6
Conventions used in this manual......................................................................................... 7
Typography.................................................................................................................................. 7
Package contents ..............................................................................................................8
Chapter 1: Getting to know your Edge Computer
1.1 Features ......................................................................................................................12
1.1.1 Front view ....................................................................................................................... 12
1.1.2 Rear view......................................................................................................................... 15
1.2 Motherboard Overview ........................................................................................17
1.2.1 Motherboard layout.................................................................................................... 17
1.2.2 System memory............................................................................................................ 19
1.2.3 Onboard jumpers......................................................................................................... 20
1.2.4 Internal connectors ..................................................................................................... 22
Chapter 2: Using your Edge Computer
2.1 Getting started.........................................................................................................36
2.1.1 Connect the AC power adapter to your Edge Computer.............................. 36
2.1.2 Connect a display panel to your Edge Computer ............................................ 38
2.1.3 Connect the USB cable from keyboard or mouse............................................ 40
2.1.4 Turn on your Edge Computer.................................................................................. 41
2.2 Turning your Edge Computer off.......................................................................42
2.3 Putting your Edge Computer to sleep.............................................................42

4 PE200S Series
Chapter 3: Upgrading your Edge Computer
3.1 Removing the bottom cover...............................................................................44
3.2 Replacing the bottom cover ...............................................................................45
3.3 Installing memory modules ................................................................................46
3.4 Installing 2.5”storage device ..............................................................................47
3.5 Installing the Mini PCIe card................................................................................49
3.6 Installing a nano SIM card....................................................................................50
3.7 Installing an SD card...............................................................................................51
3.8 Installing the wireless card ..................................................................................53
3.9 Installing an M.2 SSD..............................................................................................54
3.10 Installing the antennas (optional).....................................................................55
3.11 Installing the USB 2.0 module (on selected models)..................................56
3.12 Installing the Serial port module (on selected models)............................57
3.13 Installing the PoE LAN module (on selected models)................................58
3.14 Installing the VESA mount (optional)...............................................................60
3.15 Installing the wall mount......................................................................................62
Chapter 4: BIOS Setup
4.1 Getting to know your BIOS..................................................................................64
4.2 BIOS setup program...............................................................................................65
4.3 Main Menu.................................................................................................................67
4.3.1 System Date [Day xx/xx/xxxx].................................................................................. 67
4.3.2 System Time [xx:xx:xx]................................................................................................ 67
4.4 Advanced menu ......................................................................................................68
4.4.1 Trusted Computing ..................................................................................................... 69
4.4.2 PCH Storage Configuration ...................................................................................... 71
4.4.3 Onboard Devices Configuration............................................................................. 73
4.4.4 ACPI Settings ................................................................................................................. 75
4.4.5 APM Configuration...................................................................................................... 76
4.4.6 SMART Settings............................................................................................................. 77
4.4.7 NCT6116D Super IO Configuration........................................................................ 77
4.4.8 NCT6116D HW Monitor ............................................................................................. 79
4.4.9 Serial Port Console Redirection............................................................................... 79

PE200S Series 5
4.4.10 CPU Configuration....................................................................................................... 83
4.4.11 AMI Graphic Output Protocol Policy ..................................................................... 87
4.4.12 PCI Subsystem Settings ............................................................................................. 87
4.4.13 USB Configuration ....................................................................................................... 88
4.4.14 Network Stack Configuration .................................................................................. 90
4.4.15 SDIO Configuration ..................................................................................................... 91
4.4.16 Platform Trust Technology ........................................................................................ 91
4.4.17 Security Configuration............................................................................................... 92
4.4.18 Thermal............................................................................................................................ 92
4.5 Security .......................................................................................................................94
4.6 Boot menu.................................................................................................................97
4.7 Save & Exit menu.....................................................................................................101
4.8 Updating your BIOS................................................................................................102
4.8.1 ASUS CrashFree BIOS 3 utility.................................................................................. 102
4.8.2 ASUS EzFlash Utility..................................................................................................... 103
4.8.3 BUPDATER utility .......................................................................................................... 105
Appendix
Safety information.............................................................................................................108
Setting up your system............................................................................................................ 108
Care during use........................................................................................................................... 109
Regulatory notices ............................................................................................................110
ASUS contact information..............................................................................................115

6 PE200S Series
About this manual
This manual provides information about the hardware and software features
of your Edge Computer, organized through the following chapters:
Chapter 1: Getting to know your Edge Computer
This chapter details the hardware components of your Edge Computer.
Chapter 2: Using your Edge Computer
This chapter provides you with information on using your Edge
Computer.
Chapter 3: Upgrading your Edge Computer
This chapter provides you with information on how to upgrade the
memory modules, wireless modules, and hard disk drive / solid state
drive of your Edge Computer.
Chapter 4: BIOS Setup
This chapter tells how to change system settings through the BIOS
Setup menus. Detailed descriptions of the BIOS parameters are also
provided.
Appendix
This section includes notices and safety statements your Edge
Computer.

PE200S Series 7
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that can
help complete tasks.
WARNING! This message contains important information that must be
followed to keep you safe while performing certain tasks and prevent
damage to your Edge Computer's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer to in this manual.

8 PE200S Series
Package contents

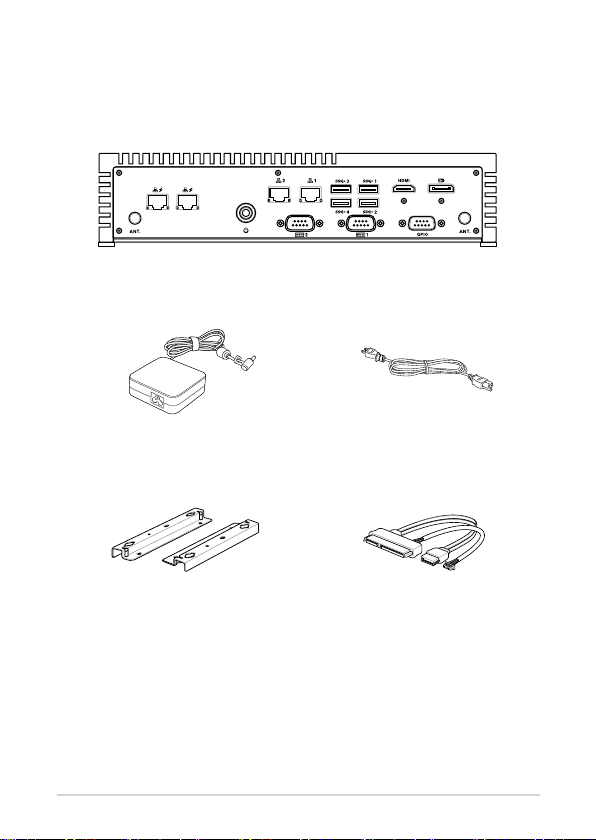

Your Edge Computer package contains the following items:
PE200S Series
AC power adapter* Power cord*
Wall mount kit SATA and power cable

PE200S Series 9
NOTE:
• *Thebundledpoweradaptermayvarybymodelandterritories.
• Somebundledaccessoriesmayvarywithdierentmodels.For
details on these accessories, refer to their respective user manuals.
• Thedeviceillustrationisforreferenceonly.Actualproduct
specications may vary with models.
• Ifthedeviceoritscomponentsfailormalfunctionduringnormal
and proper use within the warranty period, bring the warranty
card to the ASUS Service Center for replacement of the defective
components.

10 PE200S Series

1
Getting to know your Edge
Computer

12 PE200S Series
1.1 Features

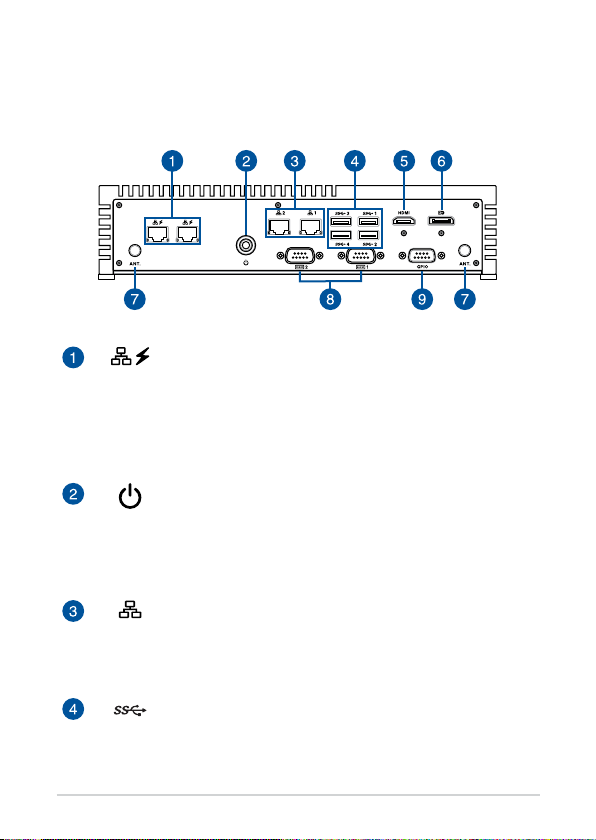

1.1.1 Front view
LAN port with PoE (on selected models)
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for 10/100/1000 Mbps connection to a local
network, and supports Power over Ethernet (PoE). The PoE
LAN module supports up to 15W per port for powering
and complies with IEEE802.3af and CSMA/CD standards
Power button
The power button allows you to turn the Edge Computer
onoro.YoucanusethepowerbuttontoputyourEdge
Computer to sleep mode or press it for four (4) seconds to
force shutdown your Edge Computer.
LAN port
The Intel I210-AT Gigabit Ethernet controllers with 8-pin
RJ-45 LAN port supports a standard Ethernet cable for
connection to a local network.
USB 3.2 Gen 1 port
The USB 3.2 Gen 1 (Universal Serial Bus) port provides a
transfer rate up to 5 Gbit/s.

PE200S Series 13
HDMI port
The integrated 19-pin HDMI (High Denition Multimedia
Interface) 1.4b port with a receptacle connector can
support resolutions up to 3840 x 2160 @ 30 Hz on external
display devices.
Dual-mode DisplayPort
The 20-pin DisplayPort 1.2 port can support resolutions up
to 4096 x 2160 @ 60 Hz on external display devices, and
supports DVI or HDMI adapaters.
Antenna hole
The antenna hole allows you to connect a wireless
antenna to enhance wireless signal reception.
Serial (COM) connector
The 9-pin RS232/422/485 serial (COM) connector allows
you to connect devices that have serial ports such as bar
code scanner, modem, or printers. Please refer to the
tablebelowforthepindenitionsofthedierentCOM
connectors.
12345
6789
Pin RS-232 RS-422 RS485
1DCD# TX- D-
2RXD TX+ D
3TXD RX+ NA
4DTR RX- NA
5GND GND GND
6DSR NA NA
7RTS NA NA
8CTS NA NA
9RI NA NA

14 PE200S Series
GPIO connector
The 9-pin GPIO (General-purpose Input/Output)
connector allows you to program it for input or output
use, such as lighting control, door control or alarm control.
Please refer to the table below for the pin denition of the
GPIO connector.
Pin GPIO
1DIO_0
2DIO_4
3DIO_1
4DIO_5
5DIO_2
6DIO_6
7DIO_3
8DIO_7
9GND
54321
9876

PE200S Series 15
Serial (COM) connector (on selected models)
The 9-pin RS-232 serial (COM) connector allows you to
connect devices that have serial ports such as bar code
scanner, modem, or printers. Please refer to the table
below for the pin denition of the COM connector.
1.1.2 Rear view
USB 2.0 port (on selected models)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
ash disk drives, external HDDs, speakers, cameras and
printers.
12345
6789
Pin RS-232
1DCD#
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI

16 PE200S Series
Microphone
The built-in microphone can be used for video
conferencing, voice narrations, or simple audio recording.
Power input
The supplied terminal block power adapter converts AC
power to DC power for use with this jack. Power supplied
through this jack supplies power to the Edge Computer.
WARNING! The power adapter may become warm to
hot when in use. Do not cover the adapter and keep
it away from your body.
Antenna hole
The antenna hole allows you to connect a wireless
antenna to enhance wireless signal reception.
Headphone jack
This port allows you to connect amplied speakers or
headphones.

PE200S Series 17
1.2 Motherboard Overview

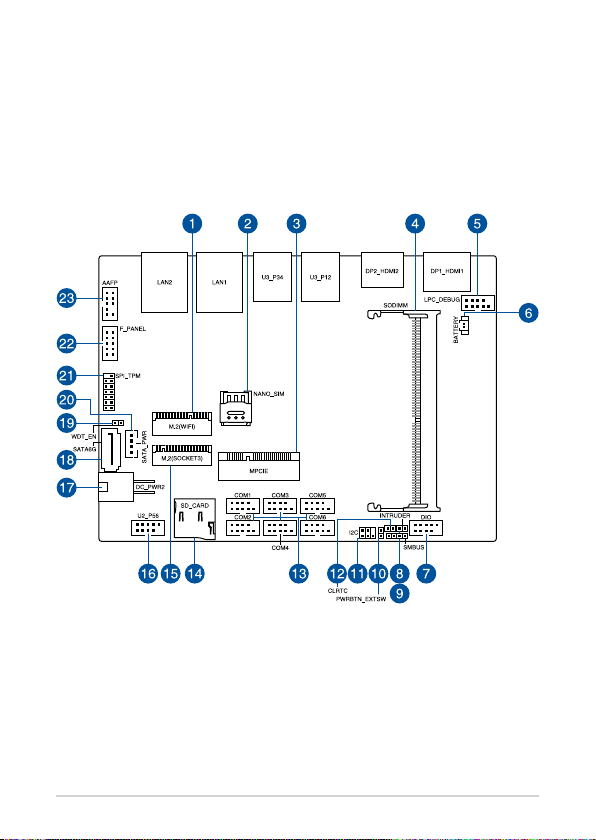

1.2.1 Motherboard layout
The PE200S Series features a motherboard with a 3.5”dimension (146mm x
105mm). Please refer to the table on the next page for the page numbers of
the numbered items.

18 PE200S Series
Layout contents Page
1. M.2 Wi-Fi slot 24
2. Nano SIM Card slot 24
3. Mini PCIe slot 23
4. DIMM slot 19
5. Low Pin Count connector 26
6. Battery connector 26
7. GPIO connector 27
8. Chassis Intrusion connector 31
9. System Management Bus connector 27
10. Power button connector 25
11. I2C connector 28
12. Clear RTC RAM jumper 20
13. Serial Port connector 29
14. Micro SD card slot 23
15. M.2 slot 25
16. USB 2.0 connector 30
17. DC-in 4-Pin Power connector 37
18. SATA 6Gb/s & SATA Power connector 22
19. DC-in 4-Pin Power connector 34
20. HW WDT Enable jumper 21
21. SPI TPM connector 28
22. System Panel connector 32
23. Line Out / Mic connector 33

PE200S Series 19
1.2.2 System memory

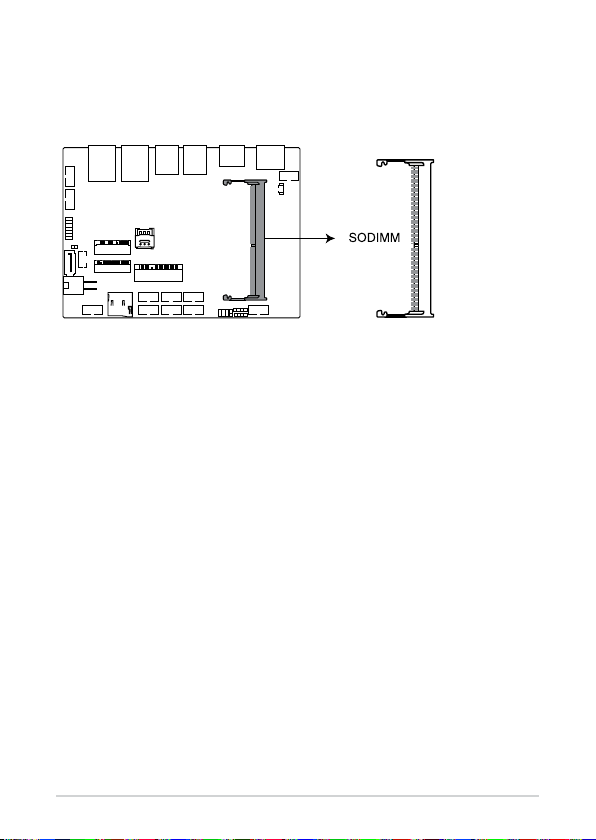

The motherboard comes with a Small Outline Dual Inline Memory Module
(SODIMM) slot designed for DDR3L memory modules.

20 PE200S Series
1.2.3 Onboard jumpers

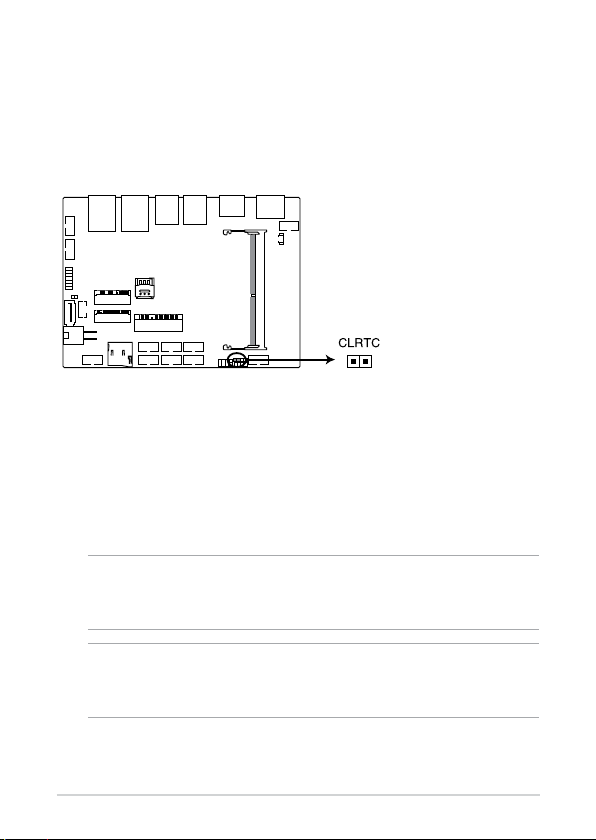

1. Clear RTC RAM jumper
The Clear RTC RAM jumper allows you to clear the Real Time Clock (RTC)
RAM in the CMOS, which contains the date, time, system passwords,
and system setup parameters.
To erase the RTC RAM:
1. Turn OFF the computer and unplug the power cord.
2. Short-circuit pin 1-2 with a metal object or jumper cap for about
5-10 seconds.
3. Plug the power cord and turn ON the computer.
4. Hold down the <Del> key during the boot process and enter
BIOS setup to re-enter data.
WARNING! DO NOT remove the jumper cap from its default position
except when clearing the RTC RAM. Removing the jumper cap will
cause system boot failure!
NOTE: If the steps above do not help, remove the onboard button cell
battery and move the jumper again to clear the CMOS RTC RAM data.
After clearing the CMOS, reinstall the button cell battery.
