ASUS DL101
User Manual

COPYRIGHT INFORMATION
No part of this manual, including the products and software described in it, may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK
COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL“AS IS”WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE
LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR
LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN
IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN
THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the owners’
benet, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE
ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES
THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2015 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’part or other liability, you are entitled to recover
damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages
from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real
property and tangible personal property; or any other actual and direct damages resulted from omission
or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each
product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or
infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and
your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST
YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL,
OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR
SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at http://support.asus.com
2

Table of Contents
Contents
Package contents
Product overview
Front View.......................................................................................................................... 5
Back View........................................................................................................................... 6
Safety notices................................................................................................................... 8
Getting started
Determining door status.............................................................................................. 9
Preparing your door ...................................................................................................... 10
Installing your ASUS DL101 ........................................................................................ 13
Connecting to your HG 100........................................................................................ 19
Unlocking the ASUS DL101......................................................................................... 19
Locking the ASUS DL101 ............................................................................................. 21
Programming the ASUS DL101 ................................................................................. 22
Resetting to factory settings ...................................................................................... 26
Tips and FAQs
Drilling template (70 mm lockbolt)
Drilling template (60 mm lockbolt)
3

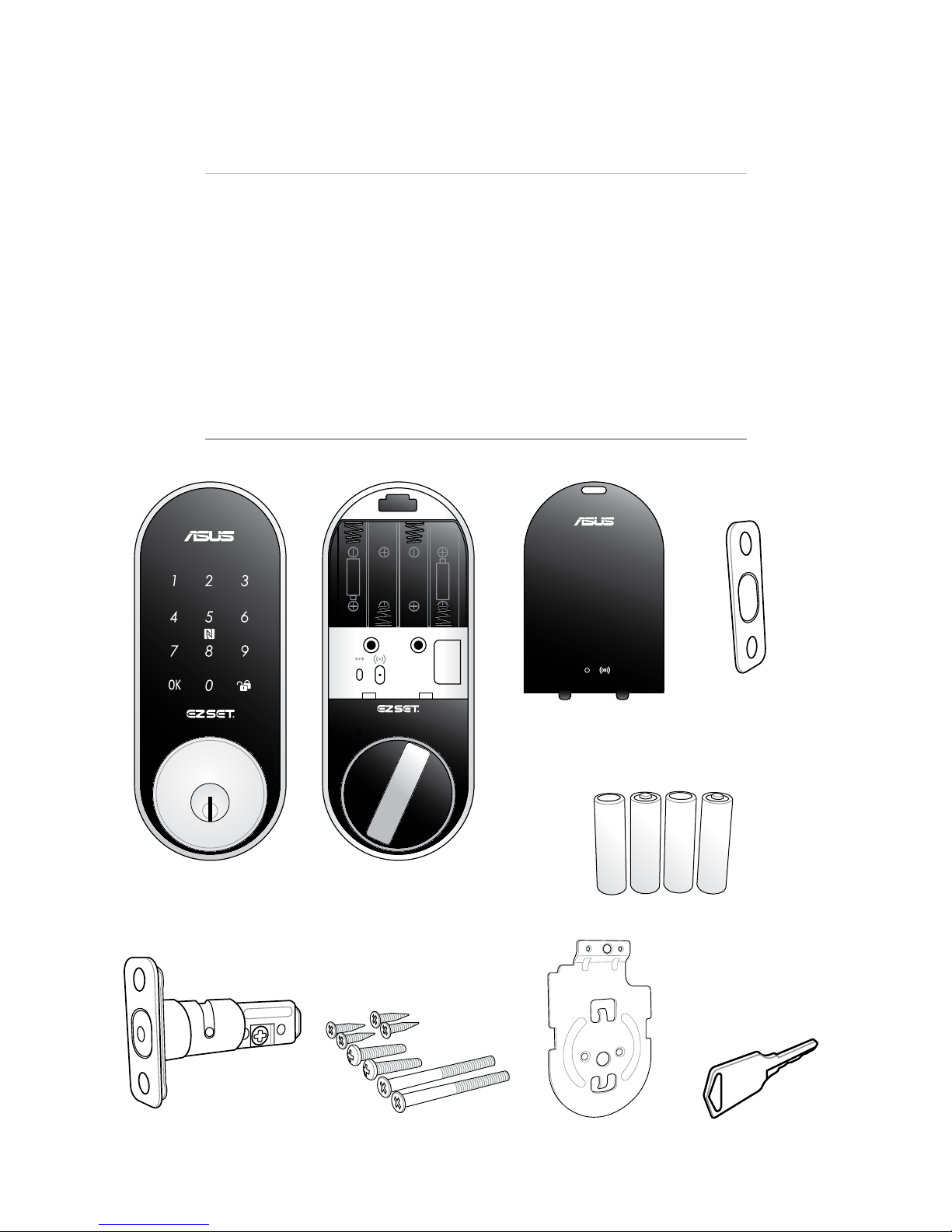

Package contents
NOTE:
• Ifanyofthefollowingitemsisdamagedor
missing, contact your retailer.
• Theillustrateditemsbelowareforreference
only.
• Specicationssubjecttochangewithoutnotice.
ASUS DL101
interior unit
ASUS DL101
exterior unit
ASUS DL101
interior unit cover
Mounting plate
Strike plate
Key
Four 1.5V AA batteries (optional)
Deadbolt Bag of screws
OPEN
4

Product overview
Front View
Keyhole
Touchscreen panel
NOTE: Use your palm to touch the touchscreen
panel, or place your nger on the NFC logo for at
least 1 second to activate the keypad.
5

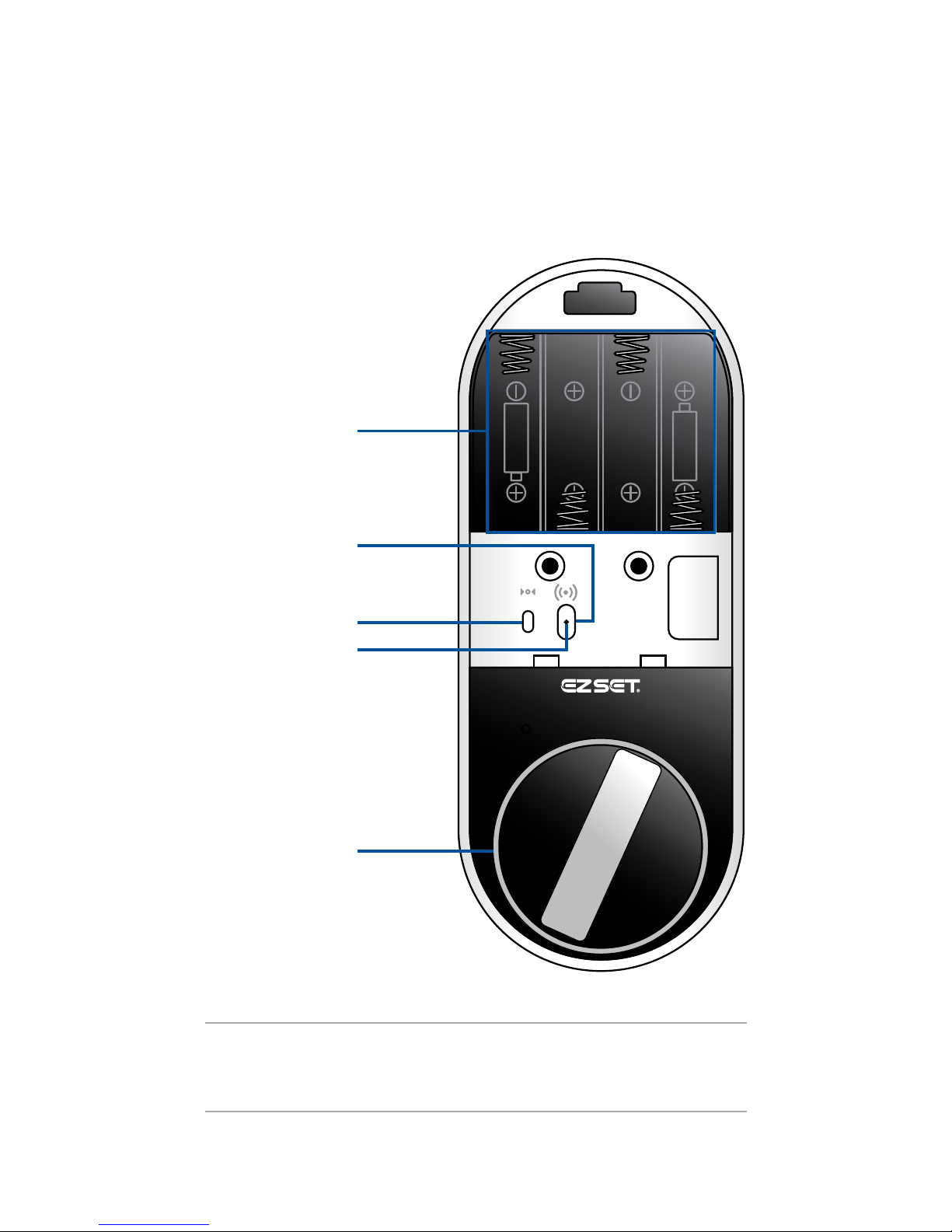

Back View
Thumbturn lever
LED status indicator
Join button
Reset button
Battery compartment
NOTE: Refer to LED information section for more
details on the LED status indicator.
6

LED information
The LED status indicator helps identify the current status of
your ASUS DL101. Refer to the following table for details:
Color Status Description
Solid Blue
Battery inserted LED lights up for 2 seconds
Disconnected
with gateway
Press Join button for 5 seconds to reset
(LED lights up for 5 seconds)
Identifying
device
Use companion app to identify which
device is connected to the gateway
Blinking Blue Connected with
gateway
Press Join button for 1 second
(LED blinks for 5 seconds)
Blinking Red Low battery
warning Blinks for 5 seconds after unlocking
7

Safety notices
• Replace all batteries immediately when the low-battery
warning sounds.
• DO NOT mix old batteries with new batteries.
• DO NOT mix batteries from dierent brands.
• DO NOT mix alkaline and carbon-zinc batteries.
• Insert the batteries according to the correct polarity.
• DO NOT attempt to repair the product yourself.
• Change your codes regularly.
• Minimize the exposure to moisture including wet hands
and direct contact with liquids.
• Use soft, dry cloth to clean and avoid cleaning with
water, alcohol or other chemicals.
• DO NOT exert excessive force or use sharp objects on
the touchscreen panel.
8

Getting started

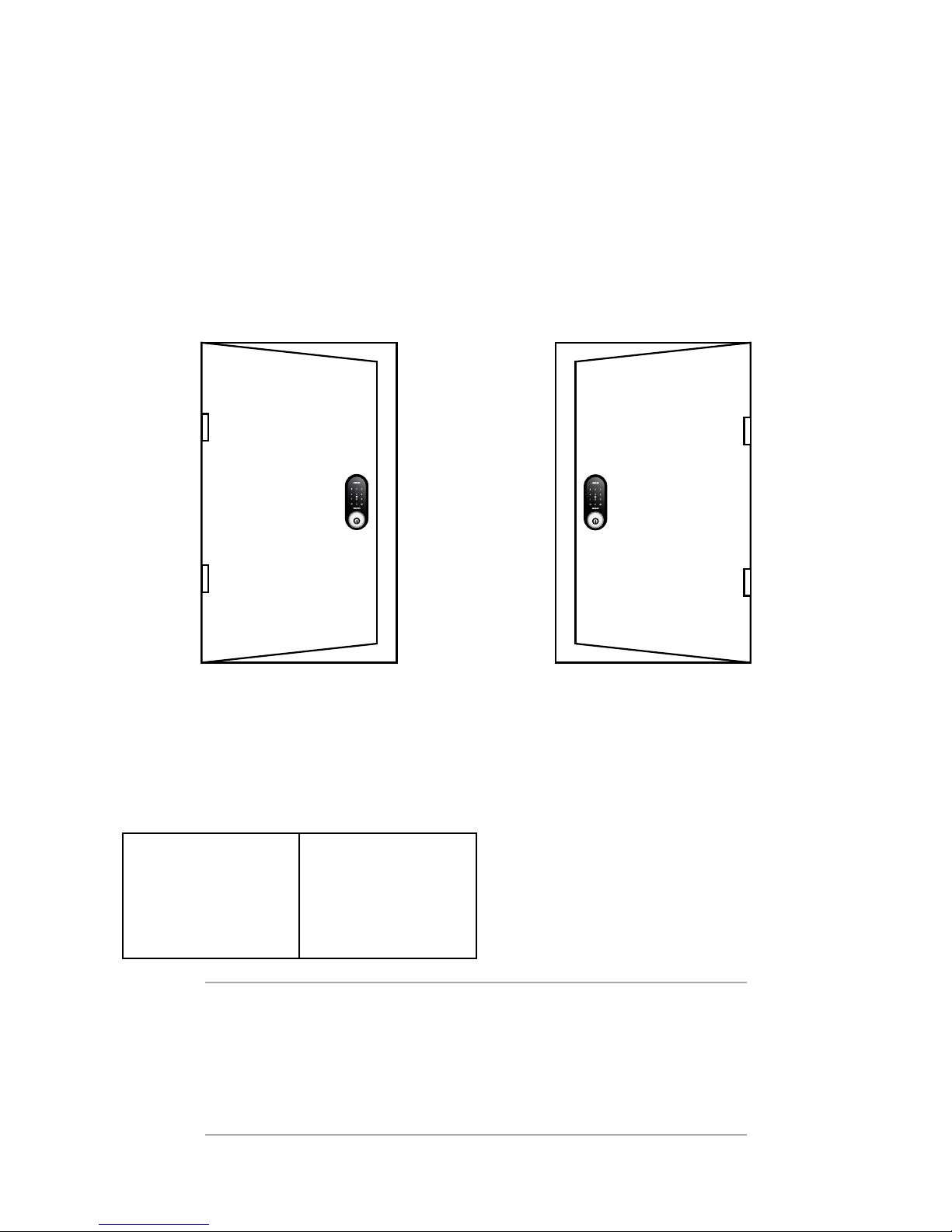

Determining door status
Take note of which direction your door will be opened before
installing your ASUS DL101, the orientation will be dierent
for left-handed doors and right-handed doors.
Left-handed door when
viewed from the outside.
Right-handed door when
viewed from the outside.
Setting lock direction
Enter master
password
(default: 0000)
then press <OK>
Press <0> then
press <OK>
NOTE: Set the lock direction after your ASUS DL101
is installed. When the ASUS DL101 is unlocked,
touch the panel, then press <OK> to enter
programming mode.
9

Preparing your door
NOTE: The installation steps shown in this manual is
for a left-handed door and for reference only.
1. Adjust the lockbolt
length to t your
door by rotating it
clockwise or anti-
clockwise.
2 - 3/4”(70mm)
2. Attach the drilling
template to the door
and mark it with a
pen.
10

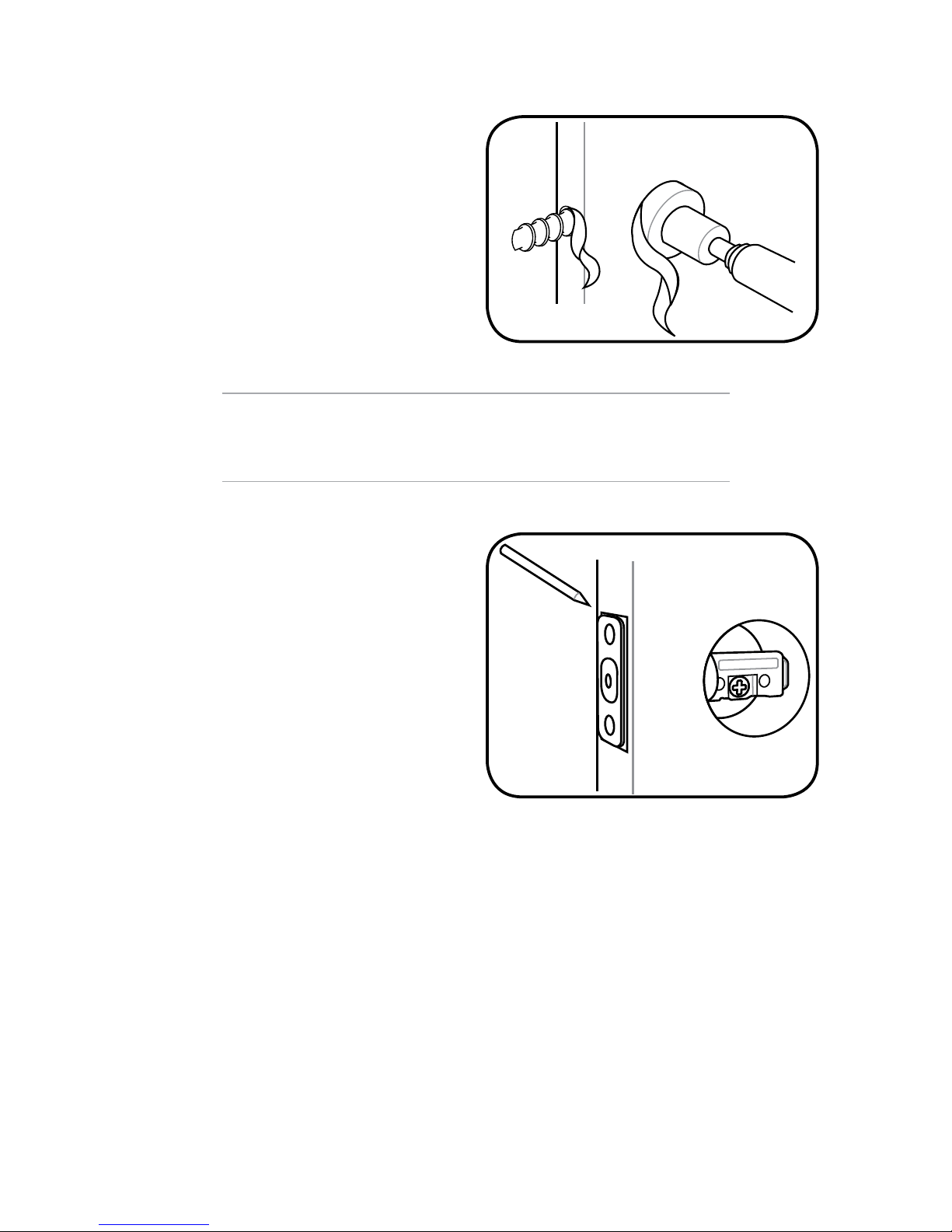

3. Drill the cross bore
hole and bore hole
as indicated on the
template.
NOTE: The center of the cross bore hole will vary
per thickness of the door.
4. Insert the deadbolt
into the door and
mark the face plate.
11

4. Chisel out a 4 mm
recess for the face
plate along the
marked lines.
5. Insert the deadbolt
again and close the
door, then mark the
door frame with the
lock bolt and the face
plate.
6. Chisel out a 2 mm
recess for the strike
plate along the
marked lines, then drill
a hole deep enough
for the locking bolt (at
least 2.5 mm).
12

Installing your ASUS DL101
NOTE: The installation steps shown in this manual is
for a left-handed door and for reference only.

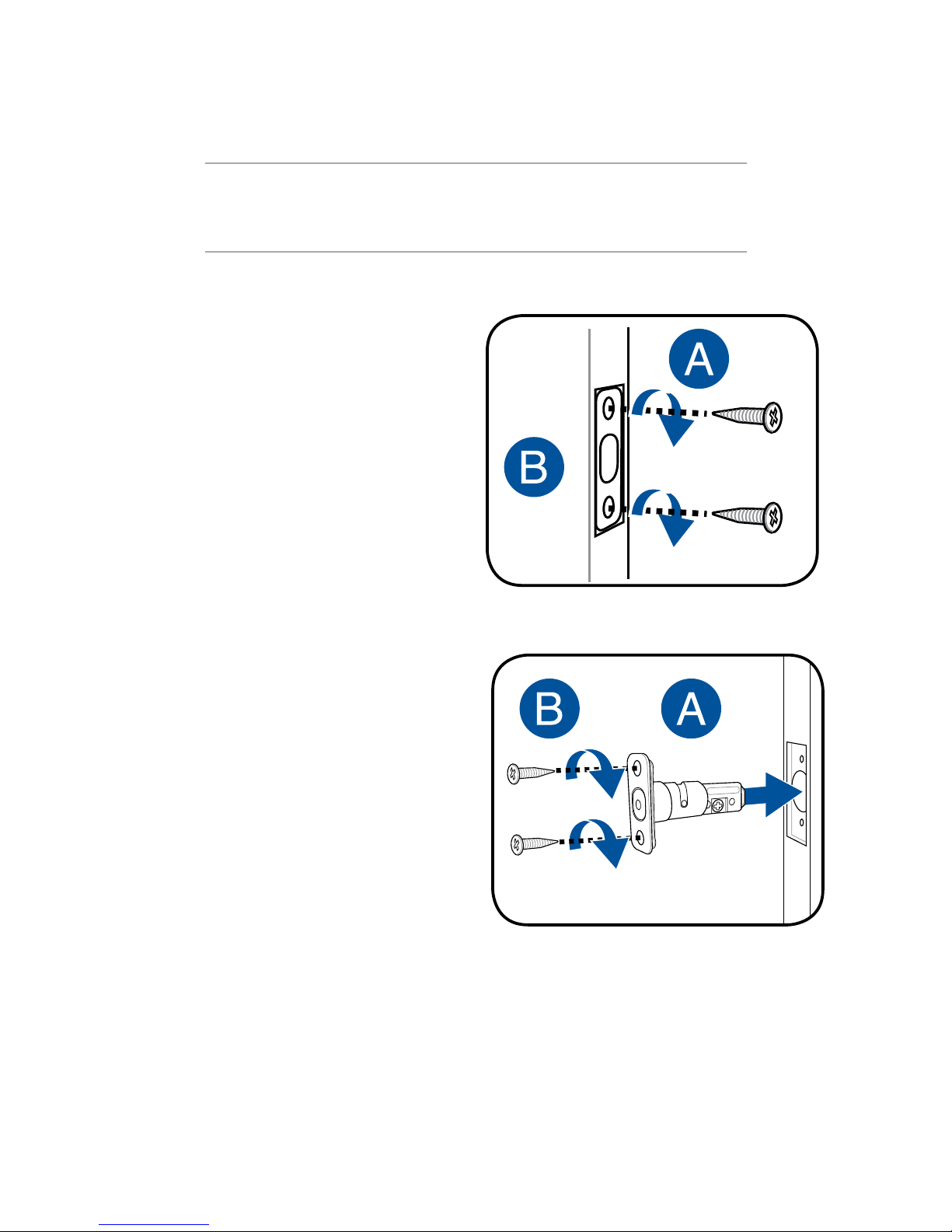

1. Insert the strike plate
into the door frame,
then secure it with the
bundled short screws.
2. Insert the deadbolt
into the door, then
secure it with the
bundled short screws.
13

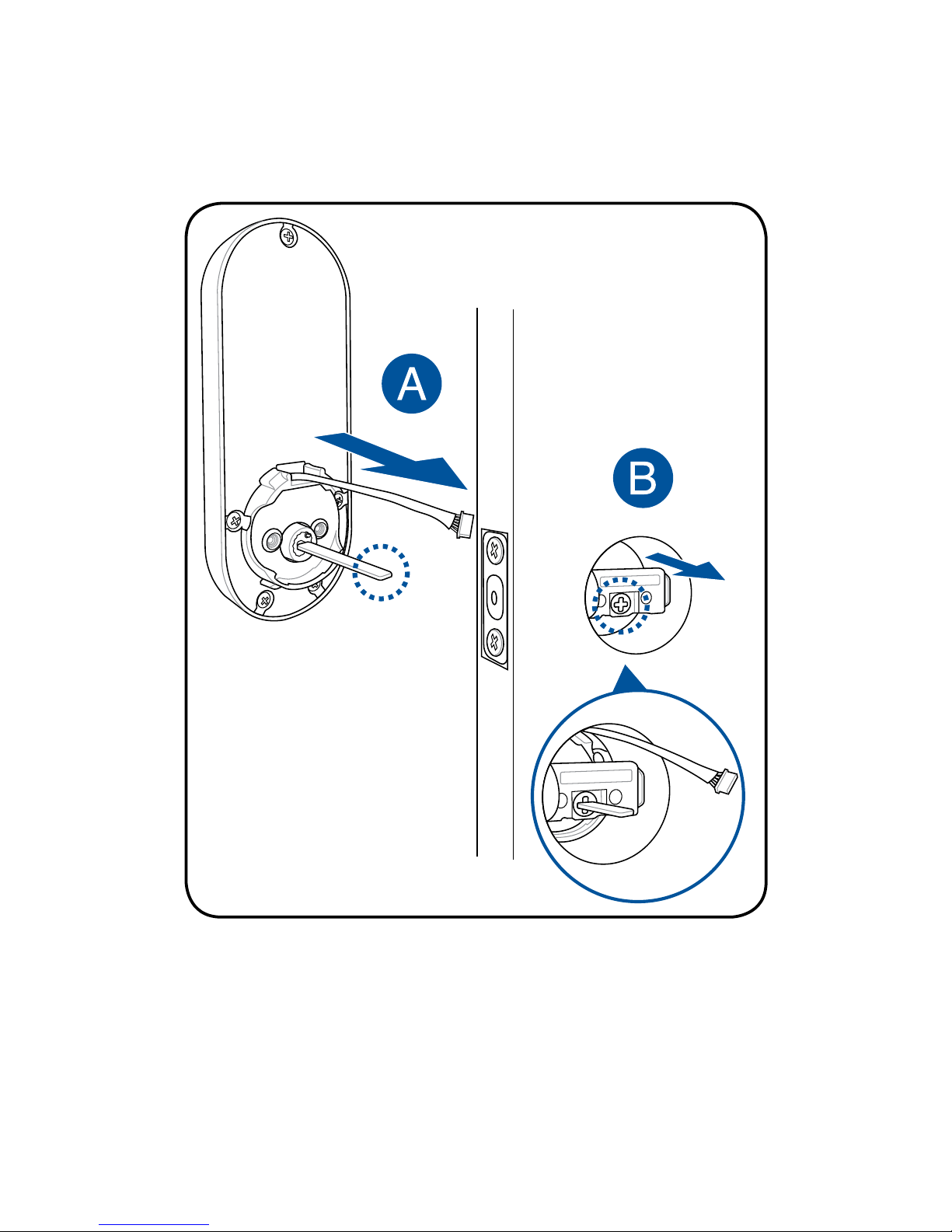

3. Align the blade and insert it into the cross shaped
opening on the deadbolt, then pass the cable through
the opening on top of the deadbolt.
14

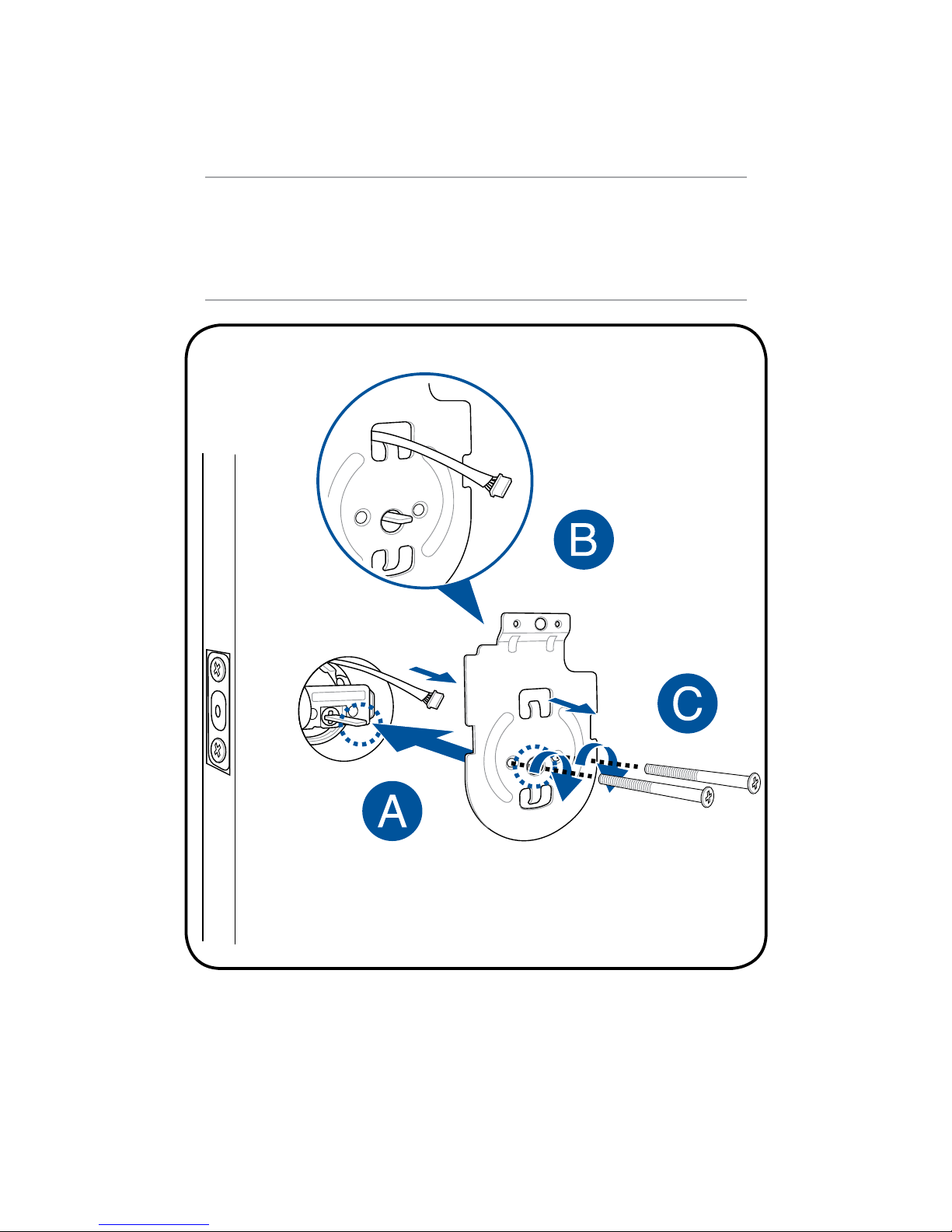

4. Align the mounting plate and install it, then secure the
mounting plate with the bundled long screws.
NOTE: Ensure to pass the blade through the blade
opening, and pass the cable through the cable
opening.
15

5. Locate the opening labeled OPEN on the cover, then
insert your key into the opening and tilt it downwards
to release the cover.
OPEN
16

6. Connect the cable of the exterior unit to the interior
unit, then align the interior unit and install it.
NOTE:
• Ensuretoconnectthecableinthecorrect
orientation (black to black and red to red).
• Ensurethatthethumbturnleverisintheopen
position.
OPEN
OPEN
Right-handed door
Left-handed door
17

7. Secure the interior unit with the bundled medium
screws, then install four 1.5V AA batteries and the cover.
NOTE: Ensure the batteries are installed in the
correct polarity.
18

Connecting to your ASUS Smart Home
1. Remove the cover on your interior unit.
2. Launch the ASUS Smart Home companion app.
3. Navigate to the Add Device page and tap Add Device.
4. Locate the Join button on your device.
5. Short press the Join button and follow the onscreen
instructions.
NOTE: Ensure that your device is within 50 meters
of your HG 100, and there are no obstructions such
as thick solid walls or other electronic devices that
may cause interference.
19

Unlocking the ASUS DL101
You can unlock the ASUS DL101 with a user password, one
time password (OTP), user card, key, or the companion app.
When an incorrect password has been entered for ve times,
the alarm in the ASUS DL101 will go o, the touchscreen
panel will be locked for two (2) minutes, and a warning
message will be sent to all the family members connected to
the HG 100.
The DL101 comes with an anti-lock picking mechanism,
when the micro sensors on either side of the cylinder is
pressed for 10 seconds, the alarm in the ASUS DL101 will go
o for thirty (30) seconds. Use an user password, user card, or
the companion app to disable the alarm.
NOTE: Refer to Setting up passwords section for
more details on setting a password.
20
