Iulock Iu-20 User manual

2-3/8" or 2-3/4"1"2-3/8"Lock Components1. Prepare the door and check dimensionsKeyKeypadLED indicator

Emergency Type-C backup

Exterior AssemblyPlastic boxStrike plateScrewLatchInterior AssemblyMounting ScrewsReset KeyConnectorInterior CoverRequired tools （not included）RulerPhilips head screwdriverHammerChiselUse template to mark holesDrill two holesCheck dimenslons4.Install the batteries and performthe door handing process5.Install the interior cover

feed power cable through hole in knob and guide spindle into knob.

Align the exterior keypad with the bore hole. Feed the power cable through latch.The spindle on the exterior keypad should be aligned with the hole in the center of the latch. Insert the spindle through this hole as you press the exterior keypad against the door.

If the spindle holes of the latch are not aligned, repeat the 2-3/8" and 2-3/4" positions. This will automatically align the latch spindle holes.Drill 1'' diameter hole for latchDrill 2-1/8'' diameter holeTemplateBacksetmust match lock (2-3/8'' or 2-3/4'')2.Install the latch and strike plateInstall latchInstall strike plate3.Install the exterior keypad and the interior assemblySetting latch（60MM or 70MM）Install the exterior keypadInstall the interior assembly Pull out the power cable 2-3/4"+-+-+-+-2-1/8''IULOCKIU-20 SMART DOOR KNOB Installation and User GuideFeatures. two ways to access: code and key. -22 F to +176 F temperature range. Low power consumption, 4 AA for 2 Years Battery Life or 20,000 times unlock . Backlit keypad for use in low light environments. 1 master code and 50 user codes . Passage mode for hassle-free entry. Built-in disguise feature to protect your codes from prying eyes. Low battery warning indication Programming guideTo delete all user codes, including the master code, follow the instructions below:1. Use a screwdriver to remove the screws from the interior cover.2. Remove the cover and find the reset button located on the battery pack.3. Press and hold the reset button for 7 seconds until long beep are heard. The master passcode will return to the manufacturer default code '123456'.Restore Factory Settings7SKeypadCheck bottonLED indicatorKey

Pay attention toon the spindle "THIS SIDE UP”

Do not pull the power cable too hard

THIS SIDE UP

After tightening the 2 fixing screws, the knob should be easily turned by hand. After your hand leaves the inside knob, the inside knob should easily return to the original position. If not, please re-adjust the position of the inside knob and tighten the screw.

M4X10M4X40M4X20 Mobile remote codeThe code is generated by the website. You can set the unlock times or unlock time periods on the website page. If it exceeds the set number of times or time period, it will become invalid automatically. You do not need to program locks. Therefore, you can remotely authorize this remote code to your relatives, friends, neighbors, hourly workers, classmates or employees to enter your home, room or office.Please visit or scan the QR code below to access the website.mylock.iulock.com1. Register account2. Add lock3. Activate your lock4. Use remote codeFor remote code instructions , please visit www.iulock.comV3.8 Indicator light signals and beepPasscode and Passcode Disguise

The color of the light indicates & beep ,the status of the lock.

. a correct master passcode or user passcode was entered ,one long beep. the programming process is complete ,one long beep. an incorrect master passcode or user passcode was entered,three short beep . there was an error in programming, three short beep. red blinking and beep after keypad backlit off indicates critically low batteryGreenRedUnlock with passcodeUnlock with key

ENTER

PRESS

master code or user code

Green and one long beep Red and three short beeps

Code correct, you can turn the knob to open the door immediately, and it will be automatically locked later (the automatic locking time depends on the setting of the automatic locking timer, the default is 4 seconds).

The code is incorrect, please re-enter the correct code and press the check button to confirm

Insert the key and rotate the key. The first quarter turn should be very easy, then continue to turn the key to retract the latch and you may need to apply some force.Tips: Turning the handle with the other hand in the same direction while you are turning the key will make it easier to open.Note: Because the knob is relative heavy and the mechanical key of this electronic door knob is completely independent, so using the key requires a little more force than the common mechanical lock.Immediate LockPress the check button 4 times in a row at any time and the door will be immediately locked, which overrides any other working modes.. The master code MUST EXIST and can be modified, but cannot be deleted. . The lock comes preset with default master passcode 123456.. Used to put the lock in programming mode.. Can unlock the lock.. Must be different from all of the User Codes currently in the lock. If you forget the master passcode, you may reset the lock to factory settings, which restores the default master passcode. Please see Restore Factory Settings. . Make sure to set a new master code which can be1-15 digits long as soon as you finish installing the lock.Master passcodePasscode DisguiseUser passcode User codes can be added, modified, deleted.. Can be 1-15 digits long.. The lock comes preset with no user codes.. Used to unlock the lock.. Must be different from the master passcode and other user passcodes.. Up to 50 possible user codes can be stored in the lock at one time.This function is an added security feature which is aimed at preventing passcode theft. With Passcode Disguise, you may enter up to 40 digits into the keypad. As long as the correct passcode sequence is entered, regardless of how many digits were entered before or afterwards, the lock will unlock.For example, if your user passcode is “112256“, you can successfully unlock the lock by entering “***112256***”(limit 40 digits).Change your master code immediately when you finish restoring the factory settings .Measure your door for a backset of the 2-3/8"or 2-3/4". If it is 2-3/4", adjust the latch as follows: Grasp the spring pin and move it from the 2-3/8" slot to 2-3/4" slot.

Lifetime Limited Mechanical and Finish Warranty and 1-Year Limited Electronics Warranty Subject to the terms and conditions of the warranty, IULOCK extends a lifetime limited mechanical and finish warranty and a one-year limited electronics warranty to the original consumer user (“Original User”) of our IULOCK brand product (“Product”) against defects in material and workmanship, as long as the Original User occupies the residential premises upon which the Product was originally installed.See answers www.iulock.com for specific warranty details and limitationsWarrantyImportant Safeguards 1. Read all instructions in their entirety. 2. Familiarize yourself with all warning and caution statements. 3. Remind all family members of safety precautions. 4. Protect your user passcode and master passcode. 5. Dispose of used batteries according to local laws and regulations.This Manufacturer advises that no lock can provide complete security by itself. This lock maybe defeated by forcible or technical means. or evaded by entry elsewhere on the property. No lock can substitute for caution, awareness of your environment, and common sense. Builder's hardware is available in multiple performance grades to suit the application. In order to enhance security and reduce risk, you should consult a qualified locksmith or other security professional.WARNING:I cannot insert the spindle into the latch hole, because of the 2 sides of the spindle hole of the latch are not aligned?Let the hole parts move a few times in the 2-3/8 and 2-3/4 positions and the spindle holes of the latch will automatically align.Why is it beeping after keypad light off?The battery may be low. Please replace the battery.The lock doesn't work?Try replacing the battery or using the backup battery. If the lock still does not work, contact customer support.Why can't I open the door?You may be waiting too long to open the door. After entering a code, turn the handle to open the door while the lock LED indicator light is green. Once the LED indicator light is off, the lock will return to locked position immediately.Why I can open without passcode?You maybe active the passage mode, use master code access will turn off this function .If you just installed it, make sure the "THIS SIDE UP" on the spindle is facing up (ceiling).I forgot all my codes.The lock must undergo a hard reset in order to set the master code back to default and erase all other codes. In order to perform a hard reset,please refer to the above “Restore Factory Settings”. If none of the above information resolves your issue, please visit our website at: www.iulock.com TroubleshootingTemplatewww.iulock.com24hr online serviceΦ1inch1-3/8inch to2-1/2inch2-3/8inch2-3/4inchΦ2inchProgramming»If you make a mistake during programming,press the check button repeatedly until the keypad lights up. Then start over.

PASSAGE

BEEPER

ADVANCED

PASSCODEPASSAGE

The automatic lock time unit is seconds.Minimum is 2 seconds.Maximum is 43200 seconds (12 hours). Default is 4 seconds.

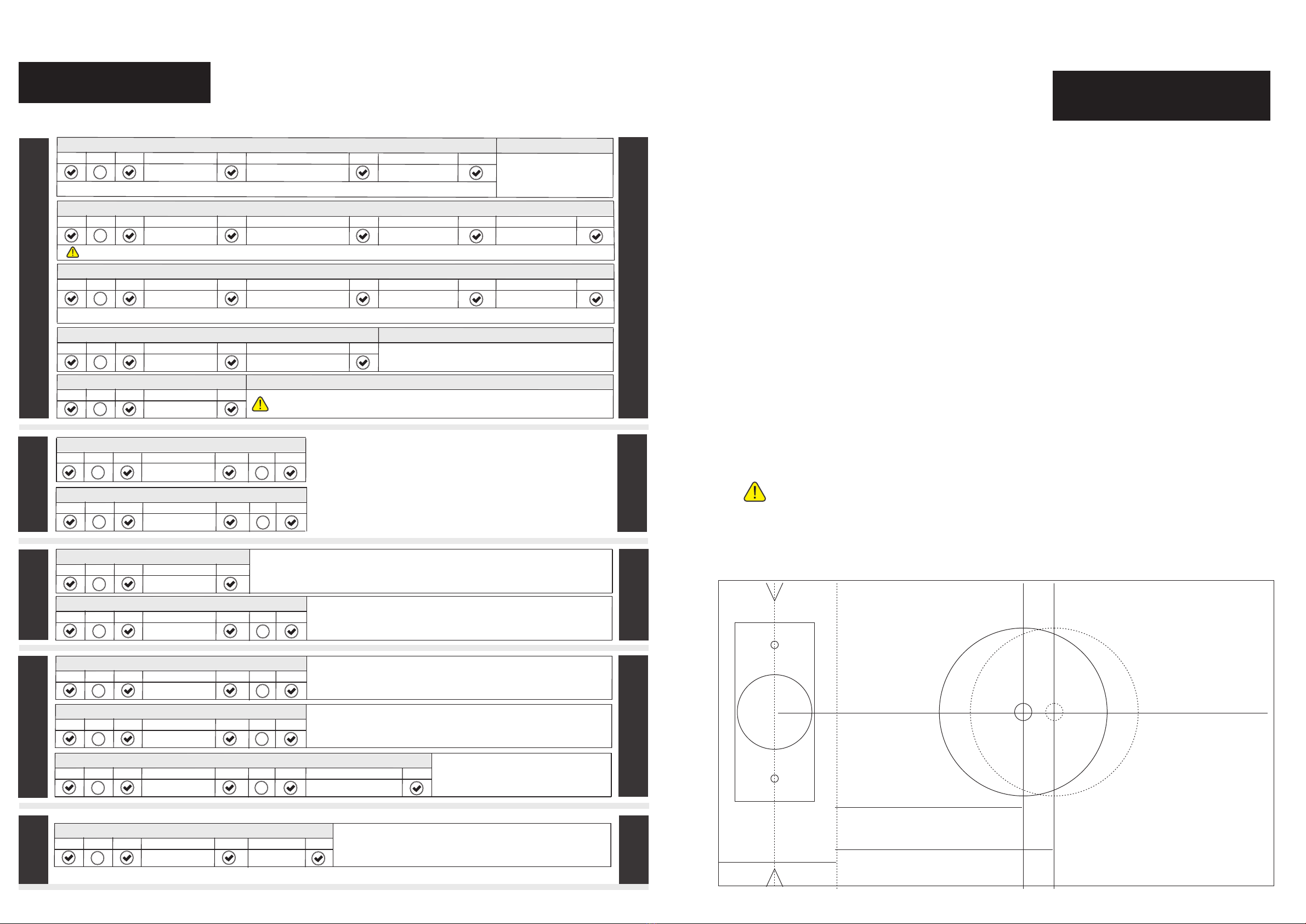

Note : The master code MUST EXIST in the lock and cannot be deleted, but can ONLY be changed. ADD USER PASSCODENote : The New User Passcode must be different from all of the Passcodes currently in the lock.

PressPressPressPress

Press

EnterEnterEnter same

Master passcode

New user passcode

Press

CHANGE MASTER PASSCODE

PressPressPressPress

Press

EnterEnterEnter same

Master passcode

Press

master passcode

Enter same

New master passcodeNew master passcode

Press

CHANGE USER PASSCODENote : The New user passcode must be different from all of the passcodes currently in the lock.

PressPressPressPress

Press

EnterEnterEnter same

Master passcode

Press

Unwanted user passcode

Enter

New user passcodeNew user passcode

Press

DELETE A USER PASSCODE

PressPressPressPress

Press

Enter

Master passcode

Unwanted user passcode

Enter

DELETE ALL USER PASSCODES

PressPressPressPress

Enter

Master passcode

Note : The master code cannot be deleted, but can ONLY be changed. DISABLE BEEPERENABLE AUDIOENABLE BEEPER

PressPressPressPress

Enter

Master passcode

PressPress

PressPressPressPress

Enter

Master passcode

PressPress

ENABLE AUDIOAUTO-LOCK MODE

PressPressPressPress

Enter

Master passcode

PressPress

ENABLE AUDIOADVANCED PASSAGE MODE

PressPressPressPress

Enter

Master passcode

PressPress

ENABLE AUDIOMANUAL-LOCK MODE

PressPressPressPress

Enter

Master passcode

PressPress

00002

ENABLE AUDIOSET AUTO-LOCK TIMER

PressPressPress

Press

Enter

Master passcode

PressPress

ENABLE EASY PASSAGE MODE

PressPressPressPress

Enter

Master passcode

Enter

Press

Auto-lock timer

In MANUAL LOCK MODE, the auto-lock will turn off.After unlocking the door with a passcode or fingerprint, it will remain unlocked until any button is pressed.In AUTO-LOCK MODE, the door will automatically lock after each unlocking, the auto-lock time depends on the setting of the auto-lock timer.* Press the check button 4 times in a row, the door will be immediately locked, which overrides any working modes.With EASY PASSAGE MODE active, the door will stay unlocked. Press any button to turn off this function when it is no longer needed.With ADVANCED PASSAGE MODE active,open the door by twisting door handle directely. Turn off this mode only by entering master code and check key.* Press the check button 4 times in a row , the door will be immediately locked, which overrides any working modes.The activate code is generated by the website,(www.mylock.iulock.com)Deactivate remote code function when the activate code is 0.ENABLE AUDIOACTIVATE REMOTE CODE FEATURE

PressPressPress

Press

Enter

Master passcode

Enter

Press

Activate code

PASSCODE

ADVANCED

BEEPER

REMOTE
