Yale Assure Lock 2 Touch User manual

P/N YRD420-KD-F Rev A
Assure Lock 2 Touch
Keyed YRD420F
Trusted Every Day
Download Yale Access App
Create an account if you don’t already have
one, and tap “Set Up a Device”.
Note: If you have an account with the August App, use the same username and
password for the Yale Access App.
Install and Set Up Your Lock
Follow the step-by-step Installation and Setup Guide in this manual, or
refer to the app installation guide with helpful videos.
Note: If you use the app, please tear off the Door Checker and the Marking
Template (pages 58) to use when prompted.
Use Your Lock
Unlock with your fingerprint, create permanent or temporary entry
codes, set up Auto-Lock and more.
ISL222500100

P/N YRD420-KD-F Rev A

3
P/N YRD420-KD-F Rev A
Contents
In the Box 4
Door Checker 5
Marking Templates 7
Installation and Setup Guide 9
Remove Existing Deadbolt 10
Check Door Measurements 11
Make or Adjust Holes 12
Install Deadbolt Latch 13
Install Exterior Keypad 14
Install Mounting Plate 15
Attach Wire Cable to Interior Lock 16
Install Interior Lock 17
Test Thumbturn and Key 18
Install Yale Smart Module (Optional) 19
Install DoorSense (Optional) 20
Install Batteries and Set Up with App 23
Set Up HomeKit (Optional, iOS Only) 24
Set Up Fingerprints and Entry Codes 25
Using Your Lock 26
Connecting to Your Lock 27
LED Alerts 28
Resetting Your Lock to Factory Defaults 29
Features 30
App Settings 31
Lock Operations Troubleshooting 33
Hardware Troubleshooting 35

4
P/N YRD420-KD-F Rev A

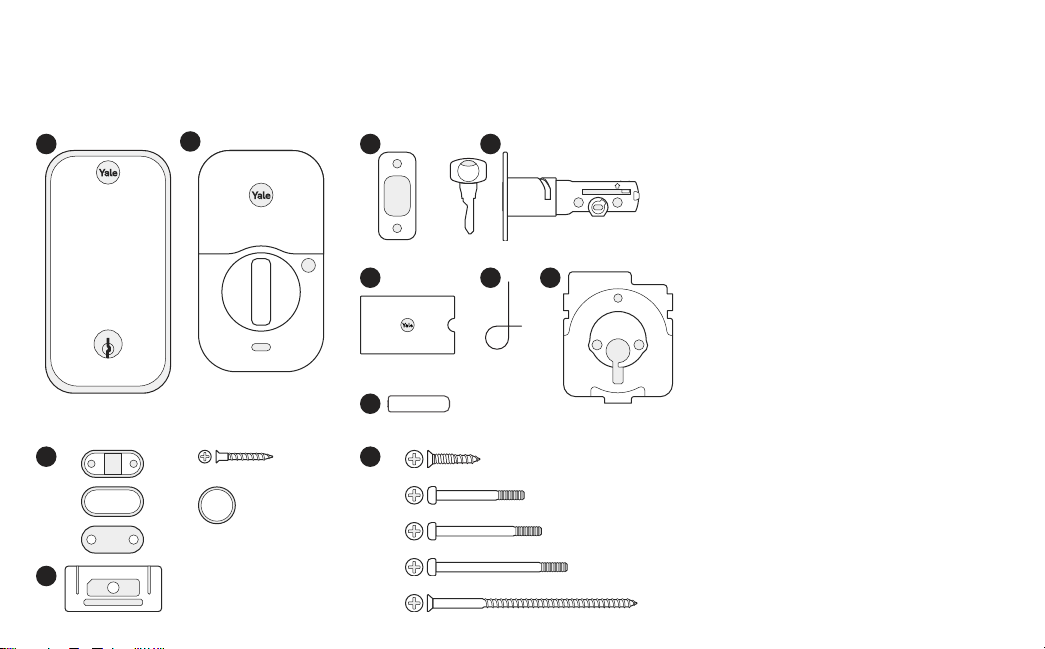

In the Box
Lock Hardware
b.
c.
d.
e.
X 4
X 4
X 2
X 2
X 2
X 2
X 2
Add-Ons
123
5 76
4
UP
1. Exterior Keypad
2. Interior Lock
3. Strike Plate
4. Adjustable Deadbolt & Key
5. Manual
6. Reset Pin
7. Mounting Plate
8. AA Batteries
9. Screws
a. Strike Plate and Deadbolt Screws
b. Teal Screw Set B
c. Black Screw Set C
d. Silver Screw Set D
e. Optional Security Strike Plate Screws
10. DoorSense
a. Housing
b. Cover
c. Mounting Tape
d. Screws
e. Flush Mount Cap
11. Smart Module
(Included with select models)
8
10 9
11
a. a.d.
e.b.
c.
AA

5
P/N YRD420-KD-F Rev A
Tear Along the Dotted Line
Door Checker Part 1
Measure Clearance Measure Door Thickness Measure Backset
A. 2” minimum clearance between top
of the door knob and center of deadbolt
hole.
B. 13/8” door thickness; use teal
(shortest) screws.
C. 13/8” - 13/4” door thickness;
use black (medium) screws.
D. 13/4” - 21/4” door thickness;
use silver (longest) screws.
E. 23/8” backset, use out of box latch
setting.
F. 23/4” backset, adjust latch setting
(Step 2, point 1 of this manual).
Greater than A B, C or D Equals E or F
Less than A Less than B or
greater than D
Doesn’t equal E or F
(Your door is not a match)
(Your door is not a match)
(Your door is not a match)
10 2 3 4 5
6
Door Checker Part 1
v
B A D
C E
v
v
See Reverse for Part 2
1/8 1/8 1/8 1/8 1/83/8 3/8 3/8 3/8 3/85/8 5/8 5/8 5/8 5/87/8 7/8 7/8 7/8 7/8
1/4 1/4 1/4 1/4 1/4
1/2
10 2 3 4 5
1/2 1/2 1/2 1/2
3/4 3/4 3/4 3/4 3/4
B A E
DC F
If printed from electronic file, Measure
ruler to check scale. Set print scale to 1:1.

6
P/N YRD420-KD-F Rev A
Tear Along the Dotted Line
Door Checker Part 2 See Reverse for Part 1
Measure Face Bore
Equals G or H
Less than G Less than I
G. 11/2” face bore diameter.
H. 21/8” face bore diameter.
Measure Edge Bore and Strike Pocket
I. 1” edge bore diameter;
1” strike pocket diameter and depth.
Equals I
Greater than IGreater than H
(Adjust diameter to G or H) (Adjust diameter to I)
(Your door is not a match)(Your door is not a match)
(Edge Bore)Door (Strike Pocket) Frame
Diameter Depth
Minimum strike pocket depth is 1”.
HI G
1/8 1/8 1/8 1/8 1/83/8 3/8 3/8 3/8 3/85/8 5/8 5/8 5/8 5/87/8 7/8 7/8 7/8 7/8
1/4 1/4 1/4 1/4 1/4
1/2
10 2 3 4 5
1/2 1/2 1/2 1/2
3/4 3/4 3/4 3/4 3/4
If printed from electronic file, Measure
ruler to check scale. Set print scale to 1:1.

7
P/N YRD420-KD-F Rev A
Tear Along the Dotted Line

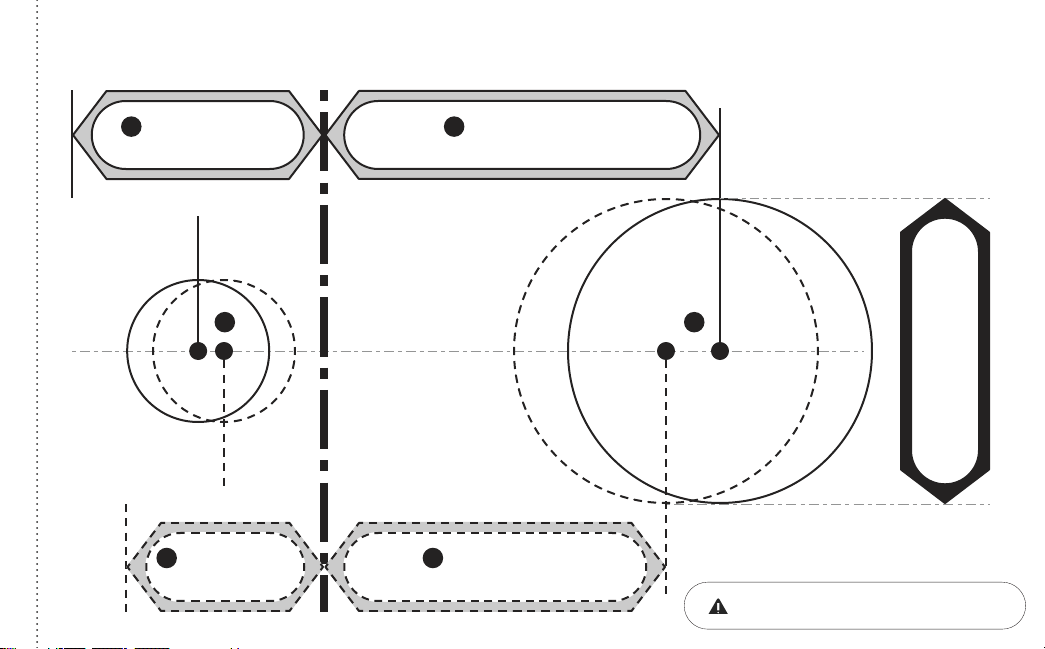

Marking Template for 21/8” (54mm) Face Bore
Center of
1” (25mm)
Edge Bore
Center of
1” (25mm)
Edge Bore
Centerline
Center of
21/8” (54mm)
Face Bore
Center of
21/8” (54mm)
Face Bore
I H
13/8” (35mm)
Door Thickness
B23/8” (60mm)
Backset
E
13/4” (44.5mm)
Door Thickness
C23/4” (70mm)
Backset
F
21/8”
If printed from electronic file, Measure
ruler to check scale. Set print scale to 1:1.

8
P/N YRD420-KD-F Rev A
Marking Template for 11/2” (38mm) Face Bore
Center of
1” (25mm)
Edge Bore
Center of
1” (25mm)
Edge Bore
Centerline
Center of
11/2” (38mm)
Face Bore
Center of
11/2” (38mm)
Face Bore
11/2”
I G
13/8” (35mm)
Door Thickness
B23/8” (60mm)
Backset
E
13/4” (44.5mm)
Door Thickness
C23/4” (70mm)
Backset
F
Tear Along the Dotted Line
If printed from electronic file, Measure
ruler to check scale. Set print scale to 1:1.

9
P/N YRD420-KD-F Rev A
Required Tools You Might Also Need
Failure to follow the Installation Guide precisely could result in damage to the product,
voiding the factory warranty, and could lead to failure of the product to provide access.
1. Phillips Head Screwdriver
2. Door Checker
(tear off pages 56 of this manual)
3. Tape Measure
4. Drill
5. Marking Template
(tear off pages 78 of this manual)
6. Pencil
7. Wood Mortise Chisel
8. Utility Knife
9. Level
10 2 3 4 5 6
Door Checker Part 1
v
B A D
C E
1 3
5
8
7
9
6
4
2
Installation and Setup Guide

10
P/N YRD420-KD-F Rev A
Frame Door
Keep your old deadbolt until your new lock has been successfully installed.
1a Remove Existing Deadbolt
If you have a new door, please proceed to step 1b.
If you have a deadbolt on your door, use the diagram to help you remove it.

11
P/N YRD420-KD-F Rev A
If you have confirmed that the existing holes are compatible with your new lock, please proceed to step 2 (skip step 1c).
If you need to make adjustments, go to
step 1c and find the closest match to each
aspect of your door on the Marking Template.
Tear off the Door Checker (pages 56) and follow the guidelines on both sides to
measure each aspect of your door and frame. There are some cases when existing
holes cannot be adjusted to be compatible.
Please do not drill any holes until you confirm that your door is compatible.
10 2 3 4 5 6
Door Checker Part 1
v
B A D
C E
10 2 3 4 5 6
Door Checker Part 2
H F G
1b Check Door Measurements
If your door doesn’t have holes, please proceed to step 1c.

12
P/N YRD420-KD-F Rev A
1c Make or Adjust Holes
Skip this step if you have confirmed that the existing holes are compatible (step 1b).
1. Tear off the Marking Template (pages 78), and choose the
preferred face bore diameter (2- 1/8” or 11/2”) on either side
of the template.
2. Tape the Marking Template onto the door as shown.
3. Check the door thickness. It should match either the shape
with solid outlines (13/4”), or the one with dashed outlines
(13/8”).
3a. Use solid lines as a template for 13/4” door thickness.
3b. Use dashed lines for 13/8” door thickness.
4. Choose your preferred backset. It should match either the
shape with solid outlines (23/4”), or the one with dashed
outlines (23/8”).
4a. Use solid lines as a template for 23/4” backset.
4b. Use dashed lines for 23/8” backset.
5. Drill holes in your door where marked.
6. On the door frame, align the center of the strike plate with the
center of the edge bore. Trace the strike plate, then chisel to the
depth of the strike plate so it sits flush with your door frame. Drill
the 1” diameter strike pocket with a minimum depth of 1”.
6
Frame Door
1
2
3a
4
3b
4a
4b
3

13
P/N YRD420-KD-F Rev A
1. Correct deadbolt length is based on the backset. Refer to measurements
Eand Fon the Door Checker (page 5) to verify backset.
2. Align strike plate with deadbolt latch.
2a. (Optional) Security screws can be used in place of
the small strike plate screws.
3. Make sure UP arrow on the deadbolt is facing upwards.
4. Deadbolt latch must be in an unlocked position.
Note: If the deadbolt latch is extended, use a small flathead
screwdriver to rotate slot until deadbolt latch is retracted.
x 2 for Deadbolt Latch
x 2 for Strike Plate
(Actual size)
2 Install Deadbolt Latch
2-3/4 2-3/8 UP
23/8” Backset
(Out of box)
E
2-3/4 2-3/8 UP
23/4” Backset
(To adjust, twist neck by holding the body stable)
F
2a
2
3
4
Minimum strike pocket depth is 1”.

14
P/N YRD420-KD-F Rev A
1
5
6
4
3 Install Exterior Keypad
3
Install your lock with the door open.
Do not close your door until all the steps are completed.
1. Refer to measurements G and H on the Door Checker (page 6) to measure
face bore hole. If the hole is less than 21/8” (H), remove adapter by
twisting it off the body of the lock.
Note: Removing the adapter might also help if your face bore and edge bore are of
irregular shape or are not properly aligned.
2. Remove the plastic cover from the keypad.
3. Make sure your deadbolt latch is in an unlocked position. Refer to
step 2, point 4 (page 13) for guidance on how to retract it, if needed.
4. Slide the tailpiece through the deadbolt latch slot.
5. Guide the wire cable under the deadbolt.
6. Slide the keypad in place, making sure it’s on the exterior
part of your door.

15
P/N YRD420-KD-F Rev A
1. Refer to measurements B, C, and Don the Door Checker (page 5) to select screws.
2. Route the wire cable into the designated slot in the mounting plate. You
may have to squeeze the cable slightly in order for it to pass through.
3. Guide posts of the mounting plate into the holes on the exterior keypad.
4. Slide tailpiece through the designated slot in the mounting plate.
5. Tighten screws with a screwdriver to secure
the mounting plate. As you tighten the
screws, make sure the mounting plate and
the keypad are straight.
x 2 Teal Screws (13/8” door thickness)
x 2 Black Screws (13/8” - 13/4” door thickness)
x 2 Silver Screws (13/4” - 21/4” door thickness)
B
2
3
4
5
C
D
4 Install Mounting Plate
With the mounting plate installed, ensure that the wire cable is
not pinched to prevent it from reducing your lock’s battery life.

16
P/N YRD420-KD-F Rev A
1. Remove battery cover by pulling it upwards off the body of the
interior lock.
2. Make sure the side of the cable end with the ridges and the
marked line faces outward.
3. Push cable into the designated slot until you hear a click.
2
1
3
5 Attach Wire Cable to Interior Lock

17
P/N YRD420-KD-F Rev A
1. Make sure the tailpiece slot is in horizontal position. Use the
thumbturn to adjust if needed.
2. Slide the tailpiece through the designated slot on the back of the
thumbturn.
3. Press the lock against the mounting plate, adjusting its position until
it clicks into place and the bottom of the lock is held in place.
4. Tighten the one pre-installed screw.
3
When fully tightened, lock should be flush to door.
6 Install Interior Lock
2
1
4

18
P/N YRD420-KD-F Rev A
If deadbolt latch does not lock or unlock with the key (from the outside) or the
thumbturn (from the inside):
• Ensure that the deadbolt latch is centered in the face bore hole;
• Ensure that the tailpiece is positioned horizontally and inserted through
deadbolt latch slot (step 3, point 3) into the thumbturn slot (step 6, point 2).
Smooth deadbolt latch operation will enhance your battery life.
7 Test Thumbturn and Key

19
P/N YRD420-KD-F Rev A
Batteries must not be installed when inserting or
removing Yale Smart Module.
8Install Yale Smart Module (Optional)
If your lock model does not include a Smart Module, please proceed to step 9a.
Insert Yale Smart Module into the designated slot at the top of the
body of the lock.
Note: If you purchased your module separately, check compatibility with
your Assure 2 Touch. See table below for the list of compatible modules.
AYRMODZWVUSA ZWave 500 series Module
AYRMODWF1USA Wi-Fi Module

20
P/N YRD420-KD-F Rev A
Surface mount is a quick and easy option to secure DoorSense on the inside
of your door frame.
Flush mount is installing DoorSense into the edge of the door frame. It
provides a cleaner look with more robust performance but requires drilling.
For surface mount instructions, please proceed to step 9b. For flush mount instructions, please proceed to step 9c.
9a Install DoorSense (Optional)
If you do not wish to install DoorSense, please proceed to step 10.
DoorSense is a magnetic sensor installed on your door frame that can keep track of when the door is opened and closed.
