1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC

6
1Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the
various components in the Notebook PC and how to use them. The following are major sections of this
User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order to
complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for spe-
cial situations.
TIP: Tips and useful information for
completing tasks.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
WARNING! Important information that
must be followed for safe operation.
IMPORTANT! Vital information that
must be followed to prevent damage
to data, components, or persons.
User’s Manual

7
Introducing the Notebook PC 1
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the
Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solu-
tion of nonabrasive detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT expose to or use near liq-
uids, rain, or moisture. DO NOT use
the modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
DO NOT expose to strong magnetic
or electrical fields.
DONOTexposetoextremetemperatures
above 50˚C (122˚F) or to direct sunlight.
Do not block the fan vents!
DO NOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with small
itemsthat may scratch orentertheNote-
book PC.
DO NOT leave the Notebook PC on
your lap or any part of the body while
the Notebook PC is turned ON or is
charging in order to prevent discom-
fort or injury from heat exposure.
DO NOT throw batteries in fires as
they may explode. Check local codes
for special battery disposal instruc-
tions.
DO NOT expose to extreme tempera-
tures (below 0˚C (32˚F), otherwise the
Notebook PC may not boot.
Safe Operating Temperatures: This
notebook PC should be used in envi-
ronments with ambient temperatures
between 0°C/32°F and 30°C/86°F.
30°C/86°F
0°C/32°F

8
1Introducing the Notebook PC
Transportation Precautions
To preparethe Notebook PCfor transport,you should turnit OFFanddisconnect
all external peripherals to prevent damage to the connectors.The hard disk
drive’s head retracts when the power is turned OFF to prevent scratching of the
hard disk surface during transport. Therefore, you should not transport the
Notebook PC while the power is still ON. Close the display panel and check
that it is latched securely in the closed position to protect the keyboard and
display panel.
Cover Your Notebook PC
Use a carrying case such as the one supplied with your Notebook PC to protect it from dirt, water,
shock, and scratches.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walk-
ing through security checks), and magnetic wands (handheld devices used on people
or individual items). You can send your Notebook PC and diskettes through airport X-
ray machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
NOTE: The surface glaze is easily dulled if not properly cared for. Be careful not to rub
or scrap the Notebook PC surfaces when transporting your Notebook PC.

9
Introducing the Notebook PC 1
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed
information on using your Notebook PC.
1. Install the battery pack
3. Open the Display Panel 4. Turn ON the Notebook PC

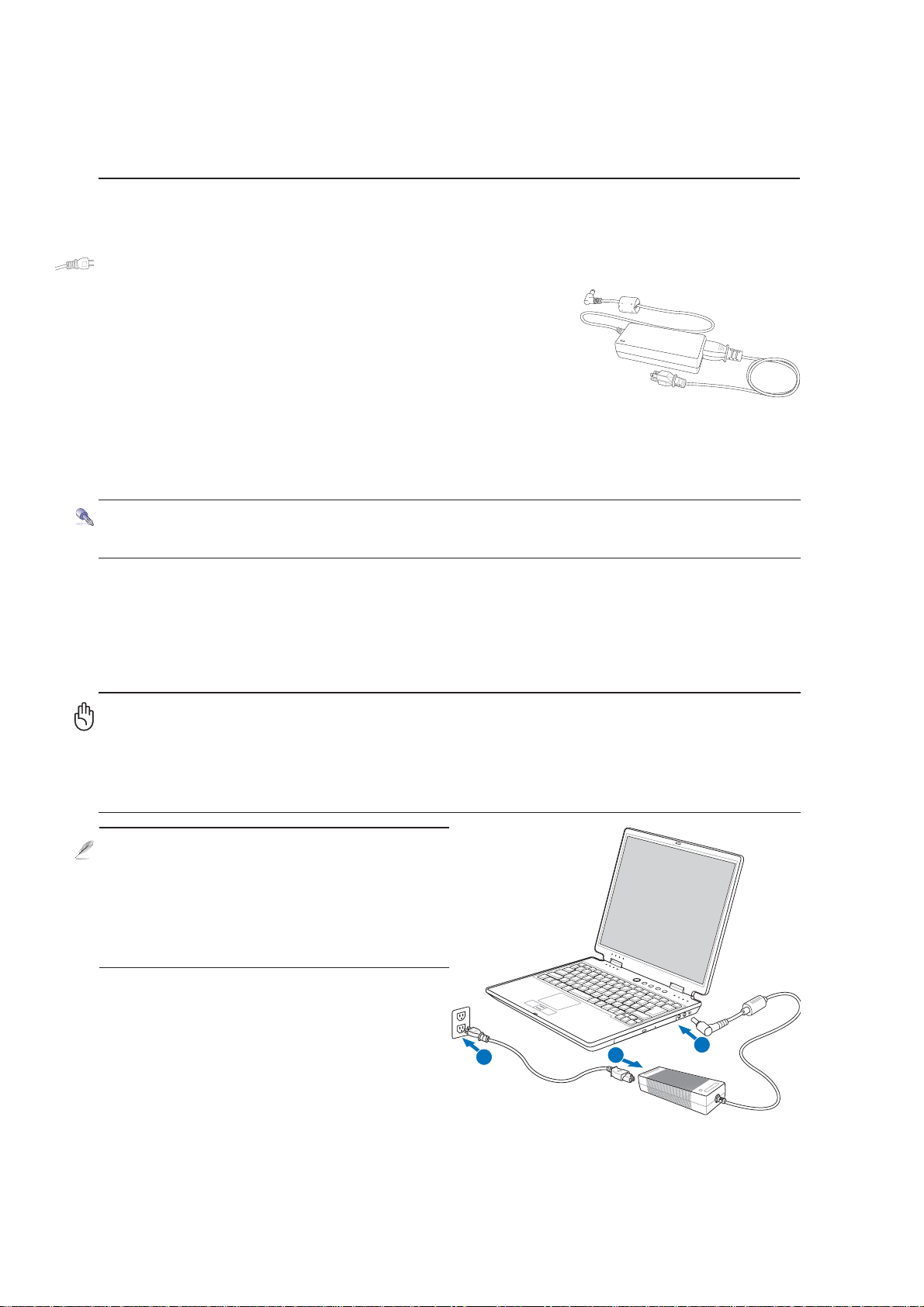

2.ConnecttheACPowerAdapter
1
13
2
WARNING! When opening, do not force
the display panel down to the table or else
the hinges may break! Never lift the Note-
book PC by the display panel!
2
1
3

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC

12
2Knowing the Parts
Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise.
Display Panel (Use a soft
cloth without chemical liquids
to clean. Use plain water if
necessary.)
Keyboard
Touchpad
Power Switch
Touchpad buttons
Status Indicators
(see section 3)
Microphone
Display panel latch
Instant Keys (see section 3)
Status Indicators (see section 3)
Display Panel Latch
One spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use.To open the display panel, press the latch with your thumb and lift
up the display panel with the same thumb. Slowly tilt the display panel forward or backward to a
comfortable viewing angle.

13
Knowing the Parts 2
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse.
A software-controlled scrolling function is available after setting up the included touchpad utility to
allow easy Windows or web navigation.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed)
and palm rest for both hands. Two Windows™ function keys are provided to help ease navigation in the
Windows™ operating system.
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an active matrix
TFT LCD, which provides excellent viewing like that of desktop monitors. Unlike desktop monitors,
the LCD panel does not produce any radiation or flickering, so it is easier on the eyes.
Power Switch
The power switch allows powering ON and OFF the Notebook PC and recovering from STD. Use the
switch once to turn ON and once to turn OFF the Notebook PC. In Windows XP, this button can also be
used to safely turn OFF the Notebook PC. The power switch only works when the display panel is
opened.
Microphone
The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio
recordings.

14
2Knowing the Parts

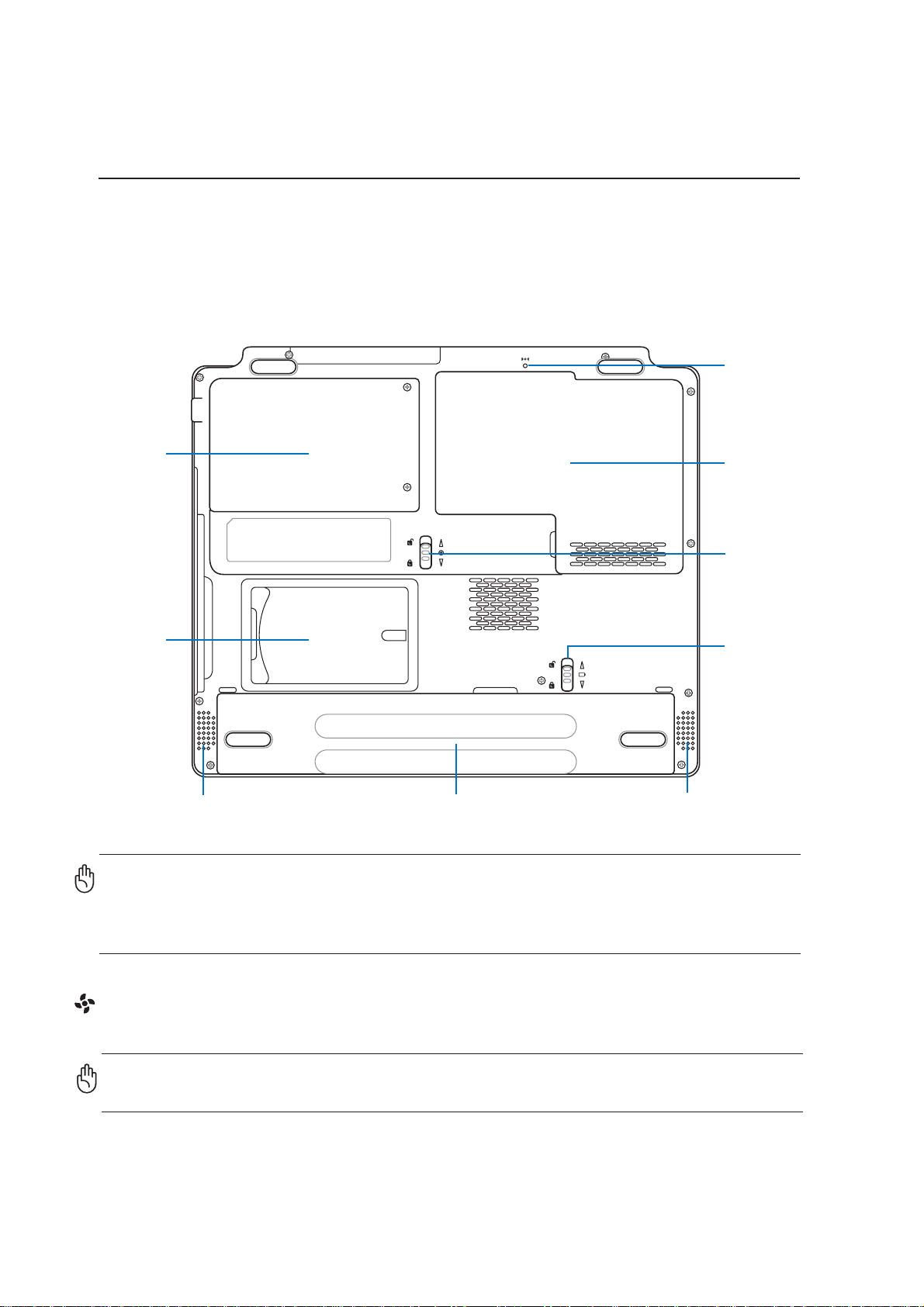

Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC. Details are
given starting from the top and going clockwise. Some labels identify components inside removable
panels.
IMPORTANT! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. DO NOT PUT THE NOTEBOOK
PC ON THE LAP OR OTHER PARTS OF THE BODY TOAVOID INJURY FROM THE HEAT.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating of the Notebook PC may occur.
Battery
Pack
Emergency
Shutdown
Button
Battery
Lock
Mini-PCI Slot
& Memory Slot
Hard Disk
Drive
Name card
holder
Stereo
Speaker Stereo Speaker
Drive module
lock

15
Knowing the Parts 2
Battery Lock
The battery lock is used to keep the battery pack secured. Usage details are described in the battery
section later in this manual.
Battery Pack
The battery pack is automatically charged when connected to anAC power source and maintains power to
the Notebook PC when AC power is not connected. This allows use when moving temporarily between
locations. Battery time varies by usage and by the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be replaced as a single unit through an authorized vendor.
Memory Slot
The memory compartment contains an expansion slot for additional memory. Memory installation or
upgrades must be done by an authorized retailer or else warranty will be void.
Emergency Shutdown Button
In case your operating system cannot properly turn OFF or restart, the shutdown button can be pressed
with a straightened paper clip to shutdown the Notebook PC.
Mini-PCI Slot
An optional expansion card can be installed in the mini-PCI compartment. An optional wireless LAN
mini-PCI module enables you to stay connected to your LAN while “roaming” to meeting, conference
rooms, or other office locations. Full-time, real-time access to email, Internet, and network resources
means not only an expanded office space, but also greater productivity.
Hard Disk Drive
The hard disk drive is secured in a compartment. Hard disk drive upgrades are to be done by authorized
service centers or dealers only.
Stereo Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments. The
multimedia sound system features an integrated digital audio controller that produces rich, vibrant
sound (results improved with external stereo headphones or speakers). Audio features are software
controlled.

16
2Knowing the Parts
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order to use memory
cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs. This Notebook PC
has a built-in memory card reader that can read many flash memory cards as specified later in this
manual. The built-in memory card reader is not only convenient, but also faster than most other forms
of memory card readers because it utilizes the high-bandwidth PCI bus.
1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-plugging capabilities
like USB. The interface IEEE1394 has a bandwidth of 100-400 Mbits/sec and can handle up to 63 units
on the same bus. IEEE1394 is also used in high-end digital equipment and should be marked “DV” for
Digital Video port.
PC Card Slot
One PCMCIA 2.1 compliant PC Card socket is available to support one type I/II PC card. The socket
supports32-bit CardBus.This allowsaccommodation of NotebookPC expansionoptionssuch asmemory
cards, ISDN, SCSI, Smart Cards, and wireless network adapters.
PC Card
Slot
Flash
Memory Slot
1394
Port
Cooling Fan
and Air Vents PC Card Eject Stereo Speaker (see bottom side)

17
Knowing the Parts 2

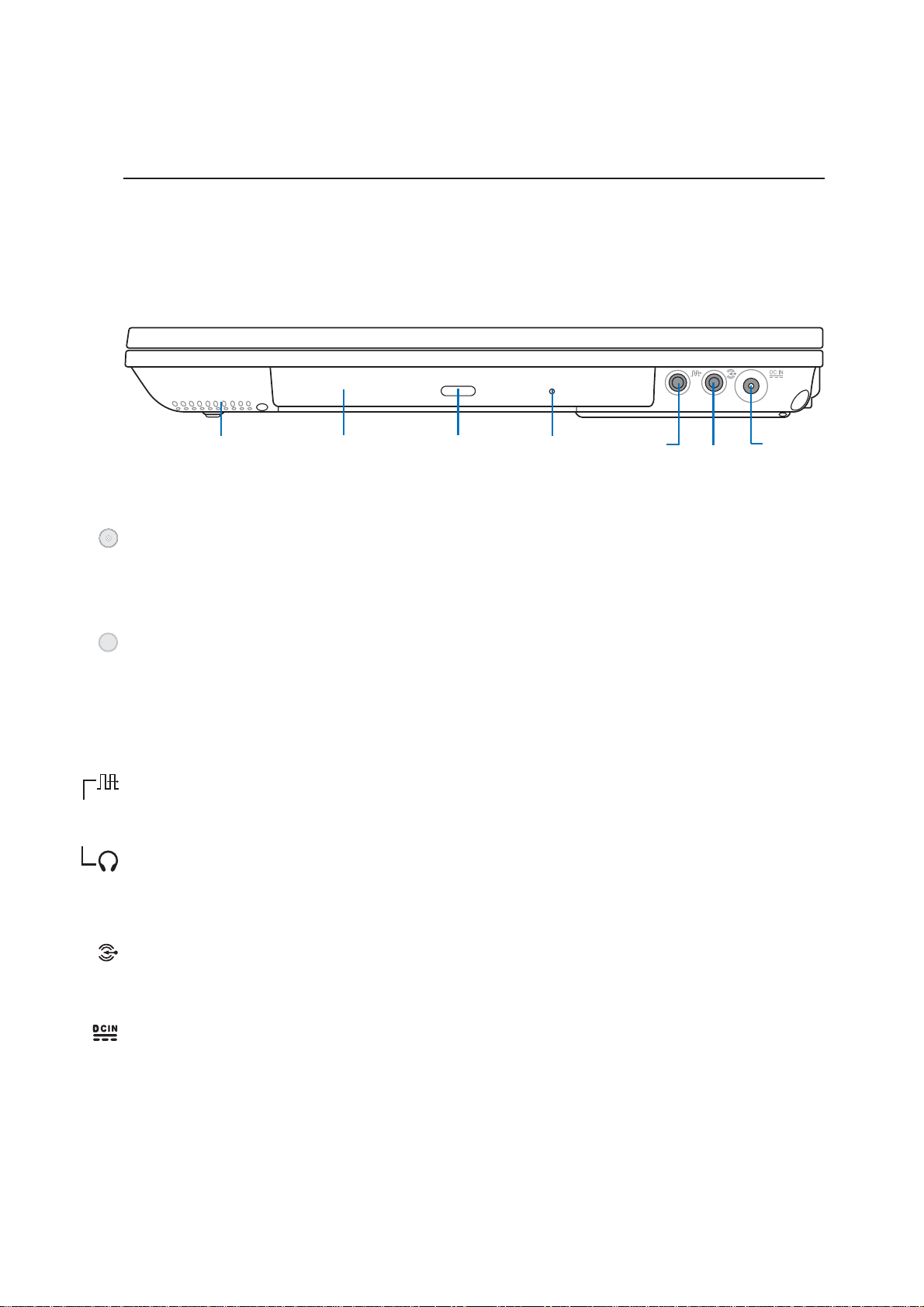

Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power supplied
through this jack supplies power to the Notebook PC and charges the internal battery pack. To prevent
damage to the Notebook PC and battery pack, always use the supplied power adapter.
Electronic Eject, Emergency Eject (Optical Drive)
The optical drive eject has an electronic eject button for opening the tray. You can also eject the optical
drive tray through any software player or by right clicking the optical drive in Windows™ “My
Computer.” The emergency eject is used to eject the optical drive tray in case the electronic eject does
not work. Do not use the emergency eject in place of the electronic eject. The activity LED (not available
on some models) lights in proportion to the data transferred between the Notebook PC and optical disc.
Optical Drive (varies by model)
The Notebook PC comes in various models with different optical drives. The Notebook PC’s optical
drive may support compact discs (CD) and/or digital video discs (DVD) and may have recordable (R)
or re-writable (RW) capabilities. See the marketing specifications for details on each model.
Power
Input
Electronic
Eject
Optical Drive
(varies by model) Emergency Eject
Stereo Speaker
(see bottom side)
SPDIF/
Phone
Output Audio Input
Audio Input Jack (Audio Input)
The stereo input jack (1/8 inch) can be used to connect a stereo audio source to the Notebook PC. This
feature is used mainly to add audio to multimedia applications.
SPDIF Output Jack (SPDIF Output)
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices for digital
audio output. Use this feature to turn the Notebook PC into a hi-fi home entertainment system.
Headphone Output Jack (Phone Output)
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to amplified
speakers or headphones. Using this jack automatically disables the built-in speakers.
Combo

18
2Knowing the Parts
Display (Monitor) Output
The15-pin D-submonitor portsupports a standardVGA-compatible device suchas a monitororprojector
to allow viewing on a larger external display.

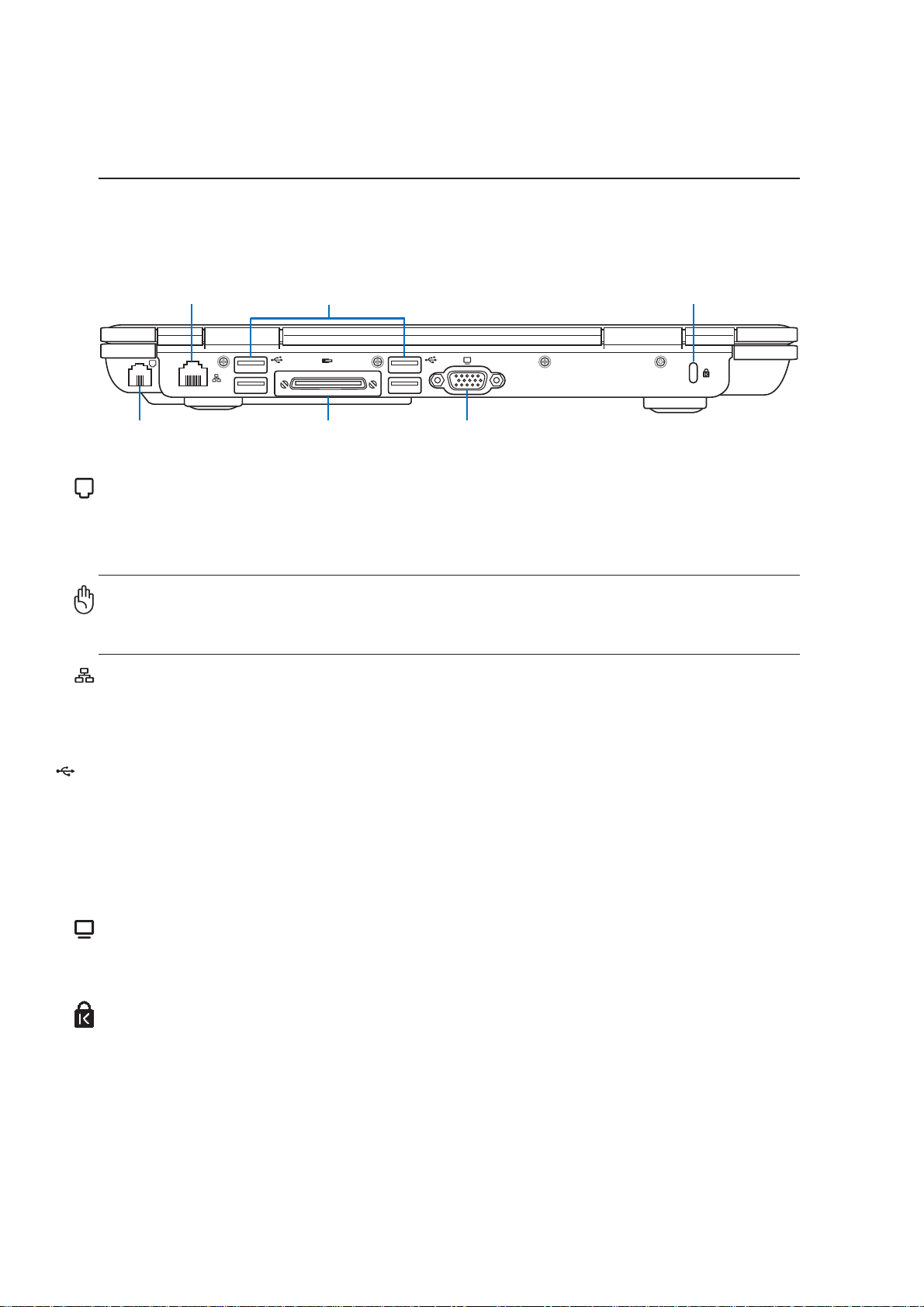

Rear Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®compatible
Notebook PC security products. These security products usually include a metal cable and lock that
prevent the Notebook PC to be removed from a fixed object. Some security products may also include
a motion detector to sound an alarm when moved.
2
.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as keyboards, pointing
devices, video cameras, modems, hard disk drives, printers, monitors, and scanners connected in a
series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run
simultaneously on a single computer, with peripherals such as USB keyboards and some newer monitors
acting as additional plug-in sites or hubs. USB supports hot-swapping of devices so that peripherals can
be connected or disconnected without restarting the computer.
Modem Port
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports a standard
telephone cable. The internal modem supports up to 56K V.90 transfers. The built-in connector allows
convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital phone
systems. Do not connect the modem port to a digital phone system or else damage
will occur to the Notebook PC.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a standard
Ethernet cable for connection to a local network. The built-in connector allows convenient use without
additional adapters.
Display
Output
USB
Ports Kensington
®
Lock Port
LAN
Port
Modem
Port Expansion
Port

19
3. Getting Started
Power System
Using AC Power
Using Battery Power
Powering ON the Notebook PC
Checking Battery Power
Restarting or Rebooting
Powering OFF the Notebook PC
Special Keyboard Functions
Instant Keys and Status Indicators

20
3Getting Started
13
2
NOTE: This Notebook PC may come with
either a two or three-prong plug depend-
ingonterritory.Ifa three-prongplug ispro-
vided, you must use a grounded AC outlet
or use a properly grounded adapter to en-
sure safe operation of the Notebook PC.
With theAC power cord connected to theAC-DC converter, connect theAC power cord to anAC outlet
(preferably with surge-protection) and then connect the DC plug to the Notebook PC. Connecting the
AC-DC adapter to theAC outlet first allows you to test theAC outlet’s power and theAC-DC converter
itself for compatibility problems before connecting the DC power to the Notebook PC. The green
power LED on the adapter lights up if the power is within accepted ranges.
TIP: You can buy travel kits for the Notebook PC that includes power and modem
adapters for almost every country.
IMPORTANT! Damage may occur if you use a different adapter to power the Note-
book PC or use the Notebook PC’s adapter to power other electrical devices. If there
is smoke, burning scent, or extreme heat coming from the AC-DC adapter, seek ser-
vicing. Seek servicing if you suspect a faulty AC-DC adapter. You may damage both
your battery pack(s) and the Notebook PC with a faulty AC-DC adapter.
Power System
Using AC Power
The Notebook PC power is comprised of two parts, the power adapter
and the battery power system. The power adapter convertsAC power
from a wall outlet to the DC power required by the Notebook PC.
Your Notebook PC comes with a universal AC-DC adapter. That
means that you may connect the power cord to any 100V-120V as
well as 220V-240V outlets without setting switches or using power
converters. Different countries may require that an adapter be used to connect the provided US-standard
AC power cord to a different standard. Most hotels will provide universal outlets to support different
power cords as well as voltages. It is always best to ask an experienced traveler aboutAC outlet voltages
when bringing power adapters to another country.
