Asus E2224 User manual

Notebook PC
Hardware User’s Manual
E2224 / Aug 2005

2
Contents
1. Introducing the Notebook PC ..................................................................5
About This User’s Manual..........................................................................................6
Notes For This Manual ..........................................................................................6
Preparing your Notebook PC.....................................................................................9
2. Knowing the Parts...................................................................................11
Top Side ...................................................................................................................12

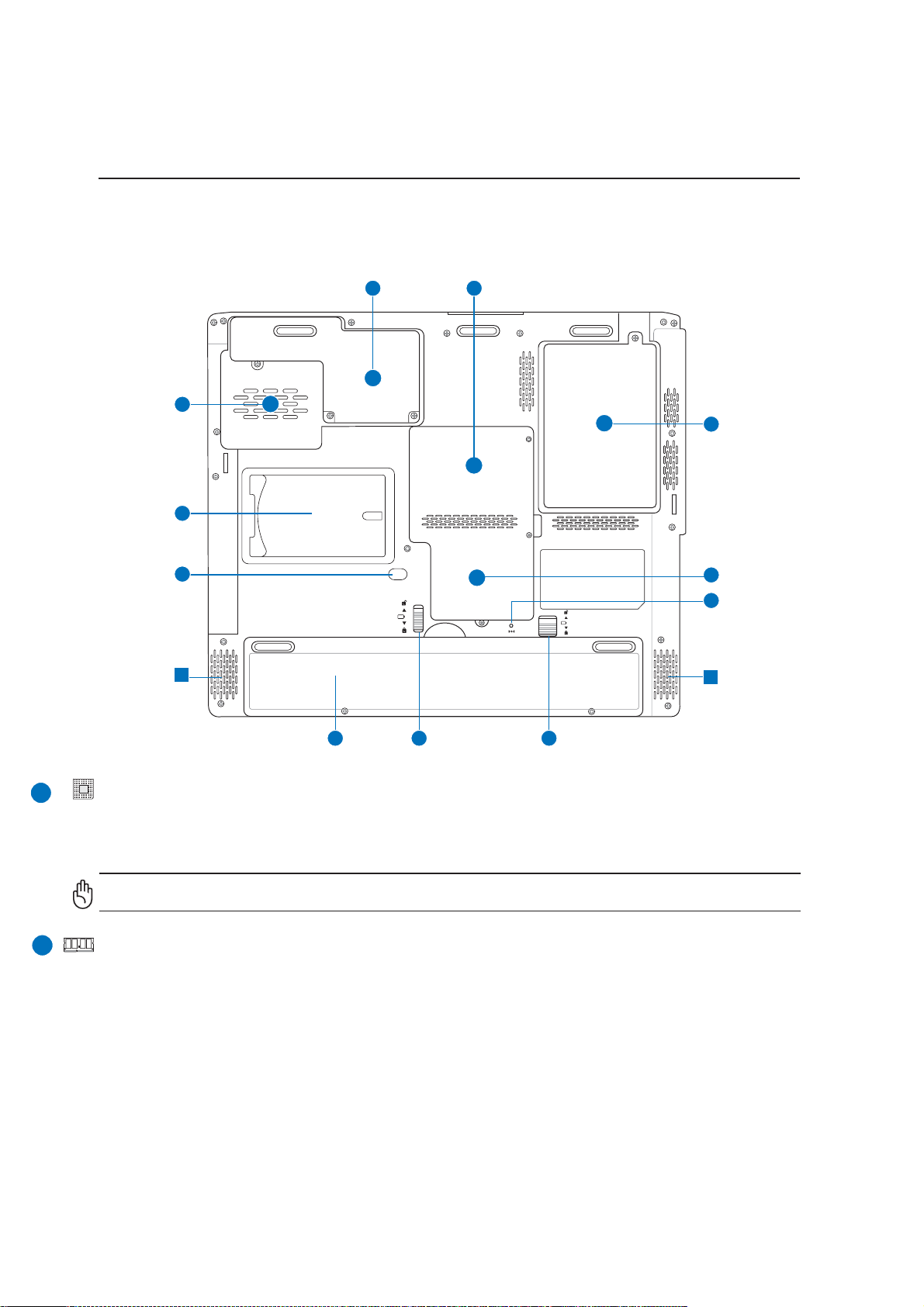

Bottom Side .............................................................................................................14
Left Side...................................................................................................................16
Right Side ................................................................................................................18

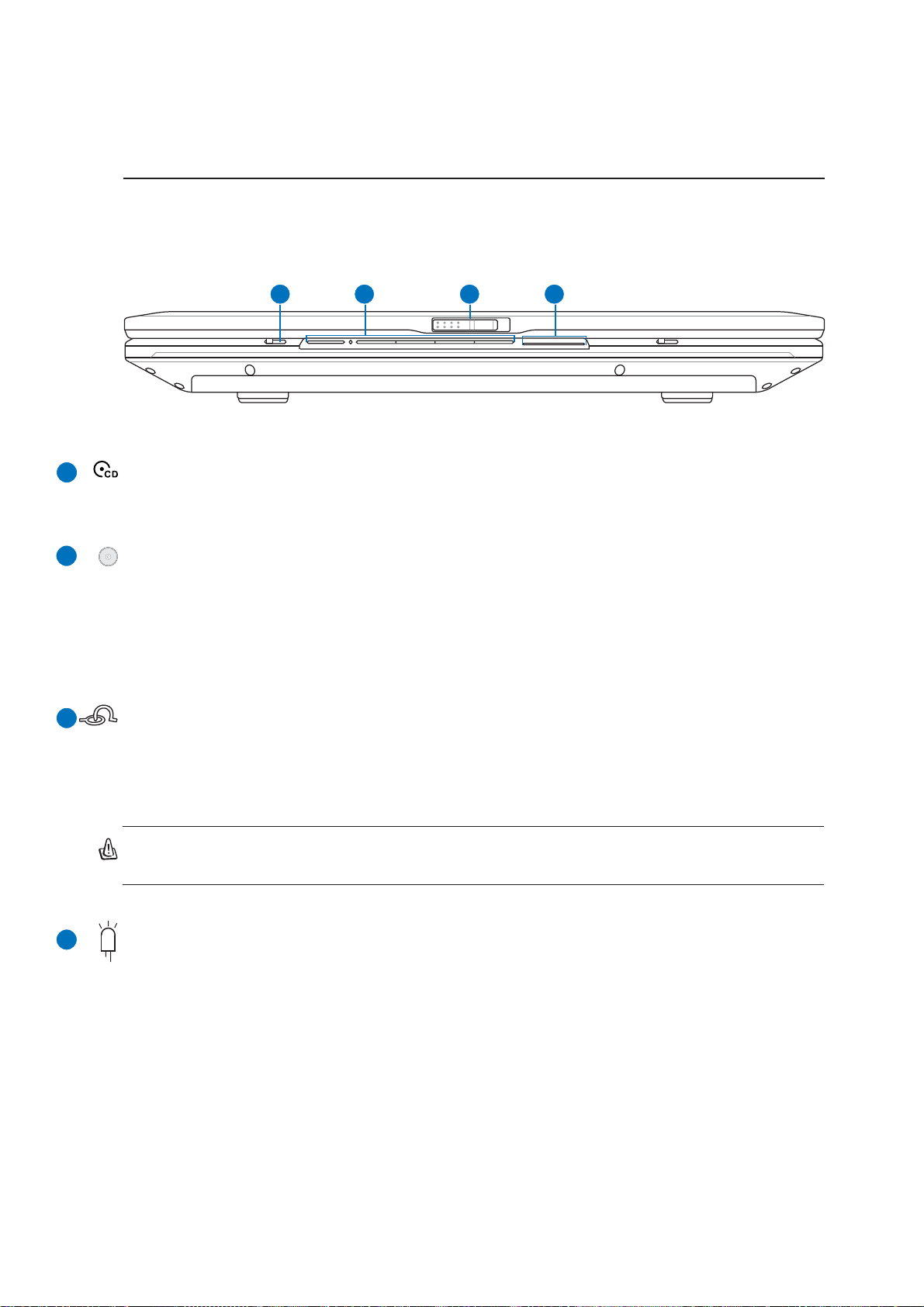

Front Side ................................................................................................................19
Rear Side .................................................................................................................20
3. Getting Started ....................................................................................... 23
Power System..........................................................................................................24
Using AC Power ..................................................................................................24
Using Battery Power............................................................................................24
Charging the Battery Pack ..................................................................................24
Powering ON the Notebook PC ..........................................................................26
The Power-On Self Test (POST).........................................................................26
Checking Battery Power......................................................................................27
Battery Care ........................................................................................................27
Restarting or Rebooting ......................................................................................28
Powering OFF .....................................................................................................28
Special Keyboard Functions ....................................................................................29
Colored Hot Keys ................................................................................................29
Keyboard as Cursors...........................................................................................30
Microsoft Windows™ Keys .................................................................................30
Keyboard as a Numeric Keypad .........................................................................31
Switches and Status Indicators................................................................................31
Switches ..............................................................................................................31

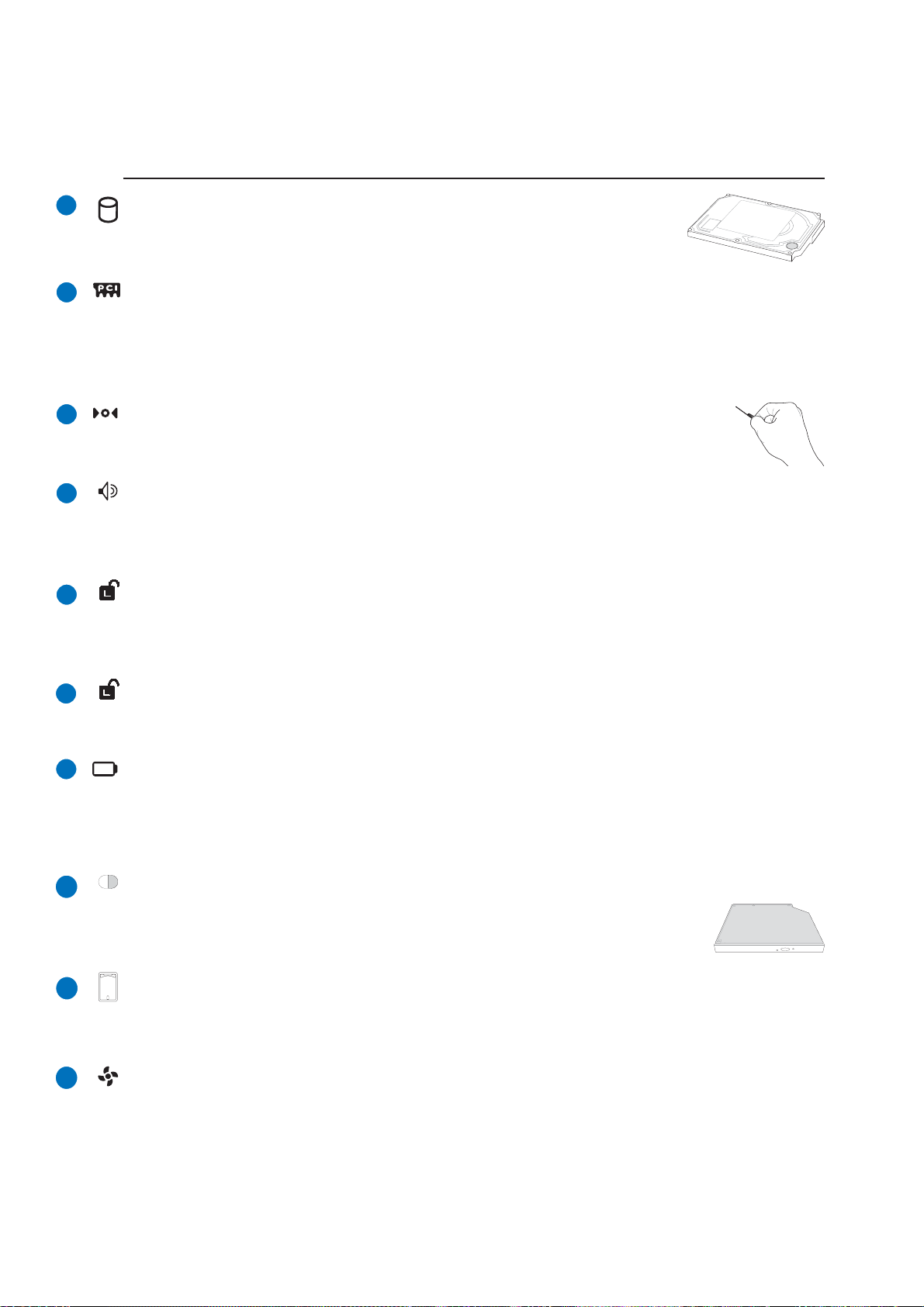

Status Indicators..................................................................................................32
CD Player Control Buttons and Indicator (on selected models) .........................34

3
Contents
4. Using the Notebook PC ......................................................................... 35
Models with Sonoma chipset ..............................................................................36
Operating System ....................................................................................................36
Support Software.................................................................................................36
Pointing Device ........................................................................................................36
Using the Touchpad.............................................................................................37
Touchpad Usage Illustrations ..............................................................................38
Caring for the Touchpad......................................................................................39
Removing a PC Card (PCMCIA).........................................................................40
Inserting a PC Card (PCMCIA) ...........................................................................40
Storage Devices.......................................................................................................41
PC Card (PCMCIA) Socket .................................................................................41
Optical Drive........................................................................................................42
Hard Disk Drive ...................................................................................................44
Flash Memory Card Reader................................................................................44
Connections .............................................................................................................45
Modem Connection .............................................................................................45
Fast-Ethernet Connection ...................................................................................46
Bluetooth Wireless Connection (on selected models) ........................................46
Power Management Modes .....................................................................................48
Full Power Mode & Maximum Performance........................................................48
ACPI ....................................................................................................................48
Suspend Mode ....................................................................................................48
Power Savings ....................................................................................................48
Power State Summary ........................................................................................49
Thermal Power Control .......................................................................................49
Stand by and Hibernate.......................................................................................50
Appendix..................................................................................................... 51
Optional Accessories ...............................................................................................52
Glossary...................................................................................................................54
Declarations and Safety Statements .......................................................................58
Notebook PC Information.........................................................................................70

4
Contents

5
Introducing the Notebook PC 1
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC

6
1Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information on the
various components in the Notebook PC and how to use them. The following are major sections of this
User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order to
complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for spe-
cial situations.
TIP: Tips and useful information for
completing tasks.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the <
> or [ ] and the enclosed letters.
< >
[ ]
WARNING! Important information that
must be followed for safe operation.
IMPORTANT! Vital information that
must be followed to prevent damage
to data, components, or persons.
User’s Manual

7
Introducing the Notebook PC 1
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualified personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
Disconnect the AC power and remove the battery pack(s) before cleaning. Wipe the
Notebook PC using a clean cellulose sponge or chamois cloth dampened with a solu-
tion of nonabrasive detergent and a few drops of warm water and remove any extra
moisture with a dry cloth.
DO NOT expose to or use near liq-
uids, rain, or moisture. DO NOT use
the modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
DONOTexposetoextremetemperatures
above 50˚C (122˚F) or to direct sunlight.
Do not block the fan vents!
DO NOT throw batteries in fires as
they may explode. Check local codes
for special battery disposal instruc-
tions.
DO NOT expose to extreme tempera-
tures (below 0˚C (32˚F), otherwise the
Notebook PC may not boot.
DO NOT expose to strong magnetic
or electrical fields.
DONOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with small
itemsthat mayscratchor entertheNote-
book PC.
DO NOT leave the Notebook PC on
your lap or any part of the body while
the Notebook PC is turned ON or is
charging in order to prevent discom-
fort or injury from heat exposure.
SAFE TEMP: This notebook PC
should only be used in environments
with ambient temperatures between
0°C (32°F) and 35°C (95°F).
INPUT RATING: Must only receive
power input of 19VDC, 3.42A (65W).
Thesymbol of the crossed out wheeled binindicatesthatthe product (electrical and electronic
equipment) should not be placed in municipal waste. Please check local regulations for
disposal of electronic products.

8
1Introducing the Notebook PC
Transportation Precautions
Topreparethe Notebook PC for transport, you shouldturnitOFF anddisconnect
all external peripherals to prevent damage to the connectors. The hard disk
drive’s head retracts when the power is turned OFF to prevent scratching of the
hard disk surface during transport. Therefore, you should not transport the
Notebook PC while the power is still ON. Close the display panel and check
that it is latched securely in the closed position to protect the keyboard and
display panel.
Cover Your Notebook PC
You can purchase an optional carrying case to protect it from dirt, water, shock, and scratches.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walk-
ing through security checks), and magnetic wands (handheld devices used on people
or individual items). You can send your Notebook PC and diskettes through airport X-
ray machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
NOTE: The surface glaze is easily dulled if not properly cared for. Be careful not to rub
or scrap the Notebook PC surfaces when transporting your Notebook PC.

9
Introducing the Notebook PC 1

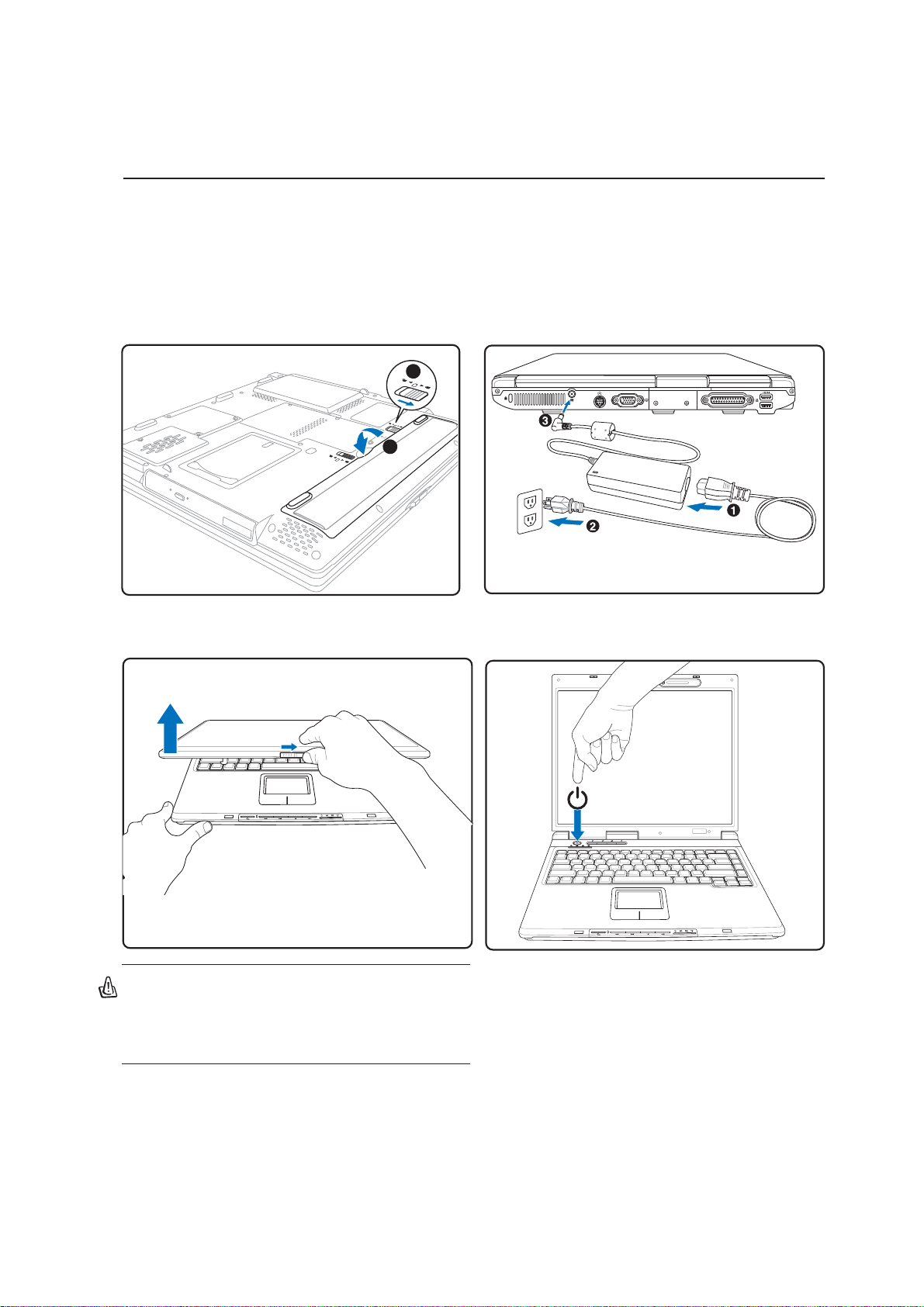

Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed
information on using your Notebook PC.
1. Install the battery pack
3. Open the Display Panel 4. Turn ON the Notebook PC
2.ConnecttheACPowerAdapter
Press the power button and release.
(In Windows XP, this button can also be used to
safely turn OFF the Notebook PC.)
-1
-2
1
-1
2
WARNING! When opening, do not force
the display panel down to the table or else
the hinges may break! Never lift the Note-
book PC by the display panel!

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC

12
2Knowing the Parts

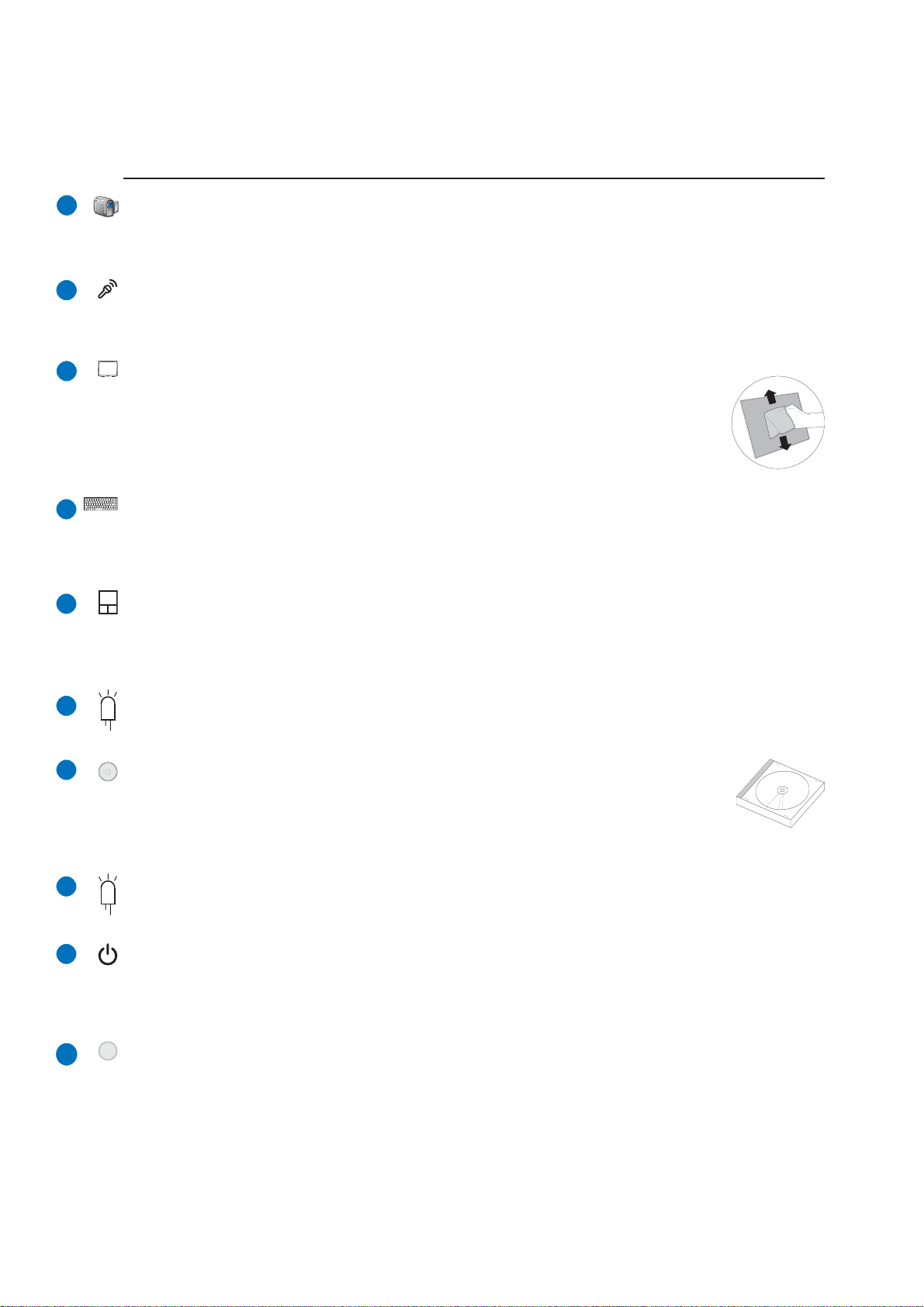

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
12
4
3
5
6
8
7
10
9
IMPORTANT! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. DO NOT PUT THE NOTEBOOK
PC ON THE LAP OR OTHER PARTS OF THE BODY TOAVOID INJURYFROM THE HEAT.

13
Knowing the Parts 2
Power Switch
ThepowerswitchallowspoweringONandOFF the Notebook PC and recovering from STD. Use theswitch
once to turn ON and once to turn OFF the Notebook PC. In Windows XP, this button can also be used to
safely turn OFF the Notebook PC. The power switch only works when the display panel is opened.
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an
active matrix TFT LCD, which provides excellent viewing like that of desktop monitors.
Unlike desktop monitors, the LCD panel does not produce any radiation or flickering, so it
iseasierontheeyes.Useasoftclothwithoutchemicalliquids(useplain water if necessary)
to clean the display panel.
2
3
4
5

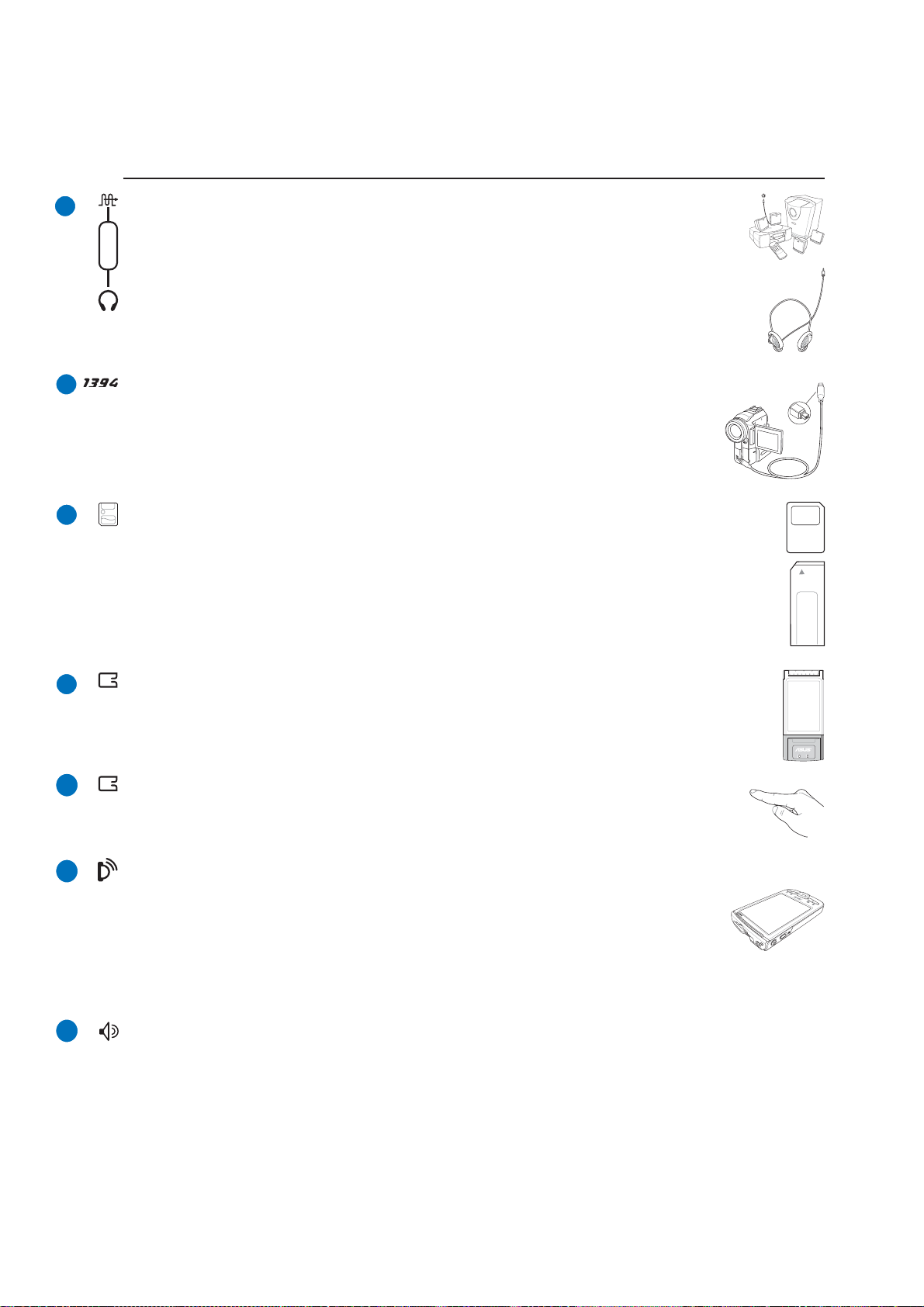

6
7
1
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video conferencing and
other interactive applications.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a desktop mouse. A
software-controlled scrolling function is available after setting up the included touchpad utility to allow easy
Windows or web navigation.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed)
and palm rest for both hands. Two Windows™ function keys are provided to help ease navigation in the
Windows™ operating system.
Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple audio
recordings.
Status Indicators
Status indicator details are described in section 3.
CD Player Control Buttons (on selected models)
There are several CD control buttons integrated externally on the Notebook PC for convenient
CD playing. The buttons activate and control your operating system’s software audio player
whentheNotebookPC is ON.When your NotebookPCisOFF,theCDcontrolbuttons activate
a hardware CD player function that allows you to listen to audio CDs without software. (See section 3).
8
9
1
010
Instant Keys
Instant keys allow you to launch frequently used applications with one push of a button. Details provided
later in this manual.
Status Indicators
Status indicator details are described in section 3.

14
2Knowing the Parts
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
-1
-2
1 2
4
3
79 8
11
10
66
5
12
Central Processor (CPU)
Some Notebook PC models feature a socketed-processor design to allow upgrading to faster processors
in the future. Some models feature a ULV design for compactness and may not be upgraded. Visit an
authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory. Additional memory will
increase application performance by decreasing hard disk access. The BIOS automatically detects the amount
of memory in the system and configures CMOS accordingly during the POST (Power-On-Self-Test) process.
Thereisnohardwareorsoftware(includingBIOS)setuprequiredafterthememoryisinstalled.Visitanauthorized
servicecenterorretailer for information onmemoryupgradesforyourNotebook PC. Only purchaseexpansion
modules from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.
2
1

15
Knowing the Parts 2
Emergency Shutdown Button
In case your operating system cannot properly turn OFF or restart, the shutdown button can
be pressed with a straightened paper clip to shutdown the Notebook PC.
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Hard disk drive upgrades are to
be done by authorized service centers or dealers only.
3
4
5
6
7
8
Battery Pack
The battery pack is automatically charged when connected to an AC power source and maintains power to
the Notebook PC when AC power is not connected. This allows use when moving temporarily between
locations. Battery time varies by usage and by the specifications for this Notebook PC. The battery pack
cannot be disassembled and must be replaced as a single unit through an authorized vendor.
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will
automatically lock. To remove the battery pack, this spring lock must be held in the unlocked position.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked
position to insert or remove the battery pack. Move the manual lock to the locked position after inserting the
battery pack.
Stereo Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments.The multimedia
soundsystemfeaturesanintegrateddigitalaudiocontrollerthatproducesrich,vibrantsound(resultsimproved
with external stereo headphones or speakers).Audio features are software controlled.
Mini-PCI Compartment
An optional expansion card can be installed in the mini-PCI compartment.An optional wireless LAN mini-
PCI module enables you to stay connected to your LAN while “roaming” to meeting, conference rooms, or
other office locations. Full-time, real-time access to email, Internet, and network resources means not only
an expanded office space, but also greater productivity.
9
Cooling Fan
The cooling fan turns ON or OFF depending on temperature threshold settings.
1
212
Name Card Holder
The Notebook PC has a name card holder glued to the bottom of the Notebook PC to hold identification
information on the user in case the Notebook PC is found by others.
1
010
1
1
Optical Drive Module Eject
The Notebook PC has an upgradable optical drive module. After removing the relevant
screws,usethis hole topushtheoptical drive moduleoutofthe system.Visitan authorized
dealer for upgrades.

16
2Knowing the Parts

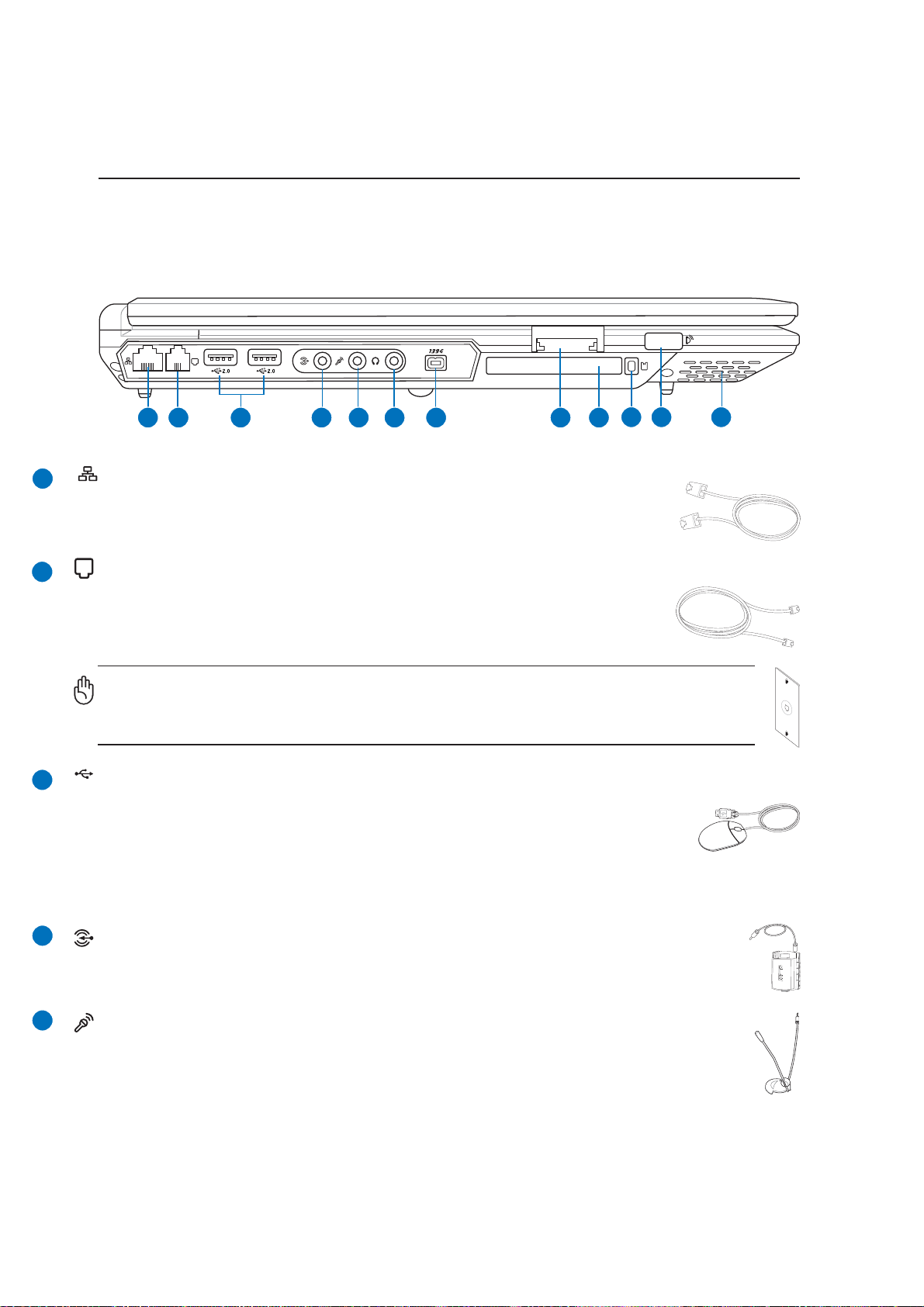

Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 43 5 76 8 9
10 11 12
LAN Port
TheRJ-45 LAN port with eight pinsislargerthan the RJ-11modemportand supports
a standard Ethernet cable for connection to a local network. The built-in connector
allows convenient use without additional adapters.
Modem Port
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports
a standard telephone cable. The internal modem supports up to 56K V.90 transfers.
The built-in connector allows convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital
phone systems. Do not connect the modem port to a digital phone system or else
damage will occur to the Notebook PC.
2.0
USB Port (2.0/1.1)
The Universal Serial Bus is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows
many devices to run simultaneously on a single computer, with peripherals such as USB keyboards and
some newer monitors acting as additional plug-in sites or hubs. USB supports hot-swapping of devices
so that most peripherals can be connected or disconnected without restarting the computer.
2
3
4
5
1
Audio Input Jack
The stereo input jack (1/8 inch) can be used to connect a stereo audio source to the Notebook
PC. This feature is used mainly to add audio to multimedia applications.
Microphone Input Jack (Mic In)
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output
signals from audio devices. Using this jack automatically disables the built-in microphone. Use
this feature for video conferencing, voice narrations, or simple audio recordings.

17
Knowing the Parts 2
6
7
8
9
1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-
plugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400
Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in
high-end digital equipment and should be marked “DV” for Digital Video port.
PC Card Slot
One PCMCIA2.1 compliant PC Card socket is available to support one type I/II PC card. The
socket supports 32-bit CardBus. This allows accommodation of Notebook PC expansion
options such as memory cards, ISDN, SCSI, Smart Cards, and wireless network adapters.
PC Card Eject
Use this button to eject optional PC cards. This button is mechanical (not electronic) so a
small force is required and the Notebook PC does not have to be turned ON to eject PC cards.
1
010
1
1
Infrared Port (IrDA) (on selected models)
The infrared (IrDA) communication port allows convenient wireless data communication
with infrared-equipped devices or computers. This allows easy wireless synchronization
with PDAs or mobile phones and even wireless printing to printers. If your office supports
IrDAnetworking, you can have wireless connectiontoanetwork anywhere provided there
is a direct line of sight to an IrDAnode. Small offices can use IrDAtechnology to share a printer between
several closely placed Notebook PCs and even send files to each other without a network.
Audio Speaker
Thebuilt-instereospeakersystemallowsyoutohear audio without additional attachments.The multimedia
sound system features an integrated digital audio controller that produces rich, vibrant sound (results
improved with external stereo headphones or speakers). Audio features are software controlled.
1
212
SPDIF Output Jack
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices
for digital audio output. Use this feature to turn the Notebook PC into a hi-fi home
entertainment system.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplified speakers or headphones. Using this jack automatically disables the built-in speakers.
Combo
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order to
use memory cards from devices such as digital cameras, MP3 players, mobile phones, and
PDAs. This Notebook PC has a built-in memory card reader that can read many flash memory
cards as specified later in this manual. The built-in memory card reader is not only convenient,
but also faster than most other forms of memory card readers because it utilizes the high-
bandwidth PCI bus.

18
2Knowing the Parts
2
3
1
Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 43 5
Optical Drive (type varies by model)
The Notebook PC comes in various models with different optical drives. The
Notebook PC’s optical drive may support compact discs (CD) and/or digital
video discs (DVD) and may have recordable (R) or re-writable (RW)
capabilities. See the marketing specifications for details on each model.
Optical Drive Electronic Eject (location varies by model)
The optical drive eject has an electronic eject button for opening the tray. You can also eject
the optical drive tray through any software player or by right clicking the optical drive in
Windows™ “My Computer.”
Audio Speaker
Thebuilt-instereospeakersystemallowsyoutohear audio without additional attachments.Themultimedia
sound system features an integrated digital audio controller that produces rich, vibrant sound (results
improved with external stereo headphones or speakers). Audio features are software controlled.
Optical Drive Emergency Eject (location varies by model)
The emergency eject is used to eject the optical drive tray in case the electronic eject
does not work. Do not use the emergency eject in place of the electronic eject.
Optical Drive Activity Indicator (location varies by model)
The optical drive activity indicator shows when data is being transferred by the optical disk drive. This
indicator will light in proportion to the data size transferred.
4
5

19
Knowing the Parts 2
Front Side
Refer to the diagram below to identify the components on the front side of the Notebook PC.
2 3 41
CD Player Control Buttons (on selected models)
There are several CD control buttons integrated externally on the Notebook PC for convenient CD
playing. The buttons activate and control your operating system’s software audio player when the
Notebook PC is ON. When your Notebook PC is OFF, the CD control buttons activate a hardware CD
player function that allows you to listen to audio CDs without software. (See section 3 for more
information.)
Status Indicators
Status indicator details are described in section 3.
CD Power Switch
Turns ON or OFF the CD player while the Notebook PC is turned OFF.
2
3
4
1
Display Panel Latch
One spring-loaded latch on the front of the Notebook PC locks the display panel in the closed position
when the Notebook PC is not in use. To open the display panel, negotiate the latch with your thumb and
lift up the display panel with the same thumb. Slowly tilt the display panel forward or backward to a
comfortable viewing angle.
WARNING! When opening, do not force the display panel down to the table or else
the hinges may break! Never lift the Notebook PC by the display panel!

20
2Knowing the Parts
2
3
4
1
Rear Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 43 5 76
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®
compatible Notebook PC security products. These security products usually include a
metal cable and lock that prevent the Notebook PC to be removed from a fixed object.
Some security products may also include a motion detector to sound an alarm when moved.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the Notebook PC and charges the
internal battery pack. To prevent damage to the Notebook PC and battery pack, always
use the supplied power adapter.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a
monitor or projector to allow viewing on a larger external display.
TV-Out Port (on selected models)
The TV-Out port is an S-Video connector that allows routing the Notebook
PC’s display to a television or video projection device. You can choose
betweensimultaneously or single display. Use an S-Video cable (not provided)
for high quality displays or use the provided RCA to S-Video adapter for
standard video devices. This port supports both NTSC and PAL formats.
5
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating of the Notebook PC may occur.
This manual suits for next models
10
Table of contents
Other Asus Laptop manuals

Asus
Asus U53Jc User manual

Asus
Asus Eee PC 1008P User manual

Asus
Asus Zenbook UX31E User manual

Asus
Asus S7F Instructions for use

Asus
Asus K53SV User manual

Asus
Asus A9Rp Instructions for use

Asus
Asus ROG Strix SCAR III G531 G531GW-XB96 Guide

Asus
Asus M2400NE User manual

Asus
Asus Notebook PC Instructions for use

Asus
Asus Goes Mobile P6000 Series Manual
