1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC

6
1Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides informa-
tion on the various components in the Notebook PC and how to use them. The following
are major sections of this User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data, com-
ponents, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]

7
Introducing the Notebook PC 1
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualied personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before clean-
ing. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened
with a solution of nonabrasive detergent and a few drops of warm water and remove
any extra moisture with a dry cloth.
DO NOT expose to or use near liquids,
rain, or moisture. DO NOT use the
modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
SAFE TEMP: This Notebook PC
should only be used in environments
with ambient temperatures between
5°C (41°F) and 35°C (95°F)
Battery safety warning:
DO NOT throw the battery in re.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT expose to strong magnetic
or electrical elds.
DO NOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT leave the Notebook PC on
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
DO NOT throw the Notebook PC
in municipal waste. Check local
regulations for disposal of electronic
products.
DO NOT carry or cover a Notebook
PC that is powered ON with any ma-
terials that will reduce air circulation
such as a carrying bag.
INPUT RATING: Refer to the rating
label on the bottom of the Notebook
PC and be sure that your power adapter
complies with the rating.

8
1Introducing the Notebook PC
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walking
through security checks), and magnetic wands (hand-held devices used on people or
individual items). You can send your Notebook PC and diskettes through airport X-ray
machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restric-
tions for using electronic devices. Most airlines will allow electronic use only between and not during
takeoffs and landings.
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external peripher-
als to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned
OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport
the Notebook PC while the power is still ON. Close the display panel and check that it is latched securely
in the closed position to protect the keyboard and display panel.
CAUTION: The Notebook PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.

9
Introducing the Notebook PC 1

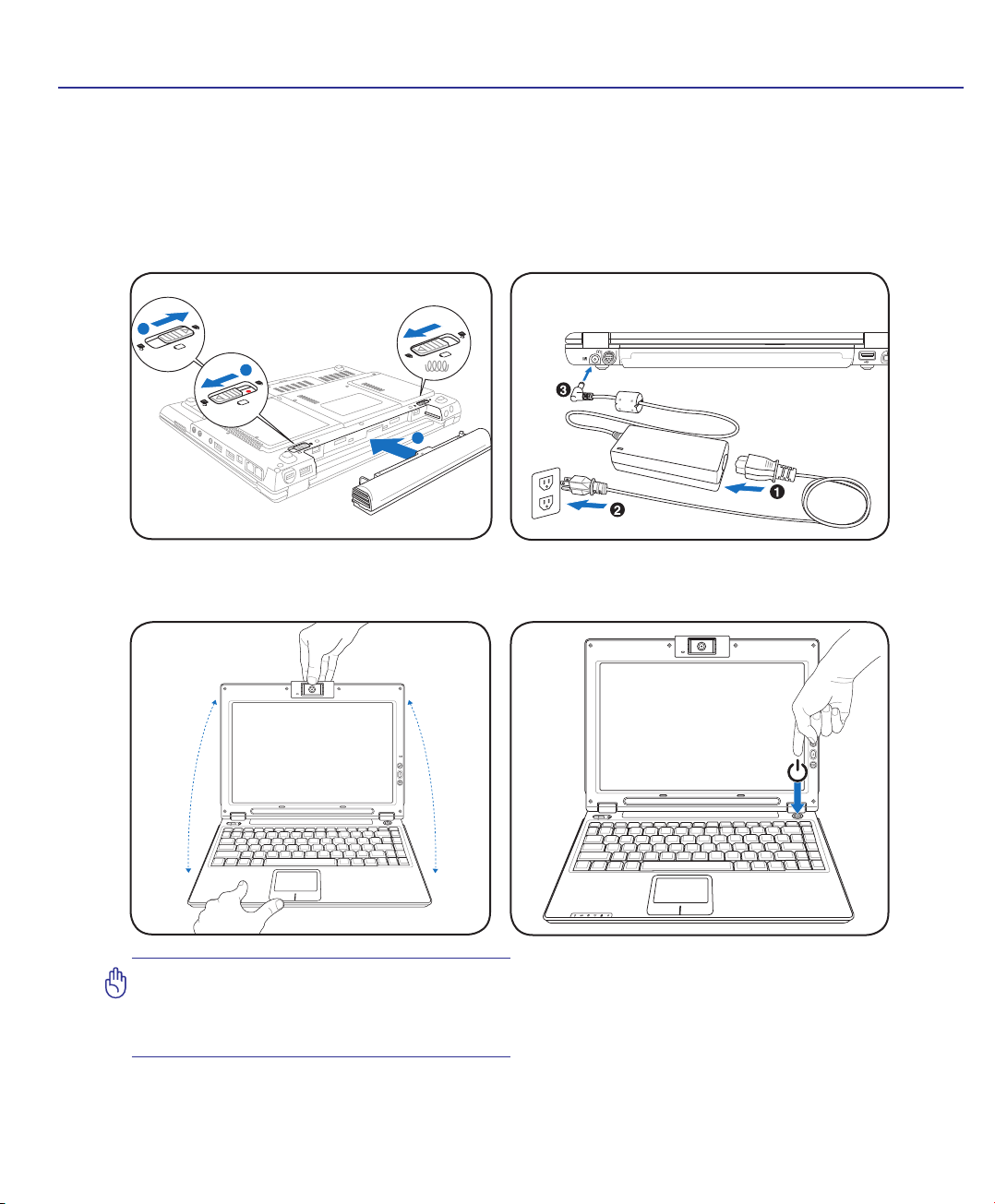

Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed informa-
tion on using your Notebook PC.
1. Install the battery pack
3. Open the Display Panel 4. Turn ON the Notebook PC
2. Connect the AC Power Adapter
Press the power button and release.
(In Windows XP, this button can also be used to
safely turn OFF the Notebook PC.)
IMPORTANT! When opening, do not force
the display panel down to the table or else
the hinges may break! Never lift the Note-
book PC by the display panel!
2
3
1

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC

12
2Knowing the Parts
Top Side

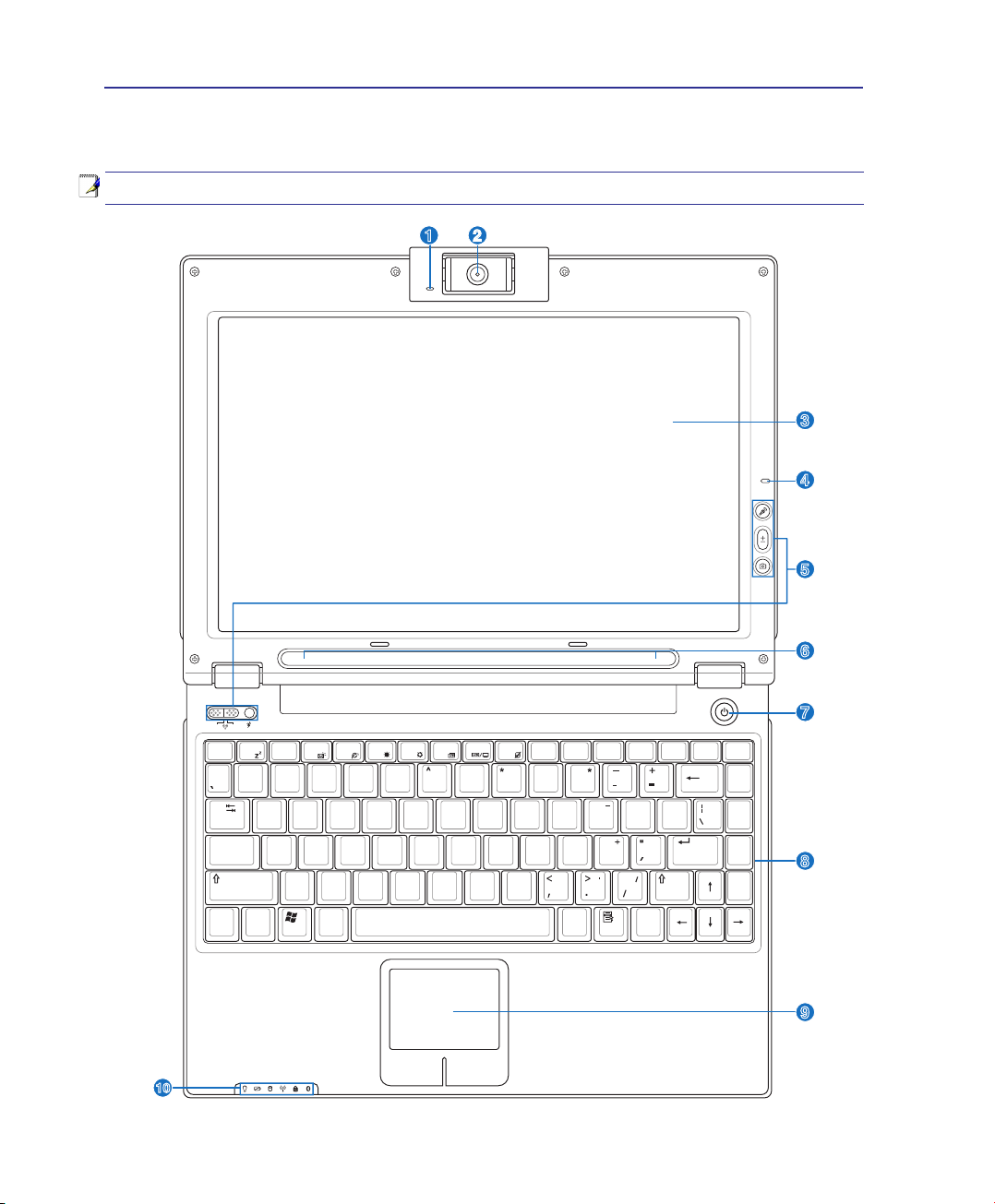

Refer to the diagram below to identify the components on this side of the Notebook PC.
NOTE: The keyboard will be different for each territory.
ON OFF
Num LK
1
!
#
@
$
%
&()
234567890
Q W E R T Y U I O
A S D F G H J K L :
;
Z X C V B N M ?
P
{
[
}
]
Tab
ShiftShift
Fn Ctrl Ctrl
Alt Alt
Caps
Lock
~
End
Pg Dn
Pg Up
Home
Scr Lk
DeleteInsert
Sys Rq
Prt ScPause
Break
Enter
Enter
Backspace
Esc
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12
1
456
789
0
23
2
4
7
8
9
3
1
10
6
5

13
Knowing the Parts 2
2
3
4
5
6
1
7
8
9
10

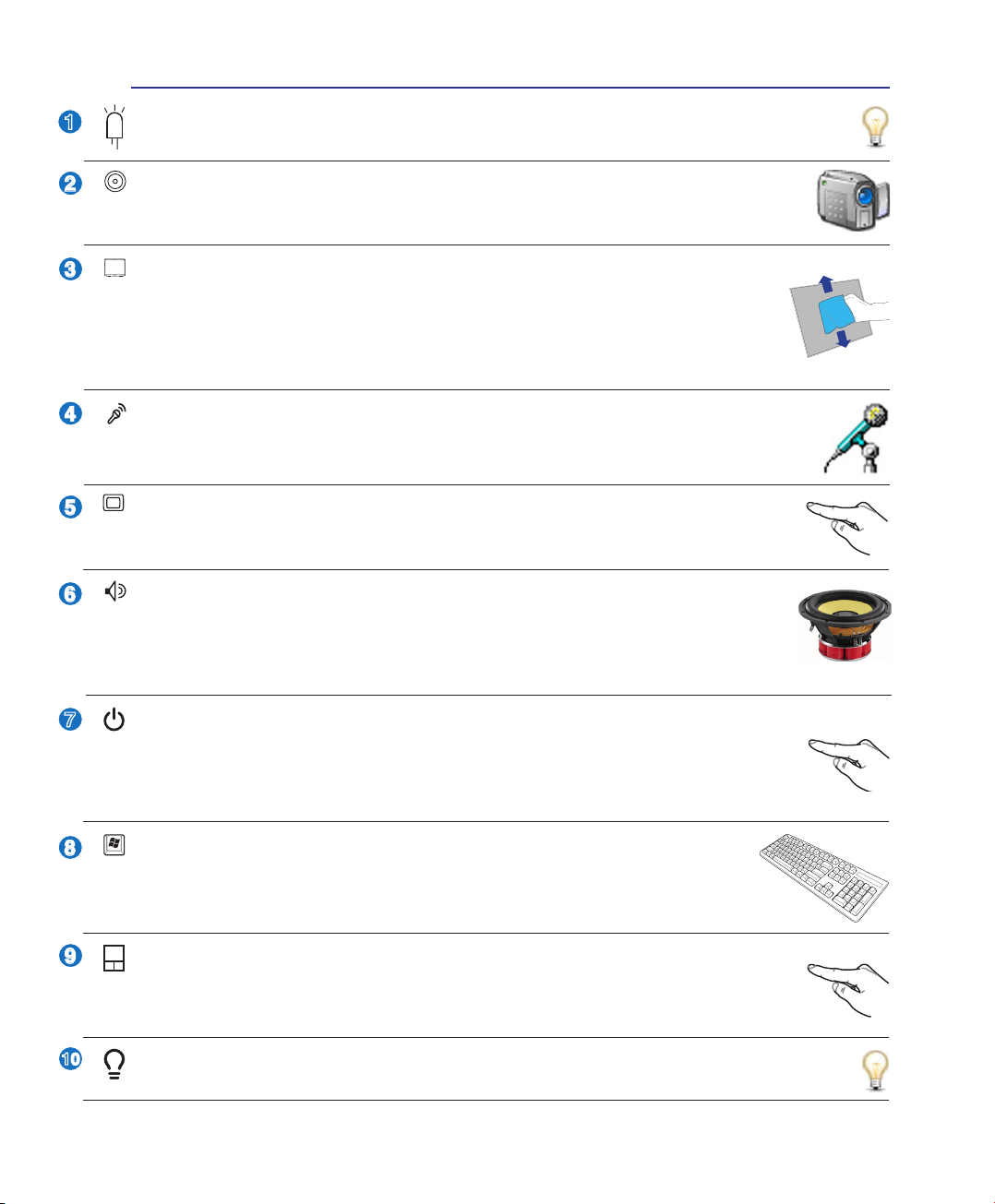

Power Switch
The power switch allows powering ON and OFF the Notebook PC and recovering from
STD. Use the switch once to turn ON and once to turn OFF the Notebook PC. In Windows
XP, this button can also be used to safely turn OFF the Notebook PC. The power switch only
works when the display panel is opened.
Instant Keys
Instant keys allow you to launch frequently used applications with one push of a button.
Details are described in section 3.
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the
keys can be depressed) and palm rest for both hands. Two Windows function keys are
provided to help ease navigation in the Windows operating system.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a
desktop mouse. A software-controlled scrolling function is available after setting up the
included touchpad utility to allow easy Windows or web navigation.
Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple
audio recordings.
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video con-
ferencing and other interactive applications.
Status Indicators (front)
Status indicators represent various hardware/software conditions. See indicator details in section 3.
Audio Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments.
The multimedia sound system features an integrated digital audio controller that produces
rich, vibrant sound (results improved with external stereo headphones or speakers).Audio
features are software controlled.
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an
active matrix TFT LCD, which provides excellent viewing like that of desktop monitors.
Unlike desktop monitors, the LCD panel does not produce any radiation or ickering,
so it is easier on the eyes. Use a soft cloth without chemical liquids (use plain water if
necessary) to clean the display panel.
Camera Indicator
The camera indicator shows when the built-in camera is in use.

14
2Knowing the Parts
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
2
6
31
7
54
WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling
the Notebook PC while it is in operation or recently been in operation. High tempera-
tures are normal during charging or operation. Do not use on soft surfaces such as
beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
NOTE: The bottom side may vary in appearance depending on model.

15
Knowing the Parts 2
2
3
4
1
6
7
5
Shutdown Button (Emergency)
In case your operating system cannot properly turn OFF or restart, the shutdown button
can be pressed with a straightened paper clip to shutdown the Notebook PC.
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is in-
serted, it will automatically lock. To remove the battery pack, this spring lock must be held in
the unlocked position.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the
unlocked position to insert or remove the battery pack. Move the manual lock to the locked
position after inserting the battery pack.
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory. Addi-
tional memory will increase application performance by decreasing hard disk access. The
BIOS automatically detects the amount of memory in the system and congures CMOS
accordingly during the POST (Power-On-Self-Test) process. There is no hardware or
software (including BIOS) setup required after the memory is installed. Visit an authorized service center
or retailer for information on memory upgrades for your Notebook PC. Only purchase expansion modules
from authorized retailers of this Notebook PC to ensure maximum compatibility and reliability.
Central Processor Unit (CPU) Compartment
Some Notebook PC models feature a socketed-processor design to allow upgrading to faster
processors in the future. Some models feature a ULV design for compactness and may not
be upgraded. Visit an authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Hard disk drive upgrades are to be done
by authorized service centers or dealers only.
Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC
power source and maintains power to the Notebook PC when AC power is not connected.
This allows use when moving temporarily between locations. Battery time varies by usage
and by the specications for this Notebook PC. The battery pack cannot be disassembled
and must be purchased as a single unit.

16
2Knowing the Parts
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and
supports a standard Ethernet cable for connection to a local network. The built-in
connector allows convenient use without additional adapters.
Modem Port
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and sup-
ports a standard telephone cable. The internal modem supports up to 56K V.90 trans-
fers. The built-in connector allows convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital
phone systems. Do not connect the modem port to a digital phone system or else
damage will occur to the Notebook PC.
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a
series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices
to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected
or disconnected without restarting the computer.

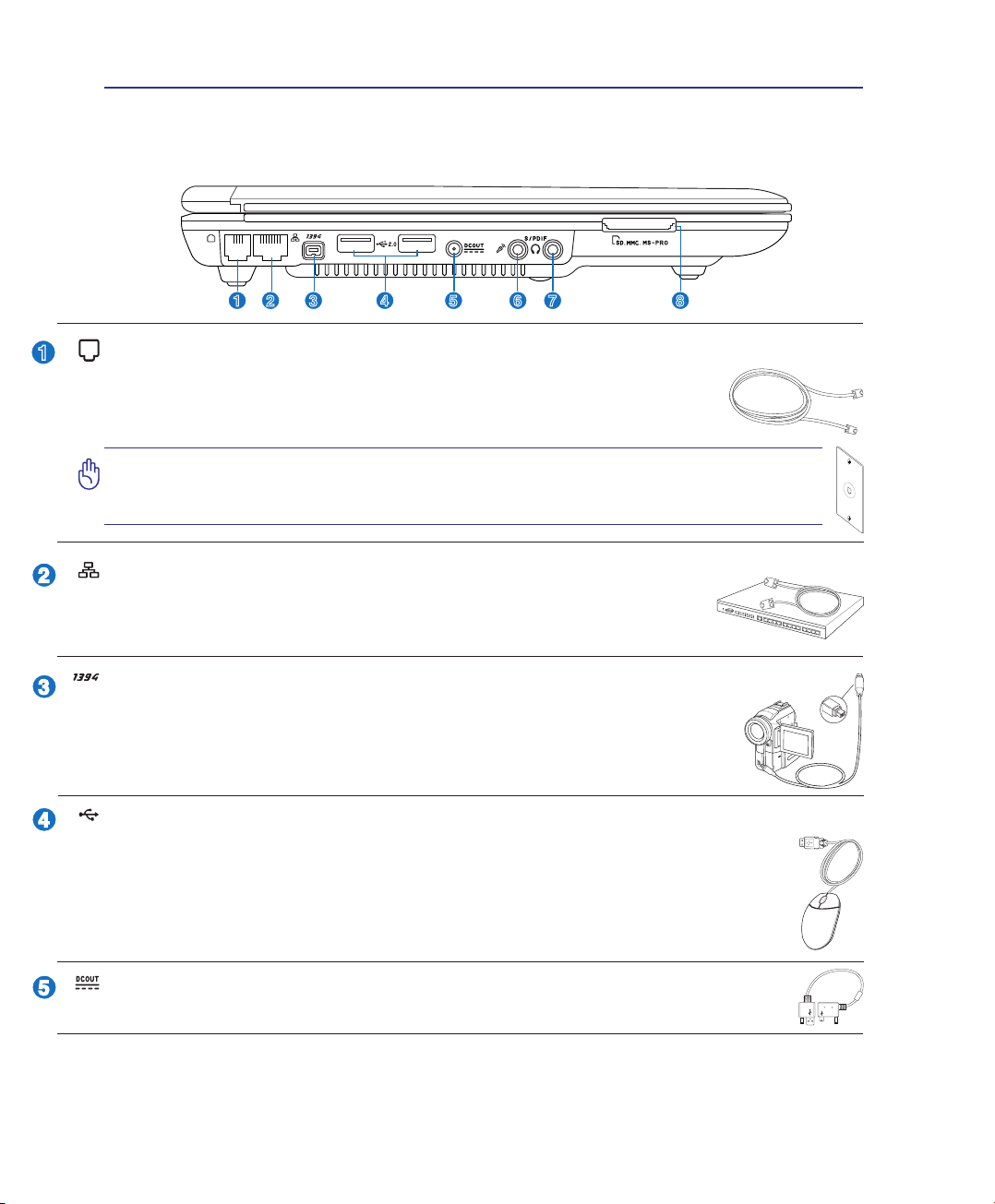

Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 43 5 76 8
2
3
4
1
5
IEEE1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-
plugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400
Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in
high-end digital equipment and should be marked “DV” for Digital Video port.
Power (DC) Output (for external optical drive)
This port supplies power to an external optical disk drive using the provided cable.

17
Knowing the Parts 2
8
7
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output
signals from audio devices. Using this jack automatically disables the built-in microphone.
Use this feature for video conferencing, voice narrations, or simple audio recordings.
SPDIF Output Jack
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant de-
vices for digital audio output. Use this feature to turn the Notebook PC into a hi- home
entertainment system.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplied speakers or headphones. Using this jack automatically disables the built-in speakers.
Combo
6
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in order
to use memory cards from devices such as digital cameras, MP3 players, mobile phones,
and PDAs. This Notebook PC has a built-in memory card reader that can read many ash
memory cards as specied later in this manual. The built-in memory card reader is not
only convenient, but also faster than most other forms of memory card readers because
it utilizes the high-bandwidth PCI bus.

18
2Knowing the Parts
Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 4
3
2
3
1
4
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a
series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices
to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected
or disconnected without restarting the computer.
ExpressCard Slot
One 26pin Express card slot is available to support one ExpressCard/34mm or one
ExpressCard/54mm expansion card. This new interface is faster by using a serial bus
supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC
card slot. (Not compatible with previous PCMCIA cards.)
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a moni-
tor or projector to allow viewing on a larger external display.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating of the Notebook PC
may occur.

19
Knowing the Parts 2
Rear Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 43 5
1
2
3
4
5
TV-Out Port
The TV-Out port is an S-Video connector that allows routing the Notebook
PC’s display to a television or video projection device. You can choose between
simultaneously or single display. Use an S-Video cable (not provided) for high
quality displays or use the provided RCAto S-Video adapter for standard video
devices. This port supports both NTSC and PAL formats.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power
supplied through this jack supplies power to the Notebook PC and charges the internal
battery pack. To prevent damage to the Notebook PC and battery pack, always use the
supplied power adapter. CAUTION: MAYBECOME WARM TO HOT WHEN IN USE. BE
SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®
compatible Notebook PC security products. These security products usually include a
metal cable and lock that prevent the Notebook PC to be removed from a xed object.
Some security products may also include a motion detector to sound an alarm when moved.
Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC
power source and maintains power to the Notebook PC when AC power is not connected.
This allows use when moving temporarily between locations. Battery time varies by usage
and by the specications for this Notebook PC. The battery pack cannot be disassembled
and must be purchased as a single unit.
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as
keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a
series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices
to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected
or disconnected without restarting the computer.

20
2Knowing the Parts

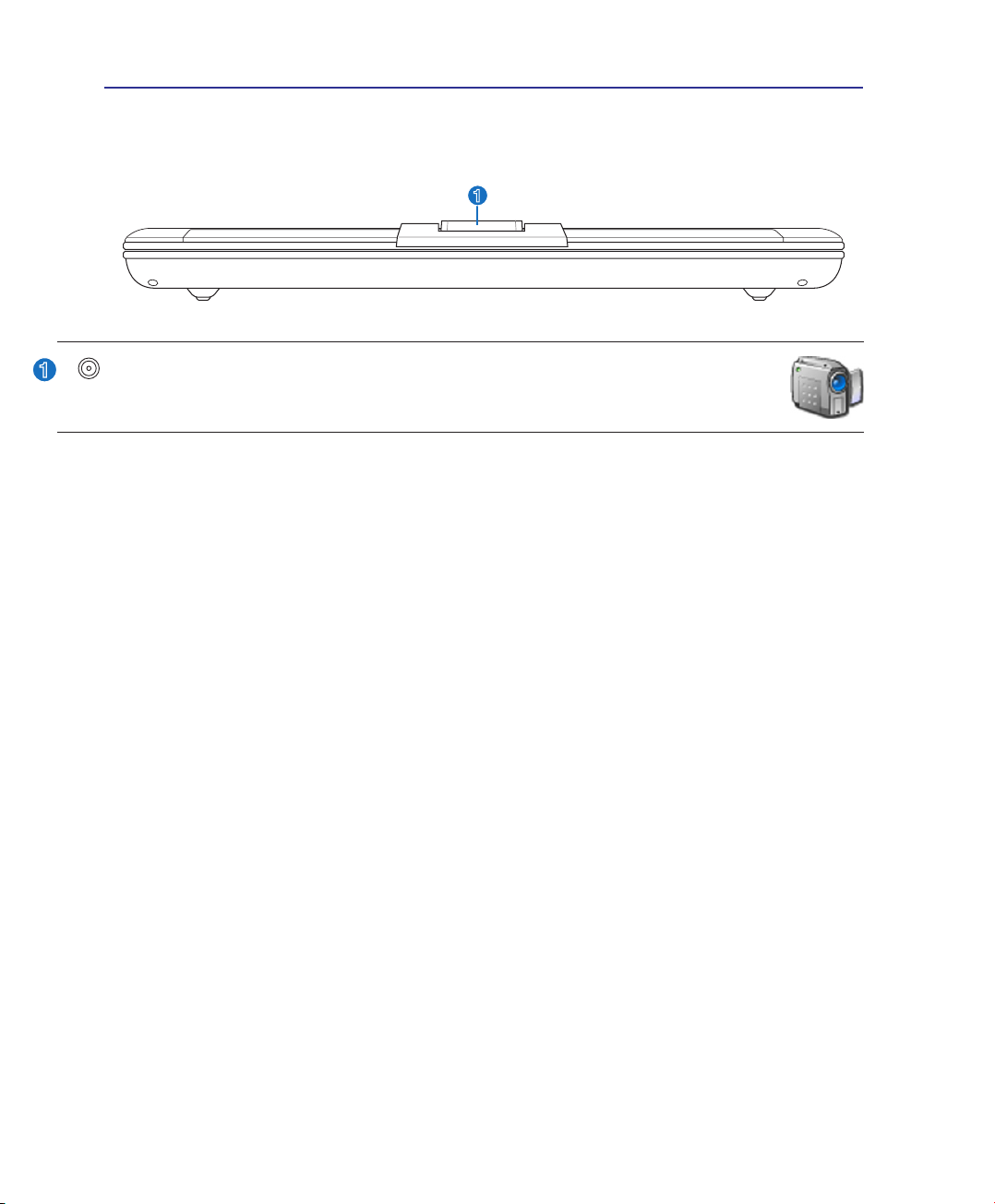

Front Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1
1
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video con-
ferencing and other interactive applications.
Other manuals for S7F
4
Table of contents
Other Asus Laptop manuals
Popular Laptop manuals by other brands

Fujitsu
Fujitsu U820 - LifeBook Mini-Notebook - Atom 1.6 GHz Bios guide

Lenovo
Lenovo YOGA 730-15IKB Hardware Maintenance Manual

HP
HP 6930p - EliteBook - Core 2 Duo 2.8 GHz Quickspecs

Toshiba
Toshiba M305-S4835 Specifications

Dell
Dell Inspiron 13z owner's manual

Toshiba
Toshiba Portege 300CT Specification sheet
