Asus AAEON FWS-7821 User manual

Last Updated: April 25, 2019
FWS-7821
Network Appliance
User’s Manual 5th Ed

Preface II
Network Appliance FWS-7821
Copyright Notice
This document is copyrighted, 2019. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design without notice to its
users.

Preface III
Network Appliance FWS-7821
Acknowledgement
All other products’ name or trademarks are properties of their respective owners.
Microsoft Windows is a registered trademark of Microsoft Corp.
Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel Corporation
Core, Atom is a trademark of Intel Corporation
ITE is a trademark of Integrated Technology Express, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines
Corporation.
All other product names or trademarks are properties of their respective owners.

Preface IV
Network Appliance FWS-7821
Packing List
Before setting up your product, please make sure the following items have been
shipped:
Item
Quantity
FWS-7821
1
EAR bracket kit
1
Console cable
1
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

Preface V
Network Appliance FWS-7821
About this Document
This User’s Manual contains all the essential information, such as detailed descriptions
and explanations on the product’s hardware and software features (if any), its
specifications, dimensions, jumper/connector settings/definitions, and driver installation
instructions (if any), to facilitate users in setting up their product.
Users may refer to the product page on AAEON.com for the latest version of this
document.

Preface VI
Network Appliance FWS-7821
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this
manual for future references
1. All cautions and warnings on the device should be noted.
2. All cables and adapters supplied by AAEON are certified and in accordance with
the material safety laws and regulations of the country of sale. Do not use any
cables or adapters not supplied by AAEON to prevent system malfunction or
fires.
3. Make sure the power source matches the power rating of the device.
4. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
5. Always completely disconnect the power before working on the system’s
hardware.
6. No connections should be made when the system is powered as a sudden rush
of power may damage sensitive electronic components.
7. If the device is not to be used for a long time, disconnect it from the power
supply to avoid damage by transient over-voltage.
8. Always disconnect this device from any AC supply before cleaning.
9. While cleaning, use a damp cloth instead of liquid or spray detergents.
10. Make sure the device is installed near a power outlet and is easily accessible.
11. Keep this device away from humidity.
12. Place the device on a solid surface during installation to prevent falls
13. Do not cover the openings on the device to ensure optimal heat dissipation.
14. Watch out for high temperatures when the system is running.
15. Do not touch the heat sink or heat spreader when the system is running
16. Never pour any liquid into the openings. This could cause fire or electric shock.

Preface VII
Network Appliance FWS-7821
17. As most electronic components are sensitive to static electrical charge, be sure to
ground yourself to prevent static charge when installing the internal components.
Use a grounding wrist strap and contain all electronic components in any
static-shielded containers.
18. If any of the following situations arises, please the contact our service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described in
this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
19. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH
TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES
(SEE CHAPTER 1) TO PREVENT DAMAGE.

Preface VIII
Network Appliance FWS-7821
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received including interference that may cause
undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.

Preface IX
Network Appliance FWS-7821
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
AAEON Embedded Box PC/ Industrial System
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
○
○
○
○
○
○
外部信号
连接器及线材
○
○
○
○
○
○
外壳
○
○
○
○
○
○
中央处理器
与内存
○
○
○
○
○
○
硬盘
○
○
○
○
○
○
电源
○
○
○
○
○
○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、触控模块为选购品。

Preface X
Network Appliance FWS-7821
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
AAEON Embedded Box PC/ Industrial System
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
PCB & Other
Components
O
O
O
O
O
○
Wires &
Connectors
for External
Connections
O
O
O
O
O
O
Chassis
O
O
O
O
O
O
CPU & RAM
O
O
O
O
O
O
Hard Disk
O
O
O
O
O
O
PSU
O
O
O
O
O
O
O：The quantity of poisonous or hazardous substances or elements found in each of the
component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least one of the
component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this product is applicable under normal
usage only

Preface XI
Network Appliance FWS-7821
Table of Contents
Chapter 1 - Product Specifications.......................................................................................... 1
1.1 Specifications............................................................................................................2
Chapter 2 –Hardware Information ....................................................................................... 6
2.1 Dimensions ............................................................................................................... 7
2.2 Jumpers and Connectors......................................................................................13
2.3 List of Jumpers ........................................................................................................18
2.3.1 Auto PWR Button (JP1)............................................................................18
2.3.2 Clear CMOS (CN14) .................................................................................18
2.3.3 CF Voltage Select (CN27)........................................................................18
2.4 List of Connectors...................................................................................................19
2.4.1 Front Panel (FP1).......................................................................................21
2.4.2 COM Port 2 (Only RS232) (COM1) .......................................................21
2.4.3 PS2 Connector (CN31)............................................................................22
2.4.4 DIO Connector (CN32) ..........................................................................22
2.5 Installing 2.5” Hard Disk Drives (2 Pieces) ........................................................23
2.6 Installing 2.5” Hard Disk Drives (4 Pieces)........................................................28
2.7 Installing 3.5” Hard Disk (1 Piece) .......................................................................35
2.8 Installing Expansion Card.....................................................................................38
2.9 Installing Network Interface Module .................................................................40
Chapter 3 - AMI BIOS Setup ................................................................................................ 42
3.1 System Test and Initialization ..............................................................................43
3.2 AMI BIOS Setup .....................................................................................................44
3.3 Main..........................................................................................................................45
3.4 Advanced ................................................................................................................46
3.4.1 Advanced: CPU Configuration .............................................................47
3.4.2 Advanced: SATA Configuration ............................................................48

Preface XII
Network Appliance FWS-7821
3.4.3 Advanced: Trusted Computing.............................................................49
3.4.4 Advanced: Hardware Monitor ...............................................................51
3.4.4.1 Smart Fan Function.....................................................................52
3.4.5 Advanced: SIO Configuration...............................................................54
3.4.5.1 Serial Port 1 Configuration ........................................................55
3.4.5.2 Serial Port 2 Configuration........................................................56
3.4.5.3 Parallel Port Configuration ........................................................57
3.4.6 Advanced: LAN Bypass Configuration................................................58
3.4.7 Advanced: Serial Port Console Redirection .......................................59
3.4.7.1 COM0 Console Redirection Settings.......................................60
3.4.7.2 Legacy Console Redirection Settings......................................63
3.4.7.3 Serial Port for Out-of-Band Management/Windows EMS.64
3.4.8 Advanced: Digital IO Port Configuration ...........................................66
3.4.9 Advanced: Power Management...........................................................67
3.5 Chipset.....................................................................................................................69
3.5.1 Chipset: System Agent (SA) Configuration........................................70
3.5.1.1 Graphics Configuration...............................................................71
3.7 Security ....................................................................................................................72
3.8 Boot..........................................................................................................................73
3.9 Save & Exit ..............................................................................................................74
Chapter 4 –Drivers Installation............................................................................................ 75
4.1 Drivers Installation.................................................................................................76
Appendix A - Watchdog Timer Programming................................................................... 78
A.1 Watchdog Timer Initial Program........................................................................79
Appendix B - I/O Information .............................................................................................. 85
B.1 I/O Address Map ...................................................................................................86
B.2 Memory Address Map .........................................................................................88
B.3 IRQ Mapping Chart...............................................................................................90

Preface XIII
Network Appliance FWS-7821
Appendix C - Standard LAN Bypass Platform Setting .....................................................104
C.1 Status LED ............................................................................................................. 105
C.1.2 Status LED Configuration..................................................................... 105
C.1.3 Satus LED Sample Code ...................................................................... 106
C.2 LAN Bypass........................................................................................................... 108
C.2.1 LAN Bypass Configuration .................................................................. 108
C.2.2 LAN Bypass Sample Code....................................................................110
C.3 Software Reset Button (General Propose Input)............................................112
C.3.1 Software Reset Button...........................................................................112
C.3.2 Software Reset Button Sample Code.................................................113

Network Appliance FWS-7821
Chapter 1
Chapter 1 - Product Specifications

Chapter 1 –Product Specifications 2
Network Appliance FWS-7821
1.1 Specifications
Platform
Form Factor
1U Rackmount Network Platform
Processor
Intel® 6th/7th Generation Core™/ Xeon
Processors
Chipset
Intel® C236
System Memory
DDR4 1866/2133/2400 UDIMM/ECC Up to 64GB
288-pin DIMM x 4
Network
Ethernet
Intel® i211 GbE x 6 + Intel® i210 GbE x 2 (SFP)
NIM x 1 (Or i211 GbE x8 +NIMx1) UDIMM/ECC
Bypass
Onboard 2 pairs bypass, others depend on NIM
module
NIM Slot
1
Display
Graphic Controller
Intel® Integrated
Connector
VGA cable (Optional)

Chapter 1 –Product Specifications 3
Network Appliance FWS-7821
Storage
HDDs
Internal 2.5” SATA HDD x 2 or 3.5” SATA HDD x 1
(optional)
CF/CFast/mSATA
Optional BOM CFast™ socket or mSATA slot or
CF™ socket (optional)
Expansion/Internal Interface
PCIe slot
Up to PCIe x 2 [x8] slots
Mini-PCIe slot
Mini Card x 1
Keyboard and Mouse
Pin-header
Universal Serial Bus
USB 3.0 x 2, Box Header (2.0mm)
Miscellaneous
RTC
Internal RTC
Watchdog Timer
1~255 steps by software programmable,
1 sec per step
Software Button
GPIO Programmable push button x 1
TPM
TPM v1.2 9660 (TPM2.0 9665 optional)
GPIO
4 bits input, 4bits output
FAN
2
MTBF (Hours)
94,241
Color
Black

Chapter 1 –Product Specifications 4
Network Appliance FWS-7821
Environmental Parameters and Dimension
Power Requirement
250W ATX PSU
Operation Temp.
32°F ~ 104°F (0°C ~ 40°C)
Storage Temp.
-4°F ~ 140°F (-20°C ~ 60°C)
Operating Humidity
10% ~ 80% relative humidity, non-condensing
Storage Humidity
10% ~ 80% @ 40°C, non-condensing
Vibration
0.5 Grms/ 5 ~ 500Hz/ operation (3.5” H.D.D)
1.5 Grms/ 5 ~ 500Hz/ no operation
Shock
10G peak acceleration (11 m sec. duration),
operation
20G peak acceleration (11 m sec. duration),
non-operation
Chassis Dimension (W x D x H)
16.93” x 12.01” x 1.73” (430mm x 305mm x
44mm)
I/O Interfaces
Front Panel
Power LED x 1
Status LED x 1
HDD Active LED x 1
USB 3.0 Ports x 2
RJ-45 Console x 1
Parallel LCM display and 4 keypad x 1 (Optional
w/ NIM slot)
Software Programmable Switch x 1
Bypass LED X2
RJ45 X8 or RJ45 X6+SFPX 2

Chapter 1 –Product Specifications 5
Network Appliance FWS-7821
I/O Interfaces
Rear Panel
AC Power Input x 1
Power Switch x 1
VGA port (Optional)
Rear Expansion Slot x 2 (2 x PCIe [x8] slots, NIM
slot will be disabled if PCIe Riser supported)

Network Appliance FWS-7821
Chapter 2
Chapter 2 –Hardware Information

Chapter 2 –Hardware Information 7
Network Appliance FWS-7821

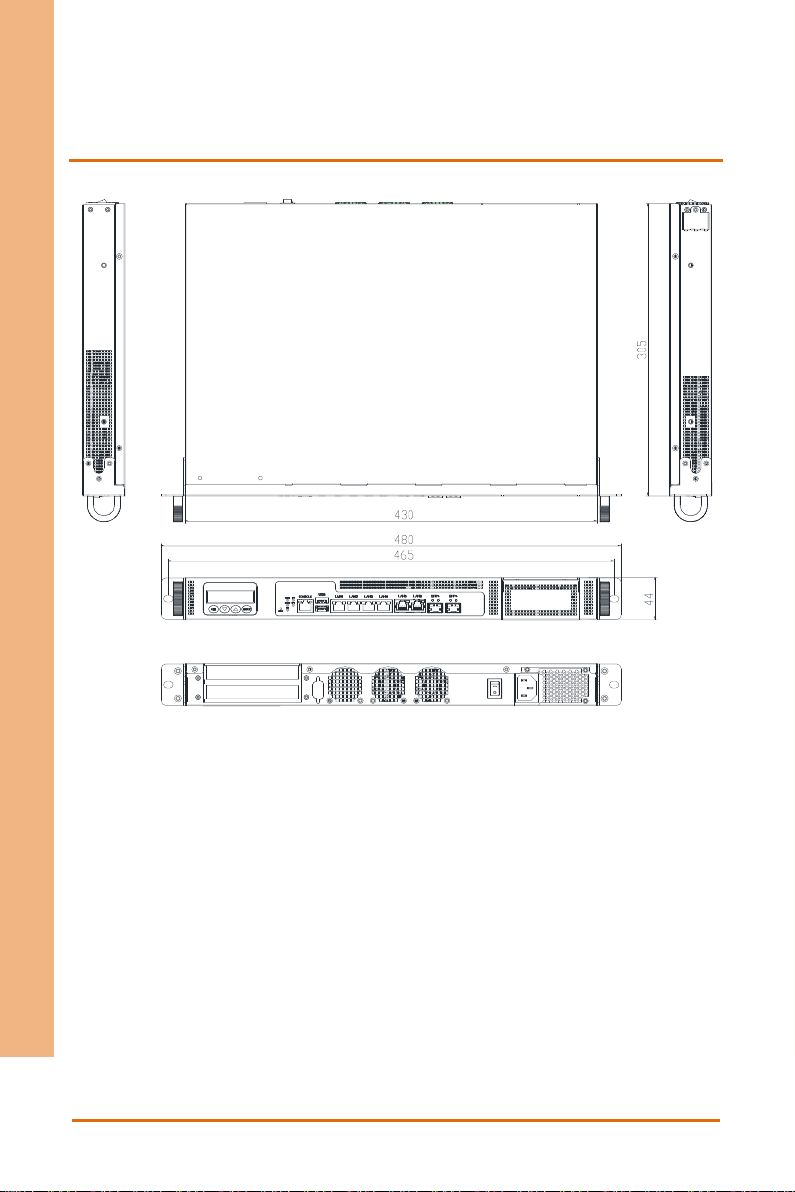

2.1 Dimensions
System
