Asus Aaeon ICS-6280 User manual

ICS-6280
Industrial Network Appliance
User’s Manual 1st Ed

II
Industrial Network Appliance ICS-6280
Copyright Notice
This document is copyrighted, 2022. All rights are reserved. The original manufacturer
reserves the right to make improvements to the products described in this manual at
any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted in any
form or by any means without the prior written permission of the original manufacturer.
Information provided in this manual is intended to be accurate and reliable. However,
the original manufacturer assumes no responsibility for its use, or for any infringements
upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to change
without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information contained herein.
AAEON reserves the right to make changes in the product design without notice to its
users.

III
Industrial Network Appliance ICS-6280
Acknowledgement
All other products’ name or trademarks are properties of their respective owners.
⚫Microsoft Windows is a registered trademark of Microsoft Corp.
⚫Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
⚫Core, Atom are trademarks of Intel Corporation
⚫ITE is a trademark of Integrated Technology Express, Inc.
⚫IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines
Corporation.
All other product names or trademarks are properties of their respective owners.

IV
Industrial Network Appliance ICS-6280
Packing List
Before setting up your product, please make sure the following items have been
shipped:
Item
Quantity
⚫ICS-6280
1
⚫SATA Cable
1
⚫SATA Power Cable
1
⚫DIN Rail Kit
1
If any of these items are missing or damaged, please contact your distributor or sales
representative immediately.

V
Industrial Network Appliance ICS-6280
About this Document
This User’s Manual contains all the essential information, such as detailed descriptions
and explanations on the product’s hardware and software features (if any), its
specifications, dimensions, jumper/connector settings/definitions, and driver
installation instructions (if any), to facilitate users in setting up their product.
Users may refer to the AAEON.com for the latest version of this document.

VI
Industrial Network Appliance ICS-6280
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this
manual for future references
1. All cautions and warnings on the device should be noted.
2. All cables and adapters supplied by AAEON are certified and in accordance with
the material safety laws and regulations of the country of sale. Do not use any
cables or adapters not supplied by AAEON to prevent system malfunction or
fires.
3. Make sure the power source matches the power rating of the device.
4. Position the power cord so that people cannot step on it. Do not place anything
over the power cord.
5. Always completely disconnect the power before working on the system’s
hardware.
6. No connections should be made when the system is powered as a sudden rush
of power may damage sensitive electronic components.
7. If the device is not to be used for a long time, disconnect it from the power
supply to avoid damage by transient over-voltage.
8. Always disconnect this device from any AC supply before cleaning.
9. While cleaning, use a damp cloth instead of liquid or spray detergents.
10. Make sure the device is installed near a power outlet and is easily accessible.
11. Keep this device away from humidity.
12. Place the device on a solid surface during installation to prevent falls
13. Do not cover the openings on the device to ensure optimal heat dissipation.
14. Watch out for high temperatures when the system is running.
15. Do not touch the heat sink or heat spreader when the system is running
16. Never pour any liquid into the openings. This could cause fire or electric shock.

VII
Industrial Network Appliance ICS-6280
17. As most electronic components are sensitive to static electrical charge, be sure
to ground yourself to prevent static charge when installing the internal
components. Use a grounding wrist strap and contain all electronic components
in any static-shielded containers.
18. If any of the following situations arises, please the contact our service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described in
this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
19. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH
TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES
(SEE CHAPTER 1) TO PREVENT DAMAGE.

VIII
Industrial Network Appliance ICS-6280
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received including interference that
may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries
according to the manufacturer’s instructions and your local government’s recycling or
disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et
les directives gouvernementales de recyclage.

IX
Industrial Network Appliance ICS-6280
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
AAEON Embedded Box PC/ Industrial System
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
○
○
○
○
○
○
外部信号
连接器及线材
○
○
○
○
○
○
外壳
○
○
○
○
○
○
中央处理器
与内存
○
○
○
○
○
○
硬盘
○
○
○
○
○
○
电源
○
○
○
○
○
○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、触控模块为选购品。

X
Industrial Network Appliance ICS-6280
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
AAEON Embedded Box PC/ Industrial System
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
PCB & Other
Components
O
O
O
O
O
○
Wires &
Connectors
for External
Connections
O
O
O
O
O
O
Chassis
O
O
O
O
O
O
CPU & RAM
O
O
O
O
O
O
Hard Disk
O
O
O
O
O
O
PSU
O
O
O
O
O
O
O：The quantity of poisonous or hazardous substances or elements found in each of the
component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least one of the
component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this product is applicable under
normal usage only

XI
Industrial Network Appliance ICS-6280
Table of Contents
Chapter 1 – Product Specifications......................................................................................... 1
1.1 Specifications............................................................................................................ 2
Chapter 2 – Hardware Information ....................................................................................... 5

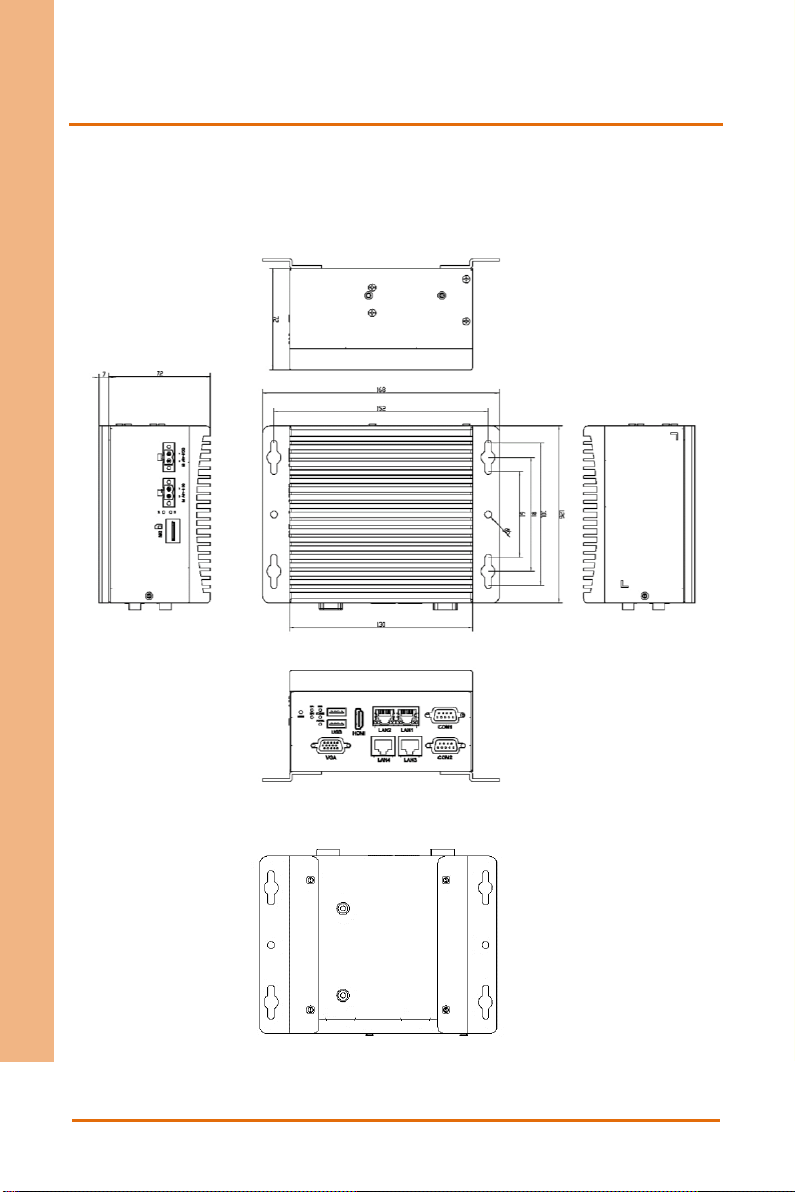

2.1 Dimensions ............................................................................................................... 6
2.2 Jumpers and Connectors......................................................................................10
2.3 List of Jumpers ........................................................................................................12
2.3.1 Jumper Settings...........................................................................................12
2.4 List of Connectors...................................................................................................13
2.4.1 Digital I/O (CN10)........................................................................................14
Chapter 3 – AMI BIOS Setup................................................................................................. 15
3.1 System Test and Initialization ...............................................................................16
3.2 AMI BIOS Setup ......................................................................................................17
3.3 Setup Submenu: Main...........................................................................................18
3.4 Setup Submenu: Advanced..................................................................................19
3.4.1 CPU Configuration ..................................................................................20
3.4.2 PCH-FW Configuration.........................................................................21
3.4.3 Firmware Update Configuration ........................................................22
3.4.4 Trusted Computing ...............................................................................23
3.4.5 SATA Configuration.............................................................................25
3.4.6 Hardware Monitor.................................................................................26
3.4.7 System FAN Setting ..............................................................................27
3.4.8 SIO Configuration .................................................................................29
3.4.8.1 Serial Port 1 Configuration.......................................................30
3.4.8.2 Serial Port 2 Configuration.......................................................31
3.4.9 Serial Port Console Redirection..........................................................32
3.4.10 Power Management..........................................................................33

XII
Industrial Network Appliance ICS-6280
3.4.11 Digital IO Port Configuration..............................................................34
3.4.12 LAN Bypass Configuration................................................................35
3.4.13 Case Open Configuration ................................................................36
3.5 Setup Submenu: Chipset .....................................................................................37
3.5.1 System Agent (SA) Configuration ........................................................38
3.5.2 Memory Configuration........................................................................39
3.5.3 Graphics Configuration........................................................................40
3.5.4 PCH-IO Configuration...........................................................................41
3.5.5 PCI Express Configuration...................................................................42
3.6 Setup Submenu: Boot ..........................................................................................43
3.7 Setup Submenu: Security.....................................................................................44
3.7.1 Secure Boot ..............................................................................................45
3.7.2 Key Management..................................................................................47
3.8 Setup Submenu: Save & Exit...............................................................................48
Chapter 4 – Driver Installation ............................................................................................. 49
4.1 Driver Installation...................................................................................................50
Appendix B - I/O Information .............................................................................................. 52
B.1 I/O Address Map ...................................................................................................53
B.2 Memory Address Map .........................................................................................54
B.3 IRQ Mapping Chart...............................................................................................55

Industrial Network Appliance ICS-6280
Chapter 1
Chapter 1 –Product Specifications

Chapter 1 – Product Specifications 2
Industrial Network Appliance ICS-6280
1.1 Specifications
System
Form Factor
DIN Rail/ Desktop
Processor
Intel® Elkhart lake SoC Processor
System Memory
260-pin DDR4 3200Mhz SODIMM with
IBECC support x 1
Chipset
SoC
Ethernet
Intel® i211 Gigabit Ethernet x 4
Bypass
1 pair, supports up to 2 pairs
BIOS
AMI SPI Flash BIOS
Serial ATA
SATA III port x 1 for 2.5” SSD support
CFast/mSATA
mSATA (Full size) socket colay SATAIII port x 1
Expansion Interface
Supports Mini-Card slot x 1 with SIM socket
USB
USB 3.2 Gen 1 x 2
Serial Port
Supports up to RS-232/422/485 COM port x
2
Watchdog Timer
1~255 steps by software programmable
RTC
Internal RTC
System Fan
Fanless
Color
Black
Power Supply
Dual 2-Pin Phoenix terminal block

Chapter 1 – Product Specifications 3
Industrial Network Appliance ICS-6280
System
Dimension
5.12” x 4.96” x 2.83” (130mm x 126mm x
72mm)
Power Requirement
Redundant 9~48Vdc power input
MTBF (Hours)
TBD
Display
Chipset
Intel® HD Graphics
Interface
HDMI port x 1, VGA port x 1
I/O
Front I/O Panel
RJ-45 GbE x 4
RS-232/422/485 COM ports x 2
HDMI port x 1
VGA port x 1
USB 3.2 Gen 1 x 2
Micro SIM slot x 1
Software programmable button x 1
Power LED x 1
HDD LED x 1
Status LED x 1
Bypass LED x 1 (Optional x 2)
Rear I/O Panel
DIN Rail/ Wallmount Lock
Top Panel
2-Pin Terminal Block +9~46VDC x 2

Chapter 1 – Product Specifications 4
Industrial Network Appliance ICS-6280
Environmental Parameters and Dimensions
Operating Temperature
-40°F ~ 167°F (-40°C ~ 75°C)
Storage Temperature
-40°F ~ 185°F (-40°C ~ 85°C)
Operating Humidity
10% ~ 80% relative humidity, non-condensing
Storage Humidity
10% ~ 80% @40°C; non-condensing
Vibration
0.5 Grms/ 5 ~ 500Hz / operation (2.5” SSD)
1.5 Grms/ 5 ~ 500Hz / non operation
Shock
10 G peak acceleration (11 m sec. duration),
operation
20 G peak acceleration (11 m sec. duration),
non operation

Industrial Network Appliance ICS-6280
Chapter 2
Chapter 2 –Hardware Information

Chapter 2 – Hardware Information 6
Industrial Network Appliance ICS-6280
2.1Dimensions
System

Chapter 2 – Hardware Information 7
Industrial Network Appliance ICS-6280

Chapter 2 – Hardware Information 8
Industrial Network Appliance ICS-6280
Board
Component Side
