Asus AAM6020VI-T4 User manual

AAM6020VI-T4 CPE User Manual
AAM6020VI-T4
User Manual
Rev. 1.02
Version date: January 11, 2005

AAM6020VI-T4 User Manual
2 2
Table of Contents
1. Introduction 4
1.1 Features & System Requirements 4
2. Your CPE at a glance 5
2.1 Ports and buttons (Back panel) 5
2.2 LED description (Front panel) 5
2.3 LED table & parts list 6
3. Getting Start 7
3.1 Connecting the Hardware 7
3.1.1 Connect the ADSL line 7
3.1.2 Connect the computers or a LAN 7
3.1.3 Attach the power adapter 7
3.1.4 Turn on your computer 7
3.2 Configuring Your PC 8
3.2.1 Windows XP 8
3.2.2 Windows 2000 8
3.2.3 Windows Me 9
3.2.4 Windows 95/98 10
3.2.5 Windows NT 4.0 11
3.2.6 Assigning IP to your PC automatically by DHCP 11
4. Setting up your CPE 12
4.1 Log into your CPE 12
4.2 Home screen 12
4.3 Setup 13
4.3.1 Wide Area Network connection 13
4.3.2 Local Area Network connection 14
4.4 Configuring the WAN 14
4.4.1 New Connection 14
4.4.2 Modify an Existing Connection 19
4.4.3 Modem setup 19
4.5 Configuring the LAN 19
4.5.1 Enable/Disable DHCP 19
4.5.2 Changing the CPEs IP address 21
4.5.3 Firewall/NAT Services 22
4.6 Advanced 22
4.6.1 UPnP 23
4.6.2 Port Forwarding 24
4.6.3 IP QoS/IP filters 25
4.6.4 Access Control 26
4.6.5 LAN clients 26
4.6.6 Bridge Filters 26
4.6.7 Multicast 27
4.6.8 Static Routing 28
4.6.9 Dynamic Routing 29
4.7 Wireless 31
4.7.1 Setup 31

AAM6020VI-T4 User Manual
3 3
4.7.2 Configuration 32
4.7.3 Security 32
4.7.4 Management 33
4.8 Tools 34
4.8.1 System Commands 34
4.8.2 Remote Log 34
4.8.3 User Management 34
4.8.4 Update Gateway 35
4.8.5 Ping Test 35
4.8.6 Modem Test 36
4.9 Status 36
4.9.1 Network Statistics 36
4.9.2 Connection Status 36
4.9.3 DHCP Clients 36
4.9.4 Modem Status 36
4.9.5 Product Information 36
4.9.6 System Log 37
5. Appendix A: Troubleshooting 38
5.1 The CPE is not functional 38
5.2 I can’t connect to the CPE. 38
5.3 The LEDs blink in a sequential pattern. 38
5.4 The DSL Link LED continues to blink but does not go solid 39
5.5 The DSL Link LED is always off 39
6. Router terms 40

AAM6020VI-T4 User Manual
4 4
1. Introduction
Congratulations on becoming the owner of an ASUS AAM6020VI-T4 CPE (Customer Premises
Equipment). Your LAN (Local Area Network) will now be able to access the Internet via the CPE’s ADSL
connection.
This User Manual will show you how to set up the AAM6020VI-T4 CPE, and how to customize its
configuration to get the most out of this product.
1.1 Features & System Requirements
 Features
• Equipped with a 4 Port 10/100 Ethernet
• Connects multiple PCs to the Internet with just one WAN IP Address (when configured in router
mode with NAT enabled)
• Configurable through user-friendly web pages
• Supports Single-Session IPSec and PPTP Pass-Through for Virtual Private Network (VPN)
• Several popular games are already pre configured. Just enable the game and the port settings are
automatically configured.
• Configurable as a DHCP Server on Your Network
• Compatible with virtually all standard Internet applications
• Industry standard and interoperable DSL interface
• Simple web based status page displays a snapshot of your system configuration, and links to the
configuration pages
• Downloadable flash software upgrades
• Support for up to 8 Permanent Virtual Circuits (PVC)
• Support for up to 8 PPPOE sessions
• Layer 2 Ethernet switch (not a hub)
• PVC assignment must be operational in bridged mode (RFC 1483/2684)
 System Requirements
In order to use the AAM6020VI-T4 CPE for Internet access, you must have the following:
 ADSL service subscription from your ISP.
 One computer containing an Ethernet 10BaseT/100BaseT network interface card (NIC).
 (Optional) An Ethernet hub/switch, if you are connecting the device to several computers on an
Ethernet network.
 For system monitoring or configuration using the supplied web-based program: a web browser such as
Internet Explorer Version 5.5 or later.

AAM6020VI-T4 User Manual
5 5
2. Your CPE at a glance
Your CPE has many ports, switches and LEDs. Let’s take a look at the different options. Depending upon
your model of CPE, your CPE may have some or all of the features listed below
2.1 Ports and buttons (Back panel)
 Power is where you connect the power.
 LAN 1~4 (local area network) port: connect to Ethernet network devices, such as a PC, hub,
switch, or router. Some CPEs come with a single LAN connection and some come with four
LAN connections. Depending on the connection, you may need a cross over cable or a strait
through cable.
 Reset Button: The reset button is used to reset the CPE to default setting. You may need to
reset the CPE if you loose network connectivity or you loose the ability to interface to the CPE
via the web interface. To reset the CPE, simply press the reset button for about 5-10 seconds
and release. After about 30 seconds the CPE will become operational.
 DSL (Line) port: This is the WAN interface that connects directly to your phone line.
2.2 LED description (Front panel)
 Power LED: On indicates that the power is supplied to the CPE
 Status LED: The Status LED serves two purposes. If the LED is continuously lit, the DSL
interface is successfully connected to a device through the WAN port. If the LED is flickering,
it is an indication that the modem is training.
 Activity LED: The Activity LED flash during ADSL data transfer.
 LAN 1~4 LED: The LAN’s LED serves two purposes. If the LED is continuously lit, the
Ethernet interface is successfully connected to a device through the LAN port. If the LED is
flickering, it is an indication of any network activity.
 WLAN LED: The Wireless LAN’s LED. This LED is continuously lit due to power up and
flickering if any Wireless network activity in device.

AAM6020VI-T4 User Manual
6 6
2.3 LED table & parts list
 LED Table
The LEDs can help diagnose problems. If you are using an AAM6020VI-T4 CPE, you will
have the LEDs shown in Table 1
Label Color Function
POWER Green
On: Unit is powered on
Off: Unit is powered off
STATUS Blue Flashing: ADSL data transfer
LINE Blue On: ADSL link is established and active
Flashing: Trying to create an ADSL connection
Off: No ADSL link
TEST Blue Device in test mode
LAN 1~4 Blue On: LAN link is established
Flashing: Data transfer at LAN connection
Off: No LAN link
WLAN Blue On: WLAN is service
Off: No WLAN in service of device
Table 1 (Front Panel & LEDs)
 Parts List
In addition to this document, your AAM6020VI-T4 should come with the
following:
 AAM6020VI-T4 4 Port ADSL WLAN Router
 Power adapter
 Ethernet cable (RJ45), Phone cable (RJ-11)
 User Manual & Quick Guide

AAM6020VI-T4 User Manual
7 7
3. Getting Start
This chapter provides basic instructions for connecting the CPE to a computer or a LAN and to the Internet
via ADSL.
 Part 1 provides instructions to set up the hardware.
 Part 2 describes how to configure Internet properties on your computer(s).
 Part 3 shows you how to access your CPE.
It is assumed that you have already subscribed to ADSL service with your telephone company or other
Internet service provider (ISP). These instructions provide a basic configuration that should be compatible
with your home or small office network setup. Refer to the subsequent chapters for additional configuration
instructions.
3.1 Connecting the Hardware
In 3.1, you should connect the device to an ADSL line, the power outlet, and your computer or network.
3.1.1 Connect the ADSL line
Connect your ADSL line to the port labeled LINE on the rear panel of the device, and connect the other end
of the line to the wall phone jack directly or to an optional POTS splitter. If you use a POTS splitter to
connect a telephone to the same wall jack as the CPE, follow the instructions that came with the splitter.
3.1.2 Connect the computers or a LAN
You can use the included Ethernet cable to connect your computer directly to the CPE. Attach one end of the
Ethernet cable to the port labeled LAN on the rear panel of the device and connect the other end to the Ethernet
port of your computer.
If your LAN has more than one computer, you can attach one end of an Ethernet cable to a hub or a switch and
the other to the port labeled LAN on the CPE.
Note that either a crossover or a straight-through Ethernet cable can be used. The CPE determines and adjusts to
the type of signal required.
3.1.3 Attach the power adapter
Connect the cylindrical power plug into the POWER connector on the back of the device.
3.1.4 Turn on your computer
Turn on and boot up your computer and any other LAN devices, such as hubs or switches.

AAM6020VI-T4 User Manual
8 8
3.2 Configuring Your PC
Before you start to access the CPE via Ethernet, you must configure your PC’s TCP/IP address to be 192.168.1.x,
where xis any number between 2 and 254. The subnet mask must be 255.255.255.0. Your CPE’s default IP
address is 192.168.1.1.
If you use Ethernet cable to connect your AAM6020VI-T4 and PC, you don’t need any specific driver
installation.
3.2.1 Windows XP:
1. In the Windows task bar, click on the Start button, and then click on Control Panel.
2. Double-click on the Network Connections icon.
3. In the LAN or High-Speed Internet window, right-click on the icon corresponding to your network
interface card (NIC) and select Properties. (Often this icon is labeled Local Area Connection).
The Local Area Connection dialog box is displayed with a list of currently installed network
items.
4. Ensure that the check box to the left of the item labeled Internet Protocol (TCP/IP) is checked,
and click on .
.

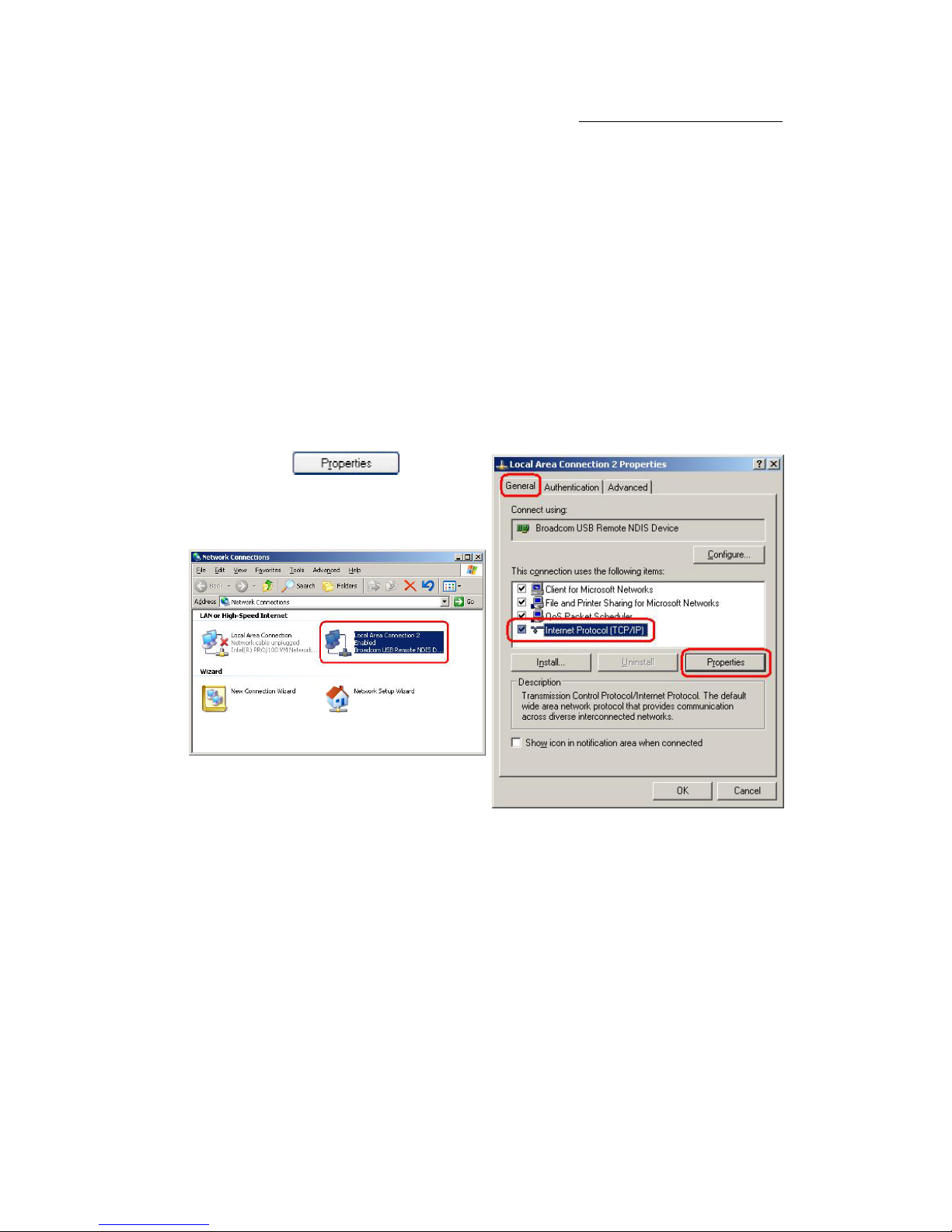

Figure 3.7 Network
Connections in
Windows XP
Figure 3.8 Local Area Connection Properties in Windows XP
5. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio button labeled Use
the following IP address and type 192.168.1.x (where xis any number between 2 and 254) and
255.255.255.0 in the IP address field and Subnet Mask field, respectively.
3.2.2 Windows 2000:
1. In the Windows task bar, click on the Start button, point to Settings, and then select Control
Panel.
2. Double-click on the Network and Dial-up Connections icon.
3. In the Network and Dial-up Connections window, right-click on the Local Area Connection
icon, and then select Properties.

AAM6020VI-T4 User Manual
9 9
The Local Area Connection Properties dialog box is displayed with a list of currently installed
network components. If the list includes Internet Protocol (TCP/IP), the protocol has already
been enabled, in which case you can skip to Step 10.
4. If Internet Protocol (TCP/IP) does not appear as an installed component, click on
.
5. In the
Select Network Component Type dialog box, select Protocol, and then click on
.
6. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click on
.
You may be prompted to install files from your Windows 2000 installation CD or other media. Follow
the instructions to install the files.
7. If prompted, click on to restart your computer with the new settings.
8. After restarting your PC, double-click on the Network and Dial-up Connections icon in the
Control Panel.
9. In Network and Dial-up Connections window, right-click on the Local Area Connection icon,
and then select Properties.
10. In the Local Area Connection Properties dialog box, select Internet Protocol (TCP/IP), and
then click on .
11. In the Internet Protocol (TCP/IP) Properties dialog box, click in the radio button labeled Use
the following IP address and type 192.168.1.x (where xis any number between 2 and 254) and
255.255.255.0 in the IP address field and Subnet Mask field, respectively.
12. Click on twice to confirm and save your changes, and then close the Control Panel.
3.2.3 Windows Me:
1. In the Windows task bar, click on the Start button, point to Settings, and then click Control
Panel.
2. Double-click on the Network and Dial-up Connections icon.
3. In the Network and Dial-up Connections window, right-click on the Network icon, and then
select Properties.
The Network Properties dialog box is displayed with a list of currently installed network
components. If the list includes Internet Protocol (TCP/IP), the protocol has already been
enabled, in which case you can skip to Step 11.
4. If Internet Protocol (TCP/IP) does not appear as an installed component, click on .
5. In the Select Network Component Type dialog box, select Protocol, and then click
.
6. Select Microsoft in the Manufacturers box.
7. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click on .
You may be prompted to install files from your Windows Me installation CD or other media. Follow
the instructions to install the files.

AAM6020VI-T4 User Manual
10 10
8. If prompted, click on to restart your computer with the new settings.
9. After restarting your PC, double-click on the Network and Dial-up Connections icon in the
Control Panel.
10. In Network and Dial-up Connections window, right-click on the Network icon, and then select
Properties.
11. In the Network Properties dialog box, select TCP/IP, and then click on .
12. In the TCP/IP Settings dialog box, click in the radio button labeled Use the following IP address
and type 192.168.1.x (where xis any number between 2 and 254) and 255.255.255.0 in the IP
address field and Subnet Mask field, respectively.
13. Click on twice to confirm and save your changes, and then close the Control Panel.
3.2.4 Windows 95, 98:
1. In the Windows task bar, click on the Start button, point to Settings, and then click Control
Panel.
2. Double-click on the Network icon.
The Network dialog box is displayed with a list of currently installed network components. If the list
includes TCP/IP, the protocol has already been enabled, in which case you can skip to Step 9.
3. If TCP/IP does not appear as an installed component, click on . The Select
Network Component Type dialog box appears.
4. Select Protocol, and then click .
The Select Network Protocol dialog box appears.
5. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the Network Protocols
list box.
6. Click to return to the Network dialog box, and then click again.
You may be prompted to install files from your Windows 95/98 installation CD. Follow the
instructions to install the files.
7. Click on to restart the PC and complete the TCP/IP installation.
8. After restarting your PC, open the Control Panel window, and then click on the Network icon.
9. Select the network component labeled TCP/IP, and then click on .
If you have multiple TCP/IP listings, select the listing associated with your network card or adapter.
10. In the TCP/IP Properties dialog box, click on the IP Address tab.
11. Click in the radio button labeled Use the following IP address and type 192.168.1.x (where xis
any number between 2 and 254) and 255.255.255.0 in the IP address field and Subnet Mask field,
respectively.
12. Click on twice to confirm and save your changes. You will be prompted to restart
Windows. Please click on and restart your PC again.

AAM6020VI-T4 User Manual
11 11
3.2.5 Windows NT 4.0:
1. In the Windows NT task bar, click on the Start button, point to Settings, and then click Control
Panel.
2. In the Control Panel window, double click on the Network icon.
3. In the Network dialog box, click on the Protocols tab.
The Protocols tab displays a list of currently installed network protocols. If the list includes TCP/IP,
the protocol has already been enabled, in which case you can skip to Step 9.
4. If TCP/IP does not appear as an installed component, click on .
5. In the Select Network Protocol dialog box, select TCP/IP, and then click on .
You may be prompted to install files from your Windows NT installation CD or other media. Follow
the instructions to install the files.
After all files are installed, a window displays to inform you that a TCP/IP service called DHCP can be
set up to dynamically assign IP information.
6. Click on to continue, and then click on if prompted to restart your
computer.
7. After restarting your PC, open the Control Panel window, and then double-click on the Network
icon.
8. In the Network dialog box, click on the Protocols tab.
9. In the Protocols tab, select TCP/IP, and then click on .
10. In the Microsoft TCP/IP Properties dialog box, click in the radio button labeled Use the
following IP address and type 192.168.1.x (where xis any number between 2 and 254) and
255.255.255.0 in the IP address field and Subnet Mask field, respectively.
11. Click on twice to confirm and save your changes, and then close the Control Panel.
3.2.6 Assigning IP to your PC automatically by DHCP
To use the CPE’s DHCP feature, click in the radio button labeled Obtain an IP address automatically
instead of Use the following IP address in the above procedures.
 By default, the LAN port IP address of the CPE is 192.168.1.1. (You can change this address, or
another address can be assigned by your ISP.)
Now that the hardware installation is complete, proceed to Chapter 4: Setting up your CPE

AAM6020VI-T4 User Manual
12 12
4. Setting up your CPE
This section will guide you through your CPE’s configuration. The CPE is shipped with a standard default
bridge configuration; for most users, you may want to change the CPE from a bridge to a router.
4.1 Log into your CPE
To configure your CPE, open your web browser. You may get an error message at this point; this is normal.
Don’t panic. Continue following these directions. Type the default IP address (192.168.1.1) Press the
Enter key and the following screen, shown in Figure 1 will appear. The default user name is Admin (case
sensitive) and the password is Admin (case sensitive).
Note: Before setting up your CPE, make sure you have followed the quick start guide. You should have
your computers configured for DHCP mode and have proxies disabled on your browser. Also if you access
the router, and instead of getting a login screen, the browser instead displays a login redirection screen, you
should check your browser's setting, and verify that JavaScript support is enabled. Also, if you do not get
the screen shown in Figure 1, you may need to delete your temporary Internet files (basically flush the
cached web pages).

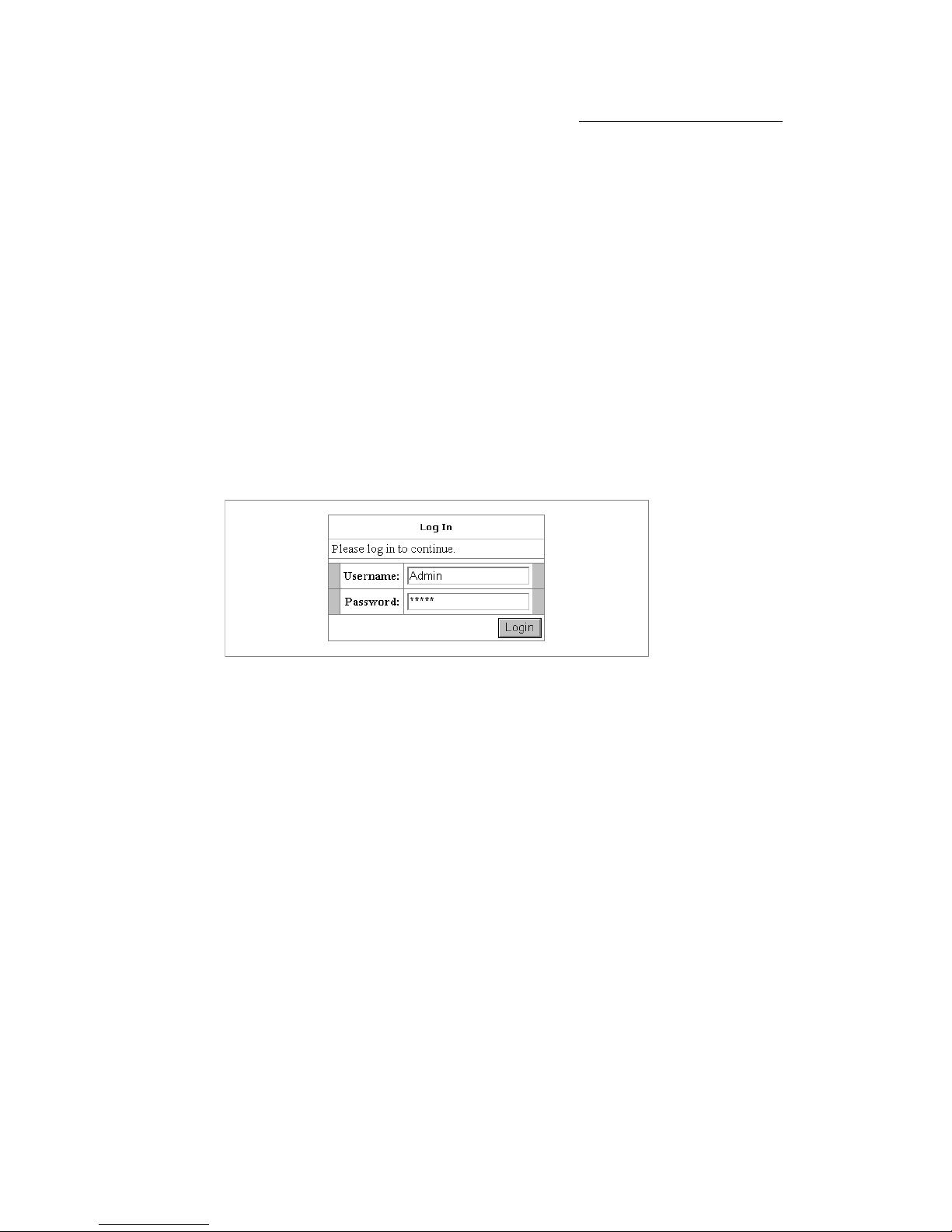

Figure 1 (Log-in Screen)
4.2 Home screen
The first screen (Figure 2) that appears (after the log in screen) is the Home screen. From this screen the
user can setup the modem (configure the LAN and WAN connection(s), configure the advanced
configuration options within the modem (security, routing, and filtering), access tools that are helpful for
debug purposes, obtain the status of the modem, and view the extensive online help.
The basic layout of the Home page consists of a page selection list across the top of the browser window.
The footer displays CPE status, connection information, and other useful information. The center display is
where most of the configuration will take place.

AAM6020VI-T4 User Manual
13 13
Figure 2 (Home page)
4.3 Setup
To setup your CPE with a basic configuration, from the Home page, select Setup. Figure 3 illustrates the
setup page. The page is broken into two subsections the WAN configuration and the LAN configuration.
Before configuring the router, there are several concepts that you should be familiar with on how your new
router works. Please take a moment to familiarize yourself with these concepts, as it should make the
configuration much easier.
Figure 3 (Setup page)
4.3.1 Wide Area Network connection
On the other side of the router is where your Wide Area Network (WAN) connection; also referred to as a
broadband connection. This WAN connection is different for every WAN supplier. Most of the
configuration you will perform will be in this area. Local Area Network Connection(s)

AAM6020VI-T4 User Manual
14 14
4.3.2 Local Area Network connection
On one side of your router, you have your own Local Area network (LAN) connections. This is where you
plug in your local computers to the router. The router is normally configured to automatically provide all
the PC's on your network with Internet addresses.
4.4 Configuring the WAN
Before the CPE will pass any data between the LAN interface(s) and the WAN interface, the WAN side of
the modem must be configured. Depending upon your DSL service provider or your ISP, you will need
some (or all) of the information outlined below before you can properly configure the WAN:
• Your DSL line VPI and VCI
• Your DSL encapsulation type and multiplexing
• Your DSL training mode
For PPPoA or PPPoE users, you also need these values from your ISP:
• Your username and password
For RFC 1483 users, you may need these values from your ISP:
• Your DSL fixed Internet IP address
• Your Subnet Mask
• Your Default CPE
• Your primary DNS IP address
Since multiple users can use the CPE, the CPE can simultaneously support multiple connection types;
hence, the user must set up different profiles for each connection. The CPE supports the following
protocols:
• DHCP
• RFC 2364 PPPoA
• RFC2516 PPPoE
• Static
• Bridged
• CLIP
.
4.4.1 New Connection
A new connection is basically a virtual connection. Your CPE can support up to 8 unique (with different
vpi/vci) virtual connections. If you have multiple different virtual connections, you may need to utilize the
static and dynamic routing capabilities of the modem to pass data correctly.
4.4.1.1 Bridged CPE profile and Connection
A pure bridged connection does not assign and IP address to the WAN interface. NAT and firewall rules
are not enabled. This connection method makes the router act as a hub, and just passes packets across the
WAN interface to the LAN interface.
To configure the CPE as a bridge, from the Home page, click on Setup and then click on New Connection.
The default PPPoE connection setup is displayed. At the Type field select Bridge and the Bridge
connection setup page is displayed (see Figure 4). Give your Bridge connection a unique name; the name
must not have spaces and cannot begin with numbers. In this case the unique name is called bridge1.
Select the encapsulation type (LLC or VC); if you are not sure just use the default mode. Select the VPI
and VCI settings; your DSL service provider or your ISP will supply these; in this case the DSL service
provider is using 0,35. Also select the quality of service (QOS); leave the default value if you are unsure or
the ISP did not provide this information.

AAM6020VI-T4 User Manual
15 15

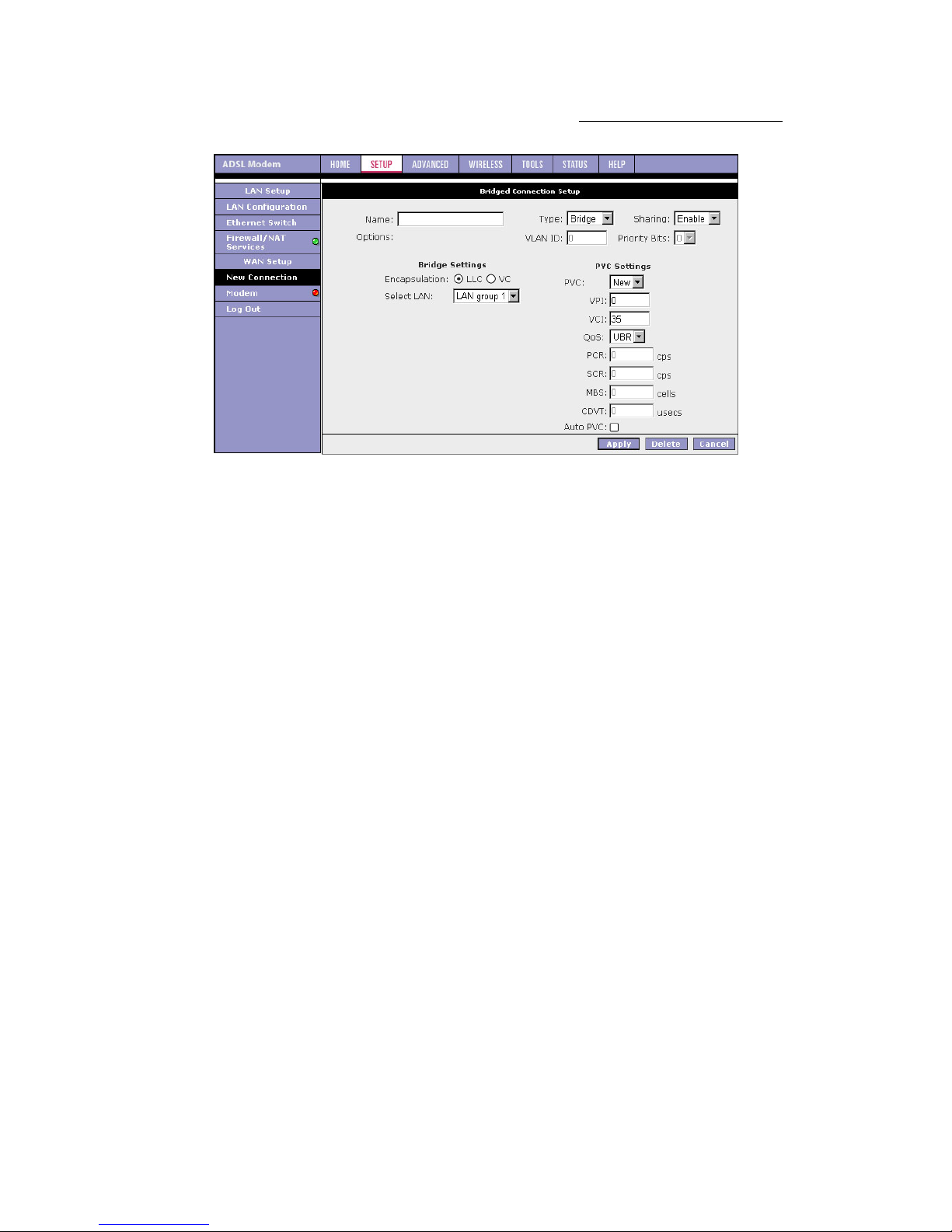

Figure 4 (Bridge Connection Setup)
To complete the connection you must now click the apply button. The apply button will temporarily save
this connection. To make the change permanent you need to click on Tools (at the top of the page) and
select System Commands. At the system commands page, click on Save All.
4.4.1.2 PPPoA Connection Setup
PPPoA is also known as RFC 2364. It is a method of encapsulating PPP packets over ATM cells which are
carried over the DSL line. PPP or Point-to-Point protocol is a method of establishing a network connection
/ session between network hosts. It usually provides a mechanism of authenticating users. LLC and VC are
two different methods of encapsulating the PPP packet. Contact your ISP to make sure which encapsulation
is being supported.
By selecting PPPoA, you are forcing your CPE to terminate the PPPoA connection. The advantage is that
the PPPoA termination is done within the CPE and not on your PC; this frees up your PC resources and
allows multiple users to utilize the PPPoA connection.
To configure the CPE for PPPoA, click on Setup and then click on New Connection. The default PPPoE
connection setup is displayed. At the Type field select PPPoA and the PPPoA connection setup page is
displayed; figure 5 illustrates a typical PPPoA configuration. Give your PPPoA connection a unique name;
the name must not have spaces and cannot begin with numbers. In this case the unique name is called
PPPOA1. Select the encapsulation type (LLC or VC); if you are not sure just use the default mode. Select
the VPI and VCI settings; your DSL service provider or your ISP will supply these; in this case the DSL
service provider is using 0,40. Also select the quality of service (QOS); leave the default value if you are
unsure or the ISP did not provide this information.
Following is a description of the different options:
a. Username: The username for the PPPoA access; this is provided by your DSL service
provider or your ISP.
b. Password: The password for the PPPoA access; this is provided by your DSL service provider
or your ISP.
c. On-Demand: Enables on-demand mode. The connection will disconnect if no activity is
detected after the specified idle timeout value.
d. Idle Timeout: Specifies that PPPoA connection should disconnect if the link has no activity
detected for n seconds. This field is used in conjunction with the On-Demand feature. To
ensure that the link is always active, enter a 0 in this field.

AAM6020VI-T4 User Manual
16 16
e. Keep Alive: When on-demand option is not enable, this value specifies the time to wait
without being connected to your provider before terminating the connection. To ensure that
the link is always active, enter a 0 in this field.
f. Set Route: Specify this connection as the default-route.
g. MRU: Maximum Receive Unit the DSL connection can receive. It is a negotiated value that
asks the provider to send packets of no more than n bytes. The maximum specified value is
1500 although some DSL/ISP providers require a larger value. The minimum MRU value is
128.
h. Debug: Enables PPPoA connection debugging facilities. Debugging is talked about later.
Figure 5 (PPPoA Connection Setup)
To complete the connection you must now click the apply button. The apply button will temporarily save
this connection. To make the change permanent you need to click on Tools (at the top of the page) and
select System Commands. At the system commands page, click on Save All.
4.4.1.3 PPPoE Connection Setup
PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over Ethernet. PPP or
Point-to-Point protocol is a method of establishing a network connection/session between network hosts. It
usually provides a mechanism of authenticating users.
To configure the CPE for PPPoE, click on Setup and then click on New Connection. The default PPPoE
connection setup is displayed. At the Type field select PPPoE and the PPPoE connection setup page is
displayed; figure 6 illustrates a typical PPPoE configuration. Give your PPPoE connection a unique name;
the name must not have spaces and cannot begin with numbers. In this case the unique name is called
PPPOE1. Select the encapsulation type (LLC or VC); if you are not sure just use the default mode. Select
the VPI and VCI settings; your DSL service provider or your ISP will supply these; in this case the DSL
service provider is using 0,30. Also select the quality of service (QOS); leave the default value if you are
unsure or the ISP did not provide this information.
Following is a description of the different options:
a. Username: The username for the PPPoE access; this is provided by your DSL service
provider or your ISP.

AAM6020VI-T4 User Manual
17 17
b. Password: The password for the PPPoE access; this is provided by your DSL service provider
or your ISP.
c. On-Demand: Enables on-demand mode. The connection will disconnect if no activity is
detected after the specified idle timeout value.
d. Idle Timeout: Specifies that PPPoE connection should disconnect if the link has no activity
detected for n seconds. This field is used in conjunction with the On-Demand feature. To
ensure that the link is always active, enter a 0 in this field.
e. Keep Alive: When on-demand option is not enable, this value specifies the time to wait
without being connected to your provider before terminating the connection. To ensure that
the link is always active, enter a 0 in this field.
f. Set Route: Specify this connection as the default-route.
g. MRU: Maximum Receive Unit the DSL connection can receive. It is a negotiated value that
asks the provider to send packets of no more than n bytes. The maximum specified value is
1500 although some DSL/ISP providers require a larger value. The minimum MRU value is
128.
h. Enforce MRU: Check this box if you experience problems accessing the Internet over a
PPPoE connection. This feature will force all TCP traffic to conform with PPP MRU by
changing TCP Maximum Segment Size to PPP MRU.
i. Debug: Enables PPPoE connection debugging facilities. Debugging is talked about later.
Figure 6 (PPPOE Connection Setup)
To complete the connection you must now click the apply button. The apply button will temporarily save
this connection. To make the change permanent you need to click on Tools (at the top of the page) and
select System Commands. At the system commands page, click on Save All.
4.4.1.4 DHCP Connection Setup
Dynamic Host Configuration Protocol (DHCP) allows the CPE to automatically obtain the IP address from
the server. This option is commonly used in situations where IP is dynamically assigned and is not known
prior to assignment.
To configure the CPE for a DHCP connection, click on Setup and then click on New Connection. The
default DHCP connection setup is displayed. At the Type field select DHCP and the DHCP connection

AAM6020VI-T4 User Manual
18 18
setup page is displayed; figure 7 illustrates a typical DHCP configuration. Give your DHCP connection a
unique name; the name must not have spaces and cannot begin with numbers. In this case the unique name
is called DHCP1. Select the encapsulation type (LLC or VC); if you are not sure just use the default mode.
Select the VPI and VCI settings; your DSL service provider or your ISP will supply these; in this case the
DSL service provider is using 0,35. Also select the quality of service (QOS); leave the default value if you
are unsure or the ISP did not provide this information.
If your DSL line is connected and your DSL/IPS provider is supporting DHCP, you can click the renew
button and the CPE will retrieve an IP address, Subnet mask, and CPE address. At anytime, you can renew
the DHCP address by clicking on the renew button; in most cases you will never have to use this button.

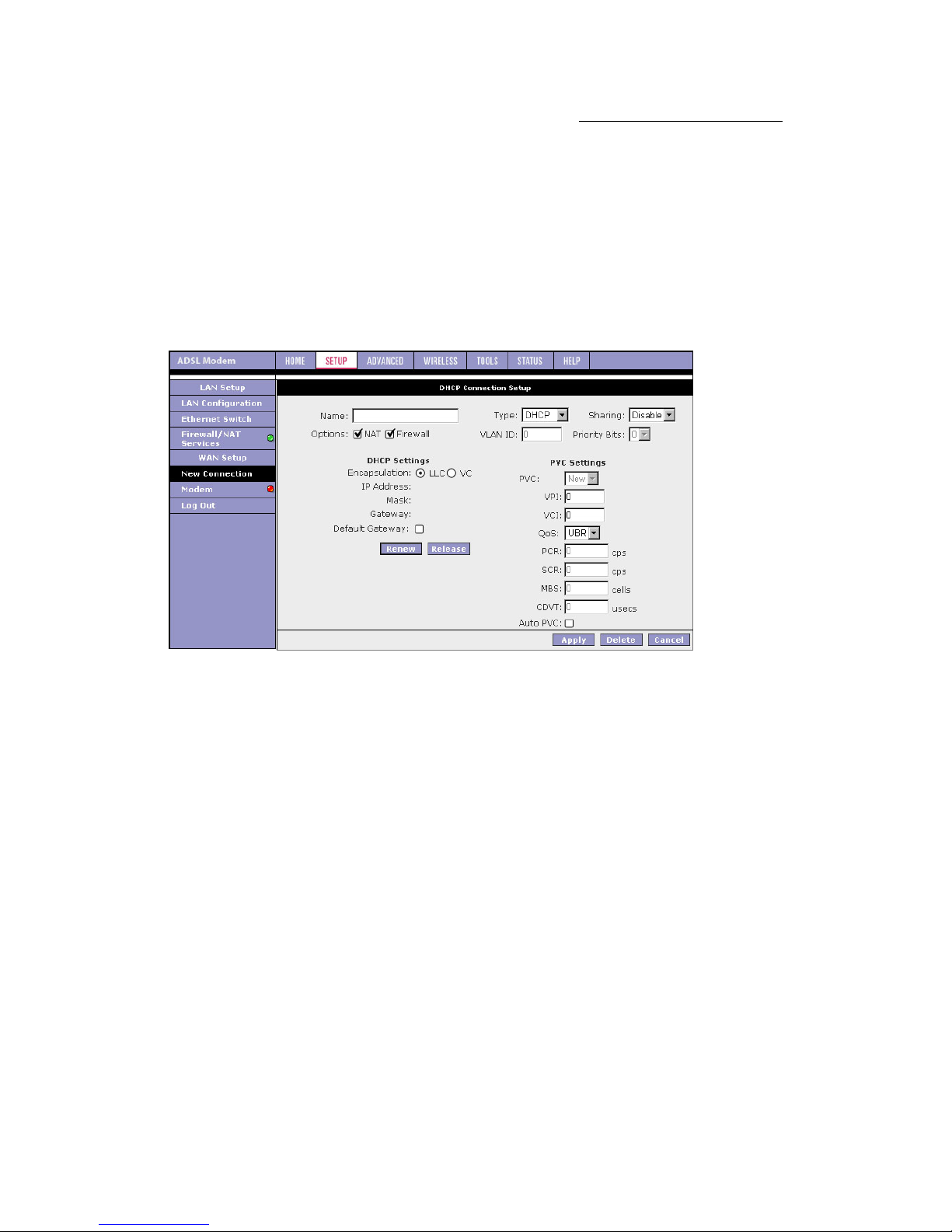

Figure 7 (DHCP Connection Setup)
To complete the connection you must now click the apply button. The apply button will temporarily save
this connection. To make the change permanent you need to click on Tools (at the top of the page) and
select System Commands. At the system commands page, click on Save All.
4.4.1.5 Static Connection Setup
Static is used whenever a known static IP is assigned. The accompanying information such as the Subnet
mask and the CPE should also be specified. Up to three Domain Name Server (DNS) addresses can also be
specified. These servers would enable you to have access to other web servers. Valid IP addresses range is
from 0.0.0.0 to 255.255.255.255.
To configure the CPE for a Static connection, click on Setup and then click on New Connection. The
default Static connection setup is displayed. At the Type field select Static and the Static connection setup
page is displayed; figure 8 illustrates a typical Static configuration. Give your Static connection a unique
name; the name must not have spaces and cannot begin with numbers. In this case the unique name is
called STATIC1. Select the encapsulation type (LLC or VC); if you are not sure just use the default mode.
Select the VPI and VCI settings; your DSL service provider or your ISP will supply these; in this case the
DSL service provider is using 0,35. Also select the quality of service (QOS); leave the default value if you
are unsure or the ISP did not provide this information. You can also enable Network Address Translation
(NAT) and the Firewall options. If you are unsure, leave these in the default mode.
Based upon the information your DSL/ISP provided, enter your assigned IP address, Subnet Mask, Default
CPE (if provided), and Domain Name Services (DNS) values (if provided). For the static configuration,

AAM6020VI-T4 User Manual
19 19
you can also select a bridge connection or a routed connection. Since static IP address is typically used to
host WEB servers, you may want to use a bridge connection.
Figure 8 (Static IP Connection Setup)
To complete the connection you must now click the apply button. The apply button will temporarily save
this connection. To make the change permanent you need to click on Tools (at the top of the page) and
select System Commands. At the system commands page, click on Save All.
4.4.2 Modify an Existing Connection
To modify an existing connection, from the Home screen, click setup and then click the connection you
want to modify. The connections are listed as Connection 1 through Connection 8
As a note, if you delete the connection, to make the change permanent you need to click on Tools (at the
top of the page) and select System Commands. At the system commands page, click on Save All.
4.4.3 Modem setup
To configure the DSL modulation type, go to the Home screen, Click setup. Under WAN Setup, select
Modem Setup. This will bring up the modem setup screen. Leave the default value if you are unsure or the
DSL/ISP did not provide this information. For most all cases, this screen should not be modified.
The apply button will temporarily save this connection. To make the change permanent you need to click
on Tools (at the top of the page) and select System Commands. At the system commands page, click on
Save All.
4.5 Configuring the LAN
By default, your CPE has DHCP server (LAN side) enabled. If you already have a DHCP server running on
your network, you must disable one of the two DHCP servers; if you plug a second DHCP server into the
network, you will experience network errors and the network will not function normally.
4.5.1 Enable/Disable DHCP
To enable or disable DHCP go to the Home screen, Click setup. Under LAN Setup, select DHCP
Configuration. This will bring up the screen shown in Figure 9.

AAM6020VI-T4 User Manual
20 20
The Start IP Address is where the DHCP server starts issuing IP addresses and the End IP Address is where
the DHCP server stops issuing IP addresses.
The Lease Time is the amount of time a network user will be allowed connection to the Router with their
current dynamic IP address. The amount of time is in units of minutes; the default value is 3600 sec (60
minutes).
Note: If you change the start or end values, make sure the values are still within the same subnet as the
CPEs IP address.

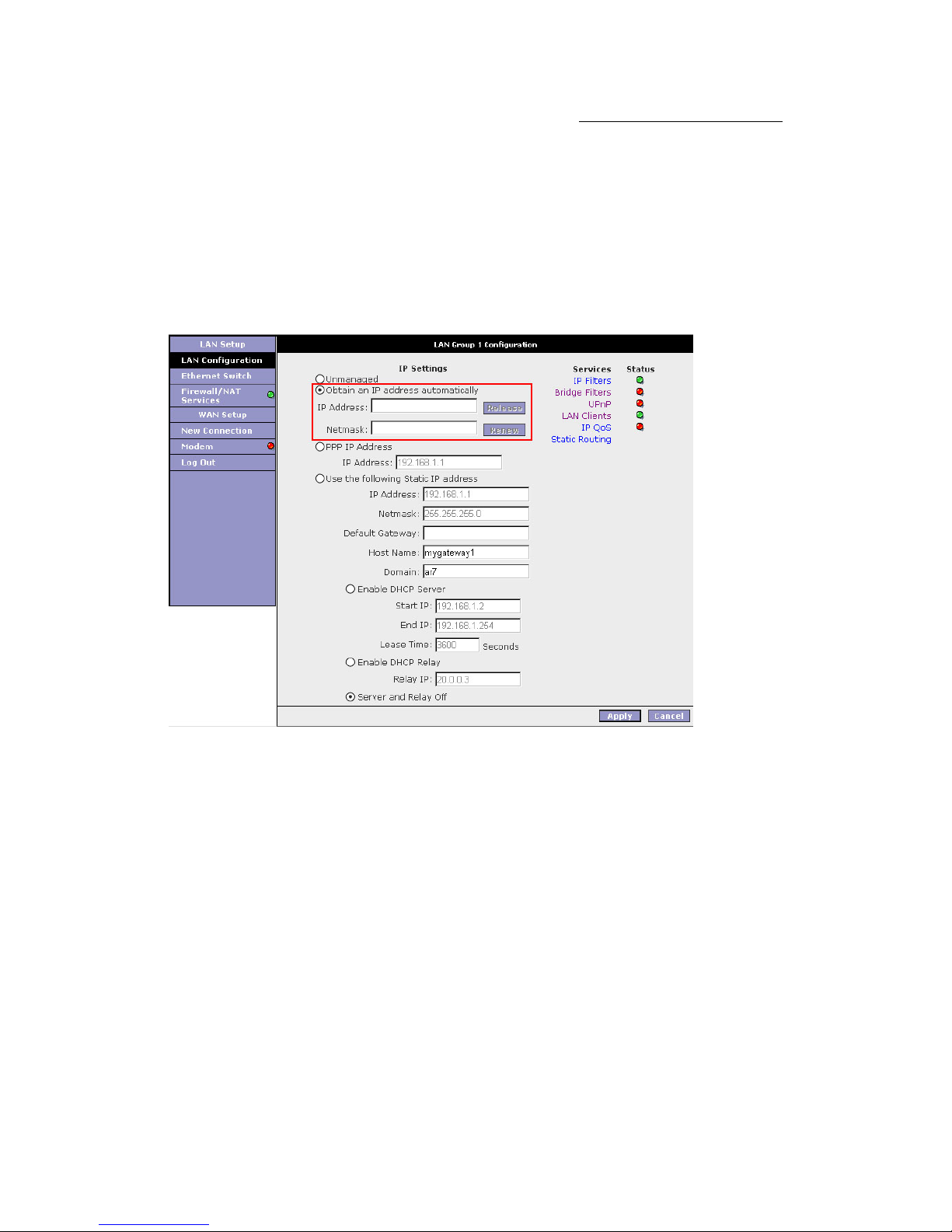

Figure 9 (DHCP Server configuration)
In addition to the DHCP server feature, the CPE supports the DHCP relay function. When the CPE is
configured as DHCP server, it assigns the IP addresses to the LAN clients. When the CPE is configured as
DHCP relay, it is responsible for forwarding the requests and responses negotiating between the DHCP
clients and the server. See figure 10.
