Asus RT-AC1200HP User manual

Quick Start Guide
RT-AC1200HP
Dual Band Wireless AC1200 High Power Router
¨
E9773 / First Edition / September 2014
apac9773_rt-ac1200hp_qsg.indb 1 2014/10/24 17:36:41

Table of contents
English.............................................................................................3
繁體中文 ........................................................................................17
簡體中文 ........................................................................................31
日本語 .............................................................................................45
ไทย ..................................................................................................59
Bahasa Malaysia...........................................................................73
Bahasa Indonesia.........................................................................87
apac9773_rt-ac1200hp_qsg.indb 2 2014/10/24 17:36:41

3
English
Package contents
RT-AC1200HP Power adapter
Network cable Quick Start Guide
Warranty card
A quick look
1) USB 2.0 LED 6) Power LED 11) Power button
2) LAN LED 7) USB 2.0 port 12) Power (DC-IN) port
3) WAN LED 8) WPS button 13) Reset button
4) 5GHz LED 9) LAN ports 14) Wi-Fi button
5) 2.4GHz LED 10) Gigabit WAN port 15) Wall-mount hooks
NOTE: If any of the items is damaged or missing, please contact your
retailer.
apac9773_rt-ac1200hp_qsg.indb 3 2014/10/24 17:36:42

4
English
NOTES:
• USB External HDD/Flash disk:
• The wireless router works with most USB HDDs/Flash disks up to
3TB and supports read-write access for FAT16, FAT32, EXT2, EXT3,
and NTFS.
• To safely remove the USB disk, launch the web GUI
(http://192.168.1.1), then in the Network Map page's upper right
corner, click the USB icon and click Eject USB disk.
• For the list of le system and hard disk partitions that the wireless
router supports, visit http://event.asus.com/networks/disksupport
• Network Printer Server:
• Network printer utility is supported on Windows®XP, Windows®
Vista, and Windows® 7. To install the utility on Mac OS, please go to
USB Application > Network Printer Server and click Download
Now!. Then select Use LPR protocol for sharing.
• For the list of printers that the wireless router supports, visit
http://event.asus.com/networks/printersupport
• 3G/4G USB modems:
• For a list of veried USB modems, please visit:
http://event.asus.com/2009/networks/3gsupport.
• The router will reboot for settings to take eort.
apac9773_rt-ac1200hp_qsg.indb 4 2014/10/24 17:36:42

5
English
Positioning your wireless router
For the best wireless signal transmission between the wireless router and the
network devices connected to it, ensure that you:
• Place the wireless router in a centralized area for a maximum wireless coverage
for the network devices.
• Keep the device away from metal obstructions and away from direct sunlight.
• Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz
computer peripherals, Bluetooth devices, cordless phones, transformers,
heavy-duty motors, uorescent lights, microwave ovens, refrigerators, and other
industrial equipment to prevent signal interference or loss.
•
For the best front-to-rear coverage, place the wireless router in an upright
position .
•
For the best up-to-down coverage, place the wireless router in an inclined
position .
• Always update to the latest rmware. Visit the ASUS website at
http://www.asus.com to get the latest rmware updates.
apac9773_rt-ac1200hp_qsg.indb 5 2014/10/24 17:36:42

6
English
Modem
OFF!
Before you proceed
1. Unplug and disconnect the wires/cables from your existing modem setup
and release your computer’s outmoded IP address.
a: Unplug the AC adapter from the power outlet and disconnect it from your
cable/ADSL modem.
b: Disconnect the network cable from your cable/ADSL modem.
c: Reboot your computer (recommended).
a
b
c
WARNING! Before disconnecting the wires/cables, ensure that your
cable/ADSL modem has been turned o for at least two minutes. If your
modem has a backup battery, remove it as well.
apac9773_rt-ac1200hp_qsg.indb 6 2014/10/24 17:36:42

7
English
2. Set up your wireless environment.
Modem
1
2
3
4

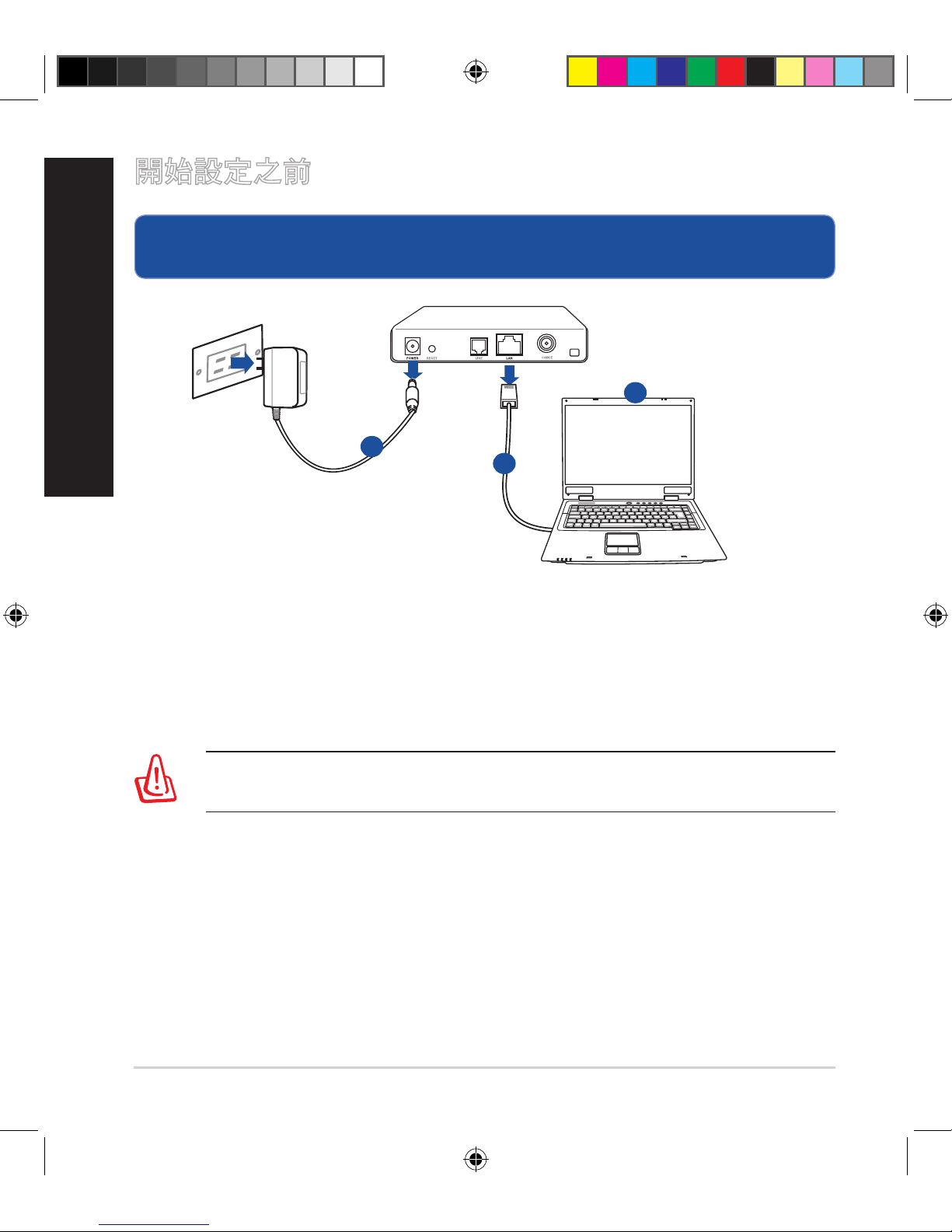

1: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a
power outlet.
2: Using the bundled network cable, connect your computer to your wireless
router’s LAN port.
IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.
3: Using another network cable, connect your modem to your wireless router’s
WAN port.
4: Insert your modem’s AC adapter to the DC-IN port and plug it to a power
outlet.
apac9773_rt-ac1200hp_qsg.indb 7 2014/10/24 17:36:43

8
English
3. Disable some settings on your computer.
A. Disable the proxy server, if enabled.
B. Set the TCP/IP settings to automatically obtain an IP address.
C. Disable the dial-up connection, if enabled.
NOTE: For more details on disabling your computer settings, refer to
Frequently Asked Questions (FAQs).

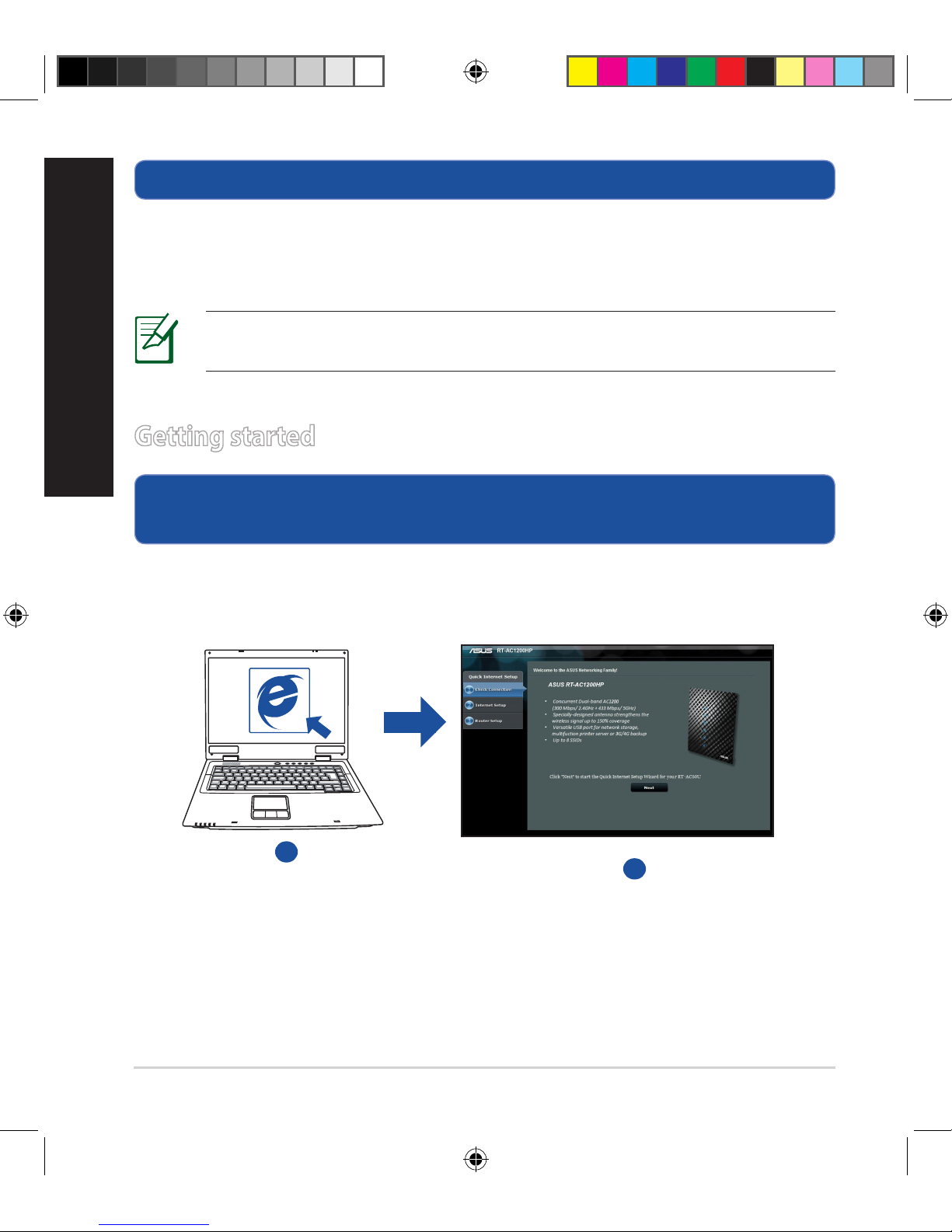

1. Congure your wireless settings via the wireless router’s web graphics
user interface (web GUI).
a: Launch your web browser such as Internet Explorer, Firefox, Google Chrome,
or Safari.
Getting started
b
a
apac9773_rt-ac1200hp_qsg.indb 8 2014/10/24 17:36:43

9
English
NOTE: If QIS does not launch automatically, follow these steps to
manually launch QIS:
• On your web browser, key in http://192.168.1.1 and run the Quick
Internet Setup (QIS) Wizard again.
• Disable the proxy settings, dial-up connection, and set your TCP/IP
settings to automatically obtain an IP address. For more details, refer
to the FAQs section.
b: The wireless router’s Quick Internet Setup (QIS) feature automatically detects
if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP.
Key in the necessary information for your connection type.
IMPORTANT! Obtain the necessary information about your Internet
connection type from your Internet Service Provider (ISP).
NOTE: The auto-detection of your ISP connection type takes place
when you congure the wireless router for the rst time or when your
wireless router is reset to its default settings.

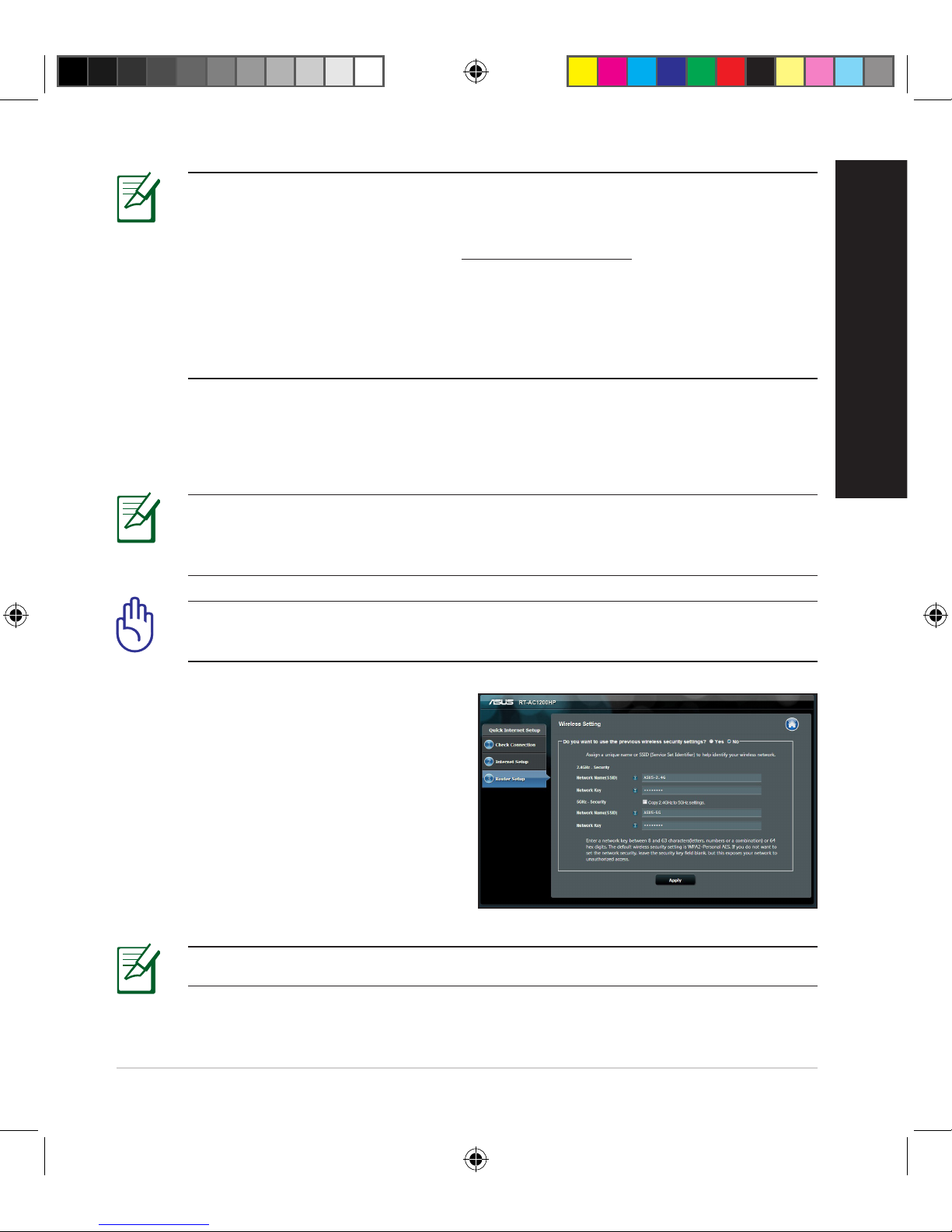

NOTE: You can assign a network name with up to 32 characters.
c: Assign the network name (SSID)
and security key for your 2.4GHz
and 5GHz wireless connection. Click
Apply when done.
d: Your Internet and wireless settings
are displayed. Click Next to contin-
ue.
e: Read the wireless network con-
nection tutorial. When done, click
Finish.
apac9773_rt-ac1200hp_qsg.indb 9 2014/10/24 17:36:44

10
English

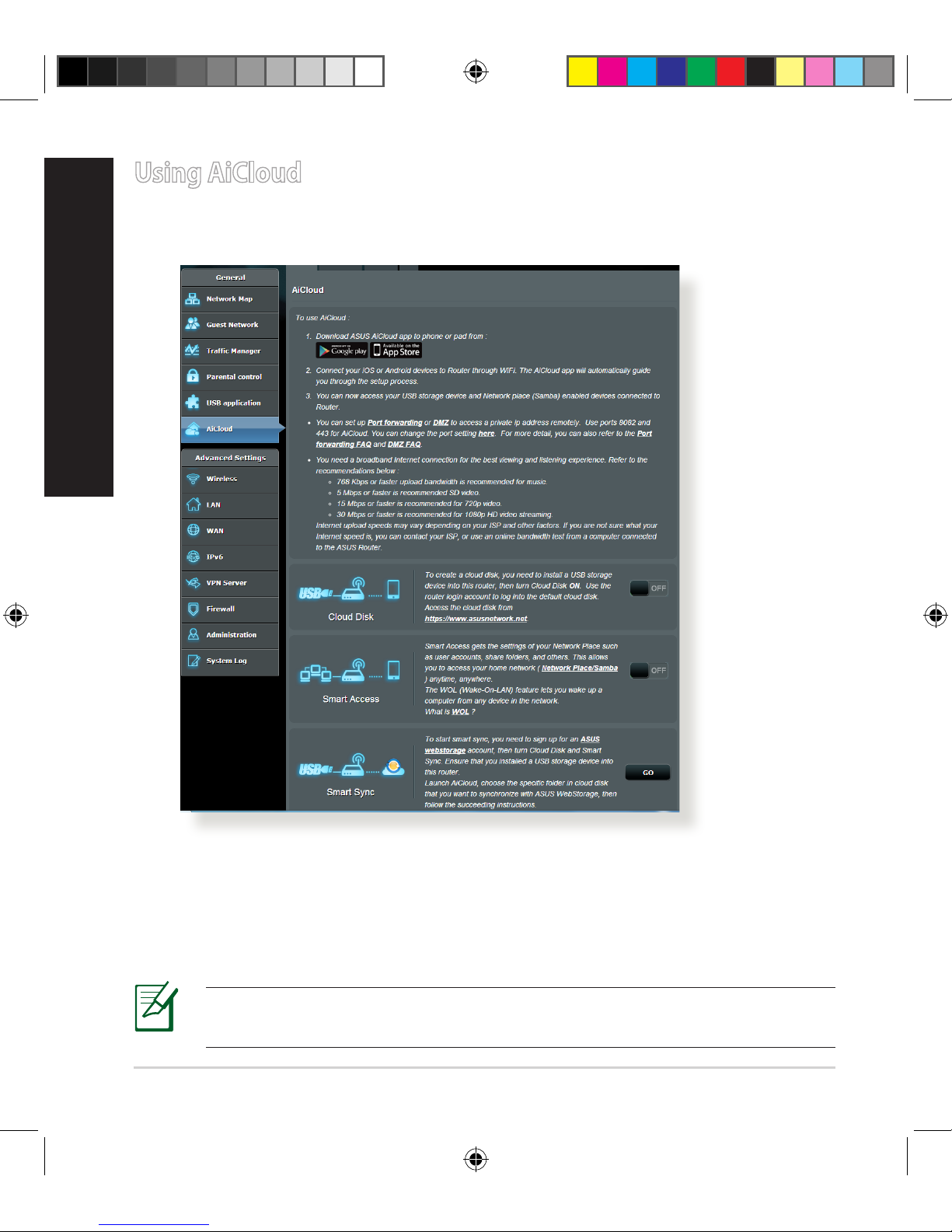

Using AiCloud
AiCloud is a cloud service application that allows you to save, sync, share, and
access your les.
To use AiCloud:
1. From Google Play Store or Apple Store, download and install the ASUS Ai-
Cloud app to your smart device.
2. Connect your smart device to your network. Follow the instructions to com-
plete the AiCloud setup process.
NOTE: For more details, please refer to the user manual from the
ASUS support website.
apac9773_rt-ac1200hp_qsg.indb 10 2014/10/24 17:36:44

11
English
Frequently Asked Questions (FAQs)
After following the steps, I still cannot access the wireless router’s web
graphics user interface (web GUI) to congure the wireless router settings.
A. Disable the proxy server, if enabled.
Windows® 7
1. Click Start > Internet Explorer to launch the web
browser.
2. Click Tools > Internet options > Connections tab
> LAN settings.
3. From the Local Area Network (LAN) Settings
screen, untick Use a proxy server for your
LAN.
4. Click OK when done.
apac9773_rt-ac1200hp_qsg.indb 11 2014/10/24 17:36:44

12
English
MAC OS
1. From your Safari browser, click Safari > Prefer-
ences > Advanced > Change Settings...
2. From the Network screen, deselect FTP Proxy
and Web Proxy (HTTP).
3. Cllick Apply Now when done.
NOTE: Refer to your browser's help feature for details on disabling the
proxy server.
B. Set the TCP/IP settings to automatically obtain an IP address.
Windows® 7
1. Click Start > Control Panel > Network and
Internet > Network and Sharing Center >
Manage network connections.
2. Select Internet Protocol Version 4 (TCP/IPv4)
or Internet Protocol Version 6 (TCP/IPv6), then
click Properties.
apac9773_rt-ac1200hp_qsg.indb 12 2014/10/24 17:36:44

13
English

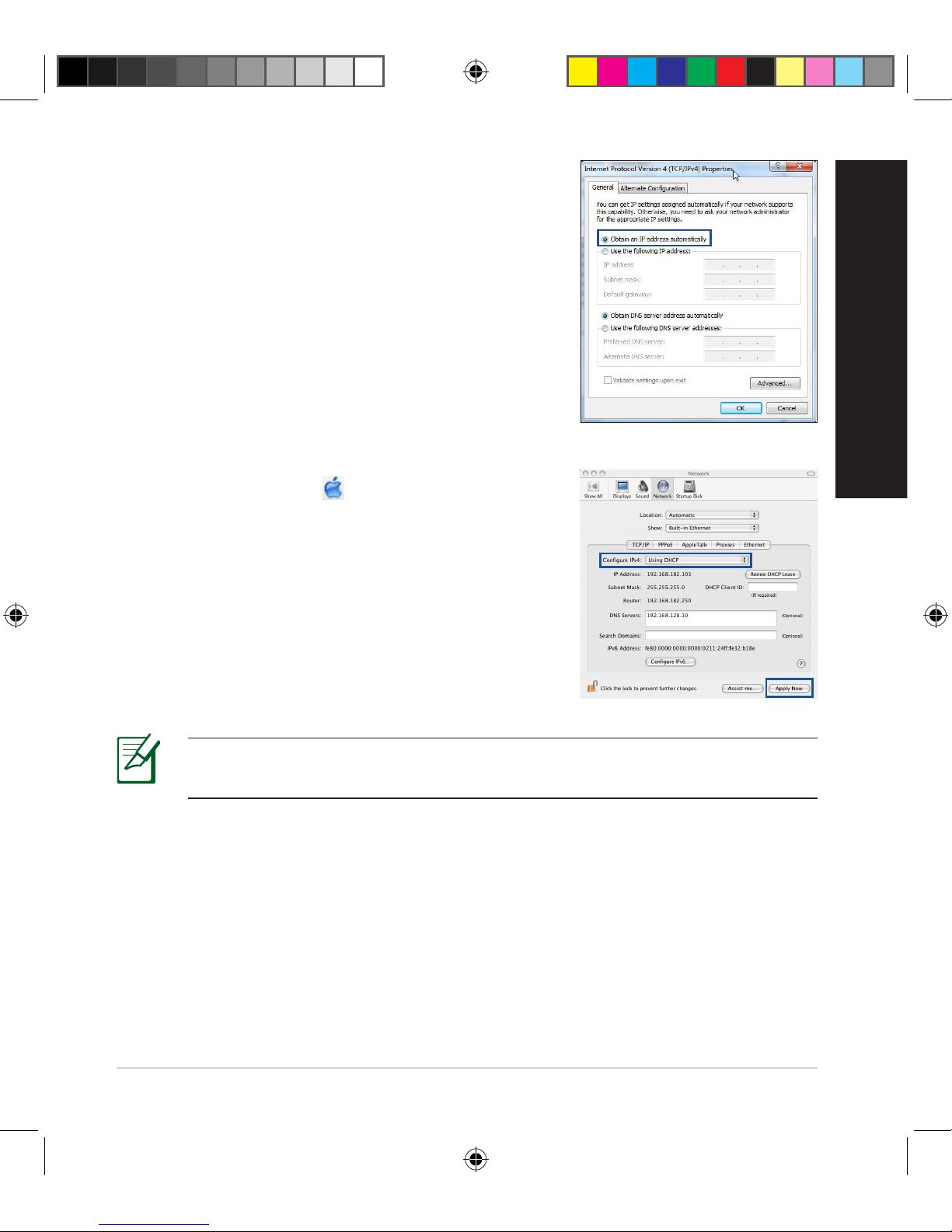

3. To obtain the IPv4 IP or IPv6 IP settings automat-
ically, tick Obtain an IPv4 address automati-
cally or Obtain an IPv6 address automatically.
4. Click OK when done.
MAC OS
1. Click the Apple icon located on the top left of
your screen.
2. Click System Preferences > Network >
Congure...
3. From the TCP/IP tab, select Using DHCP in the
Congure IPv4 dropdown list.
4. Cllick Apply Now when done.
NOTE: Refer to your operating system’s help and support feature for
details on conguring your computer’s TCP/IP settings.
apac9773_rt-ac1200hp_qsg.indb 13 2014/10/24 17:36:44

14
English
C. Disable the dial-up connection, if enabled.
D. Close all running web browsers.
NOTE: Refer to your browser's help feature for details on disabling
the dial-up connection settings.
Windows® 7

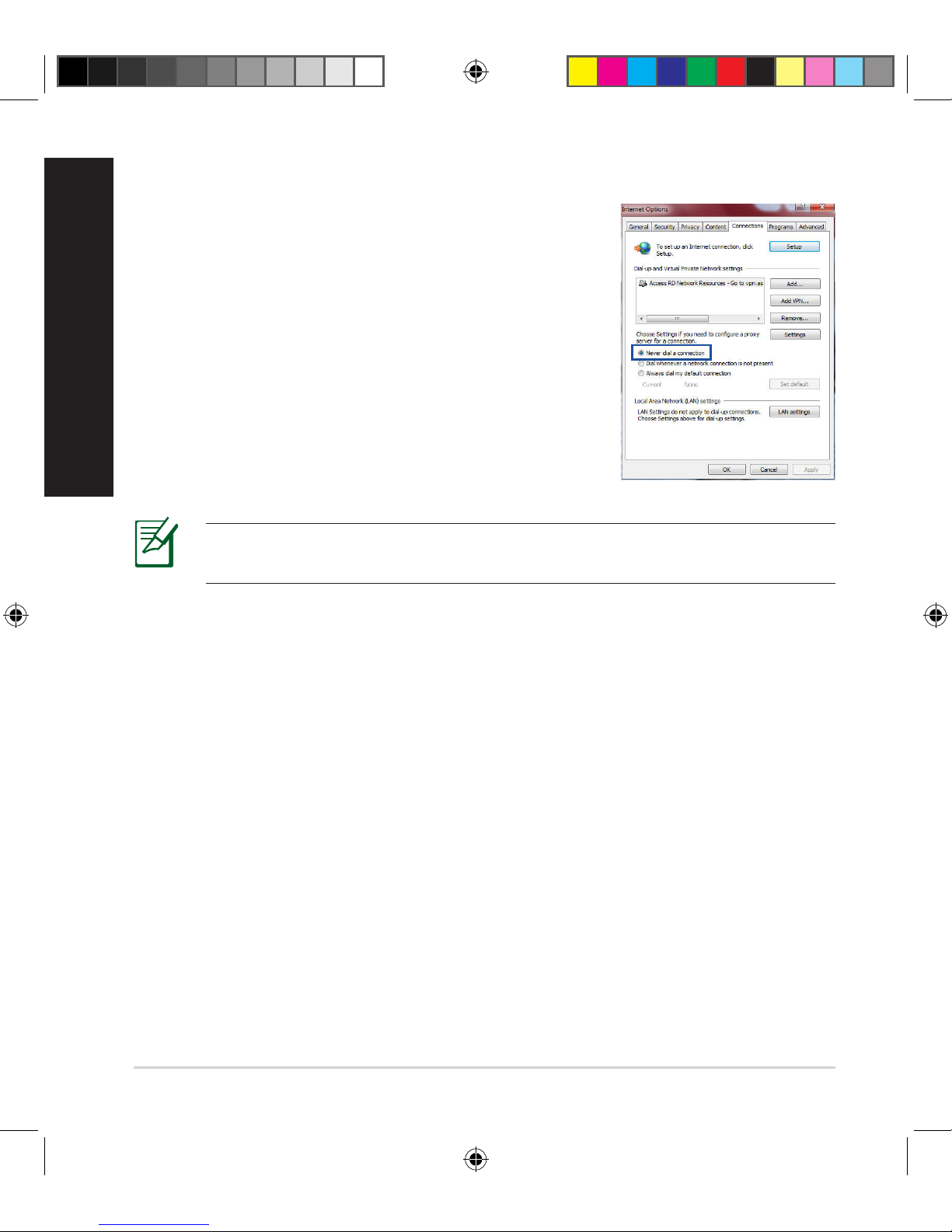

1. Click Start > Internet Explorer to launch the
browser.
2. Click Tools > Internet options > Connections tab.
3. Tick Never dial a connection.
4. Click OK when done.
The client cannot establish a wireless connection with the router.
Out of Range:
• Put the router closer to the wireless client.
• Try to change the channel settings.
Authentication:
• Use wired connection to connect to the router.
• Check the wireless security settings.
• Press the Reset button at the rear panel for more than ve seconds.
apac9773_rt-ac1200hp_qsg.indb 14 2014/10/24 17:36:44

15
English
Cannot nd the router:
• Press the Reset button at the rear panel for more than ve seconds.
• Check the setting in the wireless adapter such as SSID and encryption
settings.
Cannot access the Internet via wireless LAN adapter.
• Move the router closer to the wireless client.
• Check whether the wireless adapter is connected to the correct wireless
router.
• Check whether the wireless channel in use conforms to the channels avail-
able in your country/area.
• Check the encryption settings.
• Check if the ADSL or Cable connection is correct.
• Retry using another Ethernet cable.
If the ADSL “LINK” light blinks continuously or stays o, Internet access is
not possible - the Router is unable to establish a connection with the ADSL
network.
• Ensure that all your cables are all properly connected .
• Disconnect the power cord from the ADSL or cable modem, wait a few min-
utes, then reconnect the cord.
• If the ADSL light continues to blink or stays OFF, contact your ADSL service
provider.
Network name or encryption keys are forgotten.
• Try setting up the wired connection and conguring the wireless encryption
again.
• Press the Reset button of the wireless router for more than ve seconds.
• Factory default settings:
User name / Password:
admin / admin
IP address:
192.168.1.1
SSID:
ASUS
apac9773_rt-ac1200hp_qsg.indb 15 2014/10/24 17:36:44

16
English
Where can I nd more information about the wireless router?
• User Manual from the ASUS support website
• Online FAQ site: http://support.asus.com/faq
• Technical Support site: http://support.asus.com/techserv
• Customer Hotline: Refer to the Support Hotline in this Quick Start Guide
apac9773_rt-ac1200hp_qsg.indb 16 2014/10/24 17:36:44

17
繁體中文
包裝內容物
RT-AC1200HP無線路由器  電源變壓器
RJ45網路線 快速使用指南
保固卡
認識您的無線路由器
1) USB 2.0 指示燈 6) 電源指示燈 11) 電源按鈕
2) LAN 指示燈 7) USB 2.0 連接埠 12) 電源(DC-IN)連接埠
3) WAN 指示燈 8) WPS 按鈕 13) 重置按鈕
4) 5GHz 指示燈 9) LAN 連接埠 14) Wi-Fi 按鈕
5) 2.4GHz 指示燈 10) Gigabit WAN 連
接埠 15) 牆面安裝掛孔
注意：若以上列出的任何一項配件有損壞或是短缺的情形，請儘速
聯絡您的經銷商。
apac9773_rt-ac1200hp_qsg.indb 17 2014/10/24 17:36:45

18
繁體中文
注意：
• USB外接硬碟/隨身碟：
 •此無線路由器相容大多數容量高達3TB的USB硬碟/隨身
 碟，並支援FAT16、FAT32、EXT2、EXT3與NTFS的存
 取。
 •
欲安全移除USB碟，登入網頁圖形介面   
 （http://192.168.1.1） ，然後在網路地圖頁面的右上角點選
 USB圖示並選擇移除USB1。
 •請造訪http://event.asus.com/networks/disksupport獲取此無線
路由器所支援的檔案系統與硬碟磁區清單。
• 網路印表機伺服器:
 •網路印表機公用程式支援Windows®XP、Windows®Vista與
Windows® 7作業系統。要在MacOS上安裝此程式，請進入
USB 應用 > 網路印表機伺服器，接著點選Download Now！
，再選擇「使用 LPR 協定分享列印」.
 •要獲得無線路由器支援的印表機清單，請造訪
http://event.asus.com/networks/printersupport
 • 3G/4G USB 數據機:
  •要獲得已驗證的USB數據機清單，請造訪:
http://event.asus.com/2009/networks/3gsupport。
  •路由器將重新啟動以使設定生效。
apac9773_rt-ac1200hp_qsg.indb 18 2014/10/24 17:36:45

19
繁體中文
放置您的路由器
為獲取無線路由器與所連接的網路裝置之間的最佳無線傳送訊號，請確認以
下幾點：
• 建議將路由器放置在中心區域，以覆蓋所有無線行動裝置。
• 請勿將裝置放在靠近金屬物品與陽光直射的地方。
• 請遠離其它802.11g或20MHzWi-Fi裝置、2.4GHz電腦周邊裝置、藍芽裝
置、無線室內電話、傳送器、重型發動機、日光燈、微波爐、電冰箱與其他
工業裝置，以防止訊號干擾或丟失。
• 要獲得最佳的前-後訊號覆蓋，請將路由器垂直放置。
• 要獲得最佳的上-下訊號覆蓋，請將路由器傾斜放置。
• 請經常更新至最新版本韌體。您可以登入華碩官網http://tw.asus.com獲取最新
韌體。
apac9773_rt-ac1200hp_qsg.indb 19 2014/10/24 17:36:45

20
繁體中文
開始設定之前
1.拔掉已連接至數據機的纜線 / 排線，並清除您電腦原來的IP位址。
a: 拔掉AC變壓器的電源並斷開與有線/ADSL數據機的連接。
b: 拔掉您有線/ADSL數據機的網路線。
c: 重啟您的電腦（建議執行）。
警示！請在斷開纜線或排線之前，確認您的有線/ADSL已關閉超
過二分鐘。若您的數據機有備用電池，請一併移除。
Modem
OFF!
a
b
c
apac9773_rt-ac1200hp_qsg.indb 20 2014/10/24 17:36:46
