Asus Xonar D-KARAX User manual

Xonar D-KARAX
PCIe 7.1 Karaoke Audio Card
User Manual

ii
E11119
Revised Edition V2
November 2015
Copyright © 2015 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Notices......................................................................................................... iv
Safety information ....................................................................................... v
Trademarks .................................................................................................. v
License ......................................................................................................... v
1. Introduction ..................................................................................... 1
1.1 Package contents .............................................................. 1
1.2 System requirements ......................................................... 1
1.3 Specications summary ..................................................... 2
2. Xonar D-KARAX card layout .......................................................... 3
3. Installing the hardware ................................................................... 5
3.1 Installing the audio card ..................................................... 5
3.2 Connecting to a TV tuner card ........................................... 6
4. Installing software........................................................................... 7
Installing the card driver.................................................................... 7
5. Connecting speakers and peripherals.......................................... 8
5.1 Connecting digital speaker systems (Home Theater) ........ 8

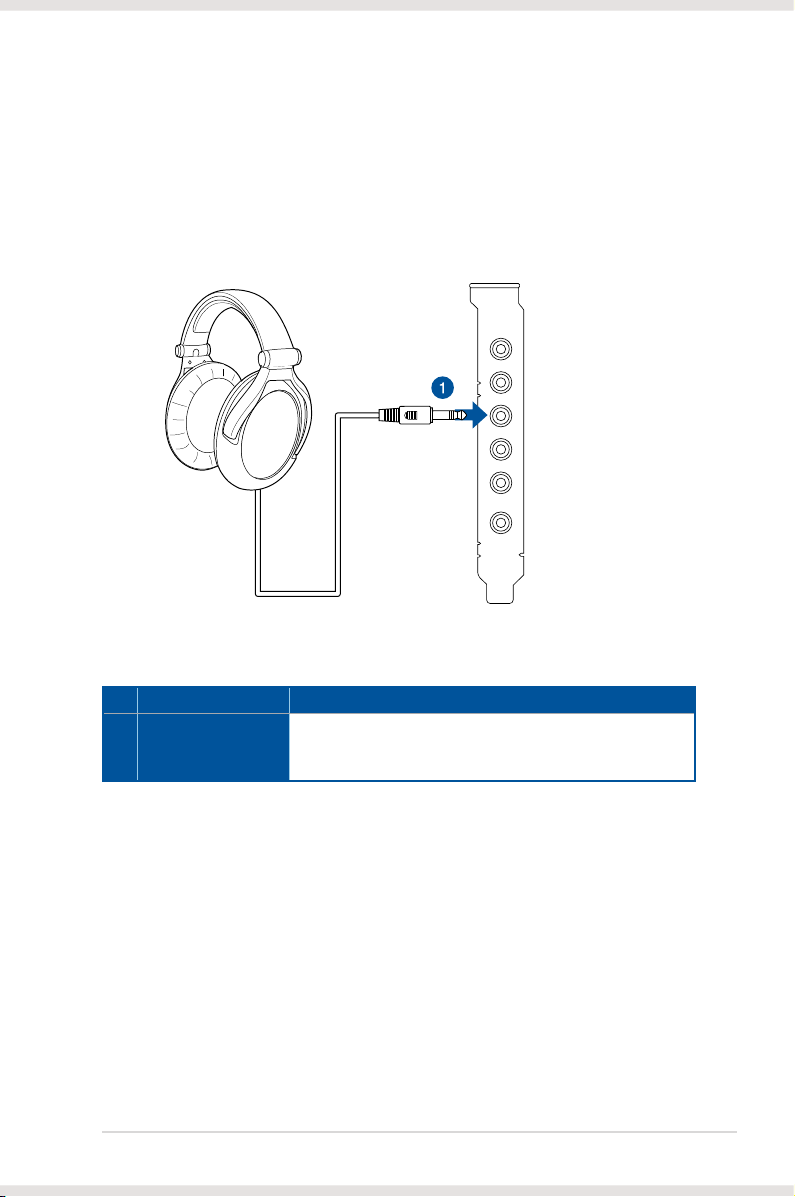

5.2 Connecting stereo headphones ......................................... 9

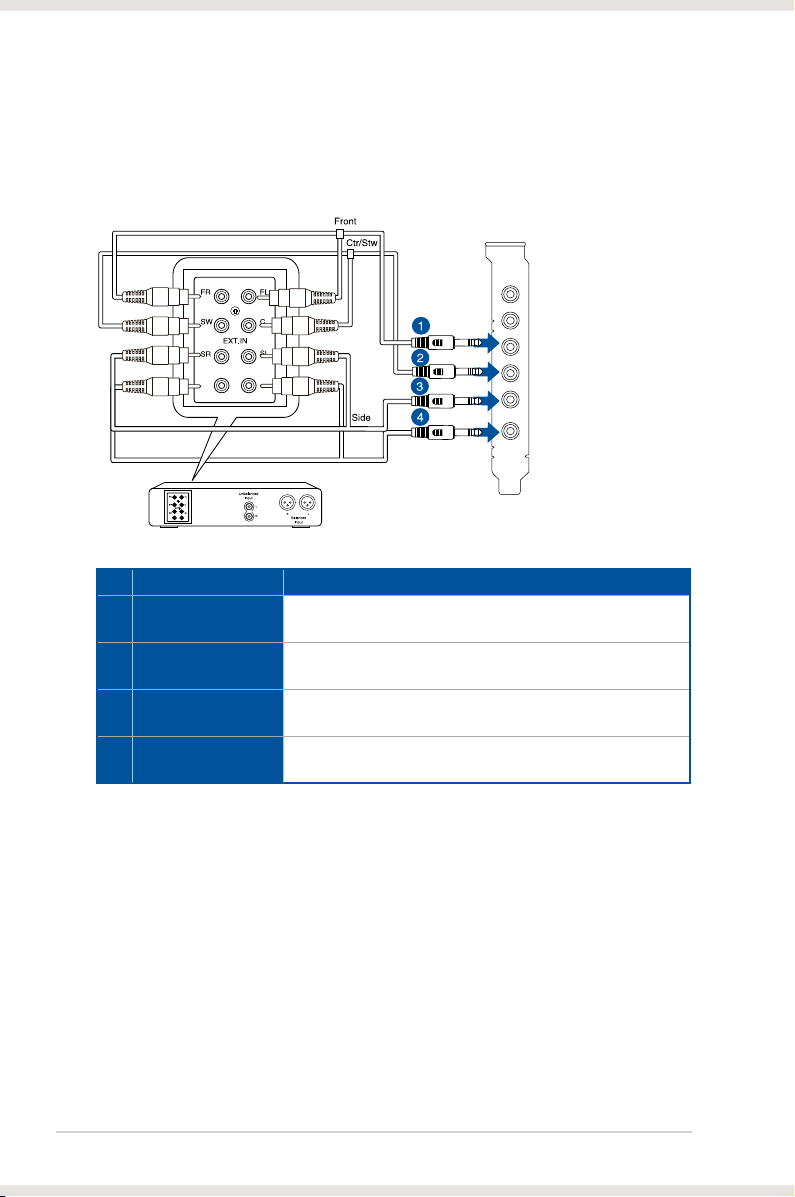

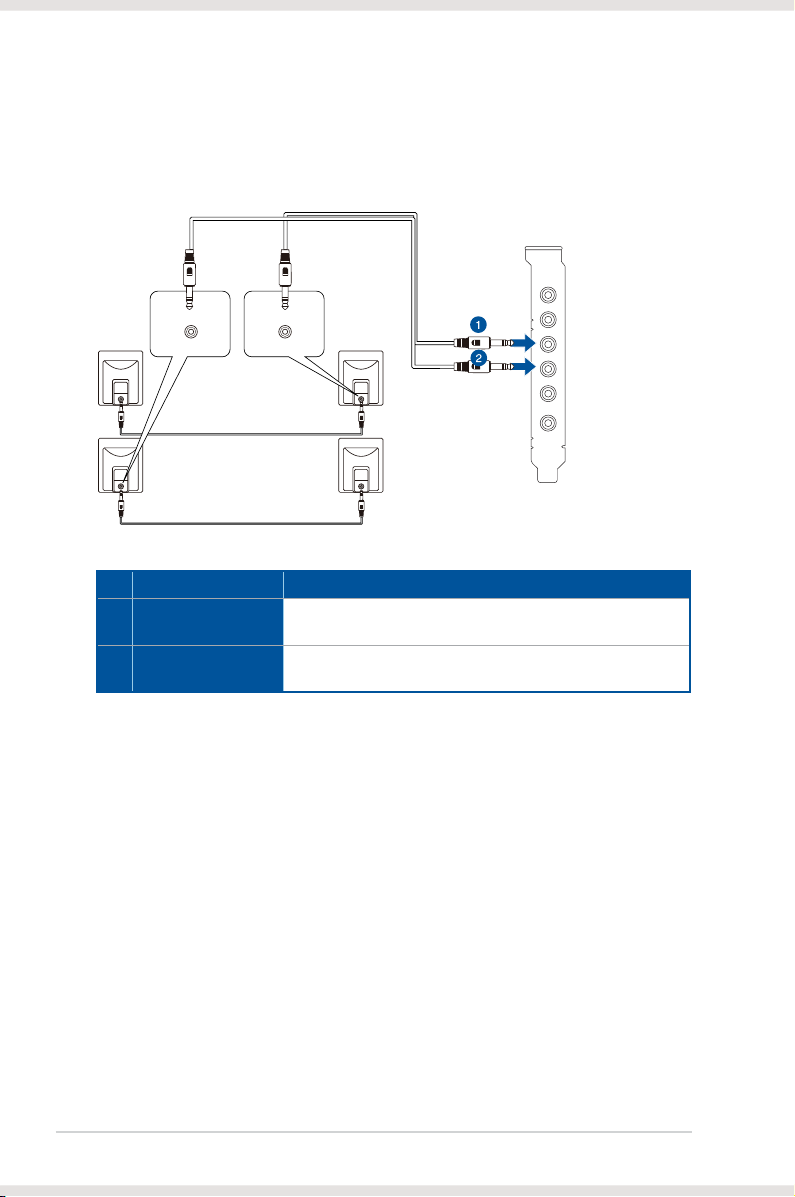

5.3 Connecting analog speaker systems ............................... 10
5.4 Connecting a microphone ................................................ 15
5.5 Connecting Line-In audio sources ................................... 16
6. Xonar Audio Center ...................................................................... 17
6.1 Xonar Audio Center GUI .................................................. 17
6.2 Xonar D-KARAX Audio Center Icon................................. 19
6.3 Music Main Settings......................................................... 20
6.4 Mixer/Volume ................................................................... 21
6.5 Effects .............................................................................. 24
6.6 FlexBass .......................................................................... 26
6.7 Karaoke Main Settings..................................................... 27
6.8 Enhancer.......................................................................... 33
7. Troubleshooting and FAQs.......................................................... 34
7.1 Troubleshooting ............................................................... 34
7.2 Frequently Asked Questions (FAQ) ................................. 35

iv
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’s
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.

v
Safety information
• Before installing the device on a motherboard, carefully read all the manuals
that came with the package.
• To prevent electrical shock hazard or short circuits, switch off the power supply
before installing the device on a motherboard or connecting any signal cables
to the device.
• If the device is broken, do not try to x it by yourself. Contact a qualied service
technician or your retailer.
• Before using the product, make sure all cables are correctly connected. If you
detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from
connectors, sockets, and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in
any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualied
service technician or your retailer.
This symbol of the crossed out wheeled bin indicates that the product (electrical
and electronic equipment) should not be placed in municipal waste. Check local
regulations for disposal of electronic products.
Trademarks
Xonar and ASUS logo are trademarks of ASUSTek Computer Inc. “Dolby”
and “Dolby Digital Live”, “Dolby Pro Logic IIx”, “Dolby Virtual Speaker”, “Dolby
Headphone” are trademarks of Dolby Laboratories. EAX and A3D are trademarks
of Creative Technology Ltd. Microsoft, DirectSound3D, and Windows are
trademarks of Microsoft Corporation. Other company and product names may be
trademarks of the respective companies with which they are associated. ASIO is a
trademark and software of Steinberg Media Technologies GmbH.
License
Dolby Master Studio driver is manufactured under license from Dolby Laboratories.

vi

1ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
1. Introduction
1.1 Package contents
• ASUS Xonar D-KARAX PCIe audio card
• Driver/User Manual CD x1
• Quick Start Guide x1
• S/PDIF adapter x1
1.2 System requirements
• One PCIe v1.0 (or higher) compatible slot for the audio card
• Microsoft®Windows®10 / 8 / 7 / XP (32/64bit) / Vista (32/64bit)
• Intel®Pentium® 4 1.4 GHz or AMD® Athlon 1400 CPU or faster CPU
• 256 MB (or above) DRAM system memory
• 60 MB available HDD space for driver installation package
• CD-ROM drive (or DVD-ROM drive ) for software installation
• High-quality headphones or powered analog speakers

2ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
1.3 Specifications summary
* Specifications are subject to change without notice.
Items Description
Audio Performance
Output Signal-to-Noise Ratio (A-Weighted) 106 dB
Input Signal-to-Noise Ratio (A-Weighted) 102 dB
Output Total Harmonic Distortion + Noise at 1kHz
(A-Weighted)
0.0013% (-98dB)
Input Total Harmonic Distortion + Noise at 1kHz
(A-Weighted)
0.0013% (-98dB)
Frequency Response (-3dB, 24-bit/96kHz input) <10Hz to 48kHz
Output/Input Full-Scale Voltage 1 Vrms (2.828Vp-p)
Bus Compatibility
PCIe PCI Express v1.0 or above bus compatible
Main Chipset
Audio Processor C-Media CMI8786 High-Performance Sound Processor
(Max. 192KHz/24-bit)
Audio CODEC Cirrus Logic CS47028 *1 (105dB DNR, Max. 192KHz / 24-bit)
Sample Rate and Resolution
Analog Playback Sample Rate and Resolution 44.1K / 48K / 96KHz / 192KHz @ 16 / 24-bit for all channels
Analog Recording Sample Rate and Resolution 44.1K / 48K / 96KHz / 192KHz @ 16 / 24-bit for all channels
S / PDIF Digital Output 44.1K / 48K / 96KHz / 192KHz @ 16 / 24-bit for all channels
I/O Ports
Analog Output Jack 3.50mm mini jack *4 (Front / Side / Center-Subwoofer / Rear)
Analog Input Jack 3.50mm mini jack *2 (Line-In / Mic-In)
Other line-level analog input (for CD-In / TV Tuner) Aux-In (4-pin header on the card)
Digital S/PDIF Output High-bandwidth Optical Connector supports 192KHz @ 24-bit
Front-Panel Audio Header Supports headphone jack-detection, automatic switching of
audio output from back panel to front panel
Driver Features
Operating System Windows® 10 / 8 / 7 / XP (32/64-bit) / Vista (32/64-bit)
Dimension (Width x Height) 106.15mm x 178.06mm

3ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card

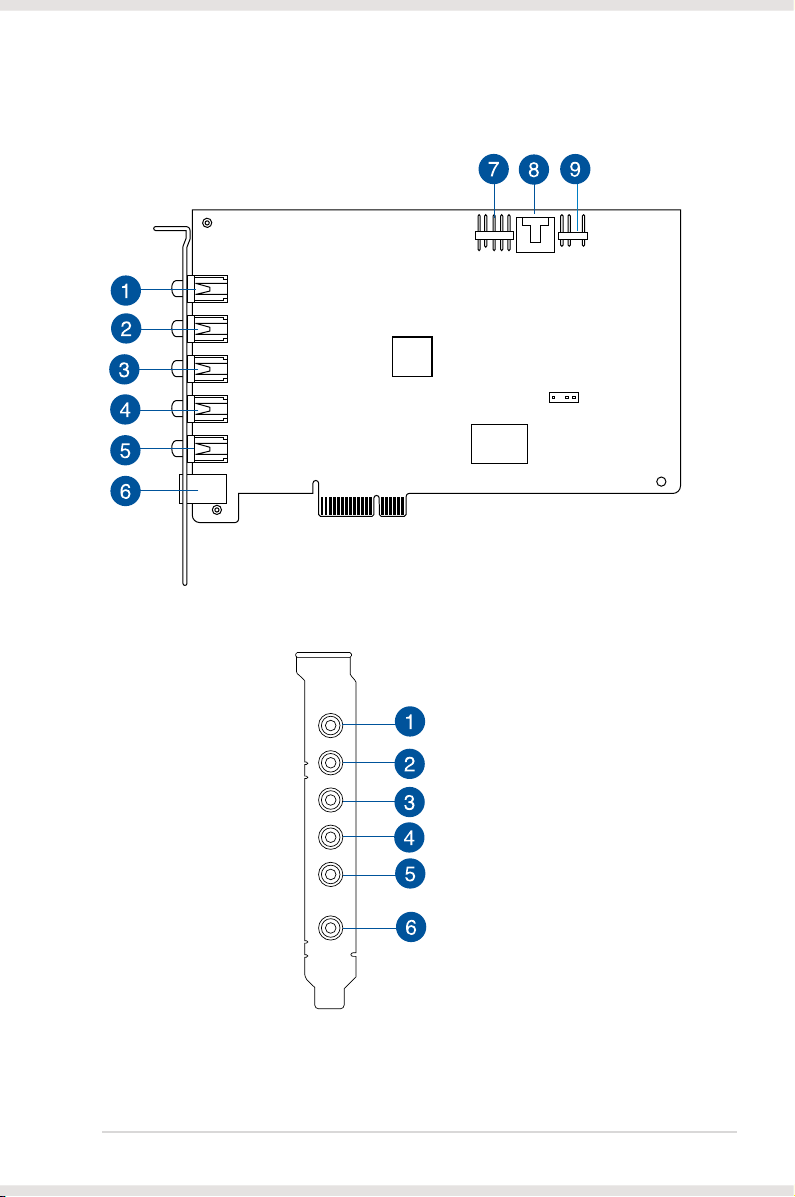

2. Xonar D-KARAX card layout
Audio ports

4ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
No Item Description
1 Microphone In port Connect an external PC microphone to this 3.5mm port.
2 Line In port
Connect analog devices like MP3 players, CD players,
music synthesizers and other line-level sound sources to
this 3.5mm port for audio recording or processing.
3Headphones/Front Out
port
Connect your headphones or 2-channel speakers to
this port. For multi-channel speaker systems, this port
connects to the front left/right input on the speakers.
4 Side Surround Out port Connects to the surround channel input on 4/5.1/7.1
powered analog speakers.
5Center/Subwoofer Out
port
Connects to the center/subwoofer input on 5.1/7.1
powered analog speakers.
6
Rear Surround and S/
PDIF Optical TOSLINK
Combo Out Port
Rear surround output port:
Connects to the rear input on 7.1 powered analog
speakers.
S/PDIF Optical digital output port:
Connects to external decoder or digital speaker sets,
home theater systems and AV receivers.
7 Front panel audio header
This 9-pin Intel®AC’97/HDA front-panel port supports
auto jack-detection and auto FP Headphone selection for
Analog Out on the Audio Center.
8 Aux Input Header
This 4-pin header connects to the Analog Audio output of
TV tuner cards or other sound devices inside your PC.*
*To monitor your TV tuner card’s audio from this Aux-In,
you must enable the “monitor” function for Aux-In in the
Xonar Audio Center software’s recording mixer.
9 S/PDIF Out header Connects to a graphics card with HDMI support

5ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
3. Installing the hardware

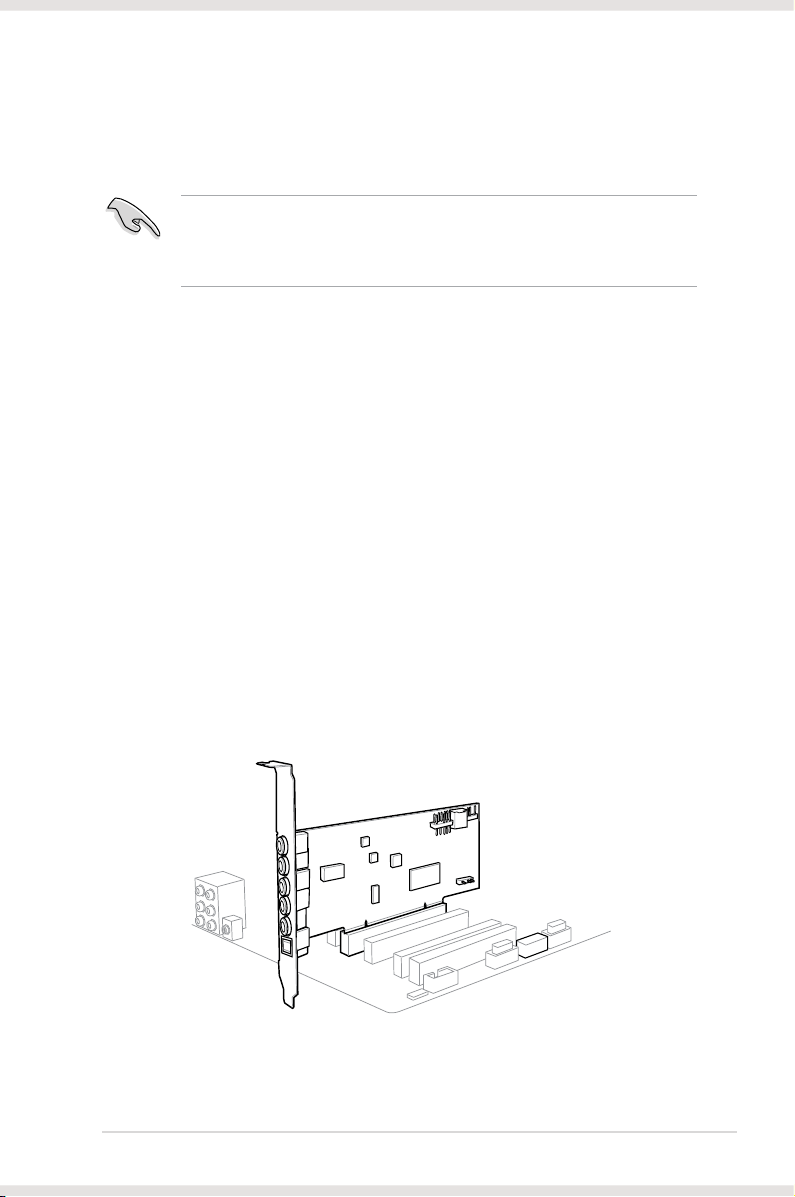

3.1 Installing the audio card
Before you proceed with the following installation steps, it’s recommended
that you disable your onboard audio device in your BIOS settings, or uninstall
any other audio cards on your PC. (For BIOS settings or uninstallation of other
sound cards, refer to the user manuals of your motherboard and audio card.)
Installing the Xonar D-KARAX card
1. Power OFF the computer, the monitor, and all other peripheral devices
connected to your computer.
2. Unplug the computer power cord from your computer and power outlet.
3. Touch the metal back or side panel of the computer to avoid static electricity.
4. Remove the chassis cover.
5. Remove the metal bracket from an available PCIe slot for the Xonar
D-KARAX audio card.
6. Carefully insert the audio card into the PCIe slot until the card is seated rmly
in place.
7. Secure the audio card with screws and the metal bracket.
8. Replace the chassis cover.
9. Reconnect all cables.
10. Plug the power cord to the computer and to a power outlet.
11. Power ON the computer.
12

6ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
3.2 Connecting to a TV tuner card
1. If you have a traditional PCI TV tuner card on your PC, you may need to
connect it to the Xonar D-KARAX card to send the tuner card’s sound to your
PC speakers.
2. Secure the PCI TV tuner card and screw it into the back-panel.
3. Connect the audio output header from the TV tuner card to the Aux-In header
of the Xonar D-KARAX card.
For optimum TV audio quality, Xonar D-KARAX uses ADC recording to digitize
the signal and loop it back for DAC playback. Select Aux-In as the recording
source in the Xonar D-KARAX Center’s recording mixer and enable the
monitoring button to pass this signal to the audio output. Using this setup, you
can even turn on sound effects such as Dolby headphone to expand the stereo
TV audio to 7.1 channel surround sound in any set of headphones. TV audio on
your PC will become even better than on your TV set.

7ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
4. Installing software
Installing the card driver
Install the audio card driver before installing the Xonar D-KARAX driver.
Otherwise, driver installation error may occur.
1. After you have installed the Xonar D-KARAX card, turn on your computer.
Windows®automatically detects the audio card and searches for device
drivers. When prompted for the drivers, click Cancel.
2. Insert the support CD into the optical drive. If Autorun is enabled on your
system, the setup starts automatically. If not, run setup.exe from your
support CD.
3. Follow the onscreen instructions to nish the installation.
The version and content of the support CD are subject to change without notice.

8ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
5. Connecting speakers and peripherals
5.1 Connecting digital speaker systems (Home Theater)
The Xonar D-KARAX makes surround sound playback through your home theater
system possible. A single digital cable connection can carry high-quality digital
audio from any of your PC audio sources to any digital speakers or AV Receivers.
No Item Description
1-2 Optical cable and S/
PDIF adapter
Plug your decoder’s S/PDIF optical cable into the S/PDIF-Out
connector using the included S/PDIF adapter.
Rear Surround
and S/PDIF Optical
TOSLINK Combo Out

9ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
5.2 Connecting stereo headphones
5.2.1 Connecting Stereo Headphones
Front Out/Headphones
No Item Description
1 Front Out/
Headphones
The Front Out/Headphones port has a built-in high-quality
amplier to drive headphones. Connect your stereo
headphones directly to the Front Out port.

10 ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
5.3 Connecting analog speaker systems
5.3.1 Connecting an analog power amplifier
No Item Description
1 Front Out Connect the “left front” and “right front” input ports of the
analog amplier to the Front Out port.
2 Side Surround Out Connect the “left surround” and “right surround” input ports of
the analog amplier to the Side Surround Out port.
3 Center/Subwoofer Connect the “Center” and “subwoofer” input ports of the
analog amplier to the Center/Subwoofer Out port.
4 Rear Surround Out Connect the “Rear” input port of the analog amplier to the
Rear Surround port.
RL
RL
Rear
RR
RR
Front Out
Side Surround Out
Center/Subwoofer Out
Rear Surround

11ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
5.3.2 Connecting 2-channel Speakers
No Item Description
1 Front Out/
Headphones
Connect the 2 channel speaker set’s 3.5mm plug to the Front
Out port.
AUDIO
INPUTS
Front Out

12 ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
5.3.3 Connecting 4-channel Speakers
No Item Description
1 Front Out Connect the Front input port of the 4 channel speakers to the
Front Out port.
2 Side Surround Out Connect the Surround input port of the 4 channel speakers to
the Side Surround Out port.
AUDIO
INPUTS
Side
AUDIO
INPUTS
Front
Front Out
Side Surround Out

13ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
5.3.4 Connecting 5.1-channel Speakers
No Item Description
1 Front Out Connect the Front input port of the 5.1 speakers to the Front
Out port.
2 Side Surround Out Connect the Surround input port of the 5.1 speakers to the
Side Surround Out port.
3 Center/Subwoofer Connect the Center/Subwoofer input port of the 5.1 speakers
to the Center/Subwoofer Out port.
Side
Front Center/
Subwoofer
AUDIO
INPUTS
Front Out
Side Surround Out
Center/Subwoofer
Out

14 ASUS Xonar D-KARAX PCIe 7.1 Karaoke Audio Card
5.3.4 Connecting 7.1-channel Speakers
Front Out
Side Surround Out
Center/Subwoofer
Out
Rear
Side
Front
Center/
Subwoofer
AUDIO
INPUTS
AUDIO
INPUTS
1
2
3
4
Rear Surround Out
No Item Description
1 Front Out Connect the Front input port of the 7.1 speakers to the Front
Out port.
2 Side Surround Out Connect the Surround input port of the 7.1 speakers to the
Side Surround Out port.
3 Center/Subwoofer Out Connect the Center/Subwoofer input port of the 7.1 speakers
to the Center/Subwoofer Out port.
4 Rear Surround Out Connect the Rear Surround input of the 7.1 speakers to the
Rear Surround Out port.
