Asus VivoWatch 5 AERO User manual

User Manual
iOS AppAndroid App
E21289
December 2021
First Edition

2
Table of Contents
Introduction..........................................................................................................................4
About this manual..............................................................................................................5
Conventions used in this manual..................................................................................6
Typography...........................................................................................................................6
Safety precautions..............................................................................................................7
Battery precautions............................................................................................................8
Chapter 1: Getting started
Getting to know your VivoWatch 5 AERO..................................................................10
Charging your device........................................................................................................13
Wearing your device..........................................................................................................15

3
Chapter 2: Using your ASUS VivoWatch 5 AERO
Pairing for the first time....................................................................................................20
Navigating your VivoWatch 5 AERO.............................................................................21
Scrolling through ASUS VivoWatch 5 AERO features..................................22
Viewing more information for the selected feature....................................23
VivoWatch 5 AERO features.............................................................................................24
Home screen..............................................................................................................24
PTT index screen ......................................................................................................25
Pulse O2 level screen ..............................................................................................28
Heart rate screen......................................................................................................29
Sports screen .............................................................................................................30
Settings........................................................................................................................32
Activity screen...........................................................................................................33
Sleep screen...............................................................................................................34
Updating your VivoWatch 5 AERO................................................................................35
Through the ASUS HealthConnect App...........................................................35
Appendix

4
Introduction
Thank you for purchasing the ASUS VivoWatch 5 AERO! ASUS VivoWatch
5 AERO is the wearable device that packs ASUS HealthAI technology and
some fitness functions with all the benefits of being accurate, smart, and
compact. Please fill in the following information for future reference:
DATE PURCHASED: ______________________________________
SERIAL NUMBER: ______________________________________
Staple your receipt here
Register your product at https://account.asus.com/product_reg.aspx

5
About this manual
This manual provides information about the hardware and software
features of your ASUS VivoWatch 5 AERO, organized through the following
chapters:
Chapter 1: Getting started
This chapter details the hardware components of your ASUS
VivoWatch 5 AERO and shows you how to use the different parts of
your ASUS VivoWatch 5 AERO.
Chapter 2: Using your ASUS VivoWatch 5 AERO
This chapter provides an overview of using your ASUS VivoWatch 5
AERO.
Appendix
This section includes notices for your ASUS VivoWatch 5 AERO.
Read all of the information in the instruction manual and any
other literature in the box before operating the device. For the
full manual version of your ASUS VivoWatch 5 AERO, visit our
multi-language web site at: https://www.asus.com/tw/Mobile/
Wearable-Healthcare/VivoWatch/ASUS-VivoWatch-5-HC-B05/.

6
Conventions used in this manual
To highlight key information in this manual, some text are presented as
follows:
This message contains vital information that must be followed
to complete a task.
This message contains additional information and tips that
can help complete tasks.
This message contains important information that must
be followed to keep you safe while performing tasks and
prevent damage to your ASUS VivoWatch 5 AERO’s data and
components.
Typography
Bold = This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this user guide.

7
Safety precautions
• The ASUS VivoWatch 5 AERO and the charging cable must be recycled
or disposed of properly.
• Keep any small components away from children.
• Your ASUS VivoWatch 5 AERO should only be used in environments
with ambient temperatures between 5°C and 40°C, and stored in
environments with ambient temperatures between -20°C and 45°C.
• Do not leave your ASUS VivoWatch 5 AERO in a hot car. Temperatures
in a parked car on sunny days can exceed the recommended ambient
temperatures.
• Some people may experience irritations to certain materials used
in jewelry, watches, and other wearable items that are in prolonged
contact with their skin. This can be due to allergies, environmental
factors, extended exposure to irritants like soap, sweat, or other
causes.
• Wear your ASUS VivoWatch 5 AERO firmly around your lower arm (away
from your wrist bone) with the bottom of the device touching your
skin. An overly tight strap may cause skin irritation, while a loose strap
may result in inaccurate heart rate readings.
• Keeping your ASUS VivoWatch 5 AERO and the strap clean and dry will
reduce the possibility of skin irritation.

8
• If you experience redness, swelling, itchiness, or any other irritation or
discomfort on your skin around, or beneath, your ASUS VivoWatch 5
AERO, please remove the device and consult your physician.
• The ASUS VivoWatch 5 AERO is not a medical device and is not
intended to diagnose health conditions. The measurement results are
only for your reference.
Battery precautions
• Do not place your device or battery near any sources of heat with
temperature exceeding 60°C (140°F).
• Never attempt to short-circuit the battery.
• Never attempt to disassemble and reassemble the battery.
• Discontinue usage if leakage is found.
• Do not use your device or expose the battery to high temperature or
extremely low air pressure.

1
Getting started

10
Getting to know your VivoWatch 5 AERO
ECG sensor and PPG sensor
Touch screen
Charging connectors
ECG sensor PPG sensor
Watch

11

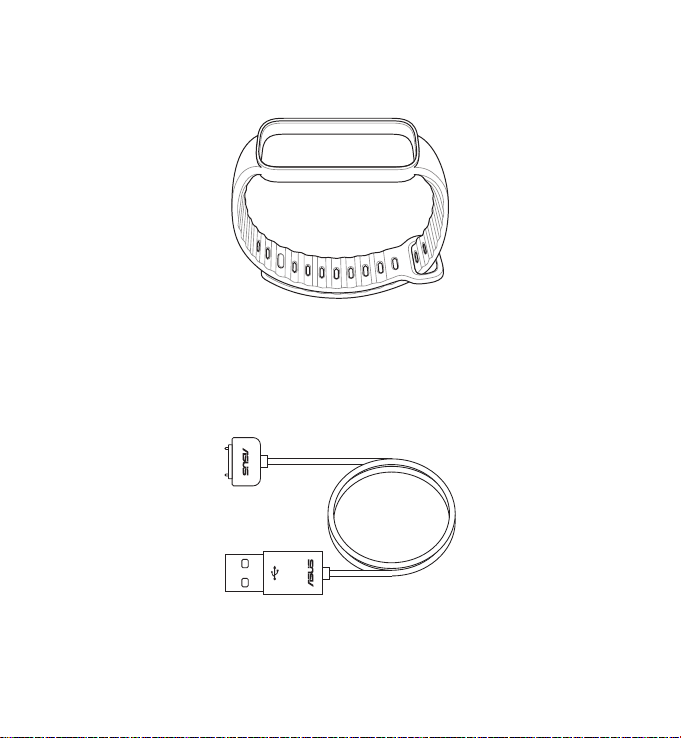

Interchangeable strap
Charging cable

12
• Your ASUS VivoWatch 5 AERO can be used as a standalone
device.
• Download and install the companion app for a complete
overview of your health data. For more details, refer to the
Pairing for the first time section in this manual.
• ASUS VivoWatch 5 AERO features 5 ATM water resistance
that withstands pressures equivalent to a depth of 50 meters.
Suitable for splashes, rain, showering and swimming.
• DO NOT use your ASUS VivoWatch 5 AERO in liquids with
chemicals or salt water (such as sea water, swimming pools,
or hot springs) as it may damage the charging connectors.
If your ASUS VivoWatch 5 AERO has been in contact with the
mentioned liquids, ensure to thoroughly rinse the connectors
with fresh water and dry it with a clean cloth to prevent
corrosion.
• Always adjust the brightness to your preference. It is
recommended to turn up the brightness when you are
outside in the sun.

13
Charging your device
1. Remove the rubber cover on the bottom of your device to reveal the
charging connectors.
2. Align and place the charging pins of the USB charging cable onto the
charging connectors.
3. Connect the USB charging cable to a power source to start charging.
Your device will turn on automatically once it is fully charged.

14
• Align and connect these charging connectors (Input: 5Vdc,
0.5A) to the charging cable to charge the battery of your
ASUS VivoWatch 5 AERO.
• Before connecting the charging cable to your ASUS
VivoWatch 5 AERO, ensure that the charging connectors and
the bottom of the ASUS VivoWatch 5 AERO are clean and dry
to prevent corrosion and malfunction:
1. Gently wipe the charging connectors with a clean flannel.
2. Wipe dry your ASUS VivoWatch 5 AERO.
• Do not short circuit the charging connectors on the charging
cable.
• Some power banks cannot detect low current devices, and
will therefore not be able to charge the ASUS VivoWatch 5
AERO.

15

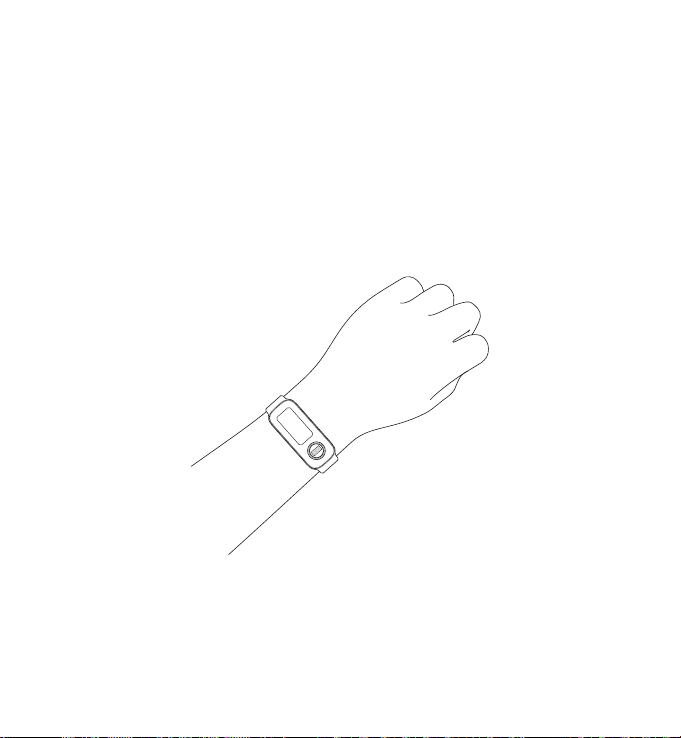

Wearing your device
Wear your device firmly around your lower arm (away from your wrist
bone) with the bottom touching your skin in order to have more accurate
information and data.
Do not fasten your device too tightly or too loosely. Your device should
remain in place when you move your arm.

16

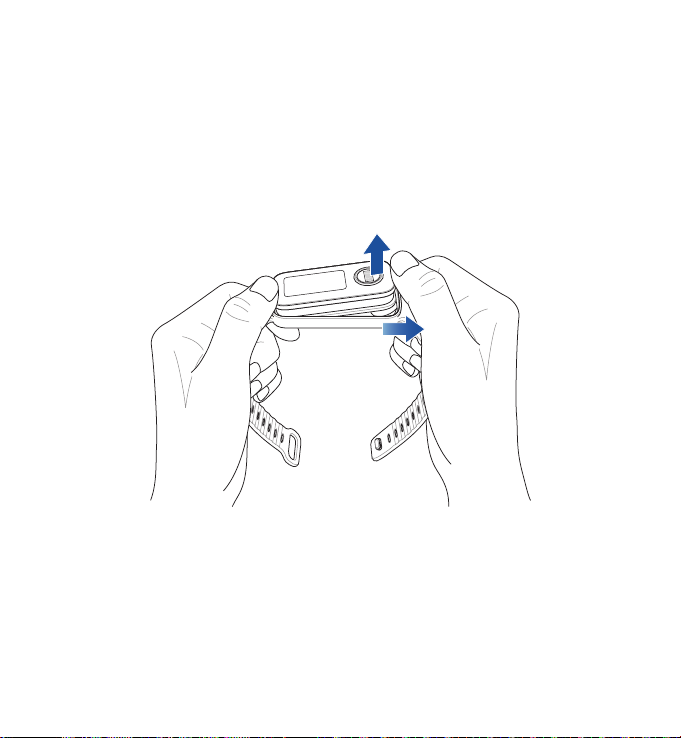

Removing the strap
1. Hold the watch with two hands and make sure the screen is facing
upwards.
2. Pull the strap horizontally from one end, then gently push the watch
upwards from the bottom with your index finger.

17
Attaching the strap
1. Hold the strap with one hand and make sure the front opening is
facing upwards.
2. Insert one end of the watch into the strap opening, then gently press
down the other end of the watch until all edges of the watch are
securely fitted in place.

18

2
Using your ASUS VivoWatch 5 AERO

20
Pairing for the first time
Pair your ASUS VivoWatch 5 AERO with the companion app to take
advantage of all its features.
1. Log in or sign up for a Google account or Apple ID on your phone.
2. Launch Play Store or App Store.
3. Search for ASUS HealthConnect, then install the companion app.
4. Launch ASUS HealthConnect and log in to your account. Follow
the instructions on the screen to proceed with device pairing and
calibration.
