AT&T TL7600 User manual

User’s manual
TL7600

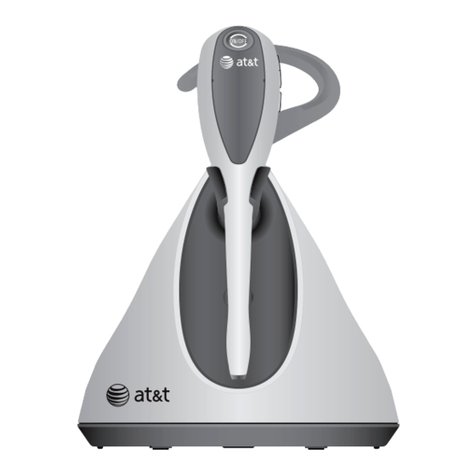

DECT 6.0 expansion headset

Congratulations
on your purchase
of this AT&T product.
Before using this AT&T product, please read the
Important safety information
on pages 39-42 of this manual. Please thoroughly
read the user’s manual for all the feature operations
and troubleshooting information necessary to install
and operate your new AT&T product. You can also
visit our website at www.telephones.att.com
or call 1 [phone].
In Canada, dial 1 [phone].
Model #: TL7600
Type: DECT 6.0 expansion headset
Serial #:
(found on the bottom of the headset charger)
Purchase date:
Place of purchase:
© 2008 Advanced American Telephones. All rights reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a
AT&T Intellectual Property licensed to Advanced American Telephones, San
Antonio, TX 78219.
Printed in China.
Save your sales receipt and original packaging in case it is necessary
to return your telephone for warranty service.

Headset charger Battery for headset
Cordless headset
User's manual
User’s manual
TL7600
DECT 6.0 expansion headset
Battery compartment
cover
Parts checklist
Check to make sure the headset package includes the following
items:
Over-the-ear hook
Charger power adapter Behind-the-neckband Over-the-headband

User’s manual
TL7600
DECT 6.0 expansion headset
Getting started
Installation preparation.............1
Charger installation.....................2
Battery installation......................3
Battery charging...........................4
Registering the headset............5
To register a headset to
the DECT headset base.....6
To register the headset to
an AT&T DECT cordless
telephone base......................7
Quick reference guide ...............8
Headset attachments
Over-the-ear hook ..................9
Over-the-headband.............12
Behind-the-neckband.........14
Operation
Headset operation
Making a call...........................17
Answering a call on the
headset .................................18
Ending a call on the
headset. ................................18
Auto off .....................................18
Temporary ring tone
silencing ...............................19
Intercom and intercom call
transfer..................................19
Options while on calls
Volume control. .....................20
Call waiting..............................20
Switching a call between
handset and headset .....21
Multiple headset/handset
use...........................................22
Mute ............................................22
Alert tones....................................23
Indicator lights............................24
Table of contents

De-registration
Replacing a headset ................25
To de-register all headsets
from the headset base ...25
To de-register all headset(s)
from an AT&T cordless
telephone base...................26
Table of contents

1
Getting started
Avoid placing the headset charger too close to:
• Communication devices such as: television sets, VCRs, or other
cordless telephones.
• Excessive heat sources.
• Noise sources such as a window with traffic outside, motors,
microwave ovens, refrigerators, or fluorescent lighting.
• Excessive dust sources such as a workshop or garage.
• Excessive moisture.
• Extremely low temperature.
• Mechanical vibration or shock such as on top of the washing
machine or work bench.
Installation preparation
See pages 3-4
for easy instructions.
You must install and
charge the battery before
using the headset. STOP!
If you subscribe to high-speed Internet service (digital subscriber
line - DSL) through your telephone lines, you must install a DSL
filter between the telephone line cord and the telephone wall jack.
The filter prevents noise and caller ID problems caused by DSL
interference. Please contact your DSL service provider for more
information about DSL filters.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 [phone]. In
Canada, dial 1 [phone].

2
Getting started
IMPORTANT INFORMATION
Use only the power adapter supplied with this product. To order a
replacement power adapter, visit our website at
www.telephones.att.com, or call 1 [phone].
In Canada, dial 1 [phone].
The power adapter is intended to be correctly oriented in a vertical
or floor mount position. The prongs are not designed to hold the
plug in place if it is plugged into a ceiling, under-the-table or
cabinet outlet.
1.
2.
2. Plug the large end
of the charger power
adapter into a power
outlet not controlled
by a wall switch.
Charger installation
1. Plug the small end
of the charger power
adapter into the jack
on the underside of the
charger, then route the
cord through the slot
as shown.

3
Getting started
Battery installation
Install the battery as shown below. For optimal performance,
charge the headset battery for at least six hours before use.
When not in use, recharge the headset by returning it to the
headset charger.
NOTE: Remove the ear hook from the headset (see page 11) before battery
replacement.
2. Insert the battery into the battery
compartment with the label THIS
SIDE UP facing up.
3. Push the battery plug into the
connector inside the compartment
according to the color-coded label
and place the wires neatly inside
the compartment.
4. Insert the tab on the bottom of
the battery cover into the battery
compartment. Press down gently
on the battery cover until it snaps
into place.
4
2
3
1. If the battery door is attached,
press on both sides of the battery
compartment cover and lift the
cover up and off.
1

4
Getting started
Battery charging
After installing the battery, charge the headset by placing it in
the headset charger as shown below. Before registration, the
headset ON/OFF light flashes twice every five seconds whether
the headset is charging or not. After registration, the headset
ON/OFF light is on when the headset is charging.
1. Insert the headset into the
charging cradle.
2. Push the headset downward
until the ON/OFF light on the
headset turns on.
Insert
Push
ON/OFF light
IMPORTANT INFORMATION
Use only the supplied rechargeable battery or replacement battery
(model BT191545). To obtain a replacement battery, visit our website at
www.telephones.att.com or call 1 [phone]. In
Canada, dial 1 [phone].

5
Getting started
Registering the headset
You must register your new TL7600 headset with one of the
following models before use:
AT&T DECT cordless headset TL7610/TL7611 (see page 6).
You can register a maximum of two headsets to each headset
base.
-OR-
A compatible AT&T DECT cordless telephone (see page 7).
You can register a maximum of two headsets to each cordless
telephone.
The telephone base recognizes and counts a headset the same as
a handset. Refer to your telephone user’s manual for the maximum
number of handsets that you can register to the telephone base.
If you have the maximum number of handsets registered, you
need to follow the de-registration information in your telephone
user’s manual.
Visit www.telephones.att.com for a list of compatible
telephones.
The first headset provided with your TL7610/TL7611 has a
blue ON/OFF light. When you register a second headset, the
ON/OFF light of the headset turns orange to help you identify
the headsets.
You can only register the headset to one product at a time, so
the headset must be unregistered before registering to a headset
base or a cordless phone.
NOTE: See pages 25 and 26 for instructions on de-registering.
•
•
