AT&T 929 User manual

User’s manual
Part 2
Big button telephone 929

© 2008 Advanced American Telephones. All rights reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a
AT&T Intellectual Property licensed to Advanced American Telephones. Printed in China.
Congratulations
on your purchase
of this AT&T product.
Before using this AT&T product, please read the
Important product information (Part 1).
Please thoroughly read this user’s
manual for all the feature operations
and troubleshooting information necessary
to install and operate your new
AT&T product. You can also visit our
website at www.telephones.att.com or call
1 [phone].
In Canada, dial 1 [phone].
Model #: 929
Serial #:
Purchase date:
Place of purchase:
Both the model and serial number of your AT&T product can be
found on the bottom of the telephone base.
Save your sales receipt and original packaging in case it is necessary
to return your telephone for warranty service.
Audio assistTM is a trademark of Advanced American Telephones.

Before you begin
Parts checklist..........................2
Installation
Table/desk installation ........3
Wall installation ......................5
Telephone operation
Make a call.................................9
Answer a call............................9
End a call....................................9
Ringing indicator.....................9
Speakerphone........................... 9
Mute ..............................................9
Redial......................................... 10
Erase a redial......................... 10
Flash........................................... 10
Temporary tone dialing .... 10
Handset volume ................... 11
Ringer volume....................... 11
Speakerphone volume ...... 11
Audio assistTM ........................ 11
Telephone memory

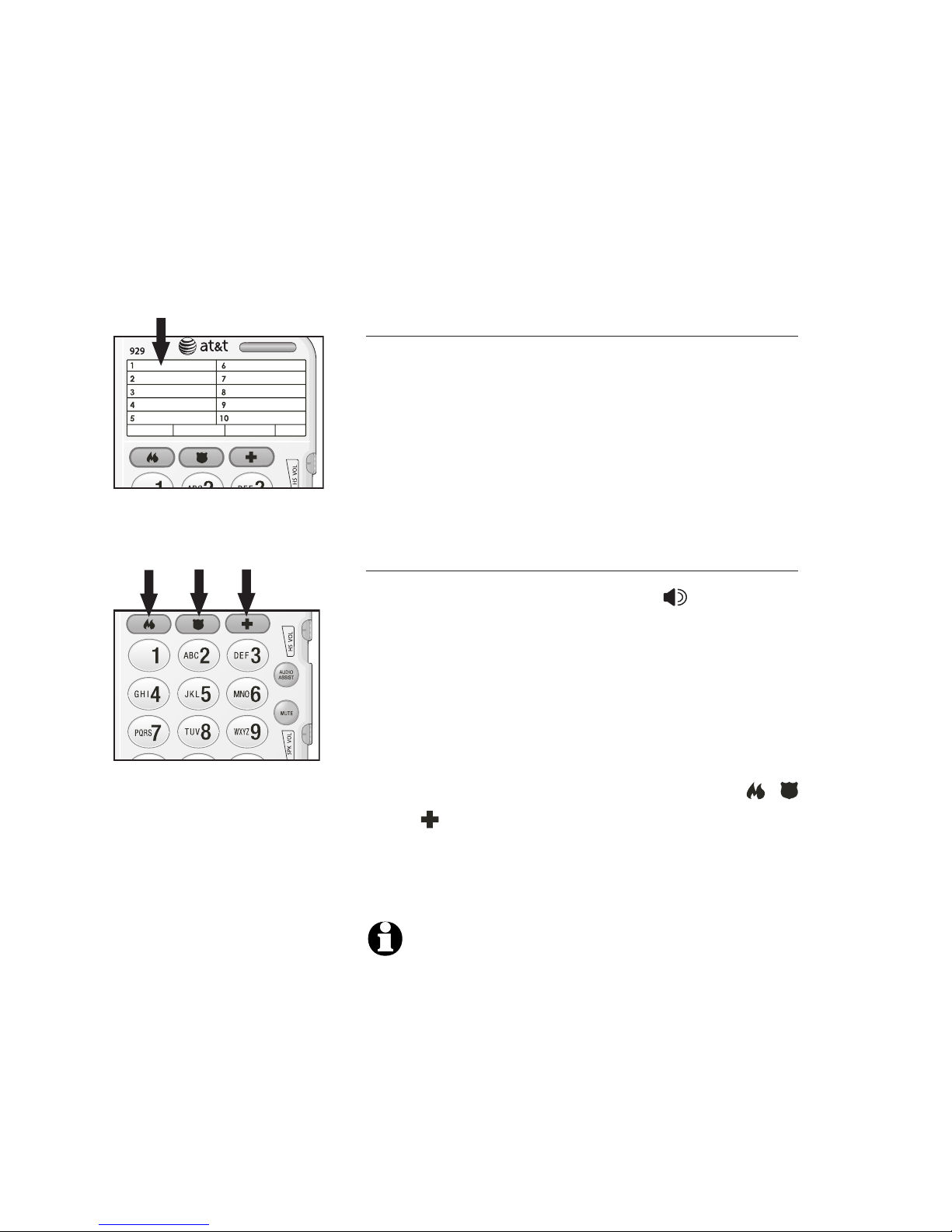

Directory card........................ 12
Store a number in
memory ................................. 12
Store a pause in a
memory number ............... 13
Dial a number in a
one-touch memory.......... 13
Dial a number in a
two-touch memory.......... 13
Erase a memory
number .................................. 13
Appendix
General product care..........14
Troubleshooting.................... 15
Technical specifications.... 17
Index .......................................... 18
1
Table of contents

2
Parts checklist
Your telephone contains the following items. Save your sales
receipt and original packaging in the event warranty service is
necessary.
Telephone line cord
Coiled handset cord Mounting bracket
Handset
Telephone base unit
User’s manual
Part 2
Short telephone line cord
Part 1
Important product information
This symbol is to alert you to important
operating or servicing instructions that may
appear in this user’s manual. Always follow basic
safety precautions when using this product to
reduce the risk of injury, fire, or electric shock.
Safety information
•Read and understand all instructions in the
user’s manual. Observe all markings on the
product.
•
There may be a slight
chance of electric shock from lightning.
•Do not use a telephone in the vicinity of
a gas leak. If you suspect a gas leak, report
it immediately, but use a telephone away from
the area where gas is leaking. If this product is a
cordless model, make sure the base is also away
from the area.
•Do not use this product near water, or
when you are wet. For example, do not use
it in a wet basement or shower, or next to
a swimming pool, bathtub, kitchen sink, or
laundry tub. Do not use liquids or aerosol
sprays for cleaning. If the product comes in
contact with any liquids, unplug any line or
power cord immediately. Do not plug the
product back in until it has dried thoroughly.
•Install this product in a protected location
where no one can trip over any line or power
cords. Protect cords from damage or abrasion.
Avoid using a telephone during a
thunderstorm.
Before you begin
User's manual
Part 1
User's manual
Part 2

3
Installation options
The telephone base comes with the mounting bracket already
installed for desktop use. If wall mounting is desired, a telephone
outlet wall mounting plate with mounting studs is required. This
mounting plate with studs is available for purchase from many
hardware or consumer electronics retailers and may require
professional installation.
If you subscribe to high-speed Internet service (Digital Subscriber
Line - DSL) through your telephone line, you must install a DSL
filter between the telephone base and the telephone wall jack.
The filter will prevent noise caused by DSL interference. Please
contact your DSL service provider for more information about
DSL filters.
Table/desk installation
NOTE: If the mounting bracket is already in the desktop position, go to step 2.
If you have repositioned the mounting bracket for wall mounting
and now want to return to desktop use, follow the steps below:
Remove the mounting bracket from wall mount orientation by
following the illustrations below. Install the mounting bracket
in the desktop orientation by pushing the bracket tabs into the
slots on the upper portion of the telephone base until they
click into place.
1.
Installation
Press the tabs down
to remove the bracket
Turn upside down

4
Install batteries to provide power for the AUDIO ASSIST, MUTE
and lights. Press the battery cover tabs as shown below to
open the battery compartment. Install three new alkaline AA
batteries (not included). Make sure to follow the polarity guide
in the battery compartment. Replace the cover.
If you have touch tone service, set the selectable dialing
switch to TT (tone). If you have dial pulse (rotary) service, set
the selectable dialing switch to DP (pulse).
Plug the coiled handset cord into the handset jack on the left
side of the telephone base. Plug the other end of the coiled
handset cord into the handset, then hang up.
2.
3.
4.
Installation
NOTE: The batteries are needed for the AUDIO ASSIST, MUTE and lights
to work. Replace the batteries when the light is dim or unlit in a dark room.
Replace the batteries only with three new alkaline AA batteries.
Selectable dialing switch

5
Installation
Plug one end of the telephone line cord into the jack labeled
LINE IN on the telephone base. Plug the other end of the
telephone line cord into a telephone wall jack.
Check for a dial tone. Lift the handset or press to listen for a
dial tone. If you cannot hear a dial tone, slide HS VOL (handset
volume) or SPK VOL (speakerphone volume) upward. If you still
do not hear a dial tone, see the Troubleshooting section on
page 15 of this user's manual.
Wall installation
To change the telephone base from desktop position to wall
mount position:
Remove the mounting bracket from desktop orientation by
following the illustrations below. Install the mounting bracket
in the wall mount orientation by pushing the bracket tabs into
the slots on the lower portion of the telephone base until they
click into place.
5.
6.
1.
Press the tabs down
to remove the bracket
Turn upside down
DSL filter (not included)
required if you have DSL
high-speed Internet service.

6
Installation
NOTE: The batteries are needed for the AUDIO ASSIST, MUTE and
lights to work. Replace the batteries when the light is dim or unlit in a dark
room. Replace the batteries only with three new alkaline AA batteries.
Install batteries to provide power for the AUDIO ASSIST, MUTE
and lights. Press the battery cover tabs as shown below to
open the battery compartment. Install three new alkaline AA
batteries (not included). Make sure to follow the polarity guide
in the battery compartment. Replace the cover.
If you have touch tone service, set the selectable dialing
switch to TT (tone). If you have dial pulse (rotary) service, set
the selectable dialing switch to DP (pulse).
2.
3.
Selectable dialing switch

7
Installation
Reverse the handset tab. This tab holds the handset when you
hang up. Hold down the switchhook and slide the tab up and
out of its slot. Turn the tab so that the end with the hook is
up. Then hold down the switchhook while you insert the tab
back into its slot.
Plug the coiled handset cord into the handset jack on the left
side of the telephone base. Plug the other end of the coiled
handset cord into the handset, then hang up.
Plug one end of the short telephone line cord into the jack
labeled LINE IN and route it into the groove on the telephone
base as shown below. Plug the other end of the short
telephone line cord into a telephone wall jack.
4.
5.
6.
Switchhook
Handset tab

8
Installation
Lift the handset or press to listen for a dial tone. If you
cannot hear a dial tone, slide HS VOL (handset volume) or
SPK VOL (speakerphone volume) upward.
Align the mounting studs on the telephone outlet plate with
the mounting holes on the bracket. Slide the telephone base
down until it is securely held.
7.
8.
