AT&T TRIMLINE 210 User manual

USER’S MANUAL
Part 2
AT&T and the globe symbol are registered trademarks of AT&T Corp.
licensed to Advanced American Telephones.
©2000 Advanced American Telephones. All rights reserved.
Printed in Mexico. 850003435 Issue 1AT&T 5/00
TRIMLINE
Memory
Telephone 210
Please also read Part 1 —
Important Product Information.

PARTS CHECKLIST
Remember to save your sales receipt in case you ever
need warranty service, and make sure this telephone
package includes the items shown below:
1
123
45 6
7 8 9
ABC DEF
JKL MNO
GHI
TUV WXYZ
PQRS
OPER
O
TONE
#
*
MEM
RINGER PROG DIAL
OFF HILO TT DP
FLASH REDIAL
MEM 1 MEM 6
MEM 2 MEM 7
MEM 3 MEM 8
MEM 4 MEM 9
MEM 5 THIS NO.
TELEPHONE BASE
TELEPHONE
HANDSET
Handset Tab
Switchhook
Coiled handset cord7-foot line cord
Ringer
Volume
Receiver
Volume
Program
Button
Dial
Mode
Switch

TABLE/DESK INSTALLATION
This telephone includes a 7-foot line cord with a
modular plug on each end. Use this cord to connect
the telephone to a modular jack.
1. Fill in directory card
Remove the directory card and
write in your own telephone
number. Also write the tele-
phone numbers (or names)
that you want to store in each
memory location.
Reinstall the card and clear
plastic cover.
2. Connect line cord to telephone
Plug the long line cord into the
jack on the underside of the tele-
phone base. Then feed the line
cord through the channel pro-
vided so the telephone sits flat
on your table or desk during use
(Figure 1).
3. Connect line cord to wall jack
Plug free end of the line cord
into a modular jack. Make sure
it snaps firmly into place.
4. Set DIAL Mode switch
This product comes set in the
tone (TT) mode. Make sure you
choose the correct dialing method
(TT/DP); touch tone dialing will not
work if you have dial pulse service.
5. Connect handset to base
Plug one end of the coiled handset cord into the
handset, and the other end into the base. Then
hang up.
6. Check for dial tone
Lift the handset and listen for dial tone. If you can-
not hear a dial tone, refer to “In Case of Difficulty”
and try to correct the problem.
TO DISCONNECT the telephone, squeeze the
clip on the modular plug and pull it out of the jack.
8 9
OPER
O
PROG DIAL
TT DP
MEM
R
EDIAL
#
Figure 1
Figure 2
2

WALL INSTALLATION
1. Fill in directory card
Remove the directory card and write in your own
telephone number. Also write the telephone num-
bers (or names) that you want to store in each
memory location.
2. Reverse handset tab
To install the telephone on a wall jack, you must
reverse a small tab beneath the directory card. This
tab holds the handset in place when you hang up.
Remove the directory card and plastic cover. Use
a paper clip to lift and remove the handset tab.
Reverse the tab and reinstall it as shown (Figure
1). Then replace the directory card and cover.
3. Plug the line cord into the
jack on the underside of the
base. Feed the line cord into the
channel and wind it around the
mounting area. Feed the last
portion (as short as possible),
through one of the slots in the
mounting area (Figure 2).
(Continued)
B
C
D
A
Figure 2
Figure 1
3

4
WALL INSTALLATION (continued)
4. Install telephone
base on wall jack
Hold the base up
next to the wall jack,
and plug in the line
cord (Figure 3).
Then push the base
against the wall jack
and down until it is
held securely by the
mounting studs.
5. Set DIAL Mode switch
Refer to step 4 in Table/Desk Installation.
6. Connect handset to telephone
Connect one end of the coiled handset cord into
the base. Plug the other end into the handset
(Figure 4). Then hang up.
7. Check for dial tone
Lift the handset and listen for dial tone. If you
cannot hear a dial tone, refer to “In Case of
Difficulty” and try to correct the problem.
MEM
2
MEM
1
MEM
3
MEM
4
MEM
5
MEM
6
MEM
7
MEM
8
MEM
9
THIS NO.
NOTE: If you
cannot fit the base
onto the wall jack,
remove the four
non-slip pads.
MEM
3
MEM
4
MEM
5
ME
MEM
9
THIS NO.
MEM
2
Figure 4
Figure 3

OPERATION
Redial
This telephone always stores in memory the last
phone number dialed.
The redial memory can accept numbers up to 32
digits long. The number will remain in memory until
you change it by dialing another telephone number.
To dial the same number again, lift the handset, and
press .
Erasing Redial
For privacy, you can erase the redial memory. Lift the
handset, then press and hang up.
Flash
Press instead of pressing the switchhook to
activate custom calling services such as call waiting
or 3-way calling.
You may have to press other buttons before or after
as explained in custom calling instructions
provided by your local telephone company.
FLASH
FLASH
1
REDIAL
5

Ringer Volume
The Ringer Volume switch allows you to turn the
telephone ringer OFF, or set it to ring at LO or HI
volume. You can dial or answer calls normally when
the ringer is off. Other telephones in your home will
still ring; they are not affected by the switch.
Receiver (Handset) Volume
The Receiver Volume switch on the side of the hand-
set can be adjusted for a comfortable listening level.
The switch has three volume positions.
Temporary Tone Dialing
Temporary tone dialing
is used only when you
have rotary service. It
allows you access to
services that require
tone signaling, including
some tone-activated
computer systems (e.g.,
telephone banking).
To change from pulse
(rotary) to tone dialing during a call:
1. Dial a telephone number with the DIAL Mode
switch set to PULSE.
2. Press ; all buttons pressed after this will
send tone signals.
3. After you hang up, the phone automatically
returns to rotary service.
*
Tone
123
45 6
7 8 9
ABC DEF
JKL MNO
GHI
TUV WXYZ
PQRS
OPER
O
TONE
*
FLASH MEMREDIAL
#
6

7
MEMORY DIALING
Memory Features
Numbers will remain stored in memory unless you
erase or change them by entering other numbers.
Capacity: This telephone can store up to 12 different
phone numbers, each up to 21 digits long.
One-Touch Dialing: Three numbers can be stored in
one-touch memory locations. You can dial these
numbers by pressing one of the buttons marked with
an emergency symbol.
Speed Dialing: Nine telephone numbers can be
stored in standard speed-dialing locations. You can
dial any of these numbers by pressing two buttons.
Directory Card: Remove the directory card. Write
your telephone number in the space provided. Also
write the telephone numbers (or names) that you want
to store in each memory location. Reinstall the card
and clear plastic cover.
MEM
2
MEM
1
MEM
3
MEM
4
MEM
5
MEM
6
MEM
7
MEM
8
MEM
9
THIS NO.
NOTE: Numbers programmed into a memory
location might not be retained if the telephone has
been unplugged from the line jack for a half hour
or more.

Emergency Numbers: You may choose to store
emergency numbers in the one-touch memory loca-
tions marked with fire, police and medical symbols.
However, we recommend that you also write the
telephone number on the directory card so that if
the memory feature does not function, you can still
manually dial an emergency number.
If you choose to store non-emergency numbers in
these locations, it is important to remember that
someone visiting your household may assume that
they are dialing an emergency telephone number
when they press one of these emergency symbols.
8
NOTE: Although testing the programming of emer-
gency numbers is not a recommended procedure, if
you do make a call to an emergency number:
A. You must remain on the line and briefly explain
the reason for the call before hanging up.
B. Programming/testing of emergency numbers
should be performed in the early morning or
late evening (off-peak hours).
NOTE: You may choose to store emergency
numbers in memory locations marked with fire,
police and medical symbols. However, speed
dialing and emergency calling symbols are
provided only as a convenience. The manufacturer
does not assume responsibility for customer
reliance upon this memory feature.

One-Touch Dialing
To program numbers into memory
1. Press .
2. Enter telephone number. You will hear a click
when each button is pressed.
3. Press the memory button , or , where
the number is to be stored.
4. Hang up after the number is entered correctly.
Repeat steps 1-4 to store another number.
To dial
1. Listen for dial tone.
2. Press the one-touch memory button
( , or ,). (continued)
(Turn over for more Memory
Dialing and In Case of Difficulty)
PROG
9
RINGER PROG DIAL
OFF HILO TT DP
123
45 6
7 8 9
ABC DEF
JKL MNO
GHI
TUV WXYZ
PQRS
OPER
O
TONE
*
FLASH MEMREDIAL
#

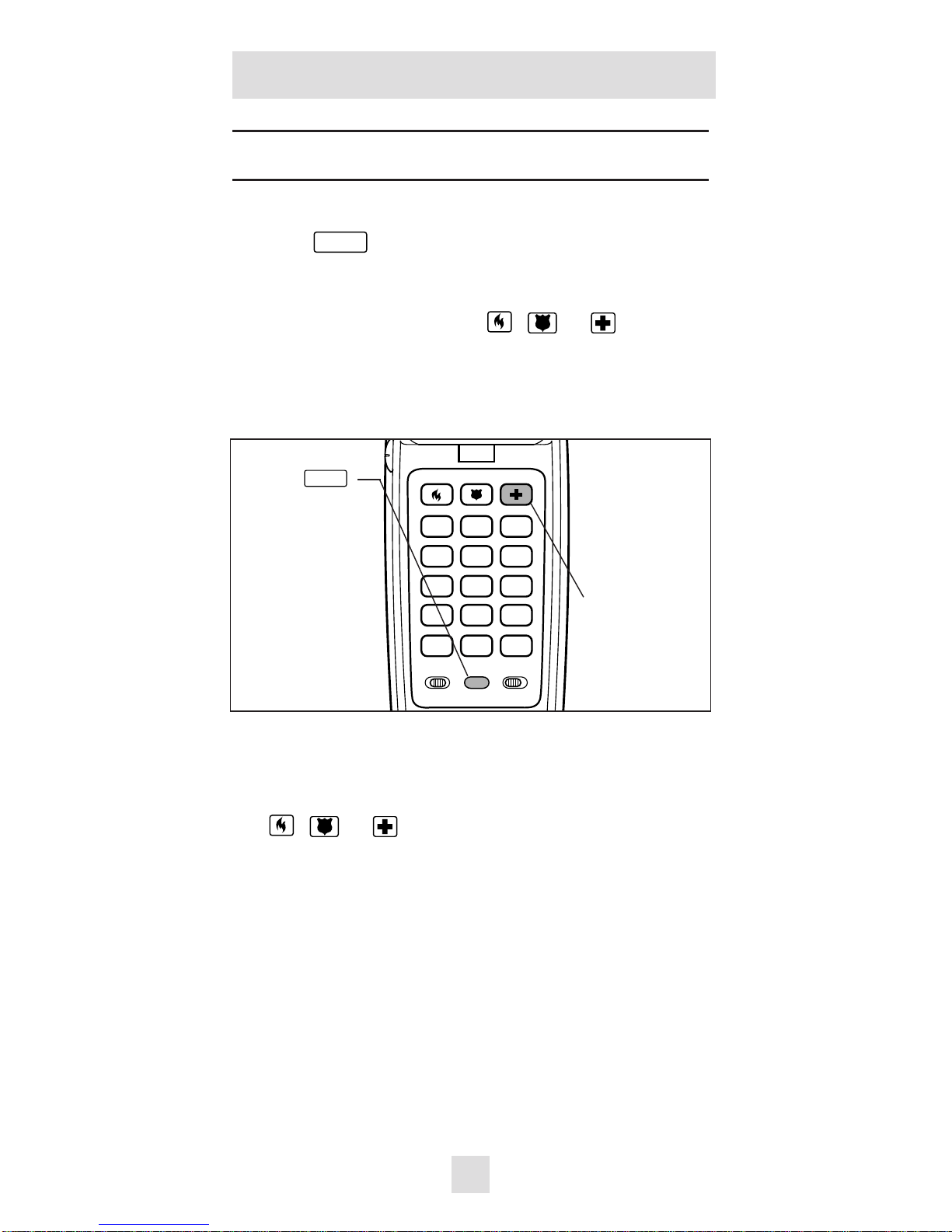

1. Press .
2. Enter telephone
number.
PROG
3. Press the
one-touch
memory
button.
